Understanding and Creating Semi-Log Graphs in Excel

A semi-log graph, frequently referred to as a semi-log plot, stands as an indispensable tool in the field of data visualization. Its unique construction is specifically designed to handle and illuminate phenomena where data points span vast differences, often involving multiple orders of magnitude. Unlike standard charts that use a linear scale on both axes, the semi-log plot employs a logarithmic scale on one axis—typically the dependent variable (Y)—while retaining a standard linear scale for the independent variable (X).

The core utility of constructing a semi-log graph emerges when the dependent variable exhibits significantly greater variability or exponential growth compared to the independent variable. When such data is plotted on a conventional linear-linear graph, the high-magnitude values dominate the visualization space. This compression renders smaller data points—which might hold crucial information about early trends or starting conditions—almost indistinguishable near the bottom of the axis, making accurate analysis impossible.

This visualization technique is critical across numerous technical and scientific disciplines. For instance, in finance, it is used to analyze long-term returns where initial investments and final portfolio values differ massively. In biology, it is essential for accurately tracking population dynamics, such as rapid exponential bacterial or viral growth. Furthermore, fields like engineering and astronomy rely on semi-log plots to manage and display data ranging from material stress tolerances to the brightness and distance measurements of celestial objects.

To ensure clarity and effective analysis when dealing with datasets exhibiting high variance, transforming the primary axis into a logarithmic format is paramount. The following guide provides a detailed, four-step methodology demonstrating precisely how to construct a functional and interpretable semi-log graph using Microsoft Excel.

Step 1: Preparing and Validating the Dataset

The foundation of any successful visualization is meticulously prepared data. Before initiating the graphing process in Excel, you must ensure your data is accurately structured and adheres to the fundamental mathematical requirements of the logarithmic transformation. A semi-log plot mandates two sets of corresponding variables: the independent variable (X), which will occupy the linear axis, and the dependent variable (Y), which will be transformed onto the logarithmic axis.

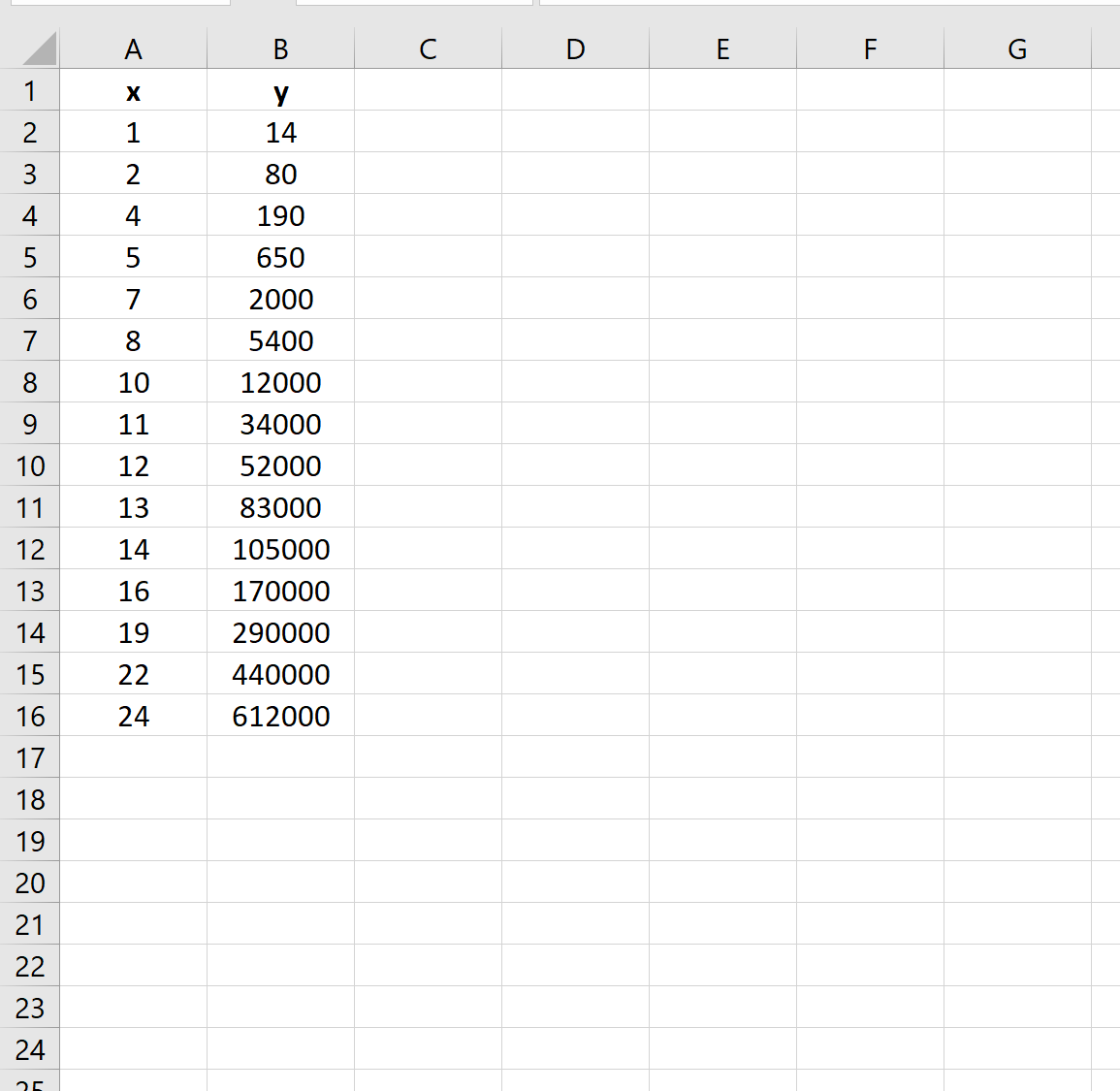

For the purpose of this demonstration, we will utilize a hypothetical dataset where the Y values demonstrate rapid and potentially exponential growth relative to the sequential X values. It is best practice to organize this data into adjacent columns within your Excel spreadsheet. Column A will contain the linear scale values (X-axis), and Column B will house the values intended for the logarithmic scale (Y-axis).

A crucial validation step involves confirming that all Y values are strictly positive. This is not merely a formatting preference but a mathematical necessity. Since the logarithm of zero or any negative number is undefined within the real number system, attempting to apply a logarithmic scale to non-positive data points will immediately result in an error message or an invalid chart configuration within Excel. Therefore, if your dataset contains zeros or negative numbers, it must be appropriately adjusted (e.g., shifting the entire dataset if context allows) before proceeding with the semi-log transformation.

Step 2: Initial Visualization – Generating the Standard Scatterplot

The construction of a semi-log graph starts indirectly by first generating a standard scatterplot. This initial visualization is essential as a diagnostic benchmark; it visually confirms the inadequacy of the standard linear representation for your data, thereby justifying the subsequent logarithmic transformation.

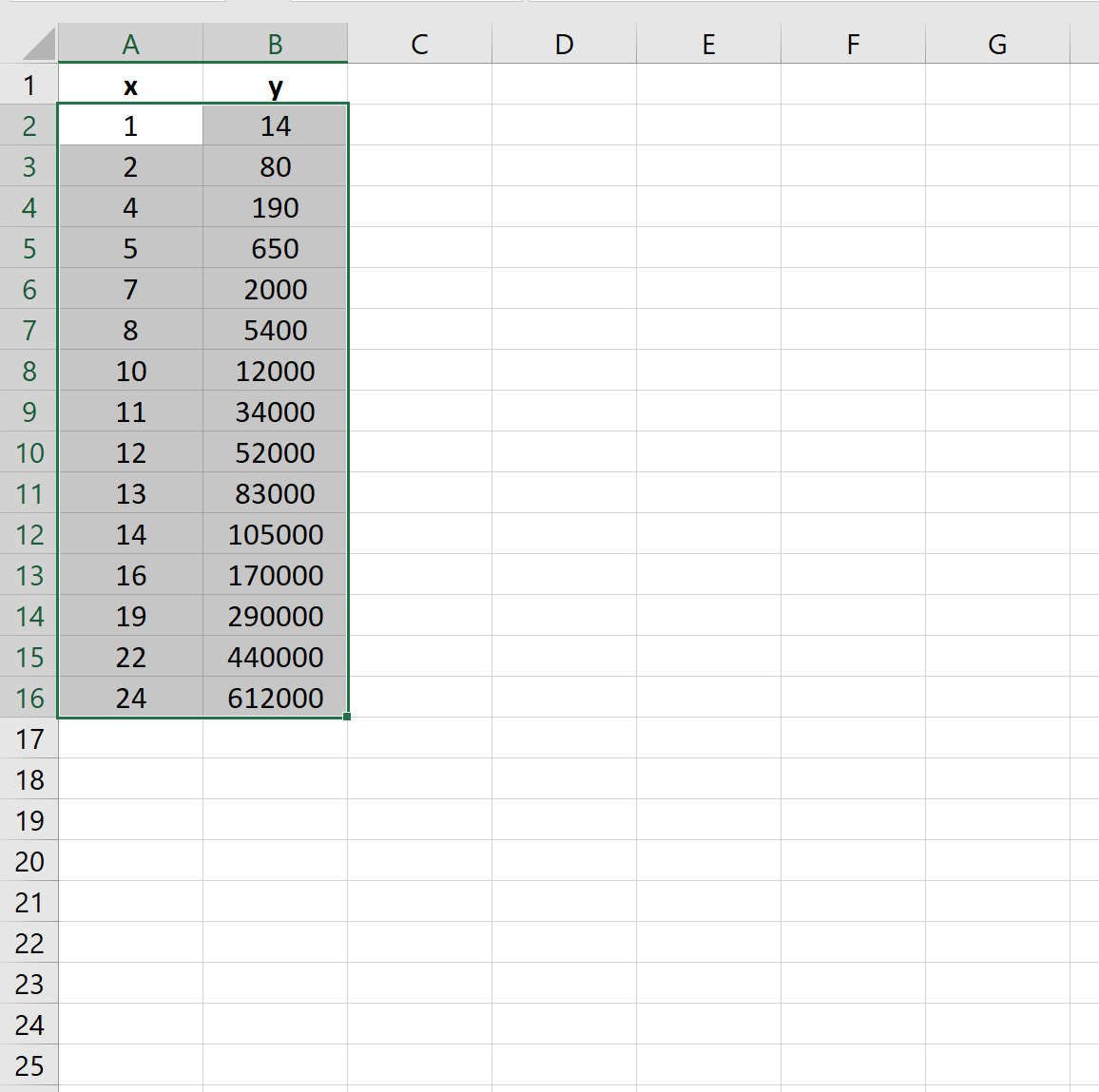

To begin, highlight the entire range of your prepared data, encompassing both the X and Y columns. This selection informs Excel precisely which data coordinates must be plotted on the resulting graph. Ensure that you include the column headers if you wish Excel to automatically assign them as series names, although for a simple scatterplot, the numerical data is the primary focus:

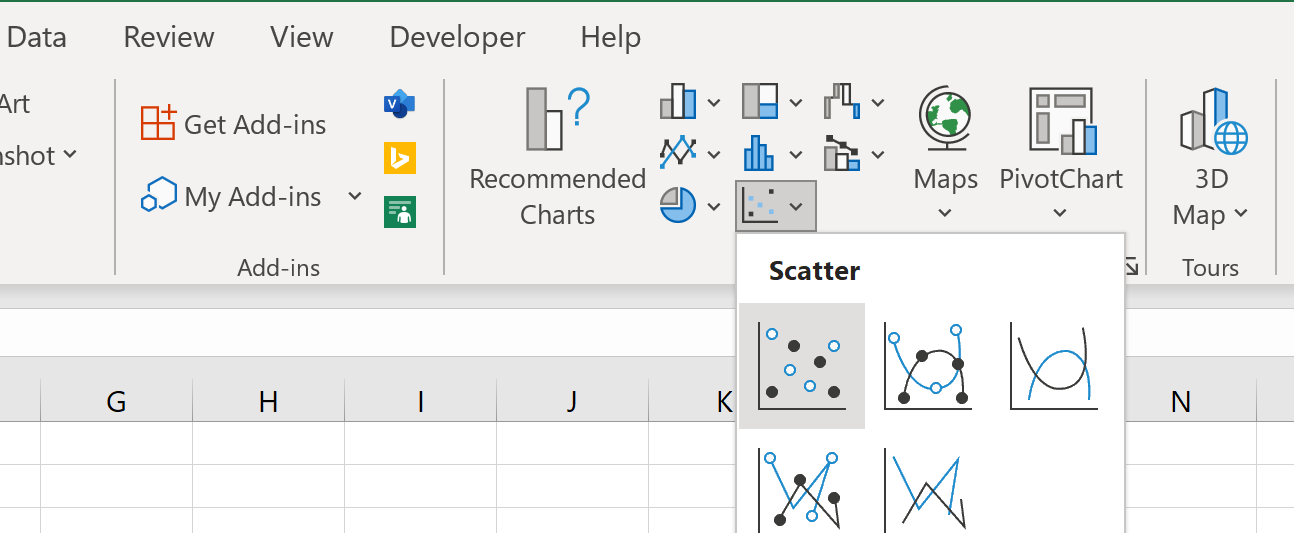

With the data range actively selected, navigate to the main Excel ribbon located at the top of the application window. Click on the Insert tab. Within the Charts group—which typically features icons for bar, line, and pie charts—locate the Scatter graph options. Select the standard option that displays individual data points without connecting lines, creating a classic scatter diagram.

Upon execution, Excel will instantly generate the initial plot based on the linear values of both the X and Y axes. Observing this initial chart immediately clarifies the challenge we are addressing. In our example, the vast majority of data points are compressed near the baseline of the Y-axis. This severe clustering occurs because the scale must accommodate the single maximum value (e.g., 20,000), forcing the smaller values (e.g., 10, 50, 100) to occupy an almost imperceptible fraction of the total vertical space. This confirms the critical need to convert the Y-axis to a logarithmic scale to effectively visualize the relationships across all data magnitudes.

Step 3: Transforming the Axis – Applying the Logarithmic Scale

The necessary transformation to achieve the required semi-log graph involves modifying the vertical axis directly on the chart generated in the previous step. This process is straightforward in Microsoft Excel and requires accessing the axis formatting controls.

To open the necessary formatting pane, double-click directly on the vertical axis (the numerical labels running along the left side of the chart). This action is context-sensitive and will automatically launch the comprehensive Format Axis pane, which appears on the right-hand side of your Excel application window. Ensure you click the numbers themselves, not the plot area or the chart title.

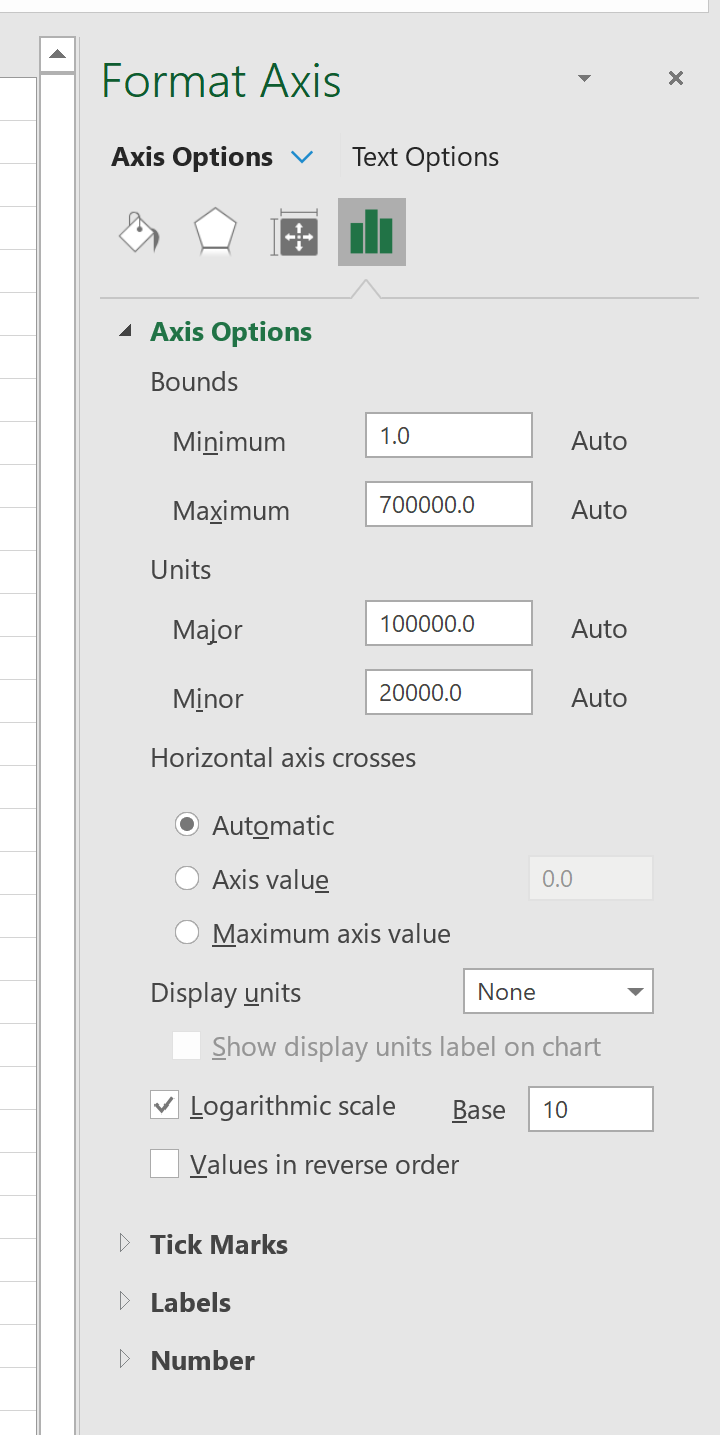

Within the detailed Format Axis settings, scroll through the options until you locate the section labeled Axis Options. Under the main display settings—which typically include bounds and units—you will find the Scale controls. This is the critical section required to switch the axis behavior from arithmetic (linear) to proportional (logarithmic).

Check the box directly associated with the option labeled Logarithmic scale. By default, Excel sets the base of the logarithm to 10. Base 10 is the standard practice in nearly all scientific, engineering, and financial visualizations, as it relates directly to orders of magnitude. While you have the option to specify a different base (e.g., Base 2 or the natural logarithm Base e), Base 10 is generally appropriate for constructing a clear semi-log plot.

Once this box is checked, Excel immediately re-renders the chart. The vertical axis is now converted to a logarithmic scale, compressing the high values and expanding the low values proportionally. Crucially, the horizontal axis retains its original linear scale, resulting in the final, fully functional semi-log graph:

Step 4: Interpreting the Semi-Log Graph for Trend Analysis

The transformation to the logarithmic scale fundamentally alters the interpretation of the vertical axis. On a linear scale, equal physical distances represent equal arithmetic differences (e.g., the distance from 10 to 20 is the same as 100 to 110). However, on a logarithmic scale, equal physical distances now represent equal proportional or percentage increases. For instance, the distance from 10 to 100 (a 10x increase) is the same as the distance from 100 to 1,000 (also a 10x increase).

This proportional scaling dramatically improves the interpretability of high-variance data compared to the initial linear plot. Because the logarithmic transformation selectively compresses the largest magnitudes and expands the visualization of the smaller values, analysts can now clearly observe trends, relationships, and rates of change across the entire dataset magnitude. This enhanced clarity is particularly vital when examining growth dynamics:

• Identifying Exponential Growth: One of the most powerful features of the semi-log plot is its ability to instantly identify exponential relationships. If the data points form a perfectly straight line on a semi-log plot, this unequivocally signifies that the underlying relationship between X and Y is exponential. The slope of this straight line corresponds directly to the constant rate of exponential growth or decay.
• Identifying Complex Dynamics: If the data points exhibit noticeable curvature on the semi-log plot, it indicates that the rate of change is not constant. This suggests a more complex, non-exponential relationship, which could include power law distributions, logistic growth, or saturation dynamics. The ability to spot this curvature quickly helps researchers select the correct mathematical model for their data.

The capability to rapidly distinguish between linear, exponential, and complex trends makes the semi-log graph an indispensable analytical tool for researchers and financial analysts who regularly deal with data spanning broad ranges of variability.
