Creating Smoother Line Charts in Excel: A Tutorial for Data Analysis

Data visualization serves as the cornerstone of effective analytical communication. When analysts are tasked with interpreting complex datasets, particularly time series data, standard line charts frequently display significant short-term volatility. This jagged appearance, often referred to as statistical “noise,” can severely obscure the underlying long-term patterns, making it challenging to extract meaningful insights about sales data or crucial operational metrics. Fortunately, powerful software like Excel provides robust and versatile tools specifically designed to transform these erratic visualizations into clear, smooth, and statistically reliable representations.

Achieving a visually appealing and analytically relevant smooth line chart in Excel can be accomplished through two fundamentally different, yet highly effective, methodologies. These approaches cater to distinct analytical requirements. The first method involves modifying the visual rendering of the original data line itself for aesthetic purposes. The second, more rigorous method, involves overlaying a statistically calculated smoothing function—most commonly known as a Trendline—onto the existing chart structure. The selection of the appropriate technique hinges entirely on whether the primary goal is pure visual enhancement or detailed statistical analysis of the data’s true movement and trajectory.

This comprehensive guide meticulously details both techniques, providing clear, step-by-step instructions and practical visual examples based on a common business scenario: analyzing monthly sales performance over a period spanning 20 consecutive months. By mastering these smoothing methods, users can ensure their final data visualizations are not only accurate in their source data but also highly communicative, enabling key stakeholders to rapidly focus on macroeconomic movements and long-term trends rather than being distracted by minor, high-frequency fluctuations.

Understanding the Rationale for Data Smoothing

Before implementing any technical smoothing procedure, it is essential to establish a clear understanding of why this process is analytically beneficial. Raw data, especially data collected at high frequencies (daily, weekly, or monthly), inherently contains short-term variations and occasional outliers. These fluctuations are often caused by unpredictable market events, seasonal shifts, short-term promotions, or even minor measurement errors. While these variations are technically accurate reflections of the raw input, they create significant visual clutter in a line chart, making it exceedingly difficult to identify the true direction or momentum of the metric being monitored. The strategic process of data smoothing acts as a filter, dampening this noise and powerfully emphasizing the underlying signal or consistent long-term trend.

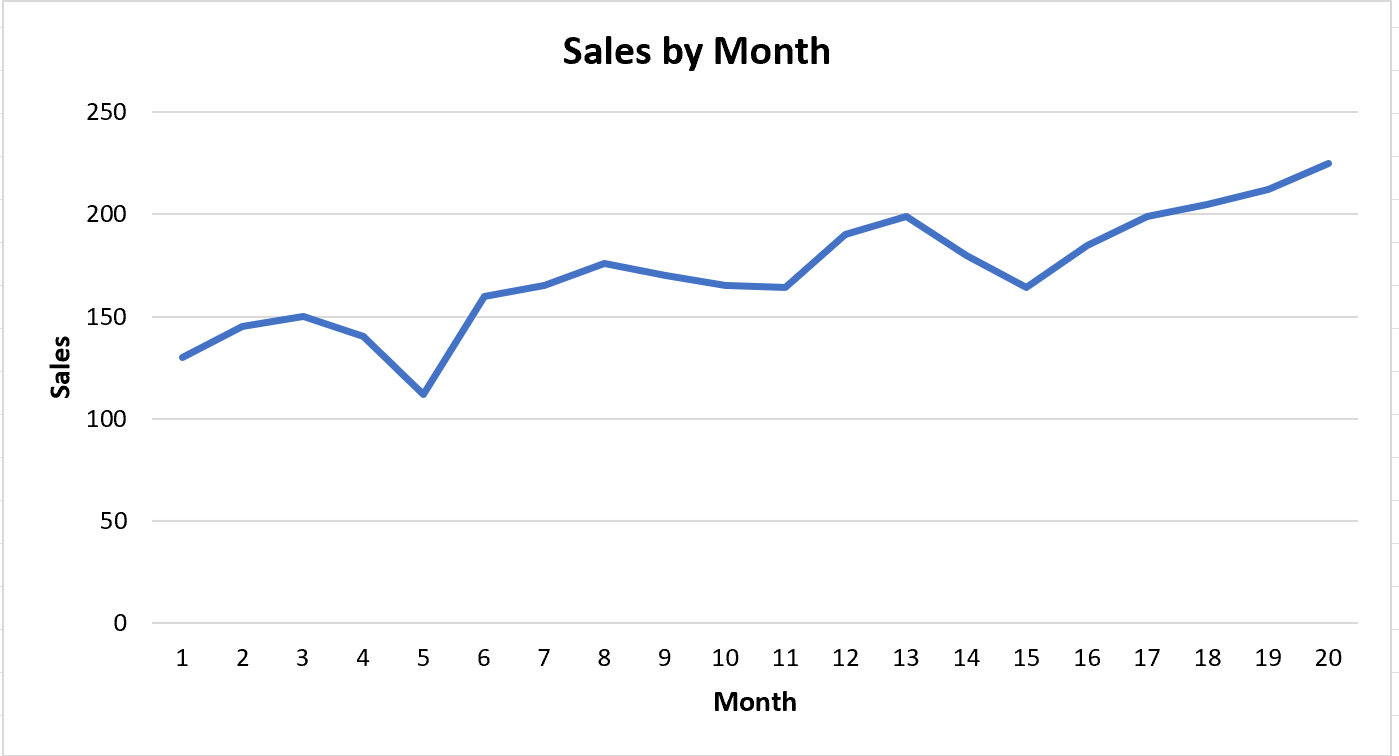

The following initial visualization, which tracks the total sales recorded by a hypothetical company over 20 consecutive months, serves as our analytical baseline. It is crucial to observe the sharp peaks and troughs that distinctly characterize this raw plot. This high degree of irregularity, although reflecting the reality of month-to-month performance volatility, substantially hinders the ability to predict future performance or summarize past success without further refinement and filtering:

Our subsequent practical examples will demonstrate precisely how to apply the two primary smoothing techniques to this exact visualization, fundamentally transforming it into a much more manageable, aesthetically pleasing, and informative graph. We will first explore the simplest method—the purely cosmetic smoothing of the original line—followed by the statistically rigorous method of adding a Moving Average trendline, which provides statistical validation to the observed trend.

Method 1: Utilizing Excel’s Built-in Cosmetic Smoothing Feature

The most direct and immediate way to achieve a smooth visual appearance for a line chart is by instructing Excel to visually interpolate the data points using a proprietary curve algorithm, specifically based on the mathematical principles of the Bézier curve. This technique connects data points with flowing curves rather than linking them with straight, angular segments. The critical distinction of this method is that it changes only the visual rendering of the line; it does not alter the underlying raw data values, nor does it perform any complex statistical calculations. It is the ideal solution when the primary objective is rapid visual improvement and presentation clarity, such as in a monthly business review where the exact statistical fit is less important than the visual flow.

The process for applying this built-in smoothing begins by directly interacting with the visual element of the chart. The user must first meticulously select the specific line they wish to modify. To access the necessary formatting options, simply double-click on the line itself within the chart area. This action immediately launches the **Format Data Series** task pane, which typically appears docked on the right side of the Excel interface. This comprehensive pane contains all styling, formatting, and design controls applicable to the selected Data Series.

Once the **Format Data Series** panel is successfully opened, the user must navigate to the “Fill & Line” section, which is universally represented by the paint bucket icon. This designated section houses all controls related to the physical appearance of the line itself, including parameters such as color, line thickness, dash type, and, most crucially, the smoothing option. Scroll thoroughly through the available options until the **Smoothed line** checkbox is clearly located. Checking this box instantly activates the interpolation algorithm, which instantaneously rounds the sharp, angular corners of your existing line chart, giving it a continuous, flowing appearance.

The sequence of necessary steps required to execute this cosmetic change is summarized concisely below:

1. Double-click the line in the chart area to open the **Format Data Series** panel.
2. Click the paint bucket icon, which represents the Fill & Line section.
3. Scroll down to the bottom of the available options in this panel.
4. Finally, check the box specifically labeled **Smoothed line**.

Visual Impact and Limitations of Built-in Smoothing

Upon successfully applying the **Smoothed line** option, the resulting visual transformation is typically immediate and quite dramatic. The previously jagged edges, which prominently highlighted extreme monthly fluctuations, are replaced by a continuous, elegant, and flowing curve. This visual enhancement significantly improves the readability of the chart and allows the viewer to quickly and effortlessly grasp the overall trajectory of the sales data. While this technique is undeniably effective for visual clarity, it is paramount to remember its fundamental nature: it is strictly a cosmetic adjustment, not a statistical analysis.

The resulting smooth curve represents a purely algorithmic approximation drawn between the plotted points. It is important to understand that this function does not calculate a statistical average, nor does it fit a regression model. Instead, it utilizes mathematical curves to draw a visually smoother path through the existing coordinates. For high-stakes statistical reporting, reliance solely on this visual smoothing method is generally discouraged, as the interpolation can occasionally misrepresent the true magnitude of change between actual data points. Nevertheless, for general presentations where aesthetic clarity and simplicity are paramount, this method is often superior due primarily to its ease of use and instantaneous results.

The smoothed output below vividly demonstrates how the jagged points are elegantly resolved, providing a clearer and less distracting indication of the upward trend observed across the entire 20-month period, effectively minimizing the visual impact of minor dips and spikes.

Method 2: Implementing a Moving Average Trendline for Statistical Clarity

For users who specifically require a statistically sound and analytically justifiable smoothing technique, adding a Trendline based on a Moving Average is the mandated methodology. Unlike the cosmetic smoothing feature, the Moving Average method performs a calculation that generates a completely new set of values. In this calculation, each point on the resultant trendline is determined by the average of the preceding ‘N’ data points. This powerful statistical process effectively dampens short-term fluctuations by incorporating historical context into the current data point, ultimately yielding a statistically relevant smooth curve that accurately summarizes the underlying pattern of the original Data Series.

To successfully initiate this statistical smoothing process, the chart must first be activated. Click anywhere within the chart boundary to ensure it is selected. Once active, a set of chart elements icons will appear prominently on the top right corner. Click the tiny green plus sign (Chart Elements). This action expands a menu containing various analysis tools, including the crucial **Trendline** option. Hover over or click **Trendline**, then proceed to select **More Options** to open the detailed configuration panel.

This sequence is necessary to ensure the user accesses the full range of trendline customization features. This allows analysts to move beyond simple linear regression, which is often the default, and apply more sophisticated smoothing functions essential for time series analysis, such as the Moving Average.

Configuring the Moving Average Trendline Parameters

The **Format Trendline** pane offers several types of trendline fitting methods, including Exponential, Linear, Logarithmic, Polynomial, Power, and the highly relevant **Moving Average**. To achieve the desired statistical smoothing effect, the user must explicitly select the **Moving Average** option. This selection immediately prompts the user to define the single most critical parameter for this technique: the number of **Periods**.

The number of **Periods** (often denoted as ‘k’ or ‘N’ in statistical literature) dictates the specific span over which the average is calculated. For instance, selecting **3 periods** means that the trendline value for month 5 is calculated as the simple average of the sales values from months 3, 4, and 5. A smaller number of periods results in a trendline that adheres closely to the original data (meaning it is less smooth and more responsive), while a significantly larger number of periods results in a much smoother line, but one that lags substantially behind the most current data. Selecting the appropriate period length is therefore a crucial analytical decision for balancing responsiveness and smoothness in your Moving Average calculation.

In the context of our running example, we opt for a 3-period moving average. This specific choice represents a balance between the need for significant noise reduction and the requirement to keep the resultant trendline relatively responsive to recent changes in the underlying sales data. After successfully setting the period value in the configuration panel, the statistical trendline is immediately calculated and plotted directly over the original line chart.

Analyzing the Smooth Trendline Output

The resulting visualization now distinctly features two separate lines: the original, jagged line representing the raw monthly sales figures, and the overlaid, smooth line representing the 3-month Moving Average. This dual display is overwhelmingly preferred by professional analysts because it grants viewers the ability to instantly compare the instantaneous performance fluctuations against the sustained, underlying long-term trend. The trendline effectively filters out the high-frequency variations, focusing attention sharply on the consistent growth or decline experienced over the period.

The reason this statistical trendline is inherently smoother than the original Data Series is mathematically defined: the process of averaging fundamentally reduces variance. By calculating the mean of the most recent three sales values for every plotted point, the disproportionate influence of any single unusually high or low sales month is significantly diminished, which leads inexorably to a much gentler and more continuous slope. This smoothing provides a clearer picture of momentum.

It is crucial to reiterate that the choice of the number of **Periods** is not arbitrary; it is a key analytical decision that must be customized. While we employed 3 periods here, a different dataset (e.g., daily stock prices) might necessitate 20 periods to capture a specific trading cycle, or an annual performance cycle analysis might require 12 periods to completely eliminate seasonality. Analysts using Excel must experiment judiciously with different period values to find the configuration that best reveals the desired long-term pattern without inadvertently over-smoothing critical structural shifts in the data.

Note: The optimal selection of the period length for the moving average calculation is frequently tied to known or suspected cycles within the data. For monthly sales, selecting 3, 4, or 6 periods generally smooths out short-term operational noise, whereas selecting 12 periods would systematically eliminate the effect of seasonality, thereby providing an exceptionally clear view of the underlying year-over-year growth trajectory.
