Create a Stacked Bar Chart in Google Sheets

The stacked bar chart is a highly effective graphical instrument utilized in modern data visualization. Unlike simple bar charts, this format uses bars segmented into components, where each segment represents a distinct category or variable. This powerful structure allows analysts to simultaneously interpret the total magnitude of a category and the proportional contribution of its constituent parts, making it indispensable for comparing compositional data across various groups.

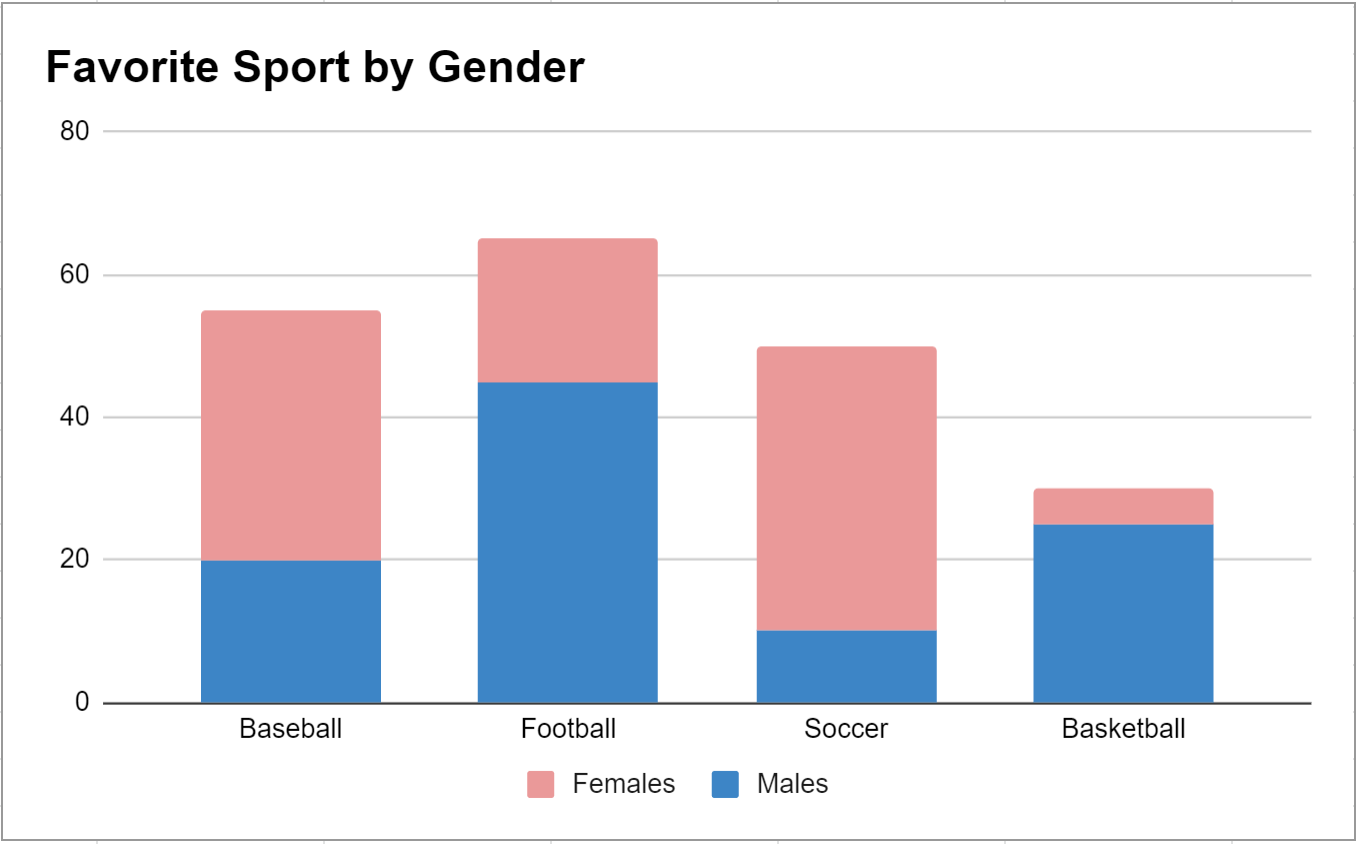

The visualization below represents the final, professionally styled stacked bar chart that we will construct within the Google Sheets environment, achieved through a precise, step-by-step methodology.

This comprehensive guide provides expert instructions on structuring your source data, initiating the chart creation sequence, and customizing the output to produce a clear and professional stacked bar chart using Google Sheets.

Why Choose a Stacked Bar Chart?

Before initiating the technical process of chart creation, it is crucial to understand the analytical benefits of the stacked bar chart, particularly when evaluating compositional data. This chart type is often preferred over alternatives, such as the basic bar chart or the clustered bar chart, because of its unique ability to display part-to-whole relationships effectively.

For example, imagine tracking quarterly revenue distribution across multiple product lines. A well-designed stacked chart immediately enables viewers to grasp the overall quarterly revenue (the total length of the bar) while simultaneously visualizing the relative contribution of each product line (the size of the segments) to that sum. This dual perspective—showing both absolute total and internal composition—is its primary analytical advantage.

Conversely, the clustered bar chart, which places individual bars side-by-side, excels at direct comparison between discrete categories (e.g., comparing male vs. female response counts directly). However, it struggles to effectively communicate the cumulative total or the precise proportional makeup of each combined group. By selecting the stacked format, the visualization explicitly commits to demonstrating both the cumulative impact and the internal composition of the data points.

Essential Data Preparation and Structure

The foundation of any successful data visualization lies in correctly structuring the source data. For creating a stacked bar chart in Google Sheets, the data must be rigorously organized in a matrix format. In this required layout, the primary categories (which will typically be mapped to the Y-axis) must occupy the first column, while the series data (the component values that form the segments of the bars) must be placed in subsequent columns.

Consider a practical scenario: A survey of 200 participants (100 males and 100 females) asked them to select their favorite sport from options including Baseball, Football, Soccer, and Basketball. To accurately visualize the distribution of preferences segmented by gender, the counts must be arranged precisely. The structure mandates that the first column (A) contains the qualitative categories (the sports), and the succeeding columns (B and C) contain the corresponding quantitative counts for each series (Male and Female).

This critical layout ensures that when Google Sheets interprets the input, it correctly identifies that the numerical values in columns B and C should be layered upon one another for every row entry defined in column A, thus creating the stacked effect.

Inserting the Chart and Accessing the Editor

Once your data is meticulously entered and verified within the sheet, the next phase involves initiating the chart creation process itself. This requires highlighting the complete data range, including all headers, and activating the platform’s dedicated chart tool.

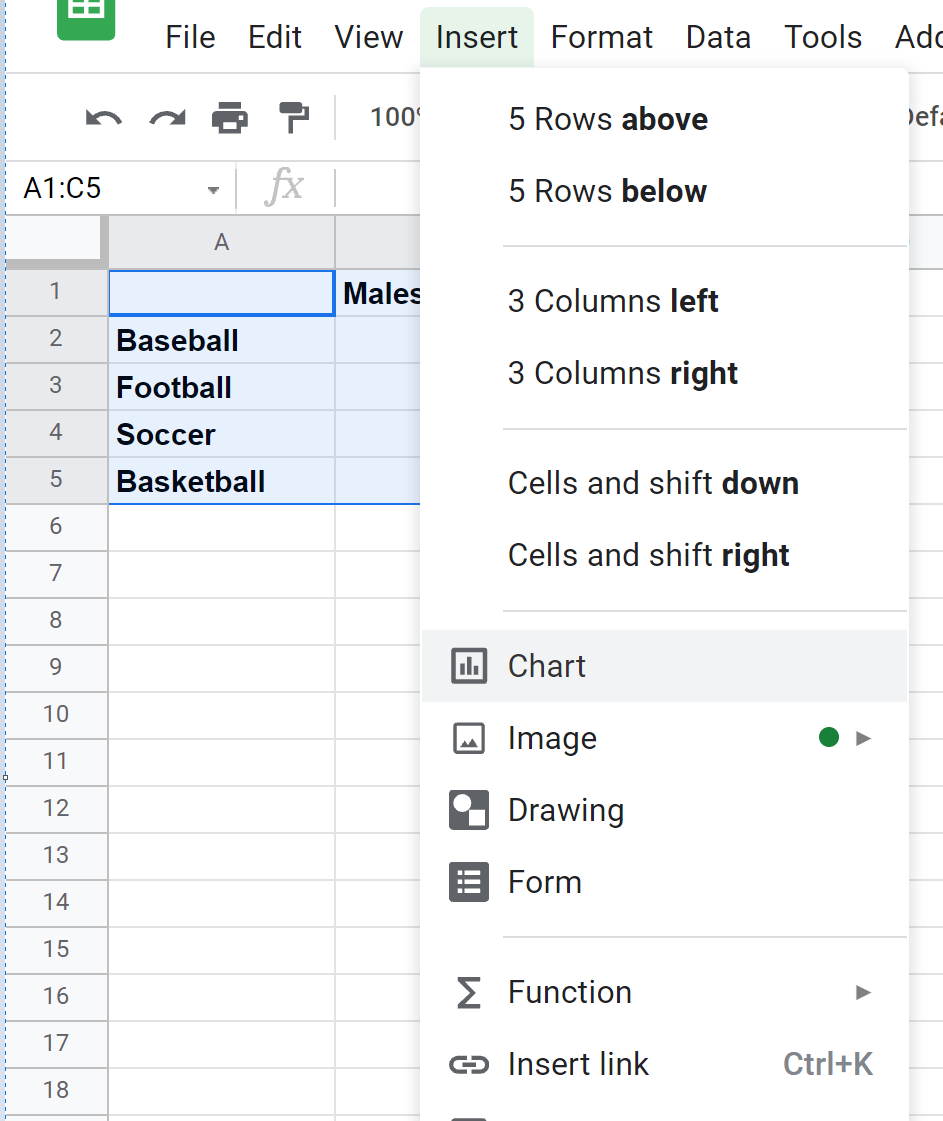

To begin, select all relevant cells—specifically, the range A1:C5 in our example—which must include the category labels, the series headers (gender), and all corresponding numerical data points. Navigate to the top menu bar and select Insert, followed by choosing the Chart option. Google Sheets will automatically open the Chart editor panel upon insertion.

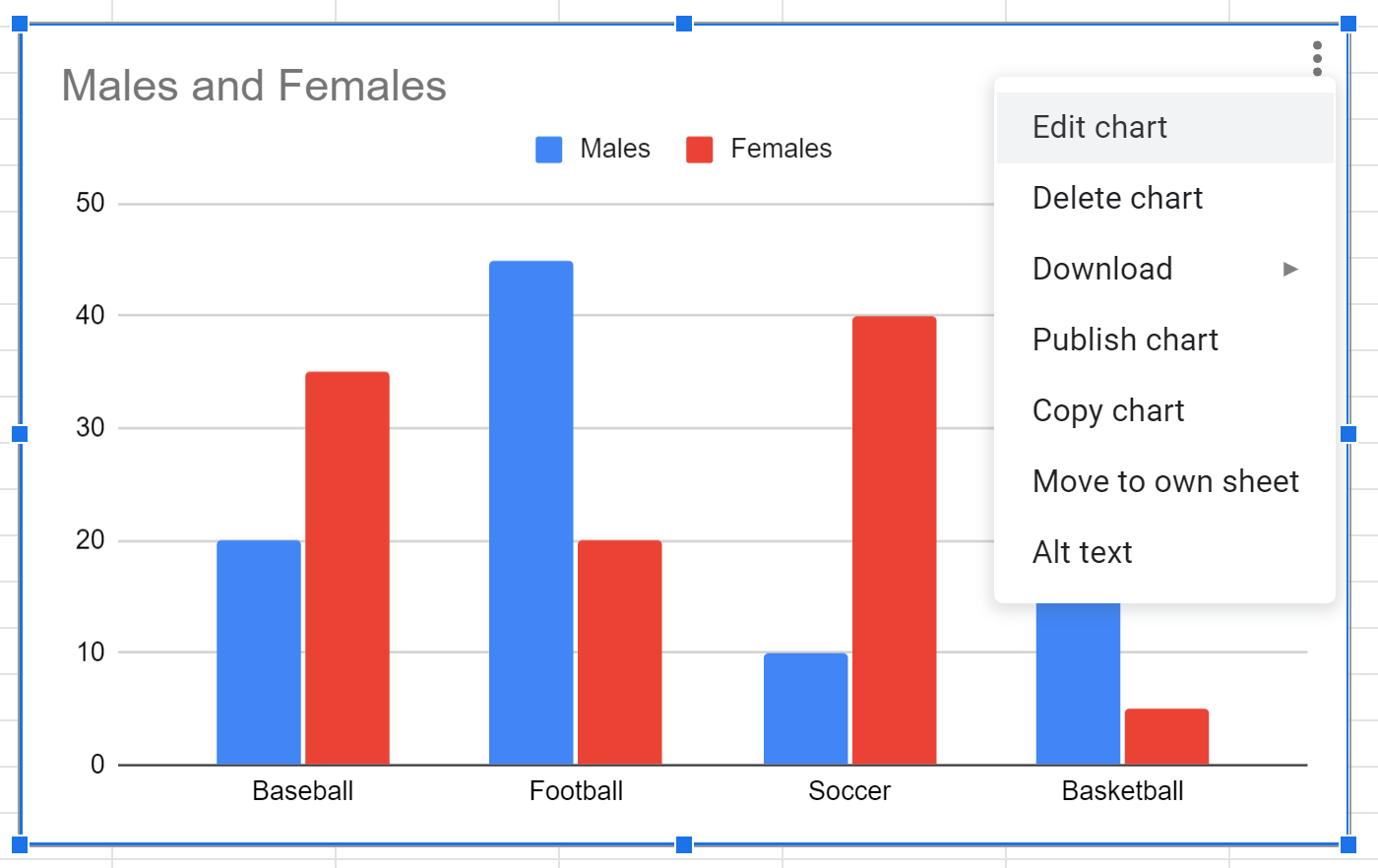

By default, Google Sheets frequently generates a standard visualization, often a simple clustered bar chart, based on the input data. While functional, this is not the stacked format we require. Therefore, we must now access the chart editing interface to adjust the chart type properties and configure the stacking behavior. To access the necessary configuration options, click anywhere on the newly generated chart. A menu icon, typically represented by three vertical dots, will appear in the top-right corner of the chart object. Click these dots and select Edit chart. This action opens the dedicated Chart editor panel on the right side of the screen.

Configuring the Chart Type: Standard Stacking

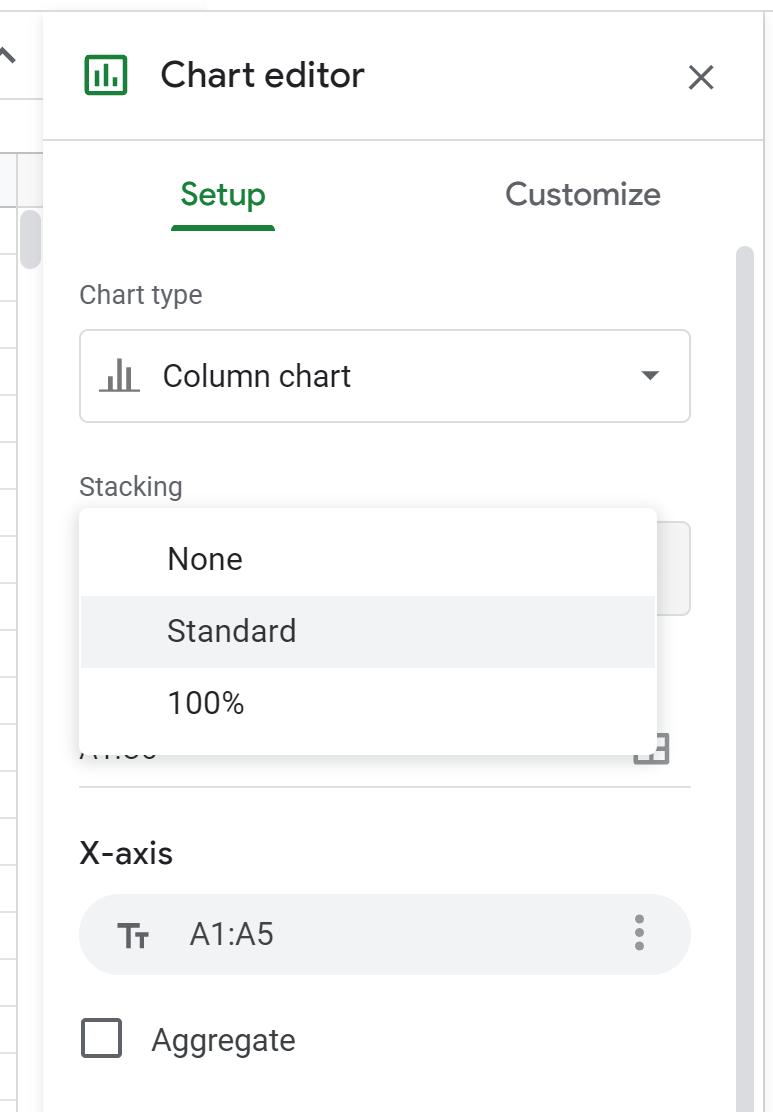

The Chart editor panel is logically divided into two primary sections: Setup and Customize. To successfully transform the default chart into a stacked visualization, ensure the Setup tab is active. Within this tab, locate the essential Stacking dropdown menu.

This menu presents critical options that govern how the numerical data series are visually compiled: None (clustered), Standard, or 100%. Since our immediate objective is to visualize the absolute counts with segmented bars, the appropriate selection is the option labeled Standard.

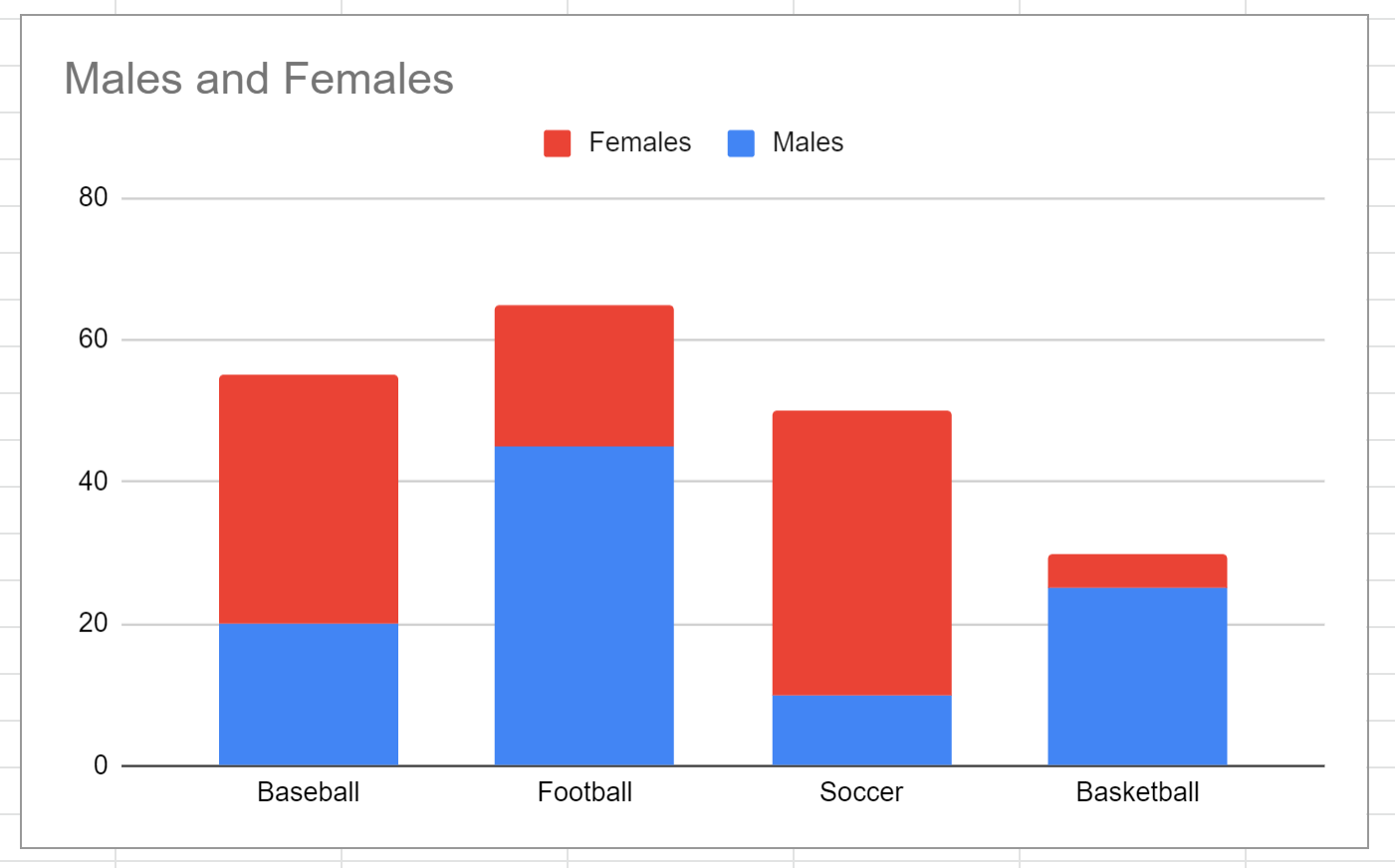

Immediately upon selecting the Standard stacking mode, the visualization will automatically reconfigure. The bars, previously displayed side-by-side (clustered), will merge to display the total count for each sport, with the male and female responses stacked vertically within that total bar. This rapid conversion yields the desired stacked bar chart format:

The Standard stacking method is exceptionally useful for clearly demonstrating the absolute distribution of values. For instance, observing the total length of the Football bar immediately reveals the overall number of people who chose Football, while the segment lengths precisely illustrate the gender-specific breakdown (e.g., confirming that more females than males selected Soccer).

Standard vs. 100% Stacking: Choosing the Right Focus

A key decision point when generating a stacked bar chart involves selecting between Standard stacking and 100% stacking. While both options produce visually similar stacked segments, they convey fundamentally different analytical insights, and the choice must align directly with your analytical goal.

The Standard option, which we utilized in the previous steps, plots the raw numerical values. In this configuration, the full length of the bar represents the absolute sum of all series data points for that specific category. This choice is optimal when the overall magnitude—the total volume or count—is the most critical focus of the analysis.

Conversely, if your primary goal is to compare the internal proportions or relative frequencies across categories, irrespective of their total size, you should instead select the 100% option in the Stacking dropdown menu. When 100% stacking is applied, every single bar is normalized to the exact same visual height, representing 100% of the responses for that category. The lengths of the segments then reflect only the percentage contribution of each individual series.

To illustrate the distinction: if 50 people selected Baseball and 100 selected Basketball, the Standard chart would show the Basketball bar as exactly twice as long. The 100% stacked chart, however, would render both bars as equal in height, thereby forcing the viewer to focus solely on the proportional split (e.g., the male-to-female ratio) within each sport, rather than the overall volume.

Enhancing Readability: Customization Best Practices

Although the functional chart is complete, professional data visualization demands thoughtful customization to maximize readability and aesthetic quality. Google Sheets provides comprehensive modification options in the Customize tab of the Chart editor, allowing precise refinement of every visual component.

Standard modifications typically include adding a clear, descriptive title (found in the Chart & axis titles section), adjusting the colors of the bars to align with corporate branding or to improve visual contrast (Series section), and fine-tuning the positioning and style of the legend (Legend section). For instance, moving the legend to the bottom of the chart often maximizes the display area dedicated to the data bars, while optimizing the color palette ensures the visualization is accessible and easy to interpret.

A powerful feature of the editor is the ability to click on individual chart elements—such as the main title, axis labels, or the data bars themselves—to access element-specific modification settings. Applying these visual improvements is what ultimately transforms a raw data plot into a compelling communication tool:

Finally, for instances where precise numerical values are crucial to the audience, consider implementing data labels directly onto the segments (available under the Series customization options). This ensures that the chart effectively communicates both the overall visual trend and the underlying statistics with absolute clarity.
