Learn to Visualize Data: A Step-by-Step Guide to Creating Stem-and-Leaf Plots in Python

The stem-and-leaf plot stands as a cornerstone visualization technique in Exploratory Data Analysis (EDA). It provides a crucial bridge between simple raw data listings and aggregated graphical summaries. Developed by the renowned statistician John Tukey in the 1980s, this innovative plot is designed to visualize quantitative data by systematically dividing every observation within a dataset into two structural elements: the stem and the leaf. Unlike a standard histogram, which groups data into bins and loses individual precision, the stem-and-leaf plot preserves the numerical integrity of every single data point, allowing analysts to maintain a complete view of the data while simultaneously observing its shape and density. This dual capability makes it exceptionally useful for smaller to moderate datasets where granular detail is paramount for accurate interpretation.

For modern data professionals, proficiency in creating and analyzing this visualization is an essential skill. While generating these plots by hand is instructive, leveraging sophisticated statistical programming languages offers unparalleled efficiency, scalability, and accuracy. This detailed tutorial focuses on automating this process. We will walk you through the precise steps required to construct a statistically correct and professionally formatted stem-and-leaf plot utilizing the robust capabilities of the Python ecosystem.

Our exploration will cover the entire workflow: from identifying the specialized Python libraries needed—specifically the powerful stemgraphic package—to preparing the data, executing the plotting script, and finally, meticulously interpreting the resulting graphic. By the end of this guide, you will be equipped to transform raw numerical observations into a highly structured visual representation, enabling you to derive meaningful insights into the underlying data distribution and structure with minimal effort.

Understanding the Components: Stem and Leaf

The elegant simplicity of the stem-and-leaf plot stems directly from its systematic data partitioning mechanism. Every numerical observation is divided into a stem and a leaf, a process that organizes the raw numbers into meaningful visual classes. The stem invariably represents the leading digit or digits of the number—often corresponding to the tens, hundreds, or even thousands place. Functioning as the central backbone of the plot, the stem defines specific data intervals, much like the bins used in a histogram. For instance, in a range of values from 30 to 65, the stems would be the digits 3, 4, 5, and 6, thereby establishing the classes 30-39, 40-49, and so forth. This foundational structure immediately clarifies where the majority of the data is concentrated, providing initial clues about the data’s overall symmetry or skewness.

The leaf, conversely, captures the residual detail, typically representing the last, or units, digit of the number. If we analyze the value 47, the stem is 4, and the leaf is 7. Crucially, all leaves corresponding to a single stem are listed horizontally, extending outward from the stem in ascending numerical order. The visual significance of the leaf row is twofold: first, the length of the row directly illustrates the frequency of data points within that specific interval; second, because the leaves are the actual raw data digits, the plot retains 100% of the original numerical information. This preservation of granularity is a key advantage of the stem-and-leaf plot over aggregated methods, ensuring that no detail is obscured through binning.

While the standard statistical convention dictates that the leaf is the final digit, the precise assignment of stem and leaf must be flexible based on the magnitude of the numbers in the dataset. When dealing with extremely large figures (such as those in the thousands or millions), data scaling, rounding, or truncation may be necessary before plotting to achieve a manageable visualization. Similarly, for data containing decimals, the stem might represent the integer portion, and the leaf the first decimal place. However, for pedagogical clarity, most introductory examples, including the one in this tutorial, utilize two-digit numbers where the tens digit serves as the stem and the units digit acts as the leaf. This simple structure provides an intuitive and straightforward visual representation of the data’s structure and spread across different levels of magnitude.

Setting Up the Python Environment for Plotting

Generating this specific visualization in Python requires moving beyond standard visualization packages like Matplotlib or Seaborn, as they do not natively support the text-based structure of a stem-and-leaf plot. Instead, we must utilize a specialized third-party library. The definitive choice for this task is stemgraphic. This library is expertly engineered to produce clean, statistically accurate, and highly readable text-based stem-and-leaf displays, adhering precisely to established conventions. The critical first step in our workflow involves preparing the environment by ensuring this powerful tool is correctly installed and accessible.

The installation process is straightforward, relying on Python’s standard package management system, pip. If you are utilizing a virtual environment—a best practice for dependency isolation—ensure it is activated before proceeding. Open your preferred command-line interface or terminal and execute the following installation command. This action initiates the download and installation of the latest stable version of stemgraphic and all necessary dependencies from the Python Package Index (PyPI).

pip install stemgraphic

Once the installation is confirmed, the stemgraphic library is immediately ready for use. Leveraging a dedicated library dramatically simplifies the entire process; it eliminates the need for manual data sorting, complex string formatting, or the development of custom plotting functions. This efficiency allows data scientists to focus purely on analysis and interpretation rather than implementation. With the environment successfully configured, we can transition to defining our sample data and executing the core plotting command, transforming raw numerical values into a reliable statistical graphic.

Practical Example: Defining the Dataset

To concretely demonstrate the plotting process, we will utilize a small, representative dataset consisting of thirteen integer observations. This data could represent various real-world metrics, such as student test scores, hourly production rates, or temperature measurements. The primary requirement for this type of plot is that the data must be quantitative and suitable for partitioning by magnitude. We will initialize this collection of values as a standard Python list, preparing it for input into the stem_graphic function. The intentionally modest size of this dataset ensures that we can easily verify the accuracy of the resulting plot against the original numbers.

Our sample data ranges from the low thirties (32) up to the low sixties (62), providing sufficient numerical spread to clearly illustrate the assignment of stems and leaves across multiple decades. It is important to note the presence of repeated observations, such as the value 52 occurring twice. A crucial feature of the stem-and-leaf plot is its requirement to account for every single data point; thus, both occurrences of 52 must be represented by distinct leaves on the corresponding stem. Defining this input structure correctly is the foundational step before any statistical visualization can be generated.

We assign the data array to the variable x, which will be passed directly to the plotting function in the next stage of the tutorial:

x = [32, 34, 35, 41, 44, 46, 47, 52, 52, 53, 56, 61, 62]

This specific array structure is ideal for our demonstration. Here, the stems will naturally correspond to the tens digits (3, 4, 5, 6), and the leaves will be the units digits (0-9). This clear, one-to-one mapping simplifies the visual interpretation of the data’s inherent shape, making the identification of central tendencies, spread, or potential outliers significantly more intuitive than reviewing the raw list alone.

Executing the Plotting Code in Python

With the stemgraphic library successfully installed and our data array x defined, the process of generating the visualization is remarkably simple. The core functionality is encapsulated within the stem_graphic function. This function is designed to handle all complex preparatory steps automatically—including sorting the raw values, correctly identifying the stems, and partitioning the leaves—all according to established statistical best practices. As is standard practice when utilizing any external module in Python, we must first include an import statement to make the library’s functions accessible within our script.

The following concise code block demonstrates the entire plotting operation. We first import stemgraphic, and then we call the stem_graphic function, supplying our data variable x as the sole required argument. Note that the function returns two standard Matplotlib-style objects, fig (figure) and ax (axes). While these objects are instrumental for customizing the plot or integrating it into complex visual layouts, their primary role here is facilitating the display of the graphic in environments like Jupyter notebooks or interactive terminals.

import stemgraphic

#create stem-and-leaf plot
fig, ax = stemgraphic.stem_graphic(x)

Executing this simple command instantly transforms the unstructured list of numbers into a clean, structured visual representation. The immediate output, whether rendered to the console or displayed as an image, clearly illustrates the frequency and distribution characteristics of the input values. The power of the stemgraphic library lies in its ability to abstract away significant data manipulation complexity, yielding a polished and readily interpretable statistical result with minimal code overhead.

Visualizing and Interpreting the Generated Plot

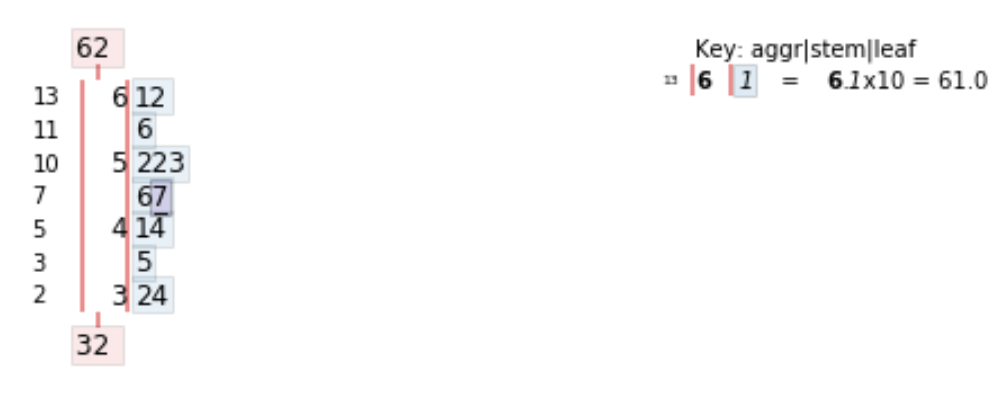

Upon successful execution of the Python script, the output delivers a comprehensive statistical overview of the dataset. This graphic is typically structured into three columns and includes crucial summary statistics, allowing for rapid assessment of the minimum, maximum, total count, and the overall shape of the data distribution. The image below is the direct result of processing our sample data using the stemgraphic library:

Effective interpretation of this visualization requires a clear understanding of the function of each column and the associated boundary notes. The plot efficiently communicates several critical features about the data’s central tendency and variability.

• Minimum Value: The number indicated at the bottom of the plot, derived from the lowest stem (3) and its smallest leaf (2), confirms the dataset’s absolute minimum value is 32.
• Maximum Value: Conversely, the value at the top of the plot, combining the highest stem (6) and its largest leaf (2), establishes the absolute maximum value recorded in the data as 62.
• Frequency Count (Left Column): This column provides the aggregated count of observations falling within each stem’s range, essentially acting as a frequency tally. For example, the first row (stem 3) has a count of 3 values (32, 34, 35); stem 4 holds 4 values (41, 44, 46, 47); stem 5 holds 4 values (52, 52, 53, 56); and the final stem 6 holds 2 values (61, 62).
• Stems (Middle Column): These digits (3, 4, 5, and 6) represent the tens place of the observations. They serve as the classifying bins that define the magnitude levels across the distribution.
• Leaves (Right Column): These are the sorted unit digits of the raw data points corresponding to their respective stems. For instance, the leaves 1, 4, 6, and 7 associated with stem 4 reconstruct the original values 41, 44, 46, and 47.

By visually assessing the length and shape formed by the leaves, we gain immediate insights into the data’s overall shape. In this specific output, the rows for stems 4 and 5 are the longest, clearly indicating that the data is heavily concentrated within the 40s and 50s. This pattern suggests a distribution that is either roughly symmetrical or potentially bimodal, centered around the dataset’s mid-range. This level of granularity far surpasses what a simple frequency table or even an aggregated histogram can provide.

Conclusion and Further Exploration

The successful generation of a statistically sound stem-and-leaf plot using Python, specifically leveraging the specialized capabilities of the stemgraphic library, proves to be an invaluable technique for rapid and reliable Exploratory Data Analysis (EDA). This visualization method uniquely merges the benefits of numerical data retention with graphical frequency analysis, offering a holistic perspective on the data’s shape and characteristics. By systematically retaining the raw digits (the leaves) while organizing them by magnitude (the stems), analysts are empowered to quickly identify key structural features—such as central tendencies, data spread, and the presence of outliers—without reliance solely on numerical statistical summaries.

The minimal code required to produce such a rich, informative plot strongly highlights the efficiency and power offered by specialized Python packages in the realm of statistical computing. Whether your goal is to validate underlying assumptions about data symmetry, conduct preliminary error checks, or simply provide a clear, detailed visual summary to stakeholders, the stem-and-leaf plot remains an exceptionally effective tool in any data scientist’s toolkit. We highly recommend expanding this practical exercise by experimenting with diverse datasets, including those that involve decimal points or larger numerical magnitudes, to fully appreciate the adaptability and robustness of the stemgraphic library in various analytical scenarios.
