Creating 3D Tables in Excel for Multi-Variable Data Visualization

In the realm of advanced data analysis, analysts frequently encounter the challenge of visualizing intricate relationships involving three or more variables simultaneously. While standard charts and tables in Microsoft Excel are inherently restricted to two dimensions, this comprehensive guide introduces an innovative and powerful technique: constructing a visually compelling three-dimensional table. This method allows for the elegant display of data derived from three distinct sources or variables within a single, unified presentation, thereby providing immediate and profound insights into complex, multi-layered datasets.

A prime example of this utility lies in visualizing organizational performance metrics. Consider the requirement to display sales values that are dependent on three interacting categorical factors: Store Location, Fiscal Year, and Product Category. The resulting 3D visualization transcends the inherent limitations of flat spreadsheets, delivering a consolidated perspective where the intersections of all these crucial elements are immediately apparent, as effectively demonstrated in the final example provided below:

Executing this sophisticated visual layout hinges upon leveraging a unique, often overlooked feature within Excel—the Camera tool—combined with specialized picture formatting options. The subsequent sections offer a definitive, step-by-step guide on how to transform standard two-dimensional data inputs into an engaging and dynamic 3D visualization suitable for professional reports and dashboards.

Introduction to 3D Data Visualization Concepts

The effectiveness of decision-making is often directly correlated with the clarity of data presentation. When working with datasets involving three or more categorical variables, traditional tabular formats quickly become overwhelming, making rapid interpretation difficult. The concept of a three-dimensional table, in this context, does not refer to a complex data cube structure but rather a dynamic visual representation. It utilizes perspective and specialized formatting to spatially arrange standard 2D data tables, thereby creating a powerful illusion of depth and interconnection. This technique is invaluable for reports or executive dashboards where both space efficiency and visual impact are paramount goals.

Unlike methods that rely heavily on pivot tables, complex formulas, or external add-ins, this specific approach focuses exclusively on the aesthetic and positional presentation of existing, well-structured data. We exploit Excel’s capacity to capture snapshots of designated cell ranges and subsequently treat these captures as dynamic images. These floating tables are intrinsically linked to the original source data, ensuring that any modifications or updates made to the source tables are instantly and automatically reflected in the final 3D visualization. This inherent dynamic linkage guarantees accuracy while significantly reducing the maintenance effort required for regularly updated reports.

Before initiating the visualization process, it is absolutely critical to ensure that the source data is meticulously organized, clearly labeled, and structured for visualization. The overall success and clarity of the final three-dimensional table depend entirely upon the quality and structure of the initial input tables. We will begin by structuring the necessary components required for our primary example, which tracks sales data across three dimensions: stores, time, and products.

Structuring Multi-Variable Source Data

The foundational step for this technique requires accurately entering and structuring the source data that will feed the final presentation. For our sales performance example, we must create three separate, distinct tables, each representing a unique intersection of the core variables. While this initial data entry may appear redundant, this structure is necessary to isolate the specific data components that will eventually form the three visible, perpendicular planes of the final 3D object.

Begin by inputting your sales values into separate, isolated areas of your spreadsheet, ensuring that comprehensive row and column headers are included. For instance, your first table might detail sales by product for Store A, the second might show yearly totals for Store B, and the third could summarize a different variable entirely. The fundamental principle here is **physical separation**: dedicate specific, non-overlapping cell ranges for each of the three required input tables.

In this specific demonstration, we have populated the initial sheet with sales figures corresponding to three distinct scenarios, systematically preparing them for capture by the visualization utility introduced in the next step. Please review the example structure below and confirm that your underlying data is similarly entered and clearly demarcated before proceeding to the crucial step of activating the Camera tool:

Enabling the Hidden Camera Tool Feature

The Camera tool serves as the absolute cornerstone of this sophisticated visualization technique. Surprisingly, this highly effective utility is intentionally hidden and is not displayed by default on the standard Excel Ribbon menu. It must be manually retrieved and added to the Quick Access Toolbar (QAT). The Camera tool provides the essential functionality to select a range of cells and instantly generate a linked picture of that range, which is the foundational element we must manipulate in three-dimensional space.

To enable this function, begin by navigating to the customization options for the QAT. Click the small dropdown arrow typically located either above the Ribbon or to the far left of the application title bar, and select the option labeled More Commands. This action will immediately launch the comprehensive Excel Options dialog box, which facilitates deep customization of the application interface and available tools.

Within the Excel Options window, verify that Quick Access Toolbar is selected in the left side menu. From the “Choose commands from” dropdown menu, select Commands Not in the Ribbon. This choice reveals a complete list of specialized, hidden, or non-default tools. Scroll meticulously through this expanded list until you locate the Camera command. Select this command, and then click Add to transfer it into your custom list of QAT tools.

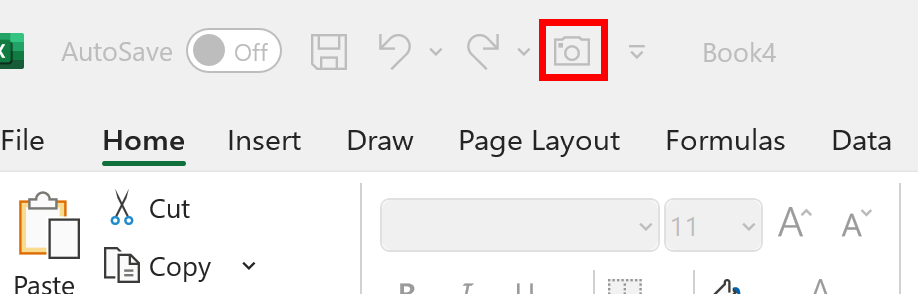

This detailed customization step ensures that the crucial visualization tool is permanently available for immediate use. Upon clicking OK, you will observe a small camera icon successfully placed on your Quick Access Toolbar, confirming you are now ready to capture the source data tables:

The appearance of the tiny camera icon confirms the successful activation of this hidden feature, which is absolutely indispensable for creating the dynamic visualizations required to construct a functional three-dimensional table presentation:

Capturing Data: Generating Dynamic Linked Images

With the Camera tool now readily accessible, the next phase involves capturing the three source tables and converting them into individually manipulable images. This procedure must be performed sequentially for each distinct table that will constitute a plane of the final 3D structure. It is vital to remember that these “floating tables” are dynamic linked pictures, not static images, meaning they will continuously display real-time updates whenever their source cells change.

The exact procedure for capturing the first table is straightforward: First, meticulously highlight the entire cell ranges of your initial source table (e.g., A1:D5). Once the range is highlighted, click the dedicated Camera icon located on the Quick Access Toolbar. Your mouse cursor will instantly transform into a large crosshair, signifying that Excel is prepared to place the captured image. Click on a blank area in your spreadsheet—for instance, starting at cell F2—where you intend the floating picture of the table to appear.

Repeat this identical process for the remaining two source tables, ensuring they are placed in close proximity to the first but without any overlap, as they will soon be repositioned and rotated. Specifically, highlight the second range (e.g., A8:D11), click the Camera icon, and insert the image starting at cell F8. Subsequently, highlight the third range (e.g., B14:D18), click the Camera icon again, and insert the final image starting at cell F13. This results in three distinct, dynamic pictures of your data, perfectly prepared for complex 3D manipulation.

Implementing Perspective: 3D Rotation and Alignment

This stage represents the pivotal step where the visual magic of the three-dimensional table visualization is achieved. We must apply specific, calculated rotational effects to each floating table to simulate the necessary perspective, allowing them to interlock seamlessly into a 3D corner or cube shape. Select the first floating table (the image placed at F2) and quickly access the formatting options. The most efficient method is pressing Ctrl + 1, which immediately launches the detailed Format Picture panel on the right side of the Excel window.

Within the Format Picture panel, locate and click the ‘Effects’ icon (which is typically represented by a pentagon or a small shadow icon). Expand the 3-D Rotation dropdown section. Under the Presets option, you will find various standard rotational views optimized for perspective. For the first table, which conventionally serves as the left wall of the structure, select the Isometric: Left Down preset. This choice instantly repositions the table, giving it the appearance of receding inward and downward.

The strategic use of Isometric presets is absolutely crucial because they are designed to maintain parallel lines, which is essential for creating the illusion of a realistic 3D object without undesirable visual distortion. Once the rotation is applied, the table will adopt the precise perspective required for assembly:

Repeat this formatting process for the remaining two floating tables, selecting distinct isometric presets to ensure they align correctly in space. For the second table (designed as the base floor), choose Isometric: Bottom Down. For the third table (the right wall), select Isometric: Right Up. After applying these distinct 3-D Rotation settings, your three tables will appear individually rotated, ready for careful final assembly.

Conclusion and Next Steps for Advanced Reporting

The final stage in producing the consolidated three-dimensional table involves the precise manipulation and alignment of the three rotated image components. Carefully drag and position each floating table until their respective corners meet, forming a seamless, three-sided structure that convincingly appears to recede into the page. This step often demands patience and minor fractional adjustments to achieve perfect alignment, ultimately resulting in a polished, professional visualization.

It is critical to note that the physical dimensions of the floating tables (the image sizes) must be carefully adjusted before the rotation step if the source tables have varying numbers of rows or columns. If the tables are not sized appropriately beforehand, achieving a perfect fit after the 3-D Rotation is applied can prove challenging. Use the sizing handles on the corners of the images to adjust width and height until they visually match the projected edges of the other components.

Once aligned, the resulting structure is a truly dynamic visualization asset. Since these images are linked pictures generated by the Camera tool, any subsequent formatting applied to the original source data will automatically cascade and update in the final 3D presentation. For example, if you apply conditional formatting, specific color fills, or detailed border styles to the primary cell ranges (A1:D5, A8:D11, B14:D18), those aesthetic and informational changes will be instantly reflected in your assembled 3D visual, allowing for continuous refinement and branding consistency.

The final visualization, which expertly combines structure, real-time data, and dynamic formatting, provides a clear, powerful, and highly engaging view of multi-variable data, significantly exceeding the standard visualization capabilities of a typical Microsoft Excel sheet.

Further Resources for Excel Mastery

Mastering the Microsoft Excel environment often involves discovering and utilizing lesser-known tools, and combining them in innovative ways, as perfectly demonstrated by the use of the Camera feature for 3D visualization. If you found this dynamic technique valuable, we highly recommend exploring other tutorials that delve into common operations and advanced features designed to enhance your overall reporting and data management capabilities.

We strongly advise focusing on related topics that help streamline data preparation and presentation. This includes mastering advanced conditional formatting, implementing dynamic naming of ranges, and effectively using array formulas for complex data aggregation tasks. These critical skills act as powerful complements to the visual presentation techniques outlined here, ensuring that both the underlying data structure and the outward presentation of your reports are robust, accurate, and professional.

The following list provides areas for further exploration to achieve professional proficiency in data analysis within Excel:

• Utilizing Power Query for efficient data cleaning and comprehensive transformation.
• Creating fully dynamic dashboards using tools like Slicers and Timelines.
• Implementing advanced lookup functions (such as INDEX, MATCH, and XLOOKUP) for sophisticated data retrieval.
