Excel Timeline Tutorial: Step-by-Step Guide to Visualizing Data

Creating a visually compelling representation of project milestones or historical events is crucial for effective communication and project management. Fortunately, constructing a sophisticated timeline visualization within Excel is a straightforward process, achievable through the clever modification of a standard bar chart. This comprehensive, step-by-step tutorial will guide even novice users through the necessary steps to transform raw data into a clear, professional-looking visual display suitable for reports and presentations.

This guide focuses on generating a specific type of timeline, often referred to as a floating timeline, which clearly marks crucial event dates along a central horizontal axis. This structure significantly enhances readability, especially for complex projects with numerous staggered events. We will walk through the entire transformation process, starting from initial data entry to the final aesthetic polish, enabling you to create the visualization displayed below.

Let us now begin the technical process, focusing first on structuring our source data correctly—the most critical foundation for this unique data visualization method.

Step 1: Structuring Your Source Data for Timeline Integration

The foundation of any successful visualization in Excel is correctly structured raw data. For this advanced timeline method, we require three specific columns that serve distinct purposes in the chart generation process. The first column holds the Task Name (or event description), which will later become our descriptive labels. The second column is the Start Date, which dictates the event’s precise position along the horizontal, time-based axis.

The crucial third component is a column we define as “Height for Task.” This column is essential because its values dictate the vertical placement of the task label and its corresponding marker relative to the central timeline axis (the x-axis). By strategically alternating between positive and negative values in this column (e.g., 3 and -3), we ensure that the event labels appear both above and below the central line. This alternation is a powerful technique for significantly improving the chart’s readability and preventing the visual clutter that occurs when many events overlap.

We will input the following sample data directly into our Excel worksheet, beginning in cell A1. Note carefully how the values in Column C alternate consistently between 3 and -3; these arbitrary numerical values establish the necessary vertical separation for our visual markers. Ensure your data is organized precisely as shown, including the descriptive headers, as the subsequent charting steps rely heavily on the specific arrangement of the Task Name and Start Date columns being adjacent.

Step 2: Initiating the Timeline Framework with a Clustered Column Chart

Despite our objective being a timeline, the most versatile and effective starting point in Excel for this conversion is the Clustered Column chart. This standard chart type provides the underlying structure we need before we manipulate its elements. Begin by carefully selecting the primary data range that includes only the task names and start dates—specifically, the cell range from A2 through B11. This selection informs Excel which data points should form the foundation of the initial visual structure.

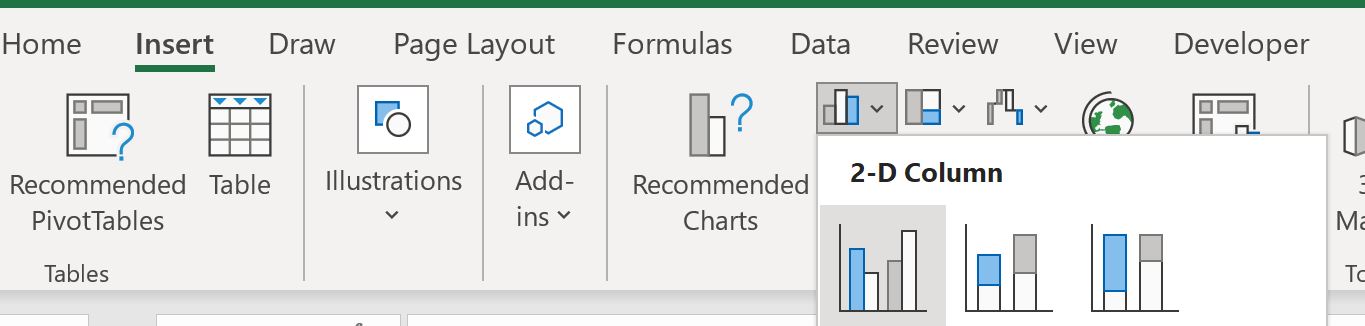

Once the data is highlighted, navigate to the Insert tab located on the top ribbon interface. Within the Charts section, locate and click the icon representing the Clustered Column chart type. Executing this command will immediately generate a rudimentary bar chart.

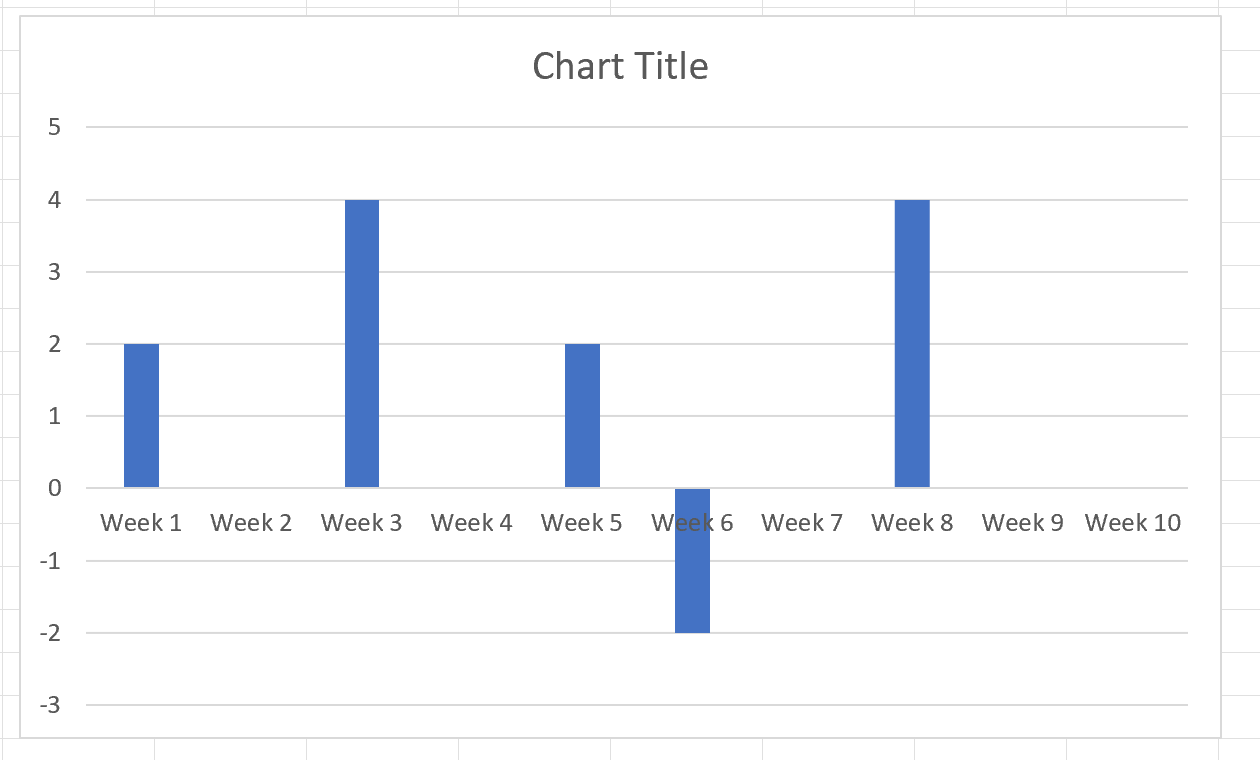

At this initial stage, the chart will display vertical bars representing the magnitude of the dates, which is clearly not yet reflective of a true timeline structure. This visualization serves merely as a temporary framework. Our subsequent critical steps will involve stripping away these unnecessary visual elements and adding the crucial components—the task labels and the vertical markers—to seamlessly achieve the desired timeline effect.

Step 3: Replacing Numerical Data Points with Descriptive Task Labels

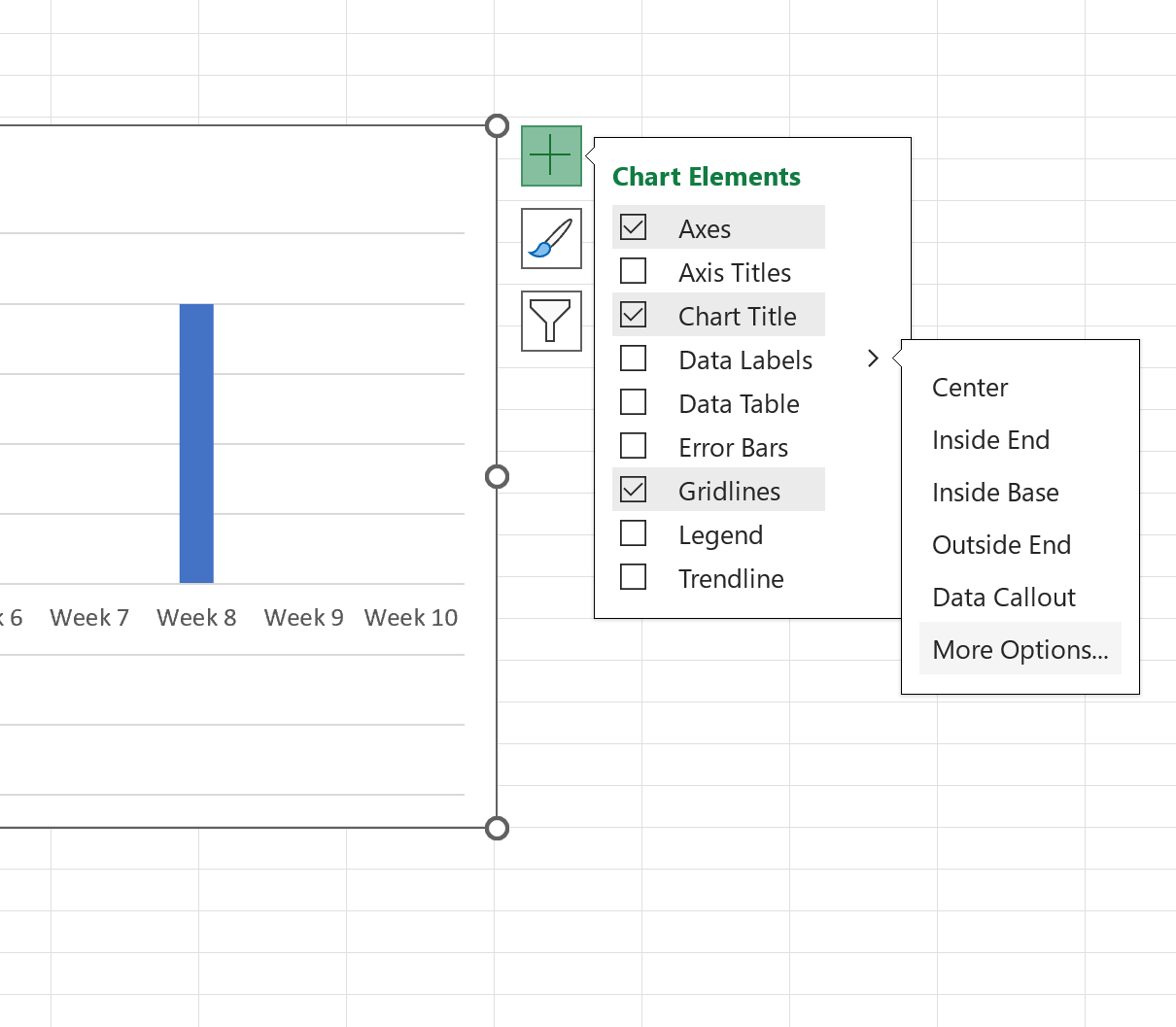

A functional timeline requires clear identification of its associated events. Our next objective is critical: we must replace the automatic numerical labels (which currently show the date value) with the descriptive task names sourced from Column A. To initiate this modification, click the green plus sign (+) located in the top right corner of the newly created chart.

From the list of chart elements that appears, hover over the Data Labels option, and then select More Options. This action will open the comprehensive “Format Data Labels” panel on the right side of your screen, granting precise control over the label content and appearance of the selected data series.

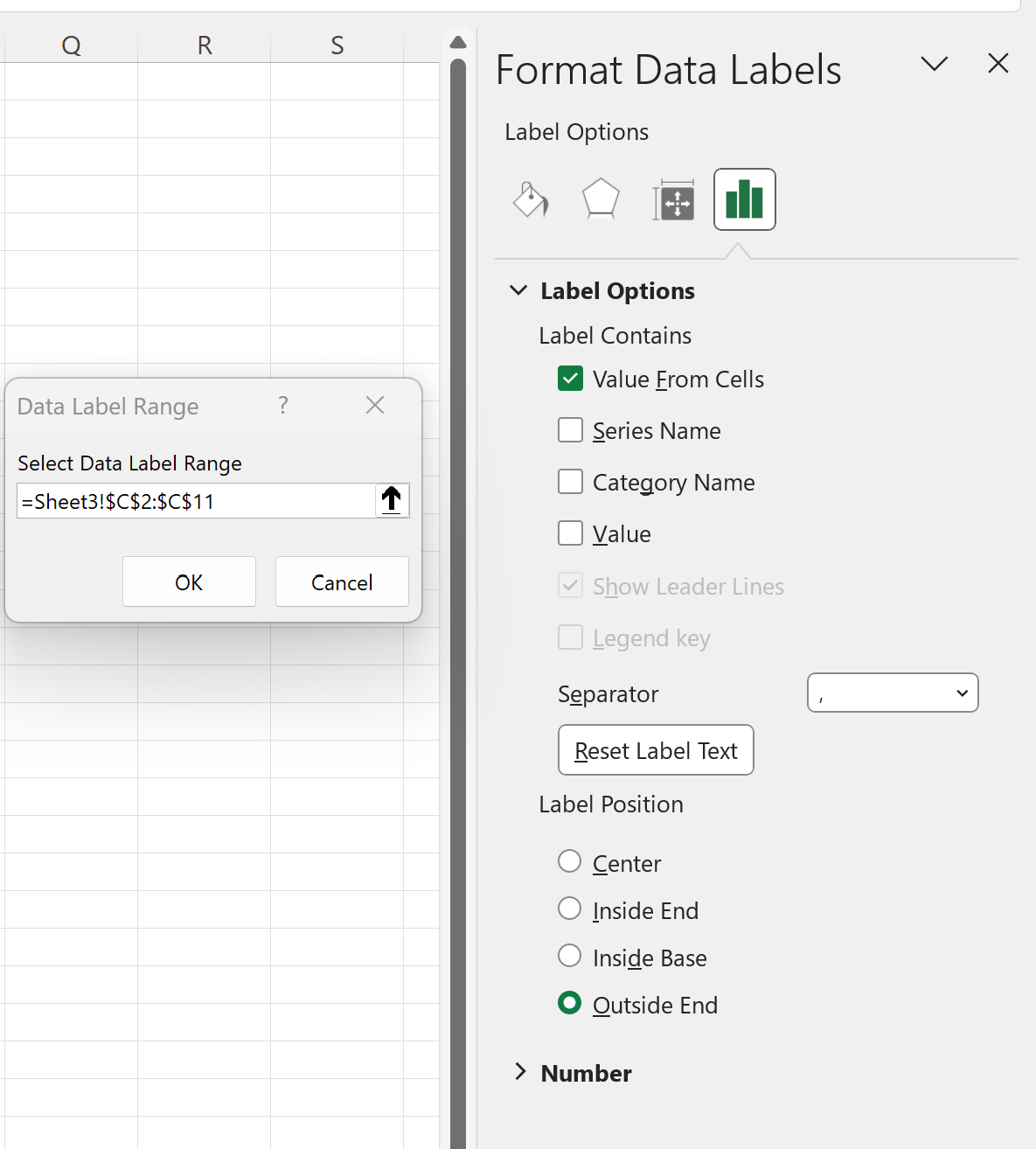

In the Format Data Labels panel, you must first uncheck the box labeled Value to remove the unwanted date numbers. Immediately afterward, check the box next to Value From Cells. Excel will then prompt you to select the range containing the desired text; select the cells corresponding precisely to the task names (A2:A11). This action links the descriptive text directly to the data markers, preparing the chart for the next phase of transformation.

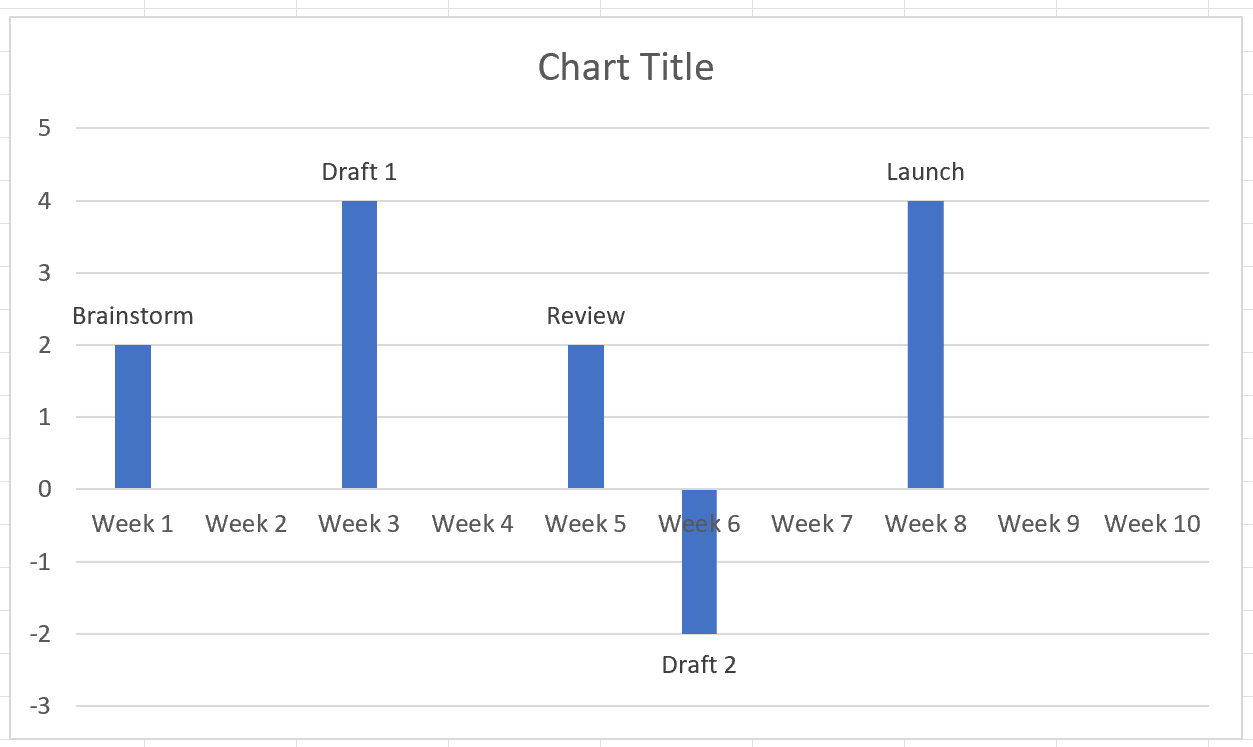

Upon confirming the selection, the task names will correctly appear alongside the data points, instantly making the chart far more meaningful and intuitive for the viewer.

Step 4: Converting Columns into Vertical Timeline Markers using Error Bars

The crucial technical step in creating the functional timeline involves two distinct manipulations: first, rendering the original columns invisible, and second, repurposing a statistical tool to serve as our vertical markers. Since the actual timeline markers will be generated using error bars, the initial colored bars must be hidden. Click on any bar in the chart to select the entire data series. The Format Data Series panel will subsequently appear on the right. Navigate to the “Fill & Line” icon (the paint bucket) and under the Fill option, select No fill. This action successfully hides the column segments without deleting the underlying data points themselves.

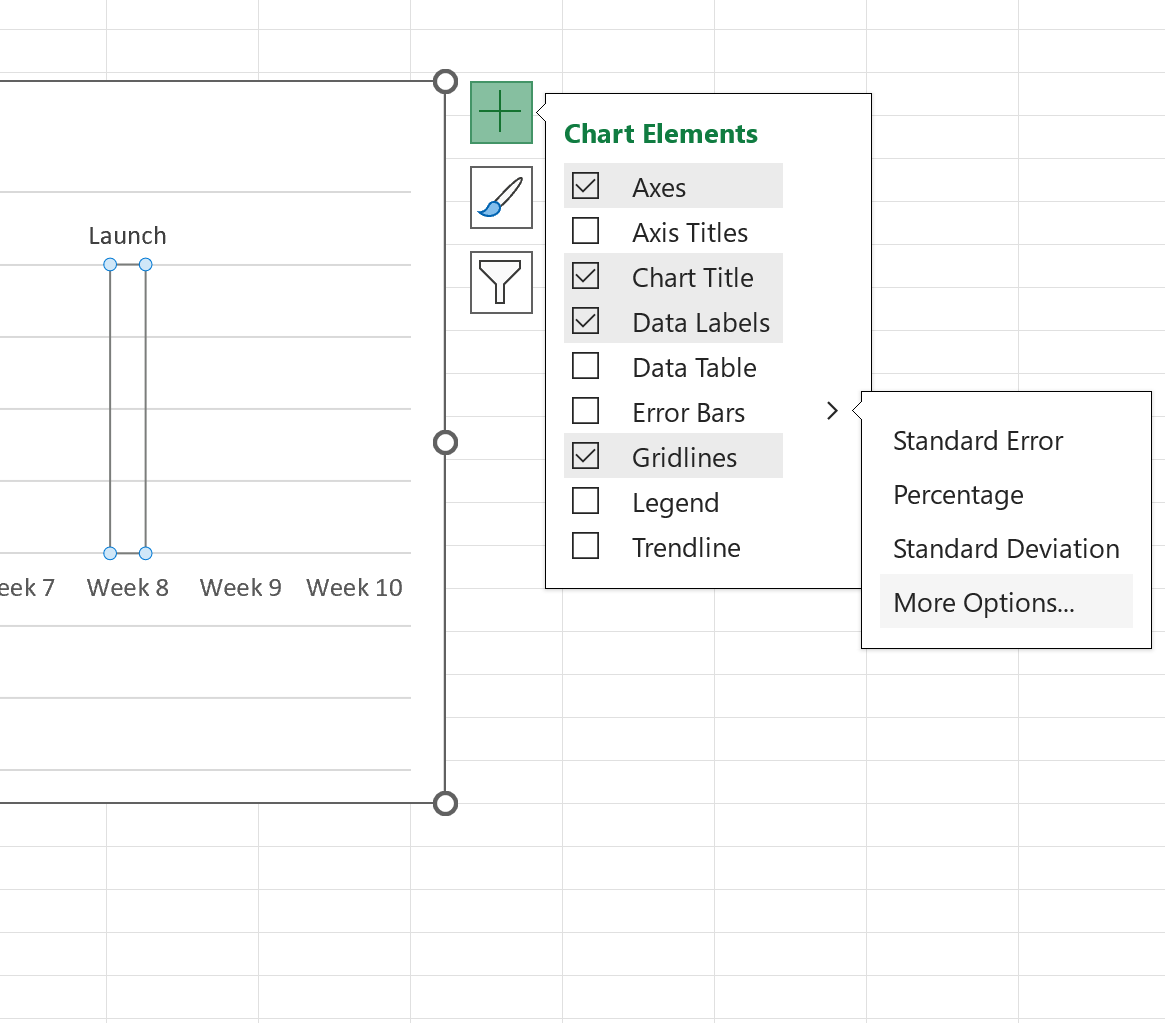

With the columns now transparent, we must introduce the vertical lines that connect the event labels to the central axis. Click the tiny green plus sign (+) in the top right corner of the chart again. This time, hover over the Error Bars option, and then select More Options. Error bars, typically reserved for statistical visualization, are ingeniously repurposed here to act as our precise timeline markers.

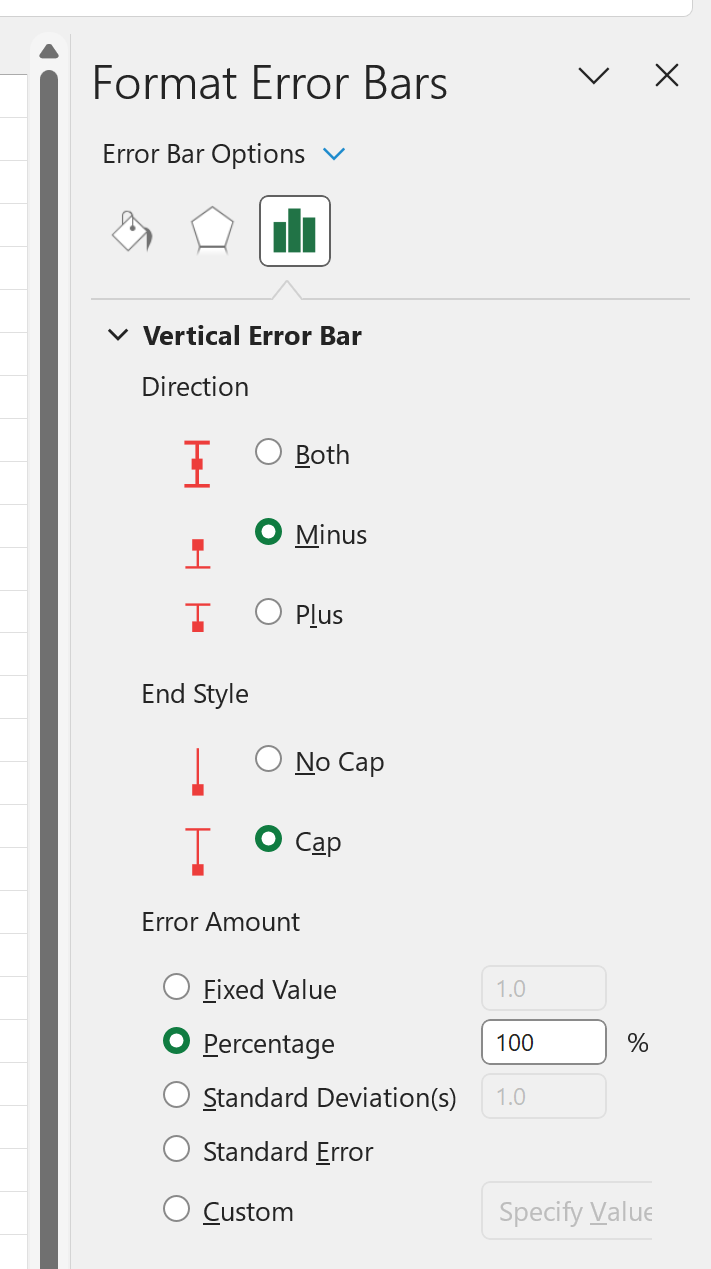

In the newly opened Format Error Bars panel, modify the settings precisely: for the Direction, select Minus. This is critical as it ensures the line extends downwards from the data point towards the axis. For the Error Amount, click Percentage and input the value 100%. This setting compels the error bar to extend 100% of the bar’s height (which was predetermined by the values in our ‘Height for Task’ column) down towards the x-axis, thereby creating the perfect vertical marker line that anchors the event to its date.

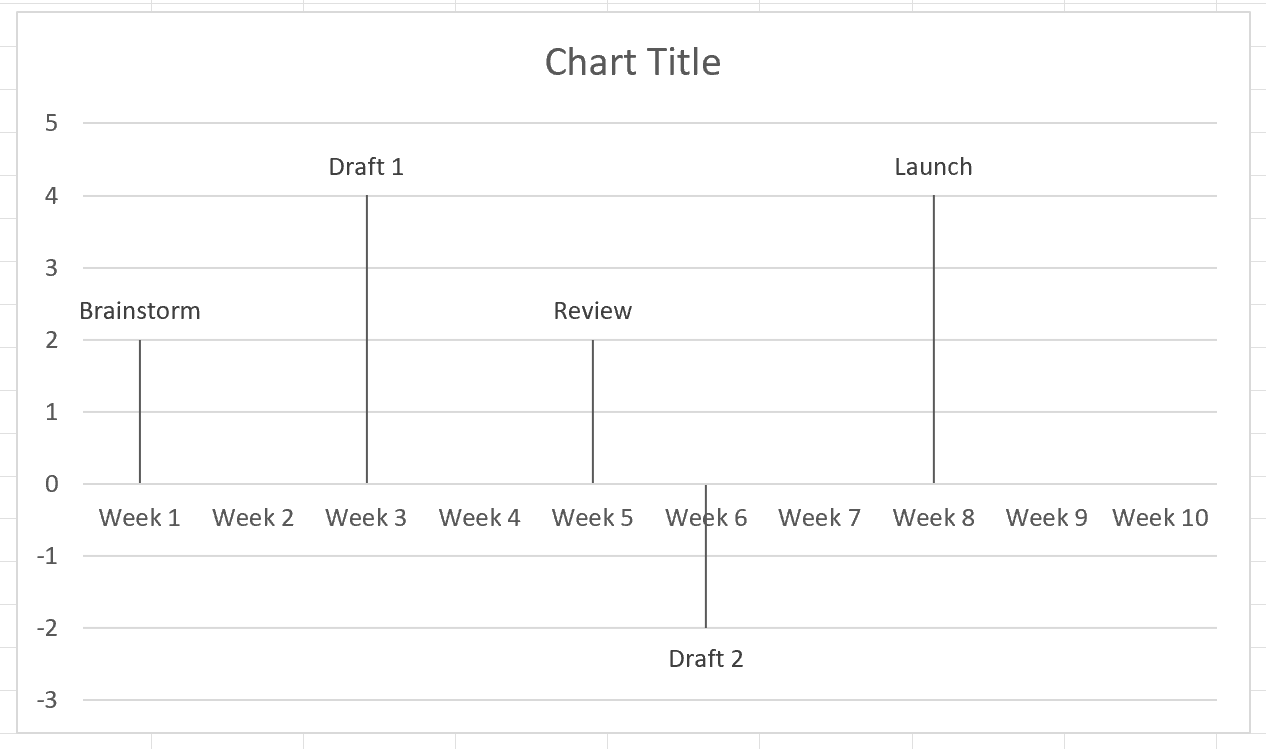

Following these precise steps, the chart visually transforms, displaying the task names connected by vertical lines to the central timeline axis. This successfully replicates the sophisticated structure of a professional, date-driven timeline visualization.

Step 5: Applying Final Customization and Aesthetic Polish

The final stage of this process involves refining the aesthetics to ensure the timeline is clean, professional, and optimized for viewer comprehension. These modifications focus primarily on removing distracting elements and visually enhancing the key information established in the previous steps.

Utilize the following checklist to apply the necessary chart refinements and achieve a professional finish:

• Remove Horizontal Gridlines: Select the faint horizontal lines that span the chart area and press the Delete key. This crucial step significantly reduces visual noise and directs the audience’s focus exclusively to the timeline markers and labels.
• Add a Descriptive Title: Click the chart title placeholder and input a highly descriptive title, such as “Project X Implementation Schedule” or “Historical Event Milestones,” ensuring the audience immediately understands the chart’s specific purpose.
• Format Labels and Markers: Select the font for the task labels and make it bold to improve visual contrast and overall readability. Additionally, you should adjust the line thickness and color of the error bars (our vertical markers) using the formatting panel for maximum visual impact.
• Adjust the Date Axis Range: If the timeline appears either too sparse or overly crowded, right-click the horizontal date axis (x-axis) and select “Format Axis.” Adjust the bounds (minimum and maximum dates) and the major units (e.g., changing from days to weeks or months) to optimize the display of the relevant time range.

Following these refinement steps results in the polished, comprehensive timeline visualization ready for distribution:

Important Design Consideration: Remember that the visual placement of the labels (above or below the central date line) is determined entirely by the positive or negative sign in the “Height for Task” column of your source data. If your project requires all events to appear above the x-axis, simply ensure that all values in that column are positive numbers. However, using alternating positive and negative values, as demonstrated in this tutorial, is highly recommended for maintaining clarity and preventing label overlap when numerous events occur close together in time.

Conclusion and Further Data Visualization Resources

Mastering advanced chart customization techniques in Excel significantly expands your capabilities in data visualization. By leveraging the flexibility of standard charts and repurposing elements like error bars, you can create highly sophisticated, professional graphics without relying on specialized software.
