Learning to Create Area Charts in Google Sheets: A Step-by-Step Guide

Introduction to Area Charts in Google Sheets

An area chart stands as an exceptionally effective data visualization technique designed specifically to illustrate how quantitative values evolve over a continuous range, most often representing a time period. Unlike simple line graphs, area charts fill the space between the data line and the axis, visually emphasizing the magnitude and volume of change. This feature makes them invaluable for revealing underlying trends, tracking cumulative totals, and clearly depicting the contribution of different components to the grand total, offering insights that might be subtle in alternative chart formats.

For users seeking an accessible yet robust platform for generating professional-grade visualizations, Google Sheets provides the necessary tools. This widely used, cloud-based spreadsheet application simplifies the process of transforming complex datasets into compelling graphical representations. This comprehensive guide will walk you through the entire workflow required to produce a sophisticated area chart, focusing specifically on the highly insightful **stacked area chart** format. The stacked approach is optimal when analyzing how multiple categories, or variables, contribute proportionally to an aggregate metric over time.

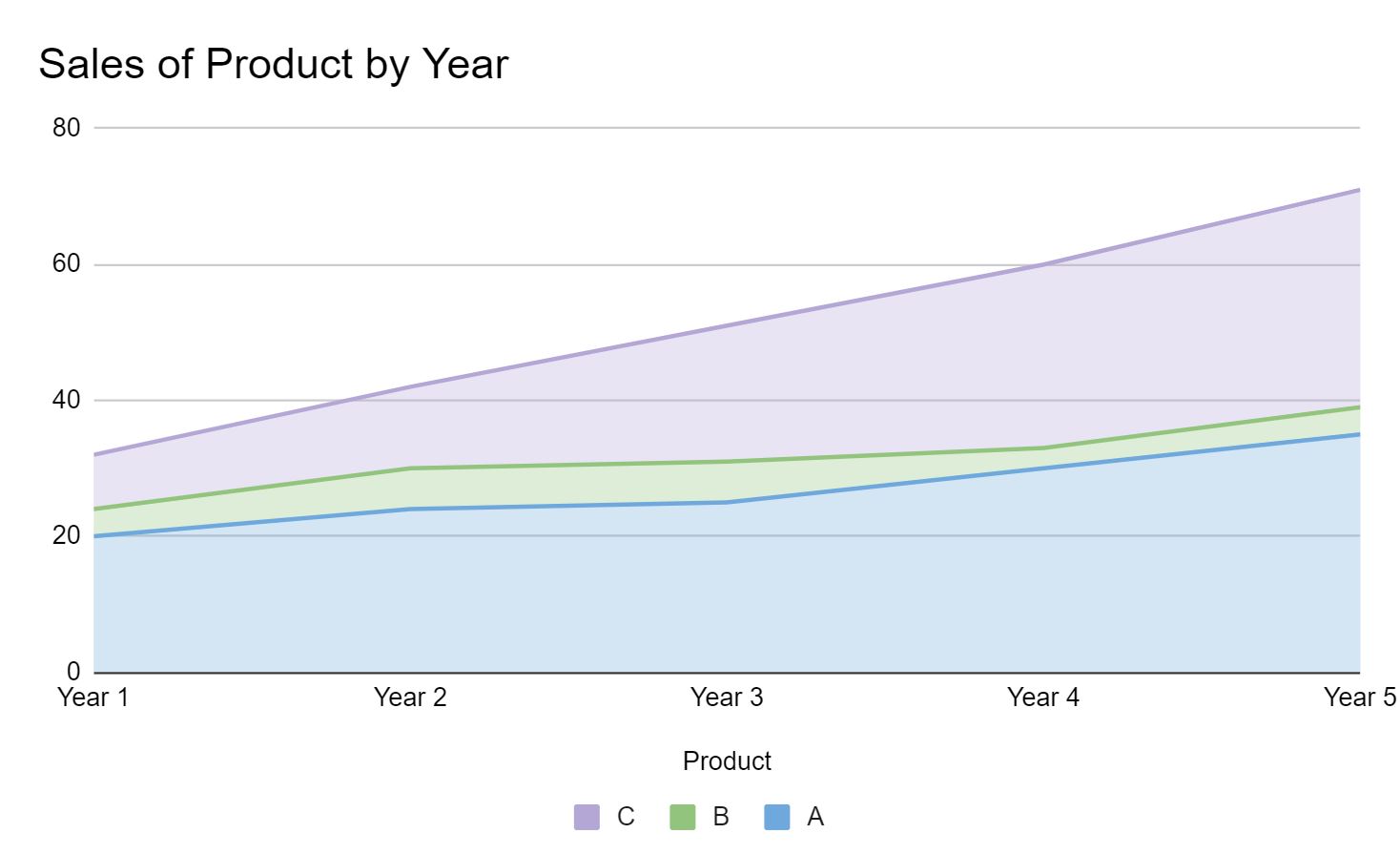

By following the precise, step-by-step instructions detailed in the subsequent sections, you will learn to navigate data preparation, chart generation, and crucial aesthetic customizations. Our objective is to empower you to convert raw figures into a powerful visual narrative, ensuring your finalized chart not only accurately reflects the underlying information but also achieves maximum clarity and visual impact, resulting in a professional output comparable to the example displayed below.

Preparing Your Data for an Area Chart

The success of any data visualization hinges critically on the quality and structure of the underlying data. Before attempting to generate an area chart, it is essential that your dataset is organized logically within Google Sheets. The required structure typically involves one column or row dedicated to the continuous range (the time period) and subsequent adjacent columns containing the corresponding quantitative values for each category or metric you wish to track.

To illustrate this process, we will utilize a hypothetical scenario tracking the sales performance of three distinct products (Product A, B, and C) across five consecutive years. This specific arrangement is perfectly suited for a stacked area chart, as it allows us simultaneously to analyze the evolution of individual product sales trends and their combined, cumulative contribution to the overall company revenue over the five-year stretch. This dual perspective is crucial for comprehensive business analysis.

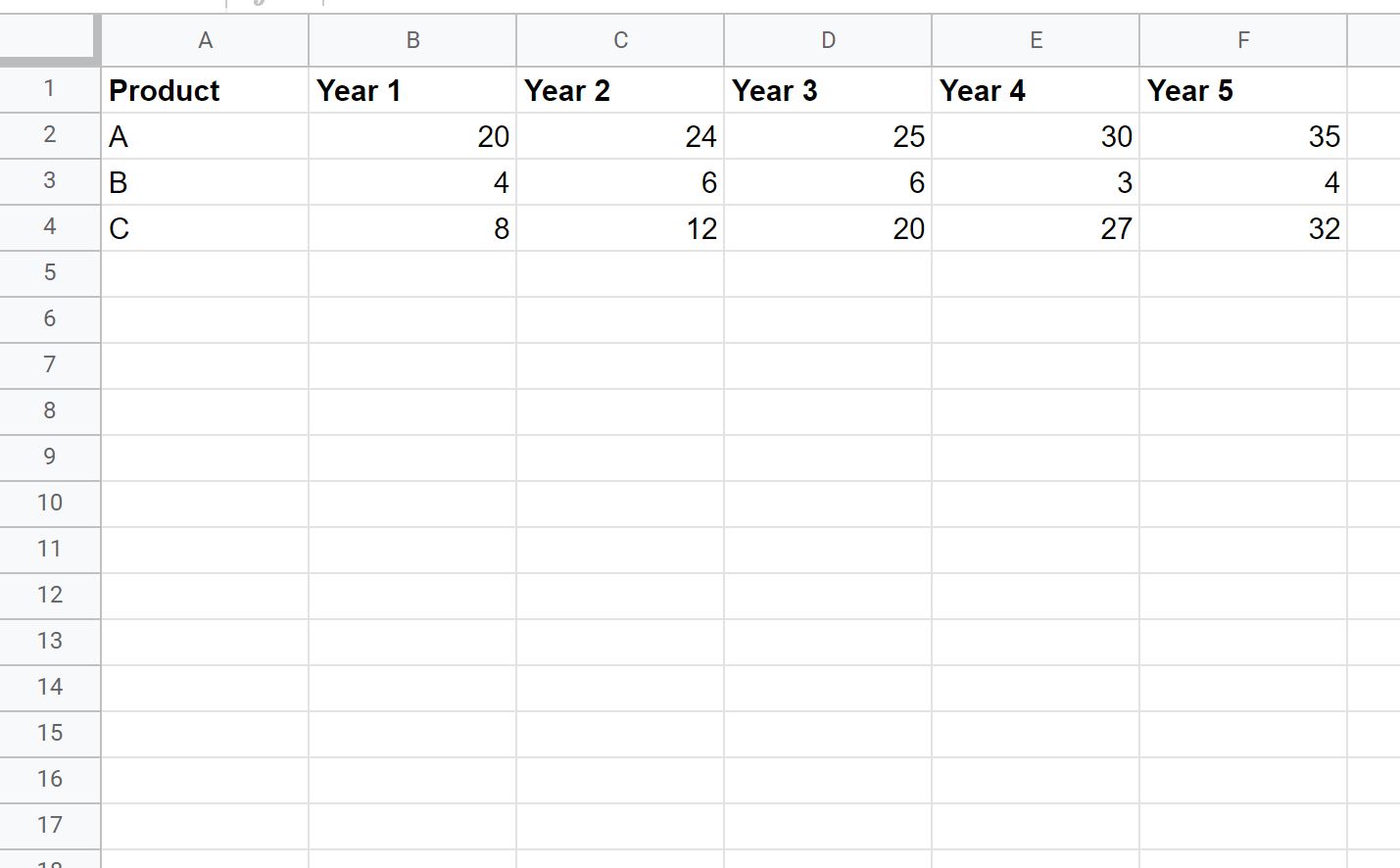

To set up this data, open your spreadsheet application and meticulously enter the information. The years should occupy the first column (or row), acting as the foundation for the time period, while the sales figures for each product—the individual variable—must be placed in the adjacent columns. Attention to detail during this initial phase is paramount; ensure that all numerical entries are accurate and that headers for both the years and products are unambiguous and consistently applied. A clean data foundation, as shown below, ensures a reliable and insightful final chart.

Generating the Initial Area Chart

Once your sales data is meticulously structured within Google Sheets, the next pivotal action is initiating the chart generation process, converting static numerical entries into a dynamic visual representation. This process begins by selecting the entire data range you intend to visualize. In our example, this involves highlighting the cells spanning from A1 (including the header row) through F4. This selection defines the scope of information that Google Sheets will use to construct the chart, encompassing both the continuous time variable and the individual product sales metrics.

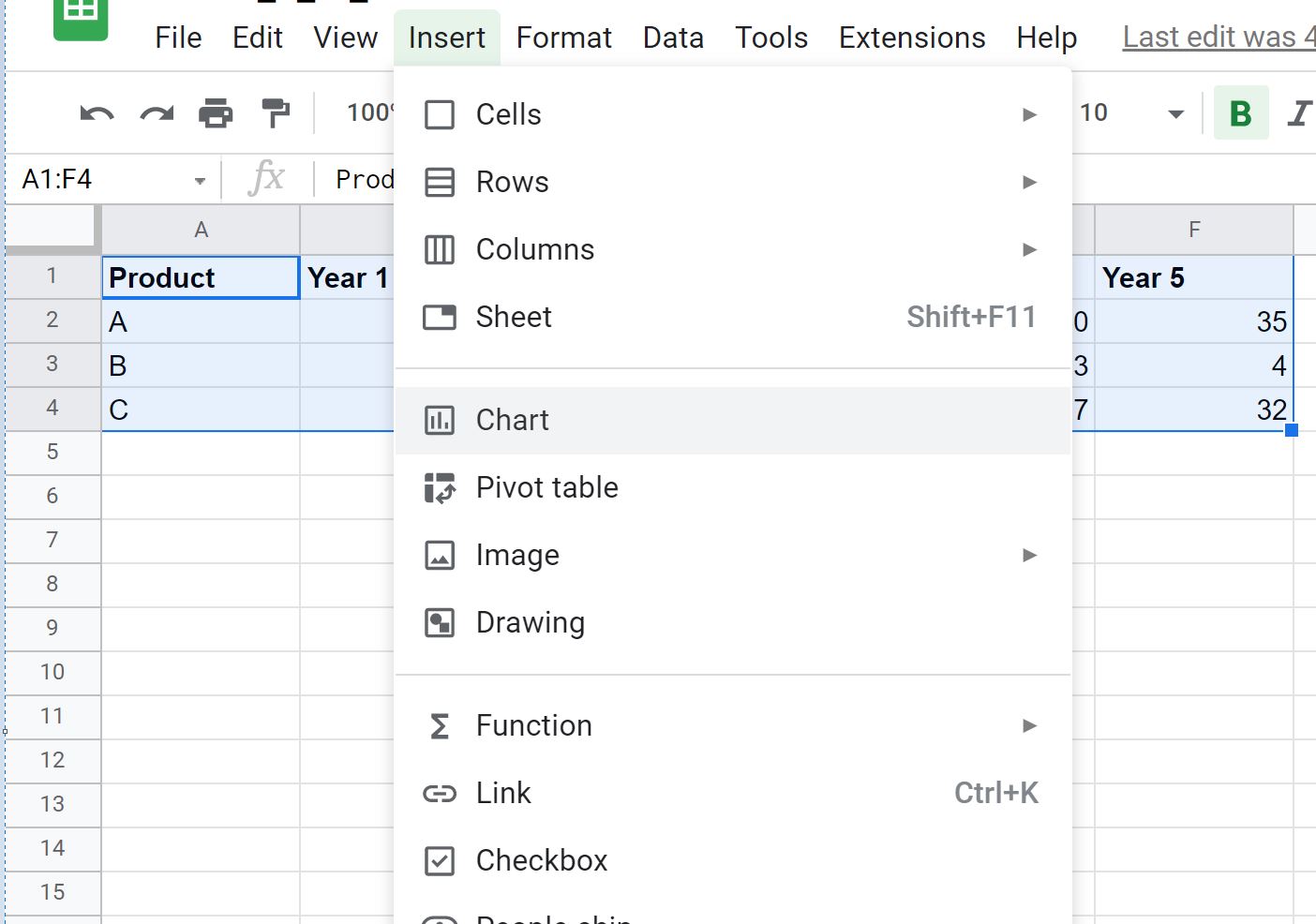

After selecting the range (A1:F4), direct your attention to the main menu ribbon at the top of the interface. Click the Insert menu option, and from the subsequent dropdown choices, select Chart. Executing this command triggers two concurrent events: first, Google Sheets automatically attempts to render a default chart directly on your sheet, and second, it opens the specialized Chart editor panel on the right side of your workspace. While the default chart type might vary (often a bar or line chart), the Chart editor is where we will specify the correct format.

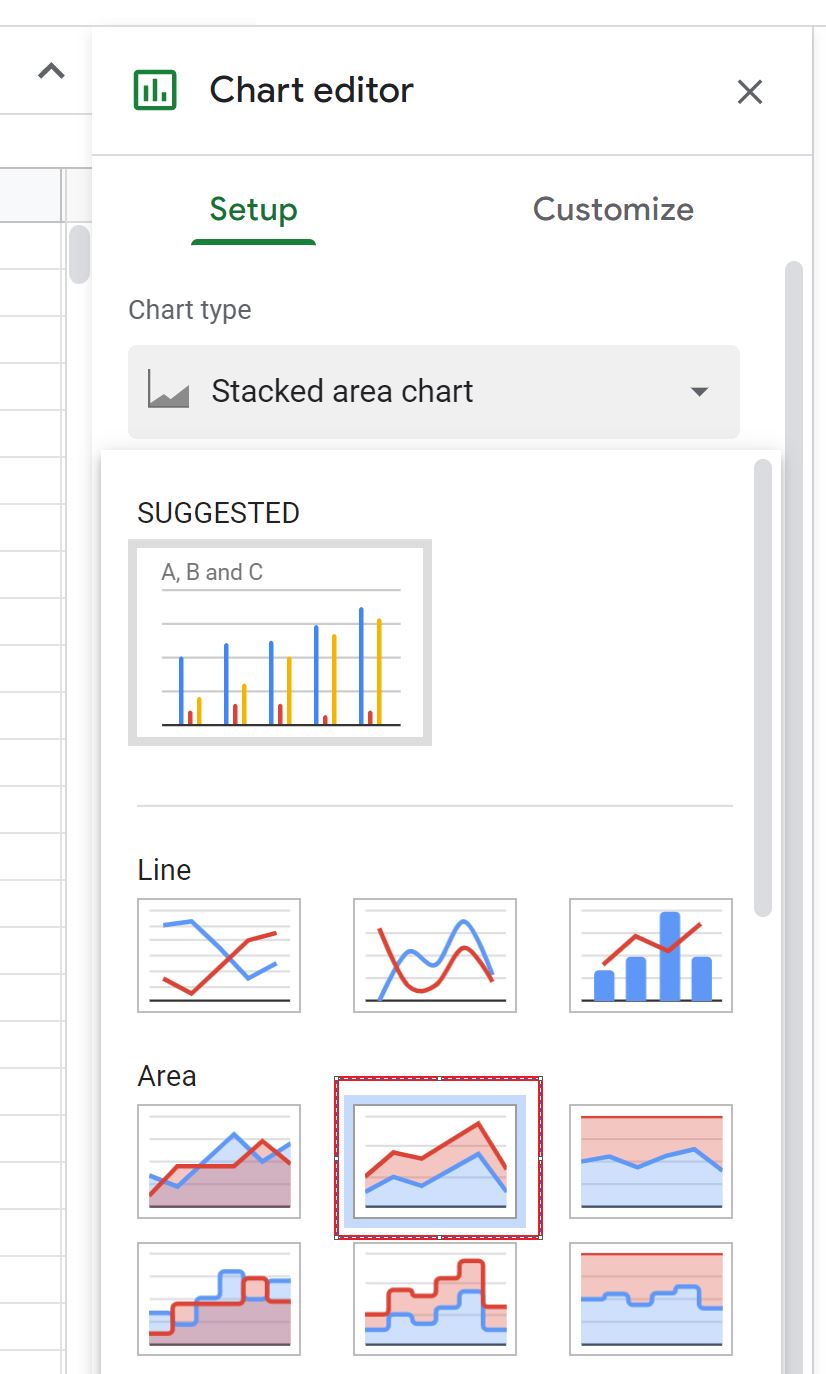

Within the Chart editor, navigate to the Setup tab. Look for the Chart type dropdown menu and click it to display the full gallery of available visualizations. It is crucial here to locate and select the icon corresponding to the Stacked area chart. Choosing this option provides the specific functionality we need: it instructs Google Sheets to plot the various data series (Product A, B, and C) vertically stacked upon one another. This stacking mechanism is vital for visualizing both the individual performance of each product and their collective impact on the total sales revenue over the designated time period.

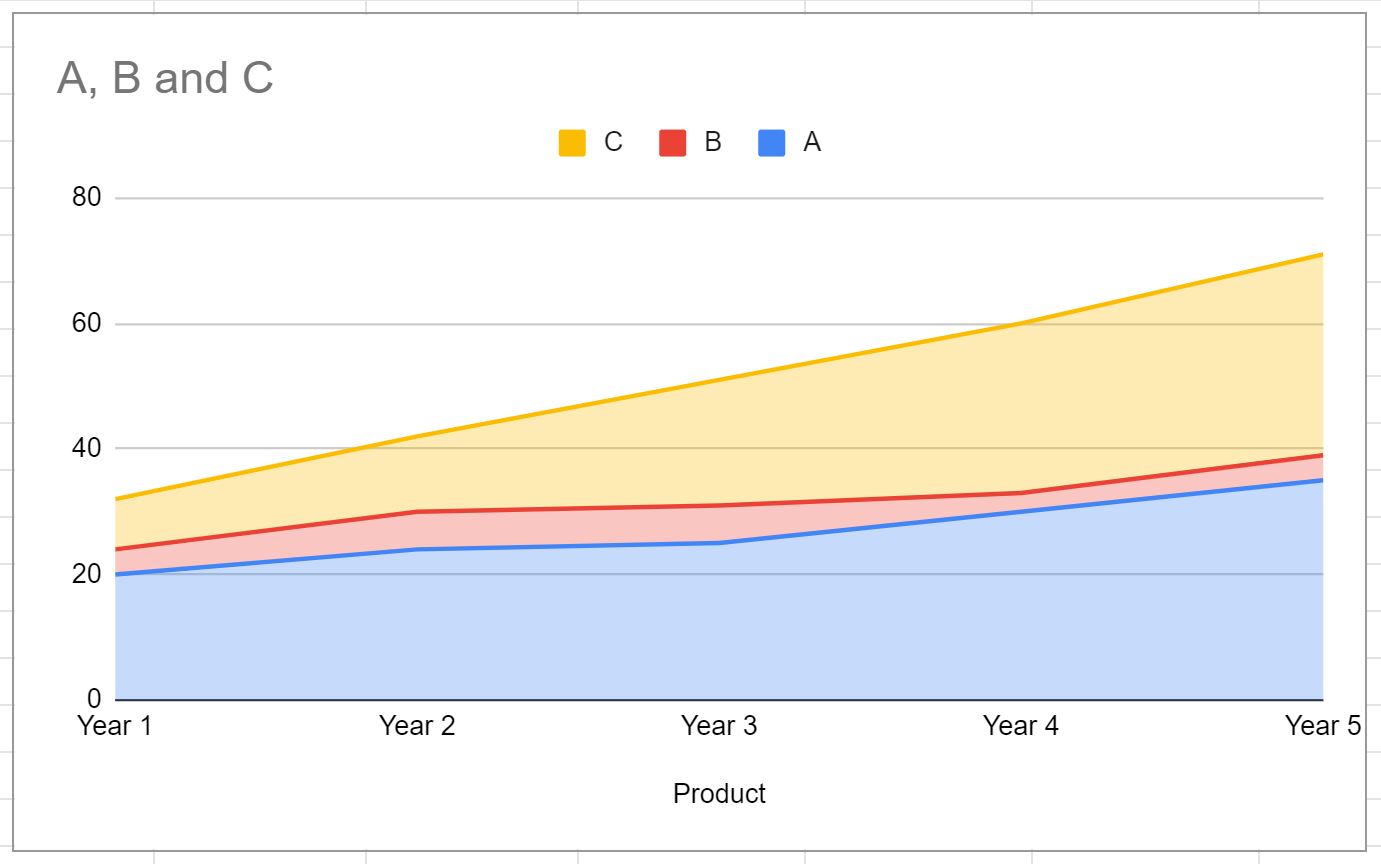

Upon selection, the system instantly renders the foundational version of your area chart. This immediate visualization serves as a robust starting point, displaying the years along the horizontal x-axis and the cumulative sales values along the vertical y-axis. While functional, this initial chart requires further refinement and aesthetic adjustments to maximize its clarity and interpretive power, which we will address in the next customization stage.

Customizing Your Area Chart for Clarity and Impact

The automated chart generated by Google Sheets provides the raw visualization, but the true power of data visualization lies in its presentation. Customizing the chart’s aesthetic elements is paramount for enhancing readability, ensuring the data’s narrative is communicated effectively, and transforming a basic graph into a professional asset. The comprehensive tools required for these adjustments are found under the Customize tab within the Chart editor panel.

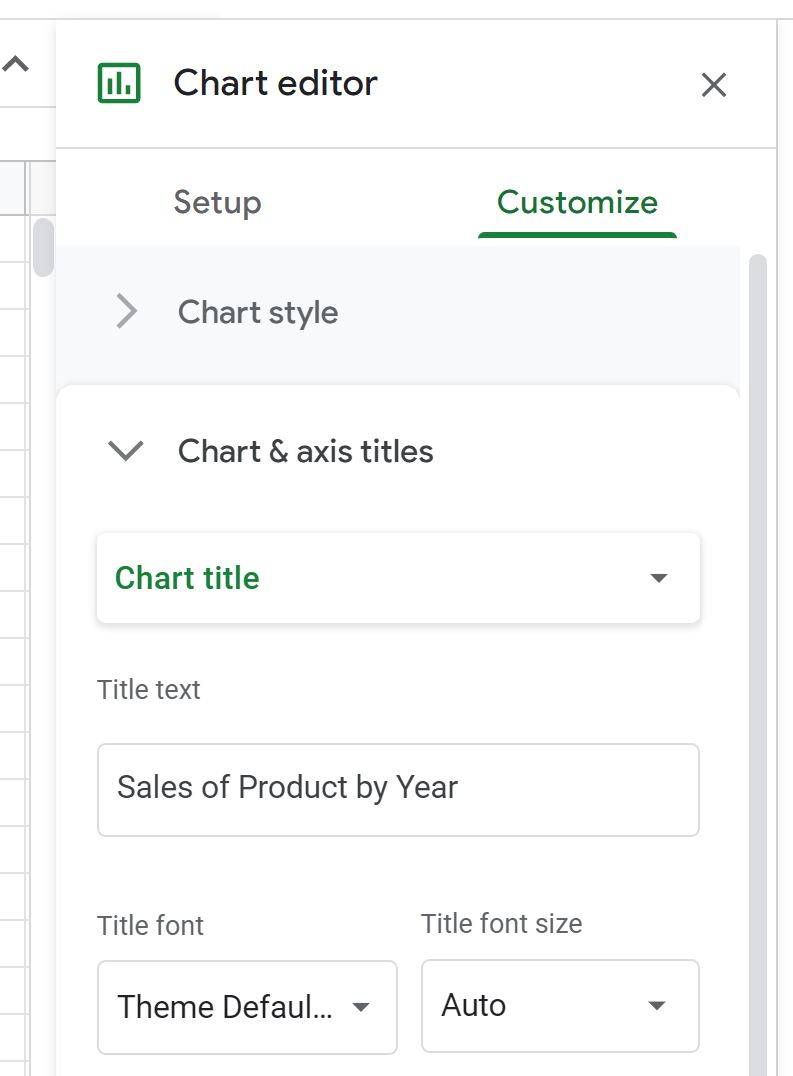

The most crucial step in customization is the addition of a clear, descriptive title. A well-chosen title immediately establishes the context and purpose of the visualization for the audience. To implement this, navigate to the Customize tab and expand the Chart & axis titles section. Select the Title text box and input a title that accurately summarizes the data, such as “Product Sales Performance Over Five Years.” Furthermore, consider adding axis titles here (e.g., “Year” for the X-axis and “Total Sales Value” for the Y-axis) to eliminate any ambiguity regarding the quantitative values being plotted.

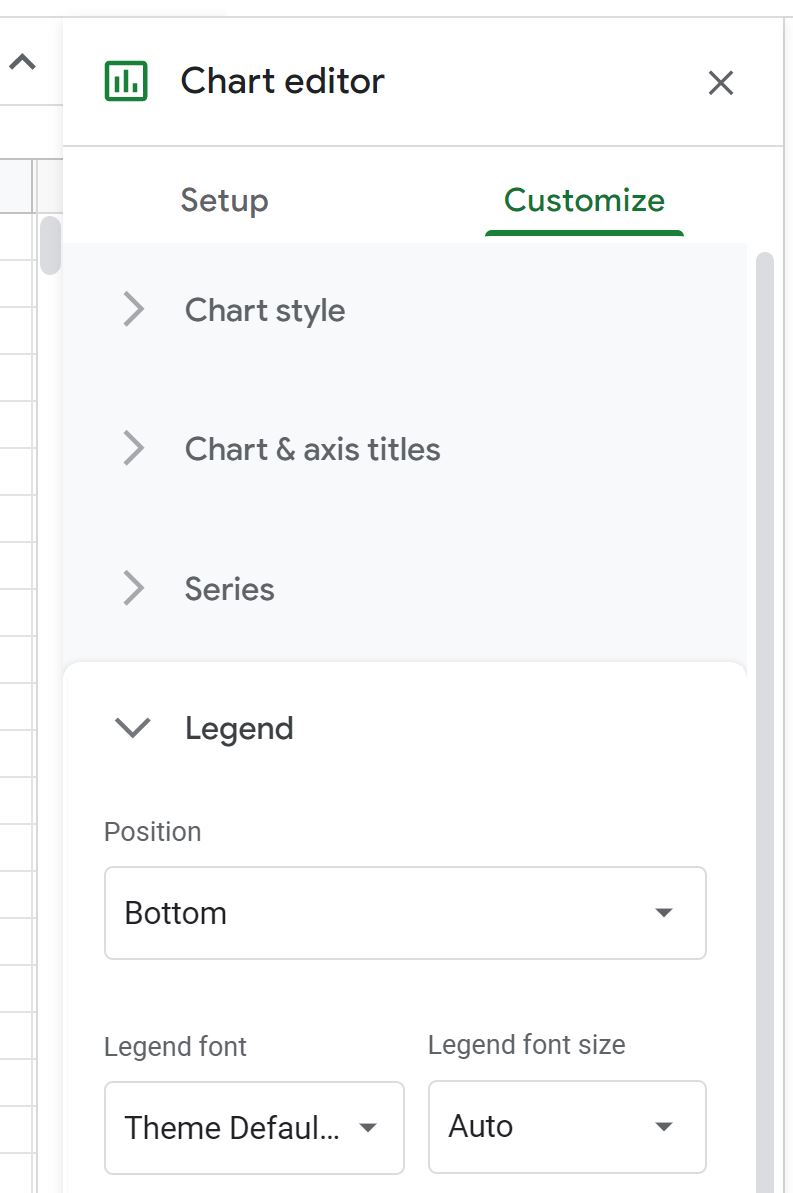

Next, optimizing the placement of the legend is vital for distinguishing between the different product categories. If the default position obscures the data, it hinders interpretation. Access the Legend section within the Customize tab and use the dropdown menu to select an optimal location, such as Bottom. Positioning the legend at the bottom often provides superior visual balance, ensuring that the core area of the chart—the stacked sales data—remains unobstructed and the viewer can easily match colors to the respective products.

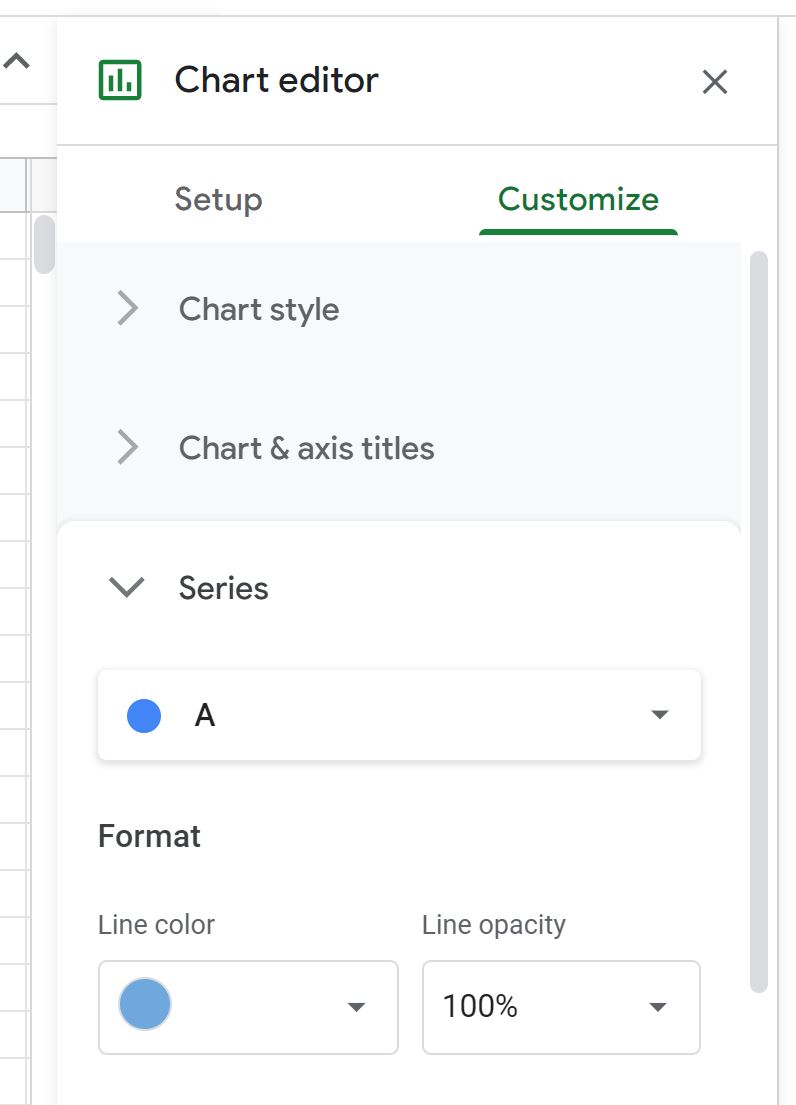

Finally, visual distinction between the individual data series (Product A, B, and C) is critical. Default colors may lack contrast or not align with branding requirements. To refine these, expand the Series section under the Customize tab. Here, you can select each product individually and assign a unique color. Choosing contrasting yet aesthetically pleasing colors drastically improves clarity, allowing the audience to immediately identify and compare the growth trajectories and proportional contributions of each variable throughout the five-year period.

Understanding and Interpreting Your Area Chart

With all necessary customizations complete, your fully refined area chart is now a powerful tool for strategic analysis. The enhanced visual elements—including the precise title, optimized legend placement, and distinct colors for each data series—work synergistically to present a comprehensive and accessible overview of your data. Interpreting this chart involves understanding the role of both the horizontal and vertical axes in conveying the sales narrative.

The horizontal line, or x-axis, represents the progression of the time period, charting the years in sequential order. This axis is fundamental for trend analysis, allowing viewers to track performance evolution. Conversely, the vertical line, the y-axis, quantifies the sales volume. In a stacked area format, the height from the baseline up to the topmost point of the stacked area at any given year on the x-axis represents the cumulative total sales for all products combined during that specific interval. This structure immediately highlights the overall business trajectory.

To gain deeper insights, one must examine the individual colored segments. The thickness of each segment indicates the specific contribution of that product (data series) to the total sales volume. For example, if the segment for Product A noticeably thickens over time, it suggests significant growth in its market share and increasing contribution to the grand total. Conversely, a rapidly shrinking segment signals a decline in relative performance. Analyzing the slopes and variations across the segments allows stakeholders to quickly identify which products are driving growth and which may require intervention, thereby supporting data-driven decision-making.

Conclusion and Next Steps

By diligently following this guide, you have successfully mastered the creation and refinement of a compelling stacked area chart within Google Sheets. This process transforms complex numerical sales data into an insightful data visualization, effectively communicating trends, cumulative totals, and the proportional contributions of different products over a five-year time period. Area charts are indispensable tools for anyone needing to present time-based data clearly and persuasively.

The ability to accurately and aesthetically visualize data is a fundamental skill in nearly every professional domain, directly impacting the quality of strategic decision-making. Through mastering the technical steps and the aesthetic principles—such as clear labeling, strategic color selection, and optimal layout—you ensure that your charts are not only informative but also highly accessible to diverse audiences. Remember that the core principles applied here for area charts are transferable to other visualization types.

To continue building your data analysis and presentation toolkit, we highly recommend exploring other powerful visualization capabilities available within Google Sheets. Expanding your knowledge of different chart types enables you to select the optimal format for any dataset or analytical goal, thereby broadening your proficiency in data storytelling and complex statistical communication.
