A Comprehensive Guide to Creating and Interpreting Box Plots in Microsoft Excel

Introduction to Box Plots and Their Significance in Data Analysis

The box plot, frequently known as a box-and-whisker plot, is a cornerstone of modern data visualization. Its core function is to provide a standardized, graphical method for displaying the distribution of numerical data based on its quartile divisions. This method is exceptionally powerful for rapidly assessing the spread, symmetry (or skewness), and central tendency of a dataset, making it an essential component of comprehensive exploratory data analysis. Unlike histograms, which concentrate on frequency, the box plot offers a succinct statistical summary, focusing specifically on the relative positioning of data points.

The visualization derives its statistical power from the five number summary, which clearly defines the boundaries and the center of the data distribution. Interpreting these five values is paramount for extracting accurate insights from the plot. These points collectively divide the dataset into four distinct sections, with each section representing precisely 25% of all observations. By visualizing these statistical landmarks, analysts can immediately detect data symmetry, identify potential concentration areas, and pinpoint extreme values or anomalies.

The five critical components summarized within every robust box plot are defined as follows:

• The Minimum value: Represents the lowest data point within the dataset, excluding any identified outliers.
• The First Quartile (Q1): Marks the 25th percentile, indicating that a quarter of the data falls below this point.
• The Median (Q2): Defines the 50th percentile, serving as the true center of the dataset distribution.
• The Third Quartile (Q3): Marks the 75th percentile, meaning 75% of the data falls below this value.
• The Maximum value: Represents the highest data point within the dataset, again excluding any potential outliers.

This comprehensive guide will walk you through the practical steps of generating accurate and meaningful box plots directly within Microsoft Excel. Following the creation process, we will detail how to rigorously interpret the resulting visualizations to draw sound statistical conclusions about your underlying data distributions.

Preparing Your Data for Box Plot Generation in Excel

The successful creation of a box plot in Microsoft Excel hinges on correct data preparation and formatting. A significant advantage of Excel’s dedicated charting feature (available in versions 2016 and newer) is its ability to automatically calculate the necessary summary statistics, including the five number summary. This eliminates the need for manual calculation of medians and quartiles prior to visualization.

The crucial preliminary step involves organizing your raw data efficiently. For a singular box plot analysis—analyzing one dataset distribution—all data points must be consolidated into a single, contiguous column. This organizational structure ensures that Excel correctly identifies the entire range of values that constitute the dataset requiring summarization. If your analysis involves comparing multiple groups or categories, each group must be placed in its own separate, distinct column. Consistency in this initial data entry phase is vital to preventing calculation errors during the subsequent charting process, especially concerning the accurate placement of quartile boundaries.

To initiate the creation process, meticulously follow the preliminary steps below:

Step 1: Input the Raw Data.

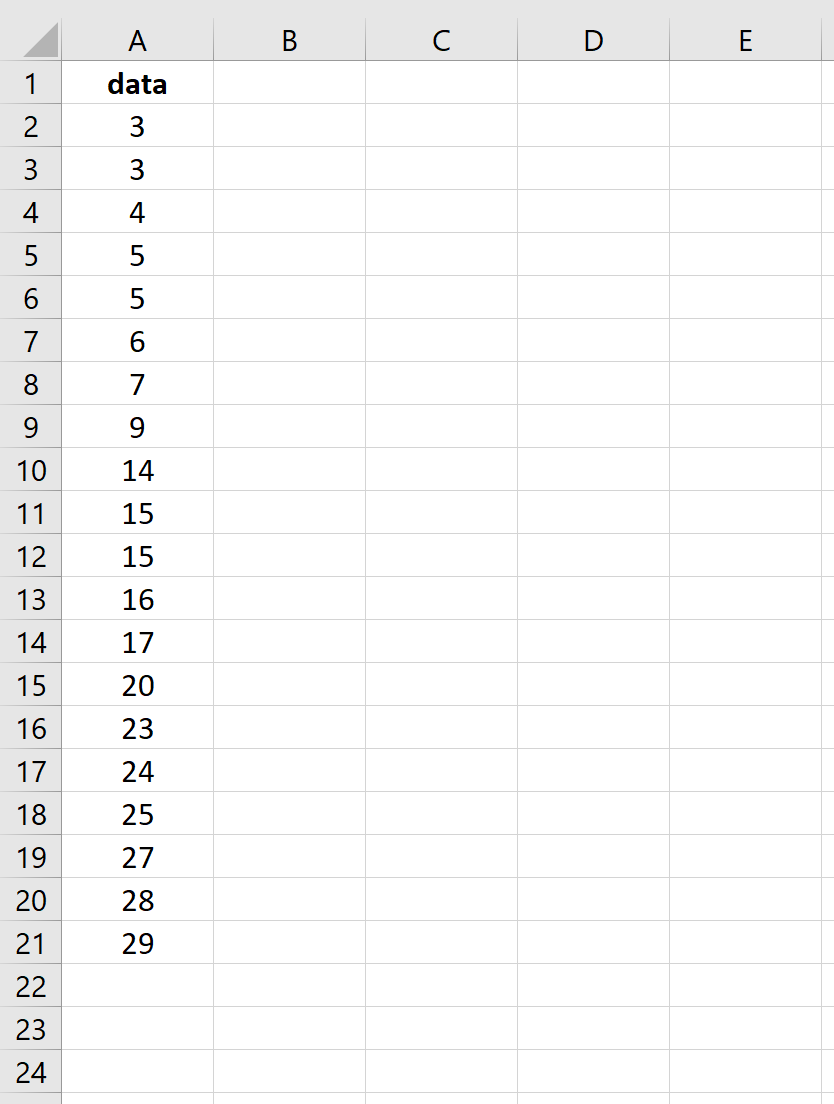

Enter every relevant data point into a single, dedicated column within your Excel spreadsheet. It is imperative to verify that the column contains no empty cells or non-numeric entries, as such disruptions can skew the statistical calculations, particularly affecting the resulting quartiles and the overall range limits of the plot.

Step-by-Step Guide to Generating the Visualization

Once your data is accurately entered and properly organized in a vertical column, the process of generating the box-and-whisker chart becomes straightforward, leveraging Excel’s dedicated statistical charting capabilities. This functionality streamlines complex statistical visualization, making it readily accessible without the need for external add-ins or advanced scripting.

The procedure requires the selection of the entire dataset range, followed by navigation to the appropriate charting menu. By performing this selection, you instruct Microsoft Excel precisely which population of numbers must be processed to derive the essential quartiles, median, and range limits necessary for generating an accurate box plot.

Step 2: Create the Box Plot Visualization.

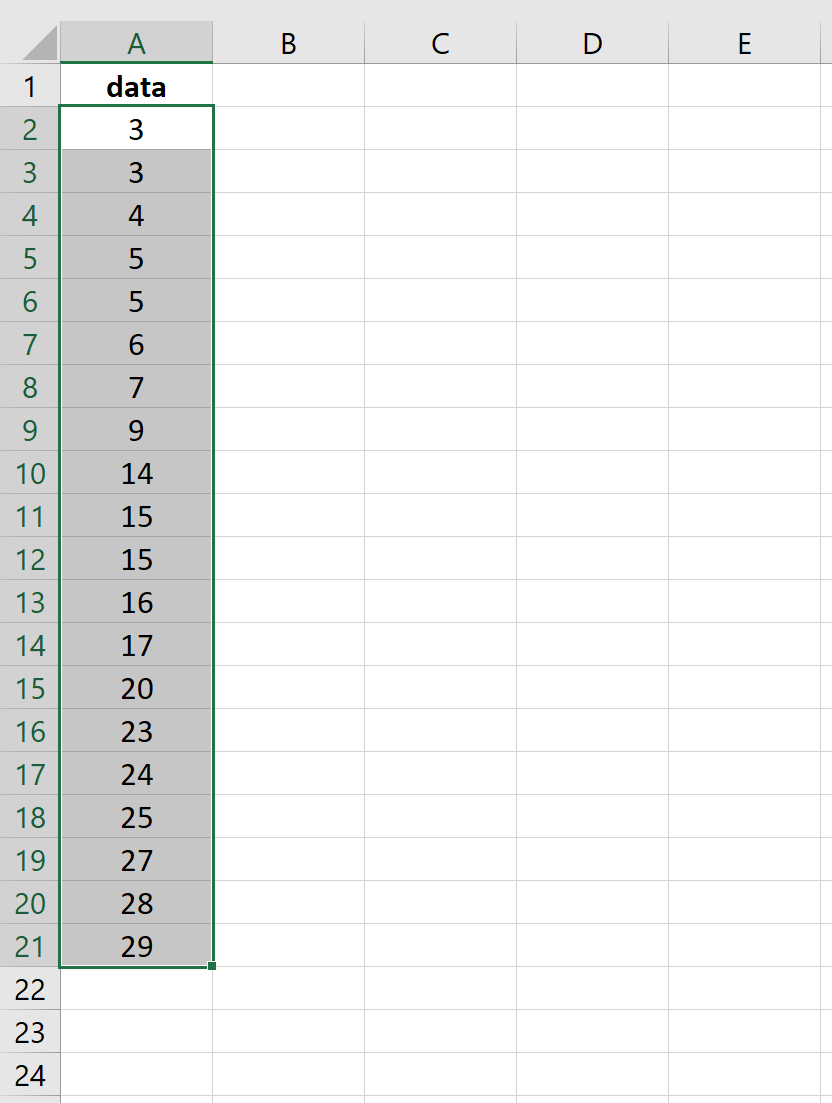

Begin by selecting or highlighting all the numerical data values in your column. Ensure that you exclude the column header (if present) from this selection to prevent it from being misinterpreted as a data point, which would lead to calculation errors.

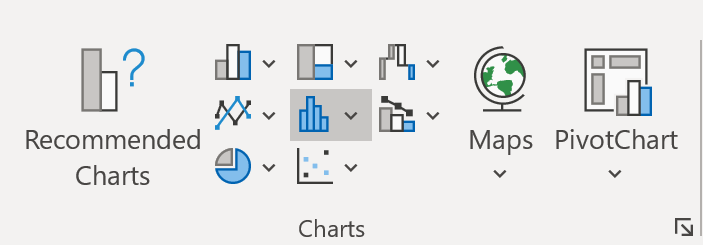

Next, locate and click the Insert tab situated in the main ribbon menu. Within the ribbon, navigate to the Charts group. Click the Statistic Chart symbol—this icon typically represents grouped bars or a histogram.

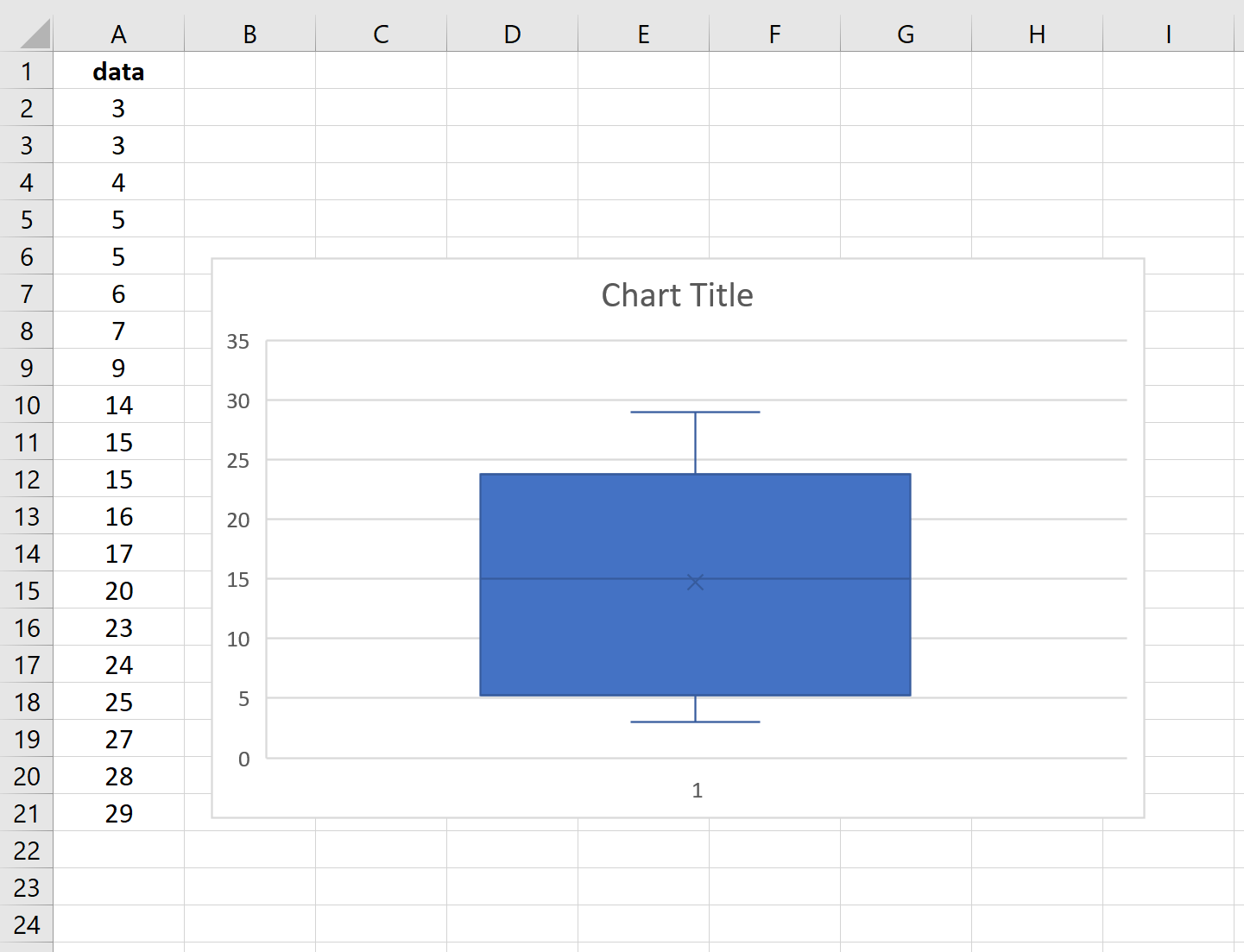

From the subsequent dropdown menu that appears, select the Box and Whisker option. Upon selection, the box plot visualization will be automatically rendered and displayed on your spreadsheet, providing an immediate graphical summary of the distribution of your selected data.

Interpreting the Five Number Summary and Data Labels

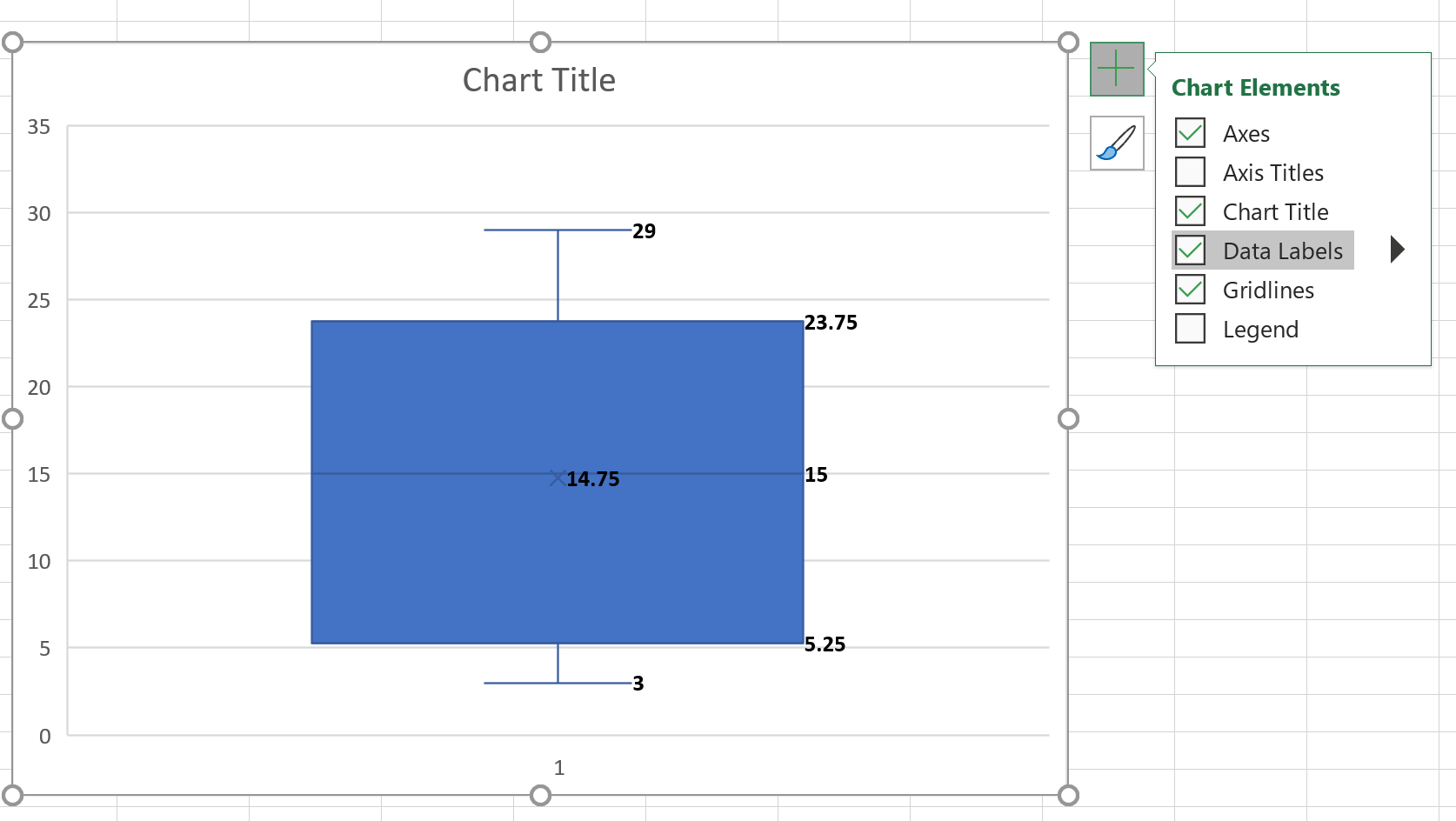

While the visual structure of the box plot provides powerful initial insights into data spread and central tendency, adding numerical data labels significantly enhances its analytical utility. These labels display the precise values corresponding to the five number summary, ensuring quantitative accuracy alongside the visual representation. To activate these labels, click the generated plot, then click the green plus sign (Chart Elements) that appears in the top right corner. Check the box labeled Data Labels. The following statistical values will then be automatically superimposed onto the chart elements:

Each label corresponds directly to a critical measure of position or spread within the dataset. A clear understanding of these numerical outputs is crucial for a complete assessment of the data distribution, allowing analysts to accurately locate the center, measure variability, and compare different distributional aspects.

Here is a detailed breakdown of how to interpret the specific labels generated by Excel:

• Min: 3. This value defines the lowest observation in the dataset that is not statistically classified as an outlier. In the provided example, 3 sets the lower boundary of the data’s range, confirming no extreme low outliers were detected by Excel’s methodology.
• Q1: 5.25. This is the first quartile (25th percentile). It signifies that 25% of all data points fall below 5.25. This value forms the bottom edge of the central box.
• Median: 15. This line inside the box represents the 50th percentile, marking the exact middle value of the data. The median is a highly robust measure of central tendency because it is less sensitive to extreme observations compared to the mean.
• Mean: 14.75. The small “x” visible within the box plot specifically denotes the arithmetic mean of the entire dataset. By comparing the mean (14.75) to the median (15), one can gain immediate insight into the data’s skewness. Since the mean is negligibly smaller than the median, it suggests a very slight left (negative) skew, although the values are extremely close, indicating near-symmetry.
• Q3: 23.75. This is the third quartile (75th percentile). This means 75% of the data falls below 23.75, and conversely, 25% of the data lies above it. This value establishes the upper boundary of the box.
• Max: 29. This value represents the largest data point that is not categorized as an outlier. It defines the upper limit of the whisker, representing the highest non-extreme observation recorded in the dataset.

For users prioritizing precision and verifiable results, Excel provides specific functions to manually calculate and confirm these statistical measures. The image below demonstrates the exact formulas you can use to independently verify each component of the five number summary, ensuring transparency and comprehensive control over the statistical analysis.

Identifying and Understanding Outliers Using the IQR Rule

A primary analytical feature of the box plot is its capability to visually flag potential outliers—data points that deviate significantly from the central body of the data. Excel employs a standard statistical methodology based on the Interquartile Range (IQR) to formally define these extreme values. The IQR is calculated as the difference between the third quartile (Q3) and the first quartile (Q1), effectively measuring the dispersion of the central 50% of the dataset.

Specifically, a data point is designated as an outlier if it falls outside the established “fences,” which are calculated using 1.5 times the IQR. The lower fence is 1.5 * IQR below Q1, and the upper fence is 1.5 * IQR above Q3. Any observation beyond these limits is considered statistically unusual relative to the core distribution of the data.

In our running example, the IQR is calculated as: Q3 – Q1 = 23.75 – 5.25 = 18.5. Using the rigorous 1.5 * IQR rule, we determine the non-outlier boundaries:

1. Lower Bound: Q1 – (1.5 * IQR) = 5.25 – (18.5 * 1.5) = 5.25 – 27.75 = -22.5.
2. Upper Bound: Q3 + (1.5 * IQR) = 23.75 + (18.5 * 1.5) = 23.75 + 27.75 = 51.5.

Since all observed values in the original dataset fall comfortably within the calculated range of -22.5 and 51.5, the whiskers extend to the true minimum (3) and maximum (29), and no separate markers appear. However, if an extreme data point were introduced—for example, if the largest value was changed from 29 to 52—this value would exceed the upper bound of 51.5 and be identified as an outlier. In this scenario, Excel automatically retracts the upper whisker to the next largest non-outlier value, and the extreme value (52) is visually marked by a distinct dot or small circle, as illustrated below.

Creating Comparative Box Plots for Multiple Datasets

One of the most valuable applications of this visualization technique is the ability to compare the distributions of two or more distinct datasets simultaneously. This comparative approach is indispensable for evaluating differences between experimental groups, contrasting performance metrics, or analyzing time-series data grouped by specific intervals. The process in Excel for generating these comparative plots is functionally identical to creating a single plot, relying primarily on correctly structuring the input data.

To facilitate comparative visualization, it is essential that each dataset being analyzed is contained within its own dedicated column. Excel interprets each column as a separate statistical group, for which an individual box plot must be calculated and rendered. This columnar structure allows for direct, side-by-side visual assessment of differences in median values, overall spread (variance), and potential skewness between the groups.

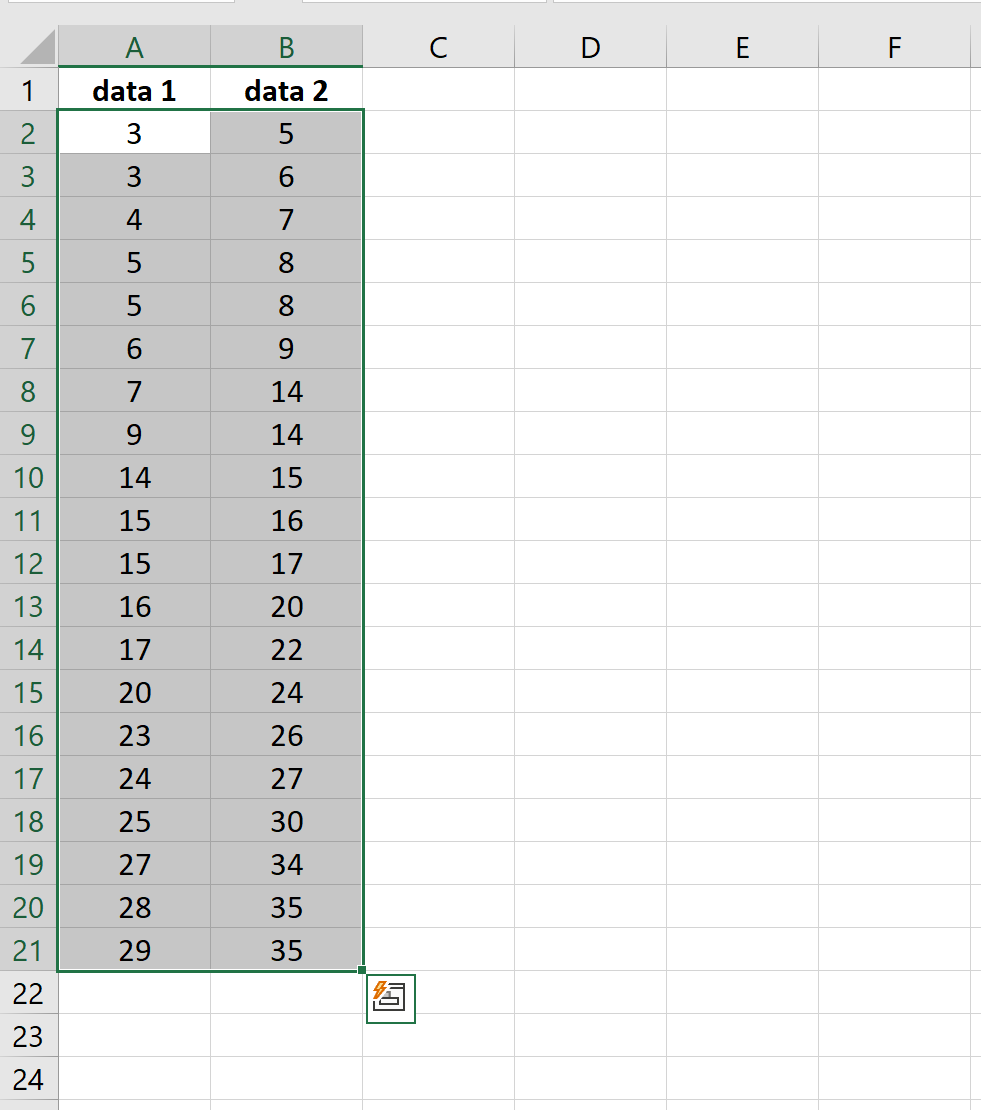

Consider an analysis involving two separate datasets. To generate simultaneous box plots, you must simply highlight the entire range encompassing both columns of numerical data, ensuring both groups’ observations are included in the selection.

Once both datasets are selected, the chart generation steps remain consistent with the single-plot process. Navigate to the Insert tab, locate the Charts group, and click the Statistic Chart symbol.

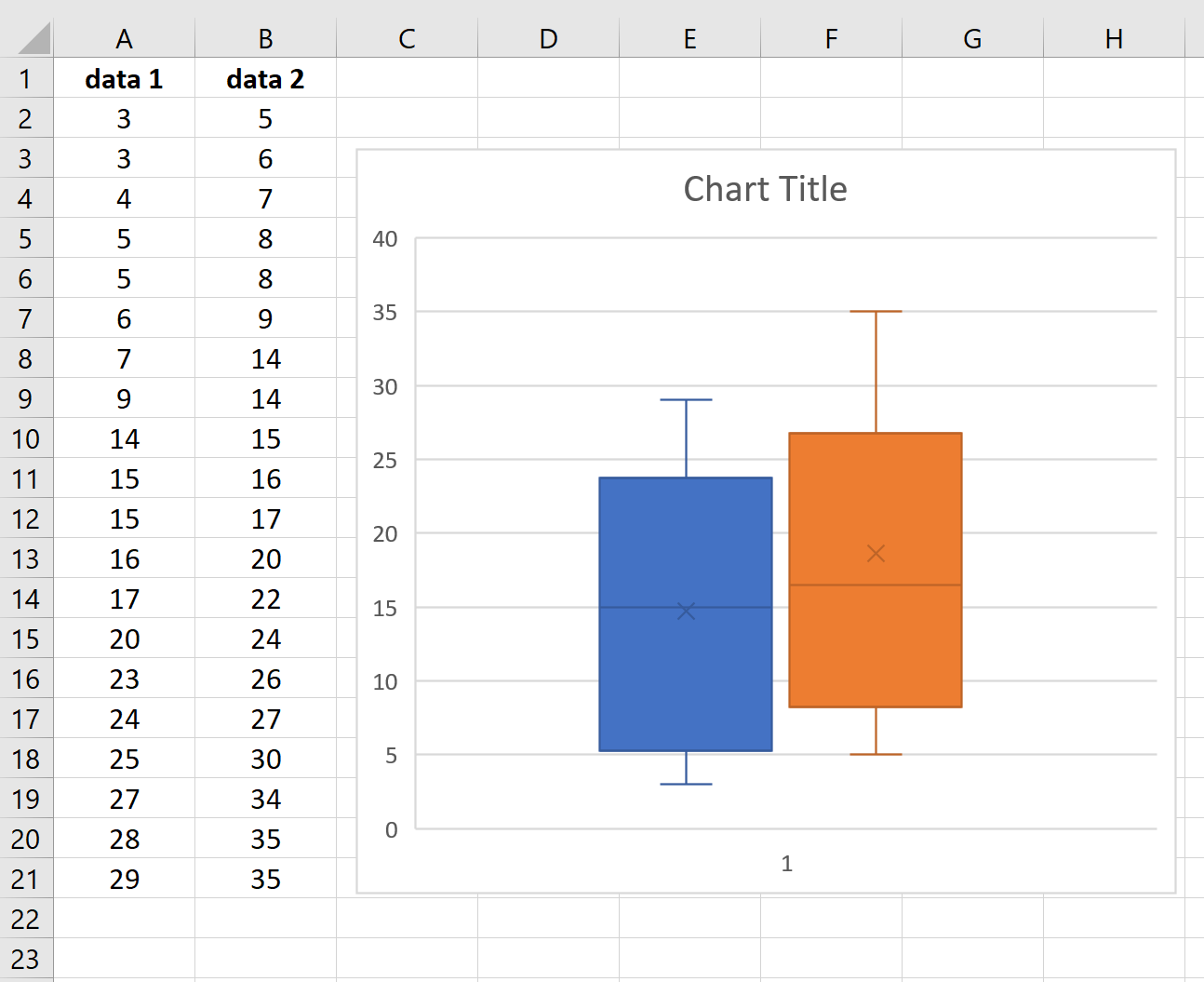

By selecting Box and Whisker, Excel automatically generates a separate, adjacent box plot for each column of data chosen, displaying them side-by-side for seamless comparative analysis.

This side-by-side visualization is highly effective for conducting preliminary comparative statistical tests. By observing the relative heights and positions of the boxes and whiskers, analysts can instantly identify significant differences in central tendency, determine which dataset exhibits greater Interquartile Range (IQR) spread, and assess which group contains more extreme outliers, thus providing a robust visual foundation for further formal statistical testing.
