Learn How to Create In-Cell Bar Charts in Excel: A Step-by-Step Guide

Integrating an in-cell bar chart directly within Microsoft Excel represents a highly effective methodology for merging analytical data with immediate visual feedback. This sophisticated technique significantly elevates the comprehension of performance metrics and statistical distributions, enabling stakeholders to grasp critical insights without navigating away from the core spreadsheet data. Such visual integration is indispensable in professional environments, offering a concise and exceptionally efficient solution for data visualization within extensive reports.

Unlike traditional chart objects, which consume valuable screen space and require separate placement, the in-cell bar serves as a compact, graphical representation of magnitude, embedded precisely within the relevant numerical field. This approach is paramount when constructing executive summaries or interactive dashboards where screen real estate is limited and the capacity for rapid data scanning is a necessity. By transforming static numerical columns into dynamic visuals, we enhance the utility and professional presentation of the spreadsheet itself.

The resulting visual transformation converts a standard column of raw numbers into a powerfully dynamic representation of underlying data volume, as clearly illustrated in the example provided below. Note how the proportional length of each bar instantaneously communicates the relative score or quantity when compared to all other entries within the specific dataset. This immediate visual feedback mechanism is substantially more effective than attempting to analyze an unformatted column of figures, allowing users to swiftly identify outliers, highlight top performers, or pinpoint areas requiring urgent operational attention. This method fundamentally upgrades basic spreadsheet functionality into a highly refined analytical tool.

Achieving this professional and visually compelling result is surprisingly straightforward, relying exclusively on Excel’s native Conditional Formatting feature. This robust, built-in utility empowers users to apply specific visual styles—suching as customized colors, informational icons, or data bars—to cells that satisfy defined logical criteria. Crucially, the implementation process requires absolutely no complex formulas, specialized macros, or external software add-ons, ensuring it remains accessible and manageable for users across all proficiency levels. The following comprehensive guide details the precise, sequential steps required to utilize this feature effectively, thereby converting a simple numerical column into a sophisticated and accurate in-cell bar chart visualization.

The subsequent sections will systematically guide you through the entire visualization process, beginning with the necessary foundational data preparation and concluding with the detailed customization of the final visual appearance. Following these instructions will enable you to seamlessly replicate and deploy this powerful visualization technique in your own reporting and analytical work.

Preparing the Dataset for Optimal In-Cell Bar Charts

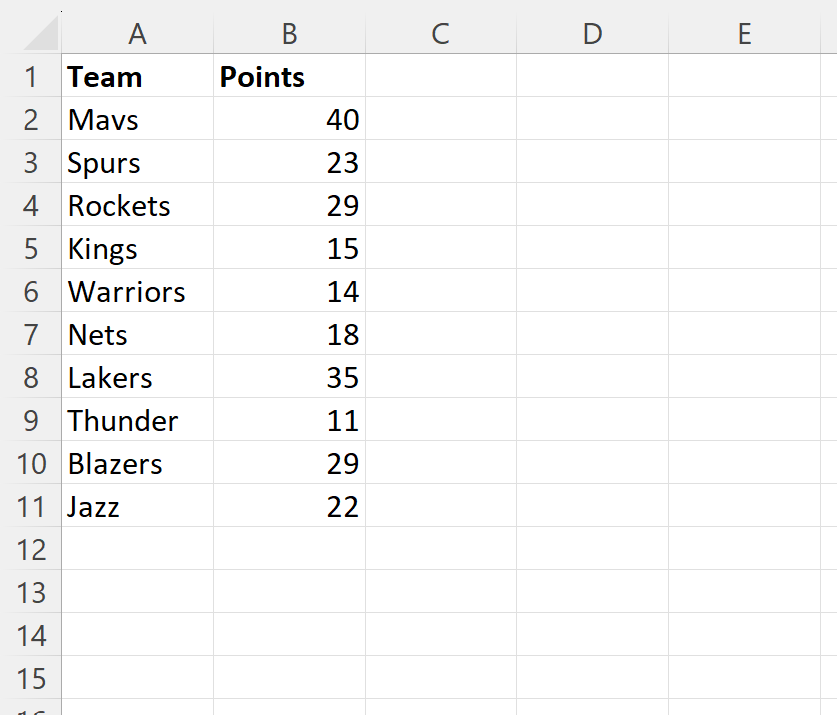

Before commencing the visualization process, it is essential to establish a foundation of clean, clearly organized data. For the purposes of this tutorial, we will utilize a hypothetical roster that showcases the total points scored by various basketball players across several teams. This structure mandates the presence of at least two distinct columns: one dedicated to identifying the category (such as Team or Player Name) and the second containing the quantifiable numerical values (Points Scored) that are slated for graphical representation.

A critical prerequisite is ensuring that the column designated for the data bars contains only pure numerical values. The presence of text strings, system errors (such as #N/A or #DIV/0!), or mixed data types within this specific column will inevitably interfere with the underlying Conditional Formatting rules. This interference can result in visualizations that are either incomplete, inaccurate, or fail to render entirely. Therefore, dedicate time to verify that your source data is standardized, clean, and fully prepared for statistical interpretation before moving forward with any formatting steps. This foundational quality assurance step guarantees both the integrity and the effectiveness of the resulting in-cell charts.

Our specific objective is to insert these miniature visual bars directly into column B, positioning them immediately adjacent to the numerical scores. This strategic placement ensures a direct, instantaneous comparison between the raw numerical magnitude and its proportional visual representation, thereby maximizing the overall readability and analytical depth of the spreadsheet. The process must commence by precisely designating the range of cells where the formatting rule will be applied—in this case, encompassing the entire set of scored points for all players listed.

Implementing the Conditional Formatting Data Bar Feature

The core mechanism responsible for generating the in-cell bar chart is the Data Bars option, which is conveniently located within the Home tab of the Excel ribbon. This specific feature is engineered to generate either gradient or solid fill bars inside cells, with their length calculated relative to the cell’s numerical value compared against the range’s minimum and maximum values. The initial step is to precisely define the scope of this visualization before applying any rules.

To begin the implementation, you must first highlight the target cell range. In our running example, this range is defined as B2:B11. This selection communicates to Excel exactly which data points must be included when calculating the proportional length of all bars. Once the required range is highlighted, navigate to the Home tab situated on the top ribbon. Within the Styles group, locate and click the Conditional Formatting icon. From the dropdown menu that appears, hover your mouse cursor over the Data Bars option. You will observe that Excel offers immediate live previews using several preset colors and gradient styles; however, to achieve the refined, professional in-cell look where only the bar graphic is displayed, we must proceed by selecting the option to customize the specific formatting rules.

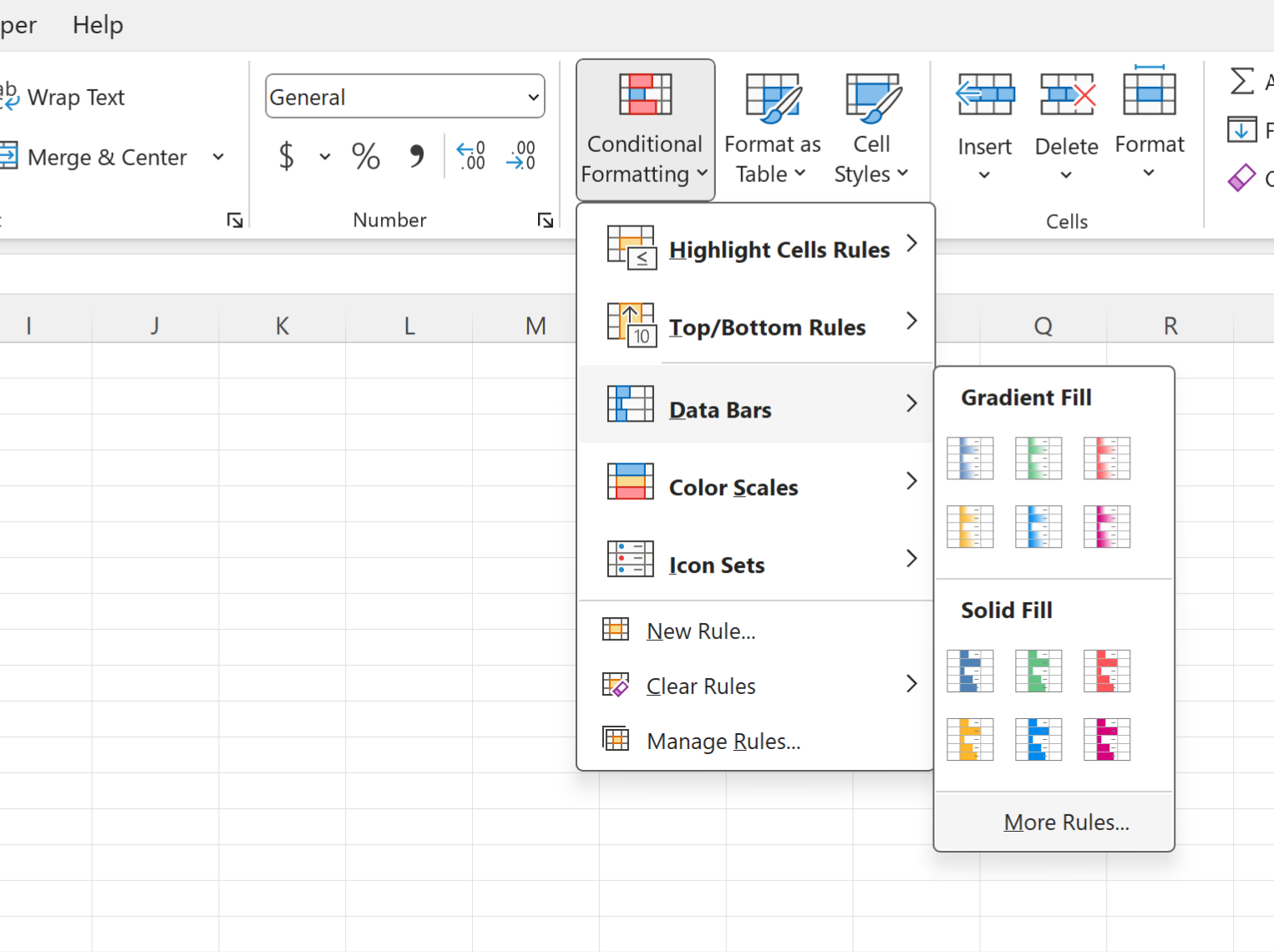

After observing the Data Bars previews, click on the More Rules option found at the bottom of the submenu. This action opens the crucial “New Formatting Rule” dialog box, which grants users granular and precise control over how the data bars are scaled, calculated, and ultimately displayed. This advanced configuration is absolutely necessary for producing professional-grade visualizations that adhere to specific presentation and aesthetic standards. Ensure the rule type selected is “Format all cells based on their values” and that the format style dropdown explicitly shows “Data Bar”; this forms the prerequisite for all subsequent customizations.

The “New Formatting Rule” dialog box presents several key settings that govern the overall appearance and critical scaling methodology of the bars. Within this window, you gain the ability to establish the minimum and maximum values used for the scaling calculation, define the bar color scheme, and, most importantly, determine whether the underlying numerical values should be displayed alongside the generated bars. Carefully verifying that the rule type is correctly set to “Data Bar” is the foundation upon which all subsequent customizations are built, ensuring the integrity of the graphical output within your Microsoft Excel sheet.

Refining Visualization: Customizing Scaling and Appearance

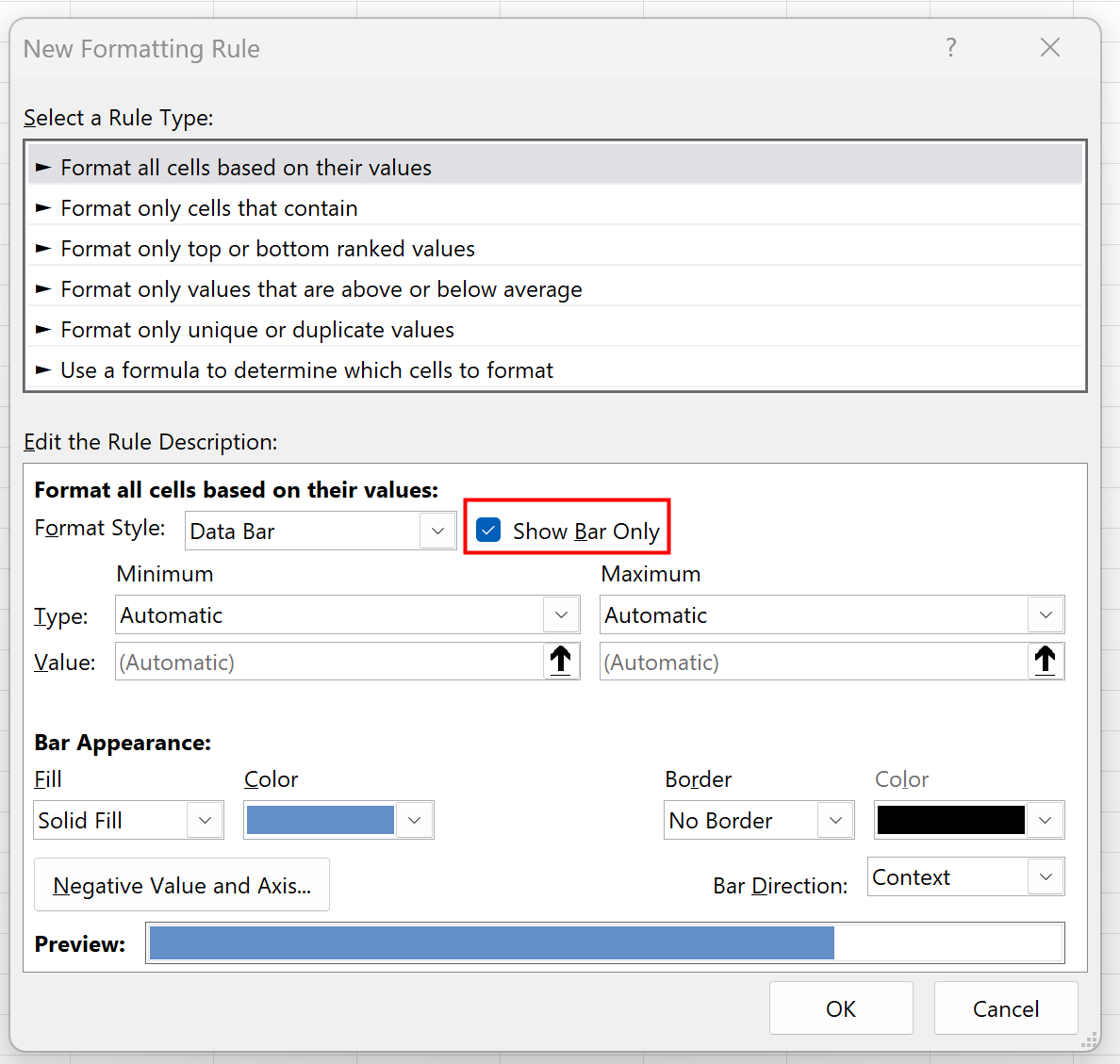

The single most important step required to achieve a clean, bar-only visualization is located within the center of the “New Formatting Rule” window. You must locate and check the box explicitly labeled Show Bar Only. Ticking this option instructs Excel to completely suppress the visibility of the original numerical data (e.g., the raw score “40” in cell B2), leaving only the graphical bar itself visible within the cell boundaries. This transformation is ideally suited for analytical dashboards or summary reports where screen space is at a premium and the primary user goal is rapid, visual assessment, assuming the necessary context (such as the player’s name) is consistently supplied in an adjacent column.

In addition to controlling visibility, this dialog box permits extensive aesthetic customization. Users can precisely specify the bar’s internal fill type, choosing between a smooth Solid Fill or a more dimensional Gradient Fill. Furthermore, you can define the exact color utilized for the bar itself and select a border color to clearly delineate the cell boundaries. While opting for the default blue gradient is often acceptable, selecting a custom color—perhaps one aligned with corporate branding guidelines or standardized traffic light indicators—can dramatically enhance the visualization’s professional appeal and communicative power. For example, using a deep green shade might consistently denote high performance or positive scores. Once all aesthetic decisions have been finalized, click OK to meticulously apply the newly defined rule to your selected range.

It is crucial to fully comprehend how Excel governs the scaling of these visual bars. By default settings, Excel automatically scans and determines the minimum and maximum values present within the highlighted range (B2:B11) and subsequently uses these two figures as the respective 0% and 100% benchmarks for all bar lengths. However, if your underlying dataset is dynamic, or if your requirement is to consistently compare this data against a fixed, external standard (e.g., a known maximum possible score of 50 points), you possess the ability to manually override this automatic behavior. By changing the Minimum and Maximum type fields in the dialog box from “Automatic” to the “Number” option, you can specify fixed lower and upper numerical boundaries. This manual calibration ensures consistent visual scaling across multiple reports or over different data periods, which is vital for maintaining an accurate comparative context for all data visualization efforts.

Interpreting the Final In-Cell Bar Chart Results

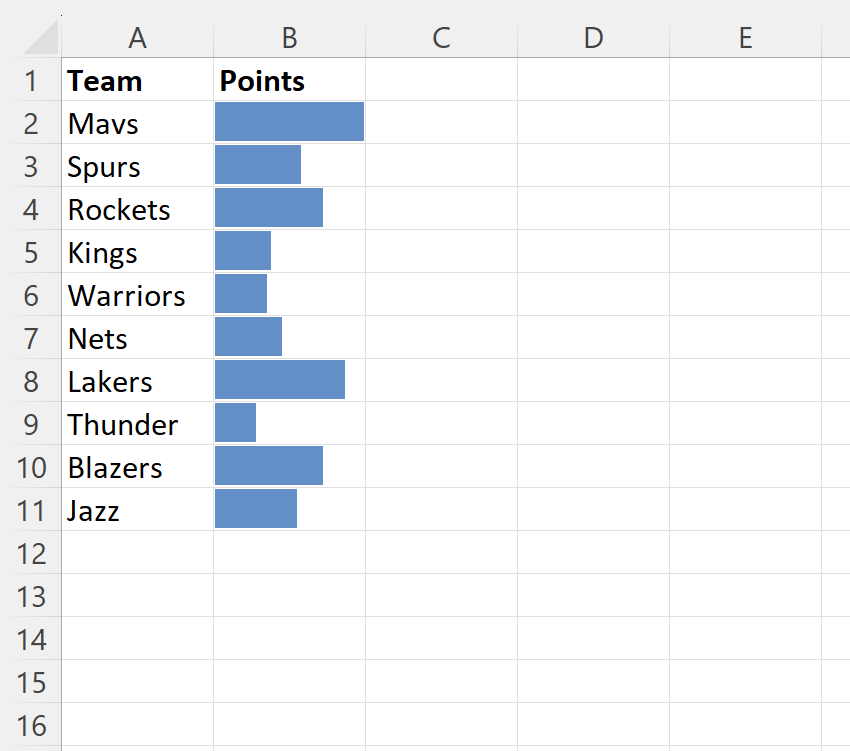

Immediately upon clicking OK, the defined Conditional Formatting rule is applied, and the visual bars are instantly inserted into the cells of column B. If you correctly selected the Show Bar Only option, the original numerical values will vanish, replaced entirely by their proportional graphic representation. The resulting visual output provides an immediate, highly intuitive summary of the dataset’s underlying distribution and relative magnitudes.

The primary and most significant advantage of employing this visualization technique is its inherent proportional accuracy. The precise length of every bar corresponds directly and mathematically to the magnitude of the points scored by each individual player, scaled relative to the highest score recorded within the entire selected range. For instance, the player representing the Mavs team achieved the highest total score (40 points). Because 40 establishes the maximum value in the range, this player’s bar extends fully to fill the entire width of the cell, effectively setting the 100% benchmark for comparison. Conversely, the player from the Thunder team recorded the lowest score (11 points); consequently, their corresponding bar is the shortest, providing a clear visual demonstration of their placement at the lower end of the performance spectrum.

Note: Should your analysis require simultaneous viewing of both the proportional graphical bar and the exact numerical score, you can easily adjust the settings. Simply return to the Conditional Formatting rules management (via the Manage Rules option) and ensure that the checkbox adjacent to Show Bar Only is explicitly unchecked. This modification allows the underlying numerical data to remain fully visible, providing critical context alongside the visual length indicator. While this dual display offers comprehensive detail, it should be noted that it often results in a slightly denser and potentially busier appearance within the individual cell.

This visual analysis confirms that the proportional length of the bars accurately and reliably represents the number of points scored by each player, based on the highly effective automatic scaling applied by Excel. A thorough understanding of this proportionality is absolutely fundamental to interpreting the visual data correctly and drawing valid conclusions. The Mavs player, with 40 points, establishes the definitive maximum length, while the Thunder player, with 11 points, precisely illustrates the minimum length achieved within this specific data range. This innovative technique successfully transforms what would otherwise be a static data table into a powerful, miniature performance dashboard, facilitating instant and sophisticated comparative analysis without requiring any complex external charts.

Advanced Considerations and Strategic Applications

While the default setup for in-cell bar charts performs exceptionally well for positive, uniformly scaled data, there are essential advanced considerations necessary when deploying this feature, particularly when managing negative numbers or comparing data across disparate worksheets. When a dataset includes negative values, Excel automatically modifies the bar visualization: positive values extend rightward from a central axis, and negative values extend leftward, often rendered in a contrasting color for immediate distinction. If this default behavior does not align with your reporting needs, you have the flexibility to adjust the “Bar Direction” and “Negative Value and Axis” settings within the “More Rules” dialog box. This customization ensures optimal clarity and presentation, even within complex financial models or detailed statistical reports.

Furthermore, in-cell bar charts prove exceptionally valuable in the creation of comprehensive Key Performance Indicator (KPI) dashboards. Consider the scenario of tracking monthly sales figures for a large portfolio of fifty different products. By inserting an in-cell bar chart directly next to each product’s total sales figure, managers can rapidly scroll through the entire list and visually identify products that are performing significantly above or below the established average, thereby facilitating rapid, data-informed decision-making. This sophisticated visualization method is demonstrably superior to merely sorting the data numerically, as the immediate visual length provides a more intuitive, quantitative sense of the performance gap existing between the top and bottom performers. Utilizing this professional technique effectively contributes to the standardization of clear visual reporting across an entire organization.

Expanding Excel Proficiency and Additional Resources

Mastering the powerful technique of creating in-cell bar charts opens the door to a significantly wider range of advanced and highly effective data presentation methods available within Excel. For users intent on further enhancing their spreadsheet management and analytical skills, dedicated exploration of other Conditional Formatting options—such as sophisticated color scales and symbolic icon sets—can provide even richer visual context and deeper analytical meaning to complex numerical data. These collective tools empower users to move far beyond simple data entry and into the realm of professional, sophisticated data analysis and high-impact reporting.

The following resources explain how to perform other common and advanced operations in Excel:
