Learn How to Create and Interpret Q-Q Plots in R for Distribution Analysis

Understanding the Quantile-Quantile (Q-Q) Plot

The Q-Q plot, or quantile-quantile plot, is an indispensable graphical method in statistical practice used primarily to assess whether a set of observed data plausibly originates from a specific theoretical distribution. This visualization technique moves beyond simple summary statistics, offering a deep, immediate visual assessment of the underlying structure of the data. It is a critical first step in data analysis, particularly when preparing for advanced modeling or inferential procedures. The plot’s effectiveness lies in its ability to highlight subtle deviations that numerical tests might overlook, thus guiding the analyst in choosing appropriate statistical methodologies and ensuring the integrity of the subsequent analysis.

A cornerstone of classical statistical inference is the assumption of distributional adherence. Specifically, many powerful parametric tests, such as t-tests and ANOVA, rely on the critical assumption that the data, or the residuals derived from a model, follow a normal distribution (often referred to as the Gaussian distribution). The Q-Q plot stands out as the most widely used and intuitive method for analysts to visually verify this prerequisite before committing to inferential statistics. Unlike formal statistical tests, which yield a binary pass/fail result, the Q-Q plot offers superior diagnostic insight. It clearly illustrates not only if the assumption is violated but also the precise nature of the violation—for example, whether the data exhibits pronounced skewness, whether the tails are unusually heavy or light (kurtosis issues), and which specific observations contribute most significantly to the departure from the expected theoretical model.

The mechanics of constructing the plot involve a comparison of two distinct sets of quantiles. On the vertical axis, we plot the quantiles derived directly from the actual sample data being analyzed. On the horizontal axis, we plot the corresponding theoretical quantiles expected from the reference distribution, which is most often the standard normal distribution. If the empirical data perfectly aligns with the chosen theoretical distribution, the resulting scatter of plotted points must, by definition, coalesce precisely along a straight diagonal line. Any systematic deviation from this reference line signifies a lack of conformity between the sample distribution and the hypothesized model, prompting the analyst to reconsider the initial assumptions or seek alternative, non-parametric approaches.

The Foundational Role of Quantiles in Distribution Analysis

To effectively interpret the output of a Q-Q plot, a solid grasp of the underlying concept of a quantile is essential. Quantiles are partition points within a dataset that divide the range of a probability distribution into continuous intervals with equal probabilities, or dividing the observations in a sample in the same way. In simpler terms, a quantile represents the data value below which a specified fraction or portion of the data falls. For instance, the 0.9 quantile, often called the 90th percentile, marks the data value below which 90% of all observations in the dataset are found. Similarly, the commonly known median of a dataset is equivalent to the 0.5 quantile, as exactly 50% of the data lies below this central point. Understanding quantiles is crucial because the Q-Q plot is fundamentally a direct comparison of these positional measures between two distributions.

The operational mechanism of the Q-Q plot involves two key steps. First, it ranks all observations in the sample data and determines the corresponding empirical quantiles. Second, it calculates the quantiles expected if the data truly followed the chosen theoretical distribution. These two sets of values are then plotted against each other. While the normal distribution is overwhelmingly the most frequent reference distribution used in practice—due to its critical role in parametric testing—it is imperative to recognize that Q-Q plots possess greater versatility. They can be constructed using any known theoretical distribution, allowing analysts to check for specialized assumptions, such as whether data conforms to a Weibull distribution (common in reliability engineering), a Gamma distribution, an Exponential distribution, or a T-distribution, among others.

The central rule for interpreting the plot remains remarkably straightforward regardless of the reference distribution chosen. If the plotted empirical data points adhere closely to the theoretical straight diagonal line—a line representing perfect equivalence between the sample and the model—it provides compelling graphical evidence that the dataset was indeed drawn from the hypothesized distribution. Conversely, any discernible or systematic deviation from this ideal line serves as a strong signal of a mismatch between the sample data’s characteristics and the theoretical model’s expectations. This deviation necessitates thorough investigation: either the data must be transformed to better meet the assumption, or the analyst must pivot to robust, non-parametric statistical tests that do not impose strict distributional constraints.

Generating a Q-Q Plot in R for Normality Testing

The process of generating high-quality Q-Q plots is made highly accessible and straightforward within the statistical programming environment R. R’s base installation includes robust, built-in functionality specifically designed for distributional diagnostics. The primary function used for comparing sample data against the standard normal distribution is the widely utilized qqnorm() function. This powerful tool automatically handles the complex computational requirements, calculating the necessary theoretical normal quantiles and plotting them against the corresponding sample data quantiles derived from the vector provided. This efficiency allows the analyst to focus immediately on interpreting the visual output rather than managing calculation complexity.

To properly illustrate the expected output of a Q-Q plot when the normality assumption holds true, we begin by generating a synthetic sample dataset. We intentionally construct this dataset so that we know, a priori, that it follows a normal distribution. By comparing the resulting plot against our empirical knowledge, we establish a crucial benchmark for perfect or near-perfect normality. The following R code snippet demonstrates the necessary steps: setting a seed for reproducibility, generating 100 random values using the rnorm() function, and subsequently calling the qqnorm() function to create the initial plot comparing our sample data to a theoretical normal model.

#make this example reproducible
set.seed(11)

#generate vector of 100 values that follows a normal distribution
data <- rnorm(100)

#create Q-Q plot to compare this dataset to a theoretical normal distribution
qqnorm(data)

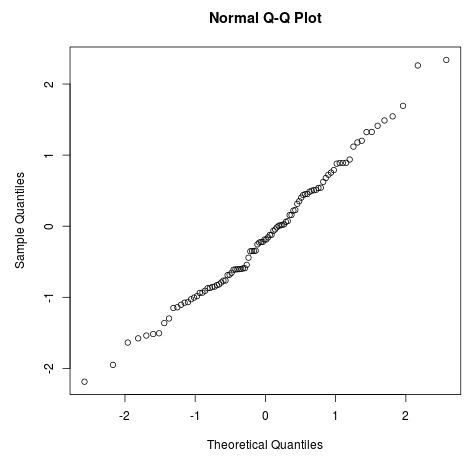

Upon running this code, R produces a scatter plot showing the data points. While the clustering around an invisible diagonal trajectory suggests normality, the visual interpretation can be significantly enhanced by adding a definitive reference line. The raw output, shown below, provides the core diagnostic information but benefits immensely from the next step: the addition of a clear, objective straight line for comparison.

Enhancing Visualization with the Q-Q Line

Although the initial plot generated by qqnorm() provides the necessary data points, relying on visual estimation of a straight line can introduce subjectivity, especially when dealing with small datasets or distributions that exhibit minor variances. To remove this ambiguity and provide a mathematically objective visual reference, statisticians universally recommend the use of the qqline() function in R. This function overlays a straight diagonal line onto the existing plot, serving as the definitive representation of the target normal distribution. Crucially, this line is not arbitrarily drawn; it is anchored through the first and third quartiles (the 25th and 75th quantiles) of the sample data, making it the most robust reference for assessing linearity.

The addition of this reference line dramatically improves the diagnostic power of the plot. By using the qqline() function immediately after calling qqnorm(), the analyst can instantly identify where the data points deviate from the theoretical expectation. This is particularly useful for scrutinizing the extremes, or the tails, of the distribution. Deviations in the upper or lower tails often indicate issues with kurtosis (heavy or light tails), which can have significant implications for the accuracy of inferential tests that assume finite variance.

To integrate this essential visual aid, we simply execute the following commands in sequence, building upon the previous generation of the plot. Note that qqline() requires the same data vector used in qqnorm() to correctly calculate and position the reference line:

#create Q-Q plot
qqnorm(data)

#add straight diagonal line to plot
qqline(data)

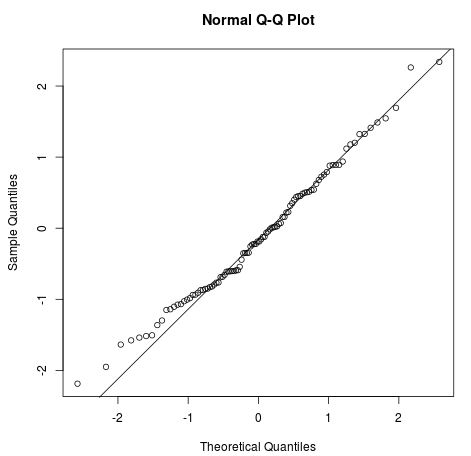

Observing the resulting plot below, we can confirm the successful visualization of our generated normal data. Although minor fluctuations are present, particularly near the extreme ends of the distribution, the vast majority of the data points cluster tightly along the newly added straight line. This visual confirmation is powerful; it validates that our sample data, which we intentionally drew from a normal distribution, indeed exhibits characteristics of normality. This perfect or near-perfect benchmark plot is indispensable for comparison when an analyst moves on to analyze empirical data where the underlying distribution is unknown and must be rigorously tested.

Interpreting Non-Normal Distributions: Practical Examples

The true value and diagnostic power of the Q-Q plot become most evident when analyzing datasets that deviate substantially from the ideal normal distribution. Departures from the diagonal reference line are not random noise; they illustrate specific, recognizable forms of non-normality. For instance, a curved pattern usually signifies skewness (asymmetric distribution), while points deviating sharply at the ends indicate issues related to kurtosis (the thickness or heaviness of the tails compared to a normal distribution). Learning to identify these patterns is crucial for understanding the limitations of applying parametric models.

To demonstrate, let us consider a dataset generated from a Gamma distribution. The Gamma distribution is inherently positively skewed, meaning its mass is concentrated toward the lower values and it has a long tail extending to the right. When we plot the quantiles of this skewed sample against the theoretical normal quantiles, the resulting Q-Q plot is expected to show a pronounced, unmistakable upward curve. This curvature is the visual fingerprint of positive skewness and serves as clear evidence that the normality assumption is violated. The code below generates this skewed data and plots the diagnostic visualization:

#make this example reproducible
set.seed(11)

#generate vector of 100 values that follows a gamma distribution
data <- rgamma(100, 1)

#create Q-Q plot to compare this dataset to a theoretical normal distribution
qqnorm(data)
qqline(data)

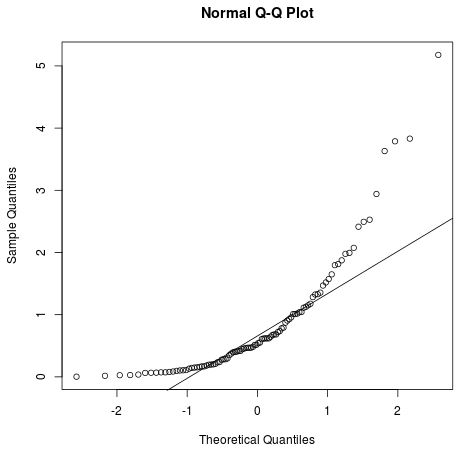

As illustrated in the resulting graph, the distinct upward curve of the data points, pulling away from the straight line, is a powerful visual indicator of positive skewness, immediately confirming that this dataset is structurally non-normal. Furthermore, we can examine data drawn from a Chi-squared distribution, which is frequently encountered in hypothesis testing and also exhibits positive skewness. Using 5 degrees of freedom, this distribution typically deviates significantly from normality, with the most noticeable departures occurring in the upper tail due to the extreme values inherent in the distribution:

#make this example reproducible
set.seed(11)

#generate vector of 100 values that follows a Chi-Square distribution
data <- rchisq(100, 5)

#create Q-Q plot to compare this dataset to a theoretical normal distribution
qqnorm(data)
qqline(data)

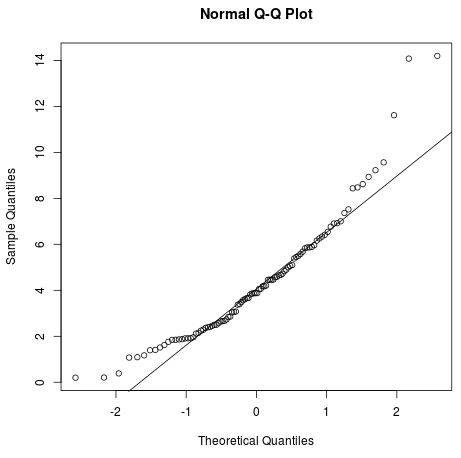

The visual evidence presented by the Chi-Square Q-Q plot is equally compelling. The points deviate substantially and systematically from the straight line, particularly in the upper tail where the largest sample values fail to match the theoretical normal quantiles. This reinforcing graphical conclusion emphasizes the importance of the Q-Q plot in making informed decisions about whether statistical assumptions are met, thereby preventing the misapplication of statistical tests.

Customizing Q-Q Plot Aesthetics in R

While the fundamental diagnostic information provided by the Q-Q plot is paramount, analysts frequently need to modify the visual aesthetics to meet specific presentation standards, enhance clarity for reports, or distinguish between multiple plots. The base plotting system in R is highly flexible and provides numerous parameters within its plotting functions to control virtually every element of the visualization. These elements include the main title, the labels for both the X and Y axes, the color and shape of the plotted data points, and the characteristics of the reference line. Mastering these customization options is vital for producing publication-quality statistical graphics.

The primary function, qqnorm(), accepts several standard graphical arguments used across R’s plotting capabilities. The following example illustrates how to customize the visualization of our baseline normal distribution data. We utilize main to set the plot’s title, xlab and ylab to define meaningful axis labels, and the col argument to change the color of the data points from the default black to a more visually appealing ‘steelblue’.

#make this example reproducible
set.seed(11)

#generate vector of 100 values that follows a normal distribution
data <- rnorm(100)

#create Q-Q plot
qqnorm(data, main = 'Q-Q Plot for Normality', xlab = 'Theoretical Normal Quantiles',
       ylab = 'Sample Data Quantiles', col = 'steelblue')

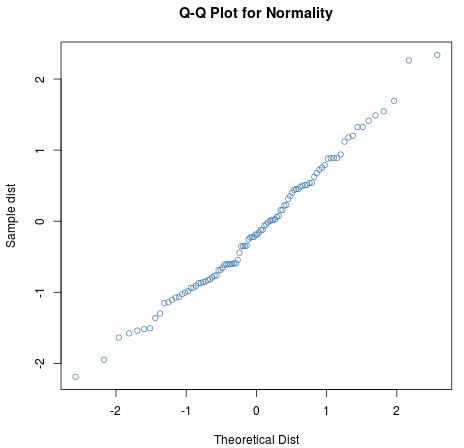

Furthermore, the essential reference line added by qqline() can also be comprehensively customized to improve visual contrast. The code snippet below demonstrates how to adjust the line’s properties: we set the line color to ‘red’ for high visibility, increase its thickness using lwd = 2 (where 1 is the default width), and change the line type to dashed using lty = 2 (where 1 represents a solid line). These simple adjustments can drastically improve the readability and professional appearance of the plot, making deviations from normality much easier to spot.

qqline(data, col = 'red', lwd = 2, lty = 2)

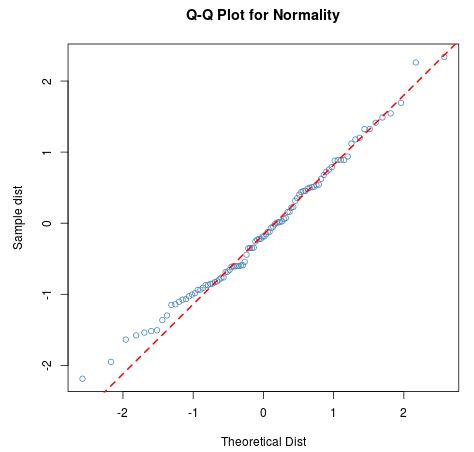

The final customized visualization, incorporating both colored points and a distinct reference line, demonstrates the flexibility of R’s plotting system, ensuring that the diagnostic graph is not only statistically sound but also visually compelling for any audience.

Beyond Visualization: Formal Statistical Testing

It is of paramount importance for any statistician or data scientist to understand the inherent limitations of the Q-Q plot. While it is an exceptionally powerful tool for visually checking if a dataset adheres to a specific theoretical distribution, providing rich qualitative insight into the nature of any deviations, it remains strictly a diagnostic visualization. The Q-Q plot does not, and cannot, provide an objective, quantifiable p-value necessary for formal hypothesis testing. The decision to accept or reject the null hypothesis of distributional conformity, especially when the visual evidence is ambiguous, requires a move beyond graphical inspection.

To formally and statistically test the hypothesis of whether a dataset truly adheres to a particular distribution, dedicated statistical tests must be employed. These tests provide a numerical measure of the probability that the observed data was drawn from the specified distribution, offering a definitive conclusion based on a pre-determined significance level (alpha). The choice of test often depends on the sample size and the specific properties being tested (e.g., omnibus tests vs. tests focused solely on normality).

If the primary analytical goal is to formally test the assumption of normality—a prerequisite for many advanced procedures—the following established and widely accepted statistical tests should be rigorously considered and applied in conjunction with the Q-Q plot analysis:

• The Anderson-Darling Test: This test is an adaptation of the Kolmogorov–Smirnov test and gives more weight to the tails of the distribution, making it highly sensitive to deviations at the extremes.

• The Shapiro-Wilk Test: Considered one of the most powerful normality tests, particularly effective for smaller sample sizes (n < 50).

• The Kolmogorov-Smirnov Test: This is a non-parametric test used to determine if two samples are drawn from the same distribution, or if a sample is drawn from a specific theoretical distribution.

By combining the visual insight provided by the Q-Q plot—which tells us how the data deviates—with the objective p-value yielded by a formal statistical test—which tells us if the deviation is significant—analysts can make highly robust and defensible decisions regarding their choice of statistical methodology.
