Learning Kernel Density Plots in R: A Step-by-Step Guide with Examples

Understanding Kernel Density Plots (KDP)

The Kernel Density Plot (KDP) stands as a foundational technique in modern data visualization, offering a sophisticated method for charting the underlying probability distribution of continuous variables within a dataset. Formally known as Kernel Density Estimation (KDE), this non-parametric approach uses a continuous, smooth curve to estimate the probability density function. This provides analysts with an immediate and intuitive grasp of the data’s structure, revealing crucial characteristics such as modes (peaks), skewness, and the presence of potential outliers.

Unlike methods that rely on discrete bins, the KDP generates a robust estimate of the population distribution based directly on the sample data. This resulting visualization is highly valuable for exploratory data analysis, enabling researchers to make quick, informed decisions about the nature and shape of their variables before conducting complex statistical modeling.

The illustration below demonstrates a typical kernel density plot, showcasing how the continuous curve effectively smoothes the raw data points to clearly reveal the underlying density structure of the variable.

Although the KDP serves a similar exploratory function as the histogram, it possesses distinct advantages that favor its use in professional statistical reporting. The appearance of a standard histogram is notoriously sensitive to the arbitrary choice of bin widths, which can sometimes obscure the true shape of the data’s distribution. Conversely, the continuous nature of the KDP, controlled by a smoothing parameter called bandwidth, yields a clearer, less biased representation of the density function, ensuring that the visualization accurately reflects the underlying data patterns.

Leveraging R for Kernel Density Visualization

The R programming environment is equipped with powerful native functions for generating sophisticated graphical outputs, including precise kernel density plots. The computational backbone for this process is the core density() function, which calculates the non-parametric estimate of the probability density function for a given dataset. By mastering the application of this function alongside R’s primary plotting tools, users can transition from producing simple outline plots to generating complex comparative analyses.

We will focus on three sequential methods for visualizing data density in R. These techniques build on fundamental concepts, offering increasing levels of visual customization and analytical complexity necessary to meet varied reporting requirements.

The following list summarizes the three essential techniques covered in this guide, providing a structured approach to learning KDP creation:

• Method 1: Basic Outline Plot. Focuses on visualizing a single density curve.
• Method 2: Filled-In Plot. Enhances visual appeal by shading the area under the curve.
• Method 3: Comparative Overlays. Plots multiple density curves on a single axis for direct comparison.

Conceptual Syntax for Density Plot Generation

Before proceeding to practical, runnable examples, it is vital to understand the basic syntax required to generate a kernel density plot using base R graphics. The process is fundamentally divided into two steps: first, generating the density object using density(), and second, rendering that object graphically using plot().

The following structure illustrates the minimal code needed to calculate the coordinates and display the resulting density curve:

#define kernel density object using the density() function
kd <- density(data)

#create kernel density plot using the plot() function
plot(kd)

To improve the visual impact, particularly for presentation materials, analysts often add color and fill the area beneath the curve. This enhancement requires the introduction of the polygon() function, which utilizes the coordinates generated by density() to draw a shaded area.

#define kernel density
kd <- density(data)

#create kernel density plot (required as the base structure)
plot(kd)

#fill in kernel density plot with specific color using polygon()
polygon(kd, col='blue', border='black')

When the analytical objective involves comparing the distribution of several distinct variables, multiple KDPs must be overlaid onto a single graphical canvas. This is achieved by using plot() for the initial density object, followed by the lines() function for every subsequent density curve. This ensures that new lines are added without resetting the existing plot framework.

#plot first kernel density plot (uses plot())
kd1 <- density(data1)
plot(kd1, col='blue')

#plot second kernel density plot (uses lines())
kd2 <- density(data2)
lines(kd2, col='red')

#plot third kernel density plot
kd3 <- density(data3)
lines(kd3, col='purple')

...

Method 1: Creating a Single Kernel Density Outline Plot

The most straightforward application of Kernel Density Estimation involves visualizing the probability distribution of a single continuous variable. This method requires only two commands: defining the sample data, and then executing the two-step plotting procedure previously outlined.

The density() function is crucial here, as it performs the mathematical smoothing necessary to transform raw data points into a continuous curve. It generates an object containing the x and y coordinates, where x corresponds to the observed values and y corresponds to the estimated density at that value. Essentially, this process creates a smoothed alternative to the traditional histogram.

The following code snippet demonstrates how to define a sample dataset, calculate its density object, and visualize the result using the generic plot() function. Note the inclusion of the main argument to assign a clear, descriptive title to the visualization.

#create data
data <- c(3, 3, 4, 4, 5, 6, 7, 7, 7, 8, 12, 13, 14, 17, 19, 19)

#define kernel density object
kd <- density(data)

#create kernel density plot, setting a descriptive title
plot(kd, main='Kernel Density Plot of Data')

The resulting visualization immediately communicates the shape of the data. For instance, the distinct peaks visible in the curve suggest that the data may follow a multimodal or strongly skewed distribution, providing immediate insights that descriptive statistics might not easily convey. The highest points (modes) along the curve serve as powerful visual indicators of central tendency and data concentration.

Method 2: Enhancing Readability with a Filled Kernel Density Plot

While the basic outline plot (Method 1) is statistically sufficient, filling the area beneath the curve significantly improves the aesthetic quality and overall readability of the data visualization. This filled approach is especially recommended when generating charts for reports, academic papers, or presentations where visual impact and clarity are paramount.

To achieve this shaded effect, we must employ the polygon() function immediately after the initial density curve is plotted using plot(kd). The polygon() function takes the density object (kd) as its input, using its coordinates to define the boundaries of the shaded area. We then use arguments such as col to specify the fill color and border to set the color of the boundary line.

It is a critical procedural detail that plot(kd) must be executed first to correctly set up the graphical environment, including the axes and scaling, before polygon() is called to overlay the shaded region. Utilizing contrasting and professional colors, such as 'steelblue', enhances the differentiation between the plot area and the background.

#create data
data <- c(3, 3, 4, 4, 5, 6, 7, 7, 7, 8, 12, 13, 14, 17, 19, 19)

#define kernel density object
kd <- density(data)

#create kernel density plot (base plot)
plot(kd)

#add color fill using the polygon() function
polygon(kd, col='steelblue', border='black')

The resulting chart is a visually engaging and easily interpretable representation of the data’s density function, widely preferred in contemporary statistical analysis.

Method 3: Overlaying Multiple Plots for Comparative Analysis

Perhaps the most powerful application of Kernel Density Plots is their ability to facilitate the direct visual comparison of the distribution of two or more independent groups or variables. By overlaying multiple density curves on a single chart, analysts can instantly identify differences in central tendency, assess variances, and detect shifts in the overall shape of the distributions.

The procedural rule for multi-density plots is crucial: use plot() exclusively for the first dataset to establish the plot area and axes, and then utilize the lines() function for every subsequent dataset. The lines() command ensures that new graphical elements are added to the existing plot without erasing the previous curve or resetting the coordinate system.

In the example below, we define two distinct datasets, calculate their corresponding density objects (kd1 and kd2), and then plot them sequentially. It is essential to assign unique colors (using the col argument) and potentially adjust line widths (lwd) to maintain maximum clarity and differentiation between the compared groups.

#create datasets
data1 <- c(3, 3, 4, 4, 5, 6, 7, 7, 7, 8, 12, 13, 14, 17, 19, 19)
data2 <- c(12, 3, 14, 14, 4, 5, 6, 10, 14, 7, 7, 8, 10, 12, 17, 20)

#plot first kernel density plot (base plot)
kd1 <- density(data1)
plot(kd1, col='blue', lwd=2)

#plot second kernel density plot (added using lines())
kd2 <- density(data2)
lines(kd2, col='red', lwd=2)

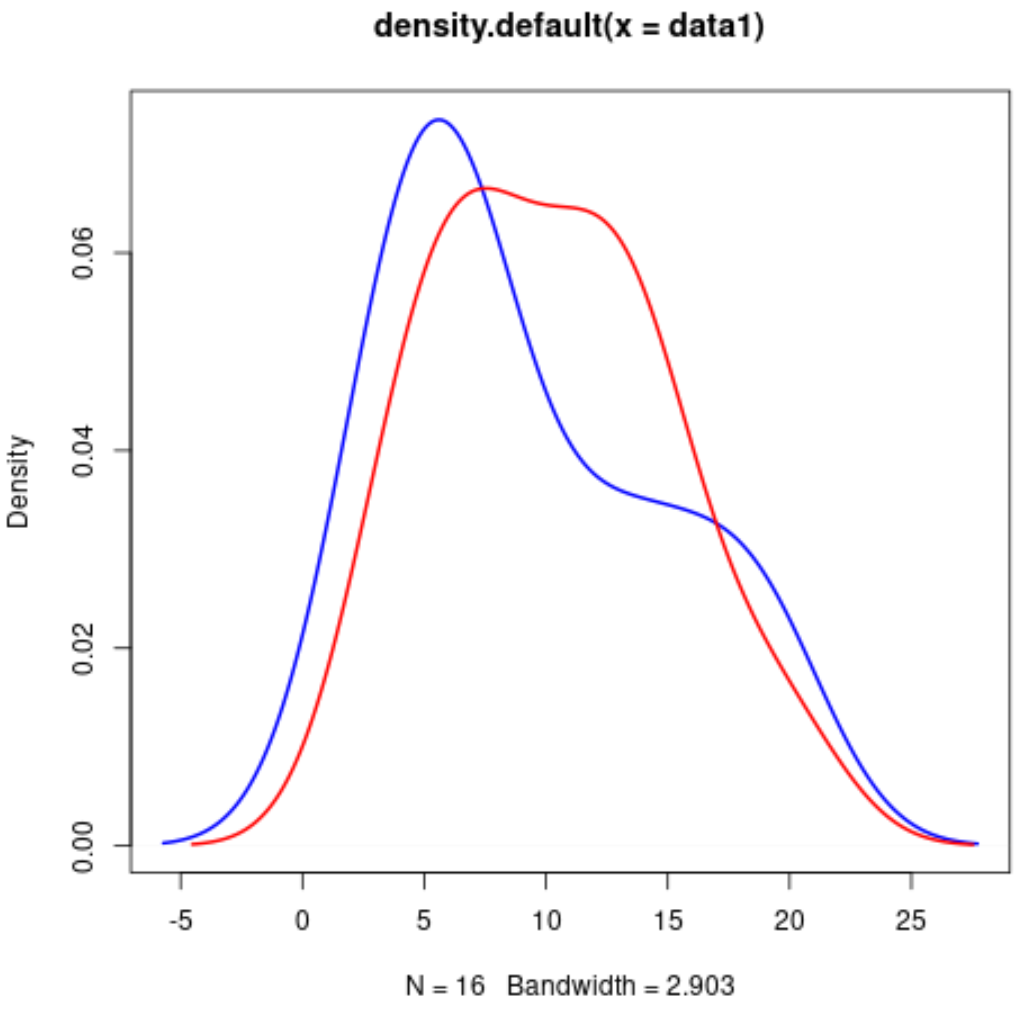

This comparative chart instantly reveals key differences. For instance, if data1 represents a control group and data2 a treatment group, the visual shift in the modes and the spread of the curves provide immediate evidence regarding the effect of the treatment.

While this methodology is fully scalable to include many variables, prudence dictates ensuring the initial plot() command sets appropriate axis limits (especially the ylim argument) to encompass the maximum density value of all subsequent curves. Furthermore, for clarity in plots featuring more than two distributions, the inclusion of a comprehensive legend is highly recommended.

Summary and Resources for Advanced Visualization

Kernel density plots are an essential, flexible, and powerful component of exploratory data analysis within the R environment. They consistently offer a superior, smoother alternative to the traditional histogram for accurately visualizing the underlying probability distribution of continuous data. By systematically employing the core functions—density() for calculation, plot() for the baseline, polygon() for aesthetic filling, and lines() for comparison—users can produce visualizations that are both statistically rigorous and graphically compelling.

Mastering these three methods—basic outlining, visual enhancement through filling, and analytical comparison via overlays—provides a robust foundation for advanced data visualization practices in any statistical domain.
