Create Partial Residual Plots in R

Multiple Linear Regression (MLR) stands as a cornerstone in quantitative analysis, utilized across disciplines ranging from social sciences to engineering. This robust statistical framework enables researchers and analysts to rigorously model the intricate relationship between a single response variable and two or more predictor variables simultaneously. The fundamental objective of employing MLR is to quantify how collective changes in the predictors influence the outcome, providing critical insights into causality and prediction.

However, the reliability of any inference drawn from an MLR model is intrinsically tied to the adherence of its underlying statistical constraints. When these core assumptions of linear regression are violated—such as issues concerning homoscedasticity, independence of errors, or normality—the resulting model coefficients may become biased, the standard errors inaccurate, and the overall conclusions derived from the analysis can be misleading, potentially jeopardizing decision-making processes.

Foremost among these prerequisites is the requirement of linearity. This critical assumption mandates that the relationship between the response variable and each predictor must be linear, conditioned on the influence of all other variables being held constant. Diagnosing potential violations of this conditional linearity is often non-trivial and requires specialized, powerful visualization techniques. Among these, the partial residual plot emerges as the most effective diagnostic tool.

Understanding Conditional Linearity in Multiple Regression

The assumption of linearity in the context of multiple regression is frequently misinterpreted. It is not sufficient to simply check if a basic scatter plot of the response variable against a single predictor variable appears linear. Instead, the assumption requires that the relationship between the response and a specific predictor must remain linear after statistically accounting for the contributions and confounding influences of all other predictor variables included in the model specification. This conditional relationship is notoriously challenging to evaluate using standard two-dimensional graphical methods.

If the true underlying relationship between a predictor and the response is fundamentally non-linear—perhaps following a quadratic, logarithmic, or exponential pattern—a standard MLR model, which forces a straight line fit, will inevitably lead to systematic errors. These errors manifest in the residuals, resulting in a misrepresentation of the true effect size and potentially obscuring vital patterns or functional forms inherent in the data structure. Ignoring such violations can lead to severe underestimation or overestimation of covariate effects.

To perform an accurate diagnosis of the functional form for each individual predictor within the complex, multidimensional structure of a multiple regression model, we require a specialized graphical instrument capable of isolating that specific predictor’s unique contribution. This necessity defines the primary purpose of the partial residual plot, sometimes alternatively termed the Component-plus-Residual plot, providing a mechanism to visualize conditional relationships clearly.

Defining the Partial Residual Plot and Its Mechanics

A partial residual plot is an essential graphical diagnostic tool meticulously designed to help analysts assess the adequacy of the assumed functional form for a given predictor variable in a regression setting. For any specific predictor, this plot effectively isolates and displays the relationship between that predictor and the response variable, having effectively stripped away the linear influence of all other covariates included in the model.

Technically, the plot is meticulously constructed by graphing the calculated partial residual (also known as the component-plus-residual) against the predictor variable in question. The partial residual is mathematically derived by taking the raw residuals (e) from the fitted MLR model and adding back the linear contribution of the specific predictor being examined (β_iX_i). If the conditional relationship is genuinely linear, the resulting data points should exhibit a random scatter centered closely around a straight line, which represents the linear fit defined by the coefficient estimate for that predictor.

These plots are critically important because relying solely on simple scatter plots (response vs. predictor) is often misleading in MLR due to the masking effects of confounding variables. By explicitly factoring out the linear effects contributed by the other predictors, the partial residual plot offers a much clearer, more isolated perspective on the relationship, empowering analysts to visually detect curvature, systematic deviations, or other complex patterns that conflict with the assumed linear form.

Implementing Partial Residual Plots Using R

To effectively demonstrate the diagnostic power of partial residual plots, we utilize the statistical programming environment, the R programming language. We will fit a multiple linear regression model using a carefully simulated dataset where some underlying relationships are deliberately non-linear. This simulated scenario mirrors common issues encountered in real-world data analysis where standard MLR models initially fail to adequately capture complex non-linear patterns.

Our initial step involves generating a synthetic dataset comprising a response variable (y) and three distinct predictor variables (x1, x2, x3). Crucially, predictors x2 and x3 are intentionally generated using squared and cubed terms, respectively. This structural design introduces significant nonlinearity that a basic linear model will struggle to accommodate, thus creating a perfect test case for our diagnostic methods.

The following code snippet initializes the data frame and proceeds to fit the preliminary multiple linear regression model utilizing the standard lm() function available in R. This establishes our baseline model that we expect to show signs of misspecification.

#make this example reproducible
set.seed(0)

#define response variable
y <- c(1:1000)

#define three predictor variables
x1 <- c(1:1000)*runif(n=1000)
x2 <- (c(1:1000)*rnorm(n=1000))^2
x3 <- (c(1:1000)*rnorm(n=1000))^3

#fit multiple linear regression model
model <- lm(y~x1+x2+x3))

Generating and Interpreting the Diagnostic Plots

To efficiently produce the required diagnostic visualizations, we rely on the robust car package (Companion to Applied Regression) within R. This package provides the highly convenient crPlots() function, which automatically generates a partial residual plot for every single predictor variable included in the supplied regression model object. The integration of specialized packages like car drastically streamlines the diagnostic workflow, enabling analysts to quickly visualize complex conditional relationships without the need for manual calculation of partial residuals.

The execution of the plotting function is straightforward, requiring only the installation and loading of the necessary library, followed by a call to the function using our fitted model object as the sole argument.

library(car)

#create partial residual plots
crPlots(model)

When reviewing the generated plots, analysts must pay attention to two distinct visualization components presented for each predictor: a straight blue line and a pink, curvilinear smoother (often a Loess curve). The straight blue line graphically represents the expected linear fit, derived directly from the estimated regression coefficient (β_i). This line embodies the relationship that the MLR model assumes to be true. Conversely, the pink line illustrates the actual pattern observed within the partial residuals, reflecting the true underlying conditional relationship suggested by the data points.

The core principle of interpretation is alignment: if the blue linear fit closely tracks the pink smoother line, it confirms that the linearity assumption holds successfully for that specific predictor. Conversely, if the two lines diverge significantly, especially if the pink line displays a pronounced curve or systematic non-random pattern, it serves as strong visual evidence that the conditional relationship is non-linear, thereby violating the model’s foundational assumptions and severely compromising the reliability of the coefficient estimates.

Analyzing the plots derived from our initial, misspecified model, we can confirm the expected issues. The plot for predictor x1 demonstrates satisfactory alignment, suggesting an approximately linear relationship. However, the plots corresponding to x2 and x3 exhibit dramatic curvature in the pink line, deviating substantially from the assumed linear blue line. This visual confirmation unequivocally indicates that the linearity assumption has been violated for predictors x2 and x3, necessitating immediate corrective measures before any meaningful statistical inference can be trusted.

Correcting Model Misspecification via Transformation

When partial residual plots clearly expose a non-linear pattern, the analyst is required to take remedial action to salvage the model specification and restore validity. The most conventional and effective remedial measure involves applying a suitable data transformation to the problematic predictor variable(s). Standard transformations frequently employed include the square root, logarithmic, reciprocal, or polynomial additions, with the specific choice guided by the observed shape of the curvature revealed in the plot.

The underlying objective of this transformation process is to manipulate the scale of the predictor variable such that its conditional relationship with the response becomes approximately linear. For instance, if the partial residual plot indicates a strong concave or parabolic relationship (suggesting a square term, like x²), applying a square root transformation to the predictor might successfully linearize the effect, allowing the simple MLR framework to accurately capture the relationship.

Based on the severe non-linearity observed in the diagnostic plots for x2 (parabolic) and x3 (cubic), we proceed to fit a new, improved model incorporating appropriate transformations. We apply a square root transformation to x2 and a compound transformation (cubic root followed by logarithm) to x3. Our explicit goal is to re-evaluate the model and confirm the successful restoration of the linearity assumption.

library(car)

#fit new model with transformed predictor variables
model_transformed <- lm(y~x1+sqrt(x2)+log10(x3^(1/3)))

#create partial residual plots for new model
crPlots(model_transformed)

Evaluation and Iteration of the Corrected Model

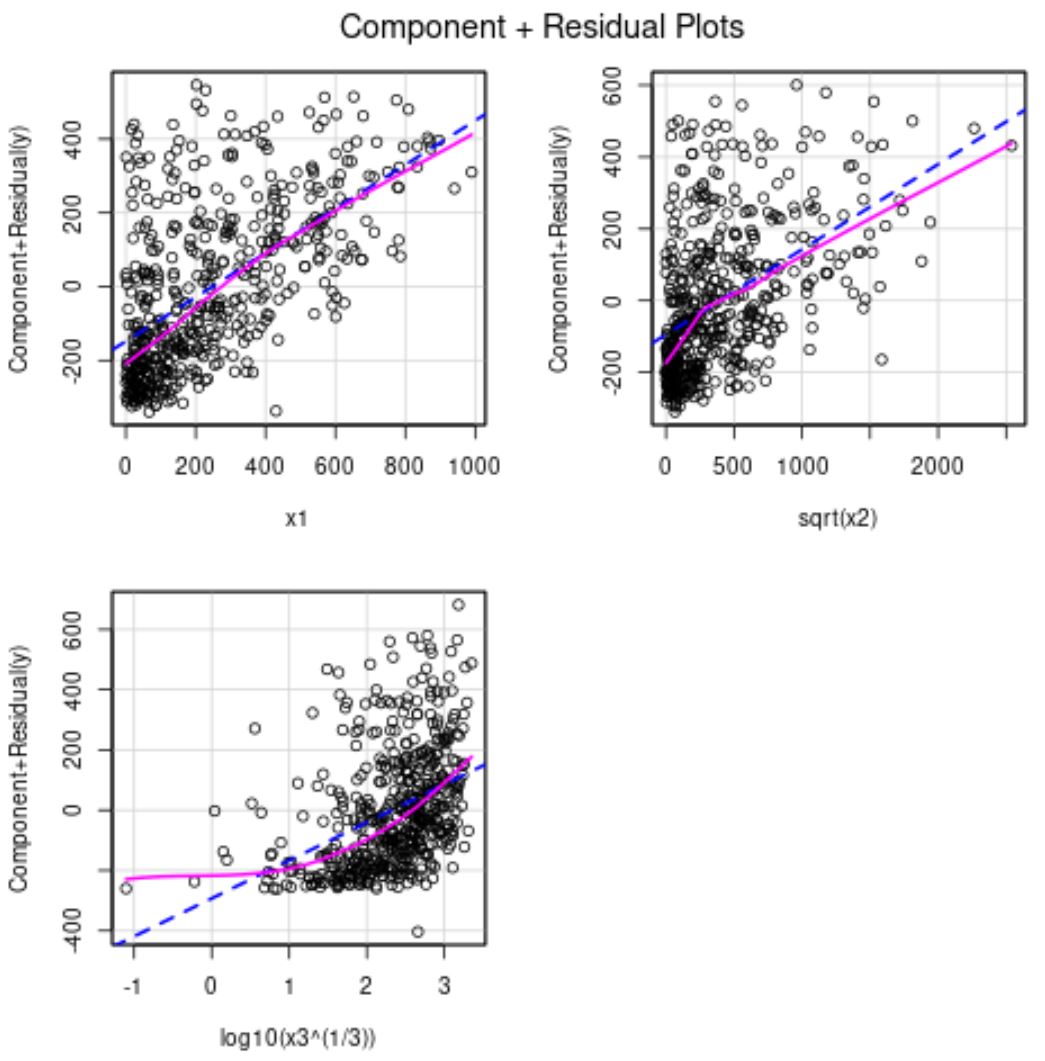

The partial residual plots generated for the newly transformed model clearly demonstrate substantial improvements in model fit. The relationship for x2, now represented by sqrt(x2), appears significantly closer to the linear ideal, with the pink smoother line closely aligning with the straight blue line. This outcome confirms that the square root transformation was highly effective in linearizing this specific conditional relationship.

Despite the overall success, the plot corresponding to the transformed predictor log10(x3^(1/3)) still exhibits some residual, albeit mitigated, nonlinearity. While the severe curvature seen in the initial model has been reduced, a subtle systematic pattern persists. This persistent deviation suggests that the chosen combination of transformations for x3 was not perfectly adequate, or perhaps the true relationship is inherently too complex to be modeled effectively by a simple linear term, even after scaling adjustments.

At this critical juncture, the analyst faces several strategic choices: they may opt to attempt alternative transformation methods (such as the Box-Cox or Box-Tidwell procedures), explicitly introduce polynomial terms (e.g., adding x3² or x3³) to capture the remaining curve, or, if the variable’s overall contribution to the model is marginal and difficult to resolve, consider omitting the variable entirely. Robust statistical modeling is fundamentally an iterative process, and the partial residual plot serves as the indispensable guide for making these data-driven structural decisions.

Conclusion and Further Resources

Partial residual plots are non-negotiable diagnostic tools for ensuring the fundamental validity of the linearity assumption within the framework of Multiple Linear Regression. By meticulously isolating the conditional relationship for each predictor, these plots supply the necessary visual evidence to accurately identify and correct instances of model misspecification through powerful techniques like data transformation. The efficient utilization of specialized functions such as crPlots() from the car package in R significantly simplifies this crucial diagnostic step, ultimately leading to the generation of more accurate, reliable, and trustworthy statistical inferences.
