SAS Tutorial: Creating Effective Pie Charts for Data Visualization

In the foundational realm of data visualization, pie charts remain an essential and intuitive tool for illustrating proportions and compositional breakdowns within any categorical dataset. This comprehensive, expert-level guide is specifically designed to demonstrate the effective methods for generating various styles of pie charts using SAS, the powerful statistical software favored globally by data analysts and researchers. We will specifically focus on leveraging the versatile statement known as PIE, which is nested within the robust PROC GCHART procedure, to produce compelling and highly insightful visual representations of your compiled input data.

This tutorial systematically walks you through four distinct and practical examples of pie chart creation within the SAS environment. Each example is meticulously structured to highlight different functionalities and advanced visualization techniques available through PROC GCHART. The techniques covered range from calculating simple category frequency counts to implementing sophisticated customization features, such as visually separating key slices (exploding) and precisely formatting data labels for maximum clarity. All subsequent examples will utilize a consistent, easily replicable sample dataset containing relevant observational information about various basketball players, including their respective team affiliations and the individual points they scored during a game period.

Establishing the Sample Dataset in SAS

Before commencing the visualization process, it is a critical prerequisite to properly establish the sample dataset that will be analyzed and manipulated. The foundation of any successful statistical or graphical analysis in SAS is ensuring that the data is correctly structured and validated. Our specific sample data, which we have named my_data, contains two crucial variables: team, defined as a character variable representing the basketball team affiliation, and points, a numeric variable quantifying the individual points scored by a player. This dual structure enables us to perform both categorical analysis (by team) and quantitative analysis (by points scored).

The following SAS code snippet demonstrates the straightforward creation of this necessary sample dataset. We employ the standard DATA and DATALINES statements, which are the fundamental methods for inputting observational data directly into the SAS system. Following the successful creation of the data structure, we utilize the ubiquitous PROC PRINT procedure to display the entire contents of the newly created dataset. This step serves as an essential data integrity check, verifying the accuracy of the data before we proceed with the graphical visualization procedures using PROC GCHART.

/*create dataset*/
data my_data;
    input team $ points;
    datalines;
Mavs 14
Mavs 22
Mavs 19
Mavs 31
Heat 14
Heat 25
Warriors 31
Warriors 35
Warriors 36
Jazz 29
;
run;

/*view dataset*/
proc print data=my_data;

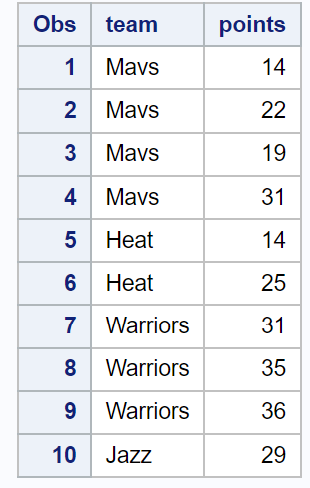

As clearly illustrated by the output generated from the execution of PROC PRINT, our my_data dataset is now correctly formatted and prepared for the visualization stage. The printed table explicitly verifies the associations between the specific basketball teams and their corresponding individual player scores, providing a solid, verifiable foundation for all our subsequent pie chart analyses conducted using PROC GCHART. This ensures that the visualizations we create accurately reflect the underlying data structure.

Example 1: Visualizing Categorical Frequencies

Our initial visualization example focuses on the most fundamental application of the pie chart: visualizing the statistical frequency, or the simple count, of each unique categorical value within a designated variable. This direct approach offers immediate insight, proving highly useful for rapidly understanding the overall distribution, balance, and representation of categories present across your entire dataset. For the purposes of this demonstration, we will analyze the team variable to count exactly how many times each team name appears in the data, thereby determining its relative proportional size within the resulting pie chart.

The following SAS code block clearly demonstrates the simple, efficient structure required to generate a basic pie chart based solely on observational counts. The resulting chart will effectively display the frequency of each unique team listed in the team column of our my_data dataset. The core of this operation relies on the straightforward execution of the PROC GCHART procedure, immediately followed by the powerful PIE statement, which specifies the grouping variable (in this case, team).

proc gchart data=my_data;
    pie team;
run;
quit;

Upon successful execution, this minimal code generates a pie chart where each distinct slice represents a unique basketball team. Crucially, the size (or angle) of each resulting slice is directly and mathematically proportional to the relative frequency of that specific team within the entire dataset. This visualization method provides an immediate, highly effective summary of the team distribution, visually highlighting which categories hold the largest representation of observations in the data.

As clearly depicted in the resulting chart, the slices accurately illustrate the count of observations associated with each unique team in the team variable. For example, if the ‘Warriors’ team appears three times and the ‘Heat’ team appears twice in the raw data, the ‘Warriors’ slice will be rendered proportionally larger to reflect its higher count. This visualization technique effectively highlights which teams have more data entries recorded in our sample, offering a quick and clear categorical comparison that is easily digestible.

Example 2: Summarizing Quantitative Data

Moving beyond the simple counting of frequencies, pie charts offer the necessary flexibility to effectively display the sum of a designated numerical variable for each underlying category. This capability is exceptionally useful when the primary analytical objective is to visualize precisely how a total aggregate quantity—such as overall budget, gross sales figures, or, in the context of our example, total points scored—is distributed across various distinct groups. In this specific and more advanced example, our goal is to calculate the total points scored by players belonging to each team and visualize that proportion.

To successfully achieve this quantitative summarization, we introduce the crucial SUMVAR statement within the context of PROC GCHART. The SUMVAR statement allows the user to explicitly specify a numeric variable whose individual values must be aggregated (summed up) for every instance of the chart’s primary grouping variable. For this critical analysis, we will designate the points column as our sum variable, while the team column remains our definitive primary grouping category.

The following SAS code illustrates the precise syntax required to create a sophisticated pie chart that displays the aggregated sum of values found in the points column, intelligently broken down by each unique value in the team column. This graphical output will provide a clear, visual breakdown of the total scoring contribution made by each individual team within our sample dataset, effectively emphasizing their overall collective performance rather than just their player count.

proc gchart data=my_data;
    pie team / sumvar=points;
run;
quit;

In the resulting pie chart, each generated slice now accurately represents the aggregated total of points scored by the corresponding team. In significant contrast to the earlier frequency chart, the proportional size of these slices is now dictated by the sum of all individual points entries associated with that particular team, rather than simply the count of observations. This powerful feature allows stakeholders and viewers to instantly compare the overall scoring contributions of each team at a single, easy-to-interpret glance, facilitating rapid performance evaluation.

For instance, if the ‘Warriors’ players collectively scored a substantially higher total number of points than the ‘Mavs’ players, the ‘Warriors’ slice will be rendered proportionally much larger, irrespective of the number of players involved in the scoring. This specific type of visualization is invaluable for understanding the effective and actual distribution of a quantitative variable across different qualitative, defined categories, providing a true measure of contribution.

Example 3: Highlighting Key Segments with Exploding Slices

A frequent and important requirement in professional data visualization is the explicit need to draw immediate, specific attention to one or more particular categories within the generated chart. This necessary visual emphasis can be achieved highly effectively by employing the technique of “exploding” one or more slices, visually separating them slightly from the main, central body of the pie chart. This technique serves as a potent visual cue, ideal for emphasizing a key data point, highlighting a statistically significant outlier, or underscoring a category that warrants special consideration, discussion, or managerial review.

To generate a pie chart featuring one or more exploded slices, SAS‘s PROC GCHART procedure thoughtfully provides the versatile EXPLODE statement option. This statement grants the user the ability to specify precisely which category’s slice should be moved slightly away from the center of the chart, thereby immediately drawing the viewer’s eye. In this practical demonstration, we will continue to display the sum of points for each team, but we will visually highlight the contribution specifically made by the ‘Jazz’ team.

The following SAS code demonstrates the simple yet effective usage of the EXPLODE statement. By strategically adding the parameter EXPLODE='Jazz' directly to the PIE statement, we instruct SAS to create a pie chart where the slice corresponding to the ‘Jazz’ team is explicitly “exploded” away from all other segments. This intentional visual separation ensures that the ‘Jazz’ contribution immediately stands out to the viewer, serving as a powerful and undeniable visual cue that guides the interpretation.

proc gchart data=my_data;
    pie team / sumvar=points explode='Jazz';
run;
quit;

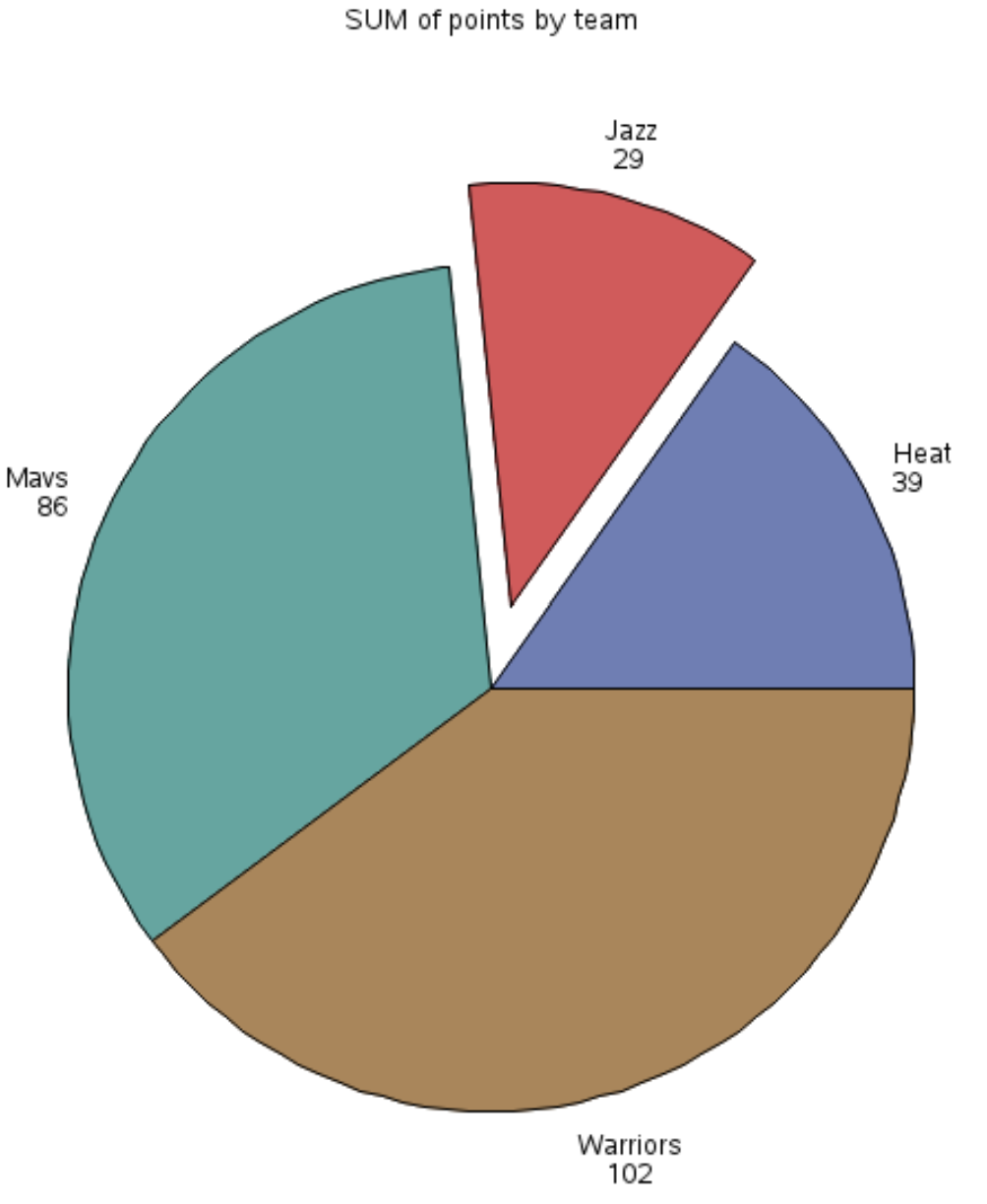

Observing the resulting chart, the visual effect is immediate and pronounced: the slice corresponding to the ‘Jazz’ team has been distinctly separated and slightly pulled away from the cluster of the rest of the pie chart segments. This technique proves particularly useful when your primary intention is to highlight a specific category or a limited set of categories that hold significant analytic importance or demand additional scrutiny within your overall presentation. It is an indispensable tool for guiding the audience’s focus and effectively emphasizing key findings or anomalies.

Example 4: Enhancing Readability with Custom Labels

Customizing the visual appearance and placement of labels on your pie chart is a profoundly crucial step that can significantly enhance both its fundamental readability and its overall aesthetic appeal. By judiciously adjusting attributes such as the font height, color, style, and positioning, you can ensure that your labels are consistently clear, visually prominent, and perfectly aligned with your broader data visualization objectives. This final, advanced example demonstrates the straightforward process of applying such detailed custom formatting within SAS pie charts using specialized parameters.

The PLABEL statement, utilized within PROC GCHART, provides extensive, granular control over the textual labels displayed on each slice of the chart. Within this powerful statement, you are able to specify various arguments (or parameters) to modify characteristics like the font height, the color scheme, the text style, and many other visual attributes. For the specific goals of this example, we will focus on dramatically increasing the default font size and changing the font color of the labels to a bold red, ensuring they are both larger and far more striking against the background graphic.

The following SAS code illustrates the precise syntax required for using the PLABEL statement to create a pie chart with significantly enhanced labels. We specifically instruct SAS to set the font height (using the h argument) to 1.5 units and simultaneously set the font color to red, utilizing the color argument. This strategic combination dramatically improves label visibility and overall visual impact, making the chart easier to read from a distance.

proc gchart data=my_data;
    pie team / sumvar=points plabel=(h=1.5 color=red);;
run;
quit;

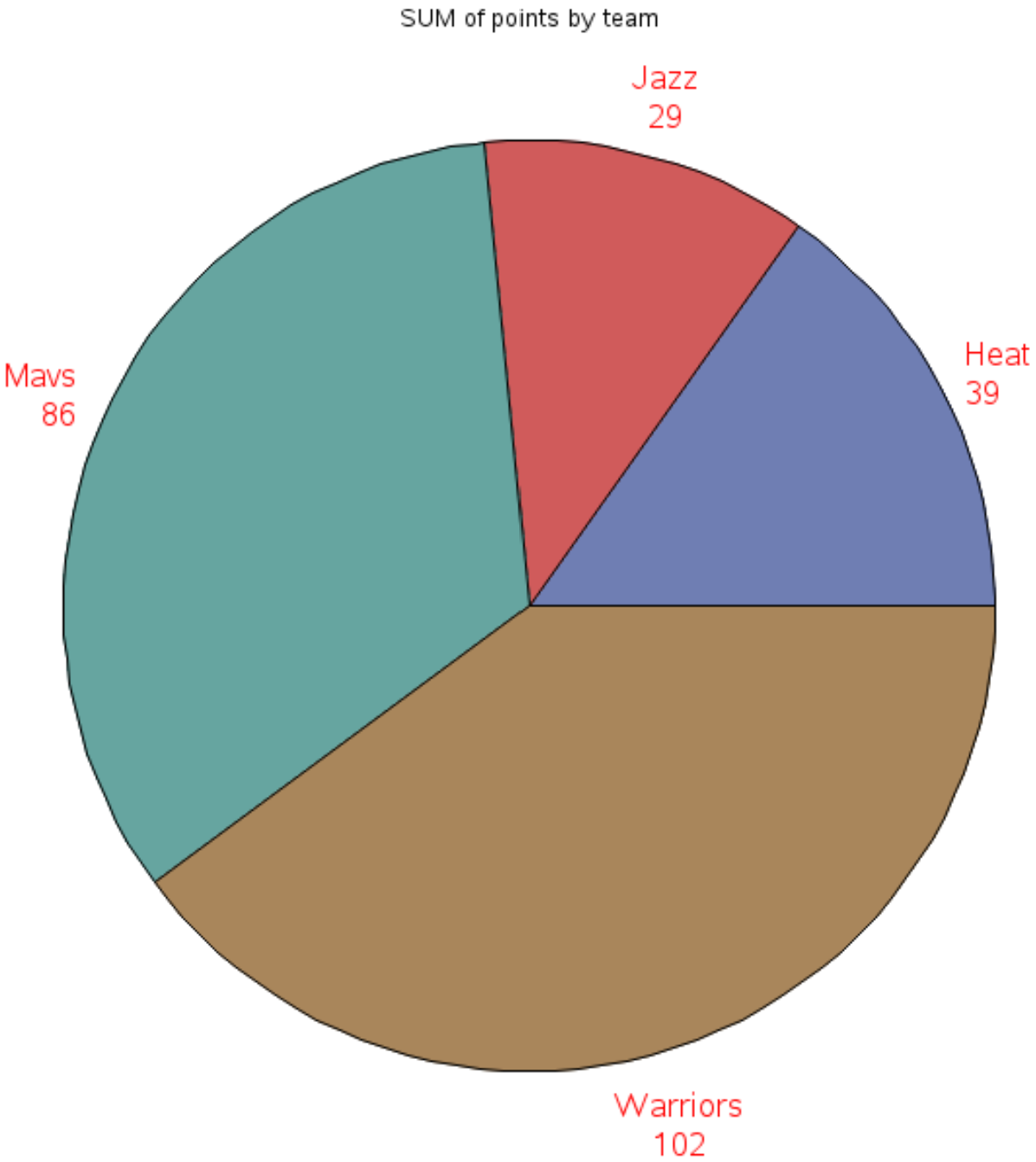

Upon carefully reviewing the generated graphical output, it is immediately apparent that the labels positioned directly on the pie chart slices now appear with a noticeably larger font size and a distinct, bold red color, fully satisfying our detailed customization request. This immediate improvement in label visibility significantly enhances the overall clarity and professional impact of the chart, making the interpretation of the data faster, more accurate, and much more accessible for the intended audience.

Specifically, the h argument within the PLABEL statement precisely controls the font height scaling factor, while the color argument dictates the exact font color utilized for the slice text labels. These highly flexible arguments offer users extensive options for tailoring their pie chart labels to meticulously meet virtually any presentation requirement, ultimately ensuring that the critical data message is conveyed effectively, aesthetically, and with maximum impact.

Summary and Further Learning

This expert guide has successfully provided a comprehensive, step-by-step overview of the methodology for creating four distinct and functional types of pie charts in SAS, all utilizing the essential PROC GCHART procedure. By mastering the practical application of the core PIE, SUMVAR, EXPLODE, and PLABEL statements, you are now equipped to effectively visualize both categorical data distributions and summarized quantitative distributions, enabling you to communicate complex data insights with enhanced clarity and superior visual impact.
