Learning to Create and Interpret Pie Charts Using SPSS

A pie chart serves as a fundamental tool in data visualization, offering a simple yet effective way to represent the distribution of categorical data. Inherently circular, the chart is divided into sectors, commonly referred to as “slices,” where the area of each slice is directly proportional to the quantity or frequency it represents. This visual proportionality allows researchers and analysts to quickly grasp the relative contribution of each category to the whole dataset. Unlike bar charts, which compare absolute counts, pie charts emphasize part-to-whole relationships, making them ideal for illustrating market share, demographic breakdowns, or survey responses where the total must sum to 100%.

The utility of a pie chart lies in its immediate interpretability. When constructed correctly, it provides a clear snapshot of data proportions, facilitating easy comparison between categories, particularly when the number of categories is small. For instance, if analyzing consumer preferences, a well-executed pie chart immediately reveals which product category commands the largest share of the market. However, their effectiveness diminishes rapidly as the number of categories increases or when the proportions are very similar, as the human eye struggles to accurately compare angles of similar size. Therefore, understanding the appropriate context for using this visualization is paramount for effective SPSS Statistics output.

This comprehensive guide will walk you through the precise steps required to generate, customize, and accurately interpret these charts using SPSS (Statistical Package for the Social Sciences). SPSS is widely recognized in academic, governmental, and commercial sectors for its robust capabilities in statistical analysis and graphical representation. We will utilize a practical example involving state residency data to demonstrate the entire workflow, ensuring you can produce clean, professional graphical summaries for your own research projects.

Conceptual Foundation: Data Requirements and Best Practices

Before initiating the chart generation process within the SPSS environment, it is crucial to confirm that your data meets the fundamental requirements for effective pie chart visualization. Pie charts are strictly reserved for nominal or ordinal categorical data. They cannot be used effectively for continuous data, such as height, temperature, or income, without first grouping that continuous data into discrete bins. Each category must be mutually exclusive, meaning a data point can belong to only one slice, and the categories must be collectively exhaustive, encompassing 100% of the observations in the dataset being analyzed.

A major consideration for using pie charts involves the number of categories being displayed. Data visualization experts generally recommend limiting the number of slices to between three and seven. When more categories are present, the resulting slices become too thin, making angular comparison extremely difficult and often leading to misinterpretation. In such instances, alternative visualizations, such as a grouped or stacked bar chart, typically provide a clearer and more accurate representation of the data distribution. Furthermore, if you must include many small categories, a common best practice is to aggregate them into an “Other” category, which helps simplify the chart while maintaining the part-to-whole emphasis.

In the context of statistical reporting, the primary benefit of the pie chart is its ability to highlight dominant categories. If one slice consumes significantly more area than all others, this finding is immediately apparent to the viewer. Conversely, if the goal is to make fine-grained comparisons between categories that have very similar frequencies (e.g., 24%, 25%, 26%), the pie chart is a poor choice. Researchers must ensure that the output generated by SPSS is not only technically correct but also visually appropriate for the specific analytical question being addressed. Proper labeling and inclusion of percentage values are also critical components, as these elements provide the necessary quantitative context that the visual angle alone cannot reliably convey.

Preparing the Example Dataset in SPSS

To illustrate the process of creating a pie chart, we will use a hypothetical dataset tracking the state of residence for fifteen individuals. This dataset involves a single variable, state, which is a nominal categorical variable perfect for frequency visualization via a pie chart. Understanding how to structure this data within the SPSS Data View is the necessary first step before moving to the graphical generation stage. The data must be entered correctly, with each row representing a unique case (person) and the state name or code entered into the corresponding variable column.

The dataset structure is shown below. Notice the repetitive nature of the entries, which is characteristic of raw categorical frequency data. We are tracking counts for Indiana, Kentucky, and Ohio, which sum up to the total sample size of 15. Although small, this dataset provides a clean model for demonstrating how SPSS aggregates these raw entries into meaningful proportions for the visualization.

The visual representation of this data table within the SPSS environment is as follows:

Once the data entry is complete, it is good practice to ensure the variable properties are correctly defined in the Variable View tab of SPSS. Specifically, the Measure property for the State variable should be set to Nominal. Although SPSS is often intelligent enough to handle variable types automatically during chart generation, explicitly defining the measurement scale minimizes the risk of generating inappropriate statistical output. With the data validated, we can proceed directly to the generation of the pie chart.

Step-by-Step Guide: Generating the Pie Chart in SPSS

The procedure for creating a pie chart in SPSS is straightforward and relies on the Frequencies dialogue box, which is designed to calculate and display descriptive statistics, including graphical summaries, for categorical variables. The primary advantage of using the Frequencies command over the dedicated Chart Builder is its efficiency when the goal is simply to visualize the distribution of a single categorical variable quickly and accurately.

The process begins by navigating through the primary menu ribbon. Start by clicking on the Analyze tab, which houses all the statistical and reporting procedures. Within the dropdown menu, select Descriptive Statistics, and then finally choose Frequencies. This sequence initiates the core procedure for calculating how often each state appears in our dataset and prepares the software to generate the corresponding visualization.

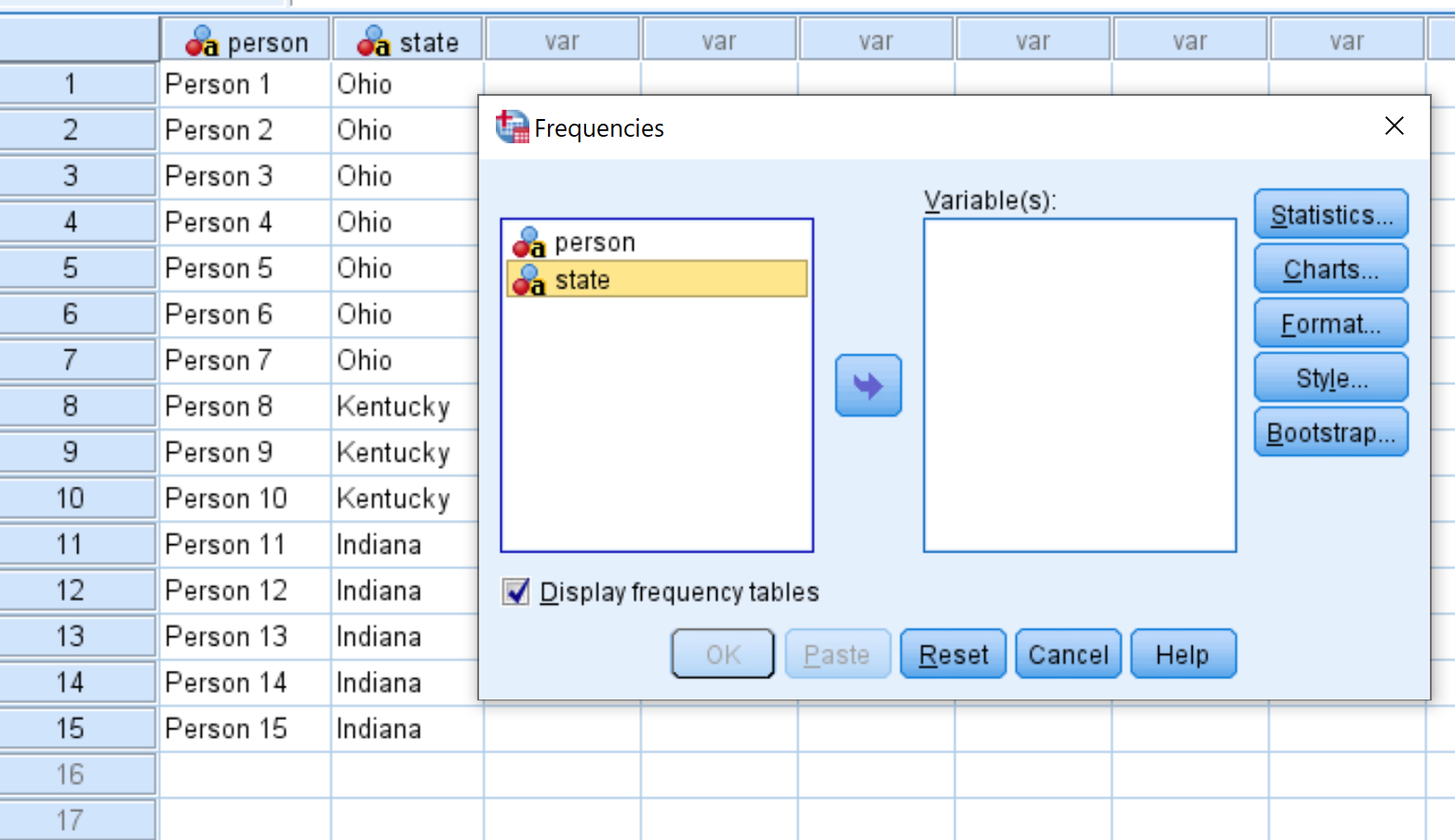

The resulting Frequencies window is where the key selections are made. Upon opening, a dialogue box will appear, listing all available variables on the left. You must identify the variable you wish to chart—in our example, state—and transfer it to the box labeled Variable(s) on the right. This action tells SPSS which variable’s frequency distribution should be analyzed. The following image illustrates the navigation path to the Frequencies dialogue:

Once the variable is transferred, the next critical step is to specify the desired graphical output. Click on the Charts button located toward the bottom of the Frequencies dialogue box. A new sub-window will pop up, presenting options for different visualization types. Ensure that the radio button next to Pie charts is selected. You also have the option here to display the chart based on either Frequencies (raw counts) or Percentages, although for standard part-to-whole representation, the default setting is usually sufficient. After confirming Pie charts, click Continue to return to the main Frequencies dialogue box. Finally, click OK to execute the command and generate the output in the SPSS Viewer window. The progression through these steps ensures a clean and accurate visualization based on the underlying data structure.

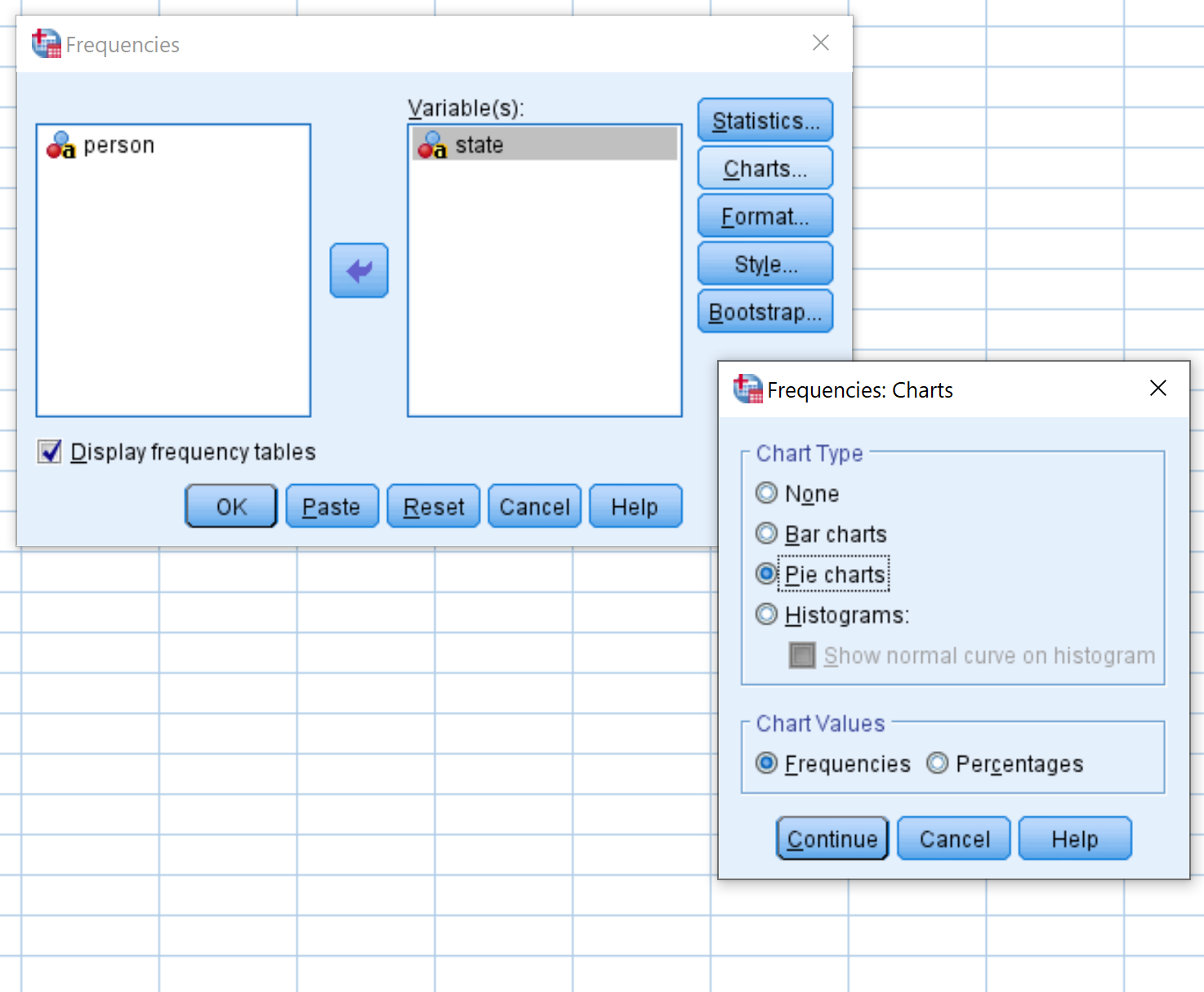

The following images illustrate the variable selection and chart type specification within the dialogue boxes:

Analyzing and Interpreting the SPSS Output

After executing the Frequencies command, the SPSS Viewer window immediately displays the results, which typically include both a frequency table and the requested graphical output. The automatically generated pie chart provides a clear visual summary of the state residency data, translating the raw counts into proportional slices. This visualization is the culmination of the process, allowing for rapid interpretation of the dataset’s distribution.

The resulting visualization based on our 15 observations is presented below:

Upon reviewing the output, we can immediately identify the distribution of the sample. The chart is color-coded, with each color corresponding to a different state: Indiana (blue), Kentucky (red), and Ohio (green). Visually, it is immediately evident that the green slice, representing Ohio, is the largest proportion of the total circle. This observation confirms that the majority of the individuals in our sample reside in Ohio. Conversely, the red slice, representing Kentucky, is the smallest, indicating the lowest frequency of residence among the three states.

To move beyond visual estimation and confirm the precise figures, we refer to the frequency table that precedes the chart in the SPSS output. This table provides the exact counts and, more importantly for proportional analysis, the percentage values. These percentages are critical for accurate reporting and interpretation:

• The Indiana slice (blue) accounts for 5 individuals, translating to 33.3% of the total sample.

• The Kentucky slice (red) accounts for 3 individuals, representing 20.0% of the total sample.

• The Ohio slice (green) accounts for 7 individuals, equating to 46.7% of the total sample.

The primary conclusion drawn from both the visual representation and the associated frequency table is the dominance of Ohio residents in the sample, which constitutes nearly half (46.7%) of the entire dataset. This visual evidence provided by the pie chart is significantly more compelling than merely listing the frequencies, offering a quick and clear understanding of the sample’s geographical distribution.

Customizing and Enhancing the Chart Appearance

While the default output generated by the Frequencies command in SPSS is technically correct, it often lacks the polish required for professional presentations or publication. SPSS offers extensive customization options via the Chart Editor, allowing users to modify colors, fonts, titles, and, most importantly, add data labels directly to the slices. This step is crucial for transforming a basic chart into an insightful and standalone visual aid.

To access the customization features, simply double-click on the generated pie chart within the Viewer window. This action launches the Chart Editor. Within the editor, several key enhancements can be made:

1. Adding Data Labels: The most significant enhancement is typically adding percentage labels to the slices. Navigate to the Elements menu and select Show Data Labels. This allows the viewer to see the exact percentage or frequency for each slice without needing to refer back to the frequency table.

2. Adjusting Colors and Patterns: While the default colors are functional, they may not align with institutional branding or accessibility standards. By selecting individual slices, you can modify their fill color or pattern using the properties panel, ensuring high contrast and visual appeal.

3. Exploding Slices: To draw attention to a specific category (e.g., the largest or smallest), you can “explode” the slice—pulling it slightly away from the center of the chart. This is done by selecting the slice and adjusting the offset property, which is a powerful way to emphasize key findings.

4. Title and Subtitle Modification: A descriptive title is essential. You can edit the chart title directly within the Chart Editor to provide context, specifying the sample size, time period, or the variable being measured. Ensure the legend is clear and accurately reflects the categories represented.

Applying these customization techniques elevates the quality of the visualization. For example, adding percentage labels directly to the Indiana, Kentucky, and Ohio slices eliminates ambiguity. By utilizing the robust features of the SPSS Chart Editor, researchers ensure that their pie chart not only adheres to statistical accuracy but also excels in visual communication, making the results instantly accessible to any audience.
