Learning to Generate Smooth Trend Lines in ggplot2 for Data Visualization

Data visualization is fundamentally essential in modern statistical analysis, serving as the bridge between raw data and meaningful insights. It allows researchers and analysts to quickly discern underlying patterns, identify anomalies, and confirm or reject initial hypotheses far more efficiently than sifting through tables of numbers. When examining relationships between two continuous variables, the scatterplot is the primary tool. However, raw scatterplots are often obscured by data noise, making the central relationship difficult to isolate. This is where statistical smoothing techniques become indispensable.

Within the R ecosystem, the gold standard for creating high-quality, reproducible graphics is the ggplot2 package, a cornerstone of the Tidyverse collection. ggplot2 implements the grammar of graphics, offering unparalleled flexibility in building complex visualizations layer by layer. For the specific task of drawing a smooth line that clarifies the central tendency of a dataset, ggplot2 provides the robust function: geom_smooth().

Incorporating a smooth line into a plot using geom_smooth() is remarkably straightforward, as the function automatically calculates and plots the most appropriate statistical smoothing curve based on the data’s characteristics and size. The foundational syntax required to integrate this powerful element into any ggplot2 structure is concise, yet highly functional:

ggplot(df, aes(x=x, y=y)) +
  geom_smooth()

This comprehensive guide will explore the practicalities of geom_smooth(), detailing how to manipulate its core arguments—such as specifying alternative smoothing methods, controlling the display of confidence intervals, and adjusting aesthetic properties—to achieve optimal clarity and interpretability in your data visualizations. Understanding these nuances is crucial for moving beyond basic plotting to advanced, statistically sound graphic creation.

Deconstructing the Statistical Power of geom_smooth()

The true utility of the geom_smooth() function resides in its statistical versatility and its ability to intelligently adapt to the characteristics of the input data. The choice of smoothing method dictates how the underlying trend is calculated, fundamentally impacting the interpretation of the resulting line. By default, ggplot2 adopts a sophisticated approach to handle datasets of varying sizes, ensuring that computational efficiency and statistical accuracy are balanced effectively.

For smaller datasets (typically those with fewer than 1,000 observations), ggplot2 defaults to the LOESS method, which stands for Locally Estimated Scatterplot Smoothing. LOESS is a highly effective non-parametric technique. Unlike parametric models, which assume a specific functional form (e.g., a straight line or a parabola) relating the variables, LOESS fits local polynomial regression models to subsets of the data. This allows it to capture complex, non-linear trends without imposing rigid assumptions, making it ideal for exploratory data analysis where the relationship between X and Y is unknown or suspected to change across the range of the independent variable.

Conversely, when dealing with significantly larger datasets, the computational cost of repeated local fitting inherent in LOESS can become prohibitive. In these scenarios, geom_smooth() typically defaults to using Generalized Additive Models (GAM), or a simpler smoothing spline, which maintains flexibility while offering superior performance for big data applications. The analyst, however, retains full control over this process through the crucial method argument. This argument allows explicit specification of standard statistical models, such as linear regression (method='lm'), generalized linear models (method='glm'), or even custom functions, tailoring the visualization precisely to the required statistical hypothesis.

Beyond the central trend line, geom_smooth() automatically includes a shaded region. This visual element is immensely valuable as it represents the uncertainty associated with the estimated trend. Specifically, this region depicts the standard error (SE) or a confidence interval around the smoothed line. A wider confidence band indicates greater uncertainty in the trend estimate at that specific point in the data range, whereas a narrow band suggests high confidence. While this feature is essential for robust statistical reporting, it is easily managed using the se parameter, which can be toggled to FALSE if a cleaner, less cluttered presentation is desired, a customization we will demonstrate later in this tutorial.

Preparing the Data and Setting up the Environment

To effectively demonstrate the diverse capabilities of geom_smooth(), we must first establish a simple yet variable data frame that contains paired observations. Although small in scale, this dataset is designed to exhibit sufficient variability and a noticeable underlying curvature, which will enable us to clearly distinguish the outcomes produced by both non-parametric (LOESS) and parametric (Linear Model) smoothing techniques.

The process begins by ensuring the ggplot2 library is loaded and then defining our structured R object. This foundational step is critical, as the aesthetic mappings (aes) within ggplot2 rely on well-formed data columns. We will define a vector of X values and a corresponding vector of Y values, deliberately chosen to suggest a slightly increasing, non-constant rate of change.

We initiate the following simple data frame definition in the R console:

df <- data.frame(x=c(1, 2, 4, 5, 7, 9, 13, 14, 15, 17, 18, 20),
                 y=c(34, 35, 36, 23, 37, 38, 49, 45, 48, 51, 53, 55))

With this structure in place, the data is prepared for the visualization phase. The subsequent steps will involve mapping the defined variables to the coordinate system and overlaying the desired statistical layers, starting with the default smoothing method that prioritizes flexibility over strict linearity.

Visualizing Non-Linear Trends with Default LOESS Smoothing

The initial objective in exploratory data analysis is often to understand the overall shape of the relationship between variables without imposing strong structural assumptions. For this purpose, using geom_smooth() without specifying the method argument is the most appropriate approach, as it triggers the non-parametric LOESS smoothing technique for our small dataset. LOESS is particularly adept at revealing localized changes in the trend, which might be missed by a single, global model like a simple straight line.

When applying LOESS, the algorithm effectively weights nearby data points more heavily when calculating the fit for any given point along the X-axis. This results in a curve that is highly responsive to the immediate density and behavior of the data. This responsiveness makes the default setting ideal for visually interpreting how the relationship evolves across the independent variable’s range, highlighting segments where the correlation might strengthen, weaken, or even reverse direction.

To generate this default smooth curve, we must first load the necessary ggplot2 package, define the plot object by specifying the aesthetic mapping (aes) that links our data columns to the X and Y axes, plot the individual observations using geom_point(), and finally, add the crucial smoothing layer:

library(ggplot2)

ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  geom_smooth()

As evidenced by the resulting visualization shown below, the default settings generate a slightly curved upward trend. This curve accurately reflects the increasing rate of growth observed toward the higher X values. Furthermore, the accompanying gray confidence band provides rich contextual information, demonstrating the uncertainty inherent in the locally fitted curve, thereby offering a complete picture of the data distribution and trend estimation.

Enforcing Parametric Models: Using Linear Regression (LM Method)

While the default LOESS method excels at exploratory analysis by flexibly following localized data patterns, statistical analysis often requires testing a specific, pre-defined hypothesis, such as the assumption of a constant, linear relationship. When the goal is to fit a straight line to the dataset—a representation of simple linear regression (SLR)—we must explicitly override the default smoothing method.

This is achieved by setting the method argument within geom_smooth() to 'lm', which stands for Linear Model. By using method='lm', we compel ggplot2 to calculate the best-fit line using the method of ordinary least squares (OLS). This action fundamentally transforms the interpretation of the visualized trend, shifting the focus from non-parametric data exploration to a rigorous parametric fit, one that assumes a constant rate of change (slope) across the entire range of the X variable.

The analytical choice between a flexible non-parametric curve and a rigid parametric line should always align with the research question. If the goal is prediction based on a theorized linear relationship, the lm method is appropriate. If the goal is simply to visualize the data’s inherent shape, LOESS is superior. By altering only this single parameter, we achieve a dramatically different visual and statistical summary of the data:

ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  geom_smooth(method='lm')

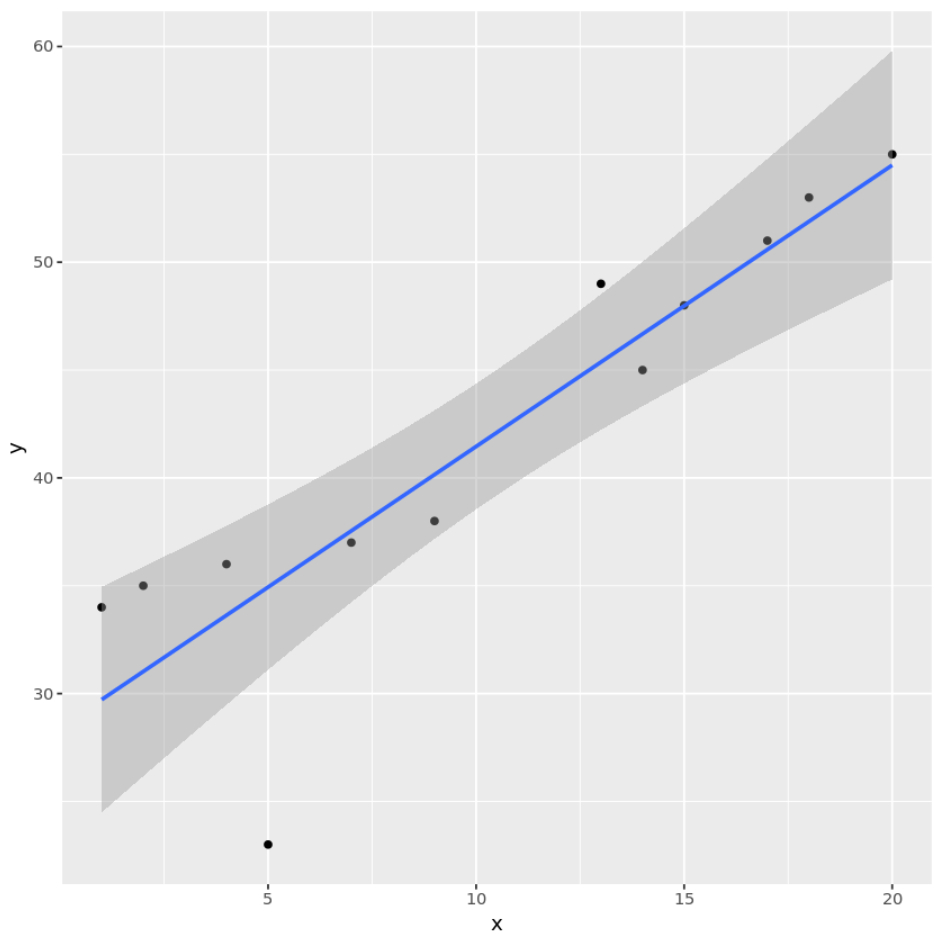

The resulting visualization now features a clean, straight line that summarizes the overall upward trajectory of the data, providing a constant average rate of change. This result stands in sharp contrast to the previously generated non-linear curve, offering a clear visual test of the linearity hypothesis, as demonstrated in the figure below. Notice that the confidence interval still reflects the uncertainty of this specific linear fit, which is distinct from the uncertainty of the local LOESS fits.

Aesthetic Control: Managing Confidence Intervals and Appearance

While statistical accuracy is paramount, the effectiveness of a visualization often hinges on its clarity and aesthetic appeal, particularly when preparing graphics for publication or public presentation. The automatically generated confidence interval band, representing the standard error (or a 95% confidence interval), is statistically crucial but can sometimes clutter the visual field or obscure important data points, especially in dense plots.

Fortunately, geom_smooth() provides an immediate solution for this challenge through the logical parameter se (standard error). By setting se to FALSE, the shaded uncertainty band is suppressed, resulting in a cleaner, more focused graph that displays only the fitted line itself. This is particularly useful when the primary message is the trend direction, rather than the precision of the estimate.

The following code demonstrates how to implement the linear fit while omitting the confidence band, thereby prioritizing visual simplicity:

ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  geom_smooth(method='lm', se=FALSE)

Beyond the statistical parameters, geom_smooth() offers detailed aesthetic control over the line itself, ensuring the trend is visually distinct from other elements in the plot. Analysts can readily customize the appearance using standard aesthetic arguments such as color (or col) and size. The size argument controls the thickness of the line, enhancing its prominence, while col dictates its hue, allowing for alignment with specific color palettes or design requirements.

For example, to ensure the linear trend is highly visible and immediately draws the viewer’s attention, we can increase the line’s thickness dramatically and assign it a vibrant color:

ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  geom_smooth(method='lm', se=FALSE, col='red', size=2)

These customization capabilities are essential for crafting visualizations where the smooth line effectively communicates the intended statistical conclusion within the broader context of the overall graphic design, ensuring the message is conveyed both accurately and persuasively.

Conclusion and Best Practices for Trend Visualization

The geom_smooth() function is unequivocally an indispensable and highly versatile tool within the ggplot2 package. It provides the necessary flexibility to identify and visualize underlying trends in scatterplot data, moving beyond raw data points to reveal meaningful statistical relationships. Its intelligent defaults—relying on non-parametric LOESS for exploratory analysis of smaller datasets—ensure that analysts can immediately gain insight into complex, non-linear structures.

Crucially, geom_smooth() offers full control over the statistical model through the method parameter, allowing users to impose rigorous parametric models, such as simple linear regression (lm), when testing specific hypotheses. Furthermore, by mastering parameters like se, size, and color, analysts can produce visualizations that are not only statistically sound but also aesthetically optimized for clarity and impact. The deliberate inclusion or exclusion of the confidence interval band, for instance, allows the presenter to tailor the graphic to either emphasize statistical precision or prioritize visual simplicity.

In summary, effective data visualization requires careful consideration of both statistical assumptions and visual presentation. By leveraging the power of geom_smooth(), practitioners can ensure their graphical representations of data trends are robust, informative, and compelling. For advanced customization, or to delve deeper into the statistical assumptions underlying methods like GAM or GLM, consulting the official ggplot2 documentation remains the definitive resource.

You can find the complete documentation for the geom_smooth() function here.
