Learning to Create Stacked Bar Charts with Matplotlib: A Step-by-Step Guide

Understanding Stacked Bar Charts and Matplotlib Fundamentals

A stacked bar chart represents a critical instrument in the field of data visualization, offering a method to simultaneously compare the contribution of various parts to a cohesive whole across distinct categories. Unlike a simple bar chart, which solely displays the aggregate total for each category, the stacked variation segments these totals into constituent components representing sub-categories. This unique structural approach allows analysts and readers alike to rapidly grasp two key metrics: the overall magnitude or size of the primary category and the proportional importance of its underlying elements. Mastering the construction and interpretation of these charts is indispensable for professionals engaged in rigorous reporting and complex data visualization tasks, as they provide clear, powerful summaries derived from intricate datasets. The ability to effectively communicate these relationships often dictates the success of data-driven decision-making processes.

The undisputed standard library within the Python ecosystem for generating static, animated, and interactive visualizations of professional quality is Matplotlib. This comprehensive library grants developers granular control over virtually every aesthetic and structural element of a plot, making it the preferred tool for academic research, engineering applications, and high-stakes business intelligence. When focusing specifically on generating stacked bar charts, the fundamental building block is the matplotlib.pyplot.bar() function. While initially designed for plotting singular bar segments, the function’s versatility, particularly the inclusion of the optional bottom parameter, is what facilitates the seamless stacking of multiple data sets into a single composite bar structure.

This detailed guide will navigate the practical steps required for implementing plt.bar() effectively within the Matplotlib plotting environment. We will cover the entire workflow, starting with initial data structuring and preparation—a task often handled efficiently using NumPy arrays—through to advanced aesthetic customization techniques. Our goal is to ensure that the resulting visualizations are not only mathematically accurate representations of the source data but are also highly readable, visually compelling, and ready for integration into formal reports. A deep understanding of the function parameters, especially the crucial bottom argument, is paramount, as this knowledge unlocks the full potential for creating highly customized and complex composite plots.

Implementing the Basic Stacked Bar Chart Structure

The first critical step in constructing any stacked bar chart involves meticulously defining the foundational data structures necessary to hold the categorical groups and their corresponding quantitative measures. In the context of Python programming, efficient data management for this purpose typically relies on standard lists or, more often, high-performance NumPy arrays. For illustration, our subsequent example is designed to visualize the quarterly sales performance of two distinct product lines, labeled as Product A and Product B, spanning four consecutive fiscal quarters (Q1 through Q4). This specific scenario is highly representative of common challenges faced in business reporting, where longitudinal comparison and detailed performance analysis across different segments are essential requirements.

The primary technical challenge inherent in correctly stacking bars is the precise control over the vertical placement of the subsequent data series. Specifically, the second set of bars (Product B) must commence its vertical ascent at the exact termination point of the first set (Product A). This mechanism is managed exclusively through the vital bottom parameter provided within the plt.bar() function call. For the very first series plotted (Product A), the bottom parameter is typically omitted, defaulting implicitly to zero (the x-axis baseline). However, for every subsequent series, the bottom argument must be explicitly assigned the numerical values of the immediately preceding, already-plotted series. This cumulative method ensures that the segments are correctly aggregated, forming a single, composite bar that accurately reflects the total quantity for that specific category (e.g., Q1).

The comprehensive code block below meticulously outlines the necessary procedural steps: initialization of the raw sales data, the definition of the categorical x-axis locations using the powerful NumPy function numpy.arange, and the sequential plotting calls using plt.bar(). Careful attention should be paid to the second plotting command, where the product_A array is passed as the bottom parameter, thereby establishing the precise starting coordinates for the product_B segments. This reliance on NumPy is crucial for efficiently generating the coordinate arrays required for accurate bar placement.

import numpy as np
import matplotlib.pyplot as plt

# Create data: defining the categories and corresponding values
quarter = ['Q1', 'Q2', 'Q3', 'Q4']
product_A = [14, 17, 12, 9]
product_B = [7, 15, 24, 18]

# Define chart parameters
N = 4
barWidth = .5
xloc = np.arange(N) # Generates the x-axis positions (0, 1, 2, 3)

# Display stacked bar chart
p1 = plt.bar(xloc, product_A, width=barWidth) # Plotting Product A (starts at bottom=0)
p2 = plt.bar(xloc, product_B, bottom=product_A, width=barWidth) # Plotting Product B, starting where A ends
plt.show()

Upon successful execution of this script, the resulting visualization accurately renders the sales data graphically. However, it is essential to recognize that this initial output is deliberately minimal. While structurally sound, this basic chart fundamentally lacks necessary contextual annotations, such as comprehensive axis labels, a meaningful title, or a legend key. Without these crucial additions, interpreting the meaning of the plotted colors and the represented scales remains highly ambiguous for any external audience. Consequently, the subsequent sections will detail the steps necessary to transform this raw graphical output into a professional, easily decipherable analytical figure through the strategic inclusion of critical annotation components.

Enhancing Chart Readability: Titles, Labels, Ticks, and Legends

Although the foundational structure of the stacked bar chart was successfully established in the previous implementation step, the true measure of a visualization’s quality lies in its effectiveness in clearly and unambiguously communicating its underlying findings. Charts that feature unlabeled axes, confusing or ambiguous tick marks, or, most critically, a missing legend, suffer from significantly diminished analytical value and are unsuitable for professional presentation. Therefore, the strategic deployment of Matplotlib’s comprehensive annotation functions is mandatory for elevating raw graphical output into a highly polished and immediately comprehensible piece of data visualization.

We will rely on a specific suite of matplotlib.pyplot functions to achieve this necessary layer of clarity. The plt.xlabel() and plt.ylabel() functions are used to assign meaningful, descriptive names to the horizontal and vertical axes, respectively. This action immediately establishes the context of the variables being measured—in our case, defining the X-axis as ‘Quarter’ and the Y-axis as ‘Sales.’ Furthermore, the plt.title() function is essential for providing a succinct, overarching summary that clearly states the chart’s central purpose, such as ‘Sales by Product & Quarter.’ For categorical plots like stacked bar charts, ensuring the accuracy of the X-axis presentation is key; plt.xticks() is used precisely to align the category labels (Q1, Q2, Q3, Q4) directly beneath the centers of their corresponding bars, thereby eliminating any potential for visual ambiguity or misalignment.

Arguably the most indispensable component for any multi-series visualization is the inclusion of the plt.legend() function. The legend functions as the definitive key, translating the arbitrary colors assigned to the bars (represented by the handles p1 and p2) back into the specific data series they represent (‘A’ for Product A and ‘B’ for Product B). When invoking plt.legend(), it is vital to pass the handles (p1, p2) that were returned by the original plt.bar() plotting calls, paired with a tuple containing the corresponding descriptive labels. Additionally, in this expanded example, we utilize plt.yticks() to explicitly define fixed, readable intervals along the Y-axis. By setting the range from 0 to 40 in increments of 5, we provide viewers with a clear and reliable framework against which they can accurately gauge the magnitude of the reported sales figures across all quarters.

import numpy as np
import matplotlib.pyplot as plt

# Create data for two products
quarter = ['Q1', 'Q2', 'Q3', 'Q4']
product_A = [14, 17, 12, 9]
product_B = [7, 15, 24, 18]

# Define chart parameters
N = 4
barWidth = .5
xloc = np.arange(N)

# Create stacked bar chart
p1 = plt.bar(xloc, product_A, width=barWidth)
p2 = plt.bar(xloc, product_B, bottom=product_A, width=barWidth)

# Add labels, title, tick marks, and legend
plt.ylabel('Sales')
plt.xlabel('Quarter')
plt.title('Sales by Product & Quarter')
plt.xticks(xloc, ('Q1', 'Q2', 'Q3', 'Q4'))
plt.yticks(np.arange(0, 41, 5)) # Set Y-axis ticks from 0 to 40, step 5
plt.legend((p1[0], p2[0]), ('A', 'B'))

# Display chart
plt.show()

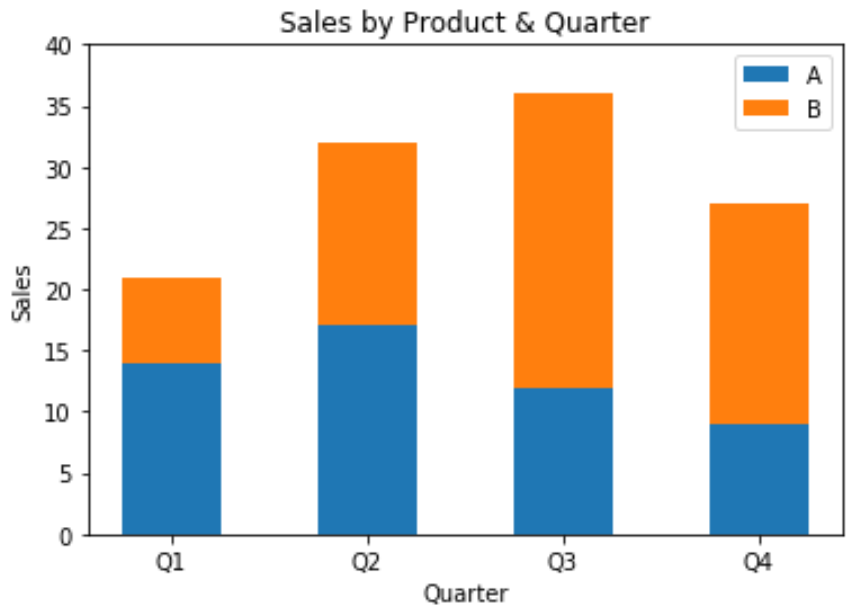

The resultant plot is now dramatically improved, offering immediate interpretability. It clearly delineates which data series corresponds to each product line and provides the necessary contextual information for the sales figures being tracked. This fully annotated chart represents a high standard suitable for formal presentations, technical documentation, or direct integration into advanced analytical reports, showcasing the power of detailed annotation within Matplotlib.

Advanced Aesthetic Control: Customizing Colors for Visual Impact

The effectiveness of any visualization extends beyond mere structural accuracy; visual appeal and clarity play a crucial and non-trivial role in high-impact data visualization. While Matplotlib defaults to using a standard cyclical color palette, professional reporting, adherence to corporate branding guidelines, or the need to draw attention to specific data trends often necessitates explicit color customization. Customizing the plot colors serves several important functions: it aids in clearly differentiating between distinct categories, allows the developer to strategically highlight important data points, and ensures that the chart maintains consistency with established organizational style guides. The plt.bar() function provides this level of control seamlessly through its dedicated color argument.

Matplotlib is highly flexible regarding color input, supporting multiple specification formats, including easily recognizable named colors (such as ‘blue’ or ‘red’), industry-standard hexadecimal codes (e.g., ‘#FF5733’), and RGB tuples. The process of selecting appropriate colors must consider both aesthetic impact and accessibility; employing contrasting colors for adjacent stack segments, for instance, is vital for ensuring clear visual separation and avoiding confusion. Furthermore, maintaining a consistent color scheme across multiple charts within a single report significantly enhances overall report coherence and user comprehension. In the expanded code example provided below, we demonstrate this customization by replacing the library’s default colors with the easily identifiable named colors ‘springgreen’ for Product A and ‘coral’ for Product B.

This color modification is achieved by directly embedding the desired color name string within the color parameter of the respective plt.bar() calls. It is important to note that all the structural and annotation elements previously added—including the axis labels, the title, the legend key, and the refined tick marks—are preserved and fully functional, illustrating how aesthetic enhancements integrate flawlessly with the chart’s structural improvements. Utilizing the exhaustive list of available color options, which is comprehensively documented in the official Matplotlib documentation, empowers developers to achieve precise control over the visual outcome of their plots, ensuring maximum analytical impact and visual fidelity.

import numpy as np
import matplotlib.pyplot as plt

# Create data for two products
quarter = ['Q1', 'Q2', 'Q3', 'Q4']
product_A = [14, 17, 12, 9]
product_B = [7, 15, 24, 18]

# Define chart parameters
N = 4
barWidth = .5
xloc = np.arange(N)

# Create stacked bar chart with custom colors
p1 = plt.bar(xloc, product_A, width=barWidth, color='springgreen')
p2 = plt.bar(xloc, product_B, bottom=product_A, width=barWidth, color='coral')

# Add labels, title, tick marks, and legend
plt.ylabel('Sales')
plt.xlabel('Quarter')
plt.title('Sales by Product & Quarter')
plt.xticks(xloc, ('Q1', 'Q2', 'Q3', 'Q4'))
plt.yticks(np.arange(0, 41, 5))
plt.legend((p1[0], p2[0]), ('A', 'B'))

# Display chart
plt.show()

The resulting final visualization, now fully annotated and incorporating custom colors, delivers an aesthetically pleasing yet highly informative summary of the quarterly sales data. This demonstration of granular control over both structural and aesthetic elements constitutes a core advantage of leveraging the Matplotlib library for sophisticated analytical and reporting requirements.

For developers who seek to push customization boundaries even further, exploring options beyond basic named colors is highly recommended. The official Matplotlib documentation serves as an invaluable resource, providing exhaustive details on advanced topics such as color maps, techniques for applying transparency using alpha values, and precise configurations for setting edge colors around bar segments. These capabilities ensure that your plots meet the highest standards of publication readiness and analytical rigor.

Summary of Key Matplotlib Techniques for Stacking

Successfully creating, refining, and customizing a compelling stacked bar chart within the Matplotlib framework fundamentally relies on the mastery of three interconnected technical elements. The first essential element is the meticulous preparation and indexing of input data, leveraging the powerful capabilities of NumPy. Specifically, the function numpy.arange() is instrumental in precisely defining the categorical x-axis positions for the bars. This step is non-negotiable, as accurate array generation prevents segment overlap and guarantees perfect horizontal alignment across all defined categories. Without this foundational positional accuracy, the stacked visualization will fail to correctly convey the relationships between the parts and the whole.

The second, and arguably most crucial, technical aspect is the strategic and sequential deployment of the bottom parameter within consecutive plt.bar() function calls. This parameter constitutes the core mechanism that physically enables the stacking behavior itself. By systematically supplying the numerical values of the preceding data series into the bottom argument of the subsequent series, we explicitly instruct Matplotlib on the exact vertical coordinate where the new bar segment must commence. Failure to define this cumulative starting point results not in a stacked graph, but merely in overlapping bars. This foundational technique is universal and must be applied consistently when generating any complex, composite bar visualization within the library.

Finally, effective and detailed annotation is the element that elevates a raw plot into an insightful, professional analytical figure. This includes the essential addition of descriptive titles, informative axis labels (plt.xlabel, plt.ylabel), and a comprehensive legend (plt.legend) that maps visual cues to data meanings. Furthermore, the ability to precisely manipulate tick marks using plt.xticks and plt.yticks, combined with fine-tuning aesthetic attributes such as color (via the color argument), ensures that the finalized chart fulfills its primary analytical mandate: conveying intricate data relationships with optimal speed, clarity, and precision. These techniques collectively represent the foundational skill set required for advanced Python data visualization.
