Learning Subplots in Seaborn for Effective Data Visualization

The Indispensable Role of Subplots in Comparative Data Analysis

Effective data visualization often hinges on the ability to compare multiple statistical distributions or observe relationships between several variables simultaneously. While creating an endless stream of isolated charts can convey information, arranging these visualizations into a single, structured framework—known as subplots—is essential for truly insightful comparative analysis and improved readability. Subplots allow the viewer to hold multiple perspectives in context, which is critical when analyzing complex datasets where context matters.

In the Python ecosystem, achieving this sophistication requires a powerful synergy between two major libraries: the high-level statistical plotting capabilities of Seaborn and the underlying foundational structure provided by Matplotlib. Because Seaborn is built directly on top of Matplotlib, we must rely on the latter to handle the structural aspects of the figure, such as defining the canvas size, the grid geometry, and the precise placement of each individual chart (or axis).

The core mechanism for initializing this multi-plot environment is the plt.subplots() function. This single command serves two vital purposes: it creates the overarching Figure object (the entire canvas or container) and simultaneously generates an array of Axes objects. Each Axes object acts as its own coordinate system, ready to host a separate chart. The key to successful multi-panel visualization is explicitly instructing each subsequent Seaborn plotting function exactly which Axes object should receive its output, ensuring that the visualizations are grouped logically and efficiently for interpretation.

Mastering the Core Syntax: Understanding plt.subplots()

The creation of a subplot architecture begins with the standard import convention, typically aliasing Matplotlib’s pyplot submodule as plt and Seaborn as sns. The power of the plt.subplots() function lies in its straightforward return values: fig, which represents the entire figure, and axes, which is a collection (usually a NumPy array) containing all the individual coordinate systems.

Defining the subplot dimensions is achieved by passing two integer arguments to plt.subplots(): the desired number of rows followed by the number of columns. For example, calling fig, axes = plt.subplots(3, 1) creates a vertical stack of three distinct plotting areas. When a multi-row and multi-column grid is specified (e.g., plt.subplots(2, 2) for four plots), the resulting axes object is a two-dimensional NumPy array. This structure allows for intuitive addressing of each subplot using standard array indexing notation, such as axes[0, 0] for the top-left plot or axes[1, 1] for the bottom-right plot.

The critical bridge between the structural framework defined by Matplotlib and the statistical visualization power of Seaborn is the ax parameter. Every plotting function provided by Seaborn (including sns.boxplot(), sns.histplot(), or sns.lineplot()) accepts this parameter. By setting ax equal to a specific Axes object retrieved from the axes array (e.g., ax=axes[0, 1]), we explicitly direct Seaborn to render its output precisely within that designated subplot area. This explicit assignment mechanism provides granular control necessary for complex data presentations.

The following snippet illustrates the foundational syntax required to establish a 2×2 grid and assign the first two plots within a standard Python visualization workflow:

#define dimensions of subplots (rows, columns)
fig, axes = plt.subplots(2, 2)

#create chart in each subplot
sns.boxplot(data=df, x='team', y='points', ax=axes[0,0])
sns.boxplot(data=df, x='team', y='assists', ax=axes[0,1])

...

This approach ensures that related variables are visualized consistently and efficiently, paving the way for the comprehensive example demonstrated below, which begins with the preparation of the necessary data structure.

Practical Example: Setting Up the Pandas DataFrame

Before any successful visualization can occur in Python’s data science environment, the data must be organized into a standard, accessible format. For statistical computing, this standard is the Pandas DataFrame. The DataFrame’s structure, which uses labeled columns, is perfectly optimized for consumption by Seaborn functions, allowing plots to be generated simply by referencing column names.

In this practical scenario, we simulate athletic performance data, comparing two teams (‘A’ and ‘B’) across four key quantitative metrics: points, assists, rebounds, and blocks. The goal of our visualization will be to compare the distributions of these four metrics between the two categorical groups (the teams), making a multi-panel plot highly appropriate.

The creation of the DataFrame is a crucial preliminary step, ensuring that the necessary variables are correctly typed and labeled for immediate use with the plotting functions. This structured setup guarantees that the subsequent visualization code remains clean and focused solely on the graphical assignment, not on data manipulation.

Below is the code used to generate and display the sample Pandas DataFrame, which serves as the foundation for all subsequent examples:

import pandas as pd

#create DataFrame
df = pd.DataFrame({'team': ['A', 'A', 'A', 'A', 'B', 'B', 'B', 'B'],
                   'points': [19, 12, 15, 14, 19, 23, 25, 29],
                   'assists': [13, 15, 11, 8, 6, 8, 11, 14],
                   'rebounds': [11, 7, 8, 12, 13, 7, 6, 8],
                   'blocks': [1, 2, 2, 3, 5, 4, 3, 3]})

#view DataFrame
print(df)

  team  points  assists  rebounds  blocks
0    A      19       13        11       1
1    A      12       15         7       2
2    A      15       11         8       2
3    A      14        8        12       3
4    B      19        6        13       5
5    B      23        8         7       4
6    B      25       11         6       3
7    B      29       14         8       3

Implementation Example 1: Creating a 2×2 Grid of Boxplots

Our first detailed visualization requires us to compare the central tendency and spread of the four numeric variables (points, assists, rebounds, blocks) across the two teams. For this task, the boxplot is the ideal visualization, as it clearly summarizes the median, quartiles, and potential outliers for each distribution. To manage these four comparisons effectively, we will employ a 2×2 subplot grid, providing ample space for each chart.

The process begins by defining the plotting area using fig, axes = plt.subplots(2, 2). This establishes our four coordinate systems, which are accessible via two-dimensional indexing. We then iterate through our four metrics, assigning each one to a unique location within the axes array: axes[0, 0] handles points, axes[0, 1] handles assists, and so on. This methodical assignment ensures that the generated chart lands exactly where intended.

A common best practice in Seaborn workflows is to initiate the script with sns.set(). This function applies a default set of aesthetic parameters that are optimized for statistical graphics, resulting in cleaner lines, better color palettes, and overall more professional-looking plots compared to the bare defaults of Matplotlib.

The code snippet below defines the 2×2 plotting region and systematically generates a boxplot for each of the four variables, comparing Team A and Team B within each subplot:

import matplotlib.pyplot as plt
import seaborn as sns

#set seaborn plotting aesthetics as default
sns.set()

#define plotting region (2 rows, 2 columns)
fig, axes = plt.subplots(2, 2)

#create boxplot in each subplot
sns.boxplot(data=df, x='team', y='points', ax=axes[0,0])
sns.boxplot(data=df, x='team', y='assists', ax=axes[0,1])
sns.boxplot(data=df, x='team', y='rebounds', ax=axes[1,0])
sns.boxplot(data=df, x='team', y='blocks', ax=axes[1,1])

The resulting output, displayed in the image below, provides a coherent and easily digestible view of how the distributions of all four metrics vary between Team A and Team B. This successful demonstration confirms the effectiveness of the plt.subplots() framework combined with explicit axis assignment.

This example highlights that whether we use boxplots, scatter plots, or histograms, the underlying methodology for layout management remains consistent: define the figure geometry first, then direct the plotting functions using the ax parameter.

Flexibility in Layout: Adjusting Dimensions for Specific Insights

The versatility of the subplot system extends far beyond symmetric, square grids. Analysts frequently need to arrange visualizations horizontally or vertically to optimize screen space or facilitate specific comparisons. For instance, if the goal is to directly compare only two distributions side-by-side, a 1×2 layout (one row, two columns) is far more efficient than a 2×2 grid with empty spaces.

When defining a layout that consists of only a single row or a single column (e.g., plt.subplots(1, 2) or plt.subplots(3, 1)), a critical change occurs in how the axes are indexed. The axes object returned by plt.subplots() simplifies from a two-dimensional matrix into a one-dimensional array. Consequently, the indexing simplifies significantly, moving from the format axes[row, column] to the linear axes[index] (e.g., axes[0] for the first plot and axes[1] for the second).

To demonstrate this flexibility, we will shift our focus from the summary statistics of the boxplot to a visualization that reveals the full probability distribution: the violin plot. A violin plot combines the quartile information of a boxplot with a kernel density estimate, making it excellent for identifying multimodality or skewness in the data.

The following code demonstrates how to establish a horizontal layout (1 row, 2 columns) and populate it with violin plots comparing the distributions of the points and assists variables between the two teams:

import matplotlib.pyplot as plt
import seaborn as sns

#set seaborn plotting aesthetics as default
sns.set()

#define plotting region (1 row, 2 columns)
fig, axes = plt.subplots(1, 2)

#create boxplot in each subplot
sns.violinplot(data=df, x='team', y='points', ax=axes[0])
sns.violinplot(data=df, x='team', y='assists', ax=axes[1])

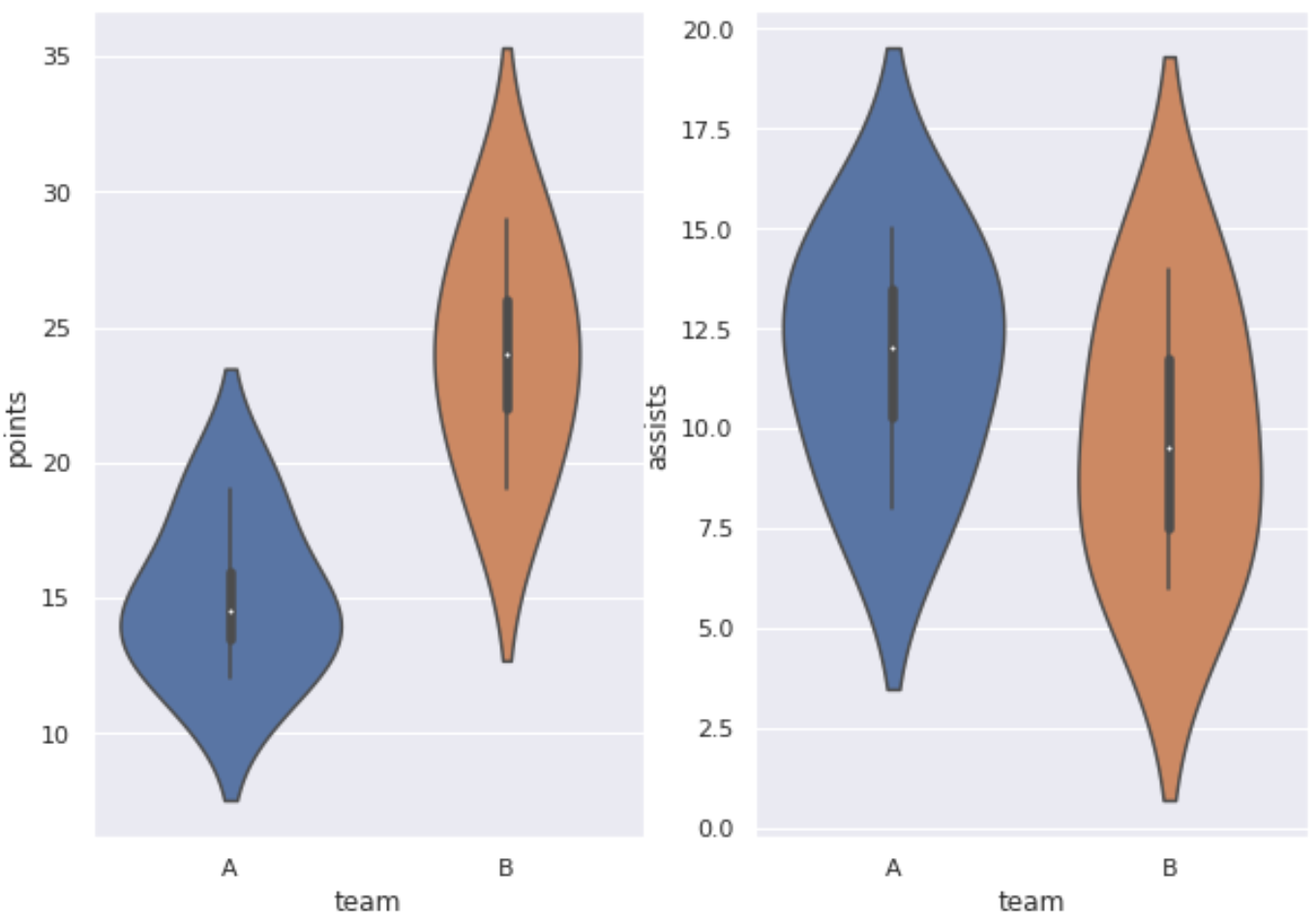

The resulting figure, shown below, successfully utilizes the horizontal space, providing a detailed view of the underlying probability distributions for both variables in a compact and focused presentation. This confirms that the choice of layout (1D vs. 2D indexing) must always be guided by the analytical needs and available screen space.

Enhancing Subplots: Titles, Aesthetics, and Layout Management

While defining the grid structure is fundamental, a professional-grade visualization requires meticulous attention to aesthetics and layout management. Once the charts are drawn, the individual Axes objects provide specialized methods inherited from Matplotlib that allow for precise textual and visual customization.

To ensure clarity, every subplot must be clearly labeled. This is achieved using the set_title() method applied directly to the specific axis object. For instance, to title the plot showing the distribution of points, one would use axes[0, 0].set_title('Team Points Distribution'). Similarly, axis labels can be customized using set_xlabel() and set_ylabel(), overriding the default column names inherited from the Pandas DataFrame if necessary.

A common pitfall when generating dense multi-panel figures is the overlapping of elements, such as titles running into tick marks from the plot above. To resolve this automatically and dynamically, the plt.tight_layout() function is indispensable. Executing this function before displaying the plot adjusts the spacing between subplots to prevent any visual collision between titles, labels, or axis ticks, resulting in a much cleaner and more organized final output.

For advanced comparative tasks, analysts often need to standardize the scales across plots, especially if the metrics are comparable. The plt.subplots() function offers powerful parameters like sharex=True or sharey=True. Setting these parameters ensures that all subplots in the grid share the exact same axis limits and ticks along that dimension, making visual comparisons of magnitude or spread across different panels more direct and reliable.

Summary and Further Resources

Creating sophisticated, multi-panel visualizations in Python is achieved by harnessing the combined strengths of Matplotlib and Seaborn. The methodology is consistent and powerful: first, define the overall figure structure and geometry using the plt.subplots(rows, columns) function, which returns the figure object (fig) and the axes array (axes). Second, meticulously assign each Seaborn plotting call to its intended location within the axes array using the crucial ax parameter and appropriate array indexing (1D or 2D).

This framework provides complete control over the graphical presentation, enabling the creation of anything from symmetrical grids of boxplots to custom, mixed-chart layouts utilizing violin plots or other statistical charts. By integrating layout management tools like plt.tight_layout() and customizing titles via set_title(), analysts can transform raw code into compelling and professional comparative data visualization.
