Curve Fitting in Google Sheets (With Examples)

Understanding the intricate relationships hidden within your datasets is fundamental to effective prediction and analysis. Curve fitting is a powerful statistical modeling technique that involves constructing a mathematical function—a curve—that best approximates the correlation between two or more variables. This methodology is indispensable for identifying underlying trends, forecasting future values, and deriving deeper, actionable insights from raw data. While highly specialized statistical software exists for this purpose, Google Sheets provides surprisingly comprehensive and accessible tools for performing robust curve fitting directly within the familiar spreadsheet environment.

Google Sheets dramatically simplifies this often-complex analytical task through its integrated Trendline function. This feature allows users to swiftly overlay various types of regression models onto their charts, providing both a crucial visual representation and a statistical quantification of the data’s relationships. This capability transforms raw data points into interpretable mathematical models.

This detailed guide will walk you through the entire process of fitting an appropriate equation to a curve using Google Sheets. We will cover the steps necessary to visualize your raw data, strategically apply different types of trendlines, and accurately select the model that offers the most robust and accurate representation of your dataset. By mastering these techniques, you will significantly enhance your ability to analyze data and formulate meaningful, data-driven decisions.

Preparing and Structuring Your Dataset for Modeling

The foundational step in any successful statistical analysis, including curve fitting, is meticulous data preparation. For this tutorial, we will use a hypothetical dataset designed to clearly illustrate the core principles of data structure and subsequent curve fitting in Google Sheets. Proper arrangement of your variables is essential for both visualization and calculation.

To begin, open a new Google Sheet. Your data must be organized into two distinct columns: one for the independent variable (X, often the predictor) and one for the dependent variable (Y, often the response). This standard two-column structure is required by most data visualization and statistical tools to correctly map the relationship between the inputs and outputs.

Once these values are accurately entered into your sheet, this dataset will serve as the basis for our entire curve fitting exercise. Before proceeding to the visualization stage, it is critical to double-check all your numerical entries. Even minor discrepancies or typos in the data entry phase can significantly compromise the accuracy of your subsequent model fitting and analysis, leading to misleading conclusions.

Visualizing Data Distribution with a Scatterplot

After the data has been prepared and structured, the next logical step is to create a visual representation. The scatterplot is universally recognized as the most appropriate chart type for examining the relationship between two continuous numerical variables. It plots individual data points, allowing patterns, clusters, and potential trends to become immediately visible to the analyst.

To generate the scatterplot, first highlight the entire range of cells that contains your data. In our current example, this range corresponds to cells A2:B16. With the data selected, navigate to the Insert tab in the Google Sheets main menu, and then click on Chart. This action initiates the chart creation process and typically opens the dedicated Chart editor panel on the right side of your screen.

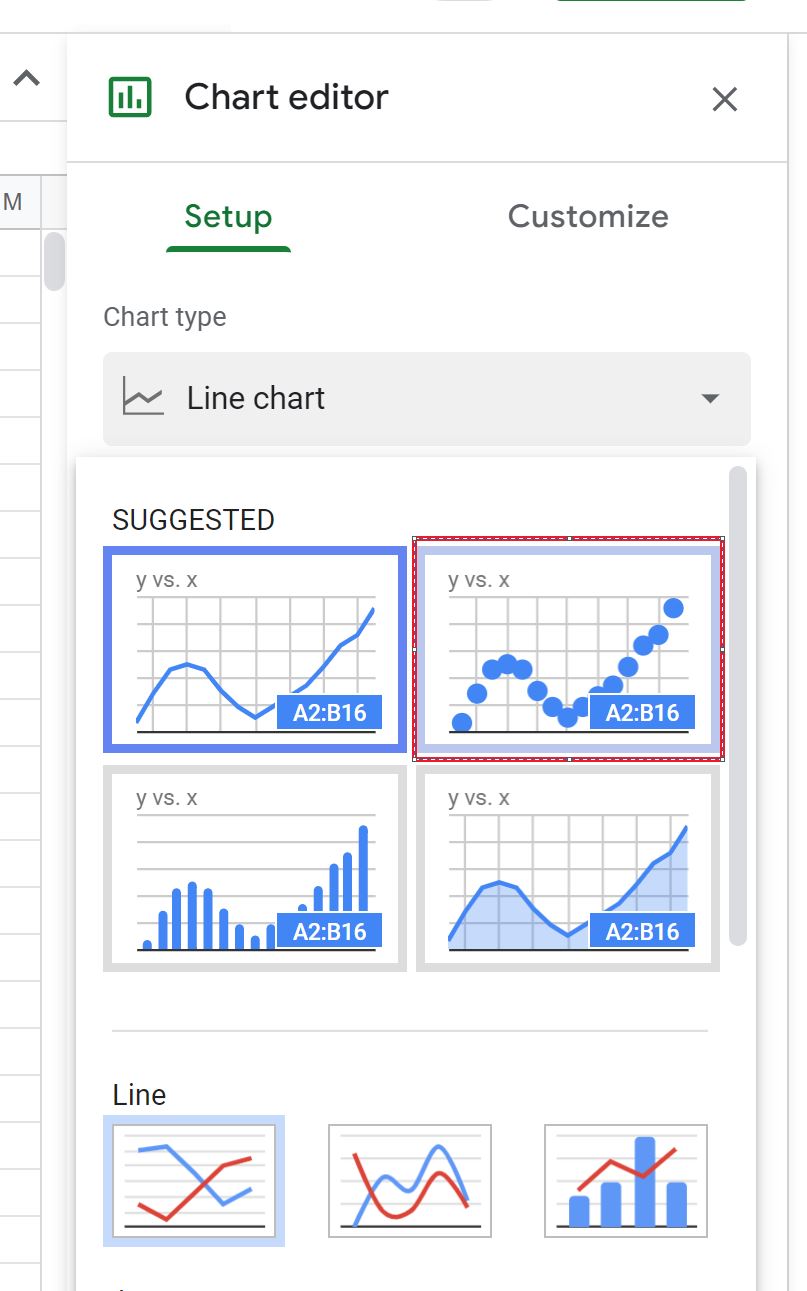

Google Sheets may initially suggest a default visualization, such as a line chart, which connects sequential data points. However, for determining the functional relationship between two continuous variables, a scatterplot is far superior. It displays the true distribution of points without imposing an artificial sequence, which is vital for identifying underlying correlation or curvature.

To correct the chart type, locate the Chart editor panel. Within the Setup tab, find the dropdown menu labeled Chart type. Click this menu and select Scatter chart from the extensive list of options. This conversion transforms your chart into the correct visualization required for curve fitting analysis.

Once the scatter chart is displayed, your data is visually represented as a series of points on a coordinate plane. This initial visual assessment is crucial for forming a hypothesis about the data’s behavior—specifically, whether the relationship appears linear, quadratic, exponential, or requires a higher-order curve.

Evaluating the Fit: Linear Models and R-Squared

With the scatterplot established, the subsequent step is to quantify the observed relationship by adding a trendline. A trendline, often referred to as a regression line, is a curve or straight line that mathematically describes the general direction and magnitude of the relationship between the plotted variables.

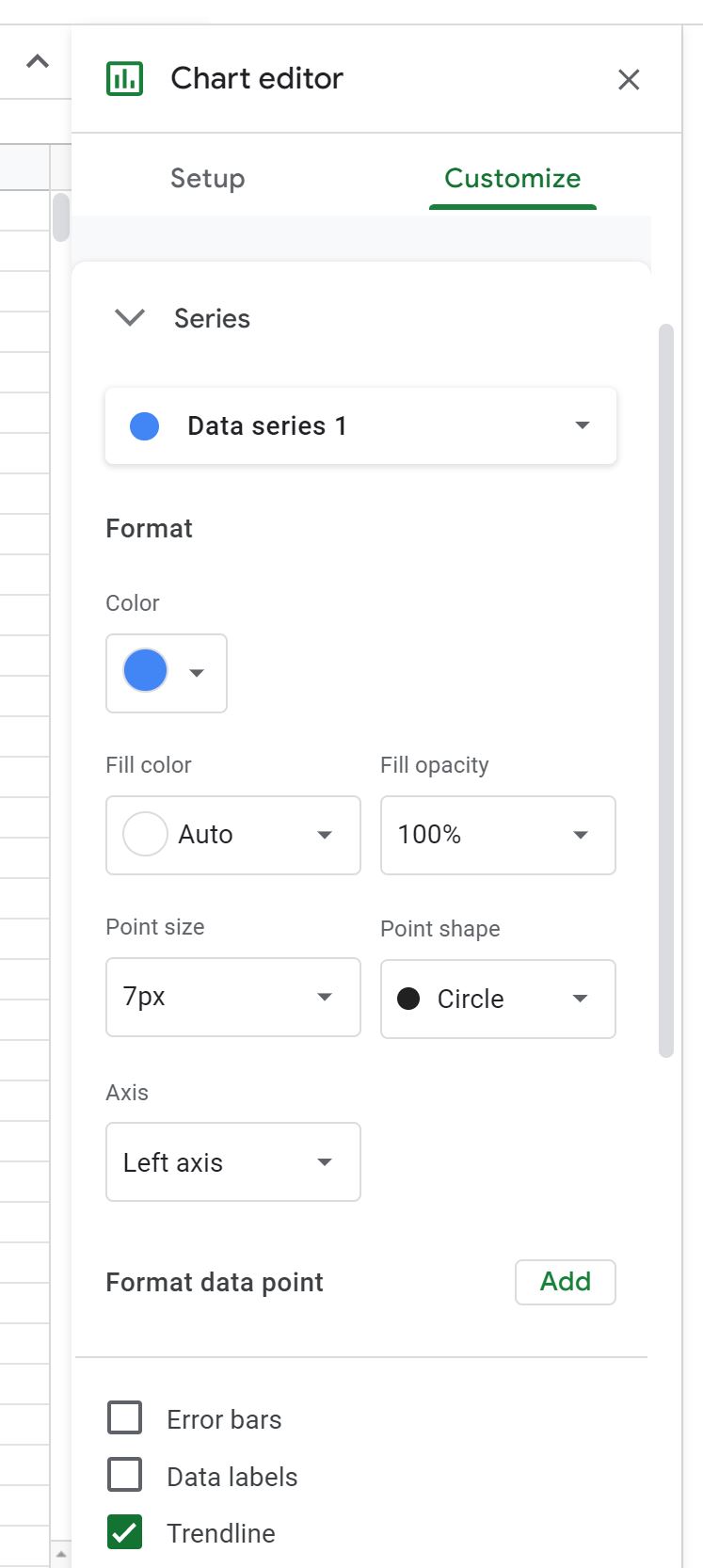

To add a trendline, ensure the Chart editor panel is active and navigate to the Customize tab. Expand the Series configuration options. Within this section, locate and check the box labeled Trendline. By default, Google Sheets will automatically add a linear trendline, which represents the simplest possible mathematical fit.

For a rigorous statistical evaluation of the model’s performance, it is highly recommended to display the R-squared value. Immediately below the Trendline checkbox, find the option to Show R² and check it. The R-squared value, or coefficient of determination, is the primary metric used to assess the goodness of fit of any regression model.

Once activated, the linear trendline will be overlaid on your scatterplot, along with the calculated R-squared value, providing an immediate quantitative measure of the model’s explanatory power. This value indicates the proportion of the variance in the dependent variable (Y) that can be accounted for by the independent variable (X) using the fitted line.

For our specific linear model, the resulting R-squared value is approximately 0.363. This relatively low figure suggests that the linear equation explains only about 36.3% of the total variation in the dependent variable. Visually, the straight line clearly misses many data points, indicating that a simple linear relationship is inadequate for modeling this dataset. This signals a need to explore more complex, non-linear models.

Optimizing Curve Fit with Polynomial Regression

The visual evidence from the scatterplot, supported by the low R-squared score, confirms that our data does not follow a straight line but rather a distinct curved path. To capture this intrinsic pattern, we must move beyond linearity and utilize a non-linear technique such as polynomial regression. This model allows the trendline to bend, thus providing a much more accurate fit.

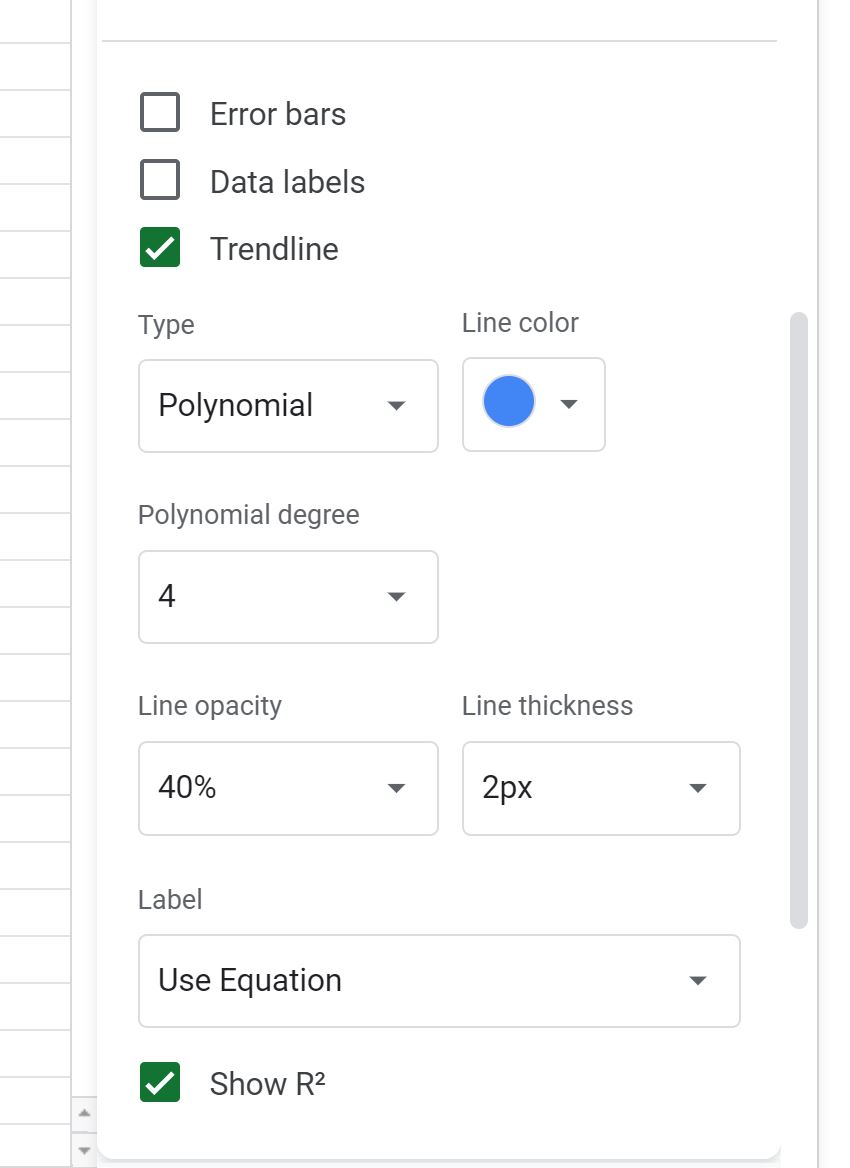

To implement this change, return to the Chart editor panel, under the Customize tab and the Series section. Locate the Type dropdown menu for the trendline (which currently says “Linear”). Click on it and select Polynomial. This fundamental change allows us to define a curved relationship.

Next, you must specify the Polynomial degree. The degree dictates the flexibility and complexity of the resulting curve; a higher degree enables the curve to have more inflection points. For this particular dataset, we will select a degree of 4. Analysts often need to experiment with different degrees (e.g., 2, 3, or 4) to find the optimal curve that minimizes error without succumbing to the risk of overfitting the noise.

Finally, to make the model usable for forecasting, click the dropdown menu under Label and choose Use Equation. This action will display the exact algebraic formula of the fitted curve directly on your chart, making it easy to reference and utilize for external calculations and predictions.

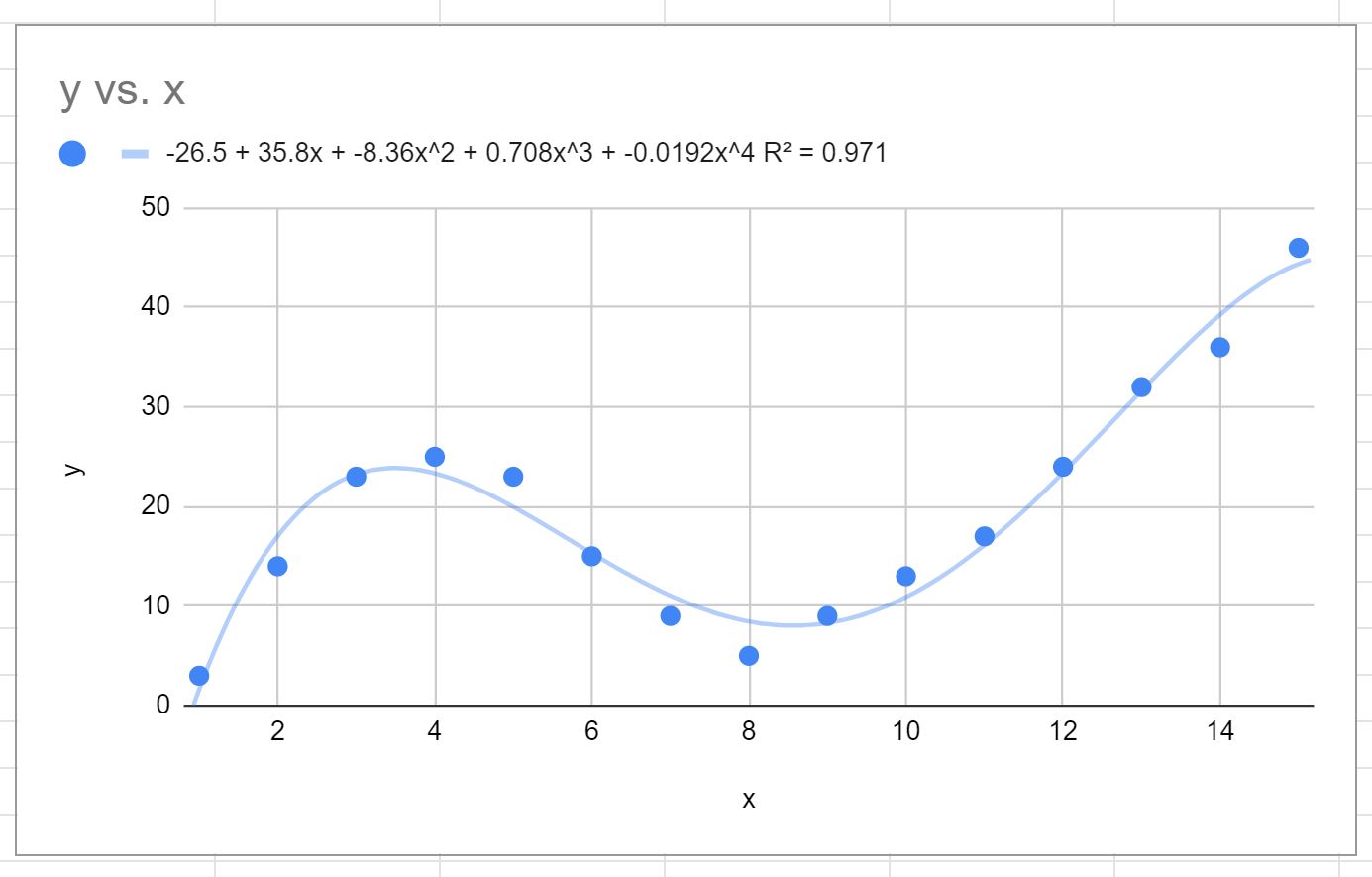

Applying these settings instantly transforms your chart, showing a polynomial curve that visually aligns significantly better with the distribution of your data points than the previous linear model. The immediate visual improvement highlights the power of selecting the appropriate model type.

The resulting equation for this highly accurate 4th-degree polynomial curve, as displayed on the chart, is:

y = -0.0192x⁴ + 0.7081x³ – 8.3649x² + 35.823x – 26.516

Crucially, the R-squared value for this polynomial model jumps dramatically to 0.971. This substantial increase from 0.363 means that the polynomial fit now explains approximately 97.1% of the variance in the response variable, confirming a robust and representative fit to the observed data. This highly accurate model can now be utilized for analytical and forecasting tasks. For example, to predict the value of y when x = 4, we substitute 4 into the derived polynomial equation:

y = -0.0192(4)⁴ + 0.7081(4)³ – 8.3649(4)² + 35.823(4) – 26.516 = 23.34

Based on our optimized curve fit, the predicted value of y when x is 4 is approximately 23.34. This calculation demonstrates the core practical utility of converting data visualization into a powerful predictive formula.

Advanced Model Selection and Best Practices

While achieving a high R-squared value, such as 0.971, is a positive indicator, it is essential for analysts to proceed with caution to avoid the common pitfall of overfitting. Overfitting occurs when a model is overly complex—for instance, using an unnecessarily high polynomial degree—causing it to fit random noise and anomalies in the training data rather than the underlying, true relationship. An overfit model performs exceptionally well on existing data but poorly on new, unseen data.

Selecting the appropriate polynomial degree requires balancing complexity against simplicity. A degree that is too low (underfitting) fails to capture key patterns, as seen in our initial linear attempt. Conversely, a degree that is too high may cause the curve to “wiggle” excessively, passing perfectly through every data point but failing to generalize the real process.

A best practice involves both visual inspection and contextual validation. Analysts should ask: Does the fitted curve make logical sense given the theoretical context of the data? If the underlying scientific or business process suggests a steady, smooth change, a highly complex, erratic curve (even with a high R-squared) should be treated skeptically. Experimentation with adjacent polynomial degrees is often necessary to find the most robust fit.

Furthermore, always consider the theoretical basis of the relationship being modeled. While polynomial regression is highly flexible, certain phenomena are better described by alternative non-linear functions, such as exponential, logarithmic, or power series models. Google Sheets offers these options under the ‘Type’ dropdown for trendlines, allowing you to select the mathematically most appropriate model for your specific domain.

Conclusion and Further Exploration

Mastering the techniques of curve fitting within Google Sheets equips the user with a valuable analytical capability. The built-in Trendline feature is powerful enough to handle complex non-linear relationships, enabling the creation of accurate visualizations and the derivation of predictive mathematical equations.

We have comprehensively covered the critical steps: preparing the data correctly, utilizing scatterplots for initial visualization, applying and interpreting linear and polynomial trendlines, and rigorously evaluating the model’s performance using the R-squared metric. Remember that achieving the “best” fit necessitates a balanced approach, combining strong statistical indicators with domain-specific knowledge to ensure the selected model is both accurate and genuinely representative of the underlying process.

We encourage you to continue experimenting with the various trendline types available in Google Sheets, applying these techniques to your own unique datasets. Through practice, you will become increasingly proficient at uncovering hidden insights and making highly effective, data-driven decisions that propel your analysis forward.
