Learning VBA: How to Delete Excel Charts with VBA Code Examples

Introduction: Why Use VBA to Delete Charts?

Managing complex spreadsheets often requires automating repetitive tasks. When an Excel file accumulates numerous charts—perhaps for testing, historical purposes, or simply clutter—manual deletion becomes tedious and prone to error. Fortunately, VBA (Visual Basic for Applications) provides powerful and efficient methods for batch processing these graphical elements. By using short, targeted subroutines, developers and advanced users can instantly clear all charts from a specific sheet or the entire Excel workbook, streamlining file management and improving performance. This guide explores the two fundamental approaches available within the macro environment to achieve this necessary cleanup.

These automated processes rely heavily on understanding the Excel Object Model, specifically how VBA interacts with graphical objects embedded within a Worksheet. Charts in Excel are not just standalone objects; they are contained within the ChartObjects collection. To successfully delete them, we must target this collection using the appropriate scoping—either limiting the action to the currently active sheet or looping through every sheet in the parent workbook. Mastery of these two techniques ensures that chart cleanup can be integrated easily into larger data management scripts, saving considerable time during routine maintenance tasks.

The following sections detail two primary methods for deletion. The first method is straightforward and involves a single line of code, ideal for localized cleanup. The second method introduces iteration and conditional logic, essential for comprehensive, workbook-wide management. Both techniques are demonstrated with clear VBA code examples, allowing you to implement these solutions immediately in your own environment. Understanding the distinction between these approaches is key to selecting the most efficient solution for your specific automation needs.

Method 1: Deleting All Charts on the Active Sheet

The most direct and simplest way to remove embedded charts is by targeting the ChartObjects collection of the currently active Worksheet. This method is highly efficient because it avoids the overhead of iteration; the deletion process is instantaneous for the specified context. The VBA command leverages the ActiveSheet property, which points directly to the sheet currently displayed to the user. From there, we access the collection of graphical charts using ChartObjects and invoke the standard macro deletion method.

The macro structure for this task is remarkably concise. We define a subroutine and immediately call the ChartObjects collection’s Delete method. It is important to remember that this action is permanent and immediate, meaning once the macro runs, the charts are removed without confirmation. Therefore, it is always recommended to test such deletion scripts on a copy of your Excel file before applying them to critical data. This ensures that you are only affecting the intended scope and not accidentally removing necessary visualizations.

The following code snippet, labeled Method 1: Delete All Charts on Active Sheet, provides the exact syntax required to execute this localized cleanup. This powerful, yet simple, command demonstrates the speed and directness that VBA offers for manipulating objects within the active environment.

Sub DeleteActiveSheetCharts()
ActiveSheet.ChartObjects.Delete
End Sub

This particular macro will precisely delete all embedded charts—those that sit on the grid of the Worksheet, as opposed to chart sheets—from the currently active sheet in Excel. It is the go-to solution when you are certain the cleanup is confined to your present view.

Method 2: Iterating and Deleting Charts Across the Entire Workbook

When the goal is to purge charts from every single Worksheet within a given workbook, a simple macro targeting only the ActiveSheet is insufficient. We must employ a looping structure to iterate through the entire collection of Worksheets contained within the parent Workbook. This approach ensures comprehensive coverage, regardless of how many sheets the Excel file contains, making it far more robust for large-scale data cleansing operations. This technique requires defining a variable to represent each sheet as the loop progresses.

The core of this advanced deletion method involves a For Each loop. We declare a Worksheet variable, often named wk, and instruct VBA to cycle through every item in the Worksheets collection. Crucially, before attempting deletion on any sheet, we include a conditional check using an If statement: If wk.ChartObjects.Count > 0 Then. This check prevents potential runtime errors that could occur if VBA attempted to access the ChartObjects collection of a sheet that is perhaps protected or structurally different, although its primary purpose is simply efficiency—why execute the deletion command if there is nothing to delete?

Upon confirming that the sheet (represented by wk) contains one or more embedded charts, the line wk.ChartObjects.Delete executes, clearing all visualizations from that specific sheet before the loop moves to the Next wk iteration. This sequence continues until every sheet in the active workbook has been processed, ensuring a thorough cleansing operation. This method is the professional standard for ensuring comprehensive chart removal across an entire file.

The following code, which embodies Method 2: Delete All Charts in Entire Workbook, showcases the implementation of this iterative process. Pay close attention to the declaration of the variable and the structure of the loop, which are foundational elements of efficient VBA programming.

Sub DeleteAllWorkbookCharts()

Dim wk As Worksheet

For Each wk In Worksheets

    If wk.ChartObjects.Count > 0 Then
        wk.ChartObjects.Delete
    End If

Next wk

End Sub

This particular macro will successfully delete all embedded charts from every sheet in the entire Excel workbook, providing a complete solution for global cleanup. The following detailed examples illustrate how to use each method in practice, confirming the visual outcome of running these powerful scripts.

Practical Application: Example 1 – Removing Charts from the Current View

To fully appreciate the efficiency of Method 1, let us walk through a concrete scenario. Suppose we are working on a specific Worksheet that was used for preliminary data visualization, and it currently contains several charts that are no longer needed. Our goal is to quickly and cleanly eliminate these graphical elements without affecting any other sheets in the workbook. This localized removal is precisely where the simplicity of the ActiveSheet.ChartObjects.Delete command shines.

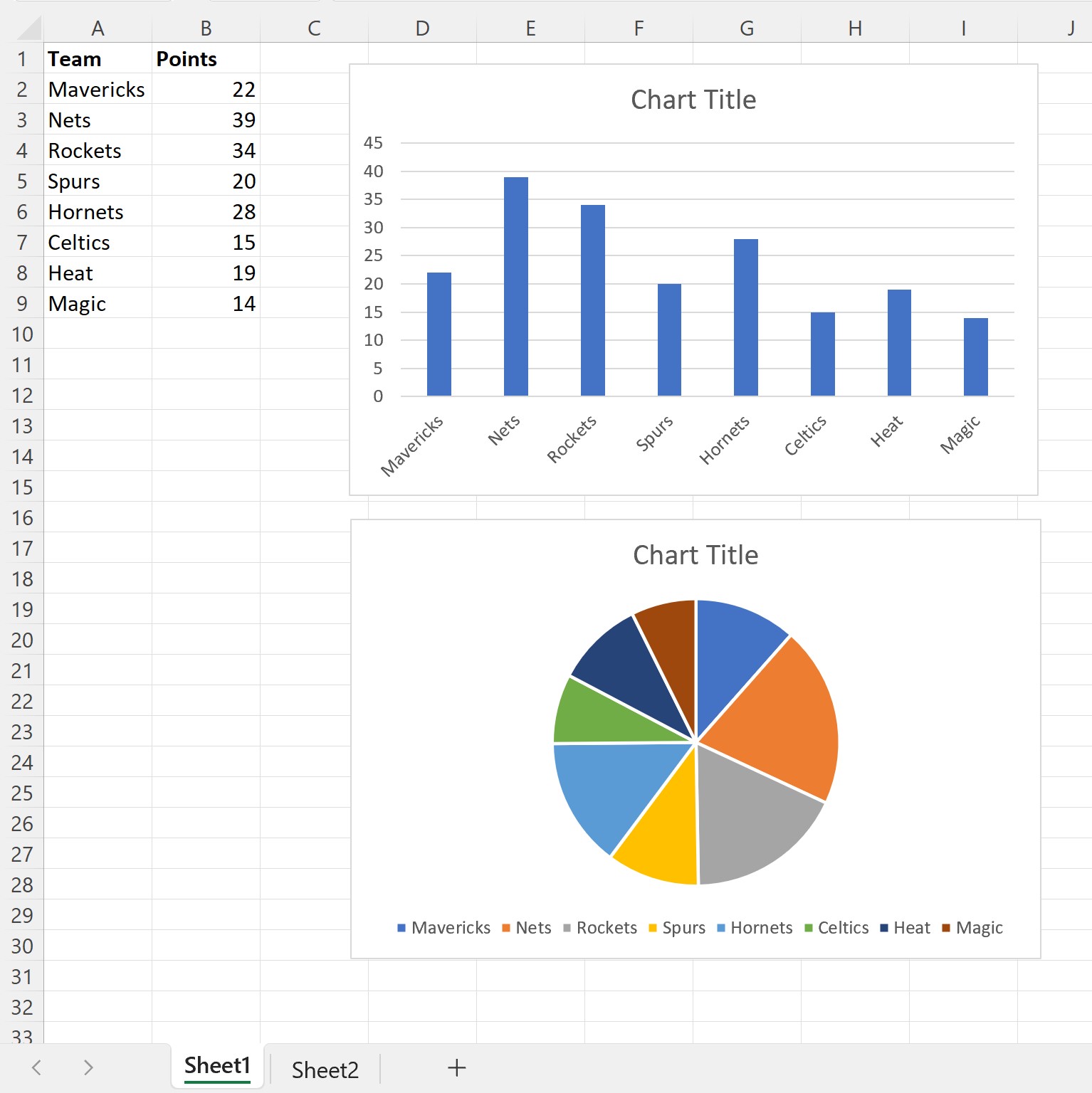

Consider a sheet where initial analysis generated two distinct visualizations, cluttering the data view. This initial state is presented below. Notice the presence of two separate charts, both occupying significant space on the grid.

To perform the deletion, we execute the following macro. This code is placed within a standard module in the VBA editor (Alt + F11). Before running, ensure the target sheet containing the charts is the active sheet in the Excel interface.

Sub DeleteActiveSheetCharts()
ActiveSheet.ChartObjects.Delete
End Sub

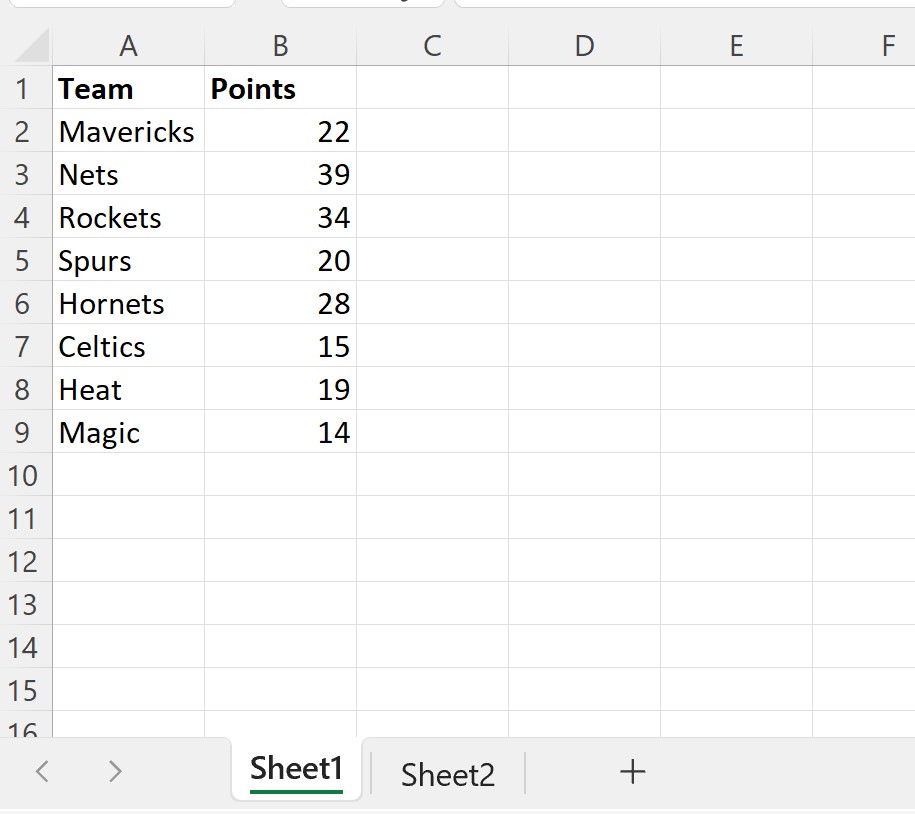

When we run this macro, the VBA engine targets the ChartObjects collection on the currently selected sheet and executes the deletion method. The resulting output clearly demonstrates the success of the operation: the sheet is now clean, containing only the underlying data.

Notice that both charts have been deleted instantaneously from the sheet. This confirms that the ActiveSheet property correctly scoped the operation to the intended area, providing a rapid solution for localized chart removal.

Comprehensive Deletion: Example 2 – Clearing All Charts from the Workbook

The second example demonstrates the need for iterative processing when dealing with charts spread across multiple sheets. Imagine an Excel workbook containing two Worksheets: “Sheet1” and “Sheet2.” Both sheets contain embedded charts, and the requirement is to delete all charts from the entire file in a single execution. This scenario necessitates the robust iteration provided by Method 2.

The complexity lies in ensuring that the VBA code accesses and processes every single sheet, regardless of which sheet is currently active. The For Each loop is the mechanism that allows the macro to systematically check each Worksheet object in the Worksheets collection. The structure ensures that the deletion command, wk.ChartObjects.Delete, is dynamically applied to the correct sheet context during each cycle.

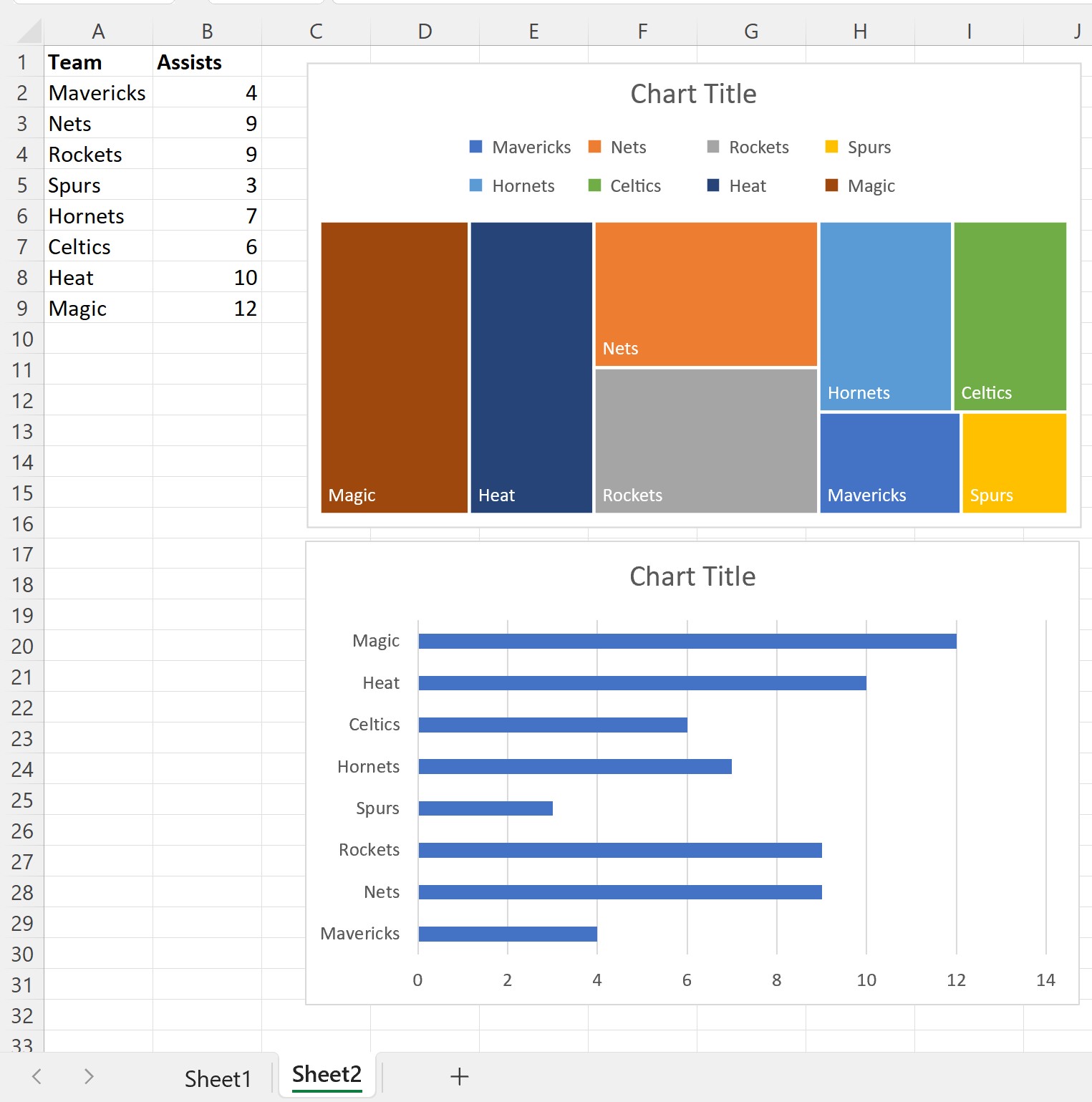

For our illustration, assume the workbook starts in a state where charts exist on both sheets, as suggested by the visual representation of the content:

We implement the following iterative macro to delete all charts from both sheets in the workbook. Note the declaration of the variable wk as a Worksheet object, which is essential for proper object model interaction:

Sub DeleteAllWorkbookCharts()

Dim wk As Worksheet

For Each wk In Worksheets

    If wk.ChartObjects.Count > 0 Then
        wk.ChartObjects.Delete
    End If

Next wk

End Sub

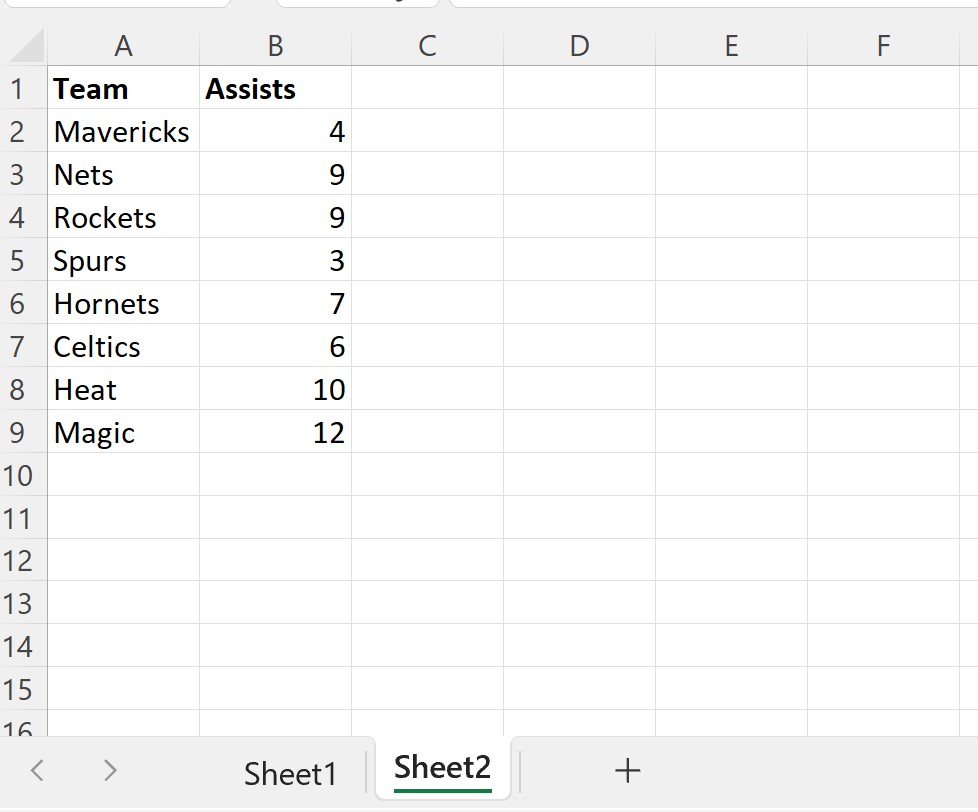

Once we run this macro, the VBA code cycles through the entire file. The result is that all charts from both sheets are simultaneously deleted, leading to clean, chart-free sheets throughout the workbook.

Note that while in this specific example we only focused on deleting charts from two sheets, this powerful macro is fully scalable and will work seamlessly with an Excel workbook containing any arbitrary number of sheets. This comprehensive approach is vital for maintaining large, complex data models where visual elements often need periodic purging.

Summary of VBA Chart Deletion Techniques

Choosing the correct VBA method for chart deletion depends entirely on the scope of your required cleanup. If you only need to clear visualizations from the sheet you are currently viewing, the direct approach is faster and simpler to implement. If, however, you are managing a file with dozens of tabs and require guaranteed chart removal across the entire structure, the iterative looping method is essential for robustness and completeness. Both methods showcase the efficiency benefits of scripting repetitive tasks in Excel.

Understanding the ChartObjects collection is the key takeaway. All embedded charts belong to this collection, which is itself a property of the parent Worksheet object. By applying the .Delete method directly to this collection, we instruct VBA to remove every single chart element contained within, providing a clean slate for subsequent data manipulation or visualization efforts. This knowledge forms the basis for automating most graphical operations in Excel.
