Learning VBA: A Step-by-Step Guide to Deleting Named Ranges in Excel

Understanding Named Ranges and the Necessity of Cleanup

Effective management of an Excel workbook demands precision, especially when dealing with complex data structures and customized tools. Developers and advanced users frequently create various components, including custom functions, dynamic pivot tables, and, perhaps most frequently, named ranges. These definitions serve a vital role: they dramatically enhance formula readability, allow for easier navigation across sprawling datasets, and simplify referencing cells or arrays. However, the convenience of named ranges often leads to their rapid accumulation. This is particularly true in workbooks that undergo repeated copying, modification, or integration over extended periods.

The consequence of this unchecked accumulation is significant workbook clutter. This clutter is not merely cosmetic; it directly contributes to increased file size, which can noticeably degrade performance, and, critically, it can introduce ambiguity or conflicts that lead to baffling formula errors. For any professional working with VBA (Visual Basic for Applications), learning how to systematically and efficiently purge obsolete definitions is an absolutely essential skill. This ensures that workbooks remain lean, fast, and reliable, forming a foundational aspect of advanced spreadsheet development hygiene.

While Excel provides a manual method for cleanup via the Name Manager interface, this approach quickly becomes tedious and error-prone when managing dozens or hundreds of entries scattered across various worksheets. The most robust and reliable solution for maintaining workbook integrity and ensuring a complete purge is the use of an automated macro. By leveraging a concise yet powerful VBA script, we can instruct the application to iterate programmatically through every defined name and execute the deletion command, ensuring a perfectly clean repository of definitions.

The VBA Object Model for Name Management

To effectively delete named ranges using code, it is imperative to understand the underlying VBA object hierarchy that governs these definitions. In the Excel object model, all named ranges are stored within a crucial structure known as the Names collection. This collection is housed directly under the parent ActiveWorkbook object, meaning it encapsulates every definition currently associated with the open file, regardless of whether that definition is local (scoped to a sheet) or global (scoped to the workbook).

Accessing this centralized Names collection is the key prerequisite for any bulk cleanup operation. Once accessed, we can employ a loop mechanism to process each element individually. Every entry within this collection is represented by a specific entity: the Name object. This object holds all the properties associated with a defined range, such as its name, its visibility status, and the cell reference it points to.

The primary challenge in writing the deletion script is ensuring we target only the desired items—typically the user-created names—while avoiding internal or system-generated names that Excel relies upon. The solution lies in executing the built-in .Delete method only on the specific Name object after confirming it meets our criteria, thereby removing the definition permanently from the workbook’s memory without causing structural damage.

Implementing the Universal Deletion Script

The most efficient approach to cleansing a workbook of all visible, user-defined named ranges involves creating a macro that systematically iterates through the entire Names collection. The script below provides a foundation that is robust and universal, meaning it requires zero modification whether your workbook contains five named ranges or five hundred. This solution leverages the power of the For Each loop structure, which is perfectly suited for processing every item within a collection when the collection’s exact size is unknown or variable.

Sub DeleteNamedRanges()

Dim NamedRange As Name

For Each NamedRange In ActiveWorkbook.Names
    If NamedRange.Visible Then NamedRange.Delete
Next NamedRange

End Sub

This procedure, named DeleteNamedRanges, begins with the declaration of a variable, NamedRange, utilizing the Dim statement, specifying its type as the Name object. This variable temporarily holds each named range as the loop processes the collection. The subsequent For Each loop then initiates the traversal through every item found in the ActiveWorkbook.Names collection. For each item encountered, a crucial conditional check is performed: If NamedRange.Visible Then.

This visibility check is not optional; it is a critical safeguard. Excel sometimes generates hidden named ranges for essential internal processes, such as managing print areas or data connections. Deleting these system-managed names can unexpectedly destabilize the workbook and corrupt functionality. By filtering the operation to execute only when the name is visible, we ensure we exclusively target ranges defined by the user. If the condition is met, the command NamedRange.Delete is executed, permanently removing the definition. Once the loop finishes processing all objects in the collection, the macro successfully concludes, achieving a rapid and comprehensive cleanup operation.

Practical Example and Implementation Steps

To illustrate the effectiveness of this script, let us consider a common scenario: inheriting a legacy Excel workbook or managing a file that has been developed collaboratively, resulting in several named ranges across various sheets. Before moving forward with new development or advanced data analysis, it is necessary to clear out all existing, potentially redundant definitions. For this demonstration, we assume our workbook currently contains three distinct, user-defined named ranges, each scoped to a different worksheet within the file.

The named ranges defined in our hypothetical workbook are structured as follows:

• A named range called sheet1_name defined within Sheet1.
• A named range called sheet2_name defined within Sheet2.
• A named range called sheet3_name defined within Sheet3.

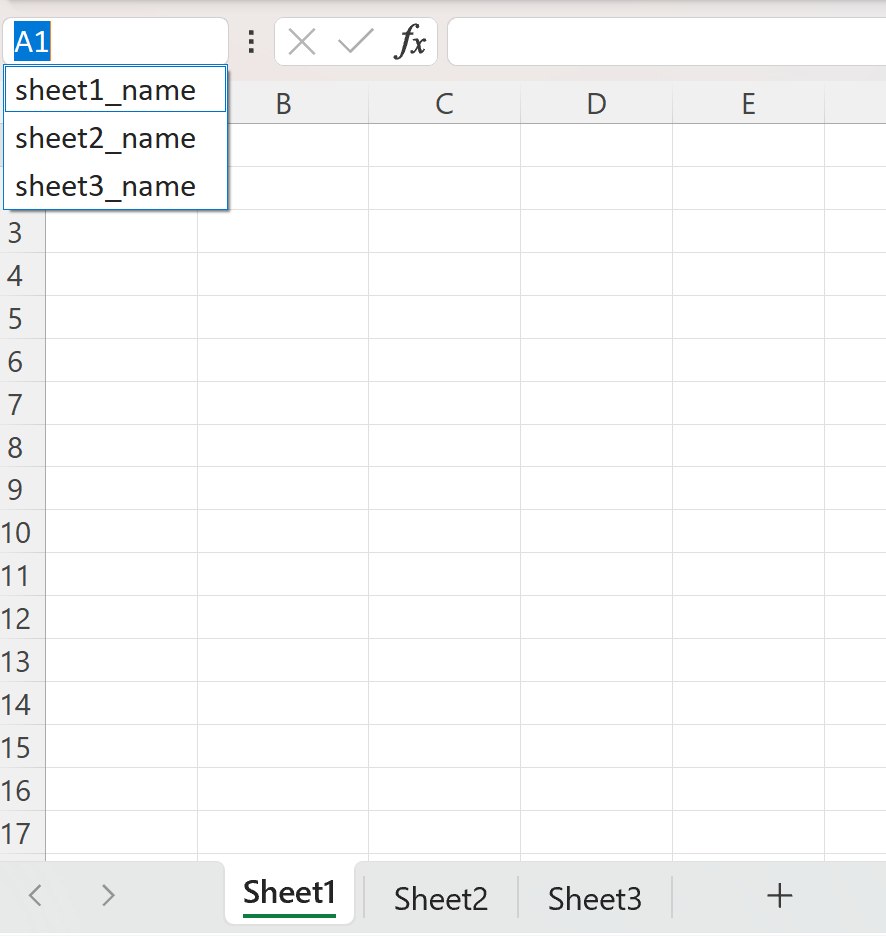

Before proceeding with the automation, it is helpful to visually confirm the existence of these entries. They are easily verified using the Name Box, which is conveniently located to the left of the formula bar. Clicking the dropdown arrow in the Name Box displays a comprehensive list of all visible and accessible Name object definitions within the workbook’s scope. This simple verification step confirms that our deletion macro has concrete targets, as shown in the image below.

Our goal is to eliminate all three of these defined names simultaneously. We achieve this by inserting the previously defined macro into a standard module within the VBA Editor (accessible via Alt + F11). Once the editor is open, navigate to Insert > Module and paste the provided code block. This insertion makes the DeleteNamedRanges procedure available for execution across the entire workbook. The script will then leverage the power of VBA automation to perform the cleanup instantaneously, far surpassing the speed of any manual method.

Executing the Macro and Verifying Results

After pasting the code into the new module, return to the main Excel interface. The macro can be executed either by navigating to the Developer tab (Macros > Select DeleteNamedRanges > Run) or, for frequent use, by assigning the procedure to a shape or button on the worksheet. Upon running the macro, the For Each loop immediately begins its task. It efficiently processes the ActiveWorkbook.Names collection, identifies sheet1_name, sheet2_name, and sheet3_name, confirms that their .Visible property is True, and sequentially executes the .Delete method on each one.

It is crucial to re-emphasize the scope of the target collection: ActiveWorkbook.Names. This collection is comprehensive, encompassing every name defined throughout the entire workbook, irrespective of whether they are locally scoped to a sheet or globally scoped. Because our macro targets this broad collection, executing this procedure guarantees that all user-defined named ranges throughout the entire file are permanently and immediately removed, culminating in a swift and thorough cleanup operation. This level of automation is why VBA remains indispensable for advanced Excel management.

Once the deletion macro has completed its execution—a process that is usually instantaneous—the most reliable way to confirm its success is by checking the Name Box again. If the procedure functioned correctly, the dropdown list that previously displayed names like sheet1_name, sheet2_name, and sheet3_name should now be empty. Any remaining entries are typically default system entries related to objects like tables or charts. This immediate visual feedback confirms that the Name object definitions were successfully purged from the workbook’s internal memory.

The image below illustrates the post-execution state. Observe the Name Box after running the DeleteNamedRanges macro. The dropdown menu is now devoid of the user-defined entries we targeted, providing concrete proof that the VBA script executed precisely as intended, successfully eliminating unnecessary clutter and optimizing the workbook structure.

Advanced Techniques: Targeted and Conditional Deletion

While the provided macro offers a powerful, blanket solution for cleaning up all visible named ranges, advanced users often require finer control over the deletion process. There are scenarios where one might need to delete only a single, specific named range, or perhaps delete names only if they adhere to a certain naming convention (e.g., containing the word “Temp”). For deleting a single, known range, the loop can be entirely bypassed by applying the .Delete method directly to the item within the Names collection, referencing it by its exact string name. For example: ActiveWorkbook.Names("Specific_Range_Name").Delete provides an immediate, targeted removal.

A more complex requirement involves targeting hidden names, where the NamedRange.Visible property is set to False. These often include internal definitions that Excel requires. If a user needs to delete system-level names (which should be approached with extreme caution due to potential workbook destabilization), the conditional check in the For Each loop must be modified or removed. To target only hidden names, the condition would be inverted: If Not NamedRange.Visible Then NamedRange.Delete.

However, a safer, more nuanced approach when dealing with hidden names is to identify them not just by their visibility, but also by their name or by inspecting their .RefersTo property to ascertain what data or object they reference before proceeding with deletion. This prevents the accidental removal of critical internal definitions. Ultimately, mastering the interaction between the individual Name object and the encompassing Names collection is the fundamental skill required to tailor any cleanup routine, ensuring your Excel projects remain efficient, streamlined, and free from definition conflicts.

Conclusion: Mastery Through Automation

The ability to programmatically manage complex workbook elements, such as named ranges, utilizing VBA is a defining characteristic of advanced Excel development. By effectively employing the robust For Each loop structure and precisely targeting the ActiveWorkbook.Names collection, developers can implement rapid, comprehensive cleanup operations. This automation not only significantly boosts workbook performance by reducing overhead but also drastically enhances long-term maintainability by eradicating redundant or obsolete definitions that could otherwise cause errors.

The foundational knowledge gained from manipulating the Name object is highly transferable to other automation tasks within the Excel object model. To continue building expertise in this domain, we encourage exploration of other core object model interactions. Understanding these principles will solidify your ability to build sophisticated, error-proof, and highly efficient spreadsheet solutions.
