Understanding Histogram Shapes: A Guide to Data Distribution

A histogram is the primary graphical instrument used in statistics to map the inherent structure of numerical data. It translates raw counts into a visual representation of the underlying distribution. By grouping data into discrete bins and plotting the frequency of observations in each bin, histograms offer instant insight into the central tendency, spread, and overall shape of a dataset.

Properly describing the shape of a histogram is not just an academic exercise; it is critical for selecting appropriate statistical tests and interpreting results accurately. The x-axis (horizontal) invariably represents the range of values, or the class intervals (bins), present in the data, while the y-axis (vertical) denotes the corresponding frequency or count of observations for those bins. The shape adopted by the distribution depends entirely on the intrinsic characteristics of the data collected.

Analyzing the Core Components of Distribution Shape

When statistically describing the shape of a histogram, we primarily assess three fundamental characteristics: modality (the count of peaks), symmetry (the mirror-image quality), and skewness (the directionality of the trailing edge, or tail). These components collectively reveal how data points are clustered, where they peak, and how they spread across the measurement scale.

A formal analysis of histogram shape is essential because it allows us to test whether the collected data adheres closely to a known theoretical model, such as the Normal Distribution. This adherence is foundational for many inferential statistical methods. Failing to account for significant deviations from assumed shapes can lead directly to violations of test assumptions and potentially incorrect scientific or business conclusions.

The following comprehensive examples provide a visual guide to the most significant and commonly encountered shapes in practical data analysis, categorized based on their structural properties.

1. Symmetric and Unimodal Distributions

Symmetric distributions are characterized by a remarkable balance around their central point. If a vertical line is drawn through the highest peak, the shape of the left side is a near-perfect mirror image of the right side. This structural symmetry implies that observations are equally likely to fall above or below the central measure (the mean/median), and these classic shapes typically exhibit only one prominent peak (unimodal).

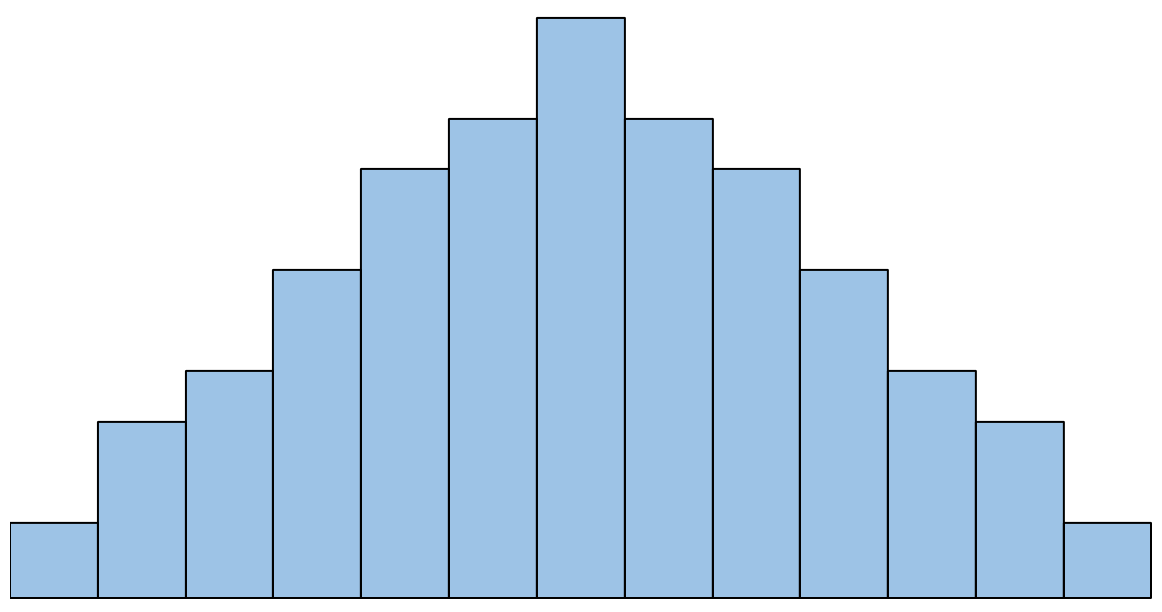

Bell-Shaped (Normal Distribution)

A distribution is famously designated as bell-shaped when its histogram closely mimics the mathematically defined form of the Normal Distribution (often called the Gaussian distribution). This shape is the statistical ideal, featuring a single, prominent peak precisely located at the center, where the mean, median, and mode are theoretically identical or nearly equal.

The defining feature of this bell curve is the gradual, symmetrical decrease in frequency as values diverge from the center. The bars representing extreme observations—those far out on the left and far right—are short, forming characteristic short tails that signify the rarity of extreme outcomes. The Normal Distribution remains the cornerstone of classical parametric statistical inference due to its predictable properties.

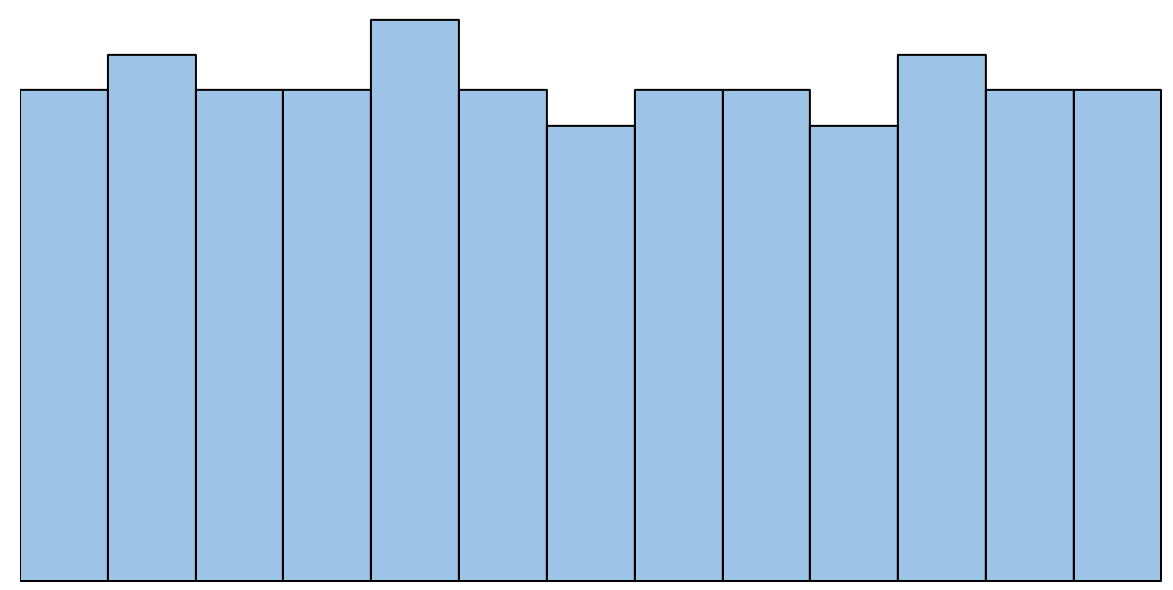

Uniform Distribution

A histogram is categorized as a uniform distribution when every value, or every specified range of values (bin), within the observable dataset occurs with approximately the same frequency. Visually, this produces a flat, rectangular appearance, entirely devoid of discernible peaks, modes, or tails, suggesting an even spread of probability across the range.

In this scenario, there is no inherent tendency for the data to cluster around any central value. All outcomes are equally probable across the observed domain. This shape is frequently encountered in theoretical data simulations, such as generating pseudo-random numbers within a fixed interval, or when recording results from a truly fair chance process like rolling a single die multiple times.

2. Skewed Distributions

Skewness describes the degree of asymmetry in a distribution. When a distribution is skewed, the vast majority of data points are concentrated heavily on one side, while the remaining, less frequent data points stretch out significantly toward the opposite side, forming a long, thin “tail.” Critically, the direction of the skew is always defined by the direction of this tail, not the location of the peak.

Recognizing skewness is vital because it immediately invalidates the assumption that the mean, median, and mode are equivalent. The mean is mathematically pulled toward the extreme values in the tail, making the median a more robust and representative measure of central tendency in highly skewed distributions, as it is far less sensitive to the influence of extreme outliers.

Left Skewed (Negatively Skewed)

A histogram is defined as left skewed, or negatively skewed, if its long tail extends distinctly toward the left side (the negative direction on the number line). This visual structure indicates that the bulk of the observations are clustered around high values, but a smaller subset of low-value outliers pulls the overall distribution downward toward the left.

The consequence is that the main peak is visibly shifted to the right side of the graph. In a left-skewed distribution, the measures of central tendency follow a specific order: the mean is typically less than the median, which is often less than the mode (Mean < Median < Mode). Practical examples frequently involve datasets subject to a maximum limit or “ceiling effect,” such as exam scores for a relatively easy test where most students score highly.

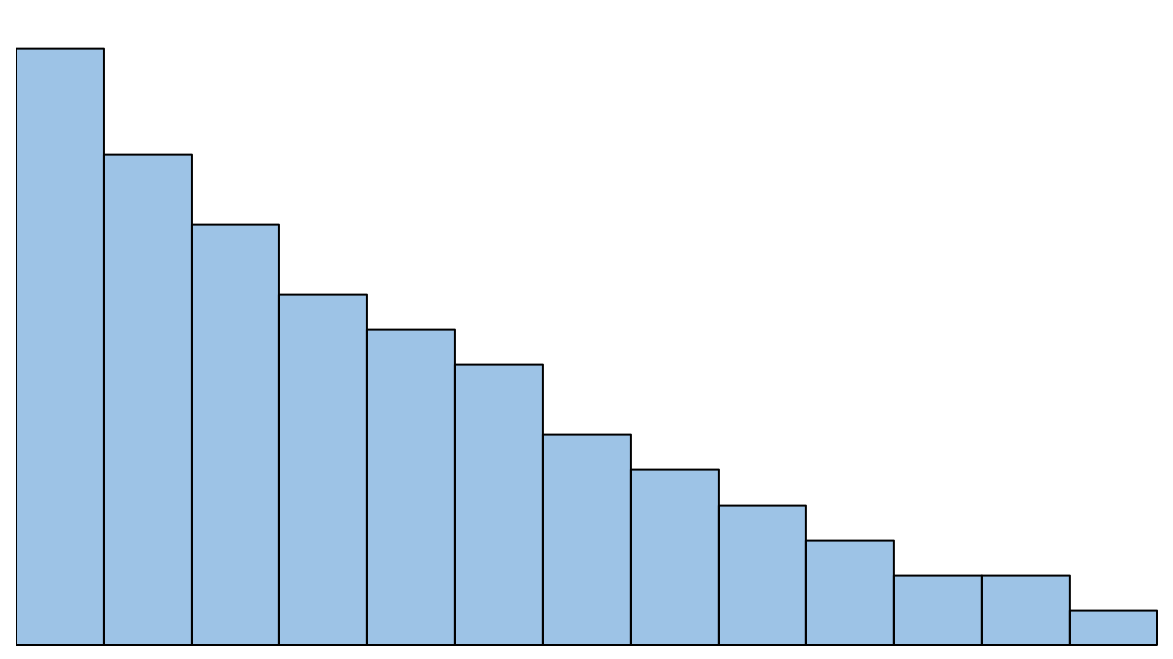

Right Skewed (Positively Skewed)

Conversely, a histogram is classified as right skewed, or positively skewed, if the distribution features a long, trailing tail that extends toward the right (the positive direction). This shape signifies that most observations have relatively low values, but there are a few unusually large values (outliers) that stretch the distribution significantly in the positive direction.

The primary concentration, or peak, is therefore shifted to the left side of the graph. The relationship between the central measures is consequently reversed: the mean is greater than the median, which is generally greater than the mode (Mode < Median < Mean). Classic real-world examples include personal income data (where high earners drastically inflate the mean) or measurements of elapsed time or counts of rare events, which are naturally bounded by zero.

3. Distributions Defined by Modality (Peaks)

Modality specifically describes the number of distinct peaks, or local maximums, evident within the statistical distribution. A peak represents a significant concentration of data values, indicating a common value or range where observations are most likely to cluster. While the idealized bell curve is strictly unimodal (one peak), many real-world datasets exhibit multiple concentrations.

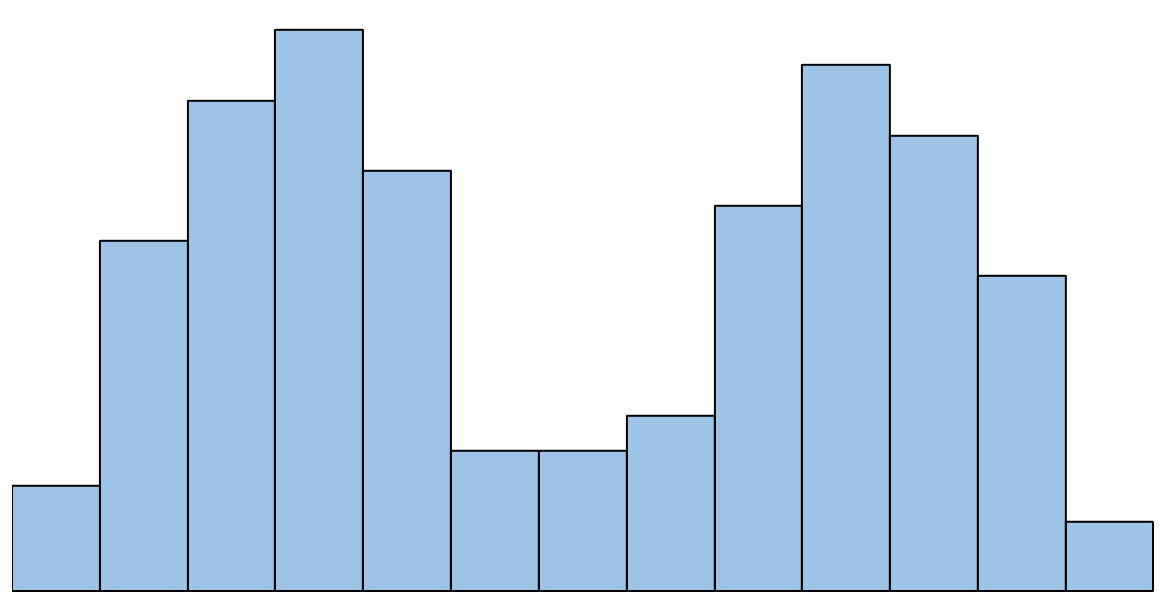

Bimodal Distribution

A distribution is formally described as bimodal if the resulting histogram clearly displays two distinct, non-adjacent peaks separated by a trough. The unmistakable presence of two modes is a strong indicator that the underlying dataset is not homogeneous. Instead, it strongly suggests that the sample is composed of two different subpopulations that have been unintentionally mixed and should ideally be analyzed separately.

For example, examining the height measurements of a large mixed group of men and women often produces a bimodal distribution, as the two sexes typically have distinct average heights. Identifying bimodality is a critical step in the early stages of exploratory data analysis, often necessitating further investigation into underlying categorical variables.

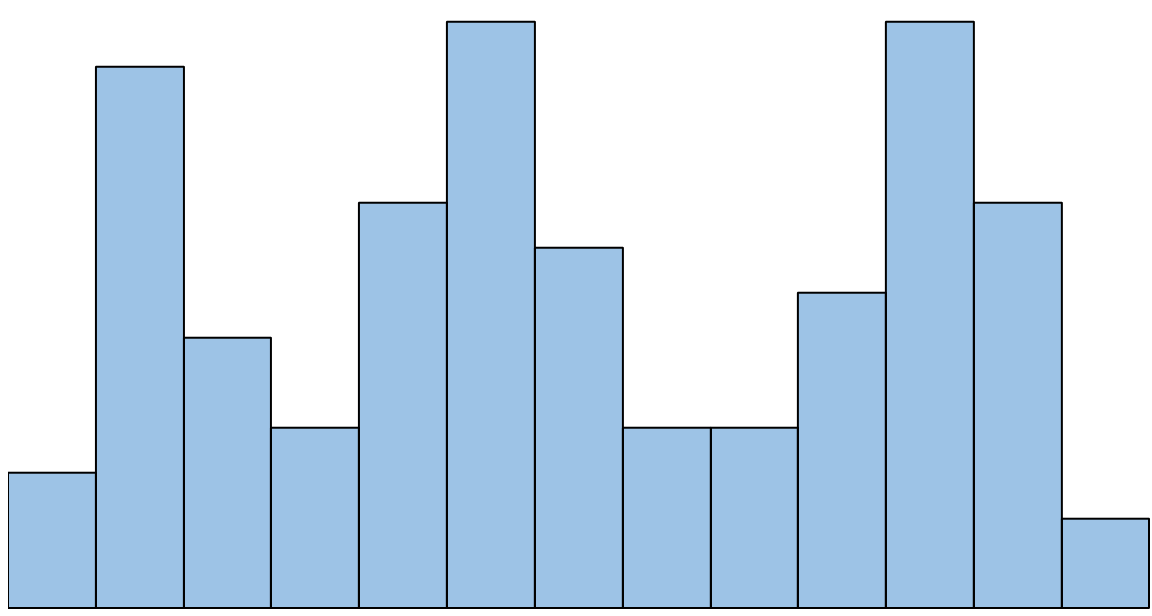

Multimodal Distribution

When a distribution exhibits more than two distinct peaks, it is classified as multimodal. Although less frequently encountered than bimodal shapes, this structure is a powerful signal indicating the existence of multiple, separate subgroups, processes, or conditions that are contributing to the overall variability and shape of the data.

A multimodal distribution might arise when measuring characteristics that vary based on cycles or predictable external factors. For instance, plotting the average temperature of a city over a full year might show three peaks corresponding to the distinct seasonal temperature averages. Analysts must rigorously investigate the root causes—the categorical variables—that generate these multiple concentrations to derive meaningful insights.

4. Irregular and Atypical Shapes

While most standard statistical distributions fit neatly into unimodal, bimodal, or standard skewed classifications, complex real-world phenomena or flawed data collection processes can sometimes yield distributions that defy simple categorization. These are termed irregular or atypical shapes.

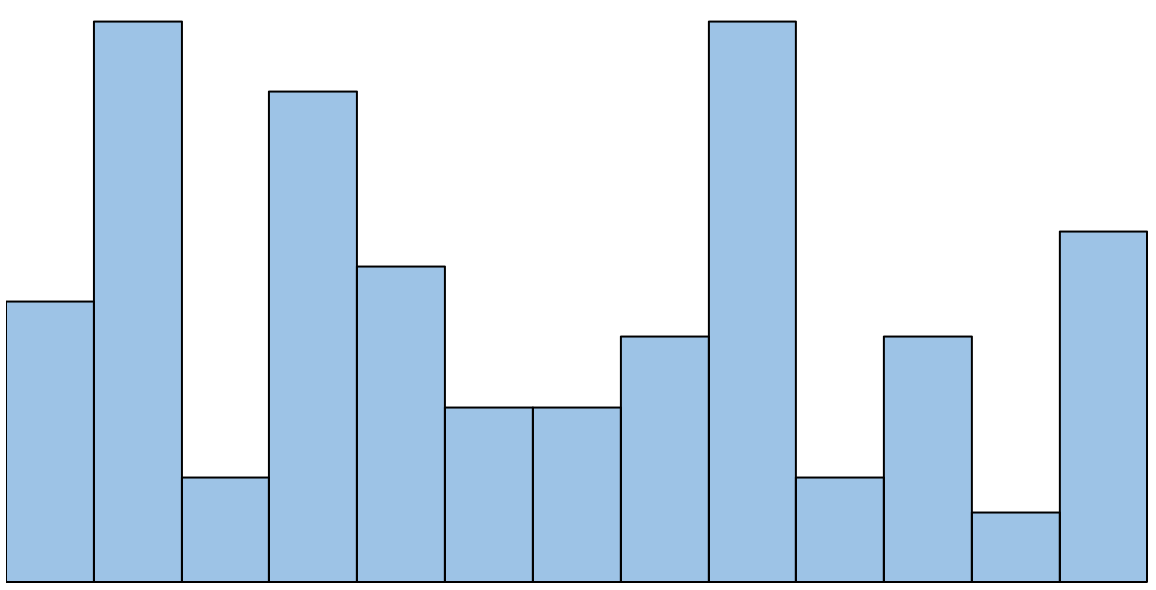

Random (Irregular) Distribution

A distribution’s shape is described as “random” or irregular when the histogram displays no clear pattern regarding concentration, symmetry, or predictable skewness. Visually, the bars appear highly erratic, varying wildly in height across the full range of values without establishing any consistent structure.

An irregular shape often serves as a warning sign. It may indicate that the sample size used is statistically insufficient to accurately reveal the true underlying population distribution, or that the chosen bin width for the histogram is inappropriate (perhaps too narrow). Alternatively, it may genuinely reflect highly erratic, noisy data where outcomes are truly uncorrelated or unpredictable due to inherent measurement error or chaos.

Summary: Key Elements for Describing Distribution Shape

To provide a complete and robust description of any histogram in a formal statistical report, analysts must move beyond simple peak identification and focus on a comprehensive analysis of all five key features:

• Center: Estimate the median and mean, noting where the data tends to accumulate.
• Modality: Identify the number of significant peaks (Unimodal, Bimodal, Multimodal).
• Spread: Note the range of the data and the overall variability.
• Skewness: Determine if the distribution is symmetrical, or if it is pulled to the left (negative skew) or right (positive skew).
• Outliers: Look for any extreme values far removed from the main body of the data that might influence central measures.

Mastering the structured description of histogram shapes is a foundational skill in the broader context of exploratory data analysis (EDA). It provides the essential initial visual evidence required to guide subsequent, more complex statistical modeling, hypothesis testing, and ultimately, sound decision-making based on data.
