Learning to Display Grayscale Images Using Matplotlib’s cmap Argument

The ability to precisely manipulate and display visual information is an essential skill in fields ranging from data science to advanced computer vision. When leveraging Python’s premier visualization library, Matplotlib, developers require fine-grained control over how numerical data, particularly image pixel intensities, are rendered. The mechanism that grants this control is the cmap argument, which enables the user to enforce specific color schemes, such as grayscale, onto the visual output.

Converting a standard Red, Green, Blue (RGB) image into a single-channel grayscale format is more than just an aesthetic choice; it is often a fundamental preprocessing step. Grayscale conversion significantly reduces computational complexity, allows algorithms to focus purely on structural and textural features rather than chromatic variations, and is necessary for various printing and archival purposes. This comprehensive guide details the technical steps required to implement accurate grayscale conversion and display using Matplotlib, the robust Pillow (PIL) library, and the high-performance array manipulation tool, NumPy.

Decoding Matplotlib Color Maps (cmap) for Visualization

In the context of Matplotlib, a color map (commonly referred to by its keyword argument cmap) is a sophisticated function designed to map scalar values—such as a pixel’s intensity or a data point’s magnitude—within a defined numerical range to a corresponding color output. When the plt.imshow() function is called to visualize array data, Matplotlib utilizes the specified color map to assign visual colors based on the underlying numerical values present in the input array.

For standard color images, which inherently contain three dimensions of data (Height x Width x 3 channels for RGB), Matplotlib typically defaults to rendering the image in its true colors by interpreting the three channels directly. However, when the input data is naturally two-dimensional (2D), representing scalar fields like elevation maps, heat distributions, or, critically, single-channel image intensities, the cmap argument becomes indispensable for ensuring accurate visualization.

The specific value cmap='gray' instructs Matplotlib to use a monochromatic color scheme. This color map establishes a strict, linear gradient where the minimum scalar value in the input array is mapped to black, and the maximum scalar value is mapped to white, with all intermediate values represented by shades of gray. This standardization is powerful, but it imposes a strict requirement: the input array passed to plt.imshow() must represent a single channel of luminance or intensity data, not a multi-channel RGB structure. Attempting to apply cmap='gray' to a three-dimensional RGB array often leads to unexpected or incorrect visual results, as Matplotlib struggles to reconcile a 3D input with a 2D color mapping scheme.

Essential Python Libraries for Image Processing

Successfully navigating the process of loading, manipulating, and displaying image data in Python necessitates the coordinated use of three core libraries, each performing a distinct and vital role.

First, the Python Imaging Library (PIL), or its actively maintained fork, Pillow, handles the crucial, low-level tasks of image input/output and fundamental manipulation. PIL is responsible for opening various file formats and, most importantly for this task, performing the necessary color mode conversions, such as transforming a multi-channel RGB image into a single-channel luminance structure. Without PIL, the critical step of converting color channels to intensity values would be significantly more complex.

Second, NumPy acts as the essential intermediary data structure. Matplotlib’s visualization routines, particularly imshow(), are highly optimized to process numerical data stored in NumPy arrays. Therefore, even after PIL handles the loading and conversion of the image object, the data must be transformed from a PIL object into a standardized NumPy array structure. This transformation ensures compatibility, computational efficiency, and correct interpretation by Matplotlib’s plotting functions.

Finally, Matplotlib, specifically the pyplot interface, serves as the visualization engine. Once the image data is correctly formatted as a 2D NumPy array containing only luminance values, Matplotlib takes over, applying the specified cmap='gray' argument to render the final image output on the screen. The synergy between these three libraries forms the standard pipeline for robust image processing in Python.

Baseline Example: Displaying the Original RGB Image

Before implementing the grayscale conversion, it is useful to establish a baseline by displaying the original color image, named shapes.JPG. This initial step verifies that the libraries are correctly installed, the image file is accessible, and the basic display functionality of Matplotlib is working as expected. We start by loading the image using the PIL library and rendering it using Matplotlib without specifying any color map arguments, allowing it to display the true RGB colors.

The following code snippet demonstrates the straightforward loading and display process for the original color image:

import numpy as np
import matplotlib.pyplot as plt
from PIL import Image

image=Image.open('shapes.JPG')
plt.imshow(image)
plt.show()

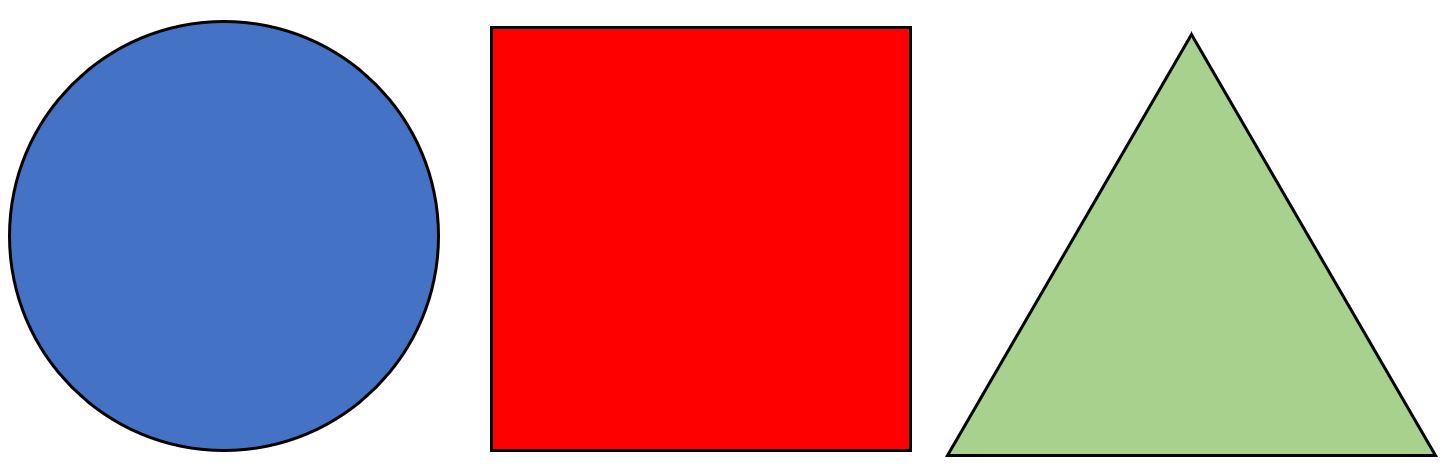

Executing this code confirms that the image is loaded successfully and is rendered with its intended, original color structure, providing the necessary comparison point for the subsequent grayscale conversion:

The Core Transformation: Converting RGB to Luminance (‘L’ Mode)

To achieve a technically correct grayscale representation, it is insufficient to merely apply cmap='gray' to the original, three-channel RGB data. If this shortcut were taken, Matplotlib would attempt to map the gray color spectrum across a 3D data array (Height x Width x 3), leading to unpredictable results, often displaying only one channel’s data or relying on an internal averaging mechanism that may not represent true luminance.

The proper methodology requires fundamentally altering the image’s data structure using the Pillow library. We must convert the multi-channel RGB data into a singular, two-dimensional luminance array. This is executed by invoking the powerful Image.convert('L') method. The ‘L’ image mode in PIL signifies a single-channel, 8-bit image where the pixel values range from 0 (black) to 255 (white). This conversion mathematically calculates the perceived brightness of each pixel by applying a weighted average to the Red, Green, and Blue values, effectively consolidating the color information into intensity data.

Once the PIL object has been converted to ‘L’ mode, it represents a single-channel intensity map. This PIL object must then be transformed into a two-dimensional NumPy array using the np.asarray() function. This 2D array, containing only the intensity values, is the structurally appropriate input that Matplotlib expects when the cmap='gray' argument is utilized. This two-step process—conversion to ‘L’ mode followed by array transformation—guarantees that Matplotlib is visualizing a single scalar value per pixel using the specified gray spectrum, resulting in an accurate and reliable grayscale output.

Full Implementation: Achieving Grayscale using cmap='gray'

With the necessary structural conversion understood, we can now integrate this step into our visualization script. To successfully display the image in grayscale, we combine the opening, conversion, and array transformation steps, culminating in the utilization of the cmap='gray' argument within the final plt.imshow() call.

The complete and revised code block below outlines the necessary sequence for proper grayscale conversion and display, ensuring the data presented to Matplotlib is in the correct 2D format:

import numpy as np
import matplotlib.pyplot as plt
from PIL import Image

#open image
image=Image.open('shapes.JPG')

#convert image to black and white pixels (Luminance mode)
gray_image=image.convert('L')

#convert image to NumPy array (Essential for Matplotlib 2D input)
gray_image_array=np.asarray(gray_image)

#display image on grayscale using the specific cmap
plt.imshow(gray_image_array, cmap='gray')
plt.show()

Upon executing this revised script, the original multi-colored image is successfully transformed into a clean, single-channel monochrome representation, demonstrating the effective use of the PIL conversion and Matplotlib’s coloring functionality:

Why Data Structure Dictates Visualization Success

The structural role of the ‘L’ argument within the Image.convert() function cannot be overstated. This conversion forces the image data to transition from a three-dimensional color space (RGB) into a mathematically derived two-dimensional luminance space. This step is not optional for achieving correct grayscale output in Matplotlib; it is a structural prerequisite.

Matplotlib’s imshow function is designed to efficiently map the values of a 2D array to colors based on the specified color map. If the input array remains in its 3D RGB format, Matplotlib may recognize the data as color information and prioritize displaying the true colors, potentially ignoring the cmap='gray' argument entirely. Alternatively, it might attempt to interpret the 3D data using the 2D color map, which can lead to unpredictable visualizations, such as displaying the grayscale map based only on the Red channel’s intensity values.

Therefore, the validated workflow sequence is robust and mandatory for accuracy: Load Image (resulting in a PIL object) -> Convert to Luminance ‘L’ Mode (modifying the PIL object structure) -> Convert to NumPy Array (creating the necessary 2D data structure) -> Display with Matplotlib (applying cmap='gray'). Adherence to this defined process ensures that the data is correctly structured as single-channel intensity values, resulting in an accurate and reliable grayscale result suitable for subsequent analysis or display.

Expanding Your Image Processing Toolkit

Achieving mastery in image manipulation and visualization using Python often involves moving beyond basic color schemes. A deep understanding of how Matplotlib interacts with array data opens the door to specialized plotting features, custom color maps, and advanced array manipulation techniques.

The following resources and topics explain how to perform other common tasks related to data visualization and image processing, building upon the foundational knowledge of PIL, NumPy, and Matplotlib’s cmap functionality:

• Implementing custom color maps for specialized data visualization needs, such as diverging or qualitative data sets.
• Working with multi-band satellite imagery and manipulating the channel order using advanced NumPy reshaping techniques.
• Adjusting brightness, contrast, and applying filters to images using the PIL library before the data is passed to Matplotlib for final rendering.

By mastering the interaction between the Pillow, NumPy, and Matplotlib libraries, you gain powerful and robust control over how complex image data is prepared, analyzed, and presented in Python.
