Displaying Percentages on a Pandas Histogram Y-Axis: A Step-by-Step Guide

Introduction: Visualizing Relative Frequency with Histograms

In the realm of data analysis, effectively communicating the structure of a dataset is paramount. Histograms stand out as indispensable tools in data visualization, offering a clear graphical representation of the distribution of continuous numerical data. Conventionally, a histogram’s y-axis displays the raw count or frequency—the absolute number of data points falling into each defined bin. While straightforward for understanding raw magnitude, this count-based approach can often obscure meaningful comparisons, especially when analyzing datasets of vastly different sizes or seeking immediate insight into proportional representation. We often require a perspective that communicates the relative abundance of observations, moving beyond raw counts to focus on percentages.

This comprehensive guide addresses the crucial technique of converting a standard frequency histogram into a proportional one, where the y-axis directly reflects the percentage of data within each bin. We will utilize the core capabilities of the Python data ecosystem, specifically leveraging Pandas for efficient data handling and the versatile plotting framework provided by Matplotlib. The methodology centers on data normalization techniques combined with specialized axis formatting to deliver a clear, comparative visualization.

Understanding the percentage distribution is vital across disciplines, from statistical modeling and financial risk assessment to biological research. For instance, an analyst reporting that 15% of transactions fall into a high-risk bracket conveys a more standardized and actionable metric than reporting a raw count, particularly if the total volume of transactions fluctuates daily. By the end of this tutorial, you will master the specific mechanisms required to generate these highly informative, percentage-based distributional plots.

The Technical Foundation: Normalization and Formatting in Matplotlib

Converting the y-axis of a Matplotlib-generated histogram from absolute counts to percentages requires two distinct, coordinated steps. The first step involves normalizing the data counts during the plotting process, ensuring the bar heights represent proportions (values between 0 and 1). The second, equally important step, involves applying a specialized formatter to the y-axis ticks so these proportions are displayed as human-readable percentage strings.

The normalization is achieved by strategically employing the weights argument within the plt.hist() function. To convert raw counts into proportions, every data point must contribute an equal, fractional weight to the total sum. This is implemented using NumPy: weights=np.ones(len(df)) / len(df). This calculation assigns a weight to each observation equal to 1 divided by the total number of observations (N). Consequently, the sum of the heights of all histogram bars will equal 1.0, representing 100% of the dataset. This foundational normalization process is crucial for establishing the correct underlying scale for percentage display.

Once the proportions are correctly calculated, we must format the y-axis labels. Matplotlib provides the powerful PercentFormatter class, found within the ticker module, designed precisely for this task. The command plt.gca().yaxis.set_major_formatter(PercentFormatter(1)) applies this class to the current axes. The argument 1 passed to PercentFormatter(1) instructs the formatter that the input values are already scaled from 0 to 1 (where 1 is 100%), and it should automatically multiply them by 100 and append the ‘%’ symbol. This transformation completes the process, yielding a truly percentage-based axis.

The following Python syntax encapsulates these necessary steps, providing a boilerplate solution for generating percentage-based distributions:

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.ticker import PercentFormatter

#create histogram, using percentages instead of counts
plt.hist(df['my_column'], weights=np.ones(len(df)) / len(df))

#apply percentage format to y-axis
plt.gca().yaxis.set_major_formatter(PercentFormatter(1))
plt.show()

Establishing the Data Environment: A Practical Pandas Example

To provide a clear, executable demonstration of this technique, we will utilize a simulated dataset created using Pandas and NumPy. Imagine we are examining the seasonal performance metrics of a large cohort of basketball players. Our dataset, a DataFrame, will contain three key continuous variables: points scored, assists recorded, and rebounds collected. Analyzing the distribution of these metrics helps us quickly identify common performance levels and outliers.

Crucially, to ensure our results are reproducible and consistent, we must set a random seed using np.random.seed(1). This practice guarantees that the random number generation remains identical across different executions, a fundamental requirement for reliable programming examples and robust data science workflows. The data itself is generated to approximate a normal distribution using NumPy’s random.normal function, mimicking realistic statistical patterns where most observations cluster around a central mean value, defined by the loc parameter, with spread controlled by the scale parameter (standard deviation).

The following Python code snippet initializes the DataFrame, populating it with 300 observations for each performance metric, and displays the initial structure:

import pandas as pd
import numpy as np

#make this example reproducible
np.random.seed(1)

#create DataFrame
df = pd.DataFrame({'points': np.random.normal(loc=20, scale=2, size=300),
                   'assists': np.normal(loc=14, scale=3, size=300),
                   'rebounds': np.normal(loc=12, scale=1, size=300)})

#view head of DataFrame
print(df.head())

      points    assists   rebounds
0  23.248691  20.197350  10.927036
1  18.776487   9.586529  12.495159
2  18.943656  11.509484  11.047938
3  17.854063  11.358267  11.481854
4  21.730815  13.162707  10.538596

With our 300-observation DataFrame established, we can proceed to visualize the ‘points’ column, first using the default count method, and then transforming the visualization to use percentages for superior comparative insight.

The Default View: Analyzing Distributions by Raw Counts

Before implementing the percentage conversion, it is instructive to first examine the default behavior of Matplotlib’s plotting function. When plt.hist() is called without the weights argument, the resulting histogram will utilize the raw frequency of observations. The vertical axis thus provides a direct count of how many data points fall into each predefined bin interval. This raw count perspective is valuable for understanding the absolute magnitude of observations within specific ranges.

In the context of our player performance data, a count-based histogram for the ‘points’ metric shows precisely how many players scored within each point band. This visualization clearly highlights the bin containing the largest number of players—the mode of the distribution. However, if we later wished to compare this distribution against a different dataset, perhaps one representing only 100 players, the absolute count values would make direct visual comparison of the shapes difficult, as the scales would be fundamentally different.

Below is the standard Python code required to generate this basic, count-based visualization for the ‘points’ column:

import matplotlib.pyplot as plt

#create histogram for points columb
plt.hist(df['points'], edgecolor='black')

The accompanying plot visually confirms the use of raw counts on the vertical axis, quantifying the absolute frequency of player scoring performance. While informative for internal assessment of this single dataset, the next section demonstrates the transformation necessary to achieve relative frequency, a more powerful metric for standardized reporting and comparison.

Implementing the Percentage Transformation for Proportional Insight

The primary advantage of a percentage-based histogram is its ability to standardize the view of the data distribution. By normalizing the data, we ensure that the focus shifts from absolute numbers to the proportional representation of observations, regardless of the sample size. This is achieved by meticulously applying the two-step technical foundation: normalization via weights and formatting via PercentFormatter.

When we execute plt.hist(df['points'], weights=np.ones(len(df)) / len(df), ...), we are instructing Matplotlib to calculate the relative frequency for each bin. This mathematical transformation ensures that the height of each bar is proportional to the percentage of total data points it contains. For our 300 players, this step converts the count of players in a bin (e.g., 60 players) into a proportion (60/300 = 0.20).

Subsequently, the line applying the formatter, plt.gca().yaxis.set_major_formatter(PercentFormatter(1)), takes these proportional values (0.20, 0.15, etc.) and visually translates them into the familiar percentage display (20%, 15%, etc.) on the y-axis. The explicit passing of 1 confirms that the values are already normalized to the scale of 0 to 1, ensuring accurate scaling and labeling. This combined approach delivers a powerful, normalized visualization tool.

Review the complete Python code to generate the percentage-based histogram for the ‘points’ data:

import numpy as np
import matplotlib.pyplot as plt
from matplotlib.ticker import PercentFormatter

#create histogram, using percentages instead of counts
plt.hist(df['points'], weights=np.ones(len(df)) / len(df), edgecolor='black')

#apply percentage format to y-axis
plt.gca().yaxis.set_major_formatter(PercentFormatter(1))
plt.show()

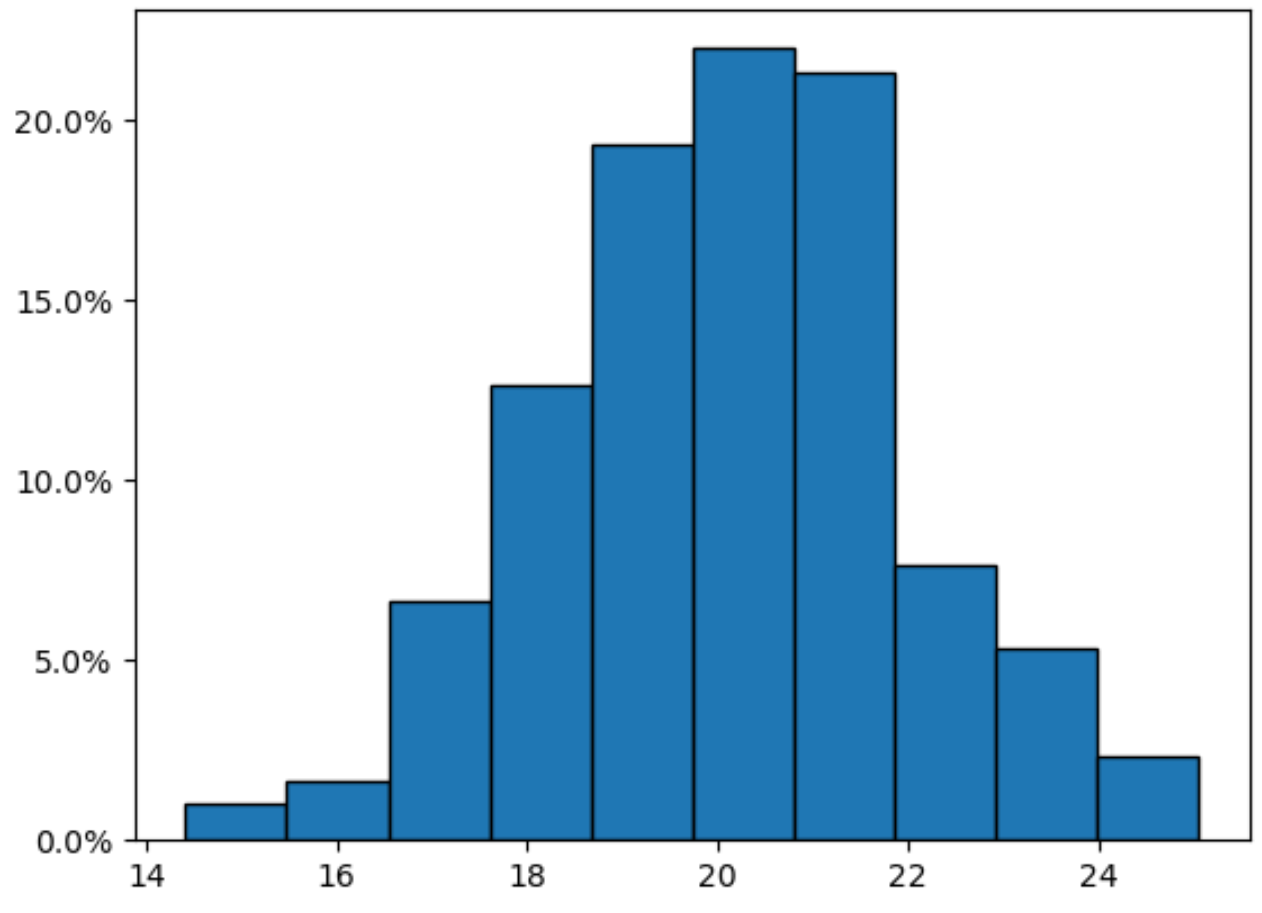

The resultant plot, displayed below, immediately offers superior interpretability. Stakeholders can now effortlessly grasp that, for instance, approximately 25% of the player population scores within the distribution’s most frequent range, providing an intuitive understanding of the relative frequency profile.

Aesthetic Refinement: Controlling Decimal Precision

Although the percentage-based visualization is highly effective, the default formatting of the y-axis may sometimes include decimal places (e.g., 25.5%), which can clutter the visual presentation, particularly when high precision is not statistically necessary. Matplotlib anticipates this need for visual hygiene and offers simple control over the decimal display through the PercentFormatter‘s decimals argument.

To produce a cleaner, more simplified visualization where percentage labels are represented solely by whole numbers (e.g., 25%), we simply set decimals=0 within the PercentFormatter() function call. This instructs the Matplotlib API to round the calculated relative frequencies to the nearest integer before appending the percentage symbol. This subtle but effective adjustment enhances the aesthetic appeal and readability of the data visualization, making the distribution easier to digest at a glance.

This level of detailed customization ensures that the plot serves the specific communication needs of the analyst. For internal, high-granularity statistical reports, retaining decimals might be preferred, but for executive summaries or general presentations, removing them often results in a more impactful and distraction-free visual narrative.

The revised code, incorporating the decimals=0 parameter, is shown below:

import numpy as np
import matplotlib.pyplot as plt
from matplotlib.ticker import PercentFormatter

#create histogram, using percentages instead of counts
plt.hist(df['points'], weights=np.ones(len(df)) / len(df), edgecolor='black')

#apply percentage format to y-axis
plt.gca().yaxis.set_major_formatter(PercentFormatter(1, decimals=0))
plt.show()

As demonstrated in the plot below, the y-axis now displays whole percentages, presenting a cleaner and often more aesthetically pleasing visualization. This fine-tuning capability ensures your histogram effectively conveys its message without unnecessary numerical precision.

Conclusion: Mastering Proportional Data Visualization

The capacity to accurately and clearly visualize data distributions is fundamental to effective statistical communication. By mastering the technique of displaying percentages on the y-axis of a histogram, you gain a versatile tool that presents relative frequencies in a universally accessible format. This method significantly bolsters comparative analysis, allowing rapid assessment of the proportional structure of any dataset, irrespective of its total sample size.

We systematically covered the dual requirements for this transformation: leveraging the weights argument within plt.hist() to achieve data normalization and applying the powerful PercentFormatter to ensure accurate and professional axis labeling. Furthermore, we explored crucial aesthetic refinements, such as using the decimals argument to control precision and maintain visual clarity, thereby ensuring the data visualization is optimized for its intended audience.

These techniques are essential for anyone using Pandas and Matplotlib for analytical plotting. By incorporating these customizations, you elevate your data storytelling capabilities, creating plots that are not only statistically sound but also highly impactful and easy to interpret. We encourage continuous exploration of the comprehensive documentation provided by both libraries to unlock further advanced visualization features.
