Learning to Draw Horizontal Lines in Matplotlib: A Comprehensive Guide

The Importance of Reference Lines in Matplotlib Visualizations

Matplotlib stands as the cornerstone of data visualization within the Python ecosystem. It offers a robust framework for generating a wide variety of static, animated, and interactive plots essential for effective data analysis and communication. A key requirement in many analytical scenarios is the ability to introduce context to the primary data trend. This context is often provided by visual markers, commonly known as reference lines, which represent critical thresholds, statistical averages, or performance benchmarks. The capability to draw a precise horizontal line is therefore fundamental to creating informative charts.

Horizontal reference lines serve to anchor the viewer’s interpretation of the data. For instance, in quality control, they might demarcate upper and lower control limits; in finance, they could signify a target return or a risk ceiling; or in general statistical analysis, they might highlight the mean or median value. These lines allow for immediate visual contextualization, helping stakeholders quickly determine whether data points meet or exceed specific criteria.

Fortunately, Matplotlib simplifies the integration of these critical markers through the dedicated function plt.axhline(). This powerful tool provides precise control over the placement, appearance, and labeling of horizontal lines across any plot, enabling analysts to significantly enhance the clarity and depth of their data visualizations. This guide will detail the effective implementation of plt.axhline(), progressing from basic usage to advanced techniques involving multiple lines and detailed legends.

Mastering the Core Function: plt.axhline()

The primary mechanism for inserting a horizontal reference line into a Matplotlib figure is the plt.axhline function, which is located within the pyplot submodule. This function is straightforward in its design, requiring the vertical position (the y-coordinate) as its mandatory input. This single parameter dictates the constant value the horizontal line will trace across the entire width of the currently active axes.

The core syntax focuses purely on the placement. When executed, plt.axhline automatically spans the entire horizontal range defined by the current plot limits. This makes it ideal for setting persistent benchmarks that apply across the entire domain of the x-axis data.

To illustrate the basic implementation, the following code snippet demonstrates how to import the necessary library and draw a simple horizontal line fixed at a y-value of 10:

import matplotlib.pyplot as plt

# Draw a horizontal line at y=10
plt.axhline(y=10)

While the default line style is functional, the true power of plt.axhline lies in its extensive set of optional parameters. These parameters allow for granular customization of the line’s aesthetics, including specifying the color, selecting a linestyle (e.g., dashed or dotted), and adjusting the linewidth. Customization is essential for ensuring that the reference lines are clearly distinguishable from the primary plotted data and convey the intended analytical message effectively.

Setting the Stage: Data Preparation with a Pandas DataFrame

To provide practical, reproducible examples of how plt.axhline() integrates into a standard data workflow, we must first establish a representative dataset. We will leverage the Pandas library, which is the industry standard for data manipulation and preparation in Python. Our goal is to create a structured DataFrame that serves as the foundation for our line plot.

The dataset we are constructing contains eight observations, mapping an independent variable ‘x’ (representing time or sequence) against a dependent variable ‘y’. This structure allows us to visualize a trend against which we can overlay our benchmarks. This step ensures that all subsequent plotting examples are grounded in tangible data.

import pandas as pd

# Create the sample DataFrame
df = pd.DataFrame({'x': [1, 2, 3, 4, 5, 6, 7, 8],
                   'y': [5, 7, 8, 15, 26, 39, 45, 40]})

# Display the DataFrame
df

	x	y
0	1	5
1	2	7
2	3	8
3	4	15
4	5	26
5	6	39
6	7	45
7	8	40

The resulting DataFrame, named df, features an orderly ‘x’ sequence and a ‘y’ variable that exhibits clear non-linear behavior—initially increasing rapidly before experiencing a moderate decline. This dynamic trend makes it an excellent visual subject for demonstrating how reference lines define critical zones and measure performance boundaries.

Example 1: Plotting Data Against a Single Benchmark

Our first practical application demonstrates the most common usage of the function: plotting the primary data and overlaying a single, fixed horizontal line. In this scenario, we aim to place the line at y=10, representing a baseline performance threshold or a minimum acceptable value. This technique is invaluable for immediate visual classification of data points relative to a key benchmark.

We begin by generating a standard line plot using plt.plot() to visualize the time series relationship between our ‘x’ and ‘y’ columns from the Pandas DataFrame. Immediately following the data plot, we invoke plt.axhline. To ensure the reference line is easily identifiable and does not merge visually with the primary data series, we apply custom styling parameters: the color is set to ‘red’ and the linestyle is set to ‘–‘, which renders a distinct dashed line.

import matplotlib.pyplot as plt

# Create the line plot of the primary data
plt.plot(df.x, df.y)

# Add a styled horizontal line at y=10
plt.axhline(y=10, color='red', linestyle='--')

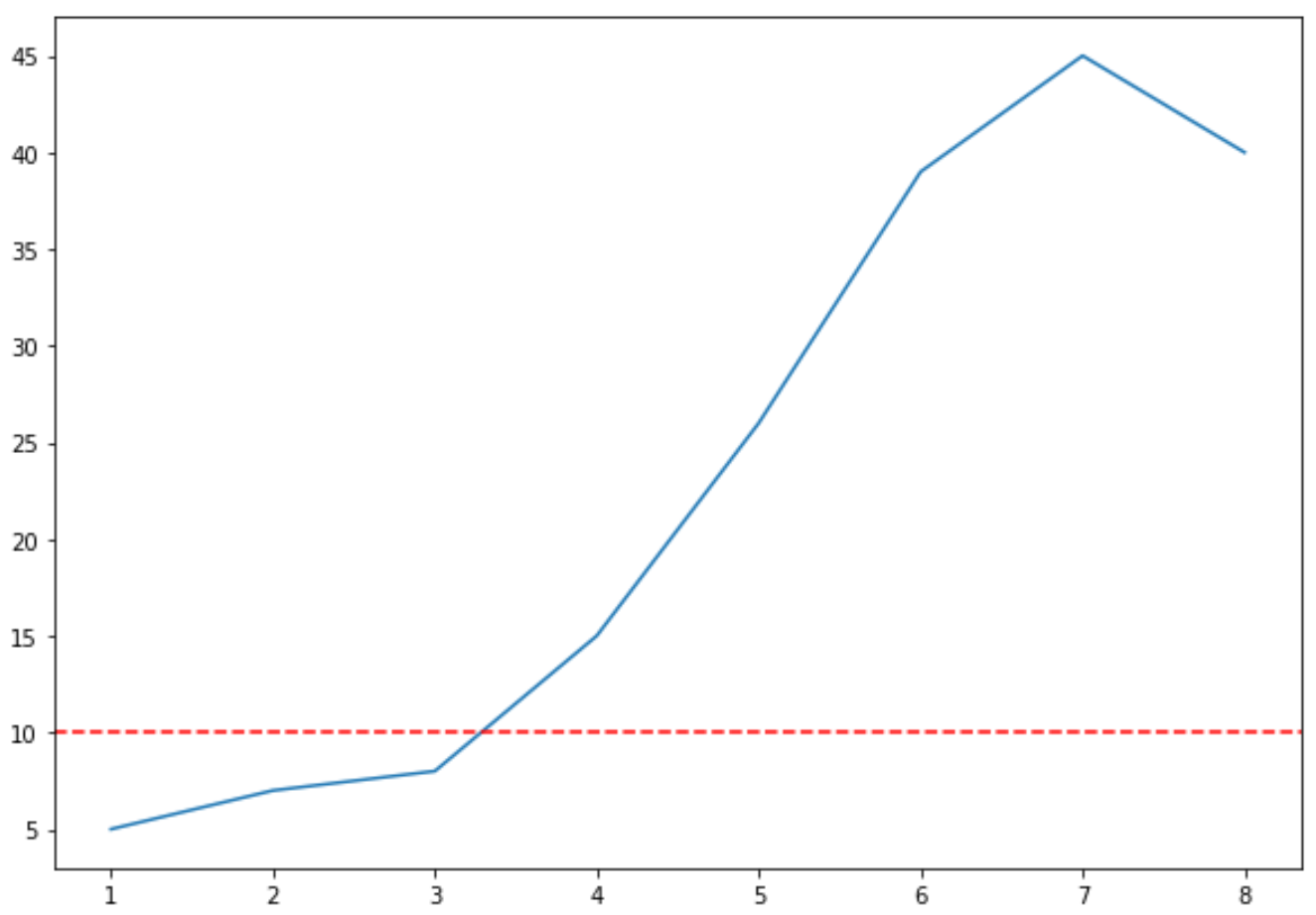

The resulting visualization provides a clear boundary at y=10, allowing observers to quickly identify which periods of the data trend fall below, intersect, or significantly exceed this critical level. This straightforward method forms the foundation for more complex visualizations involving multiple reference points.

Example 2: Visualizing Multiple Performance Thresholds

In sophisticated data analysis, it is often necessary to plot data against several different thresholds simultaneously. For instance, an analyst might need to visualize a statistical mean alongside boundaries representing two standard deviations, or perhaps upper and lower control limits. Matplotlib is designed to accommodate this complexity by allowing the user to call plt.axhline() multiple times sequentially within the same plotting script. Each call generates an independent line that persists within the figure.

Building upon the previous example, we will maintain the lower boundary at y=10 (styled red and dashed) and introduce a secondary, higher threshold at y=30. To ensure immediate visual separation, this new line will utilize distinct styling: a ‘black’ color and a solid line style (‘-‘). This intentional visual contrast is vital for maintaining the plot’s readability when multiple reference markers are present.

import matplotlib.pyplot as plt

# Create the line plot
plt.plot(df.x, df.y)

# Add the first horizontal line (y=10)
plt.axhline(y=10, color='red', linestyle='--')

# Add the second horizontal line (y=30)
plt.axhline(y=30, color='black', linestyle='-')

The resulting plot successfully displays the data trend relative to two separate critical zones. By employing different visual properties for each line, we significantly enhance the plot’s interpretability, allowing the audience to analyze the performance relative to both the lower minimum (10) and the higher performance level (30).

Example 3: Achieving Professional Clarity with a Legend

While differentiating reference lines through color and style is effective, a visualization cannot be considered truly professional or self-explanatory without a descriptive legend. A legend explicitly maps the visual properties of each line to its meaning, eliminating any ambiguity for the viewer. Incorporating a legend is a mandatory step for generating publication-quality analytical charts in Matplotlib.

To successfully implement a legend for reference lines, a straightforward two-step process is required:

1. For every instance of the plt.axhline call that should appear in the legend, the label parameter must be assigned a descriptive string value (e.g., ‘Target Goal’ or ‘Failure Threshold’).
2. Once all plotting elements (data series and reference lines) have been defined, the plt.legend() function must be called. This function automatically gathers all elements that possess a defined label and renders the legend box in the most suitable location on the plot.

The following code demonstrates how to apply explicit labels to the two reference lines established in Example 2 and subsequently render them using the Legend function, resulting in a fully annotated plot:

import matplotlib.pyplot as plt

# Create the line plot
plt.plot(df.x, df.y)

# Add horizontal line at y=10 with a descriptive label
plt.axhline(y=10, color='red', linestyle='--', label='First Line (Threshold)')

# Add horizontal line at y=30 with a descriptive label
plt.axhline(y=30, color='black', linestyle='-', label='Second Line (Goal)')

# Render the legend
plt.legend()

This approach ensures that the visualization is complete, informative, and immediately interpretable, thereby meeting the high standards required for professional data reporting and analysis in the Python environment.

Advanced Styling and Customization Options

Beyond simply defining the position and basic color, plt.axhline offers a wealth of parameters designed to provide deep aesthetic control. Utilizing these options is crucial for ensuring that your horizontal lines serve their analytical purpose effectively—providing visual context without visually overpowering or cluttering the main data plot. Mastery of these customization features is key to generating publication-quality figures.

The essential parameters available for customizing the appearance of reference lines include:

• color: Allows precise selection of the line color, accepting standard names (e.g., ‘red’, ‘blue’), hex codes (e.g., ‘#00FF00’), or shorthand notations (‘k’ for black, ‘g’ for green).
• linestyle (or the shorthand ls): Defines the pattern of the line, with options such as solid (‘-‘), dashed (‘–‘), dotted (‘:’), or dash-dot (‘-.’).
• linewidth (or the shorthand lw): Controls the thickness of the line, specified as a numeric value. Increasing this value makes the line more prominent.
• alpha: Sets the transparency level, ranging from 0.0 (fully transparent) to 1.0 (fully opaque). Using a lower alpha value is beneficial when the line needs to be subtle or overlaid onto dense data.

By carefully selecting and combining these parameters, analysts can create distinct visual hierarchies within their plots. For instance, a critical control limit might be drawn with a thick, opaque, red line, while a statistical average might be represented by a thin, semi-transparent, blue dashed line.

For a complete and comprehensive listing of all acceptable color codes, line styles, and other properties that can be passed to the function, it is strongly recommended that users consult the official Matplotlib documentation. Choosing appropriate visual characteristics guarantees that the reference lines are noticeable and informative without detracting from the primary data visualization.

Note: Refer to the Matplotlib documentation on line properties for a complete list of colors and linestyles you can apply to horizontal lines, ensuring maximum visual control over your plots.

Summary: The Power of Contextual Benchmarks

The integration of horizontal reference lines using plt.axhline is a foundational and highly effective technique for significantly boosting the interpretability of data visualizations created in Matplotlib. This function provides a powerful, yet simple, mechanism for establishing clear visual benchmarks that delineate critical zones, highlight average performance, or define comparative limits within your data.

Effective implementation relies on combining the fundamental positional argument y with thoughtful styling parameters such as color, linestyle, and linewidth. Furthermore, professional reporting demands the inclusion of descriptive label arguments, which are then rendered into an explanatory legend via plt.legend.

By mastering the plt.axhline function and its associated customization options, data analysts can transform simple line plots into sophisticated analytical instruments. This skill is indispensable for anyone involved in high-quality data reporting and visualization within the Python data science ecosystem.
