Learn to Calculate Dot Products in Excel: A Step-by-Step Guide

Calculating the dot product is a fundamental mathematical requirement across numerous quantitative disciplines, including advanced engineering, machine learning, physics, and computer graphics. While the calculation itself is algorithmically straightforward, performing it manually for large, high-dimensional datasets is highly susceptible to error and extremely time-consuming. Fortunately, Microsoft Excel provides a powerful and streamlined function designed specifically to handle this operation efficiently. This detailed tutorial will guide you through understanding the core mathematical concept, demonstrate the traditional manual calculation process, and, most importantly, master the precise application of Excel’s specialized built-in tools for seamless and accurate calculation.

Understanding the Mathematical Foundation of the Dot Product

The dot product, often synonymously referred to as the scalar product, is an essential algebraic operation that operates exclusively on two equally sized sequences of numbers, formally defined as vectors. The output of this operation is always a single number, known as a scalar quantity, hence the alternative name. Beyond its utility in pure algebra, the dot product carries profound geometric significance; it directly relates the lengths (magnitudes) of the input vectors to the angle separating them. Understanding this geometric relationship is critical for interpreting results in applied fields such as force analysis and advanced data projection techniques.

The core mechanism of the dot product involves two principal steps. First, you must multiply the corresponding entries (or components) of the two input vectors. Second, the results of all these individual products are summed together to produce the final scalar output. This operation is only mathematically valid if, and only if, both input vectors possess the exact same number of components; they must share the same dimension. If we denote vector a as [a₁, a₂, a₃] and vector b as [b₁, b₂, b₃], the formal notation for the dot product, represented as a · b, is calculated using the following summation identity:

a · b = a₁ * b₁ + a₂ * b₂ + a₃ * b₃

Fundamentally, the definition of the dot product remains consistent regardless of whether the vector dimensions are small or large: it is always the summation of the individual products derived from component-wise multiplication. This foundational mathematical understanding allows data scientists and analysts to transition seamlessly from tedious manual computation to leveraging the speed and automation capabilities provided by powerful spreadsheet software like Excel.

Manual Calculation Walkthrough: Verifying the Concept

To clearly illustrate the calculation procedure and establish a baseline for verification, let us apply the formal definition to a concrete numerical example. We will use two three-dimensional vectors: vector a = [2, 5, 6] and vector b = [4, 3, 2]. Our objective is to determine the dot product of a and b. This requires a systematic methodology: we must first multiply the corresponding components—the first component of a by the first component of b, the second by the second, and so forth—before aggregating all the resulting intermediate products.

The initial step involves setting up the expression according to the component multiplication rule: (a₁ * b₁) + (a₂ * b₂) + (a₃ * b₃). Substituting the numerical values from our example yields the following setup, which precisely represents the first stage of component-wise multiplication:

a · b = 2*4 + 5*3 + 6*2

Next, we execute each of the individual multiplications to determine the intermediate product values. This step results in three distinct scalar values (8, 15, and 12) that must then be prepared for final aggregation. This stage ensures that all component-wise products are correctly calculated before the summation occurs:

a · b = 8 + 15 + 12

Finally, summing these three intermediate products provides the conclusive scalar result. In this specific case, the sum of 8, 15, and 12 is 35. This resulting scalar, 35, is the definitive dot product of vector a and vector b. This manual process, while effective for small examples, clearly illustrates why an automated solution is indispensable when managing vectors containing dozens or hundreds of components, which is the norm in real-world data analysis and computational physics.

a · b = 35

Leveraging Excel’s Dedicated SUMPRODUCT Function

Although one could theoretically calculate the dot product in Excel by manually creating a third helper column (C) for the products (a_i * b_i) and then applying the standard SUM() function to column C, Excel offers a far more direct, elegant, and efficient method: the SUMPRODUCT function. This specialized function is precisely engineered to execute the required sequence of operations—multiplying corresponding elements within specified arrays (or ranges) and then summing those products—all within a single cell formula. It stands as the optimal tool for vector arithmetic within the spreadsheet environment.

The syntax for the SUMPRODUCT() function is exceptionally concise, primarily requiring the user to specify the data ranges containing the vector components. The general structure of the function, where arrays are defined as ranges of cells, is structured as follows:

SUMPRODUCT(array1, [array2], …)

While the SUMPRODUCT function can technically accept numerous arrays, calculating the standard dot product between two vectors requires only two arguments: array1, which defines the range containing the components of the first vector, and array2, which defines the range containing the components of the second vector. Excel manages the internal mechanics automatically, precisely pairing the elements, multiplying them, and then summing the entire resulting set of products. This powerful capability eliminates the necessity of manual intermediate steps, significantly boosting efficiency and drastically reducing the potential for computational errors.

• array1 – This is the primary array or range, holding the numerical entries of the first vector.
• array2 – This is the secondary array or range, holding the numerical entries of the second vector, whose elements will be multiplied by the corresponding elements in array1.

Practical Step-by-Step Implementation in Excel

The initial and most critical step for successful dot product calculation in Excel is the correct organization of the input data. Each input vector must be clearly entered into its own separate, aligned column or row range. Continuing with our established example, we enter the components of vector a = [2, 5, 6] into cells A1, A2, and A3, and the components of vector b = [4, 3, 2] into cells B1, B2, and B3. This precise alignment is paramount, as it ensures that the SUMPRODUCT function correctly identifies the corresponding pairs for multiplication.

With the data structured correctly, we proceed to apply the function. Select the cell designated for the final scalar result (for this example, we will use cell D1). In this target cell, input the SUMPRODUCT() formula, referencing the two specific ranges that hold the vector data. Since vector a occupies the range A1 through A3 and vector b occupies B1 through B3, the complete formula is defined as =SUMPRODUCT(A1:A3, B1:B3).

Upon pressing Enter, Excel instantaneously executes the component-wise multiplication (2*4, 5*3, 6*2) and sums the results (8 + 15 + 12), immediately returning the numerical value 35. This result perfectly matches the outcome we derived earlier through the detailed manual calculation, thereby confirming the accuracy and high efficiency of the Excel function. Crucially, this methodology is highly scalable; whether your vectors contain 3 components or 3,000, the implementation remains fundamentally identical, requiring only the adjustment of the array ranges within the formula definition.

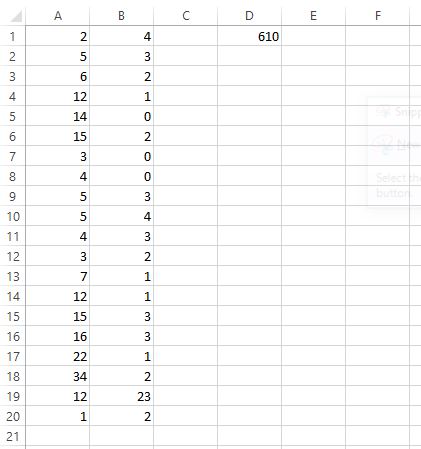

The extreme scalability of the SUMPRODUCT() function is one of its most significant advantages for quantitative analysts. If you are working with a substantial dataset where both vector a and vector b contain 20 data points, spanning from row 1 to row 20, the formula is easily adapted to handle the larger dimension. To accurately calculate the dot product for these extended vectors, you would simply input the revised ranges:

=SUMPRODUCT(A1:A20, B1:B20)

This inherent ability to process arrays of any reasonable length without demanding intermediate calculation columns makes SUMPRODUCT() the definitive, go-to tool for high-volume vector operations within the Excel environment, significantly boosting productivity for professionals dealing with quantitative analysis.

Troubleshooting: Addressing Common Dot Product Errors

While the SUMPRODUCT function is exceptionally robust, it strictly enforces the fundamental mathematical rule underlying the dot product: the input arrays (vectors) must possess the exact same number of elements. This requirement is non-negotiable because the operation is entirely dependent on the successful component-wise pairing and multiplication. If the ranges specified in the formula are unequal in length—meaning one vector has a higher dimension than the other—Excel will be unable to find corresponding components for multiplication.

When this critical dimensional mismatch occurs, the function cannot complete the calculation and will immediately return the standard Excel error message: #VALUE!. This error serves as a crucial signal indicating that the input ranges are incompatible for vector arithmetic. For example, if vector a is entered across cells A1:A20 (a length of 20) but vector b only spans B1:B19 (a length of 19), attempting to use the formula =SUMPRODUCT(A1:A20, B1:B19) will inevitably lead to the #VALUE! error being displayed in the result cell.

To resolve this, users must implement meticulous range verification, ensuring that the cell ranges referenced in both the array arguments cover an identical number of rows or columns. Ensuring that the two vectors have the same length is the essential prerequisite for performing the dot product calculation accurately, regardless of whether you are calculating it by hand or using automated functions within Excel.

Further Exploration: Advanced Vector and Matrix Operations

Mastering the efficient calculation of the dot product in Excel serves as an excellent gateway to tackling more complex mathematical and quantitative challenges within the spreadsheet environment. Related concepts in linear algebra, such as the cross product (which, unlike the dot product, yields a vector output rather than a scalar) and full matrix multiplication, are frequently implemented using other specialized array functions in Excel, notably the MMULT function. A solid grasp of how SUMPRODUCT() handles vector operations provides a robust foundational understanding necessary for these more advanced analytical tasks.

For those interested in exploring how to perform similar vector calculations on specialized hardware or alternative software platforms, the following resources offer additional guidance:

How to Calculate a Dot Product on a TI-84 Calculator
