Easily Calculate the Dot Product in Google Sheets

The calculation of the dot product is an indispensable operation within linear algebra, serving as a foundational element across diverse computational fields, including sophisticated physics simulations, advanced graphical rendering, and critical machine learning algorithms. While specialized software is available for complex mathematical processing, analysts and researchers frequently require the ability to perform these computations directly within flexible spreadsheet tools like Google Sheets for immediate data analysis, reporting, and visualization purposes.

This authoritative guide details the most efficient methodology for calculating the dot product between two vectors using the specialized, built-in functions offered by Google Sheets. By automating this process, users can ensure high levels of accuracy and dramatically reduce the time investment required compared to attempting lengthy manual calculations, especially when dealing with high-dimensional data sets typical in modern quantitative analysis.

The Core Mathematical Definition of the Dot Product

Before proceeding to implementation within a spreadsheet, it is paramount to firmly establish the mathematical principles underpinning the dot product. This operation, also commonly known as the scalar product, is defined exclusively for two vectors that possess an identical number of components (i.e., they must have the same dimension). The result of the operation is always a single numerical value, which is known as a scalar value.

Mathematically, if we consider two arbitrary vectors, Vector a and Vector b, each comprising three elements, the structure can be visualized as follows:

• Vector a = [a₁, a₂, a₃]
• Vector b = [b₁, b₂, b₃]

The formal definition for calculating the dot product, denoted as a · b, dictates a two-step process: first, multiplying the corresponding entries from each vector, and second, summing all the resulting products. This provides an important measure relating to the geometric relationship between the two vectors, specifically regarding the angle between them.

a · b = a₁ * b₁ + a₂ * b₂ + a₃ * b₃

Manual Calculation: A Practical Numerical Example

To solidify the conceptual understanding, we will walk through a straightforward numerical scenario. Suppose we are tasked with finding the dot product of the following two three-dimensional vectors. This exercise highlights the mechanics before we transition to the automated method.

• Vector a = [2, 5, 6]
• Vector b = [4, 3, 2]

To calculate a · b manually, we must precisely follow the mathematical rule: pairing the components (first with first, second with second, etc.), multiplying them, and subsequently summing the resultant products together:

a · b = (2 * 4) + (5 * 3) + (6 * 2)

a · b = 8 + 15 + 12

a · b = 35

The resultant scalar value is 35. While this manual method is manageable for low-dimensional vectors, it rapidly becomes inefficient and highly prone to calculation errors when dealing with the high-dimensional vectors commonly encountered in machine learning or large data modeling. This necessity for speed and accuracy makes automation via a spreadsheet function essential.

Prerequisites: Structuring Vector Data in Google Sheets

For Google Sheets to correctly perform the dot product calculation, the input data for the two vectors must be logically structured within the spreadsheet environment. Each vector must be organized into a dedicated, contiguous range of cells—either a column or a row. These ranges are often referred to as arrays in programming terminology, and it is absolutely vital that corresponding elements are perfectly aligned.

The preparation involves two critical steps. First, identify the components of the first vector and enter them vertically into Column A, starting from A1. Second, enter the components of the second vector into Column B, ensuring that the components corresponding to the first vector elements are placed on the exact same row. This alignment ensures the function can correctly pair the elements for multiplication.

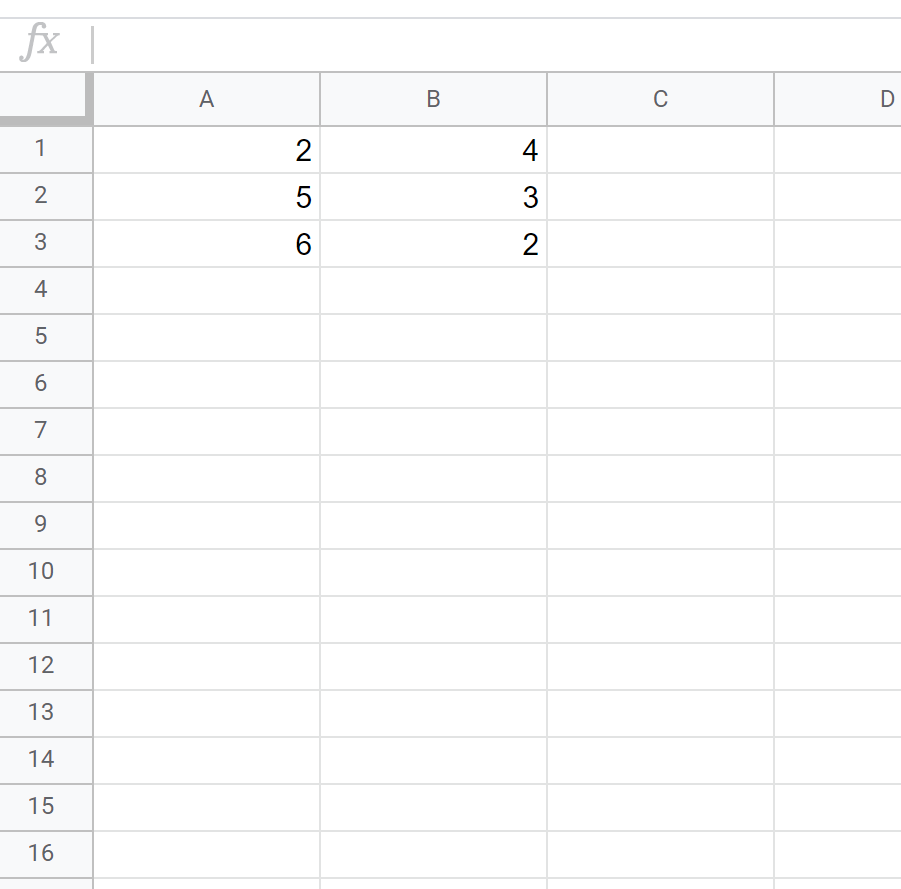

Using our numerical example (Vector a = [2, 5, 6] and Vector b = [4, 3, 2]), the required setup in the spreadsheet is visualized below:

A fundamental requirement that must be respected during setup is dimensional consistency. Both input vectors must contain an identical count of entries. If Vector a spans 15 cells, Vector b must also span 15 cells for the subsequent mathematical calculation to be valid. Inconsistent dimensions will inevitably lead to errors, as discussed in a later section.

Leveraging the Powerful SUMPRODUCT Function

Instead of relying on a cumbersome manual formula that would require multiplying individual cell pairs (A1*B1, A2*B2, A3*B3) and then summing those products, Google Sheets provides the highly optimized SUMPRODUCT() function. This function is perfectly engineered to execute the dot product calculation efficiently, automating both the multiplication of corresponding elements and their subsequent summation in a single, clean step.

The syntax for the SUMPRODUCT() function is intuitive, requiring only the specification of the input ranges, or arrays:

SUMPRODUCT(array1, [array2], …)

• array1: This argument defines the cell range containing the components of the first vector (e.g., A1:A3).
• array2: This argument specifies the cell range containing the components of the second vector (e.g., B1:B3).

Upon execution, the function systematically processes the defined arrays. It takes the first element from array1 and multiplies it by the first element of array2, repeats this for all corresponding pairs, and finally delivers the total sum of all these intermediate products. To apply this to our setup, we simply enter the following formula into an unoccupied cell, such as C1:

=SUMPRODUCT(A1:A3, B1:B3)

Ensuring Scalability and Reviewing Results

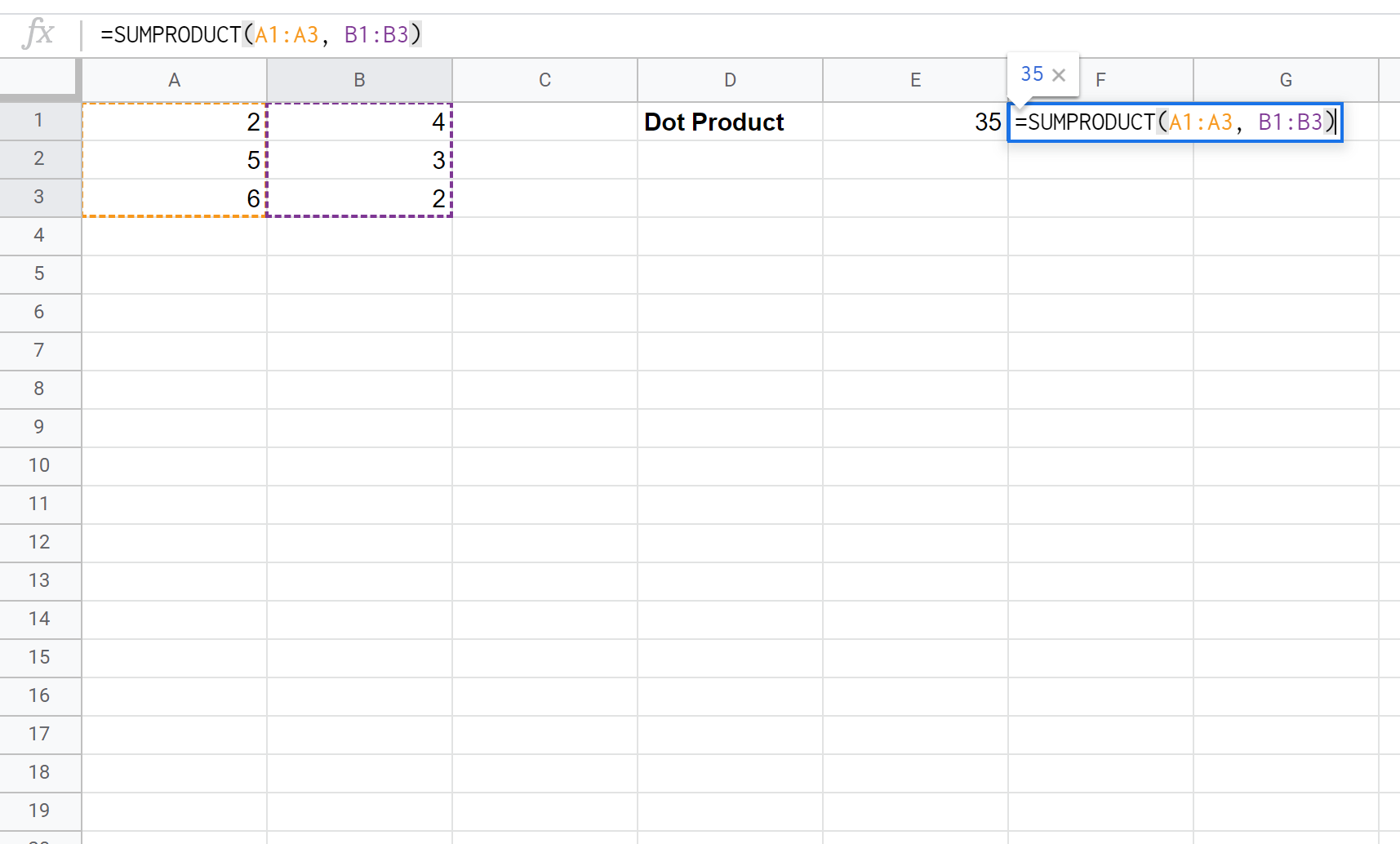

The application of the SUMPRODUCT() formula immediately yields the result of the dot product calculation. As demonstrated by the visual representation below, using the ranges A1:A3 and B1:B3, the cell containing the function returns the value 35, which precisely validates the manual calculation performed earlier in our practical example.

One of the most compelling advantages of using the SUMPRODUCT() function is its inherent scalability. The complexity of the formula remains constant regardless of the dimension of the input vectors. Whether you are calculating the dot product of two three-element vectors or two vectors containing hundreds of components, the function syntax remains equally concise and effective.

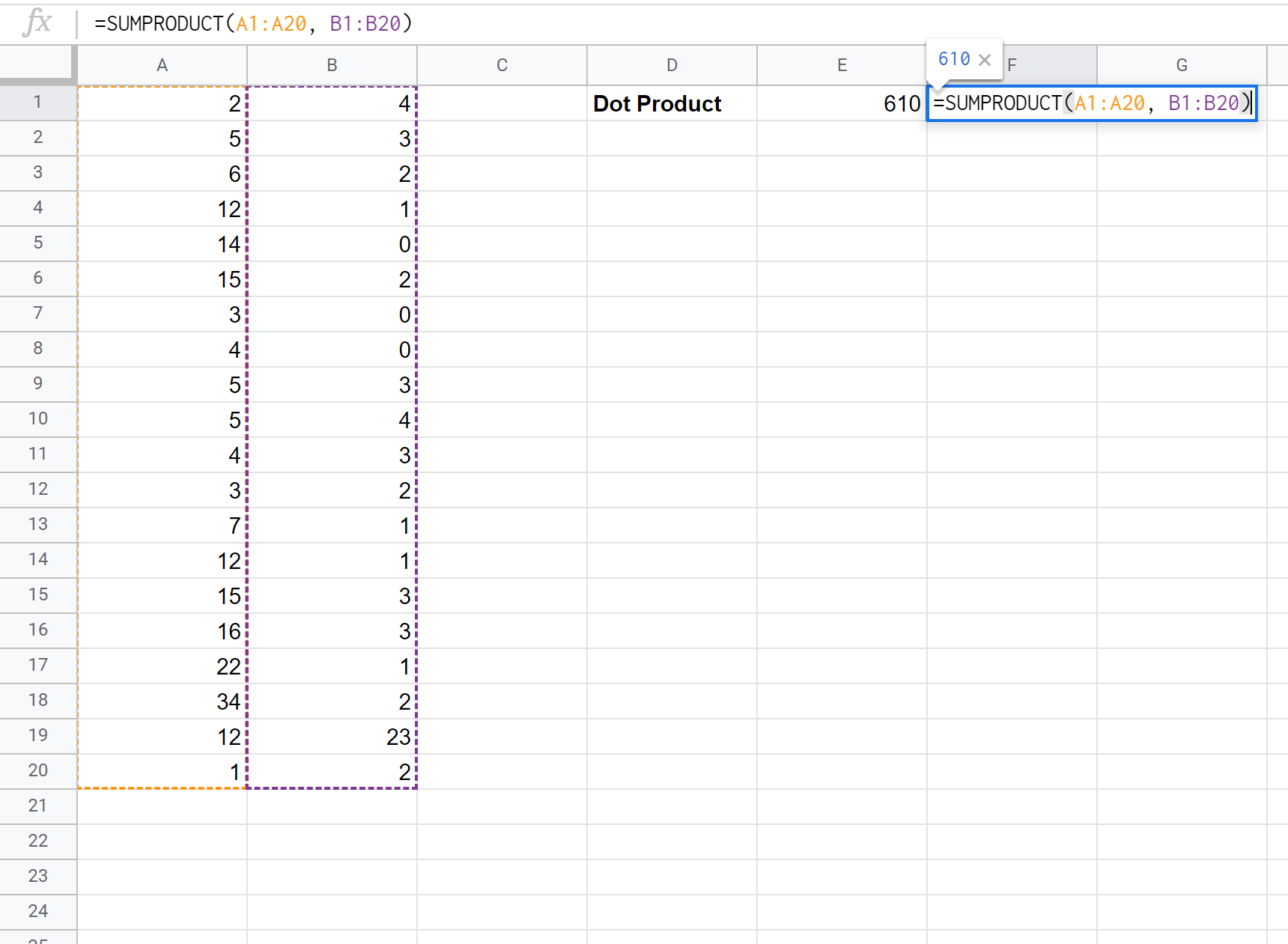

For illustration, imagine a scenario involving two extensive data sets, each representing a vector of length 20, stored respectively across ranges A1:A20 and B1:B20. The calculation is handled seamlessly by simply adjusting the range boundaries:

=SUMPRODUCT(A1:A20, B1:B20)

This capability confirms the utility of SUMPRODUCT() as the preferred tool for high-volume or high-dimensional data analysis tasks within Google Sheets.

Avoiding Common Pitfalls: Troubleshooting Mismatched Ranges

While the calculation process using SUMPRODUCT() is highly reliable, the most frequent error encountered relates directly to violating the fundamental mathematical requirement of the dot product: dimensional conformity. As established, the input vectors must have precisely the same number of elements.

If the cell ranges supplied to the function contain a different count of components, Google Sheets is mathematically incapable of pairing the elements correctly for multiplication. When this non-conformability arises—for example, attempting to multiply a 20-element vector against a 19-element vector—the function immediately halts execution and returns a distinct error message: #VALUE!.

Consider the formula =SUMPRODUCT(A1:A20, B1:B19). Since the first array spans 20 rows and the second only spans 19, the 20th element in the A range has no corresponding partner in the B range. This discrepancy triggers the #VALUE! error, indicating an invalid argument type or range inconsistency.

To successfully calculate the dot product, always implement rigorous checks to verify that the array ranges provided to the SUMPRODUCT() function cover an exactly equal number of cells. Maintaining this structural integrity ensures the calculation proceeds without dimensional errors and produces the expected scalar result.

Summary and Conclusion

Calculating the dot product in Google Sheets is streamlined and efficient thanks to the robust SUMPRODUCT() function. By ensuring correct data alignment and strict adherence to dimensional consistency, users can confidently perform this critical linear algebra operation on data sets of any practical size, thereby integrating complex mathematical analysis directly into their spreadsheet workflows.

Related Resources:

For professionals who utilize multiple spreadsheet platforms, the following guide addresses the calculation methodology within Microsoft’s environment:

How to Calculate the Dot Product in Excel
