Learning to Estimate Mean and Median from Histograms

A histogram stands as a cornerstone graphical tool within the field of statistics, offering a crucial visual representation of the underlying distribution of numerical data. Unlike simple bar charts, a histogram achieves this by segmenting continuous observations into discrete, standardized ranges known as bins or class intervals. This structuring allows data analysts and researchers to quickly ascertain key characteristics of a dataset, such as its shape (symmetric, skewed), its spread (variability), and its tendency toward a central value. By consolidating potentially thousands of individual data points into a manageable visual form, the histogram provides immediate, high-level insight into data behavior, making it indispensable for initial exploratory data analysis.

In this powerful visualization, the horizontal axis, or x-axis, is dedicated to mapping the range of data values, which are meticulously divided into the predefined, consistent bins. In stark contrast, the vertical axis, or y-axis, quantifies the frequency—that is, the sheer numerical count or proportion of observations—that successfully fall within the boundaries of each respective bin. This design ensures that the area of each bar is proportional to the frequency it represents. However, because data is aggregated and individual identities are lost in this grouping process, histograms introduce inherent limitations when attempting to calculate exact measures of central tendency, necessitating robust estimation techniques when the raw data is inaccessible.

While histograms are exceptional for illustrating the overall shape and characteristics of a data distribution—revealing whether it is highly skewed, perfectly symmetric, or possibly multimodal—they fundamentally obscure the precise raw data points. This aggregation means that the exact value of the mean (the arithmetic average) and the precise median (the exact middle value) cannot be definitively determined through simple visual inspection alone. Consequently, analysts are often faced with the challenge of working solely with grouped frequency data. In such common situations, highly accurate and statistically sound methods must be employed to estimate these vital measures of central tendency. This guide outlines the rigorous statistical procedures required to calculate the best possible estimates for both the mean and the median when working exclusively with data presented in a histogram format.

The Challenge of Grouped Data: Why Estimation is Necessary

The core limitation inherent in using a histogram arises from the necessity of aggregating individual data points into class intervals. Once data is grouped, the specific identity and value of each observation vanish. For instance, if a bin spanning the range of 20 to 30 contains 10 observations, we know the count is 10, but we lose all knowledge regarding the exact placement of those observations within that 10-unit range. These 10 data points could all be clustered tightly at 21, evenly spread across 20 to 30, or clustered near 30. This fundamental sacrifice of precision is unavoidable when visualizing large datasets via frequency distributions.

This critical loss of detailed information mandates that any subsequent calculation of the mean or median must be built upon a set of reasonable and accepted statistical assumptions regarding how the data is hypothetically spread within those defined bins. To ensure the reliability and statistical validity of the resulting estimate, we must employ the most robust assumption possible. For the purpose of estimating the mean, we assume the data points are centered, and for the median, we assume they are uniformly distributed, allowing us to perform linear interpolation.

The primary statistical objective of this estimation process is to derive a single representative value for the entire dataset that minimizes the potential error introduced by the grouping process itself. For the mean, this is achieved through a weighted averaging process that utilizes the midpoint of each bin. For the median, the estimation requires identifying the specific bin that encompasses the 50th percentile observation and then meticulously interpolating within that interval to locate the precise middle point. Both methods provide reliable approximations that are essential for making informed interpretations of the data’s central tendency.

Estimating the Mean: The Weighted Midpoint Method

The standard arithmetic mean is typically calculated by summing every single data point and dividing that total by the count of observations. When confronting grouped data presented in a histogram, we cannot access the individual values, forcing us to approximate the overall sum. The established statistical convention to handle this involves making a crucial assumption: all observations within a given frequency bin are treated as if they were concentrated exactly at the bin’s midpoint. This midpoint, therefore, acts as the best representative value for all the data contained within that specific class interval.

To compute the best estimate of the mean, denoted as $bar{x}$, for grouped data, we must utilize a weighted average formula. This method is necessary because bins containing a large number of observations must exert a proportionally greater influence on the final average than bins with few observations. The weight applied to each bin’s calculated midpoint is simply its observed frequency, ensuring that the resulting estimate is an accurate reflection of the dataset’s overall concentration.

We utilize the following fundamental formula, a cornerstone of descriptive statistics for grouped data, to determine the most accurate estimate of the mean derived from any histogram:

Best Estimate of Mean: $bar{x} = frac{sum m_{i}n_{i}}{N}$

The variables within this formula are rigorously defined based on the grouped frequency data:

• $m_{i}$ (Midpoint): This is the representative value of the $i^{th}$ bin. It is calculated as $(text{Lower Limit} + text{Upper Limit}) / 2$. This value is the crucial statistical assumption used to estimate the collective value of all data points contained within that specific range.
• $n_{i}$ (Frequency): This represents the numerical count, or frequency, of observations found to be within the $i^{th}$ bin.
• $N$ (Total Sample Size): This is the total number of observations in the entire dataset, calculated simply as the sum of all individual bin frequencies ($sum n_{i}$).

Step-by-Step Calculation of the Estimated Mean

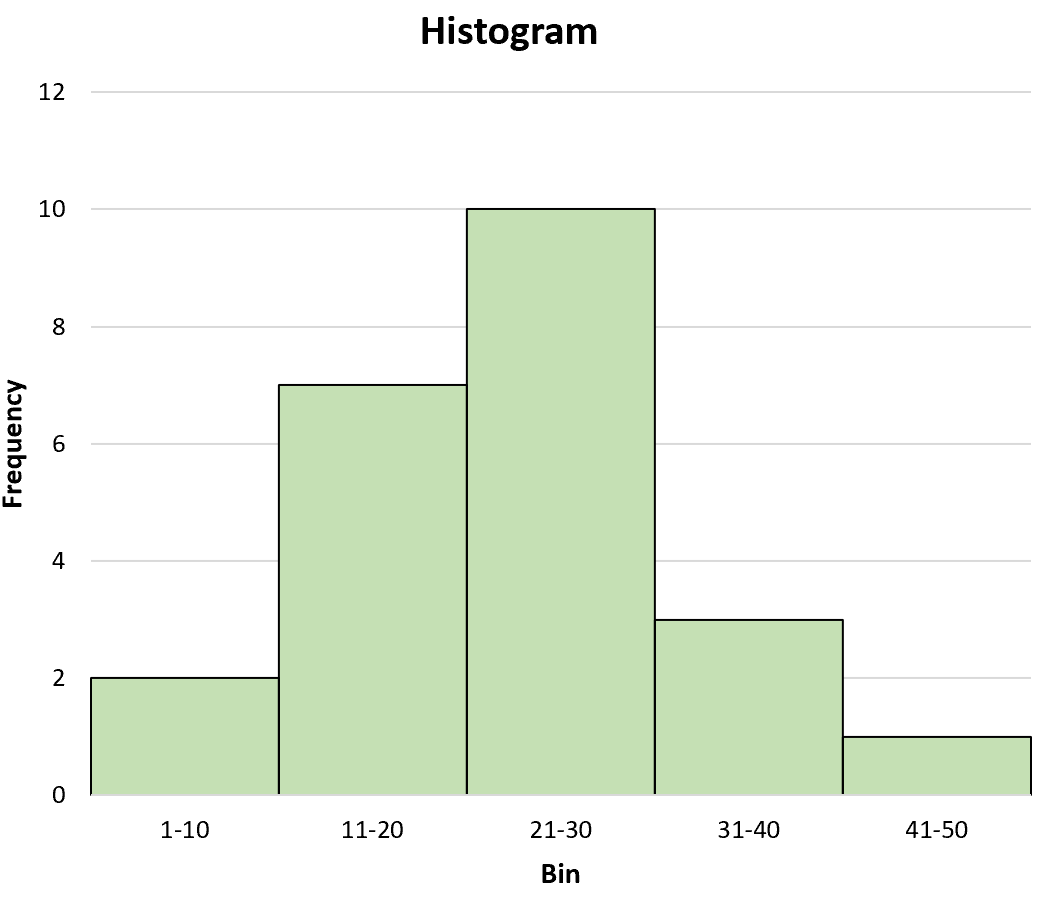

To fully solidify the understanding of this estimation process, let us apply the weighted midpoint method to the example histogram provided below. The initial and most critical step is organizing the raw visual data into a structured frequency table. This table must clearly identify the midpoint ($m_{i}$) for each bin, which is then multiplied by its associated frequency ($n_{i}$) to calculate the weighted contribution of that class interval.

Based on the visual representation, let us assume the data corresponds to five class intervals, each with a width of 10 units (e.g., Bin 1: 1-10, Bin 2: 11-20, Bin 3: 21-30, and so on). The midpoints ($m_{i}$) are calculated accordingly; for the first bin, $m_{1} = (1 + 10) / 2 = 5.5$. The frequencies ($n_{i}$) are $2, 7, 10, 3, 1$. The total sample size ($N$) is the sum of all frequencies: $2 + 7 + 10 + 3 + 1 = 23$.

Applying the formula requires us to calculate the sum of the products of the midpoint and frequency ($sum m_{i}n_{i}$) for every single bin, and then divide this aggregated total by the total sample size ($N$). This process mathematically balances the influence of each bin on the final average, providing the best statistical estimate of the mean achievable with grouped data.

Our best estimate of the mean for this dataset is calculated as follows:

Mean $= frac{(5.5 times 2) + (15.5 times 7) + (25.5 times 10) + (35.5 times 3) + (45.5 times 1)}{23}$

Mean $= frac{11 + 108.5 + 255 + 106.5 + 45.5}{23} = frac{526.5}{23} approx 22.89$.

By visually inspecting the histogram, we observe that the vast majority of the data is concentrated in the central bins (specifically the 21-30 bin), pulling the center of the mass slightly below the absolute midpoint of the total range. The resulting estimated mean of $22.89$ aligns perfectly with this visual assessment, confirming it as a highly reasonable and statistically representative measure of the central tendency for the grouped dataset.

Estimating the Median: Identifying the Median Group

The median is defined as the central data point that effectively divides the entire dataset into two perfectly equal halves, meaning 50% of the observations fall below this value and 50% fall above it. Since we are working exclusively with grouped data, we cannot simply pinpoint the middle observation directly. Instead, the process shifts to identifying the “median group”—the specific class interval that contains the crucial $(N/2)^{th}$ observation.

To accurately locate the median group, the analyst must first calculate and utilize the cumulative frequency. This involves progressively summing the frequencies from the first bin onward until the total accumulation exceeds or equals the required $N/2$ position. The bin where this threshold is crossed is designated as the median group. Once this critical bin is isolated, the task transitions to interpolation, a technique used to estimate the precise value within that bin where the 50th percentile mark is definitively crossed.

The formula for estimating the median is fundamentally based on the sound statistical assumption that the observations within the median group are spread uniformly across the bin’s entire range. This uniform spread assumption allows us to perform a linear calculation, effectively determining exactly how far into the median class interval we must proceed to locate the $N/2$ position, thereby generating a highly accurate estimate of the true median value.

The standard formula used to estimate the median ($M$) from grouped frequency data, typically presented in a histogram, is as follows:

Median = L + ( (N/2 – F) / f ) $times$ w

For this complex calculation, it is absolutely essential to correctly identify and use the specific parameters that pertain exclusively to the median group:

• L: The lower limit of the median group (the starting value of the bin containing the middle observation).
• N: The total number of observations (the total sample size), calculated as the sum of all frequencies.
• F: The cumulative frequency of all bins that occur before the median group. This parameter is crucial as it tells us exactly how many observations precede the bin we are interpolating within.
• f: The frequency of the median group itself (the count of observations within that specific bin).
• w: The width of the median group. This value is determined by the difference between the upper limit and the lower limit of that specific bin.

Detailed Interpolation for the Estimated Median

We will apply the median estimation formula using the identical dataset represented by the histogram previously analyzed for the mean calculation:

Our first analytical step is to determine the precise position of the median observation. Given that $N = 23$ total observations, the median position is $N/2 = 11.5$. We must now locate the bin that contains this 11.5th observation using the cumulative frequencies. Bin 1 contains 2 observations. Bin 2 contains $2 + 7 = 9$ cumulative observations. Since 9 is less than 11.5, the median observation must fall within Bin 3. Bin 3, identified as the median group, has a frequency ($f$) of 10.

Assuming the discrete class boundaries are $1-10$, $11-20$, $21-30$, etc., we assign the following specific parameters for the calculation:

• Median Group: $21-30$
• $L$ (Lower limit): $21$
• $N/2$: $11.5$
• $F$ (Cumulative frequency before median group): $9$
• $f$ (Frequency of median group): $10$
• $w$ (Width): $30 – 21 + 1 = 10$ (Class width based on discrete boundaries).

We substitute these calculated values into the interpolation formula to derive the final estimate of the median:

Median $= 21 + left( frac{11.5 – 9}{10} right) times 10$

Median $= 21 + left( frac{2.5}{10} right) times 10 = 21 + 2.5 = 23.5$.

This calculated median value of $23.5$ is notably close to the previously estimated mean of $22.89$. This close proximity between the mean and the median serves as strong statistical evidence suggesting that the data distribution is relatively symmetric, a conclusion that is visually confirmed by the shape of the histogram itself. The slight difference (mean < median) indicates a minimal leftward skew, but overall, the central tendency measures are tightly clustered.

Conclusion and Practical Applications in Statistics

While working with grouped frequency data inherently necessitates sacrificing the absolute precision available with complete raw datasets, the specialized statistical methods detailed here—specifically, using weighted midpoints for the mean and employing linear interpolation within the median group for the median—provide the most statistically rigorous and reliable estimates possible when analyzing a histogram. These robust techniques are foundational principles in descriptive statistics and are routinely applied across vast fields, including large-scale data analysis, industrial quality control, and social science research, particularly where raw data is either too voluminous to handle individually or simply unavailable.

A comprehensive understanding of how these critical measures of central tendency are accurately derived from grouped data is absolutely vital for any analyst seeking to properly interpret frequency distribution plots. These calculated estimates empower analysts to move beyond simple visual inspection, allowing them to make statistically informed decisions and draw reliable, evidence-based conclusions about the underlying population or process represented by the visualization. Mastery of these estimation methods ensures that the analytical insights derived from grouped data are both trustworthy and highly actionable.
