Estimating Standard Deviation from Histograms: A Step-by-Step Guide

Introduction: The Challenge of Quantifying Spread from Visual Data

A histogram serves as an exceptionally powerful and intuitive graphical tool for visualizing the distribution of values within a dataset. It provides a clear snapshot of where data points are concentrated, illustrating the overall shape of the distribution, and immediately signaling whether the data spread is symmetric or skewed. By aggregating individual data points into defined ranges, histograms efficiently simplify complex datasets into an easily digestible visual format, making underlying patterns and trends readily apparent to any observer.

In the construction of a typical histogram, the horizontal axis (x-axis) is used to represent continuous intervals or ranges of data values, which are commonly referred to as bins. Each bin covers a specific range of values, and the consistent width of these bins is a crucial parameter in defining the visualization. Conversely, the vertical axis (y-axis) quantifies the frequency or count of observations from the dataset that fall into each respective bin. This frequency can also be expressed as a percentage or proportion, thereby indicating the relative occurrence of values within that specific interval.

While histograms excel at visual analysis, their very mechanism—grouping observations into bins—means that the exact individual data points are no longer accessible. This necessary process of aggregation simplifies visualization but simultaneously introduces a significant challenge when attempting to calculate precise statistical measures, particularly the standard deviation. The standard deviation is a critical metric that rigorously quantifies the amount of variation or dispersion of a set of data values. Since the raw data is obscured by the grouping process, calculating the exact standard deviation becomes statistically impossible; however, deriving a robust estimate remains both possible and frequently essential.

The ability to estimate the standard deviation accurately from a histogram is incredibly valuable, especially when dealing exclusively with summary data or when the raw data is unavailable due to privacy restrictions, storage limitations, or historical context. This comprehensive article is designed to guide you through a systematic, two-step approach to effectively estimate the standard deviation of a dataset when only its histogram is provided. The subsequent sections will meticulously illustrate this process with a practical example, demonstrating how to extract meaningful quantitative insights even from inherently aggregated information.

Understanding Grouped Data and Its Statistical Implications

Grouped data refers to information that has been organized into predefined classes or categories, typically presented in a frequency distribution table or, visually, as a histogram. Instead of working with a lengthy list of every single observation, we only know the count—or frequency—of observations that fall within specific intervals or bins. This method of organizing data is ubiquitous across various fields, ranging from public health reporting to large-scale survey results, primarily because it simplifies presentation and often helps protect the privacy of individual data points. Crucially, however, this simplification comes with a measurable statistical trade-off: the necessary loss of precision regarding the values of individual data points.

When data is grouped, the exact magnitude of each observation within a bin is inherently unknown. For example, if a bin spans the range of 10-20 and contains 5 observations, we are certain that there are 5 values between 10 and 20. Yet, we cannot determine if these 5 values are clustered near the lower limit (10), concentrated near the upper limit (20), or evenly distributed throughout the range. This ambiguity prevents us from computing exact statistical measures that rely on the precise sum of individual data points or the sum of squared deviations from the mean. Therefore, to proceed with any quantitative analysis, we must rely on estimations based on the fundamental assumption that the data within each bin is, on average, best represented by its midpoint.

The practical implication of working exclusively with grouped data is that any calculation of central tendency (such as the mean) or dispersion (such as the standard deviation) will inherently yield an approximation. The accuracy of these resulting estimations is directly influenced by several factors inherent to the histogram’s construction, most notably the number of bins used and the width assigned to each bin. Generally speaking, a larger number of narrower bins tends to produce more accurate estimates because the midpoints become superior representatives of the data contained within those smaller ranges. Conversely, using overly broad bins can lead to significantly less precise estimations. Despite these limitations, mastering the estimation of these critical statistics from grouped data is an indispensable skill for analysts working with summarized or aggregated information.

Step 1: Establishing the Central Reference Point—Estimating the Mean

Before we can calculate an estimated standard deviation for the values represented by a histogram, a prerequisite and essential step is to first estimate the mean (μ) of the underlying dataset. The estimated mean serves as our critical central reference point, from which the subsequent calculation of data spread (dispersion) will be calculated. Since the raw individual data points are unavailable, we must approximate the mean by treating the midpoint of each bin as the representative value for all observations contained within that bin. This methodology enables us to calculate a weighted average, where each midpoint is appropriately weighted by its corresponding frequency.

The estimated mean of grouped data is computed using the following formula:

Estimated Mean (μ): Σm_in_i / N

To ensure a clear understanding of the calculation, we must break down each component of this equation:

• m_i: This represents the midpoint of the i^th bin. The midpoint is mathematically calculated by summing the lower and upper bounds of a bin and dividing the result by two. For instance, if a bin spans the range from 10 to 20, its midpoint is (10+20)/2 = 15. This midpoint is the assumed average value of all data points within that bin for the purpose of statistical estimation.
• n_i: This signifies the frequency of the i^th bin, which is simply the total number of observations that fall into that specific bin. It functions as a weight, indicating precisely how many times the midpoint value contributes to the overall sum.
• N: This is the total sample size of the dataset. It is derived by summing all the frequencies (N = Σn_i). Dividing the sum of the (midpoint × frequency) products by the total sample size yields the weighted average, which constitutes our estimated mean.

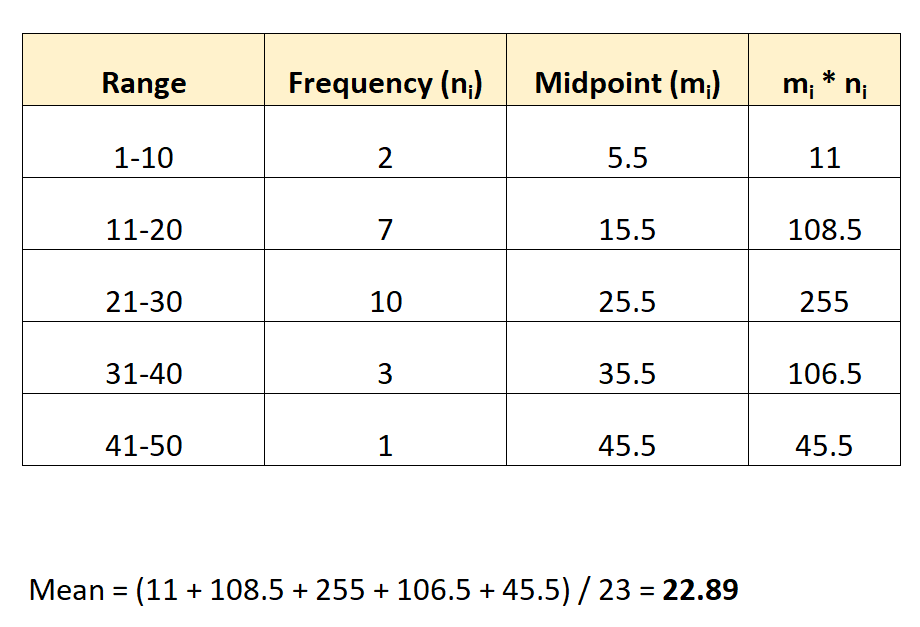

Consider the preceding histogram example, which illustrates the data we wish to analyze. To apply the formula, we first extract the bin ranges and their corresponding frequencies. We then calculate the midpoint for each bin. The subsequent table consolidates and illustrates this essential preparatory process:

As clearly demonstrated in the table, for each bin, we multiply its midpoint (m_i) by its frequency (n_i). We subsequently sum all these products (Σm_in_i) and divide by the total sample size (N). Following these systematic calculations, we estimate the mean of this dataset to be approximately 22.89. This estimated mean (μ) will now serve as a crucial component in our next step: the comprehensive calculation of the estimated standard deviation.

Step 2: Calculating the Estimated Standard Deviation of Grouped Data

With the estimated mean (μ = 22.89) established in the previous step, we can now proceed to estimate the standard deviation (s) for the dataset summarized by our histogram. The standard deviation is the most widely utilized measure that quantifies the amount of dispersion or variability of a set of data values relative to the mean. For grouped data, the standard formula is adapted to accurately incorporate the midpoints (m_i) and frequencies (n_i) of each bin, thereby reflecting the aggregated nature of the information we possess.

The formula employed to estimate the sample standard deviation for grouped data is provided below:

Estimated Standard Deviation (s): √Σn_i(m_i-μ)² / (N-1)

A careful examination of each variable within this formula is necessary for precise application:

• n_i: This is the frequency of the i^th bin. It ensures that the squared deviation calculated for the bin’s midpoint is appropriately weighted by the number of observations that the bin represents.
• m_i: This denotes the midpoint of the i^th bin. It serves as the single representative value for all data points within that interval. The difference (m_i-μ) measures the deviation of the bin’s center from the overall estimated mean.
• μ: This is the estimated mean of the grouped data, calculated in the previous step (22.89 in our example).
• N: This represents the total sample size, which is the sum of all frequencies (Σn_i). The denominator (N-1) is used specifically when estimating the population standard deviation from a sample dataset. This adjustment, known as Bessel’s correction, provides an unbiased and more accurate estimate of the population variability.

We now apply this formula to our ongoing example dataset, utilizing the established estimated mean of 22.89. The following table provides a clear, step-by-step breakdown of the necessary computational process, culminating in the final estimated standard deviation:

As illustrated, for each bin, we calculate the squared difference between its midpoint (m_i) and the estimated mean (μ). This squared difference is then multiplied by the bin’s frequency (n_i). We sum these products across all bins, divide by (N-1), and finally compute the square root. Based on these rigorous calculations, we estimate that the standard deviation of the underlying dataset is approximately 9.6377.

Interpreting the Estimate and Acknowledging Its Inherent Limitations

Having successfully calculated an estimated standard deviation of 9.6377 for our example dataset, it is imperative to fully grasp the significance of this quantitative value and, equally important, to acknowledge its inherent limitations. This estimated standard deviation indicates that, on average, the data points in the original dataset are approximately 9.64 units away from the estimated mean of 22.89. This figure provides a clear, quantitative measure of the data’s spread or dispersion, offering insight into the level of variability that exists within the observations summarized by the histogram.

Crucially, it must always be remembered that this value represents an estimation, not a definitive, exact calculation. The core reason for this necessary approximation lies in the fundamental nature of grouped data: the specific, individual data points have been deliberately obscured. Our entire calculation methodology relies heavily on the assumption that the midpoint of each bin serves as an accurate proxy for all the values contained within that range. While this is a statistically reasonable assumption for approximation, it is highly unlikely to be perfectly true for every single observation. Consequently, although this estimated standard deviation provides the best informed guess regarding the data’s variability given the available summary information, it is not guaranteed to precisely match the true standard deviation that would result if the raw, ungrouped data were accessible.

Several critical factors can significantly influence the accuracy of this estimation. The most substantial factor is the bin width: excessively wide bins mean that the midpoint is a less precise representative of the values within that broad range, which can potentially lead to a greater magnitude of error in the final estimation. Conversely, statistical best practices recommend using narrower bins, as they generally yield estimates that are substantially more accurate. Furthermore, the internal shape of the distribution within each bin also plays a role; if data within a bin is heavily skewed towards one boundary rather than being centered around the midpoint, the fundamental assumption of using the midpoint becomes less robust. Despite these potential inaccuracies, this methodology remains an invaluable analytical tool when raw data is inaccessible, providing a statistically sound framework for deriving meaningful insights into data variability from summary visualizations.

Practical Applications and Significance in Data Analysis

The mastery of estimating the standard deviation from a histogram carries profound practical importance across a wide variety of domains, especially in situations where raw data is either proprietary, technically inaccessible, or simply impractical to analyze directly. This methodology empowers researchers, financial analysts, and decision-makers to extract meaningful statistical insights even when relying solely on aggregated or summarized data presentations—a common occurrence in published reports, historical archives, and public datasets where individual privacy must be maintained.

One primary application manifests in historical data analysis and retrospective studies. Frequently, older reports or scholarly studies might only provide data in the form of histograms or grouped frequency distributions, without retaining the underlying raw values. By diligently applying the estimation techniques detailed in this article, analysts can still successfully derive approximate measures of central tendency and dispersion. This capability is vital for enabling robust comparisons across different populations or time periods. For instance, estimating the standard deviation of historical demographic or economic indicators can effectively reveal changes in market or population variability over decades, even if the original detailed records have been lost or destroyed.

Furthermore, this estimation method is exceptionally useful for preliminary data analysis and rapid assessments. When a professional is presented with a new dataset graphically, the ability to quickly estimate its mean and standard deviation allows for an immediate, high-level understanding of the data’s general characteristics—its center and its spread—without the delays associated with requesting or processing the full raw data file. This rapid assessment can decisively inform subsequent decisions regarding more detailed analysis, facilitate the identification of potential outliers or unusual variability, and ultimately provide a contextual understanding of the data’s inherent dispersion. While the result is always an estimate, it provides a crucial and actionable bridge between visual data representation and essential quantitative statistical understanding.

Conclusion and Additional Resources for Data Proficiency

Understanding and applying the techniques required to estimate the standard deviation from grouped data is not merely an academic exercise; it is a fundamental and practical skill in statistical analysis. The reliance on summarized or aggregated information is a reality in many professional contexts, making the ability to move beyond simple visual inspection to quantitative estimation indispensable. By mastering the two-step process—first calculating the estimated mean using bin midpoints and then applying the modified standard deviation formula—analysts can confidently provide robust insights into data variability, even when limited to the visual evidence of a histogram.

To further enhance your proficiency in working with data that has been organized into bins, we recommend exploring additional tutorials that delve into related concepts and advanced calculations. These resources can help you master other common statistical tasks, such as creating histograms with optimal bin widths, calculating other descriptive statistics specifically tailored for grouped data, or understanding alternative measures of data dispersion.
