Learn How to Add a Running Total to an Excel Pivot Table

Understanding cumulative performance is absolutely critical in sophisticated data analysis and reporting. Whether your focus is tracking quarterly sales growth, monitoring project budget consumption, or evaluating inventory depletion rates, the ability to visualize a running total offers immediate, invaluable insight into the aggregated effect of individual data points across a given timeline. This comprehensive guide is designed to walk you through the precise, step-by-step process of adding a dynamic running total column directly into a Pivot Table within Microsoft Excel, thereby dramatically enhancing your capacity to analyze trends, assess trajectory, and ultimately make more informed business decisions.

Introduction to Running Totals and Cumulative Analysis in Excel

A running total, often technically referred to as a cumulative sum, represents a sequence of partial sums derived from an ordered data set. In practical terms, each value calculated in this sequence represents the combined total of the current data point and all preceding data points up to that moment. For example, if you are analyzing a series of monthly revenue figures, the running total reported for the month of May would encompass the entirety of sales accumulated from January through May.

Implementing running totals directly within Excel Pivot Tables provides enormous analytical flexibility. Pivot Tables are renowned as powerful, interactive tools that enable users to swiftly aggregate, summarize, and analyze massive volumes of raw data. By seamlessly integrating a running total calculation, you gain the capability to dynamically observe how your metrics accumulate over time, eliminating the need to construct complex or error-prone formulas directly within your source data sheet. This feature is particularly essential for critical tasks such as tracking progress against annual or quarterly goals, monitoring cash flow projections, or assessing customer acquisition velocity across a fiscal period.

This tutorial will detail a highly efficient and standardized method for calculating and displaying the cumulative sum. By mastering this simple technique, you will transform a standard, static summary report into a powerful, dynamic analytical instrument capable of delivering deeper operational insights.

Step 1: Preparing and Structuring Your Source Data

The success and reliability of any Pivot Table analysis depend fundamentally upon the organization and structure of the underlying data. For the purpose of this demonstration, we will utilize a straightforward dataset detailing hypothetical monthly sales figures for a retail operation. It is paramount that your source data is structured in a clean, tabular format, featuring distinct and clearly labeled headers for every column, as this organization is mandatory for Excel’s Pivot Table engine to correctly identify and process the information.

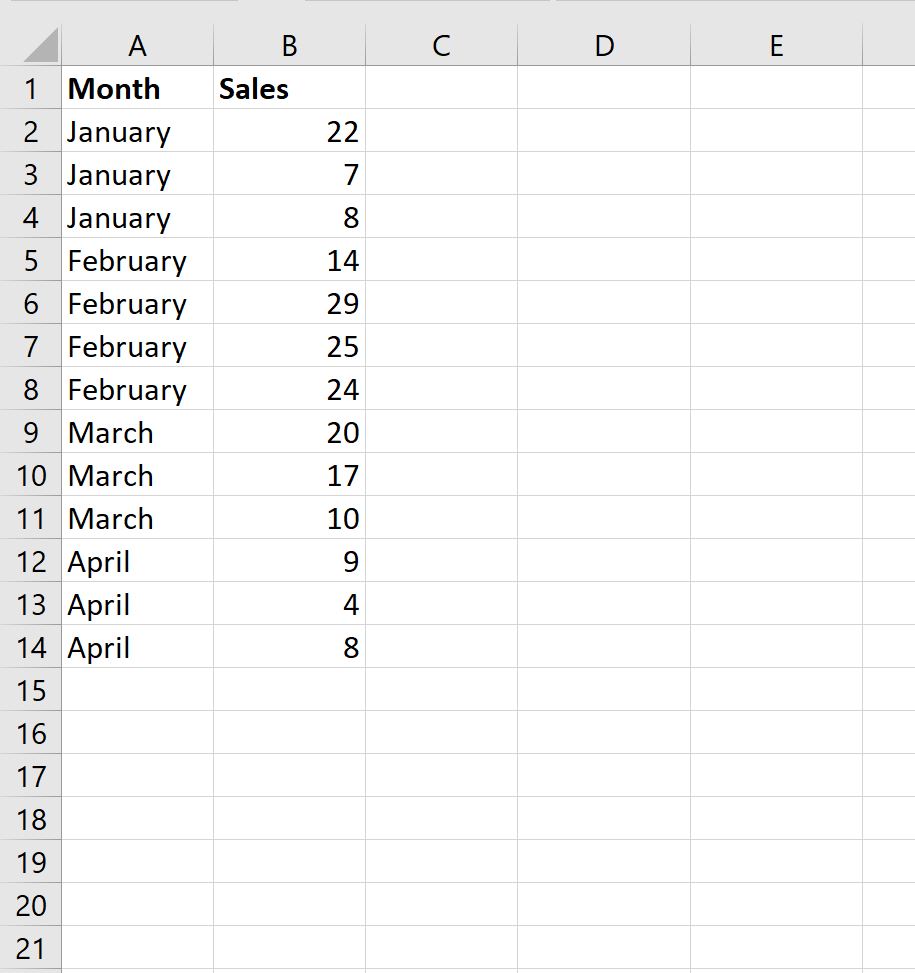

To begin, accurately enter the required data into a new spreadsheet. Our sample dataset requires two main columns: one labeled Month (containing the temporal sequence) and a second labeled Sales (containing the corresponding numerical amount). Ensure that every row represents a unique record, that there are no blank rows or columns interrupting the data range, and that all numerical values are consistently and correctly formatted as numbers or currency.

Maintaining your data within this clean, contiguous range is the prerequisite for Excel to effectively select and process the information when creating the Pivot Table object. Attention to detail in this initial preparation phase will guarantee the accuracy and reliability of all subsequent calculations and analysis.

Step 2: Constructing the Core Pivot Table Structure

With the source data fully prepared and verified, the subsequent step involves establishing the initial Pivot Table. This step will generate the basic summarized view of the sales data, which we will then augment with the cumulative calculation. Excel’s highly intuitive interface facilitates this construction process efficiently.

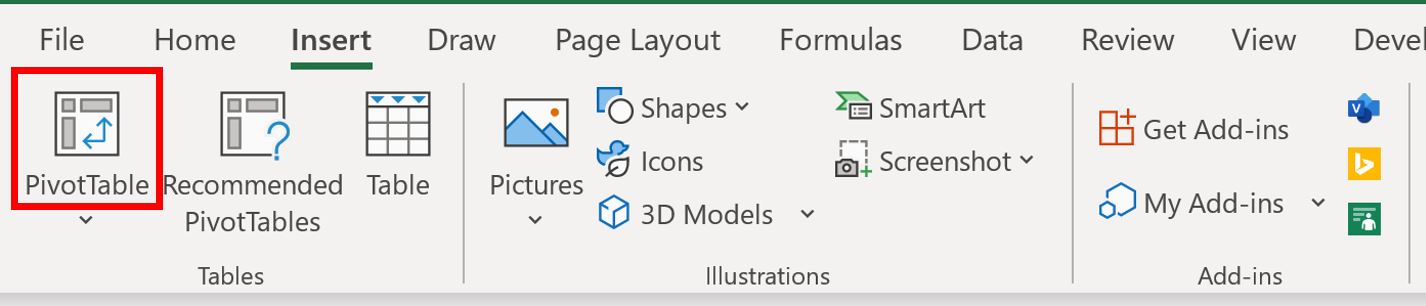

To initiate the Pivot Table creation, first select any cell within your structured data range (A1:B14). Next, navigate to the Insert tab located on the top ribbon interface. Within the leftmost section of this tab, locate and click the PivotTable icon; this action will launch the crucial “Create PivotTable” dialog box.

In the “Create PivotTable” dialog box, you must define the scope of the data and the desired location for the output. Confirm that the range A1:B14 is selected, as this range encapsulates the headers and all required data points. For placement, select the “Existing Worksheet” option and specify cell D1 as the starting point for the new table. Placing the Pivot Table adjacent to the source data often improves workflow and visualization.

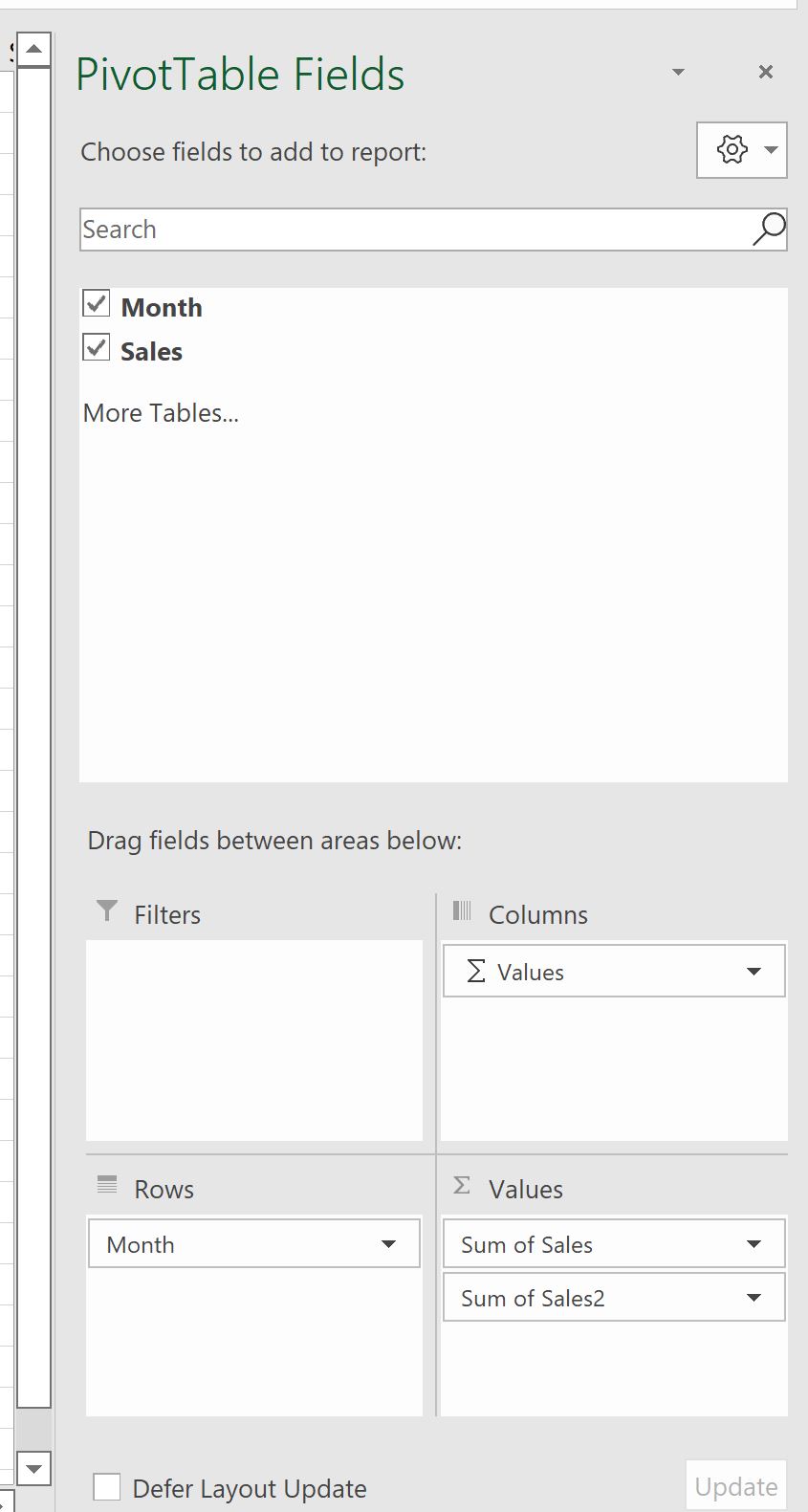

Once confirmed, the PivotTable Fields pane will appear. This pane dictates the layout of your analysis. Drag the Month field into the Rows area, ensuring the monthly sequence forms the primary axis of the table. Critically, drag the Sales field into the Values box two separate times. The first instance will function as the standard monthly sum of sales, while the second, duplicate instance will be subsequently manipulated to display the cumulative or running total.

The newly created Pivot Table will automatically populate, initially showing two identical columns, both summarizing the sum of sales for each month. This duplicate column, labeled “Sum of Sales2,” is the target we will convert into our powerful cumulative metric.

Step 3: Implementing the Running Total Calculation via Value Field Settings

With the dual-column Pivot Table foundation now fully established, the next critical phase involves transforming the second “Sum of Sales” column into the desired running total calculation. This powerful transformation is achieved through a specialized configuration tool known as the “Value Field Settings,” which grants access to a wide array of calculations beyond standard sums or averages.

To initiate the conversion, right-click on any numerical value situated within the Sum of Sales2 column of your Pivot Table. From the context menu that appears immediately, select the Value Field Settings option. This action will launch the comprehensive dialog box, allowing detailed customization of how the field’s underlying values are displayed and calculated.

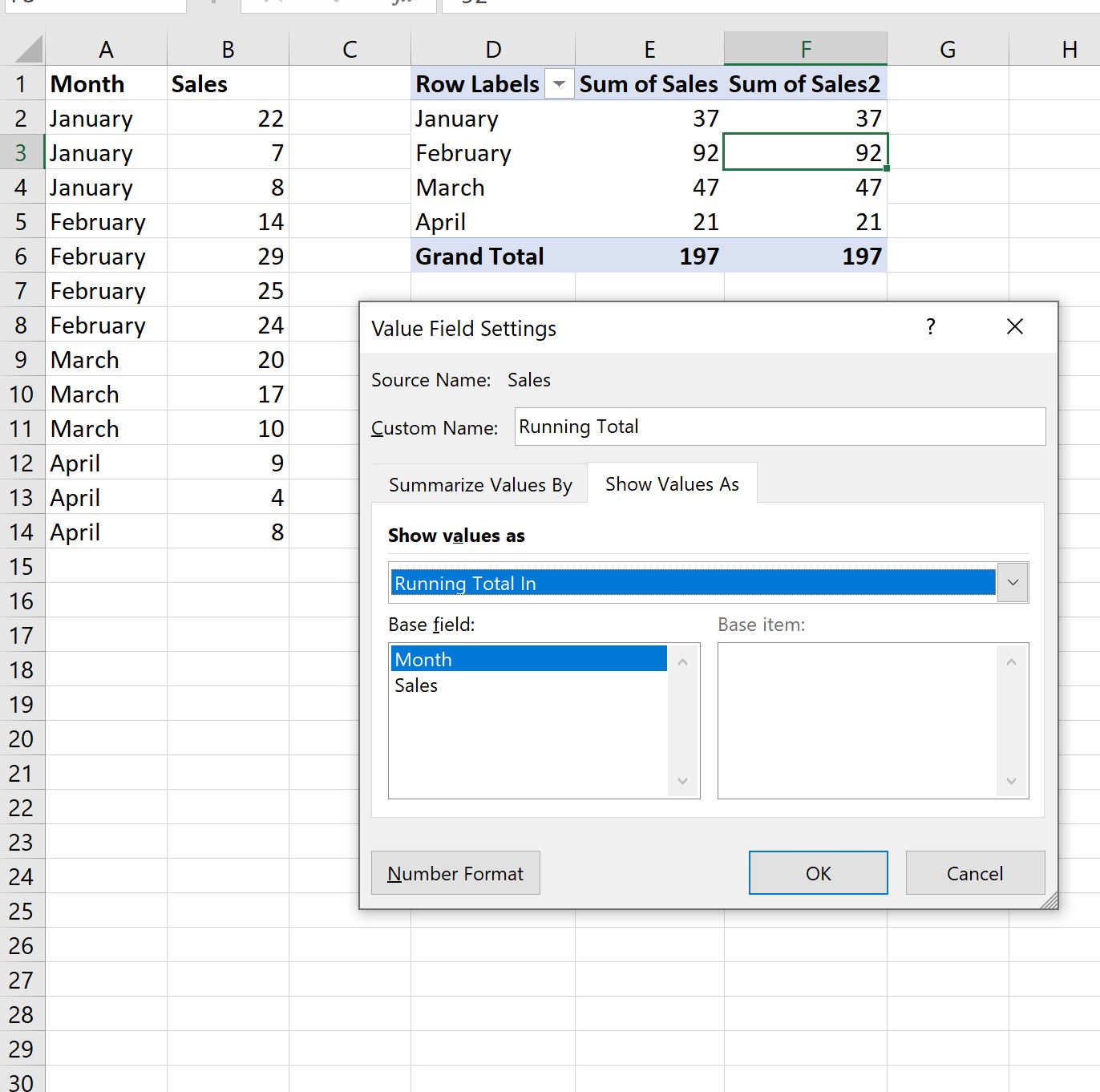

Within the “Value Field Settings” dialog box, you must perform two essential steps. First, ensure the reporting is clear by changing the Custom Name at the top to “Running Total.” Second, navigate to the Show Values As tab. Open the large dropdown menu located here and select the option designated Running Total In. Immediately following this selection, you must define the crucial Base field. Select Month from the provided list, as this instructs Excel to calculate the progressive sum based on the chronological order of the months displayed in the row labels.

Upon clicking the OK button, the second column will instantly be transformed into the “Running Total” column. This column will now dynamically display the cumulative sales figure accumulated up to and including each corresponding row’s month. This finalizes the technical configuration, equipping your Pivot Table with a new and indispensable analytical dimension.

Analyzing and Interpreting Cumulative Performance

The successful integration of the Running Total column fundamentally changes the interpretive power of your Pivot Table. The figures presented here provide a year-to-date or period-to-date perspective: each value represents the aggregate sum of all sales from the initial data point through to that specific month. For example, by examining the running total for March, you are immediately shown the total revenue generated from the combined sales of January, February, and March.

This cumulative visualization is essential for several key analytical purposes. It allows analysts to rapidly identify overarching growth trends, accurately assess progress against predetermined annual objectives, and monitor the overall trajectory and momentum of sales performance. Analysts frequently utilize this view to determine exactly when a financial milestone was achieved or to quantify the total revenue generated across a partial fiscal year. This methodology forms a core component of effective financial analysis and sophisticated performance tracking systems.

Furthermore, because this cumulative calculation is inherently linked to the Pivot Table framework, its results remain fully dynamic and responsive. Should you update the underlying source data, alter the filtering criteria, or change the grouping structure of the Pivot Table, the running total will automatically recalculate and refresh. This capability guarantees that your insights are always consistent, current, and derived without the necessity of manual data manipulation.

Advanced Excel Proficiency and Resources

Achieving mastery in Excel is a continuous process that involves consistently learning and applying specialized techniques. The ability to quickly and accurately generate a running total within a Pivot Table is merely one example of the powerful features that can dramatically elevate your data analysis skills. We strongly advocate exploring the full range of functionalities Excel offers, as they are designed to streamline complex workflows and provide deeper, actionable insights into your operational data.

To further enhance your proficiency in utilizing this essential tool for business intelligence and high-level reporting, consider exploring tutorials and guides on related advanced topics.
