Excel: Add Median Line to Chart

It is standard practice in comprehensive data visualization to integrate statistical benchmarks directly into graphical representations. This integration provides immediate context, allowing viewers to quickly assess the performance of individual data points relative to the dataset’s central tendency. While most standard charting tools, including Microsoft Excel, readily offer options for plotting the mean (average), plotting the median often requires a specialized and more powerful technique. The median, representing the true midpoint of an ordered dataset, is often preferred over the mean because it is less sensitive to extreme outliers, thus providing a more stable and representative measure for comparison.

This tutorial outlines the precise methodology for constructing a chart that combines monthly sales data with a constant, horizontal line representing the calculated overall median value. This approach transforms a basic display of values into a sophisticated analytical tool, enabling stakeholders to instantly identify which periods performed above or below the central location. Because Excel does not offer a direct one-click solution for a median line, the process involves careful data manipulation, the use of a statistical function, and the strategic conversion to a dual-axis chart structure.

The core challenge lies in preparing the single median value so that it can be plotted as a constant data series across all categories (months) on the chart. By following the steps detailed below, you will learn how to leverage Excel’s capabilities to generate a highly insightful bar chart that clearly overlays monthly performance with a distinct median reference line. The final visualization will provide immediate clarity on performance relative to the midpoint, mirroring the professional quality and structure of the example chart shown immediately below.

Preparing the Dataset for Analysis

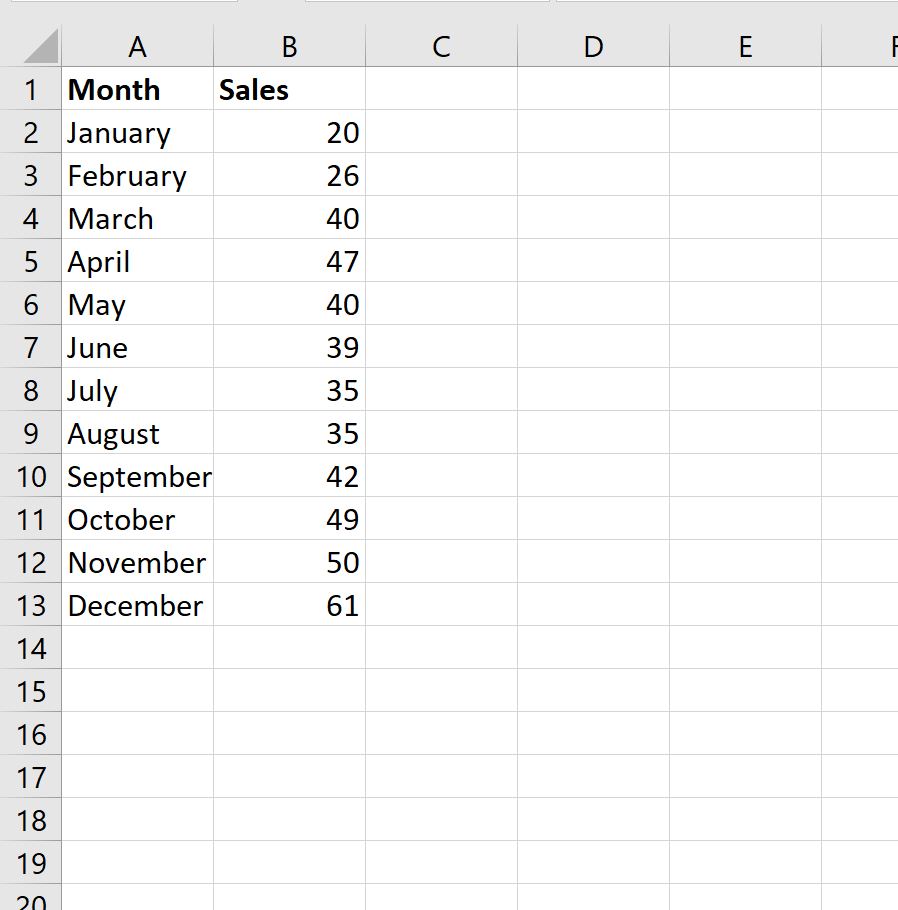

The foundation of any successful statistical visualization is correctly formatted source data. Before attempting to calculate or plot any central measure, the raw information must be organized into a format that Excel can efficiently process for charting. Our example utilizes a simple dataset tracking the total sales figures for a hypothetical product across a twelve-month period. This initial structure must comprise two distinct columns: one for the categorical variable (Month) and one for the quantitative variable (Total Sales).

To begin, enter your data into a new Excel spreadsheet, ensuring that you define column headers clearly in the first row. Clear headers, such as “Month” and “Sales,” are essential because Excel relies on these labels to automatically generate accurate chart legends and axis titles later in the visualization process. Maintaining accuracy and integrity at this initial data entry stage is critical, as any structural or numerical errors in the source data will inevitably compromise both the final chart output and the statistical calculations derived from the data range.

For the purpose of this guide, we will assume the data begins in cell A1. This arrangement allows us to treat the monthly sales figures as a single, continuous range (Column B) for statistical processing, while maintaining the necessary chronological context provided by Column A for plotting on the X-axis. This setup is the prerequisite for calculating and plotting the constant median line in the subsequent steps.

Calculating and Preparing the Median Data Series

The next crucial phase involves calculating the median of the entire Sales column and structuring this single value so it can be rendered as a horizontal line on the chart. As noted previously, the median serves as a robust measure of central tendency because it identifies the middle value, making it highly resistant to the skewing effects of extreme outliers. To plot this value as a constant reference line across all twelve months, we must first calculate the single median figure and then ensure that this exact value is duplicated in a new, adjacent column corresponding to every month in the dataset.

To calculate the overall median sales figure, navigate to the cell directly next to your sales data (e.g., cell C2). In this cell, input the following formula, which utilizes Excel’s built-in MEDIAN statistical function, referencing the entire range of sales figures (cells B2 through B13 in our example). This function computes the middle number in the sequence of sales values.

=MEDIAN($B$2:$B$13)

It is absolutely vital to observe the use of absolute referencing (indicated by the dollar signs, such as $B$2) within the formula. Absolute referencing locks the cell range, preventing it from shifting when the formula is copied to other cells. This mechanism ensures that the calculated median value remains constant across the entire new column, which is precisely the requirement for generating a horizontal reference line that spans the chart area without variation.

After entering the formula into cell C2 and pressing Enter, title the new column “Median” in cell C1. Then, copy the formula from cell C2 and paste it down into every remaining cell in Column C, extending to the last row of your sales data (C13). This action successfully generates a new data series where every entry holds the identical calculated median sales value. This “Median” column is the essential data series required for plotting the horizontal line in the subsequent chart construction steps.

Initiating the Chart Construction

Once the data is correctly structured across the three necessary columns—Month, Sales, and the constant Median series—we can proceed with the initial chart creation. The first critical step is to instruct Excel to recognize and plot all three series simultaneously. Start by selecting the entire data range, specifically cells A1:C13, which encompasses both the categorical variable (Month) and the two numerical data series (Sales and Median).

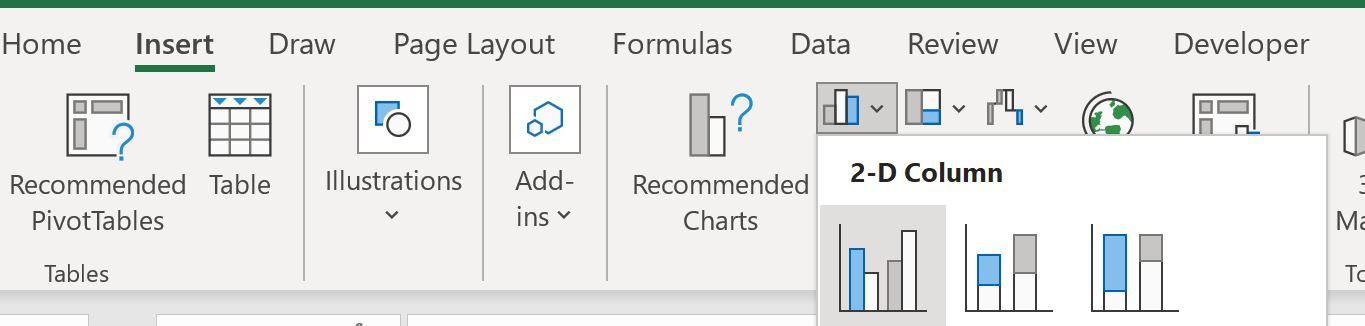

With the range highlighted, navigate to the Insert tab located on the top ribbon menu. Within the Charts group, select the option to insert a basic column chart, specifically choosing the Clustered Column option. This initial chart configuration is the standard starting point required to introduce both data series into a single visualization area before customizing their representation.

Upon insertion, Excel will initially attempt to render both the Sales data and the Median data as side-by-side clustered columns. Since the Median column consists of a single, repeated value that is likely small compared to the scale of the sales figures, its corresponding bars (often colored orange) will appear extremely small or potentially invisible, hugging the X-axis. This visual discrepancy is expected and confirms that both series have been correctly mapped, serving as a necessary precursor to the required chart type conversion. The resulting chart at this stage will clearly illustrate the dominance of the Sales bars, necessitating the immediate modification of the Median series to transform it into a meaningful horizontal line.

Converting to a Dual-Axis Combo Chart

The most pivotal step in this process is the transformation of the Median data series from clustered bars into a visually effective horizontal line, which is achieved by utilizing a dual-axis chart structure. This specialized chart, known formally as a Combo Chart, allows two fundamentally different chart types (Column and Line) to share the same plotting area, often leveraging different scales for each series.

To initiate this critical conversion, right-click anywhere within the chart area and select the “Change Chart Type…” option from the context menu that appears. This action will launch the corresponding dialog box, which presents various categories of visualizations available in Excel.

Within the dialog box, navigate directly to the Combo category, typically found toward the end of the list. This view provides granular control, allowing you to manually define the chart type and axis assignment for every data series currently plotted. You will clearly see two series listed: “Sales” and “Median.” For the primary series, “Sales,” ensure the chart type is set to the default Clustered Column.

However, for the “Median” series, change its assigned chart type to Line. Crucially, you must also check the box next to the “Median” series under the “Secondary Axis” column. Plotting the median line on the secondary axis is what allows its constant value to be scaled correctly against the primary data, ensuring the line is visible across the entire chart area without compressing or distorting the primary bar heights.

Click OK to finalize and apply these changes. The chart will instantly update, successfully transforming the nearly invisible bars into a prominent, clear, horizontal line that spans the entire plot area. This line now acts as the authoritative visual reference for the central tendency of the data, facilitating immediate comparison of monthly performance relative to the overall calculated median sales figure. The result is a highly effective data visualization.

Enhancing Visualization and Aesthetics (Optional)

While the chart is now statistically and structurally correct, professional data visualization demands refinement and aesthetic customization to maximize clarity, readability, and impact. A well-formatted chart is significantly easier for an audience to interpret and leaves a more polished impression. This optional final step focuses on adjusting elements such as titles, colors, axis visibility, and line styling to reduce visual clutter and highlight key information.

Begin by adding a descriptive and informative chart title, such as “Monthly Sales Performance vs. Median Benchmark,” to clearly communicate the chart’s specific analytical purpose. Since the median line utilizes a secondary axis, a common best practice is to hide the secondary Y-axis if its scale is identical to the primary axis, thereby eliminating unnecessary visual duplication and streamlining the chart’s appearance. You should also ensure that the primary axes are appropriately labeled.

Next, focus on customizing the appearance of the median line itself to ensure it is clearly distinguished as a reference benchmark. Select the line series and modify its formatting attributes through the Format Data Series pane:

• Color and Weight: Change the line color to a high-contrast hue (e.g., a dark, distinct red or black) to ensure it stands out clearly against the primary bars. Increase the line weight slightly for better visibility.
• Line Style: Crucially, consider changing the line type to a dashed or dotted pattern. This subtle visual cue emphasizes that the line represents a constant reference measure rather than a fluctuating data trend.

Finally, you may wish to adjust the appearance of the primary Clustered Column series. By reducing the Gap Width (found in the Format Data Series pane), you can make the bars wider, which maximizes the use of the plot space and often makes the heights of the bars easier to compare visually. These collective adjustments result in a polished, highly insightful plot ready for professional presentation and decision-making.

Further Resources for Advanced Excel Charting

Mastering the creation of complex visualizations in Excel, such as the specialized Combo Chart technique demonstrated here, unlocks significant potential for advanced statistical reporting and robust business analysis. The underlying methodology—using a hidden secondary axis combined with a calculated constant series—is highly versatile. It can be readily adapted to plot other crucial benchmarks, including quartiles, specific performance targets, moving averages, or standardized deviation lines, extending far beyond the simple median calculation.

Developing proficiency in data manipulation and advanced charting techniques within Excel is vital for transforming raw numbers into actionable insights. This technique ensures that your reports and presentations are not only aesthetically pleasing but also statistically sound and immediately comparable. To continue building expertise in data presentation and advanced calculations, we recommend exploring official Microsoft documentation and specialized tutorials focusing on complex charting structures and data model preparation.
