Learning to Filter Data by Date Range Using Excel’s Advanced Filter

The Advanced Filter feature in Microsoft Excel is an indispensable tool for analysts who need to perform complex data isolation tasks, extending far beyond the limitations of standard AutoFilter operations. One of its most powerful applications is the ability to precisely segment records from an extensive dataset based on a specified temporal window, known universally as a date range. This methodology provides users with the meticulous control necessary to pinpoint specific transactional or time-stamped information within massive tables, thereby dramatically improving the efficiency and accuracy of detailed analytical reviews.

This comprehensive guide offers an authoritative, step-by-step methodology for effectively leveraging the Advanced Filter mechanism. We will systematically walk through the process required to segment and retrieve data entries that fall precisely within a user-defined date range. By dissecting a practical example, we ensure that every critical element, from the initial preparatory setup to the final execution, is presented with exceptional clarity, making this complex technique accessible to both novice and experienced users navigating large spreadsheets.

Understanding the Mechanics of Excel’s Advanced Filter

The core distinction between the basic AutoFilter feature and the Advanced Filter lies in the sophistication of the criteria that can be employed. While standard filtering is typically restricted to simple, column-specific selection conditions, the Advanced Filter is engineered to support the construction of complex, multi-layered filtering rules. This superior logical capability is achieved through the mandatory use of a dedicated area on the worksheet, referred to as the criteria range. This range is where users define complex conditional logic, apply various comparison operators, and even incorporate calculated formulas to govern precisely which source data rows are ultimately displayed.

The fundamental principle involves isolating a specific region of your worksheet to serve as the definition space for the conditions that your source data must satisfy. When the objective is to filter data based on a temporal boundary, or a date range, this dictates establishing the criteria range with two concurrent conditions applied to the identical date column. One condition specifies the lower boundary (the start date), and the other specifies the upper boundary (the end date), effectively creating an “AND” relationship necessary for range selection.

This powerful separation of criteria definition from the main data table ensures that highly complex logical tests—such as filtering by date, product category, and price range simultaneously—can be structured clearly and executed reliably, providing a level of filtering control unattainable with simpler methods.

Prerequisites: Preparing Your Data for Temporal Segmentation

To effectively demonstrate this filtering technique, we will employ a practical sales tracking dataset. This hypothetical data table includes essential columns such as “Date,” recording the transaction timestamp, and “Total Sales,” quantifying the revenue generated. Our primary objective is to accurately extract all sales records that fall within a precise, predetermined date range, thereby isolating a specific period of business performance for targeted analysis.

A non-negotiable prerequisite for successful date filtering using the Advanced Filter is the rigorous verification that the data in the relevant date column is consistently and correctly formatted as true date values recognized by Microsoft Excel, rather than being stored merely as text strings. If dates are incorrectly formatted, the filter will fail to interpret the chronological sequence, inevitably leading to inaccurate or incomplete results. Below is a visual representation of a standard sales dataset suitable for our filtering exercise:

For the scope of this particular demonstration, we are setting a target: to filter for transactions where the date falls strictly between January 20, 2023, and February 20, 2023. Achieving this specific temporal segmentation requires the precise definition of a criteria range that effectively captures this desired time interval using appropriate logical criteria.

Defining the Criteria Range for an “AND” Date Condition

The successful filtering of a date range using the Advanced Filter fundamentally depends on the meticulous configuration of the criteria range. Unlike simpler methods, defining a range mandates the setting of two simultaneous conditions directly beneath the target column header, specifying both the start (lower bound) and the end (upper bound).

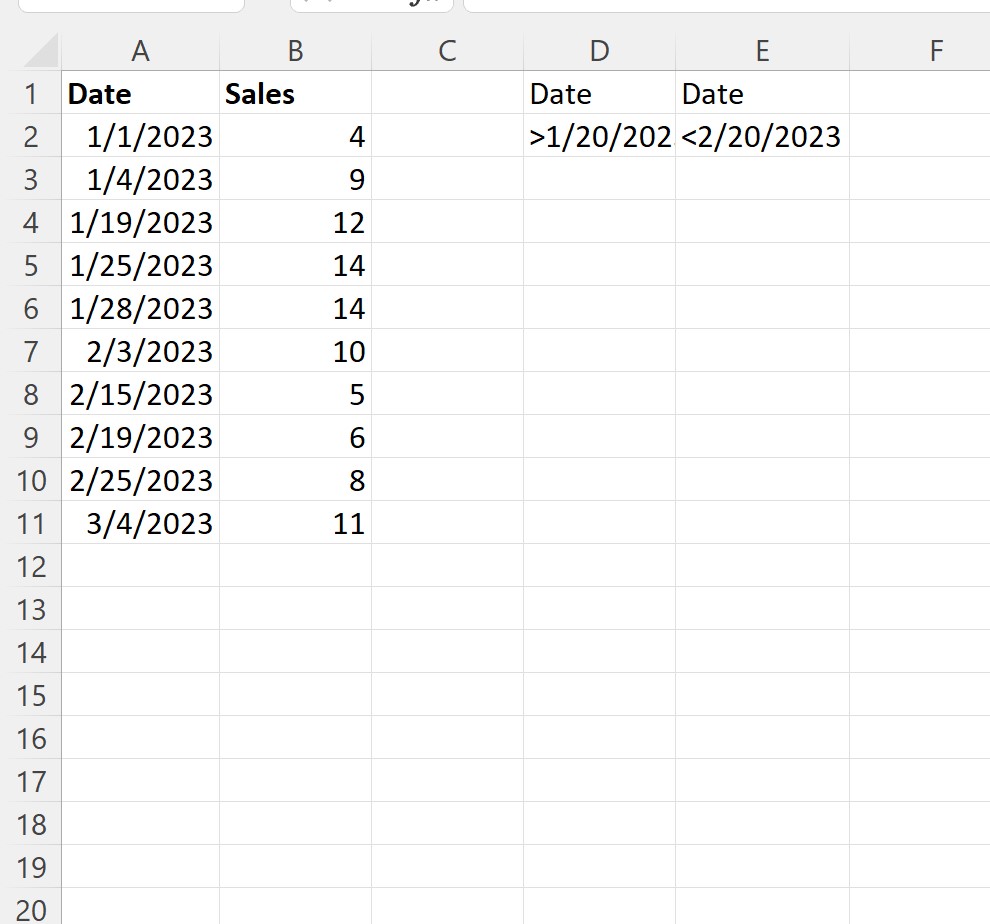

To begin, you must copy the exact header name of your date column (e.g., “Date”) to a separate, isolated area of your worksheet. Directly underneath this copied header, you will input the filtering conditions, combining appropriate comparison operators with the specific dates. For our defined example—where we seek dates greater than 1/20/2023 and less than 2/20/2023 (an exclusive filter)—the criteria range must be structured as follows:

• In the first cell immediately beneath the “Date” header, input the lower boundary condition: `>1/20/2023`
• In the second cell immediately beneath the “Date” header, input the upper boundary condition: `<2/20/2023`

The physical arrangement of these two conditions is paramount: they must occupy adjacent rows directly under the single, identical column header. This vertical stack is the critical signal to Microsoft Excel that the data row must satisfy the first condition AND the second condition simultaneously. This execution of “AND” logic is precisely what filters the data into the narrow time interval required. The visual structure of the correctly constructed criteria range is illustrated below:

Note that the comparison operators `>` (greater than) and `<` (less than) are deliberately used to define an exclusive range. This means any transaction recorded exactly on the start date (1/20/2023) or the end date (2/20/2023) will be intentionally omitted from the final filtered output. We will discuss how to achieve an inclusive range shortly.

Executing and Configuring the Advanced Filter Operation

With the dedicated criteria range meticulously configured, the next crucial phase involves initiating and applying the Advanced Filter function to your primary dataset. The application process follows a precise sequence:

1. Before launching the filter dialog box, ensure you click on any single cell located within the boundaries of your main data table. This preparatory step facilitates Excel’s automatic identification of the full extent of your dataset.

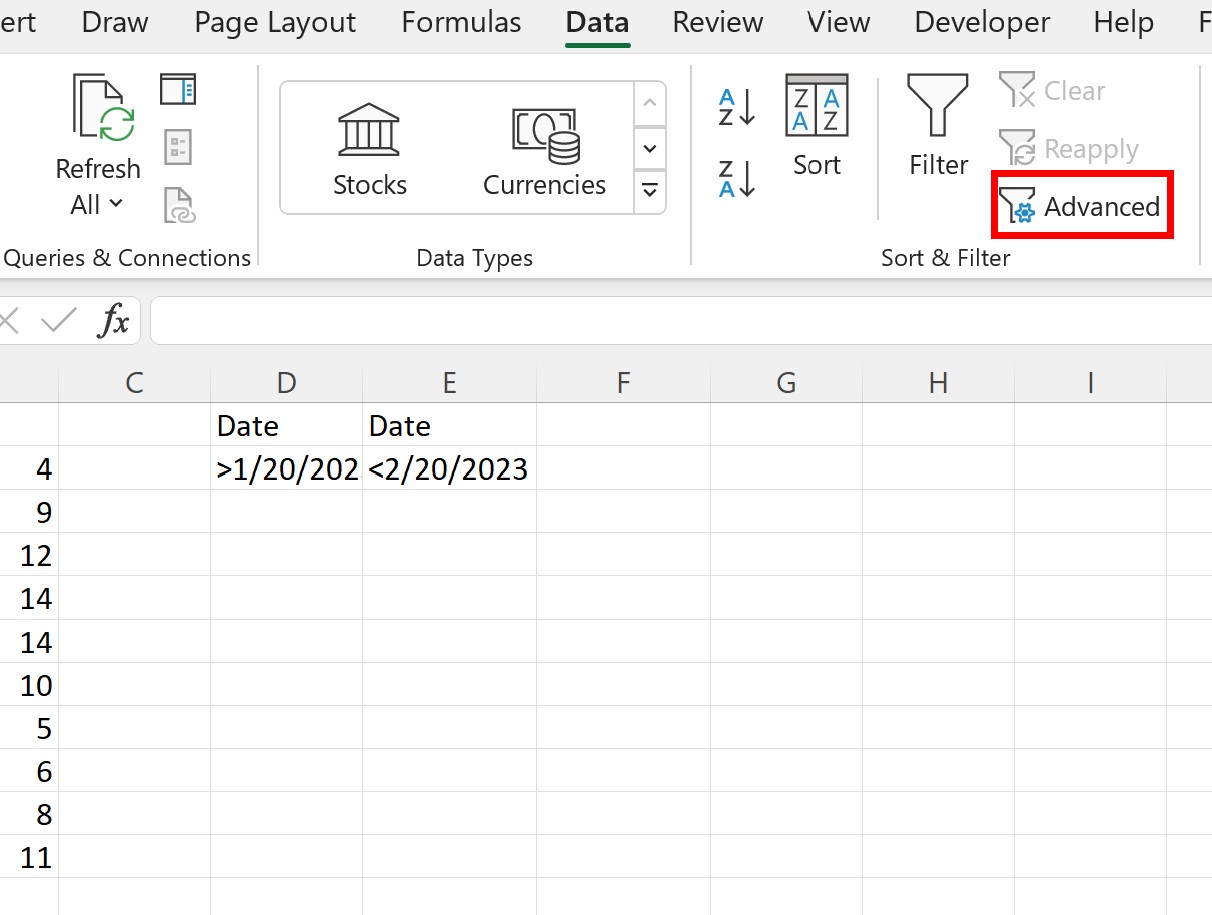

2. Navigate to the Data tab, which is prominently situated on the main Excel Ribbon interface.
3. Locate the “Sort & Filter” command group, and then click the Advanced Filter button. This action will immediately summon the “Advanced Filter” configuration dialog box.

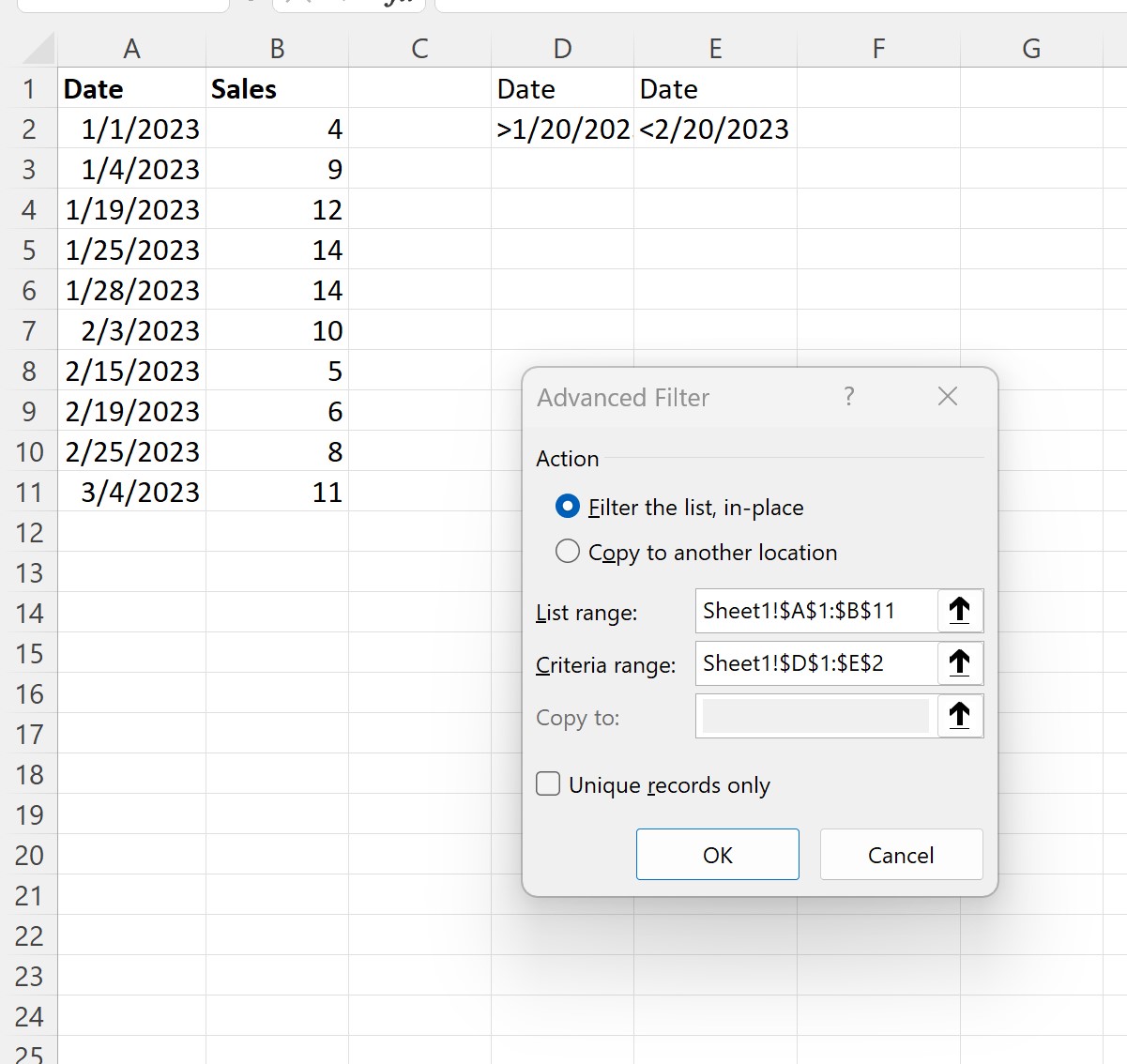

Within the “Advanced Filter” dialog box, precise input and verification of the data ranges are paramount for successful execution. You must carefully confirm the settings for the following fields:

• Action: You generally choose “Filter the list, in-place.” This modifies the existing data range by temporarily concealing rows that fail the criteria. For scenarios requiring data extraction without altering the source, select “Copy to another location” and specify a destination range.
• List range: This input must accurately reference your original dataset, ensuring the selection includes all column headers (e.g., `A1:B11`). If step 1 was completed correctly, Microsoft Excel typically populates this field automatically.
• Criteria range: This is the most crucial input defining the filtering conditions. You must select the entire criteria range, guaranteeing that the selection encompasses both the copied column header and the two condition rows beneath it (e.g., `D1:D3`).

Once you have meticulously verified that all range selections are correct and accurately configured, finalize the process by clicking the OK button. Excel will instantly process the command, and your primary dataset will be immediately refreshed to display only those rows that precisely adhere to your specified date range criteria, while temporarily hiding all non-matching records.

Analyzing Results and Mastering Inclusive vs. Exclusive Ranges

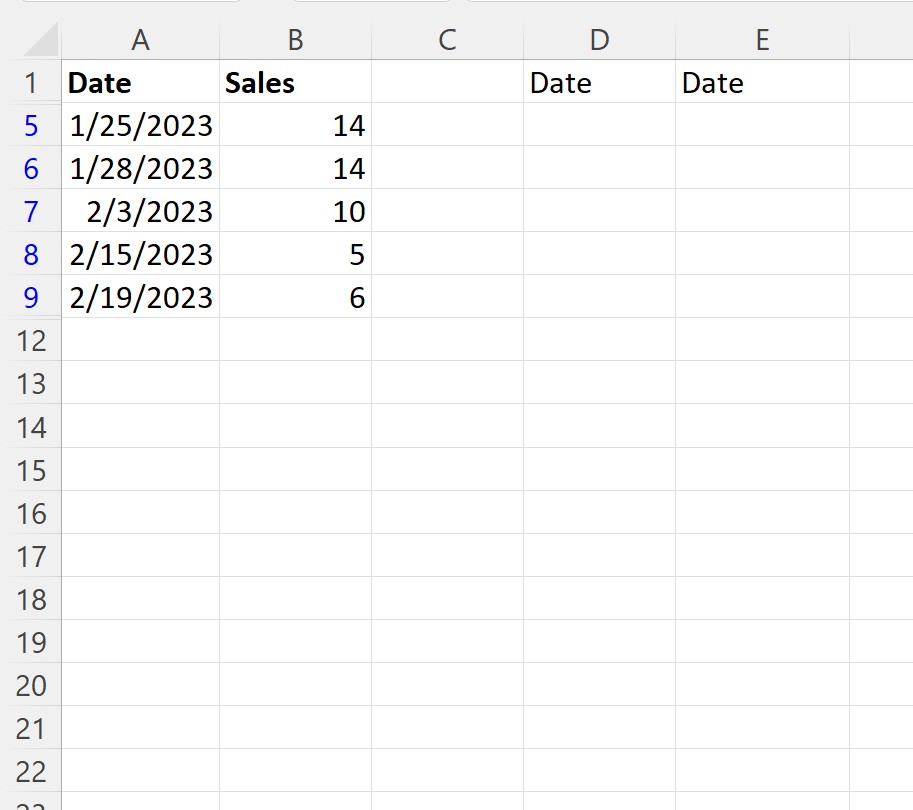

The successful execution of the Advanced Filter results in a worksheet display that only presents rows where the “Date” value falls strictly between January 20, 2023, and February 20, 2023, excluding the stated endpoints. The rows that failed to satisfy the conjunction of the two criteria are now temporarily concealed, allowing for immediate, focused analysis of the isolated data segment.

As confirmed by the visual output, every date remaining in the filtered data is demonstrably greater than the starting boundary and less than the ending boundary, confirming the accurate application of the advanced date filtering technique. This refined view is invaluable for focused analytical tasks.

A critical technical consideration when employing the Advanced Filter for temporal data is the distinction between inclusive and exclusive date ranges. As demonstrated previously, the use of the strict `>` and `<` comparison operators defines an exclusive range, which explicitly omits any data entry matching the boundary dates themselves. If the requirement is to include the starting date and the ending date in the filtered output, ensuring the range is fully inclusive, you must adjust the operators used in your criteria definitions. To capture all data from 1/20/2023 through 2/20/2023, your criteria range must be precisely modified as follows:

• `>=1/20/2023` (Greater than or equal to)
• `<=2/20/2023` (Less than or equal to)

Advanced Techniques and Essential Troubleshooting Practices

To ensure that your Advanced Filter operates flawlessly and consistently handles complex date range requests, adhering to several key best practices is crucial. The most frequent source of error in date filtering stems from inconsistent data typing; therefore, always verify that the date column in your dataset is correctly formatted as true date values and is properly recognized by Excel, preventing the software from misinterpreting them as text strings.

Furthermore, meticulous attention should be paid to the placement and structure of the criteria range. This range must occupy a distinct, non-overlapping area of the worksheet, separate from the source data, and the column header used within the criteria range must be an exact, character-for-character match to the corresponding header in your main data source. For users frequently working with large or dynamic data sets, efficiency can be significantly improved by defining named ranges for both the “List range” and the “Criteria range,” which simplifies selection within the Advanced Filter dialog box and minimizes the risk of range selection errors. Finally, to swiftly restore the full, unfiltered view of your source data, navigate back to the Data tab and utilize the “Clear” button found within the “Sort & Filter” group.

Expanding Advanced Filter Functionality Beyond Temporal Data

Although the primary focus of this guide was detailed filtering using a specific date range, the immense utility of the Advanced Filter extends far beyond simple temporal constraints. It is an exceptionally versatile tool capable of handling simultaneous filtering based on diverse criteria, including multiple text patterns, complex numerical boundaries, and intricate combinations of text, numbers, and dates. Its inherent ability to manage sophisticated logical structures—specifically “AND” logic (conditions placed on the same row) and “OR” logic (conditions placed on separate rows within the criteria range)—establishes it as a superior method for complex data extraction compared to basic filtering mechanisms.

For professional analysts who require even greater dynamism, connectivity to external data sources, or automated data preparation pipelines, Power Query represents the next evolutionary level of data manipulation within Excel. While the Advanced Filter remains excellent for quick, complex filtering tasks, Power Query provides robust, repeatable processes that can streamline intricate data transformation and filtering workflows, making it the ideal choice for demanding enterprise data environments.

Additional Resources for Mastery

To further deepen your proficiency with the powerful capabilities of the Advanced Filter, particularly when tackling scenarios involving multiple criteria, complex logical formulas, or dynamic range definitions, we highly recommend consulting the official Microsoft Support documentation. These authoritative resources provide detailed, context-specific examples and guidance that will significantly enhance your mastery of this indispensable data analysis feature within Excel.
