Advanced Excel: A Step-by-Step Guide to Single-Column, Multiple-Criteria Filtering Using the Advanced Filter

Mastering the Advanced Filter in Excel for Complex Single-Column Criteria

Microsoft Excel remains the definitive platform for professional data analysis and complex data management tasks across virtually every industry. While the standard AutoFilter function is sufficient for straightforward sorting and single-condition queries, achieving true mastery of intricate data segmentation requires utilizing the powerful, yet often overlooked, feature known as the Advanced Filter. This tool is indispensable for applying sophisticated, multi-layered conditions, particularly when multiple criteria must be checked within a single column.

This comprehensive guide is designed to clarify the mechanics of the Advanced Filter, focusing specifically on how to segment your dataset when applying two or more conditions to the same column. We will systematically dissect the unique structural setups required for both OR logic (where any single condition satisfies the filter) and AND logic (where all conditions must be met simultaneously).

By following the practical, step-by-step examples provided, you will gain the necessary expertise to efficiently extract highly specific information from large datasets. Understanding the subtle yet critical differences in how the Criteria Range is structured for these logical operations is the key to significantly enhancing your overall Excel proficiency and boosting your data analysis capabilities.

Establishing the Sample Dataset

To effectively demonstrate the versatility and power of the Advanced Filter feature, we will utilize a concise yet robust sample dataset. This data table is intentionally structured to be easily recognizable, containing essential information about basketball players, specifically tracking their Player name, their assigned Team, and the total Points they have scored. This organization allows us to explore various sophisticated filtering scenarios effectively.

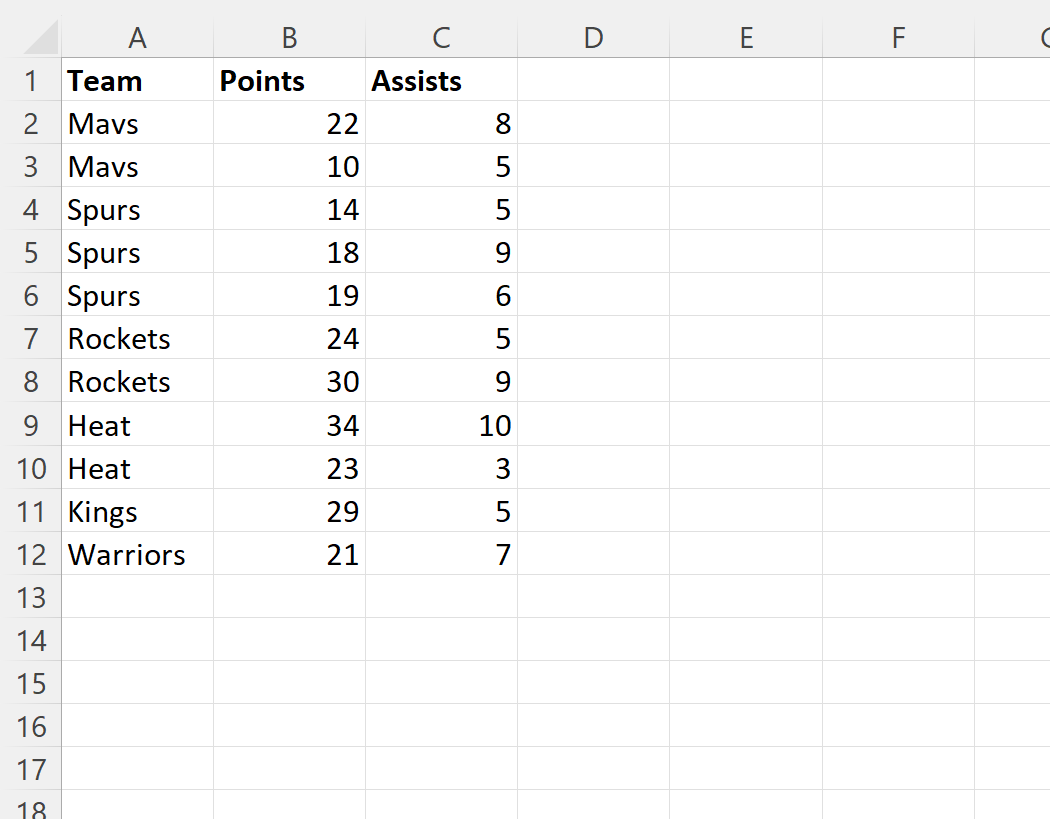

The structure displayed below will serve as the primary source range for all subsequent filtering demonstrations using Excel. It is crucial to pay close attention to the column headers, as these titles must be replicated exactly—including spelling and spacing—when defining the crucial Criteria Range required by the Advanced Filter mechanism.

Core Mechanism: The Advanced Filter and Criteria Range

A fundamental distinction sets the Advanced Filter apart from the basic AutoFilter tool: the mandatory requirement for a dedicated Criteria Range. Instead of applying conditions directly within the data table headers, the user must establish a separate, clearly defined area on the worksheet where all filtering rules are explicitly laid out. Excel then references this external range to determine precisely which rows should be included in the final output.

When initiating the filter process via the dialog box, you must specify two core parameters. First, the List Range, which is your complete source data table (e.g., A1:C12). Second, the Criteria Range, which defines the conditions. The precise layout of this second range is absolutely critical, as it determines whether Excel interprets your rules using OR logic or AND logic.

For filtering criteria applied to the same column, the difference between these two logical operations hinges entirely on the vertical or horizontal placement of the conditions within the Criteria Range. Understanding this fundamental concept—that structural layout dictates logical execution—is paramount before proceeding to the practical application examples.

Case Study 1: Implementing OR Logic (Separate Rows)

Consider a scenario where the goal is to extract all records from the dataset where the player’s Team is either “Mavs” OR “Rockets.” This is a classic application of OR logic, meaning a row only needs to satisfy one of the listed criteria to be included in the filtered output. The Advanced Filter manages this sophisticated selection process with remarkable simplicity once the Criteria Range is correctly constructed.

Constructing the Criteria Range for OR Logic

To define OR logic for conditions within the same column, the rule is straightforward: place each criterion on a separate row directly below the corresponding column header. For our example, we designate cells E1:E3 as the criteria range. Cell E1 must contain the exact column header, Team. Subsequently, in cell E2, we enter “Mavs”, and in cell E3, we enter “Rockets”. This vertical arrangement instructs Excel to find entries matching “Mavs” *or* entries matching “Rockets.”

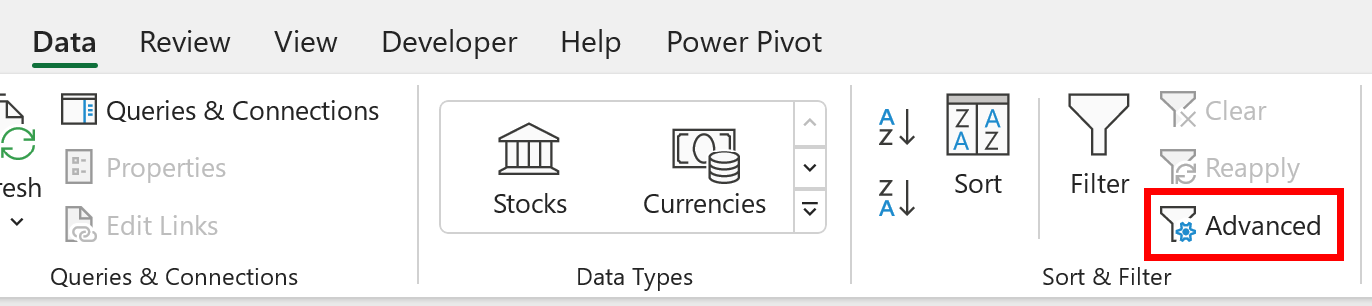

After establishing this vertical criteria range, navigate to the Data tab in the Excel ribbon and select the Advanced Filter button (found within the “Sort & Filter” group).

Executing the Advanced Filter for OR Logic

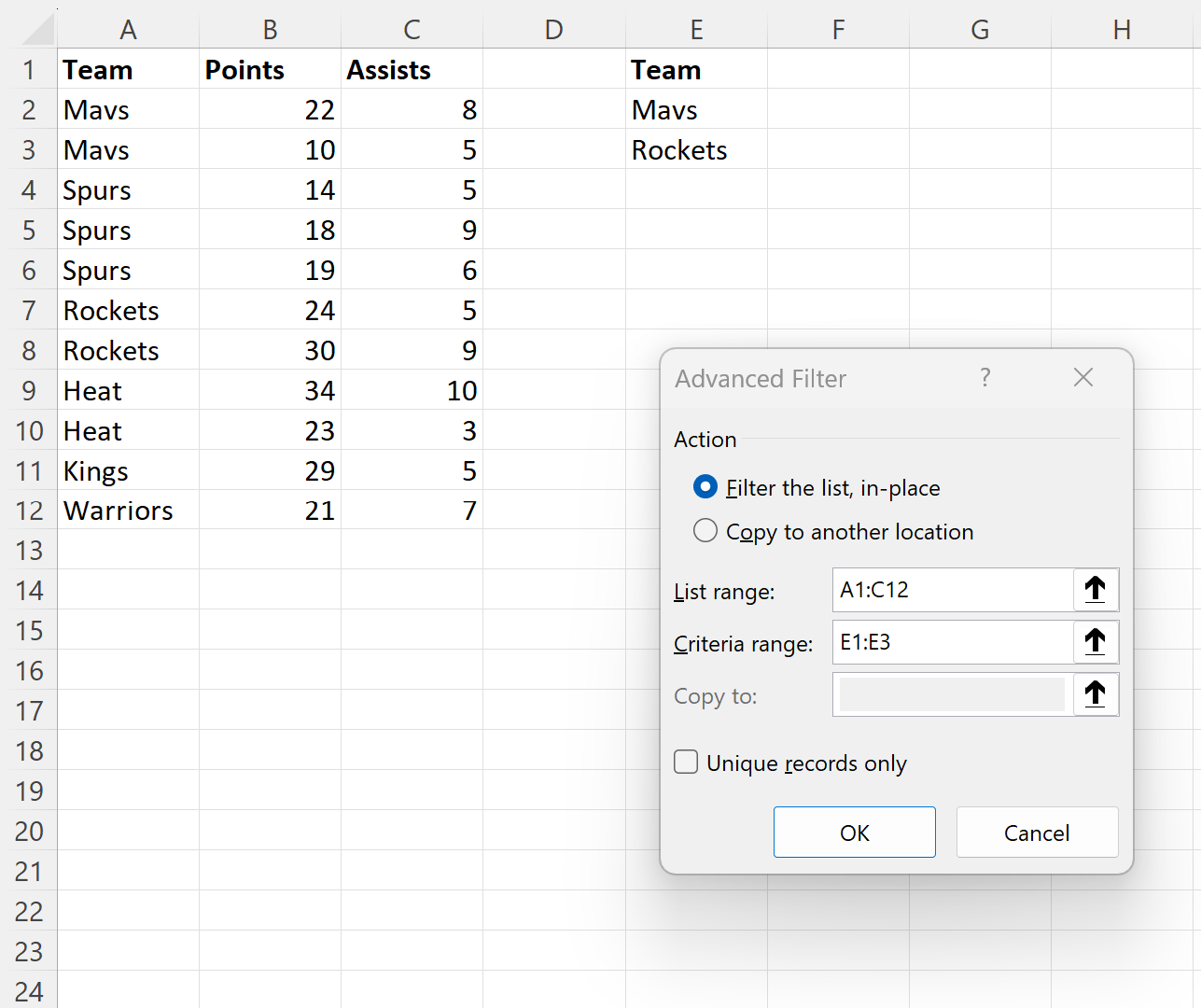

In the Advanced Filter dialog box, specify the source and criteria precisely: the List range is the main data table (A1:C12), and the Criteria range is the newly defined vertical range (E1:E3). Ensure the “Filter the list, in-place” option is selected if you want the results to appear directly within your current worksheet by hiding non-matching rows.

Upon clicking OK, Excel applies the filter, successfully hiding all rows that do not satisfy the OR logic condition. Only players belonging to the “Mavs” or “Rockets” teams will remain visible, proving the effective use of this vertically structured filtering approach.

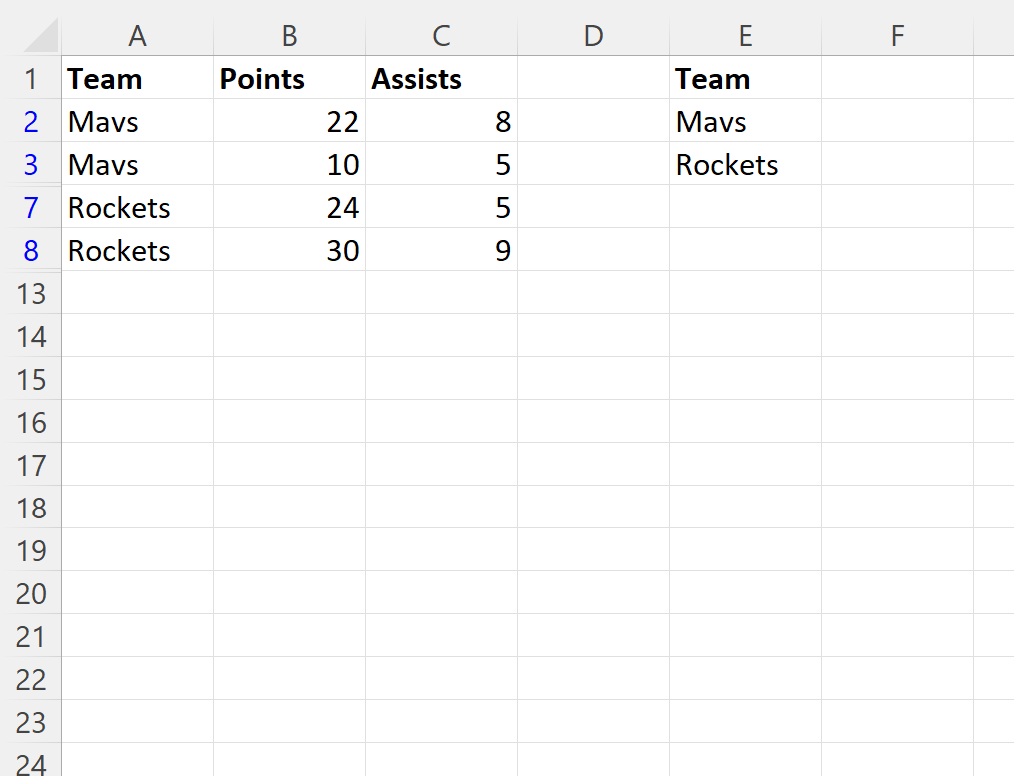

The resulting filtered table isolates the required records, confirming that the vertical criteria structure successfully executed the inclusive OR condition.

Case Study 2: Implementing AND Logic (Same Row, Repeated Headers)

Next, we tackle a requirement involving AND logic. Suppose we need to narrow down the dataset to include only those rows where the Points scored are simultaneously greater than or equal to 20 AND less than or equal to 30. This range-based filtering demands that both conditions must be satisfied by a single row for it to be displayed; it is a strict intersection of results.

The methodology for implementing AND logic on a single column is counter-intuitive but essential to master. Unlike OR conditions, which utilize separate rows, AND conditions must be placed on the same row within the Criteria Range. Because both conditions refer to the same source column (Points), we must repeat the column header for each condition to occupy adjacent columns.

Constructing the Criteria Range for AND Logic

For our Points range filter, we will set up the Criteria Range in cells E1:F2. We start by placing the header Points in cell E1. In cell E2, we enter the first condition:

>=20

. For the critical second AND condition, we must introduce a new column: place the repeated header Points in cell F1, and then enter the second condition,

<=30

, in cell F2. This horizontal arrangement (E2 and F2 on the same row, under identical headers) explicitly signals to Excel that both criteria must be met concurrently for a row to be included.

Once the horizontal criteria range is established, proceed to the Data tab and open the Advanced Filter dialog box.

Executing the Advanced Filter for AND Logic

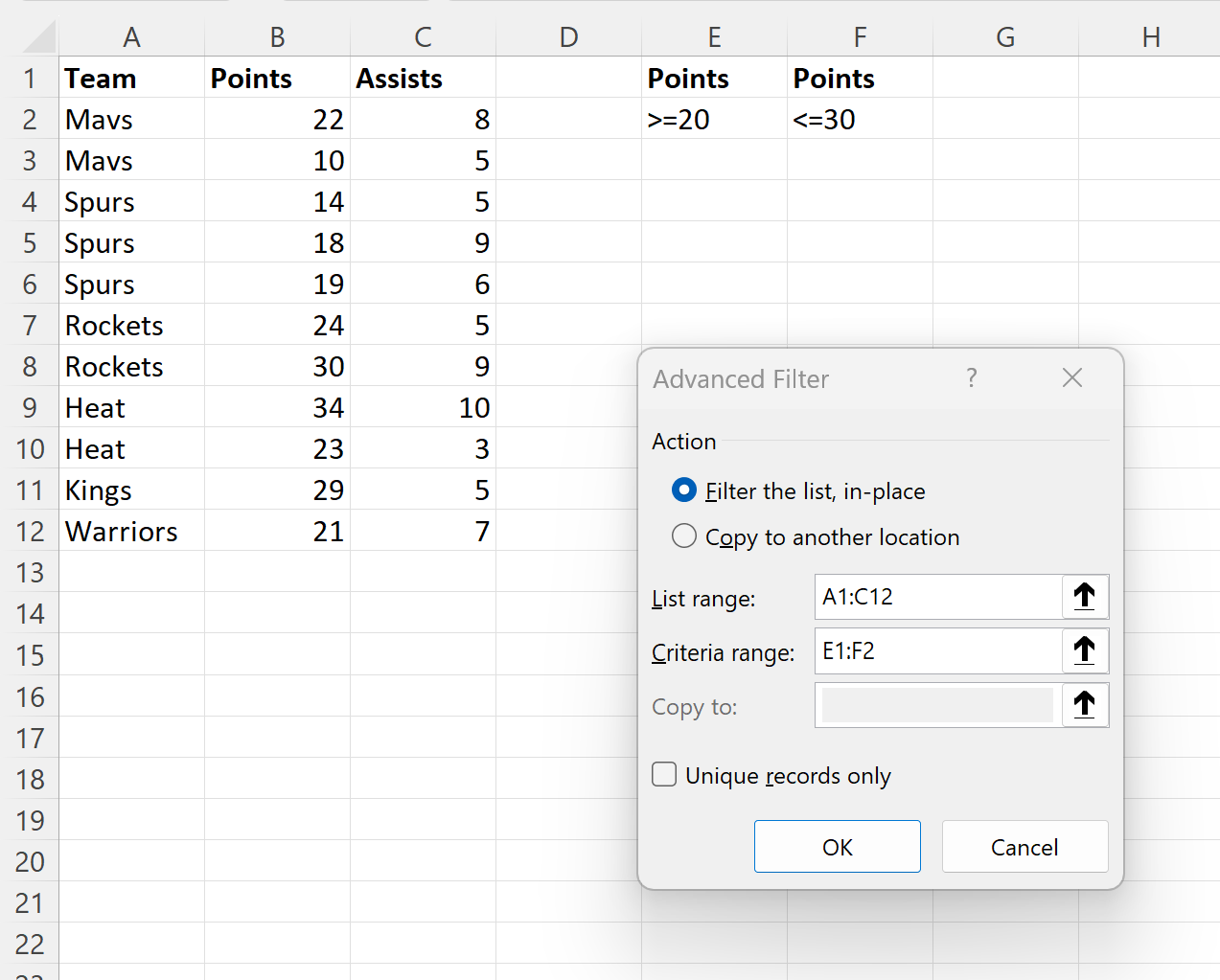

In the dialog box, the List range remains A1:C12. Crucially, update the Criteria range to encompass the newly created two-column setup: E1:F2. Selecting “Filter the list, in-place” will display the results immediately on your sheet.

Clicking OK executes the filter. Excel processes the request, isolating only those rows where the Points value is strictly within the 20 to 30 range (inclusive). This technique effectively applies complex numerical AND logic to a single data column.

The resulting table confirms that only players with scores between 20 and 30 points are displayed, validating the necessity of the horizontal setup for simultaneous AND conditions.

Key Distinction: Vertical vs. Horizontal Criteria Setup

The core differentiator between utilizing OR logic and AND logic in the Advanced Filter environment is purely structural. Mastering the spatial arrangement of the criteria within the Criteria Range is the most critical skill for precise data segmentation, particularly when dealing with conditions aimed at a single column.

For OR logic, the relationship is vertical. If you wish to include rows that satisfy condition A *or* condition B, you must list both conditions in the same column but on separate rows beneath the column header. This vertical stack creates the inclusive “either/or” rule.

Conversely, for AND logic, the relationship is horizontal. If a row must satisfy both condition A *and* condition B simultaneously, you must list the conditions on the same row. When applying multiple AND conditions to the identical data column, you are required to repeat the column header in adjacent columns to accommodate the separate conditions on that single row. This horizontal structure enforces the strict “all must be true” rule.

Conclusion: Elevating Data Analysis Efficiency

The Advanced Filter feature provides an exceptionally high degree of control over data extraction, transforming routine data analysis workflows. By gaining proficiency in structuring the Criteria Range for both OR and AND logical operations—even when these conditions target a single source column—users can achieve filtering precision far beyond the capabilities of standard filtering tools. This granular control is indispensable for tasks requiring the isolation of specific data subsets, generation of highly specialized reports, or detailed auditing of large datasets.

To solidify this knowledge, it is highly recommended that you experiment with various criteria combinations and source datasets. The principles governing the vertical (OR) and horizontal (AND) arrangement are universal, extending seamlessly to scenarios involving multiple columns and calculated criteria. Embrace these advanced techniques to unlock powerful data manipulation capabilities and elevate your data analysis skills.
