Conditional Formatting in Excel: Applying Rules Based on Adjacent Cell Values

Mastering Conditional Formatting with Adjacent Cell References

Microsoft Excel remains the indispensable tool for rigorous data analysis and manipulation. Central to its ability to streamline data auditing and enhance data visualization is Conditional Formatting (CF). While basic CF rules are simple, applying formatting based on the value of the cell itself, a far more dynamic and sophisticated capability is achieved when we utilize a custom formula. This technique allows us to format cells in one column based solely on the criteria met by data residing in an adjacent, or even non-adjacent, cell. This flexibility is paramount for creating responsive and informative spreadsheets.

To effectively implement these dynamic conditional formatting rules, the user must navigate past the preset rule types. Start by selecting the target range you wish to format. Then, proceed to the Home tab on the Excel ribbon, locate the Conditional Formatting dropdown menu within the Styles group, and select the New Rule option. This specific method opens the interface necessary for writing custom logic that evaluates conditions across your entire dataset, providing capabilities far beyond simple value comparisons.

The ability to conditionally format cells contingent upon data in an adjacent column is essential for robust data auditing, highlighting critical trends, and dramatically improving overall spreadsheet readability and user comprehension. By linking the visual presentation of one column to the criteria found in another, we transform static tables into intuitive, interactive data displays. We will explore this functionality through two distinct, highly practical scenarios illustrating both text and numeric comparisons:

• Scenario 1: Applying specialized conditional formatting based on a specific text value found within an adjacent column.

• Scenario 2: Applying conditional formatting based on a numeric threshold met by a corresponding value in an adjacent column.

Let us now delve into the precise steps required to implement these advanced, formula-driven formatting rules successfully.

Scenario 1: Formatting Based on Text Criteria in an Adjacent Cell

For our first demonstration, consider a typical dataset tracking basketball player statistics. This data includes the player’s Position in Column A and the Points they have scored in Column B. Our goal is to apply specialized formatting, such as a background fill, to the Points column (B) only when the corresponding Position column (A) contains the exact text value “Forward.” This visual distinction helps analysts quickly isolate and evaluate the performance metrics for players in that specific role.

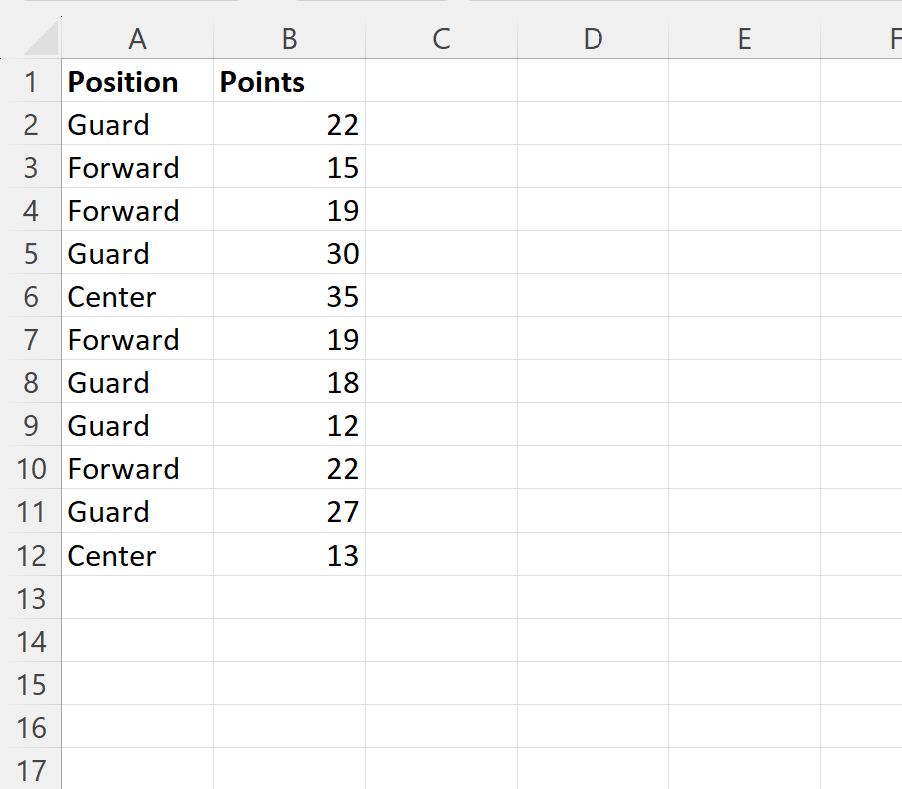

The foundational structure of the initial dataset is shown below. Notice the clear division into the categorical Position column and the quantitative Points column. The integrity of our conditional formatting depends on linking these two data points correctly, row by row.

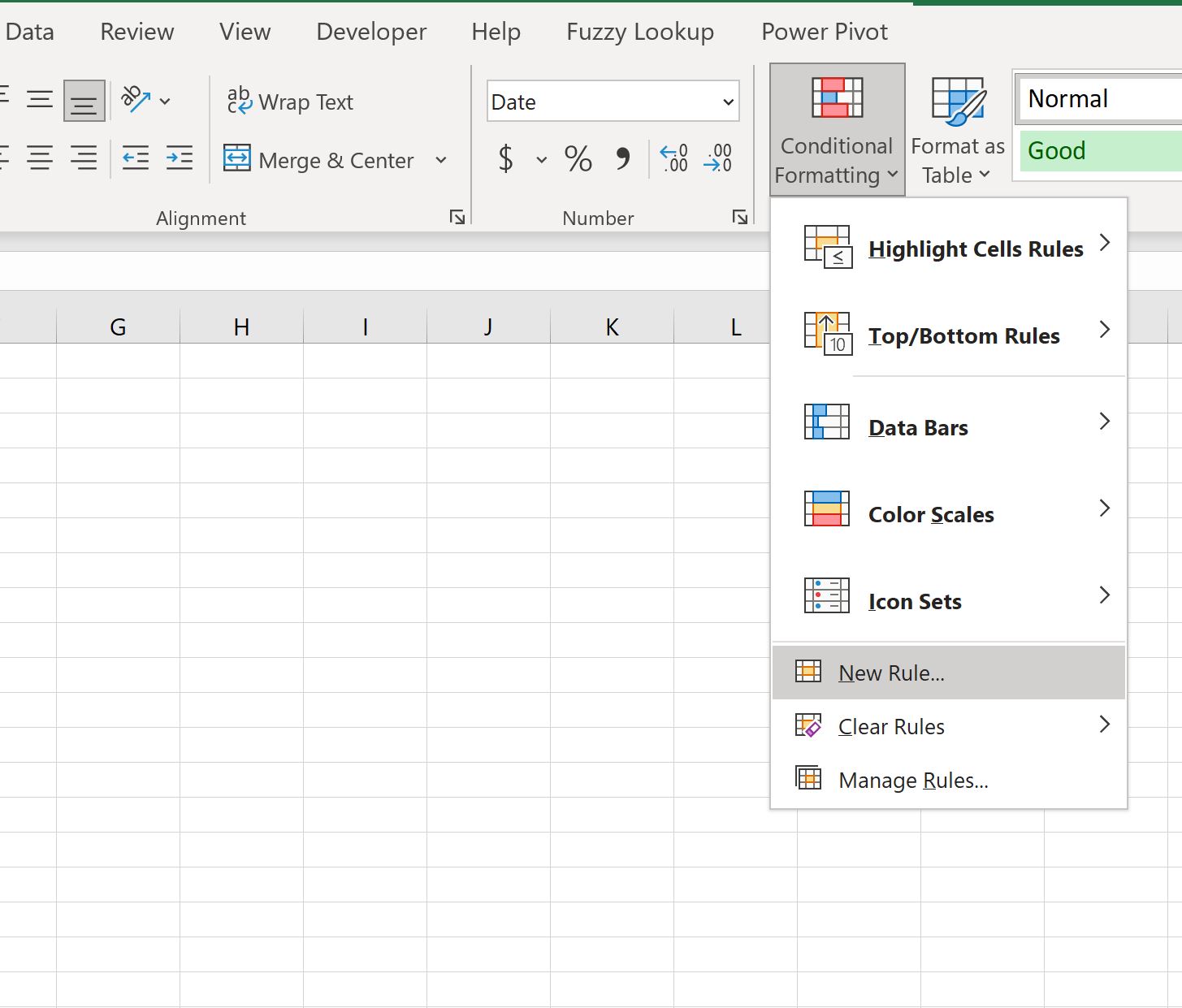

To begin, the first critical step is defining the target range for formatting. In this case, we must highlight the cells in the Points column, specifically the range B2:B12. Once the range is selected, navigate to the Home tab, click the Conditional Formatting dropdown menu, and then select New Rule. In the ensuing dialog box, select the option labeled Use a formula to determine which cells to format.

The formula we input must evaluate to a Boolean TRUE or FALSE result for the rule to function correctly. Since we are applying formatting to Column B but referencing the criteria in Column A, we must employ a specific reference type: the mixed reference.

Deconstructing the Mixed Reference Formula

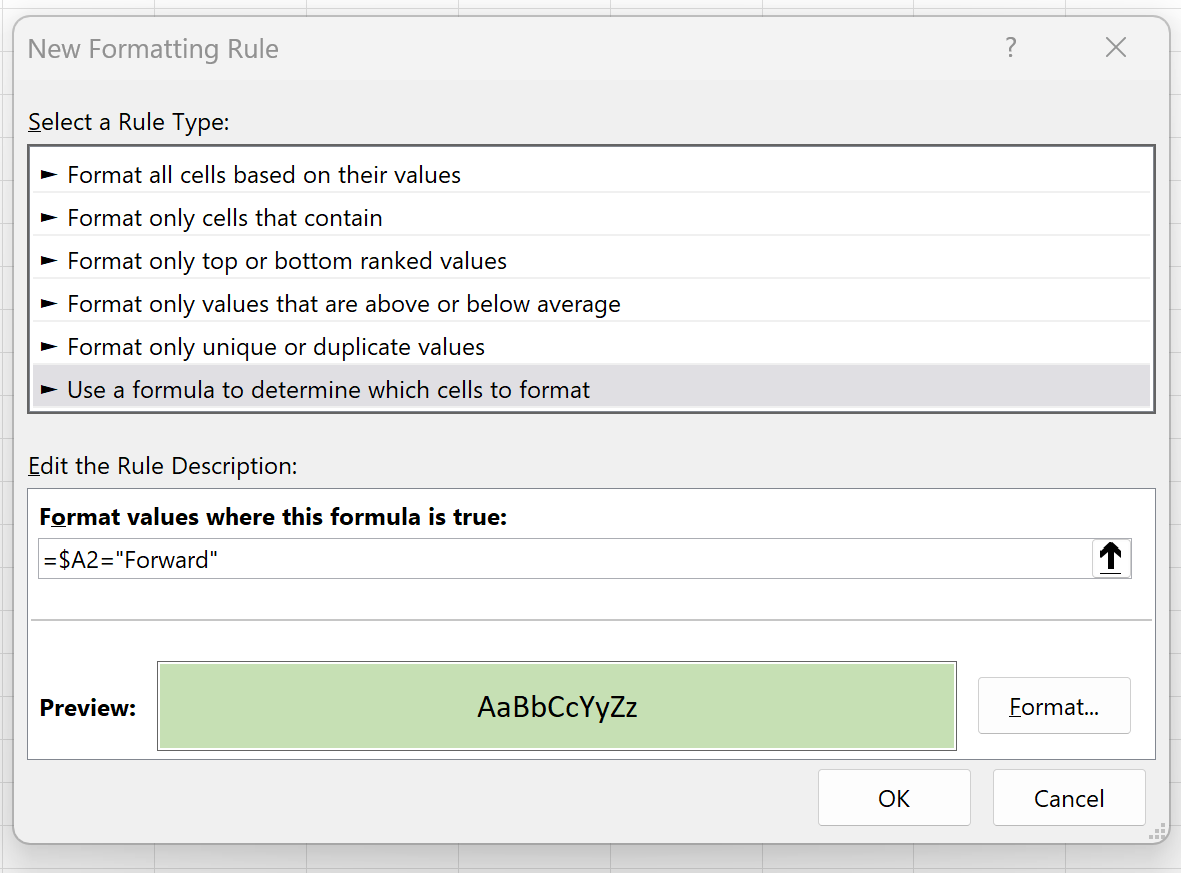

The core of this advanced technique involves creating a formula that references the first cell in the designated formatting range, but with its column reference adjusted to point to the adjacent criteria column. For this specific example, where formatting starts at B2 and checks A2, the correct formula to enter is: =$A2=”Forward”.

This formula must be entered into the rule box. Following its entry, click the Format button to select the desired visual style—such as a specific background fill color, a bold font, or custom borders—that will be applied when the condition is met.

The dollar sign preceding the column letter (the ‘A’) makes the column reference absolute. This is critical because it ensures that as Excel applies this rule down the rows of the selected range (B2, B3, B4, etc.), it will perpetually lock onto Column A for the condition check. Crucially, the row reference (the ‘2’) remains relative, meaning the row number automatically increments (A2, A3, A4, etc.) corresponding to the row being formatted. This structure, known as a mixed reference, is essential for applying a single rule across a large vertical range based on adjacent data.

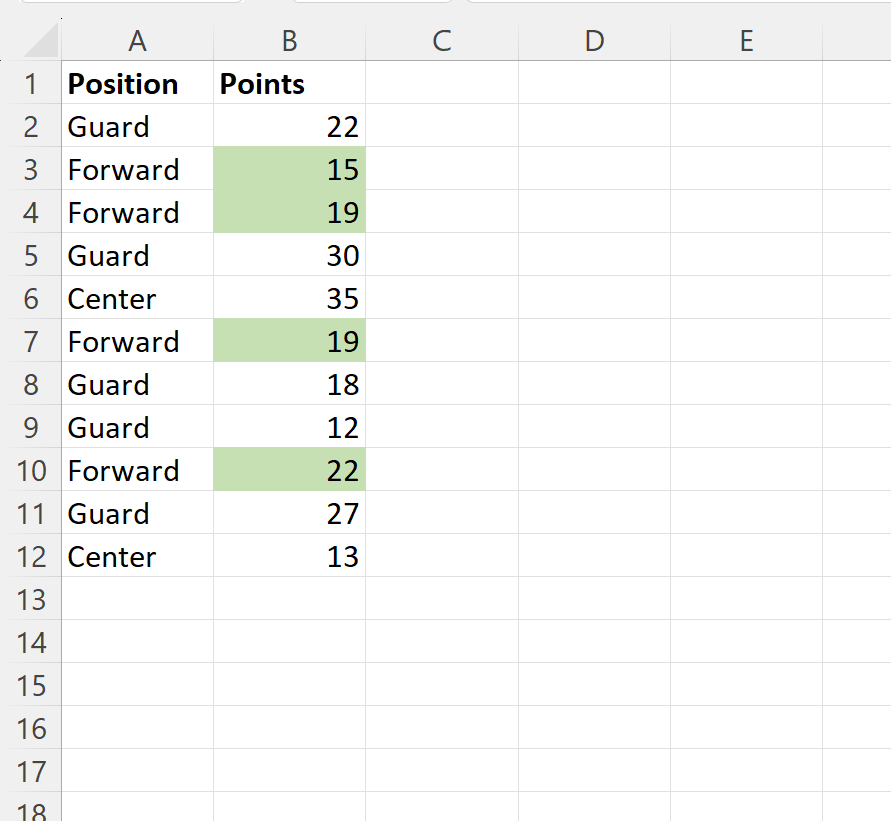

Once confirmed by pressing OK, the conditional formatting rule is instantly active. Every cell in the Points range (B2:B12) that corresponds to a row where the Position cell (A2:A12) is exactly equal to “Forward” will receive the specified highlighting, providing immediate visual feedback on the filtered subset of data.

Scenario 2: Formatting Based on Adjacent Numeric Thresholds

In the second scenario, we utilize the same dataset but invert both the objective and the target column. We now aim to apply conditional formatting to the Position column (Column A) based on a specific numeric threshold met by the adjacent Points column (Column B). Specifically, we want to highlight the position label of any player who achieved a score greater than 20 points.

As always, the first operational step is selecting the target range for formatting—this time, A2:A12. After selecting the range, navigate consistently through the ribbon menu: Home tab, Conditional Formatting, and New Rule. This consistent approach is key to applying all formula-based rules within Excel, regardless of the complexity of the condition.

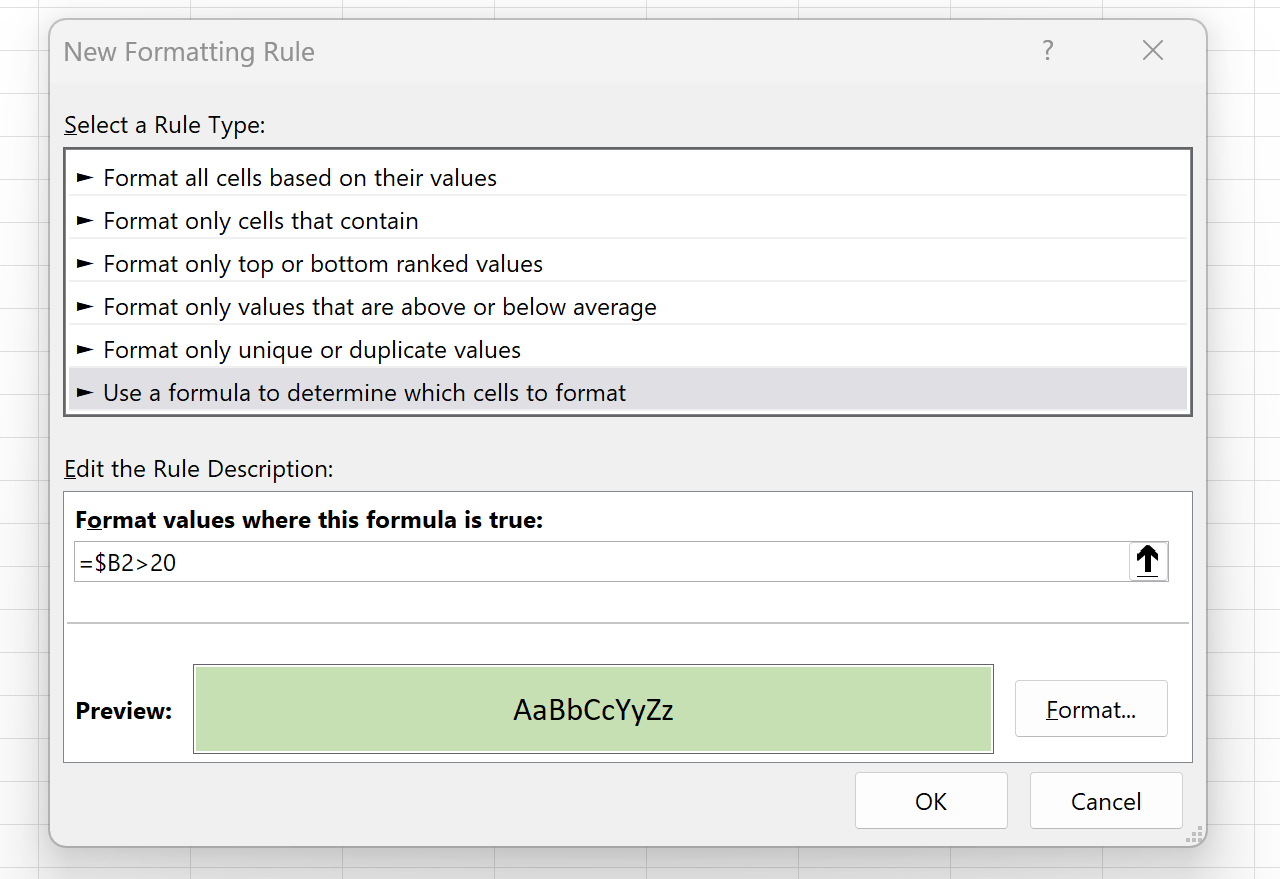

Within the New Rule window, select the option to Use a formula to determine which cells to format. The structure of the formula must again utilize a mixed reference. Since we are formatting Column A but checking the value in Column B, the formula must reference Column B absolutely and Row 2 relatively. The required formula is =$B2>20.

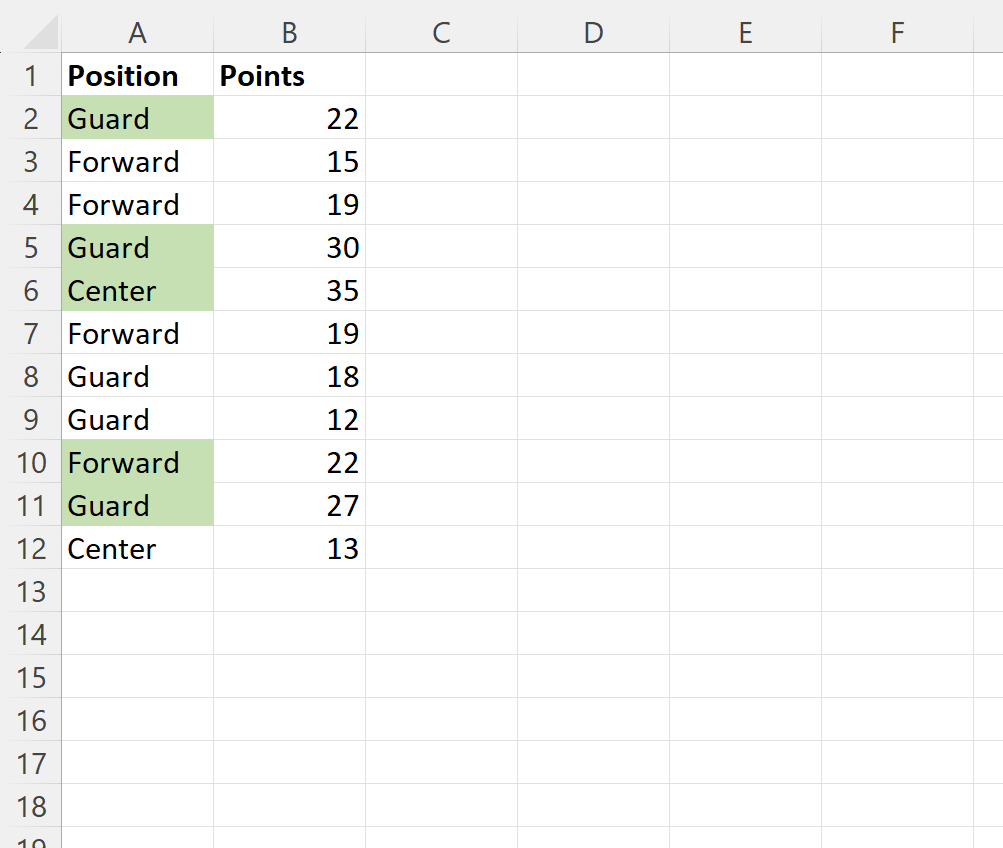

Type =$B2>20 into the formula box and select your desired formatting style using the Format button. The logic ensures that for cell A2 to be formatted, the value in B2 must meet the criteria (>20). When this rule is copied implicitly down to cell A3, it automatically checks B3, and so on, due to the relative row reference. Once the rule is accepted by clicking OK, Excel evaluates the condition for every cell in the selected range (A2:A12). Any position label associated with a score greater than 20 in the adjacent Points column (B2:B12) will be highlighted, allowing for immediate visual identification of high-scoring players.

Essential Best Practices for Formula-Based Formatting

When implementing complex conditional formatting using custom formulas, several best practices must be observed to ensure long-term accuracy and maintainability. Firstly, the selection of the initial range is paramount. Always select the entire range you intend to format before defining the rule. The formula you write must always reference the first cell in the selected range, regardless of where that range begins (e.g., if you select C5:C10, your formula should reference C5, or the adjacent cell relative to C5, like B5).

Secondly, be highly meticulous with your use of absolute and relative references. For adjacent cell comparisons, the mixed reference (e.g., `$A2` or `B$2`) is almost always required to fix one dimension (the column containing the criteria) while allowing the other (the row) to float. Errors in referencing can lead to the entire range being formatted based on a single, incorrect cell reference, negating the dynamic benefits of this feature.

Finally, utilize the Manage Rules dialog box, found under the Conditional Formatting menu, to review, edit, or prioritize multiple rules applied to the same range. If multiple rules overlap, Excel processes them in order, and the first rule that evaluates to TRUE will determine the final formatting unless the “Stop If True” option is checked. While we chose simple fill colors, remember you can customize the formatting significantly using borders, font colors, and other styling options to maximize visual impact and data interpretation.

Expanding Your Data Analysis Skills

The successful implementation of formula-based conditional formatting, especially when referencing adjacent cells using mixed references, is a foundational skill for advanced data analysis. This core competency allows for the automation of complex highlighting tasks, significantly boosting efficiency and reducing the manual effort required when auditing large datasets. To continue advancing your proficiency in data management and presentation, consider exploring related operations that complement this powerful formatting technique.

The following tutorials and concepts provide further instructional pathways for leveraging Excel’s capabilities for complex analytical tasks and enhanced data visualization:

• Understanding and utilizing named ranges effectively within complex formulas to improve readability and maintainability.

• Creating dynamic charts and visualization tools that automatically update based on conditional criteria.

• Mastering advanced data validation techniques to ensure data integrity across your worksheets.
