Understanding and Applying Conditional Formatting to Formula-Based Cells in Excel

Introduction to Conditional Formatting and Dynamic Data Auditing

Effective spreadsheet management hinges on the ability to rapidly identify the internal structure and data derivation methods within a workbook. In Excel, understanding whether a cell holds a static input value or a dynamic, calculated formula is not just helpful—it is absolutely paramount for quality assurance, efficient troubleshooting, and maintaining overall data integrity. As spreadsheets scale in complexity, manual auditing becomes impossible. Fortunately, Excel offers a powerful, automated solution for this challenge: Conditional Formatting. This sophisticated feature empowers users to apply specific visual styles—such as background colors, customized borders, or specialized font treatments—to cells that satisfy predefined logical criteria.

To specifically target and highlight cells containing calculations, we must employ a specialized rule type within the Conditional Formatting framework: the formula-based rule. This approach moves beyond simple value comparisons—such as checking if a number is greater than zero or if a cell contains specific text—and instead utilizes a precise logical function designed solely to examine the cell’s underlying content type. This precise method is initiated by accessing the New Rule option, which is conveniently located within the Conditional Formatting dropdown menu on the Home tab of the Excel ribbon. Leveraging this capability transforms a static, opaque dataset into a dynamic, visually intuitive audit mechanism, ensuring that even the most complex models remain transparent and fully auditable.

The cornerstone of this detection method is the ISFORMULA function. This dedicated logical function, introduced in modern versions of Excel, is purpose-built for structural analysis. When embedded within a Conditional Formatting rule, the function evaluates a specified cell reference and yields a simple boolean output: it returns TRUE if the cell contains a formula, and FALSE if it does not. Because Conditional Formatting automatically triggers the specified format whenever the rule evaluates to TRUE, we gain instantaneous visual feedback on the structural composition of our selected data range. The following sections will provide a detailed, step-by-step guide on implementing this critical technique, using a practical example to demonstrate its utility and efficiency in data analysis and spreadsheet maintenance.

The Crucial Distinction: Why Formula Detection Matters

In sophisticated financial modeling and large-scale data reporting, the line between hard-coded inputs and calculated outputs can become dangerously blurred. This ambiguity is a primary source of error when workbooks are modified or updated. Hard-coded values represent static user entries or assumptions, which remain constant unless manually changed. In contrast, cells containing formulas are inherently dynamic; they automatically refresh and update their results whenever their precedent cells are altered. Auditing a complex spreadsheet demands stringent verification that essential inputs are not inadvertently overwritten by dynamic calculations, and conversely, that calculated fields are not replaced by static numerical values, which would instantly destroy the underlying logical integrity of the model.

Visual differentiation, achieved through targeted Conditional Formatting, provides an essential layer of safety, transparency, and structure. By applying a distinct highlight to all cells that contain a formula, users can immediately identify calculated fields, which dramatically simplifies the process of tracing data dependencies and performing comprehensive structural reviews. Imagine a scenario involving a worksheet spanning thousands of rows and dozens of columns; manually inspecting each cell by clicking into the formula bar to check for the equals sign (`=`) is not only impractical but highly susceptible to human error. The automation provided by the ISFORMULA function ensures this audit is instantaneous and exhaustive, visually mapping every calculated cell within the defined range, regardless of the complexity or depth of the calculation logic.

Moreover, this technique is invaluable in collaborative environments. When multiple team members are working on a shared document, the immediate visual cues generated by the formula-based formatting rule act as a warning system, preventing a colleague from accidentally deleting a critical calculation or replacing it with a static figure. This proactive approach supports robust data governance and ensures that the core computational integrity of the spreadsheet remains secure. The true strength of applying Conditional Formatting in this manner lies in its non-invasive nature: it modifies the appearance of the data to convey structural information without ever altering the underlying data or the formulas themselves.

Step-by-Step Data Preparation for Formula Highlighting

To effectively demonstrate this powerful process, we will walk through a practical example using a typical dataset: tracking basketball player performance statistics. Our objective is twofold: first, to calculate a derived metric, Points per Minute, and second, to visually separate these derived, calculated values from the initial, hard-coded input data. We begin with a standard raw data structure in Excel that details the essential statistics, such as Points Scored and Minutes Played, for several athletes. This initial dataset forms the stable foundation upon which our dynamic calculation will be built, providing a clear demarcation between input values and calculated outputs.

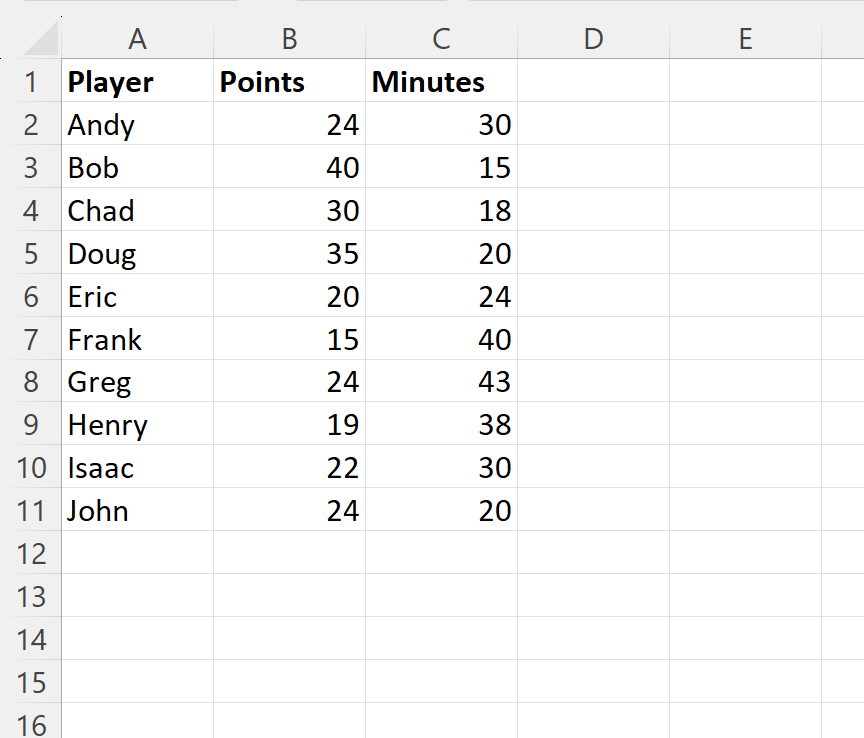

The structure of our example worksheet includes columns for player identifiers (Column A: Player Name), static numerical inputs (Column B: Points, Column C: Minutes Played), and a dedicated column for the calculated field (Column D: Points per Minute). Maintaining logical data organization is essential, as this arrangement directly influences the selection of the range to which we will apply our Conditional Formatting rule. The image below illustrates our structured starting dataset, which is ready for the introduction of the dynamic calculation.

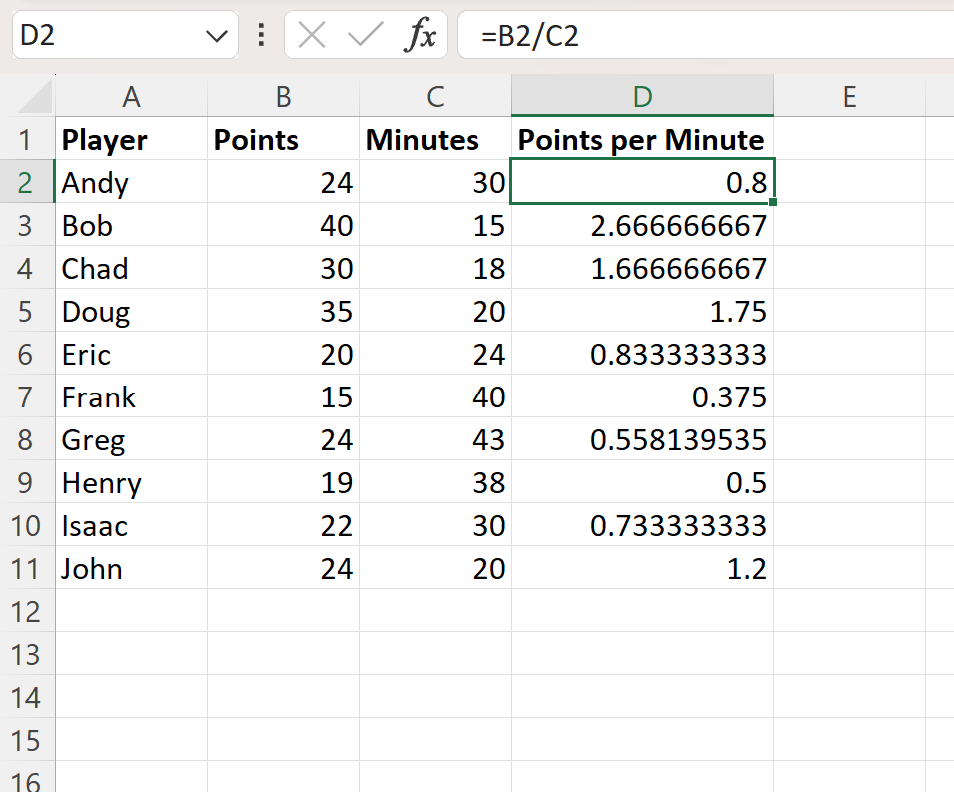

Our next step is establishing the calculated field, Points per Minute, which requires a straightforward division formula. We initiate this by entering the necessary calculation into the first data cell of the new column, specifically cell D2. This formula is designed to divide the corresponding value in the Points column (B2) by the value found in the Minutes Played column (C2). This initial entry is crucial because it serves as the progenitor formula that will be propagated down the column, thereby generating the series of formula-driven cells that we intend to highlight.

=B2/C2

Once the formula is correctly entered in D2, we utilize the standard Excel function of clicking and dragging the fill handle down to populate the remaining cells in column D (extending down to D11). This efficient action automatically adjusts the relative cell references (B2 and C2, which become B3/C3, B4/C4, and so forth) for each subsequent row, accurately calculating the Points per Minute for every player in the dataset. At this juncture, column D is entirely populated by dynamic formulas, while columns A, B, and C contain static, hard-coded inputs (text and numbers). This completed setup provides the ideal environment for applying our formula detection rule, as detailed in the next section.

Implementing the ISFORMULA Function Rule for Highlighting

With our data correctly structured and the calculated column in place, the pivotal next step is the implementation of the Conditional Formatting rule utilizing the ISFORMULA function. This constitutes the core technical execution of the entire highlighting process. We begin by meticulously selecting the entire range of data that needs to be evaluated for the presence of dynamic formulas. In this specific basketball example, the comprehensive range extends from cell A2 (the first player name) down to D11 (the final calculated Points per Minute value). Selecting this broad range ensures that both the input columns (A, B, C) and the output column (D) are subjected to the same standardized evaluation rule.

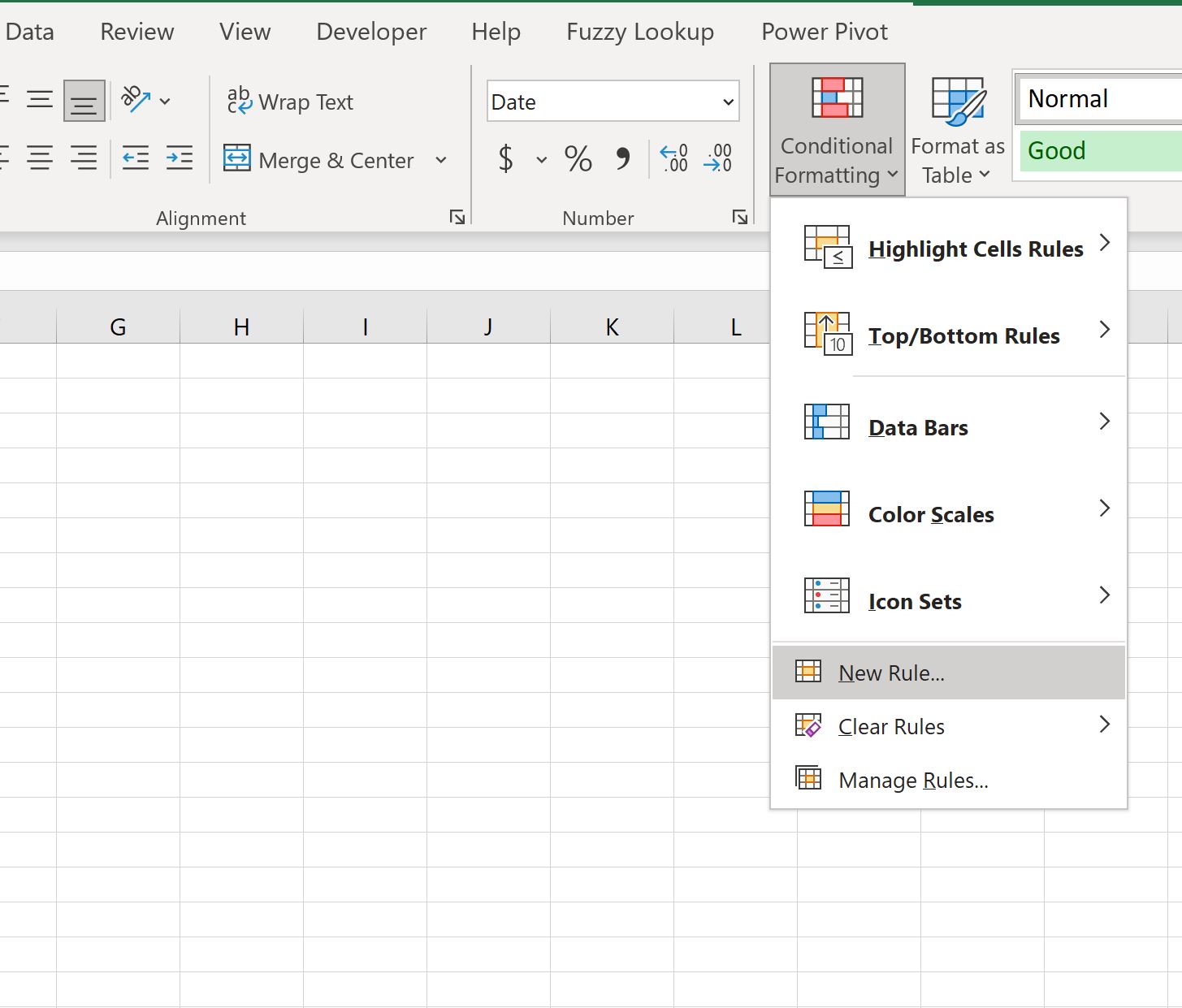

Once the range A2:D11 is highlighted, navigate to the Home tab on the Excel ribbon. Locate the Styles group and click on the Conditional Formatting dropdown menu. From the subsequent list of options, select New Rule…. This action initiates the “New Formatting Rule” dialog box, which is where we will define the exact criteria for formula detection. It is crucial to select the rule type titled Use a formula to determine which cells to format, as this option permits the input of custom, logical formulas as criteria.

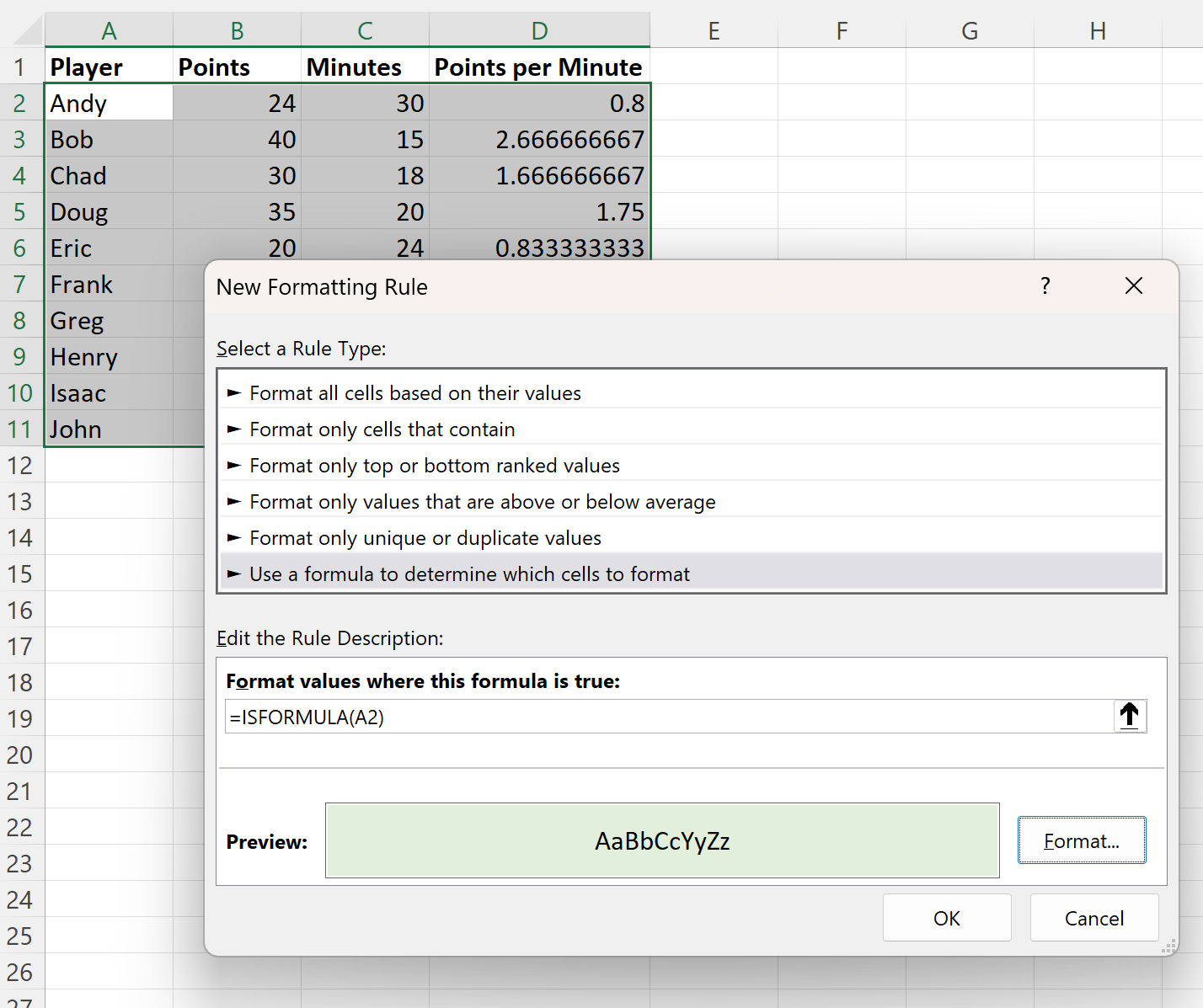

In the designated input box for the formula, we enter the following precise expression: =ISFORMULA(A2). A critical aspect to note here is the cell reference used. Although our selected range is A2:D11, the formula must reference the top-left cell of the selected range (A2), and it must be entered using a relative reference—that is, without the absolute reference dollar signs ($). Conditional Formatting is designed to automatically copy this relative reference across the entire selected range. It evaluates A2 against the rule, then B2, C2, D2, A3, B3, and so on, testing every single cell for the presence of a formula.

After entering the ISFORMULA function, proceed by clicking the Format… button. This opens the “Format Cells” dialog, enabling the user to specify the desired visual style that will be applied when the condition (the presence of a formula) is successfully met. This customization is vital for readability and immediate audit clarity; users typically choose a specific fill color, font style, or border. Once the preferred formatting is selected, click OK to close the Format Cells dialog, and then OK again to finalize and apply the New Formatting Rule. The immediate consequence of this application is a visual transformation of the spreadsheet, clearly highlighting all cells that contain a dynamic calculation while leaving the static input cells untouched.

Diving Deeper into the ISFORMULA Function Mechanics

The profound effectiveness of this formula detection technique relies entirely upon the specialized capability of the ISFORMULA function. This function is formally classified as an “Information” function within Excel, which means its singular purpose is to extract and return information about the characteristics of a referenced cell, rather than processing its data value. Unlike standard calculation functions (like SUM or AVERAGE) or logical functions that evaluate cell contents (like IF), ISFORMULA looks exclusively at the cell’s underlying structural composition.

The function’s syntax is remarkably simple: ISFORMULA(reference), where reference points to the cell or range undergoing the structural check. The output is a definitive boolean result: TRUE is returned if the cell’s content begins with an equals sign (`=`) and represents a valid calculation structure, and FALSE is returned if the cell contains a hard-coded value, generic text, a raw number, or is simply empty. When deployed within the context of Conditional Formatting, this TRUE/FALSE outcome directly controls whether the formatting rule is activated and the corresponding visual style is applied.

The specific utility of ISFORMULA in auditing workflows cannot be overstated. Before its native inclusion, programmatically detecting formulas demanded complex and often unstable workarounds, such as relying on legacy macro functions (like GET.CELL) or requiring the development of custom User Defined Functions (UDFs) written in VBA. The integration of ISFORMULA into modern Excel environments streamlines this entire auditing process, making sophisticated structural analysis accessible to all general users without the need for specialized programming expertise. As a result of our applied rule, only the calculated values in column D are highlighted, providing visual proof that the function successfully and precisely ignored the static inputs in columns A, B, and C.

Advanced Applications and Formatting Best Practices

Beyond simple data auditing, applying Conditional Formatting based on the ISFORMULA function supports several highly practical and advanced use cases. A common and essential application involves clearly differentiating between areas designated for user inputs and those containing system outputs within complex financial models. By setting a strong, instantly recognizable format—such as a light blue background fill or a distinct dotted border—for all formula-driven cells, model builders create an unambiguous visual map. This map intuitively guides users toward the authorized input sections, significantly mitigating the risk of accidental corruption of the model’s core logic. This practice is so effective that it is frequently mandated in environments requiring standardized financial reporting.

Another sophisticated application involves combining ISFORMULA with other logical functions to construct highly specific and targeted rules. For instance, a user might need to highlight only those formulas that currently return an error value (e.g., #DIV/0!, #VALUE!). This is readily achievable by nesting the ISFORMULA function within a robust logical structure, such as an AND statement, alongside an error-checking function like ISERROR. The resulting Conditional Formatting rule would look similar to =AND(ISFORMULA(A2), ISERROR(A2)). This rule would only format cells that satisfy two criteria simultaneously: containing a formula AND resulting in an error, providing immediate visual diagnostics essential for debugging.

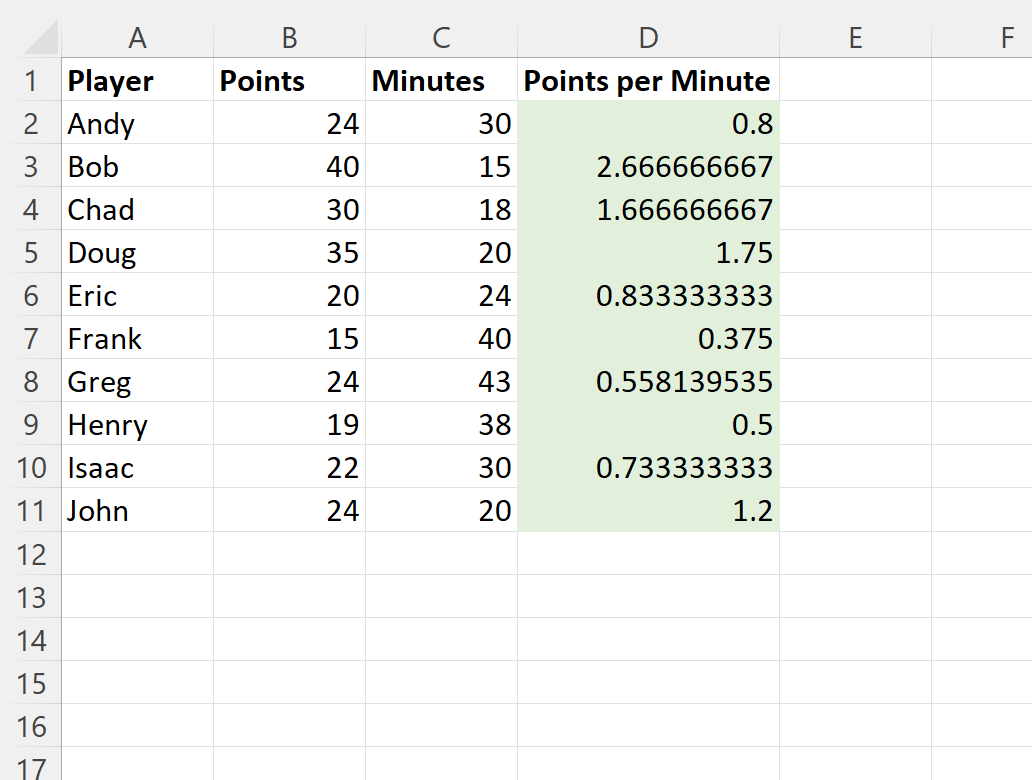

When selecting the appropriate formatting style, it is a best practice to choose a color that offers a clear contrast against the standard Excel background but avoids being overly distracting. A subtle fill color, such as the pale green utilized in our example, is generally preferred over bright, highly saturated colors. The goal is to provide a gentle, structural indicator rather than a jarring alert. Users have complete customization control and can define any color and style suitable for their specific auditing or modeling needs. Furthermore, effective management of these rules is crucial; always use the Manage Rules… option within the Conditional Formatting menu to confirm that the rule applies to the correct range and maintains the desired priority, especially when multiple overlapping formatting rules are active on the same cells.

Conclusion and Further Exploration

The ability to dynamically highlight cells based on their structural content—specifically, whether they contain a formula—is an indispensable structural auditing tool within Excel. By expertly integrating the ISFORMULA function within the powerful Conditional Formatting framework, users gain immediate visual clarity regarding data dependencies and calculation flows. This technique is fundamentally essential for preserving data integrity, significantly streamlining collaborative efforts, and accelerating the debugging process in large and complex spreadsheets, thereby ensuring that financial models and analytical reports remain both reliable and transparent.

As demonstrated throughout this guide, the implementation process is highly streamlined: first, define the target range; second, access the New Rule option via the Conditional Formatting menu on the Home tab; third, input the relative reference formula =ISFORMULA(A2); and finally, select a distinctive format. This concise set of actions transforms the spreadsheet from a static collection of data into a fully dynamic and structurally aware analytical environment.

For professionals aiming to maximize their proficiency in data manipulation and auditing within Excel, it is highly recommended to continue exploring additional advanced Conditional Formatting rules and other information functions. Mastering these integrated tools ensures that your data analysis practices are not only highly efficient but also robustly error-resistant.
