Learning to Apply Multiple Filters in Excel Pivot Tables

Introduction to Enhanced Pivot Table Filtering

Microsoft Excel is an indispensable tool for data analysis, and its Pivot Table feature stands out for its ability to summarize and analyze large datasets efficiently. However, users often encounter a seemingly restrictive default behavior: Excel typically allows only one filter per field within a Pivot Table. This limitation can hinder complex data analysis scenarios where multiple criteria need to be applied simultaneously to a single field.

Imagine you need to identify products whose names contain “shirt” AND whose total sales exceed a specific value. Under the default settings, applying the second filter would typically remove the first, forcing you to choose between your criteria. This article will guide you through a simple yet powerful adjustment to your Pivot Table settings, enabling you to apply multiple filters to a single field simultaneously. This capability significantly enhances your ability to perform granular and precise data analysis within Excel.

The key to unlocking this functionality lies within the PivotTable Options. By making a quick change to a specific setting, you can transform how your Pivot Table handles filters, allowing for more sophisticated and layered data exploration. Let’s dive into an example to illustrate this process effectively.

Understanding Excel’s Default Filtering Behavior

Before we adjust the settings, it is important to first understand how Excel‘s Pivot Tables manage filters by default. Typically, when you apply a new filter to a field that already has one, the existing filter is replaced. This behavior ensures that only one filtering condition is active at a time for each specific field. While this can simplify basic data analysis, it often falls short when dealing with more intricate filtering requirements.

Consider a scenario where you have a Pivot Table displaying total sales for various products, as shown below:

If you initially apply a Label Filter to display only rows that contain “shirt” in the product name, the Pivot Table will update accordingly. However, if you subsequently try to apply a Value Filter, for instance, to show only products where the sum of sales is greater than 10, the Pivot Table will remove the “shirt” Label Filter and apply only the “sales greater than 10” Value Filter. This behavior, while logical in a single-filter context, presents a challenge when you need to combine multiple criteria within the same field.

Enabling Multiple Filters per Field in Pivot Tables

To overcome the default limitation and enable your Pivot Table to handle multiple filters simultaneously for a single field, you need to adjust a setting within the PivotTable Options. This is a crucial step for anyone looking to perform more sophisticated data analysis and create dynamic reports.

The process involves accessing the PivotTable Options dialog box, which provides various customization settings for your Pivot Table. Once there, navigate to the Totals & Filters tab. Within this tab, you will find a checkbox labeled Allow multiple filters per field. Checking this box will alter the default behavior, allowing you to layer multiple filters on a single field without automatically removing previous ones.

This simple configuration change is foundational for advanced filtering techniques. By enabling this option, you are essentially telling Excel to treat each new filter as an additional criterion rather than a replacement. This opens up possibilities for much more precise and nuanced data segmentation, which is often critical for detailed business intelligence and reporting.

Step-by-Step Guide: Applying Multiple Filters to Excel Pivot Table

Let’s walk through the exact steps to enable and apply multiple filters to a field in an Excel Pivot Table, using our sales data example.

Initial Pivot Table Setup

Begin with your Pivot Table already created and populated with your data. For this example, we’re working with a Pivot Table that summarizes the total sales for various products, as depicted here:

Applying the First Filter (Label Filter)

First, let’s apply a Label Filter to narrow down our product list. Click the dropdown arrow next to Row Labels in your Pivot Table. From the menu that appears, hover over Label Filters, and then select Contains.

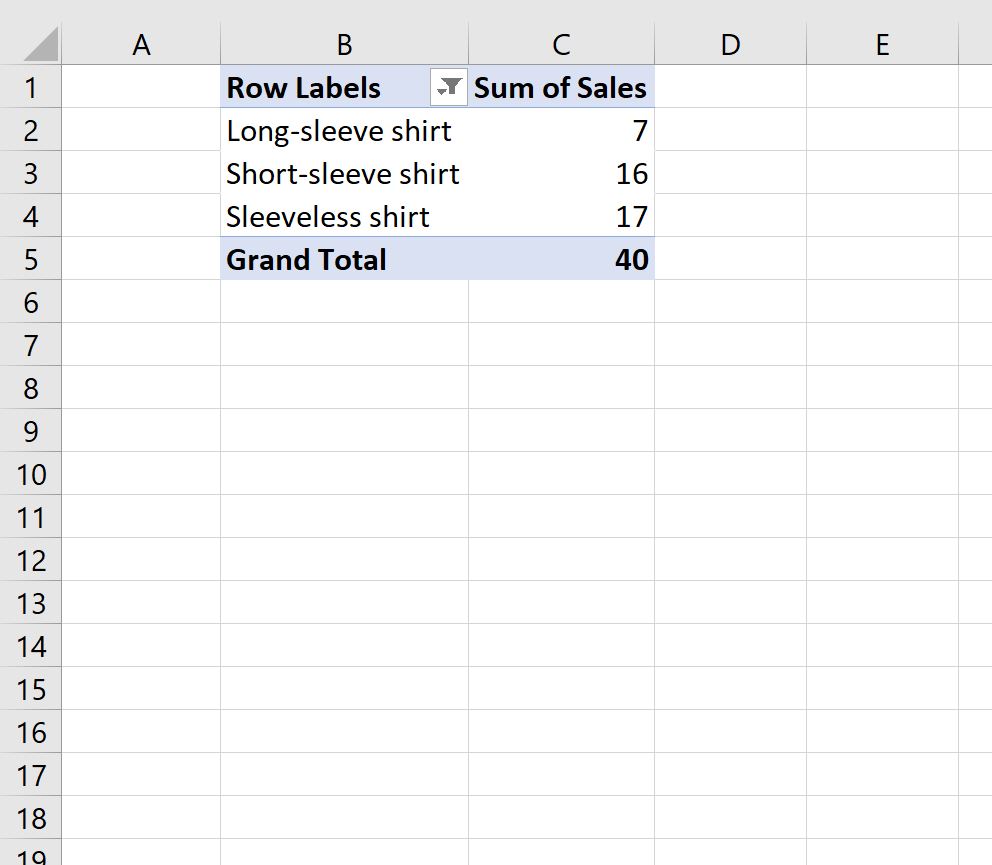

In the subsequent dialog box, enter “shirt” into the text field and click OK. This action will filter the Pivot Table to show only products whose names contain the word “shirt.”

Attempting a Second Filter (Value Filter) and Observing Default Behavior

Next, let’s try to add a Value Filter. Click the dropdown arrow next to Row Labels again, hover over Value Filters, and choose Greater Than.

In the dialog box, specify that you want to filter for items where the sum of sales is greater than 10, then click OK.

Observe the Pivot Table. You will notice that the previous Label Filter (containing “shirt”) has been removed, and only the Value Filter (sales greater than 10) is active. This confirms Excel‘s default behavior of allowing only one filter per field.

Enabling Multiple Filters via PivotTable Options

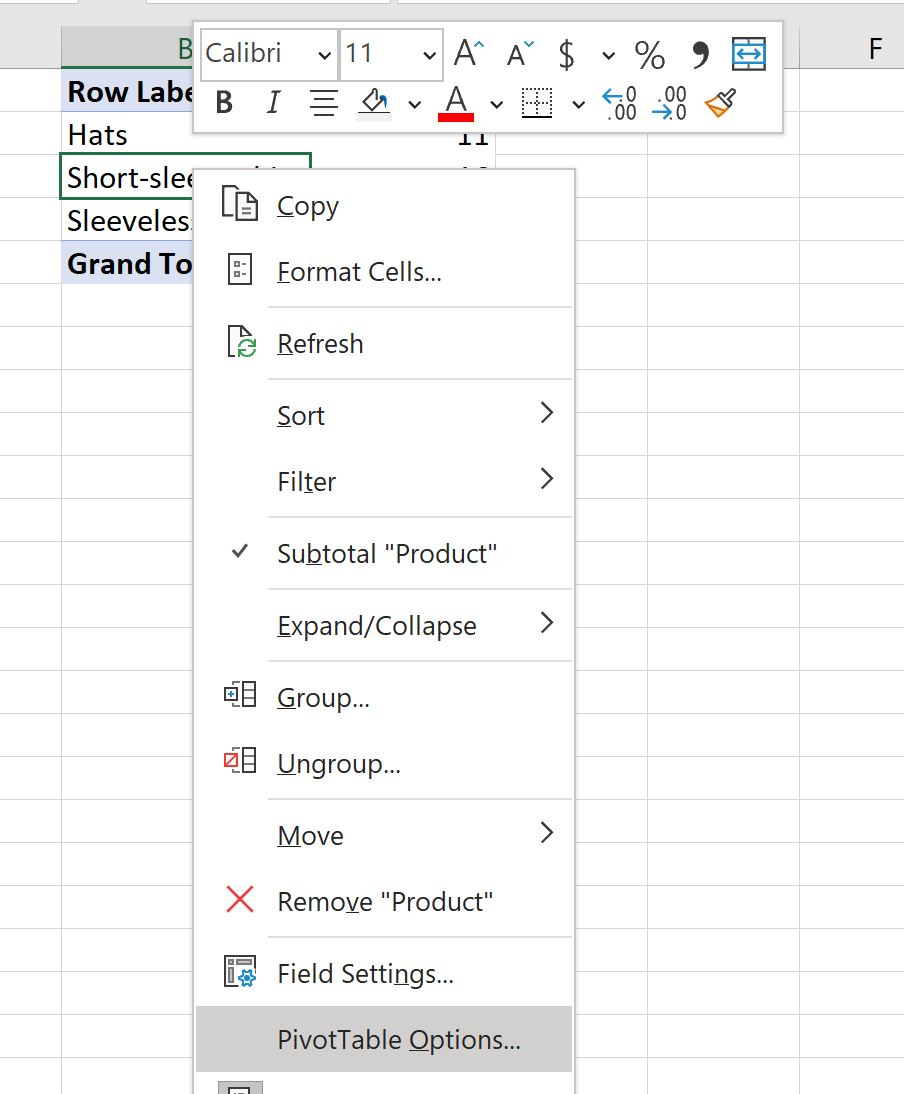

Now, let’s enable the multiple filters option. Right-click anywhere on your Pivot Table to open the context menu. Select PivotTable Options.

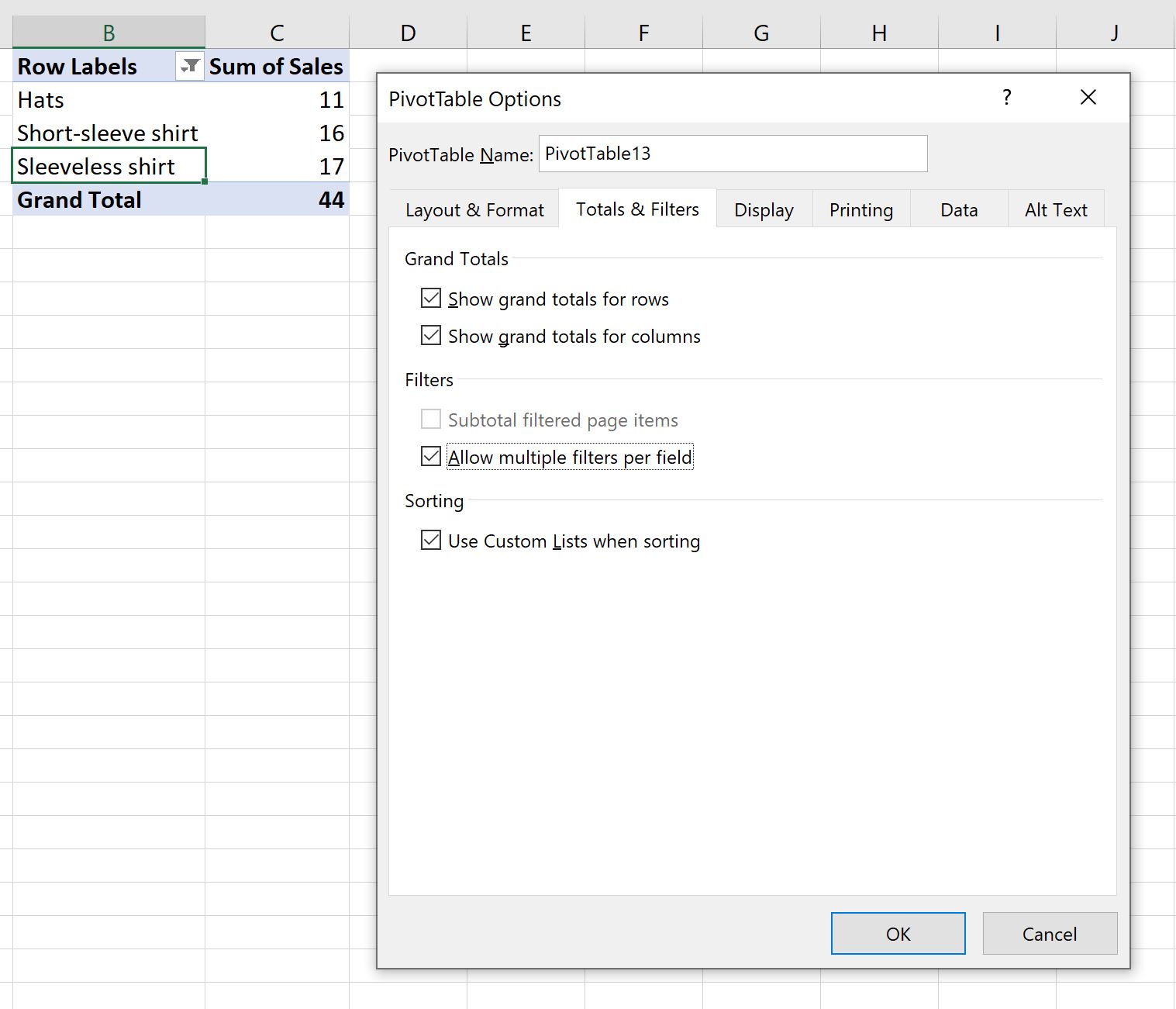

In the PivotTable Options dialog box that appears, click on the Totals & Filters tab. Locate and check the box next to Allow multiple filters per field. After checking the box, click OK to apply the changes.

Re-applying Filters with Multiple Filters Enabled

With the setting changed, let’s re-apply our filters. First, re-apply the Label Filter for rows containing “shirt” as you did previously. Then, proceed to apply the Value Filter for sales greater than 10.

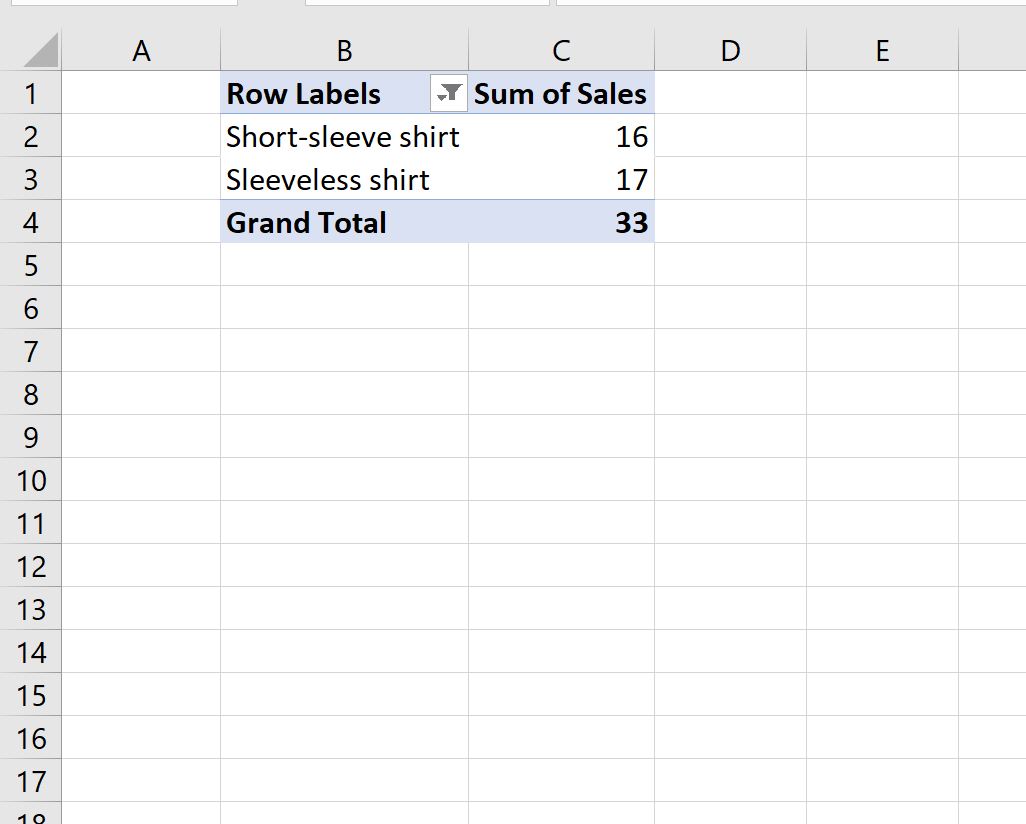

You will now observe that both the Label Filter and the Value Filter are active simultaneously on the same field. The Pivot Table will display only those products that meet both criteria: containing “shirt” in their name AND having total sales greater than 10.

This demonstrates the successful application of multiple filters to a single field, providing a more refined and specific view of your data.

Benefits of Using Multiple Filters in Pivot Tables

The ability to apply multiple filters to a single field in an Excel Pivot Table offers significant advantages for data analysis and reporting. This enhanced flexibility allows for deeper insights and more precise data segmentation, which is crucial for informed decision-making.

• Increased Precision in Data Segmentation: By combining Label Filters and Value Filters, or even multiple instances of the same filter type, you can isolate specific subsets of data that meet complex criteria. This goes beyond simple filtering, allowing you to create highly targeted views of your information.
• Enhanced Reporting Capabilities: For business intelligence professionals and analysts, this feature means generating more granular and meaningful reports. You can easily highlight trends or anomalies within specific segments of your data, providing stakeholders with clearer and more actionable insights.
• Greater Flexibility for Ad-Hoc Analysis: When conducting exploratory data analysis, the ability to rapidly apply and combine various filters without losing previous selections streamlines the investigative process. This allows for quick iteration and hypothesis testing, leading to faster discovery of key patterns or issues.

For instance, you might filter a list of customers to show only those located in “California” (a Label Filter) AND whose average purchase value is above $100 (a Value Filter). This level of detailed filtering is essential for tasks like market segmentation, performance evaluation, and identifying specific operational bottlenecks.

Conclusion and Additional Resources

Mastering the art of applying multiple filters to a single field in Excel Pivot Tables is a valuable skill that significantly enhances your data analysis capabilities. By simply enabling the “Allow multiple filters per field” option within PivotTable Options, you unlock a new dimension of precision and flexibility in examining your data. This functionality empowers you to ask more complex questions of your datasets and receive more accurate, detailed answers, leading to better insights and more informed decisions.

We encourage you to experiment with different combinations of filters and explore how this feature can be tailored to your specific analytical needs. The ability to layer criteria on a single field is a testament to the depth of functionality available in Excel for advanced users.
