Excel: Autofill Values from Another Sheet

The following step-by-step example provides a detailed guide on how to efficiently and accurately Autofill values by establishing dynamic cross-sheet references within a single Microsoft Excel workbook. This technique is indispensable for maintaining data consistency across different analytical views.

Introduction to Cross-Sheet Data Management in Excel

Managing large datasets in Excel often requires referencing information stored across multiple separate worksheets within the same workbook. This technique is fundamental for creating consolidated reports, performing complex calculations, or ensuring data integrity where source information must remain distinct from analytical views. The process of linking values ensures that any updates made to the primary source sheet are instantly reflected in the destination sheet, eliminating manual data entry and significantly reducing the likelihood of errors. Mastering this simple yet powerful cross-sheet referencing method is a critical skill for any serious Excel user aiming for efficiency and accuracy in their data handling processes.

The specific scenario we address here involves the straightforward necessity of pulling a column of data from one location—designated as Sheet1—and automatically populating it into a corresponding column in a secondary location, Sheet2. While advanced functions like VLOOKUP or INDEX/MATCH are often employed for conditional lookups, simple direct referencing is the quickest and most efficient way when the row order between the source and destination sheets is identical. This method capitalizes on Autofill capabilities, allowing users to establish one link and then apply that relationship across hundreds or thousands of rows instantaneously.

Before proceeding with the implementation, it is important to understand the concept of absolute versus relative cell references. When we link data between sheets and use the Autofill feature, Excel automatically adjusts the row numbers (relative references) to match the new row in the destination sheet. For instance, if the initial link points to B2 on Sheet1, Autofilling down the column will sequentially update the reference to B3, B4, and so forth. This dynamic adjustment is precisely what enables the rapid population of an entire column based on a single initial formula, streamlining the data aggregation process within your workbook.

Preparing the Source Data: Defining Sheet1

The first step in any data transfer operation is ensuring the source data is correctly structured and readily accessible. For this demonstration, we will begin by establishing our primary data table within Sheet1. This sheet will contain the original, authoritative set of information that we intend to reference in subsequent calculations or reports residing in Sheet2. It is essential that the data headers are clear, and the necessary values are contained within a contiguous range of cells, facilitating easy reference.

For our specific example, we are generating a simple table detailing employee names and their corresponding performance scores, labeled as “Points.” The structure must be precisely laid out to match the references used in the linking formula. Specifically, the Points data, which is our target for transfer, must be identified by its exact column letter and row number. In the setup below, the points begin in column B, row 2 (B2).

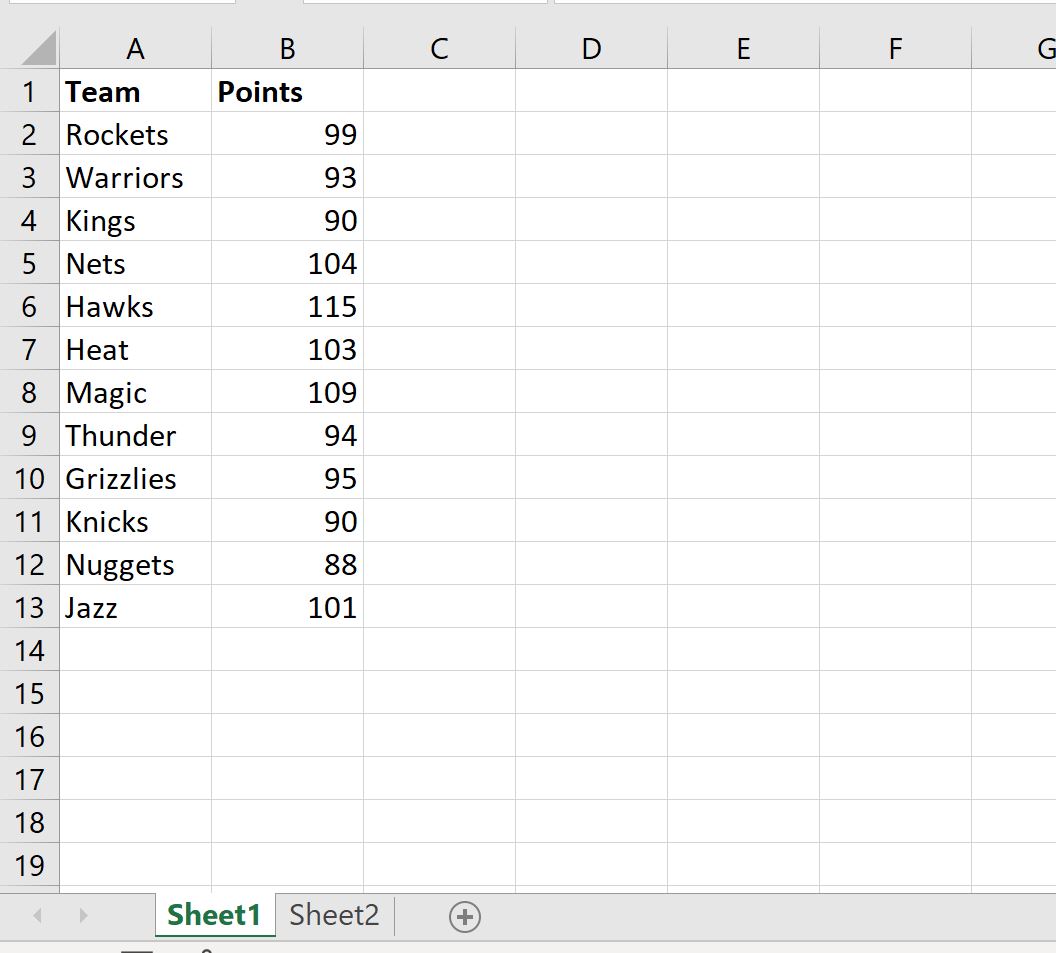

Please enter the following sample data into Sheet1 of your Microsoft Excel workbook. Note the clear separation between the descriptive identifier (Names) and the numerical values (Points). This sheet acts as the single source of truth for the scores we are about to pull into the secondary sheet.

The Core Mechanism: Referencing External Sheets

Before we execute the Autofill process, we must first construct the linking formula itself. Understanding the syntax for cross-sheet references is crucial, as it deviates slightly from standard in-sheet formulas. The standard format requires specifying the worksheet name, followed immediately by an exclamation mark (the sheet reference operator), and then the specific cell coordinates you wish to retrieve. This structure clearly instructs Excel exactly where to look for the desired value within the overall workbook environment.

Our objective is to extract the Point value located in Sheet1!B2. We must therefore navigate to the destination worksheet, Sheet2, where we have prepared a structure ready to receive this information. Suppose Sheet2 already contains some preliminary data, perhaps identifiers or categories, and we need to append the corresponding Points column. This scenario highlights the utility of cross-sheet linking, enabling the seamless integration of different data components spread across the workbook.

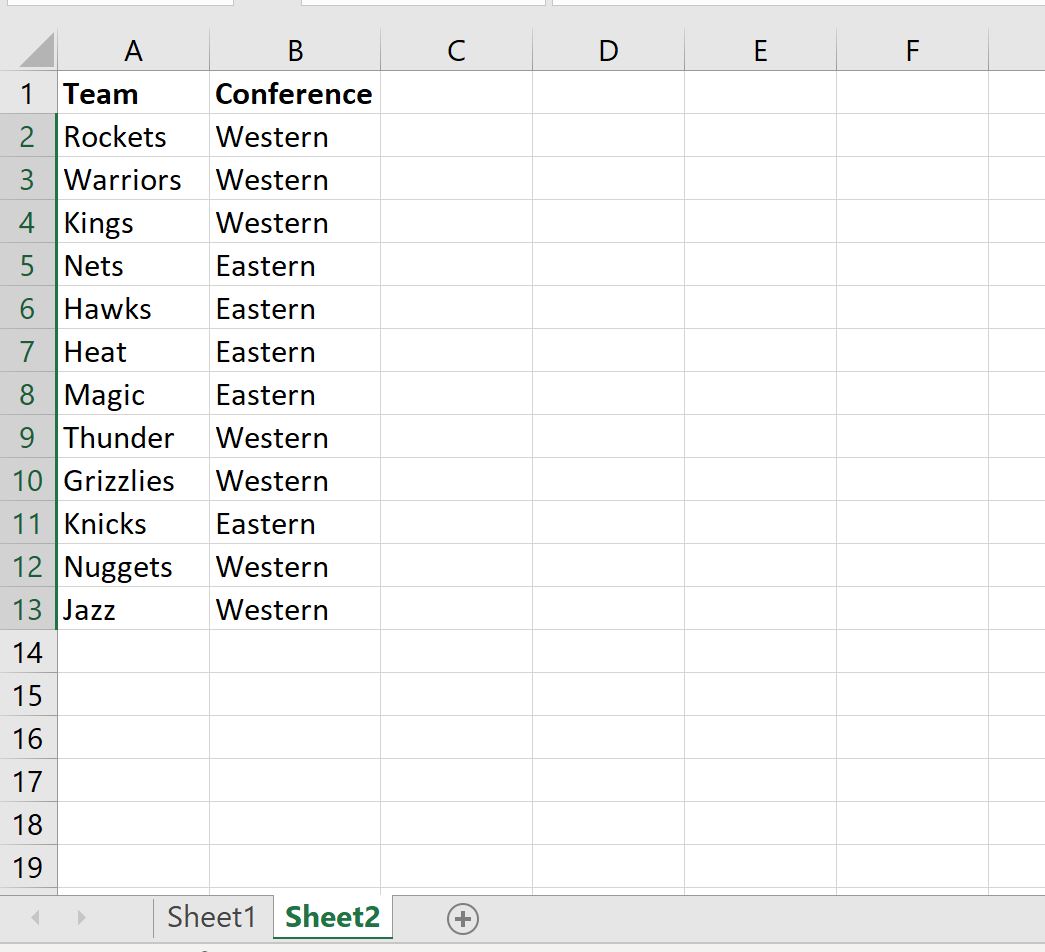

As illustrated in the image below, Sheet2 is currently incomplete, lacking the critical Points metric. We will designate Column C in Sheet2 as the destination column for the scores retrieved from Sheet1. This setup ensures that the data imported maintains a clear relationship with the existing entries in Sheet2.

We aim to populate the values from the Points column in Sheet1 into the newly created Points column in Sheet2. To initiate this linkage, we must input the specific cross-sheet reference formula into the first destination cell, which is C2 of Sheet2. This single entry is the foundation for the entire automated data transfer process.

Implementing the Autofill Formula in Sheet2

The implementation begins by selecting the first target cell, C2, in Sheet2. It is in this location that we will establish the connection to Sheet1. The structure of the formula is straightforward: start with the equals sign, specify the source sheet name, use the exclamation mark separator, and conclude with the source cell reference. This precise command tells Microsoft Excel to retrieve and display the content of B2 from the designated Sheet1.

To create this link, type the following expression directly into cell C2 of Sheet2:

=Sheet1!B2

Upon pressing Enter, the cell C2 in Sheet2 will instantly populate with the value found in Sheet1!B2, which, according to our initial setup, should be 90. This immediate feedback confirms that the cross-sheet reference has been established successfully. If the source data were to change later (e.g., if the 90 were updated to 95), this destination cell would automatically update, illustrating the dynamic link created by the formula.

The resulting display in Sheet2 after entering the formula in the first cell confirms the successful extraction of the initial data point. This step is critical, as any error in the sheet name or cell reference at this stage will result in a #REF! error, indicating that Excel cannot locate the specified source. Always double-check the spelling of the sheet name, especially if it contains spaces or special characters (in which case the sheet name must be enclosed in single quotes, e.g., ‘My Data’!B2).

Leveraging the Fill Handle for Efficient Data Population

With the initial cross-sheet reference established in C2, the remaining task is to propagate this formula down the entire column corresponding to the number of rows in our source data set. This is where the powerful Autofill feature, facilitated by the Fill Handle, comes into play. The Fill Handle is a small, square dot located at the bottom right-hand corner of the selected cell, designed to handle the rapid expansion of patterns and formulas.

To utilize the Fill Handle, click on cell C2 to select it. Next, carefully hover your mouse cursor over the bottom right-hand corner of the cell boundary. The cursor will transform from a thick white cross (the standard selection tool) into a thin, solid black cross, often referred to as the “plus” sign or the Fill Handle indicator. This transformation signals that Excel is ready to automatically adjust and copy the relative references within the existing formula to the adjacent cells below.

Once the black cross appears, you have two primary options for rapid population. For small data sets, you can click and drag the Fill Handle downwards until you reach the last desired row. However, for continuous data ranges, the most efficient method is to simply double-click the Fill Handle. Excel intelligently recognizes the existing adjacent data (in our case, the names in Column B of Sheet2) and automatically extends the formula down to the last row containing adjacent data, eliminating the need for manual dragging.

After executing the double-click action, the remaining cells in Column C of Sheet2 will be instantly populated. The formula in cell C3 will automatically become =Sheet1!B3, the formula in C4 will be =Sheet1!B4, and so on. This relative adjustment is the core function of the Autofill feature, ensuring that each row in Sheet2 accurately pulls the corresponding score from the correct row in Sheet1, maintaining perfect alignment between the two worksheets.

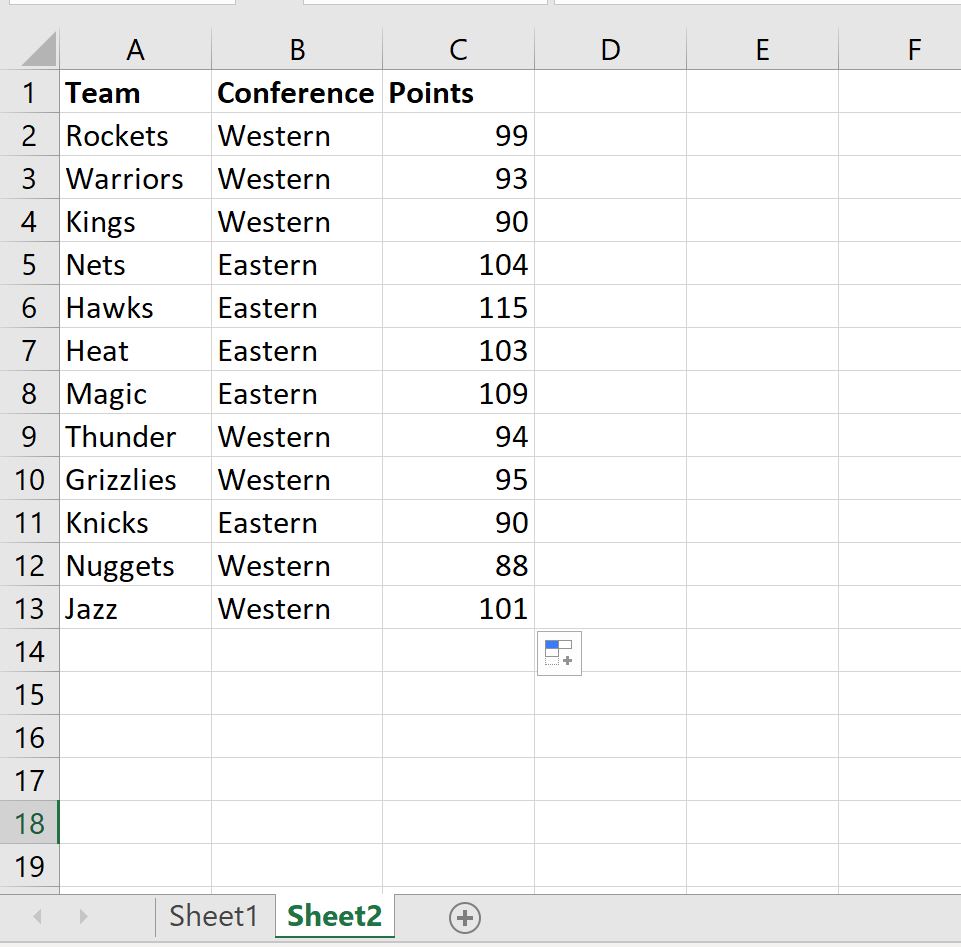

Notice that all of the values from the Points column in Sheet1 have been Autofilled into Sheet2. This method is highly scalable and forms the basis for constructing powerful, interconnected workbooks where master data sets feed into multiple analytical or reporting views without requiring constant manual updates.

Troubleshooting and Advanced Considerations

While direct cross-sheet referencing is highly reliable, users may occasionally encounter issues, most commonly the #REF! error. This error almost always signifies that Microsoft Excel cannot find the referenced source. Common causes include misspelling the sheet name, deleting the source worksheet entirely, or deleting the specific source cell or column. If a sheet name contains spaces, remember that the syntax requires single quotes around the name (e.g., =’Data Source’!B2). If the source worksheet is moved or renamed, Excel is usually smart enough to update the references automatically, but manual verification is always recommended.

A crucial related topic is the application of absolute references, denoted by the dollar sign ($). In our example, we relied on relative references (Sheet1!B2) so that when we Autofilled, the row number would adjust (B3, B4, etc.). If, however, you needed every cell in Sheet2 to pull the exact same value—say, a fixed tax rate from Sheet1!B1—you would use an absolute reference formula: =Sheet1!$B$1. The dollar signs lock the column ($B$) and the row ($1$), preventing them from changing during the Autofill process. Knowing when to use relative versus absolute references is key to building flexible and robust workbooks.

Finally, while direct referencing is perfect for mirroring entire columns or rows, more complex scenarios involving non-aligned data or conditional criteria require alternative methods. For instance, if the names in Sheet2 were sorted differently than those in Sheet1, direct referencing would lead to inaccurate results. In those cases, you would need powerful lookup functions such as VLOOKUP, HLOOKUP, or the modern, more versatile combination of INDEX and MATCH. These functions search for a specific identifier (like a name) and return the associated value, ensuring data integrity even when the row orders diverge. However, for simple mirroring, the direct cross-sheet reference and Autofill technique remains the simplest and fastest solution.

Summary of Key Steps

To summarize the efficient process of pulling and Autofilling values from a source worksheet (Sheet1) to a destination worksheet (Sheet2), follow these critical steps in order:

1. Verify that the source data in Sheet1 is correctly organized, ensuring the column you wish to pull (e.g., Points in Column B) is clearly identified.
2. Navigate to the destination Sheet2 and identify the starting cell for the imported data (e.g., C2).
3. Input the cross-sheet reference formula, using the syntax: =SheetName!CellReference (e.g., =Sheet1!B2).
4. Press Enter to confirm the initial link and ensure the correct value is pulled into the starting cell.
5. Use the Fill Handle (the tiny black cross at the bottom-right corner of the cell) and double-click to automatically extend the relative formula down the column, populating the remaining rows efficiently.
