Excel: Calculate Difference Between Two Times in Hours

Grasping Time Handling Mechanics in Excel

Efficiently calculating the duration or elapsed period between two specific moments in time is a fundamental requirement across various fields, including project management, logistical planning, and rigorous data analysis. Microsoft Excel, as the industry standard spreadsheet tool, offers powerful, built-in capabilities for managing date and time values. However, to harness these features accurately and consistently, users must first gain a clear understanding of the unique system Excel employs to store and process temporal data. This foundational knowledge is key to executing precise calculations, especially when dealing with durations that span fractional units or multiple days.

The unique aspect of Excel’s time management lies in its reliance on serial numbers. Every date and time entry is fundamentally stored as a numerical value, where the integer portion represents the number of days elapsed since a fixed starting date (January 1, 1900, by default). The fractional, or decimal, portion of this number represents the time of day. For instance, the value 0.5 signifies exactly 12:00 PM because it represents half (0.5) of a complete 24-hour cycle. This consistent numerical representation allows for straightforward arithmetic operations, enabling simple subtraction to determine the time difference.

When a direct subtraction is performed on two time values within Excel, the resulting output is a decimal fraction corresponding to a portion of a 24-hour day. This raw fractional difference must then be converted into a more practical and conventional unit, such as total hours. To achieve this necessary conversion, a straightforward multiplication factor is applied. This guide details the step-by-step process of accurately calculating the total elapsed hours between two given time points using a highly effective and easily adaptable formula, ensuring that you can reliably track durations in any dataset.

Implementing the Formula for Precise Hourly Differences

To accurately express the duration between a start time and an end time specifically in total hours, Excel requires the user to apply a simple mathematical adjustment to the result of the initial subtraction. This process ensures that the fractional representation of time, which Excel uses internally, is scaled correctly to human-readable hours. The essential and most robust formula designed for this calculation is:

=(B2-A2)*24

This powerful, yet remarkably concise formula is engineered to calculate the exact difference, expressed in hours (including decimals), between the time values stored in cells B2 and A2. It is fundamentally important that cell B2 contains the chronologically later time (the end time) and cell A2 contains the earlier time (the start time). This order ensures that the subtraction yields a positive result, representing a forward passage of time. If the order is inadvertently reversed, the resulting duration will be displayed as a negative number, which may require additional handling, as discussed in the troubleshooting section.

The initial segment of the formula, B2-A2, performs the primary calculation by determining the raw numerical difference between the two temporal values. As established, Excel interprets this difference as a fraction of a day. For illustrative purposes, if the total elapsed duration is 6 hours, the subtraction B2-A2 will yield a value of 0.25 (since 6 hours constitutes exactly one-quarter of a 24-hour period). The subsequent step, multiplying this result by 24 (the number of hours in a single day), is the critical conversion factor. This multiplication effectively scales the fractional day into the total number of hours that have elapsed, providing a clear and precise metric for duration measurement.

Step-by-Step Walkthrough for Practical Data Sets

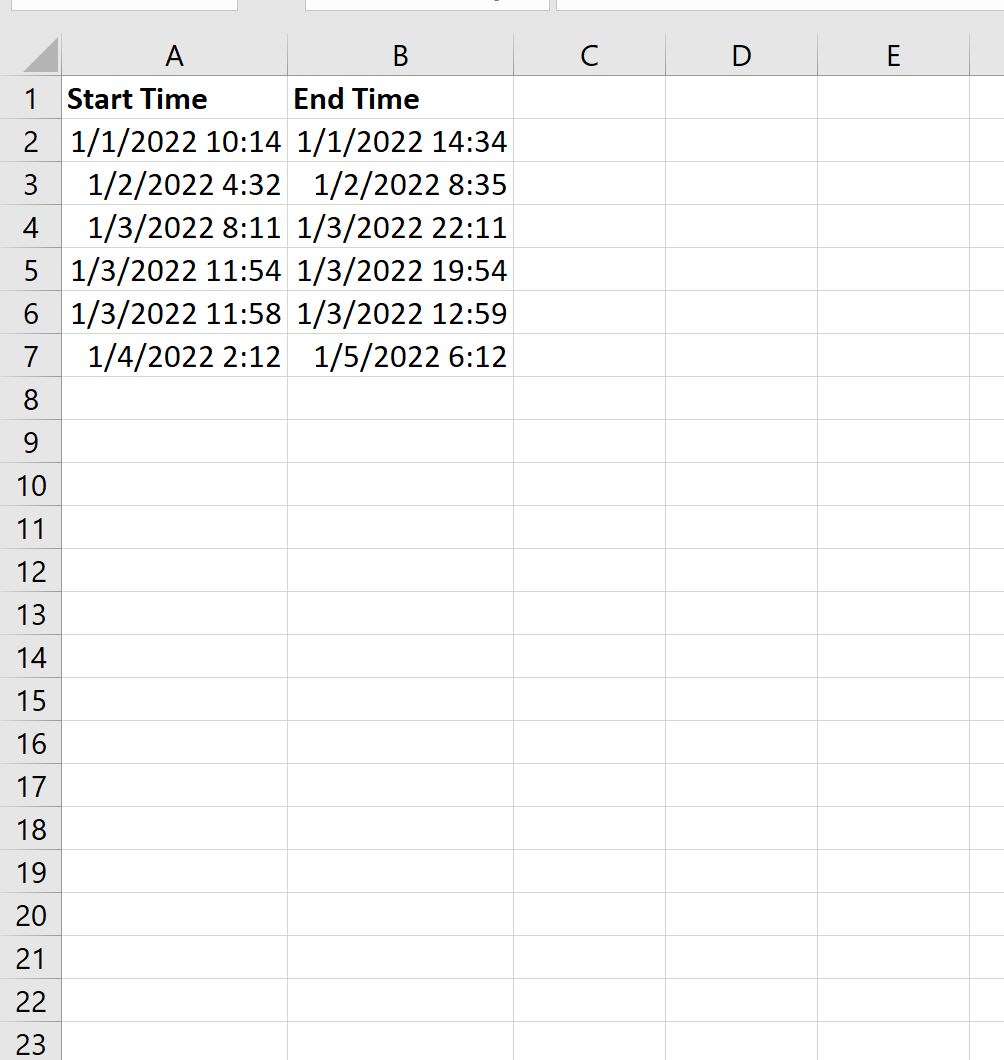

To solidify your understanding, let us walk through a practical scenario demonstrating the implementation of this hourly difference calculation within a typical Excel worksheet. Consider a common use case: tracking the precise duration of multiple events, shifts, or tasks. You will typically organize your data using dedicated columns for the Start Time and the End Time, as illustrated in the visual example below:

To initiate the calculation for the first event—which, in this example, spans from 8:00 AM to 10:30 AM—you would input the previously defined formula into cell C2, designated as the “Duration” column. Assuming your Start Time is correctly placed in cell A2 and the corresponding End Time is in cell B2, the required formula entry for C2 is:

=(B2-A2)*24

Once the formula has been successfully entered into cell C2, it is highly efficient to apply this same logic across all subsequent rows. This is achieved by selecting cell C2 and then utilizing the fill handle. The fill handle is the small, dark square located at the bottom-right corner of the selected cell. By clicking and dragging this handle downwards across the desired range in column C, Excel automatically adjusts the cell references (A2 and B2 become A3 and B3, A4 and B4, and so on), ensuring that the duration is calculated correctly for every entry pair.

The resulting numerical values displayed in the duration column (C) will accurately represent the difference in hours between the Start Time and End Time for every record. A key advantage of relying on Excel’s underlying serial number system is its inherent ability to correctly handle durations that exceed a full 24-hour day. If an event begins on Monday and concludes 30 hours later on Tuesday, the subtraction will yield a value greater than 1 (e.g., 1.25 for 30 hours). Multiplying this by 24 ensures the output correctly reflects the total elapsed hours, regardless of whether the duration crosses day boundaries.

Isolating Whole Hours Using the INT Function

In many analytical or reporting contexts, there is a specific need to extract only the complete, whole number of hours elapsed, deliberately disregarding any partial hours, minutes, or seconds. This requirement is common in scenarios involving minimum billing increments, rounding down time spent, or simply for visual simplicity where fractional units introduce unnecessary complexity. Microsoft Excel provides a perfect tool for this precise extraction: the INT function.

The INT function (which stands for Integer) is designed to truncate a decimal number, returning only the integer part while discarding the decimal remainder. To integrate this functionality into our time calculation, we simply nest the original duration formula inside the INT function. This powerful combination first calculates the precise duration and then immediately extracts only the whole number of hours. The modified structure of the formula is:

=INT((B2-A2)*24)

When this formula is executed, Excel performs the standard subtraction and multiplication, resulting in the total duration (e.g., 5.8 hours). The INT function then acts upon this result, returning only the integer portion, which in the case of 5.8 hours would be 5. It is important to remember that INT rounds down toward the nearest integer, ensuring that only complete hours are counted. This feature is particularly valuable when strict adherence to whole time units is required, providing enhanced control over how elapsed time is reported.

Addressing Common Pitfalls and Ensuring Accuracy

While Excel’s time calculation logic is robust, users frequently encounter specific issues that can lead to unexpected results. Mastering these troubleshooting techniques is essential for achieving accurate and reliable time-based reports.

• Managing Incorrect Cell Formatting: This is arguably the most common source of error. If the input cells (e.g., A2 and B2) are not correctly formatted as “Time” or “General,” Excel may fail to recognize the entries as valid temporal values. Crucially, the output cell (e.g., C2, where the difference is calculated) must be formatted as “General” or “Number.” If the output cell retains a “Time” format, Excel will attempt to display the total calculated hours as a fraction of a day formatted as time (e.g., 2.5 hours might incorrectly appear as 12:30 PM if the underlying calculation yields 0.104166…). Always verify that the result cell is set to a numerical format to see the true hourly total.
• Handling Negative Time Differences (Overnight Calculations): The standard formula, =(B2-A2)*24, assumes the end time (B2) is chronologically greater than the start time (A2). This fails when calculating shifts that cross midnight (e.g., 10:00 PM to 6:00 AM). In such cases, the subtraction yields a negative fraction. To compensate for the implicit 24-hour cycle, you must add 1 (representing a full day) to the subtraction result if the end time is numerically smaller than the start time. A superior and reliable formula for accounting for overnight periods is:

  =((B2-A2)+(B2<A2))*24

  This conditional structure leverages Excel’s ability to treat the logical test (B2<A2) as 1 (True) or 0 (False), effectively adding a full day only when the shift spans midnight.

• Incorporating Date Components: If your time entries include full date stamps (e.g., 01/15/2024 8:00 AM), the calculation remains remarkably simple. Because Excel’s serial number system incorporates the full date integer, the subtraction B2-A2 naturally captures the total number of days and fractional days between the two timestamps. Multiplying this result by 24 automatically converts the total duration, regardless of how many days it spans, into the accurate total number of hours.

Conclusion: Best Practices for Time-Based Analysis

Calculating the elapsed duration between two time values in hours within Microsoft Excel is a critical competency for efficient spreadsheet management and scheduling analysis. By internalizing the concept of Excel’s underlying serial number system—where time is represented as a fraction of 24 hours—the necessity of multiplying the difference by 24 becomes logical and effortless.

The standard formula, =(End Time - Start Time)*24, should be considered your primary solution for calculating precise hourly differences, accommodating both decimal fractions of an hour and durations spanning multiple days. For applications that demand rounding down to the nearest complete hour, the simple integration of the INT function provides the necessary precision. Consistency in cell formatting, particularly ensuring output cells are numerical, remains the most vital best practice for guaranteeing that your results are both accurate and displayed correctly.

Mastery of these fundamental time calculation techniques will significantly improve the robustness and reliability of your time-based data reporting within Excel, transforming complex scheduling data into clear, actionable insights.
