Learn to Calculate Time Differences Across Midnight in Excel

Mastering the Time Calculation Paradox in Spreadsheets

Calculating the precise duration between two specific points in time is a fundamental necessity in modern data analysis, serving critical functions from tracking employee work shifts to measuring system latency. While spreadsheet programs are typically robust in handling standard chronological calculations, a significant challenge emerges when the measured duration spans across the 24-hour boundary, effectively crossing midnight. Standard subtraction formulas inevitably fail in this scenario, often resulting in negative values or errors, because the start time (e.g., 10:00 PM) is numerically larger than the end time (e.g., 2:00 AM) if the system lacks an explicit date component.

This paradox stems directly from how the spreadsheet software interprets time. When working exclusively with time values, the system treats time as a fraction of a full 24-hour day. Consequently, 6:00 AM is stored internally as 0.25 (one-quarter of the day), and 6:00 PM is 0.75. If an analyst attempts to subtract the start time (0.75) from the end time (0.25), the mathematical result is -0.5. This negative fractional value is an invalid duration and leads to an error or incorrect display if a standard time format is applied.

To accurately compute the elapsed time when the event wraps around to the next day, we must algebraically correct the calculation. This requires instructing the software to conceptually add one full day, represented by the numerical value 1, to the end time before performing the subtraction. This essential adjustment effectively shifts the end time into the correct chronological sequence relative to the start time, guaranteeing a positive duration that reflects the true hours elapsed. Mastering this specialized calculation technique is vital for anyone managing operational schedules or detailed time sheet data, ensuring consistently high precision in all duration metrics.

Understanding Excel’s Internal Time Representation

To fully grasp why standard time subtraction fails overnight, it is crucial to understand the underlying mechanism of the spreadsheet program. The internal clock of the software relies on the serial date-time system, where dates are stored as whole integers and time is stored as a decimal fraction of a day. For instance, if an event begins at 10:00 PM (approximately 0.90) and concludes at 2:00 AM (approximately 0.08), the system assumes both times occurred on the same conceptual “day zero” when no explicit date is provided.

When the standard formula attempts to calculate the duration: End Time (0.08) - Start Time (0.90), the result is the negative fraction -0.82. This value tells the software that the end time occurred *before* the start time on the same day, which is chronologically impossible for a positive duration. This negative fractional result is mathematically correct but physically meaningless for elapsed time calculation, necessitating a structural correction to simulate the passage of the 24-hour cycle.

This is where the concept of adding 1 comes into play. Since the value 1 represents one full 24-hour day in the spreadsheet’s internal system, adding 1 to the end time algebraically corrects the sequence. By performing (End Time + 1) - Start Time, we are essentially telling the program that the end time occurred one day later. In our example: (0.08 + 1) - 0.90 yields a positive fractional duration of 0.18, which is the mathematically accurate representation of the time elapsed, ready for conversion into total hours.

Deriving the Essential Formula for Overnight Shifts

The standard methodology for calculating duration is fundamentally simple: End Time minus Start Time. However, the scenario where the Start Time is chronologically later than the End Time—a clear signal that the duration spans across the transition point—requires the special modification. To correct the resulting negative fractional value, we introduce a powerful adjustment that leverages the program’s understanding of logical constants.

The solution involves adding the numerical value 1 (representing one full day) to the duration calculation only when the duration is determined to be negative. Conveniently, most spreadsheet applications, including Excel, allow us to use the logical constant TRUE directly within an arithmetic operation, which the system treats internally as the numerical equivalent of 1. The following formula structure is engineered to calculate the number of hours between the starting time located in cell A2 and the ending time in cell B2, specifically targeting periods that span across midnight:

=(B2-A2+TRUE)*24

Let us closely examine the components of this powerful expression. The foundational calculation is B2 - A2. If B2 (End Time) is numerically smaller than A2 (Start Time), the result is a negative fraction of a day. By incorporating +TRUE, which evaluates to +1, we are effectively adding 24 hours to this negative duration, thereby correcting the calculation to reflect the accurate elapsed time within the 24-hour cycle. Finally, we multiply the entire result by 24. This multiplication step is mandatory because the duration is stored as a fractional proportion of a day, and multiplying by 24 converts that fraction directly into the total number of hours in a decimal number format.

Practical Step-by-Step Implementation

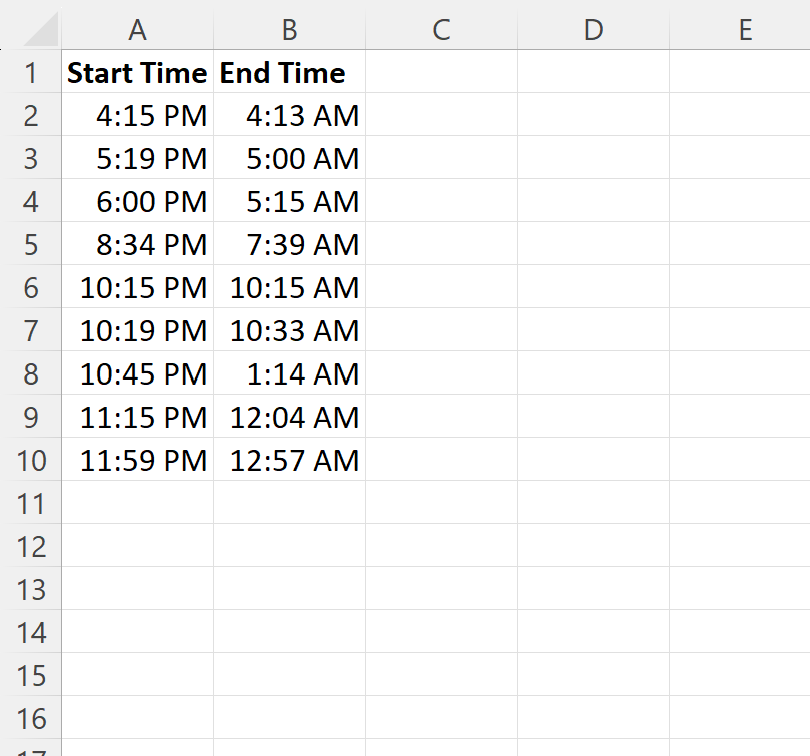

To illustrate the practical application of this specialized formula, consider a common scenario involving the tracking of employee shifts or continuous tasks that frequently begin in the late afternoon or evening and conclude the subsequent morning. Our dataset contains start times in Column A and corresponding end times in Column B, as depicted in the image below. Notice that in every instance, the starting time is chronologically later than the ending time, confirming that the calculated duration must account for the overnight transition.

The objective is to calculate the precise duration in hours for each task and place the resulting value in Column C. We initiate the process by carefully entering the required formula into cell C2, targeting the first pair of times (A2 and B2). This action calculates the difference in hours between the first start time and the first end time, using the algebraic correction:

=(B2-A2+TRUE)*24

Once the formula is correctly entered in C2, ensuring that the cell is formatted as a Number or General Format, we can efficiently apply this calculation across the entire dataset. Utilizing the spreadsheet’s fill handle—clicking and dragging the formula downwards to the remaining cells in Column C—automatically adjusts the cell references (A3, B3; A4, B4, and so forth) for each subsequent row. This bulk application of the formula ensures that all overnight durations are calculated accurately and consistently, providing immediate and reliable insights into the elapsed time for all recorded tasks.

Formatting Results: Converting Fractions to Decimal Hours

Upon successful application of the specialized formula across the target range, Column C will display the calculated difference in hours for every entry, offering a clear numerical representation of the elapsed duration. It is important to note that the formula *(B2-A2+TRUE)*24 is deliberately designed to output a standard decimal number format, not a traditional time format (which would typically appear as HH:MM). The necessity of converting the fractional day value into a whole or decimal hour value is driven by the multiplication by 24, making the results immediately suitable for quantitative analysis.

The results derived from this formula are highly useful because they are already in a simple decimal structure, facilitating direct integration into calculations such as summation, averaging, or other complex quantitative metrics. For example, reviewing the calculated durations from the previous step yields precise measurements:

• The duration between 4:15 PM and 4:13 AM is exactly 11.97 hours.
• The duration between 5:19 PM and 5:00 AM is exactly 11.68 hours.
• The duration between 6:00 PM and 5:15 AM is exactly 11.25 hours.

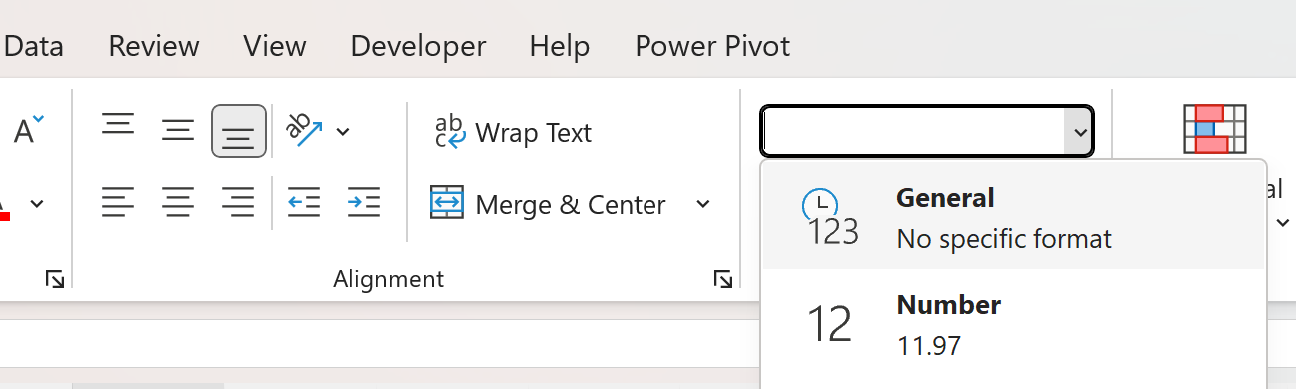

A common formatting pitfall occurs if the results in Column C initially appear in a time format (e.g., 11:58:00 instead of 11.97). This usually happens because the spreadsheet program automatically applies a time number format, inheriting it from the nature of the input cells (A and B). To rectify this and display the accurate decimal hour count required for aggregation, the analyst must explicitly override the default formatting. This is achieved by selecting the calculated cells, navigating to the Home tab, accessing the Number Format dropdown, and selecting either the Number or the General Format option.

Applying the General Format ensures that all values representing time durations are correctly converted from the system’s internal fractional time representation into a quantifiable decimal format, thus completing the accurate calculation of elapsed time spanning across the 24-hour mark.

Advanced Context: Excel’s Serial Date-Time Mechanics

For those seeking a deeper technical understanding, revisiting the core structure of the serial date-time system clarifies why the +TRUE (or +1) adjustment is mathematically necessary. The system stores all date and time information as a single floating-point number. The whole number component represents the date (the count of days since a baseline date), and the fractional component represents the time (the proportion of the day that has passed).

When we enter a time like 10:00 PM (Start Time), it is recorded as a high fractional value, perhaps 0.90. When we enter 2:00 AM (End Time), it is recorded as a low fractional value, perhaps 0.08. Since there is no associated date, the system assumes both occur on the same day. Standard subtraction 0.08 - 0.90 results in a negative value (-0.82), signaling that the End Time occurred chronologically before the Start Time, which is incorrect for a duration calculation.

The addition of +TRUE, which translates to adding the integer 1, provides the necessary conceptual bridge. By calculating (0.08 + 1) - 0.90, we are algebraically forcing the interpretation that the 2:00 AM end time occurred one full day after the 10:00 PM start time. This crucial intervention flips the duration to a positive fractional result (0.18). Multiplying this result by 24 then accurately yields the total elapsed time in hours (0.18 * 24 = 4.32 hours). This powerful technique is central to reliable time calculation when dealing with shifts that cross the day boundary.

Summary and Best Practices for Precise Time Calculation

Calculating time differences that span across the day boundary is a frequent challenge in spreadsheet modeling, yet it is efficiently resolved using the elegant +TRUE adjustment. This highly specialized formula provides the most concise and reliable method for ensuring that elapsed time calculations remain positive and accurate when the end time occurs on the following calendar day, particularly when working solely with time entries that lack explicit date stamps.

Key takeaways for successful implementation and accurate time calculation include the following best practices:

1. Always ensure that the subtraction order maintains the structure: End Time minus Start Time (B2 – A2).
2. Incorporate the +TRUE constant only when you anticipate the duration spanning across midnight (i.e., when Start Time is numerically greater than End Time).
3. Multiply the resulting value by 24 to convert the calculated fractional day duration into total decimal hours.
4. Verify the result cell’s formatting, setting it to Number or General Format to guarantee the output displays the quantifiable total elapsed hours, rather than a misleading time stamp.

By diligently adhering to these guidelines, users can confidently handle complex time tracking requirements and seamlessly integrate these accurate duration calculations into larger data models and operational reporting systems.
