Learning Conditional Formatting in Excel: Applying Multiple Text Criteria

One of the most powerful features within Microsoft Excel is the capacity to automatically highlight data based on sophisticated, user-defined criteria. This dynamic functionality, known as Conditional Formatting (CF), transforms static datasets into visually responsive and insightful reports, drastically improving data analysis and readability. While standard CF is sufficient for single conditions—such as highlighting cells that equal a specific number or text string—many analytical tasks require highlighting cells that match *any* value drawn from a list of possibilities. Addressing this “OR” scenario necessitates a more advanced technique than the built-in conditional options provide, requiring the implementation of a custom array formula. This comprehensive, expert guide details the precise steps required to establish dynamic conditional formatting rules that evaluate a cell against multiple text criteria simultaneously, ensuring your spreadsheets are highly functional and visually effective.

To successfully deploy this advanced method, we must utilize the New Rule dialogue found within the Conditional Formatting menu, which is conveniently accessible under the Home tab of the Excel Ribbon interface. A critical element for maintaining efficiency and flexibility in this technique is defining the list of criteria externally, typically by using an Excel Named Range. The following sections provide a structured, step-by-step walkthrough, culminating in a dynamic solution perfectly suited for complex data visualization needs.

Understanding the Logic: The Power of Array Processing

Before attempting to implement the formatting rule, it is crucial to understand the fundamental logic that drives this powerful method. Conventional conditional formatting relies on straightforward, singular comparisons (e.g., “Is Cell A2 equal to ‘Drafted’?”). However, when you encounter an “OR” requirement—where a cell must match “Text A” OR “Text B” OR “Text C”—Excel’s native drop-down rules are inadequate. To circumvent this limitation, we introduce a custom formula specifically designed to handle array processing within the Conditional Formatting engine.

This powerful technique achieves the desired “OR” logic by strategically combining two core functions: COUNTIF and SUM. When the COUNTIF function is supplied with an array of criteria (our list of multiple text values), it executes a comparison for each item in the list against the target cell. This returns an array of binary results (0 or 1) indicating whether each specific text criterion was successfully found. Subsequently, the SUM function aggregates these counts. If the total sum is greater than zero, it confirms that at least one of the criteria was matched, causing the entire condition to evaluate as TRUE and applying the desired formatting.

A fundamental best practice for developing flexible conditional formatting is the utilization of an Excel Named Range. Rather than embedding the text criteria directly into the conditional formatting rule—which would force you to edit the rule every time the criteria list changes—we define a designated range for our criteria and assign it an easily identifiable name. This crucial separation of the criteria list from the formatting rule ensures the spreadsheet is significantly easier to manage, update, and scale dynamically over time.

Setting the Foundation: A Practical Data Example

To effectively demonstrate this technique, let us use a common business scenario: analyzing a sports team roster. Imagine you have a spreadsheet detailing various basketball players, including their names, positions, and key performance statistics. The immediate objective is to quickly identify and highlight the rows or cells corresponding to specific, high-value player positions within the overall team data.

Our aim is to apply conditional formatting to the cells in the Position column (Column A) if they contain any of the following critical text strings:

• Starting
• Forward
• Center

Since it is impossible for a standard “Text Contains” rule to manage these three independent criteria simultaneously, we must proceed with the custom array formula methodology. This scenario perfectly illustrates the necessity of employing advanced, formula-based conditional formatting to achieve complex selection logic.

Step-by-Step Implementation Guide

The implementation process is systematically divided into two critical phases: first, preparing and naming the criteria list, and second, applying the custom formula rule to the target data range. Precision in naming conventions and correct cell range selection are paramount for successful execution.

1. Define Your Criteria with a Named Range

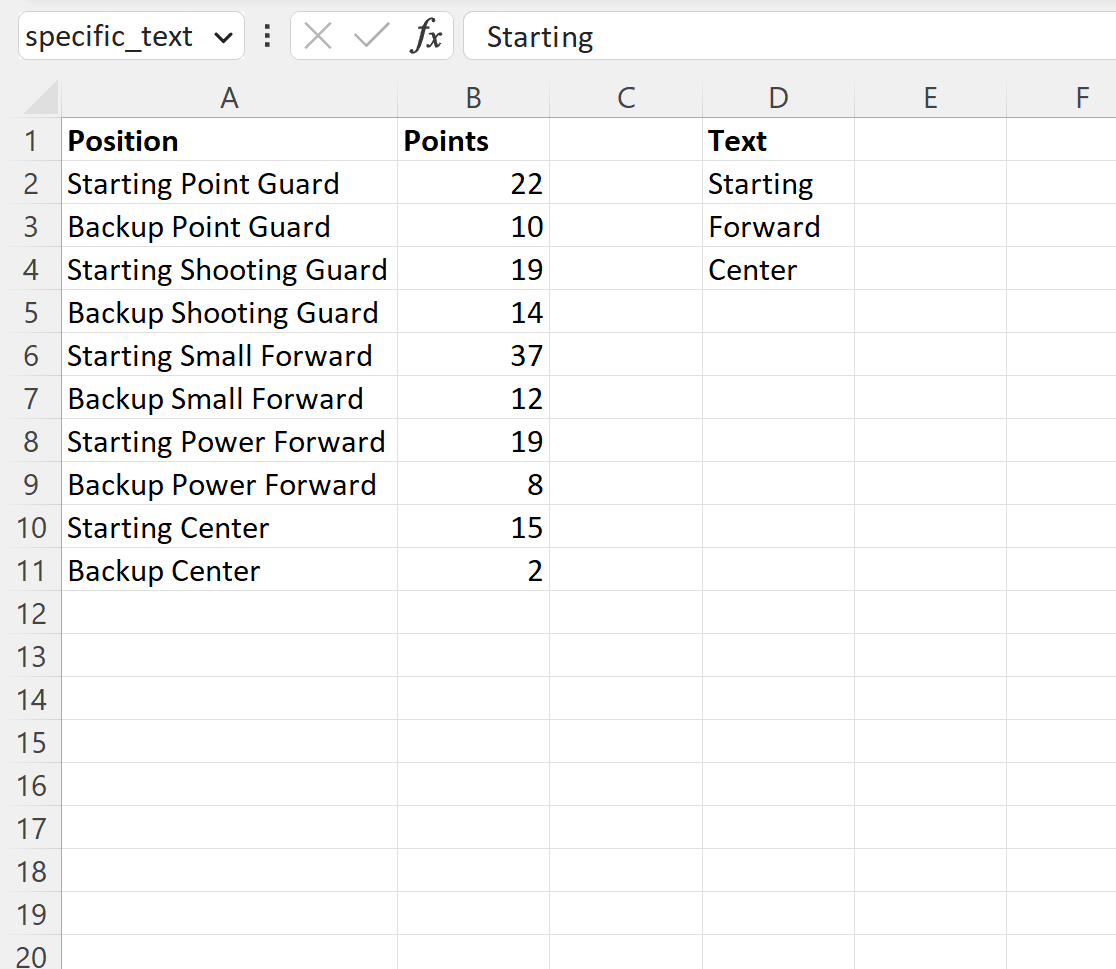

Start by dedicating an area within your spreadsheet (we will use Column D for demonstration) to list all the text values you intend to highlight. For our example, input “Starting,” “Forward,” and “Center” into cells D2, D3, and D4, respectively. Next, select the complete range containing these criteria (D2:D4). Locate the Name Box, which is positioned to the immediate left of the formula bar, and type a concise, descriptive name—such as specific_text—before confirming the entry by pressing Enter. This action formally establishes the Excel Named Range that will serve as the dynamic reference point for our conditional formatting rule.

2. Create and Apply the Conditional Formatting Rule

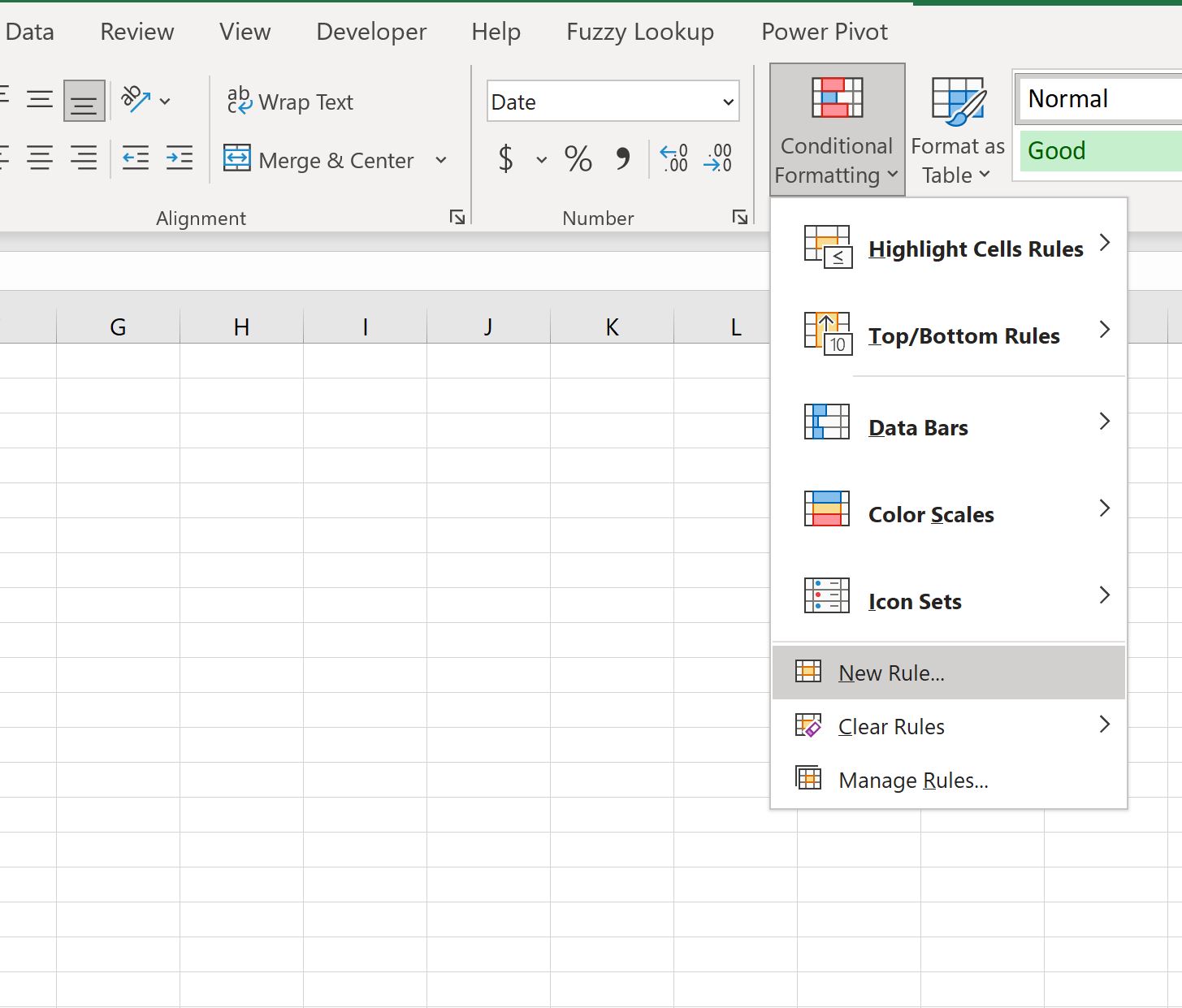

The subsequent phase involves applying the new rule to the primary data set. Begin by selecting the entire target range of cells—in this instance, A2:A11 in the Position column. Proceed to the Home tab on the Excel Ribbon, click the Conditional Formatting dropdown menu, and select the New Rule option to launch the setup wizard.

3. Implement the Custom Array Formula

Within the New Formatting Rule dialog box, select the rule type: Use a formula to determine which cells to format. This selection unlocks the necessary flexibility for implementing complex logic. Input the following custom array-processing formula into the designated field, ensuring you reference the first cell of your selected range (A2):

=SUM(COUNTIF(A2,"*"&specific_text&"*"))

Once the formula is entered, click the Format button. Here, you must define the visual style for cells that successfully meet the defined criteria—for example, choosing a distinct fill color, font style, or border. Finalize your visual selections by clicking OK in the Format Cells dialog, and then click OK again to officially apply and finalize the conditional formatting rule to the selected range.

Deconstructing the Formula for Precision

To fully leverage and troubleshoot this advanced technique, it is essential to understand exactly how the formula =SUM(COUNTIF(A2,"*"&specific_text&"*")) executes its logic. This formula is a highly efficient piece of compact code designed to perform a logical “OR” evaluation across an entire list of criteria simultaneously.

• The COUNTIF Function Core: The primary matching operation is handled by COUNTIF(A2, criteria). Because A2 is the starting cell of the applied range (A2:A11), it functions as a relative reference. As Excel evaluates the rule for subsequent cells (A3, A4, etc.), this reference automatically adjusts. When paired with a named range as the criteria, COUNTIF returns an array of numerical results—one result for every item defined within the specific_text range.
• The Criteria Construction ("*"&specific_text&"*"): This segment is responsible for dynamically building the search pattern. specific_text is our Excel Named Range (D2:D4), which contains our target list. The & (concatenation operator) joins each text value with the asterisk (*) wildcard characters. These wildcards are essential as they instruct the rule to check if the cell *contains* the text anywhere within its content (e.g., “Starting Guard” would match “Starting”), ensuring flexibility rather than demanding an exact match.
  • Example Array Output: If cell A2 contains the value “Forward,” the resultant array from the COUNTIF evaluation would be {0, 1, 0}. This signifies that it failed to match “Starting” (0), successfully matched “Forward” (1), and failed to match “Center” (0).
• The SUM Function as the “OR” Switch: This function serves as the decisive component. It sums the numerical array generated by COUNTIF. If the resulting total is 1 or higher, the formula returns a numerical TRUE (which Excel interprets as TRUE for conditional formatting), and the cell is highlighted. If the total is exactly zero, no match was found, the condition is FALSE, and the formatting is skipped.

Achieving Dynamic Results and Efficient Maintenance

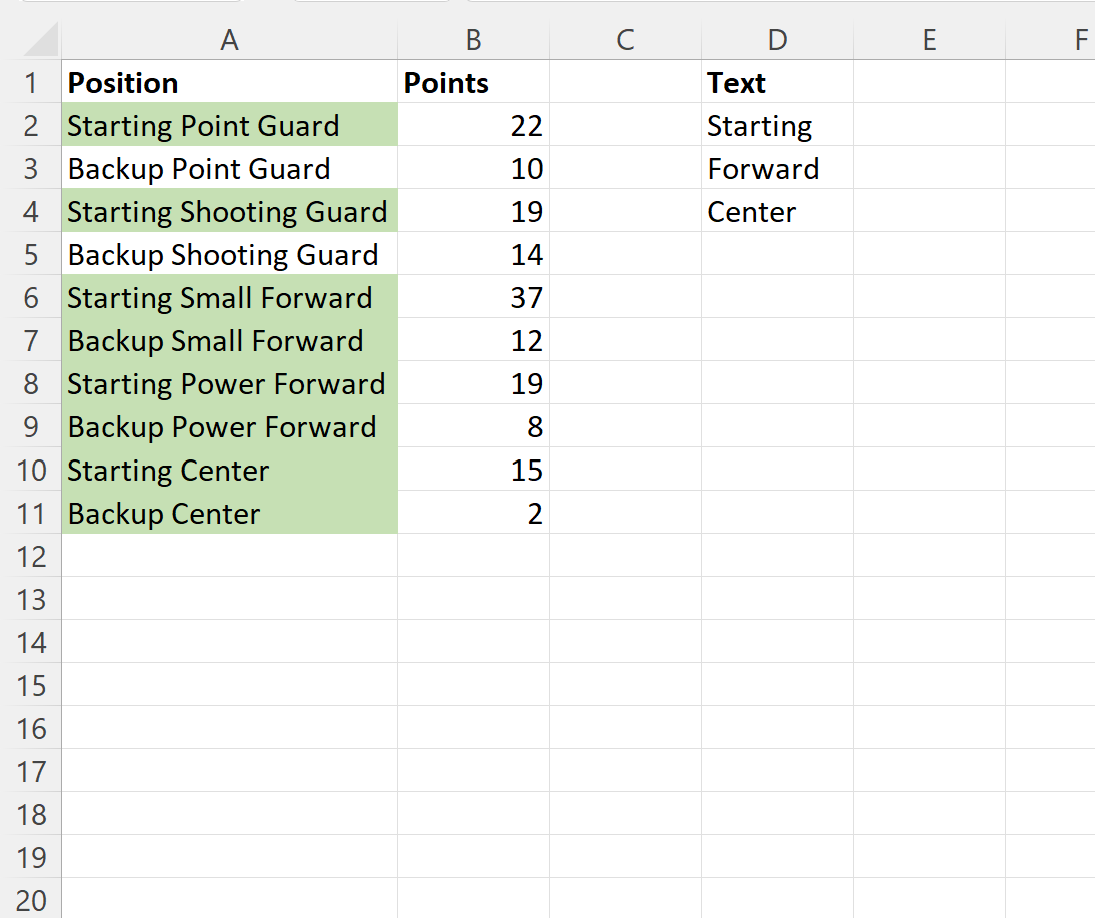

Following the successful application of the rule, the cells in the target range A2:A11 that include the text strings “Starting,” “Forward,” or “Center” will be instantly highlighted according to the format you defined. This immediate visual categorization is invaluable for rapid data auditing and high-level reporting, providing an intuitive means to identify critical data points.

The most significant advantage of utilizing a Named Range, as opposed to embedding the criteria directly, is the inherent flexibility it provides. If your analysis requirements change—for instance, if you shift from tracking “Starting” positions to tracking “Point,” “Shooting,” or “Power” positions—you are not required to modify the complex conditional formatting rule itself. You simply update the text values contained within the specific_text range (D2:D4).

As illustrated below, instantly updating the criteria list immediately updates the visual representation of the data across your entire workbook. This separation of the application logic (the formula) from the variable criteria (the named range) is a core best practice for developing scalable and easily maintainable Microsoft Excel workbooks.

Advanced Refinements and Best Practices

Mastering the standard implementation is a solid starting point, but consider these advanced tips to further enhance and refine your conditional formatting capabilities in complex environments:

• Requiring an Exact Match: If your requirement mandates that the cell content must be an exact match for one of the criteria (e.g., cell A2 must contain exactly “Forward” and not “Forward Reserve”), you must eliminate the wildcard characters (*) from the formula construction. The revised, strict formula becomes =SUM(COUNTIF(A2,specific_text)). This seemingly minor alteration fundamentally changes the matching behavior, demanding absolute precision.
• Handling Case Sensitivity: By default, the COUNTIF function is inherently case-insensitive (meaning “Forward” will match “forward”). Achieving true case-sensitive conditional formatting requires replacing COUNTIF with a more complex array structure utilizing functions such as FIND or EXACT, often encapsulated within SUMPRODUCT. A simpler, yet less robust, alternative is to force consistency by standardizing the case of both the cell content and the criteria using the LOWER() function within the formula.
• Managing Rule Conflicts: When multiple conditional formatting rules are active, the order in which they are applied is critical. Utilize the Conditional Formatting Rules Manager (found under the Conditional Formatting dropdown) to view, edit, reorder, or delete rules. Remember the golden rule: Excel ceases rule processing for a given cell the moment the first TRUE condition is met.
• Performance Optimization: Although this array formula is highly functional, applying complex custom formulas to extremely large datasets (e.g., worksheets containing tens of thousands of rows) can potentially introduce calculation lag. To mitigate performance degradation, always ensure that the ranges referenced in the formula, especially the named range, are defined precisely and do not include unnecessary blank cells.

Conclusion: Mastering Dynamic Data Highlighting

Implementing conditional formatting based on multiple text values is an essential skill for any user seeking to move beyond basic data manipulation in Microsoft Excel. By expertly combining the array-processing capabilities of the SUM and COUNTIF functions, and integrating dynamic criteria management through a wildcard-enhanced Named Range, you unlock maximum flexibility and analytical power. This technique elevates your spreadsheets beyond simple coloring, transforming them into responsive and professional reporting tools where critical data points are instantly and accurately highlighted. Mastering this approach ensures your data presentations are clear, professional, and easily adaptable to changing analytical requirements.
