Converting Between Standard and Military Time Formats in Excel: A Step-by-Step Guide

Understanding Time Formats and Data Conversion in Microsoft Excel

The accurate representation and conversion of time data are foundational requirements across numerous professional domains, including aviation, logistics, financial trading, and project management. While most general business and civilian operations rely on Standard Time, typically displayed using the 12-hour clock format with AM/PM indicators, highly specialized fields often mandate the use of the 24-hour system, universally recognized as Military Time.

Microsoft Excel is engineered to manage time data efficiently by storing it not as simple text, but as numerical serial values. This underlying structure is what makes sophisticated calculations and conversions possible. Once you understand the appropriate functions and formatting codes, converting between these two critical time standards becomes a straightforward process. This comprehensive guide details the essential formulas and techniques required to achieve seamless and accurate time conversion within your spreadsheets, ensuring data consistency regardless of the required display format.

We will systematically explore the two primary conversion directions: transforming the AM/PM format into the 24-hour format and, conversely, converting raw military time strings back into readable Standard Time. Mastering these functions is vital for anyone handling time-sensitive data analysis or reporting in Excel.

The Core Functions and Essential Conversion Formulas

To manage time conversions effectively within Excel, we utilize distinct approaches based on the format of the input data. For data already recognized as time, we leverage the power of the TEXT function to reformat the output. However, when converting text-based military time inputs, we must employ string manipulation functions in conjunction with the TIMEVALUE function to correctly interpret the data.

The following foundational formulas enable these transformations. Throughout this guide, we assume that the initial time value you wish to convert is located in cell A2.

Formula 1: Converting Standard Time to Military Time

This formula is applicable when your source data is already a valid time serial value (e.g., 2:30 PM) and you need to render it as a four-digit military time string (e.g., 1430). Since the data is already numerical, the conversion is purely a matter of formatting, which the TEXT function handles by applying a specific numerical format code to the underlying time value.

=TEXT(A2,"HHMM")

The format code “HHMM” instructs Excel to display the time by using the 24-hour hour designation (HH) and the minutes (MM). Critically, this code ensures that no separators (such as colons or spaces) are included, yielding the clean, standardized four-digit military format required for many technical applications.

Formula 2: Converting Military Time to Standard Time

This conversion addresses the more challenging scenario where the military time input (e.g., 1430) is stored as a raw number or text string. Because Excel does not automatically recognize “1430” as a valid time, we must first reconstruct a valid time string (e.g., “14:30”) before the system can interpret it. This reconstruction requires string manipulation.

=TIMEVALUE(LEFT(A2,2)&":"&RIGHT(A2,2))

This powerful single formula leverages three critical functions: LEFT isolates the first two digits (the hours), RIGHT extracts the last two digits (the minutes), and the ampersand operator (&) performs concatenation, joining these components with a colon in the middle. Once the string is correctly assembled, the TIMEVALUE function then converts this recognizable time string into Excel’s numerical time serial value, which can subsequently be formatted as Standard Time.

Detailed Walkthrough: Standard Time to Military Time Conversion

When working with Standard Time data that is already properly formatted as Excel time serial values, the transformation to Military Time is fundamentally a display change. The TEXT function provides the most efficient and reliable method, allowing precise control over the numerical output format.

Imagine you have a dataset of scheduling entries in column A that must be converted into the 24-hour format for system logging purposes. The input data, which includes AM/PM indicators, is ready for conversion into column B.

We begin with a list of Standard Times in Excel, as illustrated below:

To initiate the conversion, input the simple TEXT function formula into cell B2, referencing the original Standard Time in A2. This function interprets the underlying numerical time value and displays it according to the specified 24-hour format code:

=TEXT(A2,"HHMM")

After successfully applying the formula to the first cell, you can quickly convert the entire dataset by using the fill handle (dragging the small square at the corner of cell B2 down the column). This action instantly propagates the conversion, transforming all Standard Time entries into their precise military time equivalents in column B:

As demonstrated, column B now accurately presents each time from column A as a clean, four-digit military time string, suitable for integration into systems that demand this format.

Note on Precision: Should your data require a higher degree of precision, such as including seconds in the military time display, you only need to modify the format code within the TEXT function. By replacing “HHMM” with “HHMMSS”, you achieve a six-digit output that incorporates hours, minutes, and seconds, still maintaining the essential no-separator requirement of Military Time:

=TEXT(A2,"HHMMSS")

The result of using this extended format code, providing granular time detail, is shown in the following screenshot:

Detailed Walkthrough: Military Time to Standard Time Conversion

Converting from Military Time back to Standard Time presents a unique structural challenge because the source data (e.g., 1430) is typically interpreted by Excel as a numerical value, not a time format. Attempting to format the number 1430 directly as time would result in an erroneous output. Therefore, the core strategy involves manipulating the input string using dedicated functions to insert the necessary colon separator, thus creating a format that Excel can recognize as time.

The process relies on isolating the hour and minute components using the LEFT and RIGHT functions, followed by using the concatenation operator (&) to insert a colon (`:`). The resulting string (e.g., “14:30”) is then passed to the TIMEVALUE function, which is specifically designed to transform a text representation of time into a proper numerical time serial number.

Assume you have a list of military times in Column A, stored as general numbers:

We input the complete manipulation and conversion formula into cell B2, targeting the military time input in A2:

=TIMEVALUE(LEFT(A2,2)&":"&RIGHT(A2,2))

Once the formula is entered, drag it down to apply it across the entire range of military times in column B:

Formatting the Output: Converting Decimals to Standard Time Display

Following the application of the TIMEVALUE function, the results in column B will typically appear as decimal numbers (e.g., 0.5 for 12:00 PM or 0.25 for 6:00 AM). These are mathematically correct time serial values within Excel’s framework, but they are not visually readable or useful for general reporting. The essential final step in the military-to-standard conversion process is applying the correct number format to display these serial values as recognizable Standard Time.

To transform these decimals into a readable time format, follow these steps precisely:

1. Select and highlight the entire cell range (e.g., B2:B10) containing the decimal time serial values resulting from the TIMEVALUE calculation.
2. Ensure you are on the Home tab of the Excel ribbon.
3. Locate the Number Format section (often defaulted to “General”).
4. Click the dropdown menu and select the Time format option from the available list.

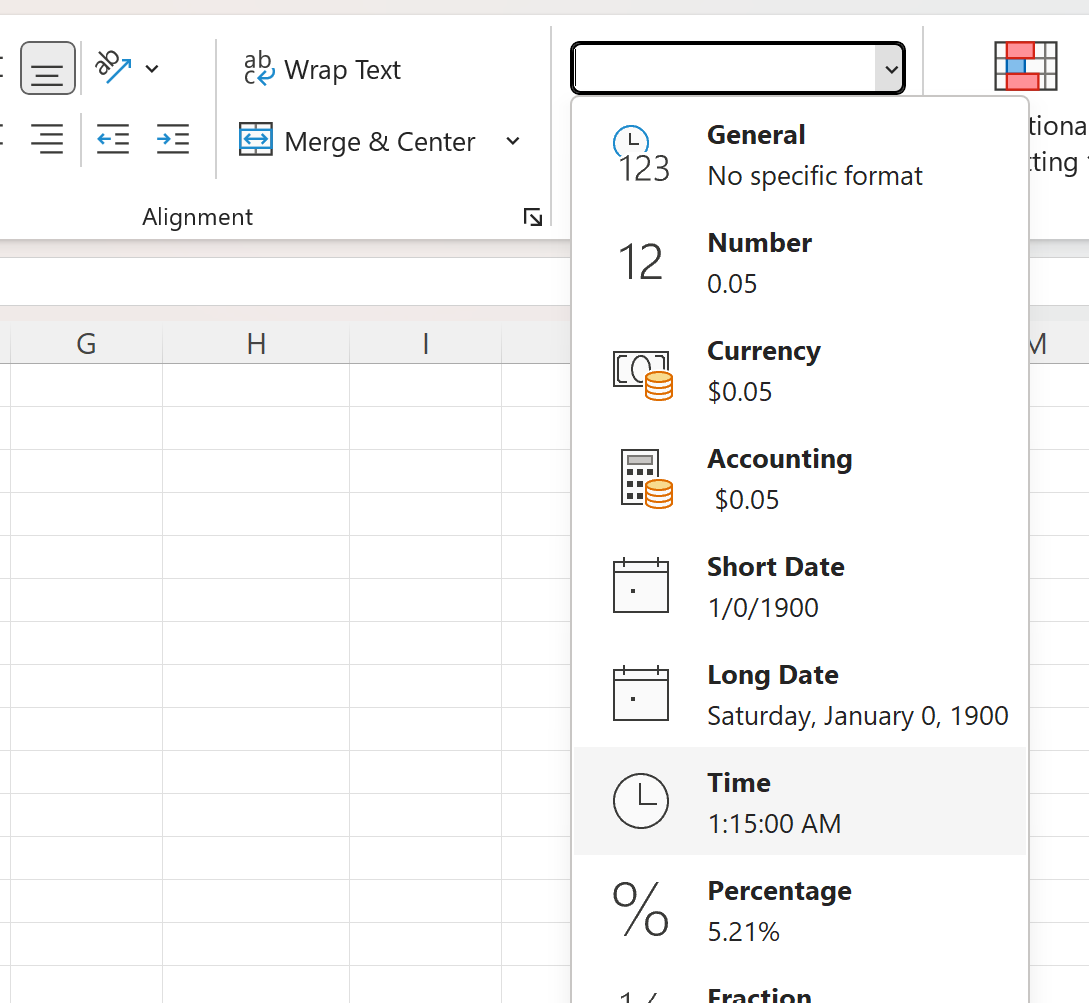

The visual guide below illustrates the necessary selection within the Number Format menu:

Once the “Time” format is applied, column B will instantly update, successfully displaying each military time input from column A as a properly formatted Standard Time using the 12-hour clock with appropriate AM/PM indicators:

Conclusion and Next Steps in Time Data Mastery

Achieving proficiency in time conversion within Microsoft Excel is fundamental for maintaining data integrity and standardization across diverse professional projects. By skillfully employing the TEXT function for Standard-to-Military conversions and combining string manipulation (LEFT, RIGHT) with the TIMEVALUE function for Military-to-Standard transformations, you can ensure your time data is both accurate and displayed according to specifications. Always remember that manual number formatting is the critical final step for rendering the output of the Military-to-Standard conversion in a visually accessible format.

To further expand your capabilities in handling time and date data, consider exploring these related tutorials:

• Techniques for calculating precise time differences between two points.
• Applying conditional formatting rules based on specified date and time criteria.
• Methods for extracting individual components (such as year, month, hour, or minute) from a complete date-time stamp.

Developing these specialized skills will significantly enhance your ability to efficiently manage and analyze complex time-series data within the Excel environment.
