Learn to Create Labeled Bubble Charts in Microsoft Excel

In the sophisticated world of data visualization, the ability to communicate complex, multi-dimensional datasets clearly is essential. The bubble chart is an exceptionally powerful graphical tool, capable of plotting three distinct quantitative variables simultaneously, thereby offering a rich and comprehensive perspective on relationships within your data. This tutorial provides a detailed, step-by-step methodology for constructing a dynamic and highly informative bubble chart, complete with identifying data labels, directly within Microsoft Excel.

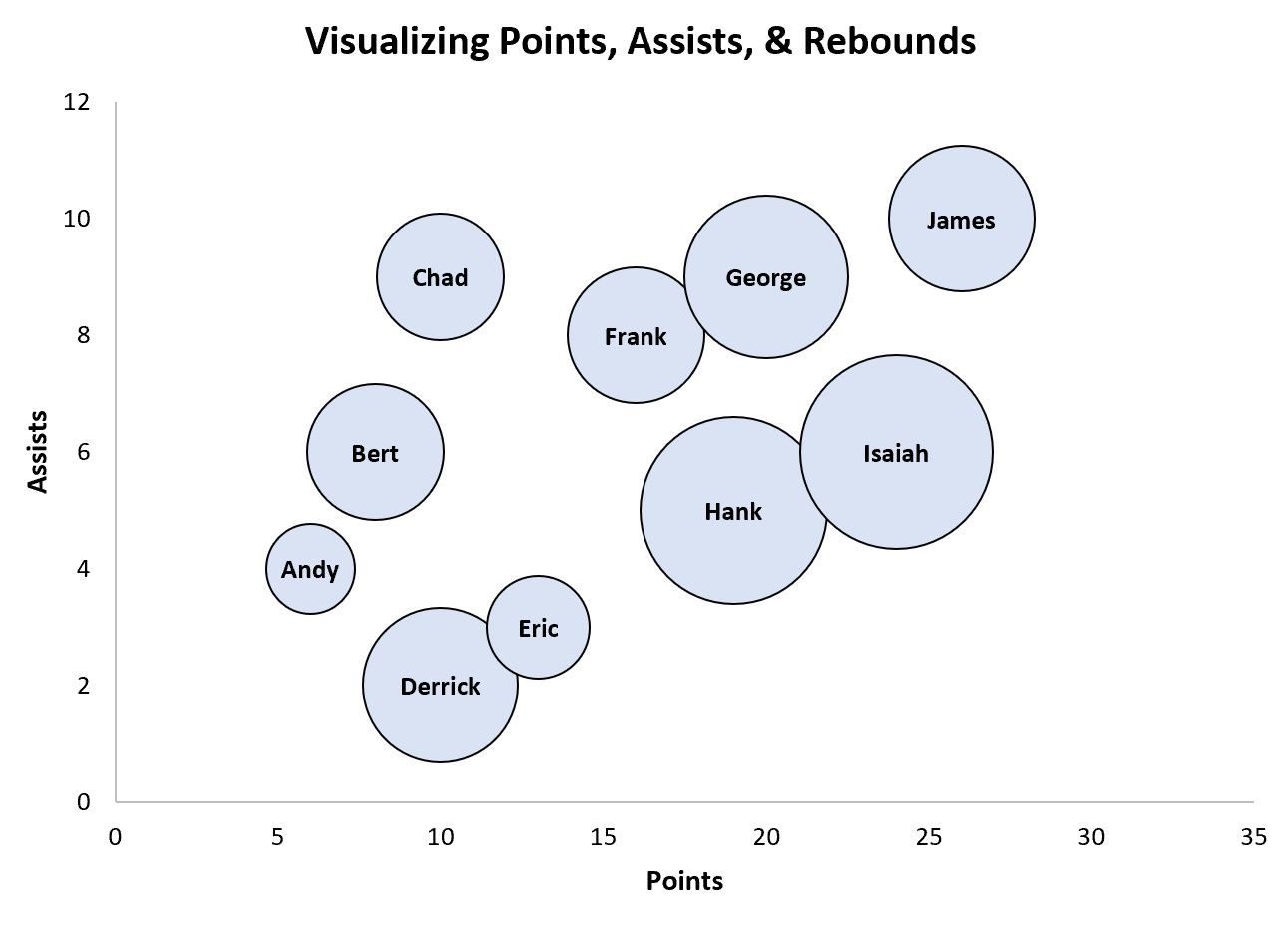

By following the instructions outlined in this guide, you will gain proficiency in transforming raw numerical figures into a visually compelling presentation. The final output will feature clearly defined labels for each data point, significantly enhancing the interpretability of your results for any professional audience. The resulting visualization will resemble the professional example shown below, ensuring immediate clarity and insight.

Structuring and Preparing Your Data for Visualization

The integrity of any effective visualization hinges on meticulously organized source data. For creating a bubble chart, it is paramount that your information is structured to clearly define the three variables you intend to plot. Conventionally, each row in your spreadsheet represents a single entity or observation, while the columns correspond to the quantitative dimensions being analyzed (X-value, Y-value, and Size-value).

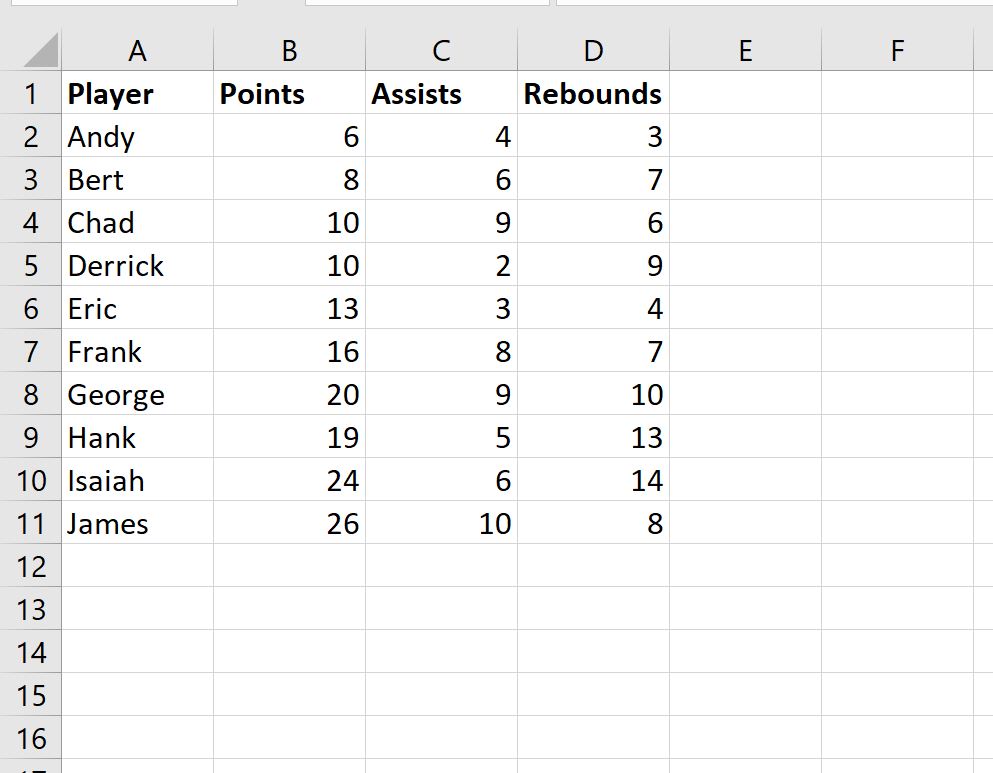

To walk through this process, we will utilize a sample dataset detailing the performance attributes of ten distinct basketball players. In this example, the player names serve as the categorical identifiers (the labels), while their points, assists, and rebounds will function as the three quantitative measures that determine the position and relative size of each bubble marker on the final chart.

When entering this sample data into Excel, exercise careful attention to formatting. Ensure that all numerical data is correctly entered as numbers, as inaccurate data types can lead to errors or misinterpretations when Excel’s charting functions attempt to process the series. Proper preparation at this foundational stage minimizes troubleshooting later in the charting process.

Initiating the Basic Bubble Chart Construction

Once your dataset is properly formatted, the subsequent phase involves leveraging Excel‘s integrated charting tools to generate the basic structure of the bubble chart. This procedure is straightforward but requires precise selection of the quantitative data series before initiating the chart creation command via the ribbon interface.

To begin, highlight only the cells containing your numerical data. In our basketball scenario, this specific range is B2:D11, which includes the points, assists, and rebounds figures for all ten players. It is critical at this stage to exclude the player names (the labels in column A), as including non-numerical data during initial chart creation often results in charting errors or improper axis assignments.

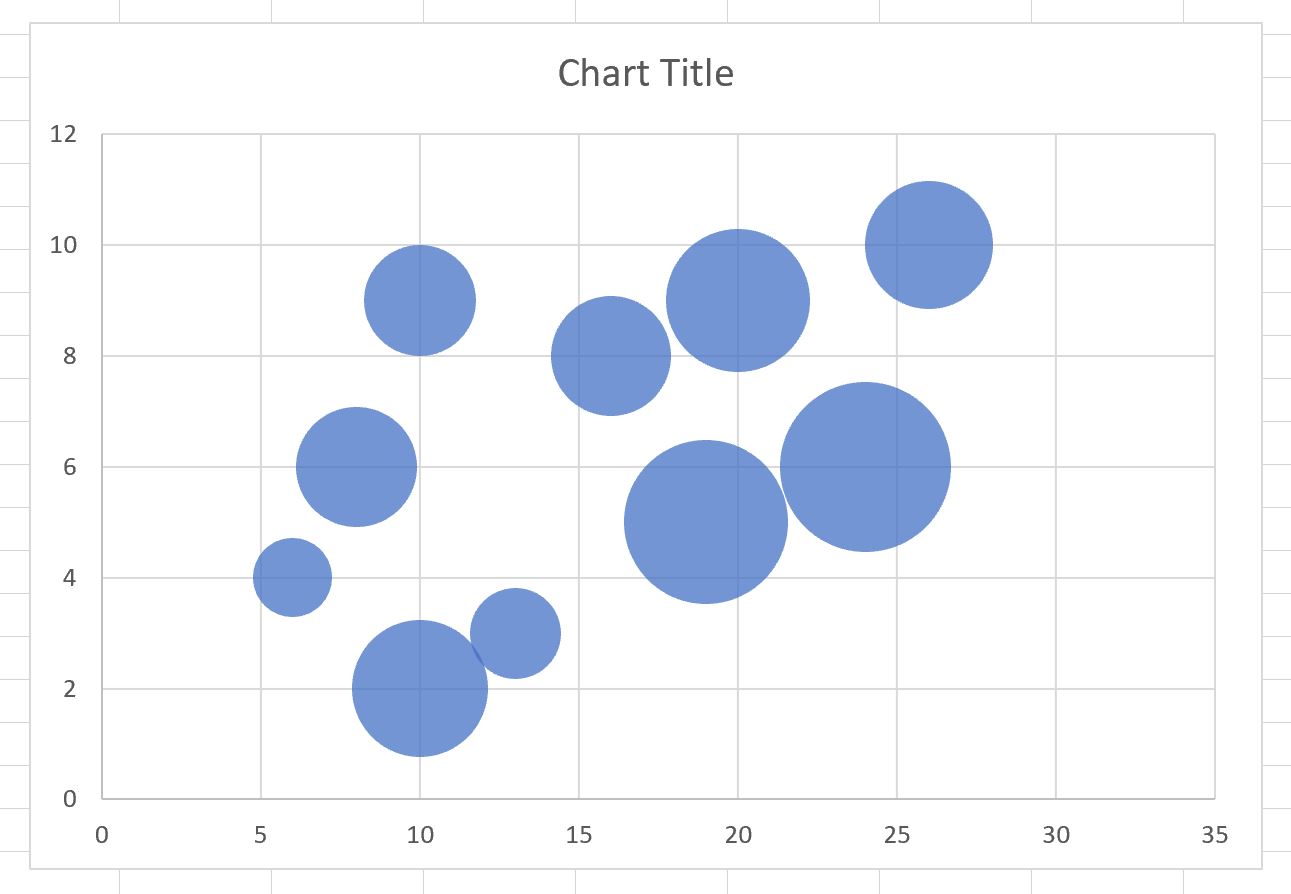

With the quantitative data selected, navigate to the Insert tab located at the top of the Excel ribbon. Within the Charts group, locate the Scatter chart options and select the Bubble Chart icon. Excel will immediately render a preliminary chart based on the three selected data series.

By default, the chart establishes its axes and bubble size based on the sequential order of your selected columns. The first column (Points) is assigned to the horizontal x-axis, the second column (Assists) to the vertical y-axis, and the third column (Rebounds) determines the relative area, or size, of each individual bubble.

While this initial chart effectively visualizes the correlation between points, assists, and rebounds, its utility is currently limited. Without explicit identification, it is impossible to determine which bubble corresponds to which player. The next, and most crucial, step addresses this limitation by integrating specific data labels to ensure the chart is fully interpretable.

Integrating Custom Data Labels for Identification

The transition from an abstract visualization to an immediately actionable insight occurs when every data point is clearly identified. Adding custom data labels is the key process that links the visual bubble representation back to the underlying entity, allowing viewers to quickly associate size and position with a specific player. This section guides you through embedding player names as labels directly onto the chart bubbles.

To initiate the labeling process, first select the chart area by clicking on it. This action will cause the Chart Elements button (represented by a green “+” sign) to appear in the chart’s top-right corner. Click this button to reveal the primary menu for chart customization.

Within the Chart Elements menu, hover over the Data Labels option. Instead of checking the box immediately, click the small arrow next to it to access advanced options. From the expanded menu, select More Options. This command opens the dedicated Format Data Labels pane on the right side of your Excel workspace, providing granular control over the label content and appearance.

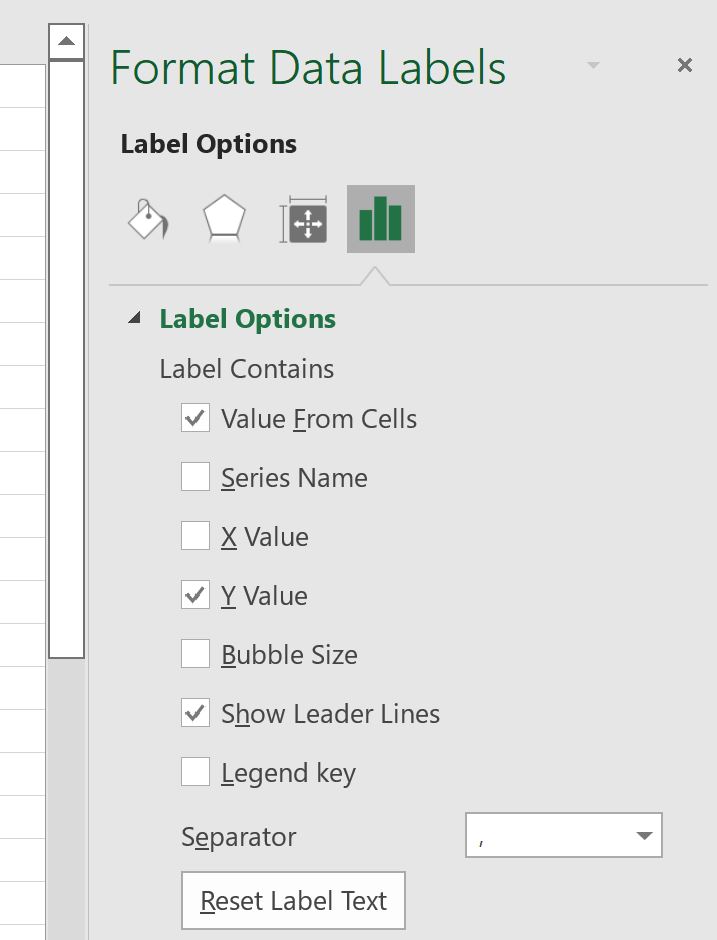

In the Format Data Labels panel, locate and navigate to the Label Options section. The pivotal setting here is Value From Cells. Check this box. A new dialog box, titled Data Label Range, will instantly prompt you to specify the exact cell range containing the desired textual labels.

In the Data Label Range window, precisely select the cell range A2:A11. This range encompasses the names of the basketball players, which are the identifiers we require for our bubbles. After confirming the range selection by clicking OK, the player names will appear on the chart, often initially displayed alongside other numerical values (such as the X or Y coordinates).

To ensure maximum clarity and visual appeal, return to the Format Data Labels panel. Uncheck the boxes next to Y Value, X Value, and Bubble Size, ensuring that only the Value From Cells option remains selected. Finally, under the Label Position options, select Center. This adjustment centers the player names neatly within each bubble, optimizing readability and finalizing the crucial labeling step.

Refining Your Bubble Chart for Professional Presentation

While the integration of custom data labels dramatically enhances interpretation, the final step involves visual refinement to elevate the bubble chart to a professional standard. Excel offers comprehensive customization capabilities, allowing users to fine-tune every aesthetic element of the chart to align with reporting standards or presentation requirements.

Key customization points include adding descriptive titles and clarifying axis definitions. By clicking on the chart title placeholder, you can input a precise title that summarizes the chart’s purpose (e.g., “Player Performance: Points, Assists, and Rebounds”). Furthermore, selecting the x-axis and y-axis enables you to apply specific axis labels, such as “Points Scored” and “Assists Made,” which eliminate ambiguity regarding the plotted dimensions.

Beyond titles, consider refining the visual environment. You may adjust the font size and style of the data labels or axis text for improved legibility. Removing distracting elements, such as minor gridlines, often results in a cleaner, more focused visualization. Experimenting with different color palettes for the bubbles or background can also enhance visual contrast and match corporate branding guidelines.

Investing time in these detailed customization steps transforms a functional graphic into a polished, professional data visualization. The ultimate objective is to create a chart that is not only statistically accurate but also intuitively understandable, enabling the audience to extract key insights effortlessly and without requiring extensive verbal explanation.

Conclusion: Leveraging Labeled Bubble Charts for Insight

You have now successfully completed the process of generating a robust and highly informative bubble chart featuring custom data labels within Excel. This detailed methodology provides the capability to convert raw, multi-dimensional figures into a clear, engaging visual format, making complex relationships between three variables significantly easier to comprehend and analyze. The crucial integration of specific labels for each data point is essential for effective communication and in-depth performance analysis.

The resulting visualization—complete with identified player names, defined axis labels, and a clear title—is now exceptionally readable. It facilitates the immediate recognition of individual player performance patterns, allowing for quick comparisons against peers and efficient identification of outliers or clusters. This analytical capability holds immense value for data-driven decision-making across diverse sectors, including sports science, financial modeling, and strategic business intelligence.

Mastery of advanced data visualization techniques in Excel, such as this labeled bubble chart method, significantly strengthens your overall analytical arsenal. We strongly recommend applying these steps to your own datasets and exploring further customization tools to maximize the impact and clarity of your future reports and presentations.
