Creating Effective Excel Charts: A Guide to Excluding Zero Values

When professional analysts and report generators seek to create impactful charts within Microsoft Excel, they frequently face a common challenge: dealing with zero values present in the underlying dataset. Although these zeros are numerically accurate, they often act as visual impediments, unnecessarily distorting trends and cluttering the visualization. This is particularly problematic when a zero signifies “no data” or “inactivity” rather than a true quantitative measurement of zero. Excel’s default behavior is to plot every numerical point, causing graphical representations to plunge to the baseline whenever a zero is encountered, which rarely serves the analytical goal of visualizing continuous performance or active trajectories.

Fortunately, Excel provides a sophisticated, non-destructive method to circumvent this charting dilemma. The recommended solution involves strategically converting these problematic zero values into the specialized error designation #N/A using the efficient Find and Replace feature. The #N/A designation, shorthand for “Not Available” or “Not Applicable,” is uniquely interpreted by Excel’s charting engine: it treats the cell as missing data and skips the point entirely during rendering. This powerful technique ensures that your visual output is clean, precise, and focused exclusively on relevant data flow, successfully eliminating the visual noise introduced by extraneous zeros.

This comprehensive tutorial is structured to guide you through this essential data cleansing and visualization process. We will begin by establishing a clear understanding of why zeros interfere with visual clarity, and then proceed to the effective, practical implementation of the #N/A transformation. By following our practical, step-by-step example, you will gain the confidence necessary to apply this skill to your own datasets, enabling you to create significantly more insightful and visually compelling charts that dramatically enhance your overall data visualization capabilities in Excel.

Understanding the Visual Distortion Caused by Zero Values

When a chart is automatically generated in Microsoft Excel, the software operates under the principle of rigid data representation, plotting every numerical data point within the selected range, including all zero values. While zero is a mathematically valid number, its interpretation in analytical contexts, such as tracking metrics like sales, inventory levels, or monthly performance, is often ambiguous. A zero frequently serves as a proxy for missing data, a period of operational inactivity, or an unrecorded observation, rather than an intentional measurement of nothingness.

Consider, for instance, a time series analysis designed to track the quarterly sales of a new product. If a zero appears in the second quarter because the product was not yet launched or was temporarily pulled from the market, plotting this zero drags the line sharply down to the horizontal axis. This abrupt descent obscures the true trend established during active sales periods and visually misrepresents the product’s growth trajectory. The visual consequence of including these irrelevant zero points is substantial and counterproductive to the goal of clear communication.

The line chart type is particularly vulnerable to this effect. When an extraneous zero is encountered, the data series experiences a sharp, distracting plunge to the baseline, resulting in a jagged, fragmented, or “sawtooth” appearance. This visual noise makes it incredibly difficult for the audience to accurately interpret underlying patterns, identify seasonality, or confidently project long-term growth. Thus, while the visualization technically reflects the raw data, it fails its primary purpose of facilitating clear analytical assessment and communication.

The primary analytical objective, therefore, is to instruct the visualization tool to conceptually bypass these specific data points without compromising the integrity of the original source data or resorting to complex, rigid filters. The optimal outcome is a solution that allows the chart’s line to smoothly connect the valid data point immediately preceding the zero with the valid point immediately succeeding it, effectively eliminating the visual dip and yielding a much cleaner, more interpretable trend line. This necessity forms the perfect justification for intelligently deploying the #N/A error value as a tool for managing missing or irrelevant data in complex visualizations.

The Power of #N/A: Making Data Points Invisible

The #N/A error value, which stands for “Not Applicable” or “Not Available,” is a unique and powerful feature embedded within Microsoft Excel, specifically designed for robust handling of missing information. It differs significantly from standard operational errors like #DIV/0! or #VALUE!, which signal calculation failures. Instead, #N/A carries a special instruction for the software: this data point does not exist and should be disregarded in specific operations, most notably in charting.

This distinction is critically important for data visualization because Excel’s charting engine has a hard-coded protocol to ignore cells that contain #N/A values. When the engine encounters an #N/A entry within a plotted data series, it simply omits that specific data marker from the visual plot. In the context of line charts, this behavior causes the line to bridge the spatial gap between the last valid data point and the subsequent valid point, effectively rendering the “missing” data invisible while preserving the continuity and integrity of the perceived trend.

It is essential to understand that this desired effect cannot be achieved simply by deleting the cell contents, leaving the cell truly blank, or entering an empty text string. Excel’s charting functions interpret these alternatives differently; blank cells or text strings might result in an unexpected break in the line, or, more typically, still plot a zero depending on your version and chart settings. By explicitly replacing extraneous zero values with #N/A, we utilize Excel’s precise protocol for handling “not available” data, thereby guaranteeing a consistent, predictable, and clean outcome in the final charts without disrupting the underlying numerical structure.

Step-by-Step Guide: Preparing the Data and Creating the Baseline Chart

To vividly illustrate the effectiveness of this technique, we will establish a standard business scenario involving historical sales data. Assume you are tracking annual sales performance for two distinct products, Product A and Product B, over a ten-year period. This dataset is chronologically organized, and critically, it contains several zero values in the sales columns, representing years of non-activity that should be visually ignored when analyzing long-term growth trends.

The foundational first step is to generate an initial line chart using the raw data, including the zero values. This initial chart serves as a critical visual baseline, allowing us to accurately observe and quantify the distracting distortion caused by Excel’s default handling of zeros. You must begin by selecting the data range that contains the sales figures and the corresponding axis labels (e.g., years).

1. Begin by selecting the entire range of your data that contains the numerical figures you wish to chart, including the series headers. For our example, if sales data for Product A and Product B are in columns B and C, and your data spans rows 1 through 11 (including headers), you would highlight the range B1:C11.
2. Navigate to the Insert tab, which is located on the top ribbon of the Excel interface.

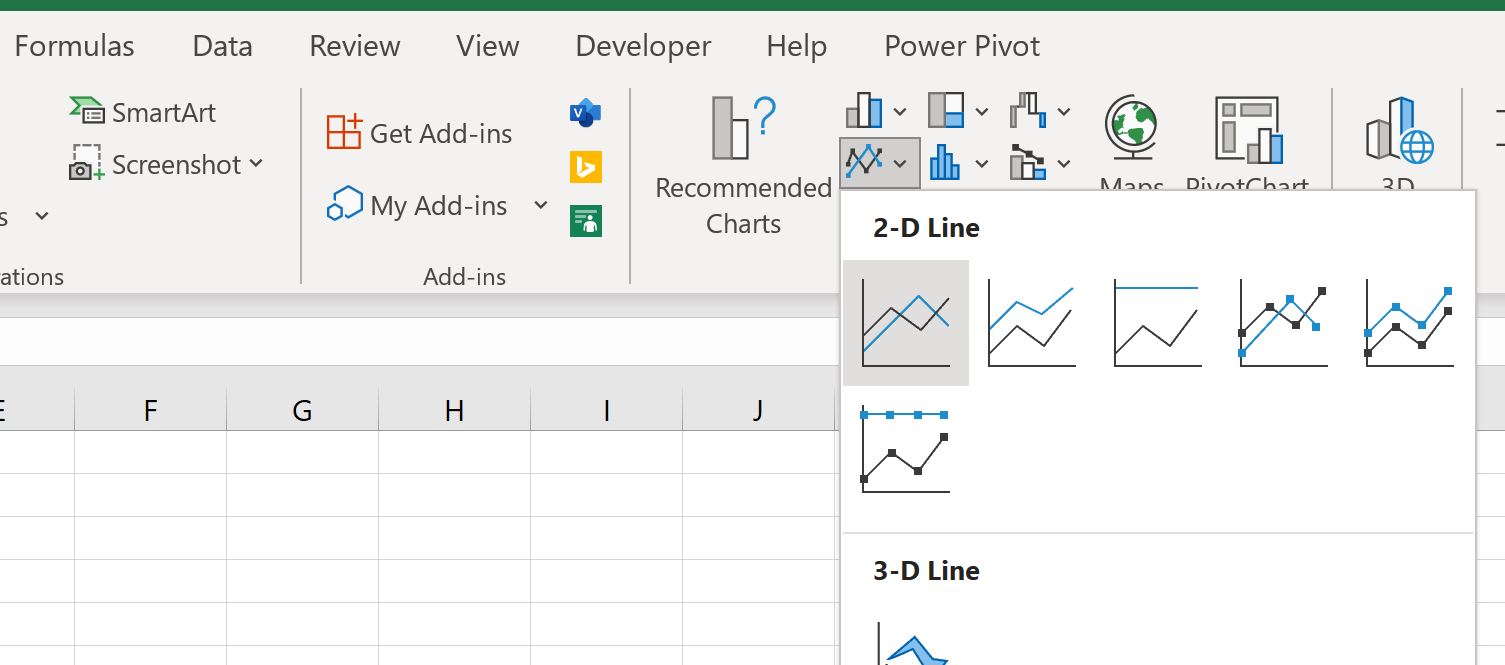

3. Within the Charts group on the Insert tab, click the Line button. From the resulting dropdown menu, select an appropriate line chart type, such as “Line with Markers” or a standard “2-D Line” to clearly visualize the performance trends of each product over time.

Once these steps are completed, Excel will automatically produce a line chart based on the selected data. This baseline visualization clearly demonstrates how Excel plots zero values by default. You will immediately observe that the lines representing the product sales drop abruptly to the horizontal axis at every point where a zero value exists in the dataset, vividly underscoring the need for our forthcoming data transformation.

The resulting chart will typically appear as follows, showcasing the jagged lines:

Executing the Transformation using Find and Replace

The fundamental technical maneuver required to prevent Excel from plotting zero values is their replacement with the #N/A error value. This task is most efficiently achieved using Excel’s built-in Find and Replace tool, which allows for batch modification across a large range of cells. Crucially, we must instruct Excel to replace the numerical digit `0` with the formula `=NA()`, as this is the mechanism by which Excel dynamically generates the required error state.

To begin this transformation, you must first precisely select only the range of cells containing the sales figures that you intend to modify, being careful to exclude header rows, year columns, or any other non-numerical data. Continuing with our example, this selection would be the sales data range, specifically B2:C11. After highlighting the appropriate range, open the Find and Replace dialogue box. This can be done rapidly using the standard keyboard shortcut Ctrl + H, or by navigating through the Home tab’s Find & Select menu and choosing the Replace option. This versatile utility is the engine for our batch data modification.

1. First, carefully highlight the specific range of cells that contains the data where zero values need to be converted. In our ongoing example, this is the range B2:C11.
2. Once the data range is selected, activate the Find and Replace dialogue box by pressing Ctrl + H.
3. In the dialog box that appears, locate the Find what: input field. Here, you should type the single digit `0`.
4. Next, locate the Replace with: input field. In this field, type the formula =NA(). Utilizing this intrinsic formula ensures that the targeted cells are populated with the calculated #N/A error, which is the specific format recognized by the charting engine for data omission.

After ensuring that the Find what: and Replace with: fields are correctly configured, click the Replace All button. Excel will execute the conversion, instantly changing all instances of `0` within your selected range to =NA(). Your underlying dataset is now optimally prepared, displaying #N/A wherever a misleading zero previously resided, ready for optimized visualization.

Analyzing the Optimized Data Visualization

The instant the Find and Replace operation is successfully finalized, two significant changes occur. Firstly, your source dataset visually confirms the transformation, with all previously selected zero values now displaying the #N/A error state. Secondly, and most importantly for our goal, the chart dynamically linked to this data automatically updates, displaying the precise visual improvement we set out to achieve.

Instead of the disruptive, sharp drops to the baseline, the line chart now exhibits a smooth, uninterrupted trend. Upon recognizing #N/A, Excel’s charting engine gracefully bypasses the associated point and draws a line segment that directly connects the last known valid data point to the next valid point. This method effectively ignores the “not available” data, thereby eliminating visual clutter and allowing analysts and stakeholders to concentrate solely on the legitimate fluctuations and long-term trajectory of the active performance.

This revised graphical output provides a significantly more accurate and professional depiction of the data trends. It successfully isolates periods of genuine sales activity, preventing the visual narrative from being distorted by data points that, for analytical interpretation, signify absence rather than quantifiable zero performance. By implementing this method, you maintain the structural integrity of your original numerical data while achieving a superior standard of data visualization. You have successfully instructed Excel to treat specific numerical entries as missing, which leads directly to enhanced clarity and deeper insights for your audience.

Best Practices and Analytical Implications

While the technique of replacing zero values with #N/A is powerful for charting, it is crucial to recognize its analytical implications throughout the rest of your spreadsheet. The #N/A error is designed to propagate, meaning that most standard aggregation formulas (such as `SUM` or `AVERAGE`) that reference the modified cells will themselves return #N/A. To maintain the functionality of summary calculations, you must employ robust error-handling formulas, such as `IFERROR`, or utilize advanced functions like `AGGREGATE`, which can be specifically configured to ignore error values during calculation.

A fundamental best practice when undertaking large-scale data transformations using Find and Replace is to always execute the operation on a dedicated copy of your original dataset. This precautionary measure serves as a vital safety net, ensuring that the primary source data remains pristine for archival purposes or other dependent calculations. Although the replacement process is technically reversible (you could Find #N/A and Replace with `0`), working on a duplicate range minimizes the risk of unintended dependencies and preserves absolute data integrity across complex workbooks.

Finally, always scrutinize the fundamental meaning of the data point before replacement. If a zero genuinely represents a valid, measured value of “none” (e.g., a zero profit margin, or a zero change in a quantity that was actively measured), then replacing it with #N/A would be analytically misleading. This charting technique is exclusively recommended when zeros are acting as placeholders for missing data or operational non-activity, and when their visual plotting detracts from the true trend analysis. By carefully evaluating the data context, you ensure this powerful Excel method correctly enhances your data visualization efforts.

Conclusion: Mastering Data Clarity in Excel Charts

The effective management of zero values in Excel charts is an indispensable skill for elevating the quality and professionalism of any data visualization project. As demonstrated through our practical guide, the straightforward technique of replacing zero values with #N/A via the Find and Replace utility provides an elegant and clean solution to visual clutter. This robust approach ensures that your line charts, in particular, present smooth, continuous, and meaningful trends, directing the viewer’s attention to genuine patterns rather than misleading drops caused by irrelevant zeros.

By leveraging #N/A, you utilize Excel’s built-in mechanism for handling missing data within charts, resulting in significantly clearer, more insightful, and professional visualizations. This methodology preserves the underlying structure of your source dataset while simultaneously optimizing the visual output for maximum impact and clarity. It grants you the essential control needed to precisely tailor your charts to specific analytical goals, ensuring every visual element powerfully supports your data narrative.

Mastering this data transformation technique represents a fundamental step toward creating highly accurate and sophisticated charts. We strongly encourage you to implement this method across your own datasets, observing firsthand how it can revolutionize your data visualizations and elevate your overall data storytelling capabilities within Excel.
