Learn to Create Color-Coded Drop-Down Lists in Excel

The ability to incorporate visual feedback directly into your data entry process is a powerful feature within Excel. While standard Dropdown Lists are excellent for ensuring data consistency, adding color coding significantly improves readability and user experience. This advanced technique combines two critical Excel functionalities: Data Validation and Conditional Formatting.

This step-by-step tutorial will guide you through the process of setting up a dynamic system where selecting an option from a list automatically changes the background color of the cell, providing instant visual categorization. We will use a common scenario involving rating performance data to illustrate these concepts clearly.

Step 1: Preparing the Source Data Structure

Before implementing any advanced functionality, it is essential to structure your primary data logically. For this example, we assume you are tracking performance data, specifically the number of points scored by a basketball player. We need a system to quickly assign a qualitative rating (Good, OK, or Bad) based on these scores.

A well-organized dataset is the foundation of effective spreadsheet management. In our hypothetical scenario, Column A contains the player names, Column B holds the numerical scores, and Column C is where we intend to place our colored dropdown ratings.

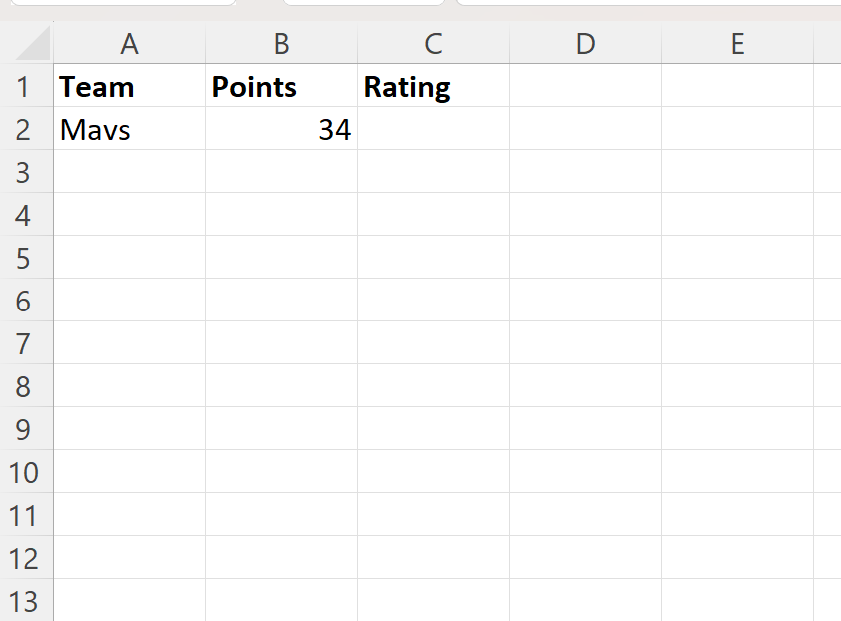

The image below illustrates this initial data setup. Notice how the ratings column (Column C) is currently empty, awaiting the implementation of the dropdown menu and subsequent coloring rules.

Maintaining clean source data separate from your calculation or output area is a best practice, as it makes troubleshooting and future modifications significantly easier.

Step 2: Defining the Dropdown List Options

The next crucial step is defining the specific, acceptable text options that users will be able to select. These options form the basis of our Dropdown List.

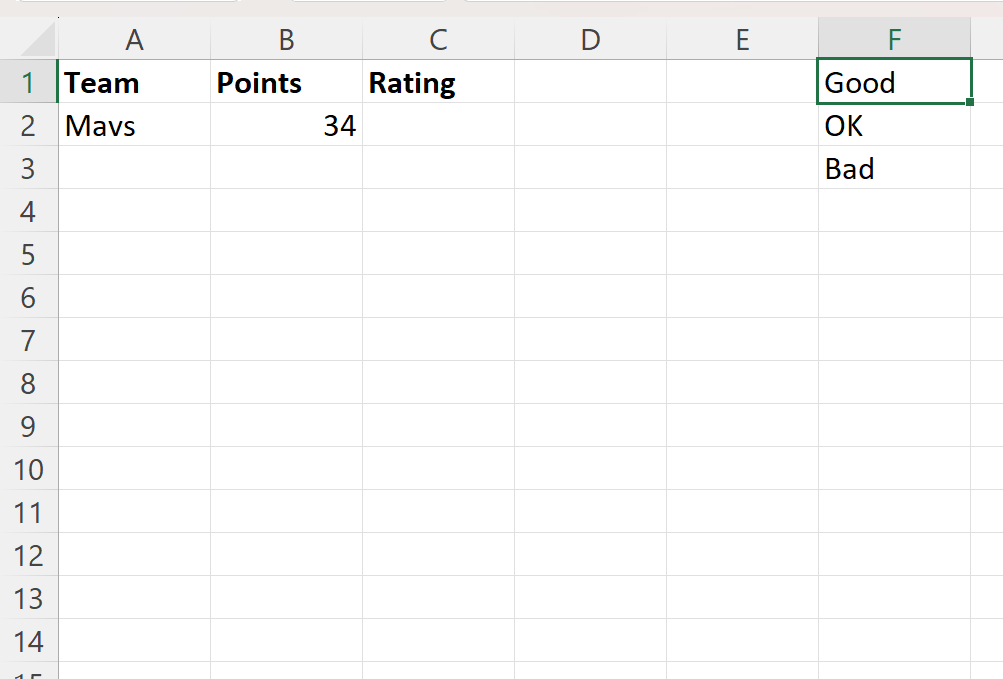

In a dedicated, often hidden, section of your worksheet, input the exact text values you wish to use. For our rating system, we will use the terms Good, OK, and Bad. We place these values in the range F1:F3. This range will serve as the reference source for the Data Validation feature in the subsequent step.

It is important that these options are typed precisely, as any spelling or capitalization variance between the source data (F1:F3) and the conditional formatting rules (Step 4) will lead to errors. Using a reference range (like F1:F3) rather than typing the options directly into the Data Validation settings ensures consistency and allows for easy updates if the rating system changes later.

These clearly defined options are now ready to be linked to our primary data entry column, restricting user input to only these three defined categories.

Step 3: Implementing Data Validation for the Dropdown

Data Validation is the mechanism that transforms a regular cell into a functional dropdown menu. Its primary purpose is to maintain data integrity by enforcing specific rules on what users can input into a cell.

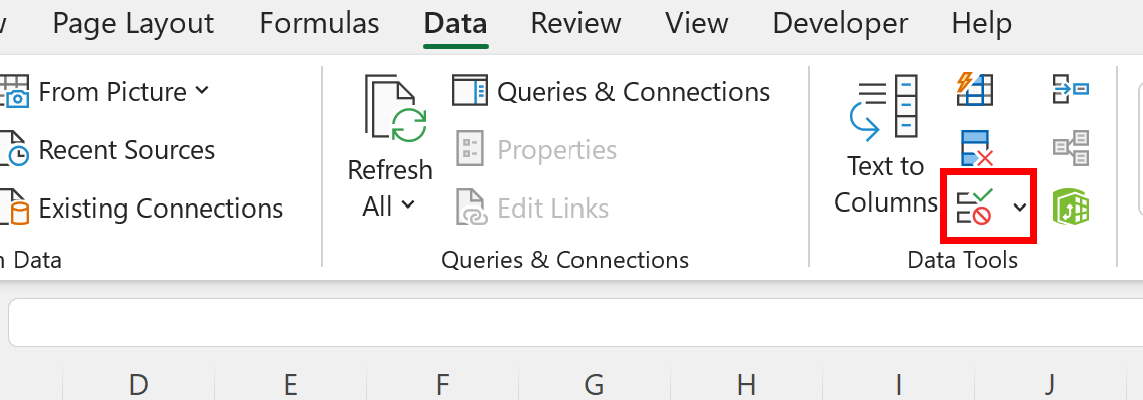

To begin, select the cell where the dropdown must appear—in our case, cell C2 (the first rating cell). Navigate to the Data tab located on the Excel Ribbon, and then locate and click the Data Validation icon within the Data Tools group.

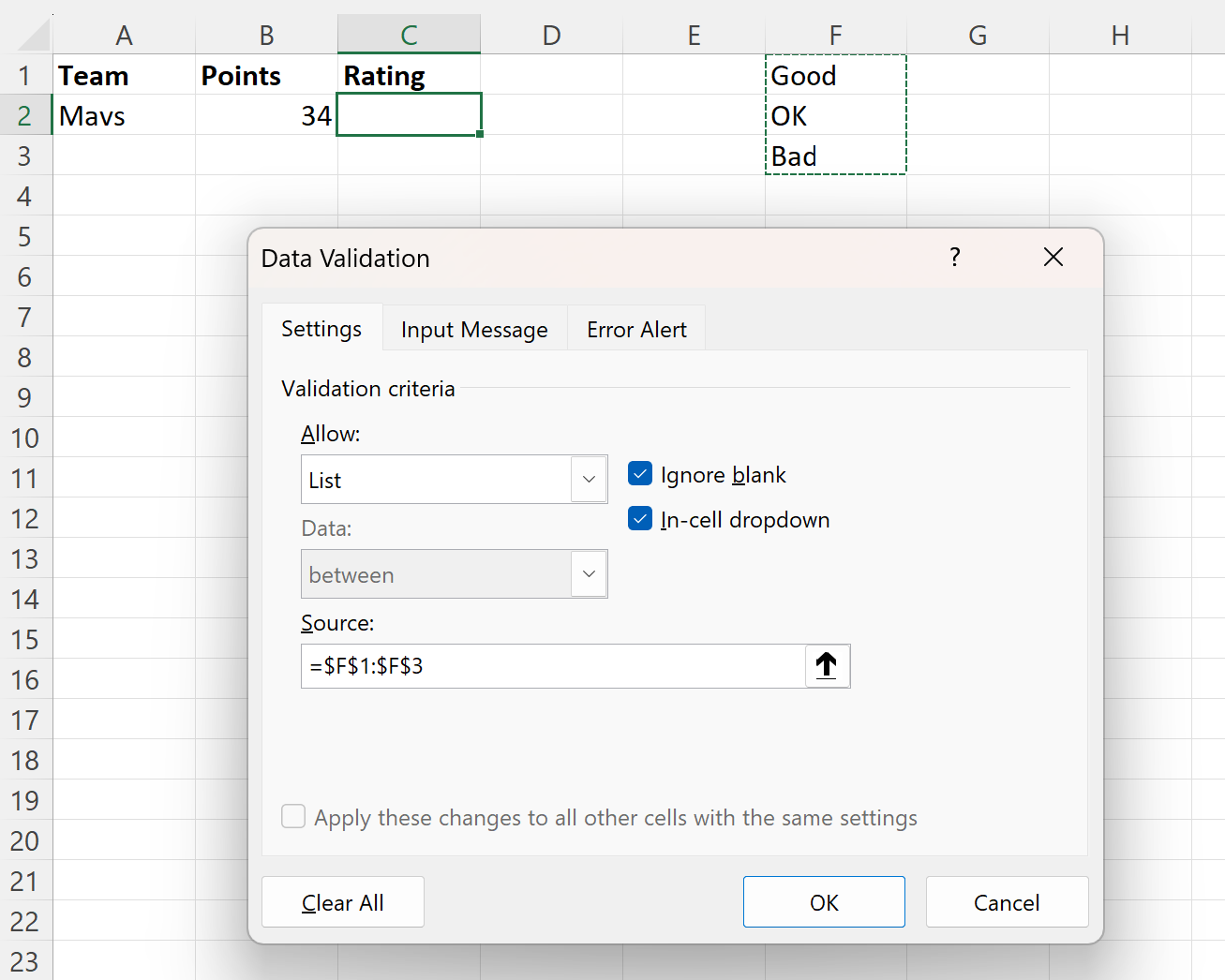

A dialog box will open, requiring you to define the validation criteria. Under the Settings tab:

1. From the Allow dropdown menu, select List. This setting instructs Excel to restrict input to items from a specified range.
2. In the Source field, specify the range containing your rating options, which is F1:F3. You can either type this range manually or click the selection button and drag your mouse across cells F1 through F3.

This process links the allowed inputs directly to the source data defined in Step 2.

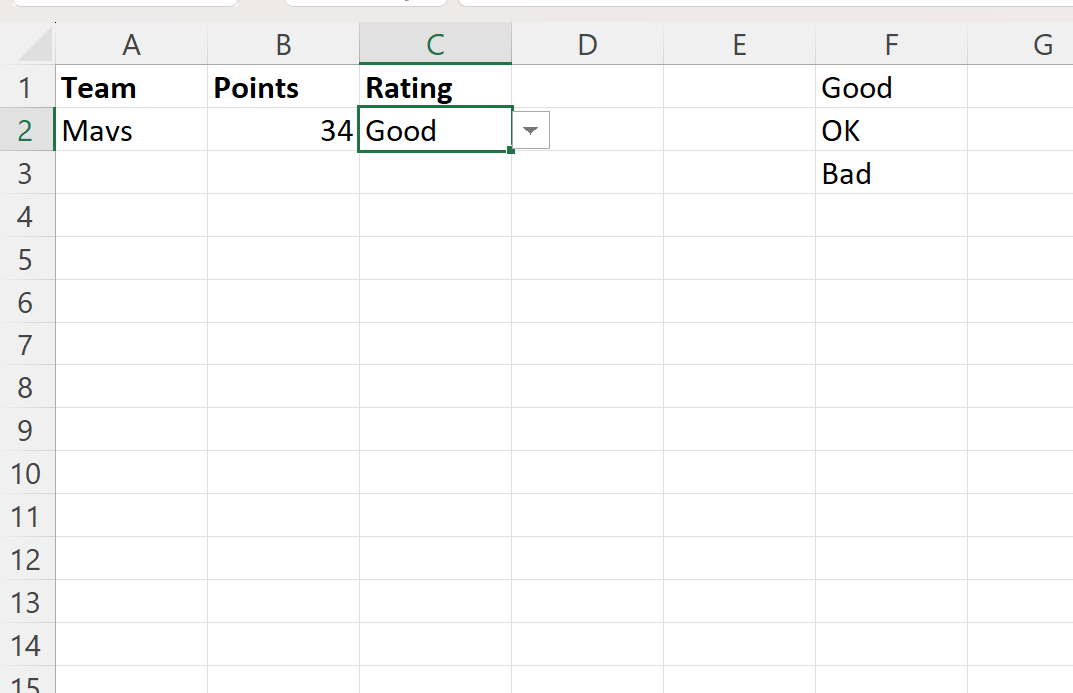

Once you click OK, cell C2 will instantly display a small arrow, indicating that a Dropdown List has been successfully added, offering Good, OK, and Bad as the only selectable options. You can then copy (fill down) the Data Validation rule to the rest of the cells in Column C (e.g., C3, C4, etc.) where ratings are required.

Step 4: Applying Conditional Formatting Rules for Coloring

The coloring effect is achieved not by the dropdown itself, but through Conditional Formatting. This feature allows you to automatically apply specific formatting (like background fill or font color) to a cell based on whether its value meets a set criterion.

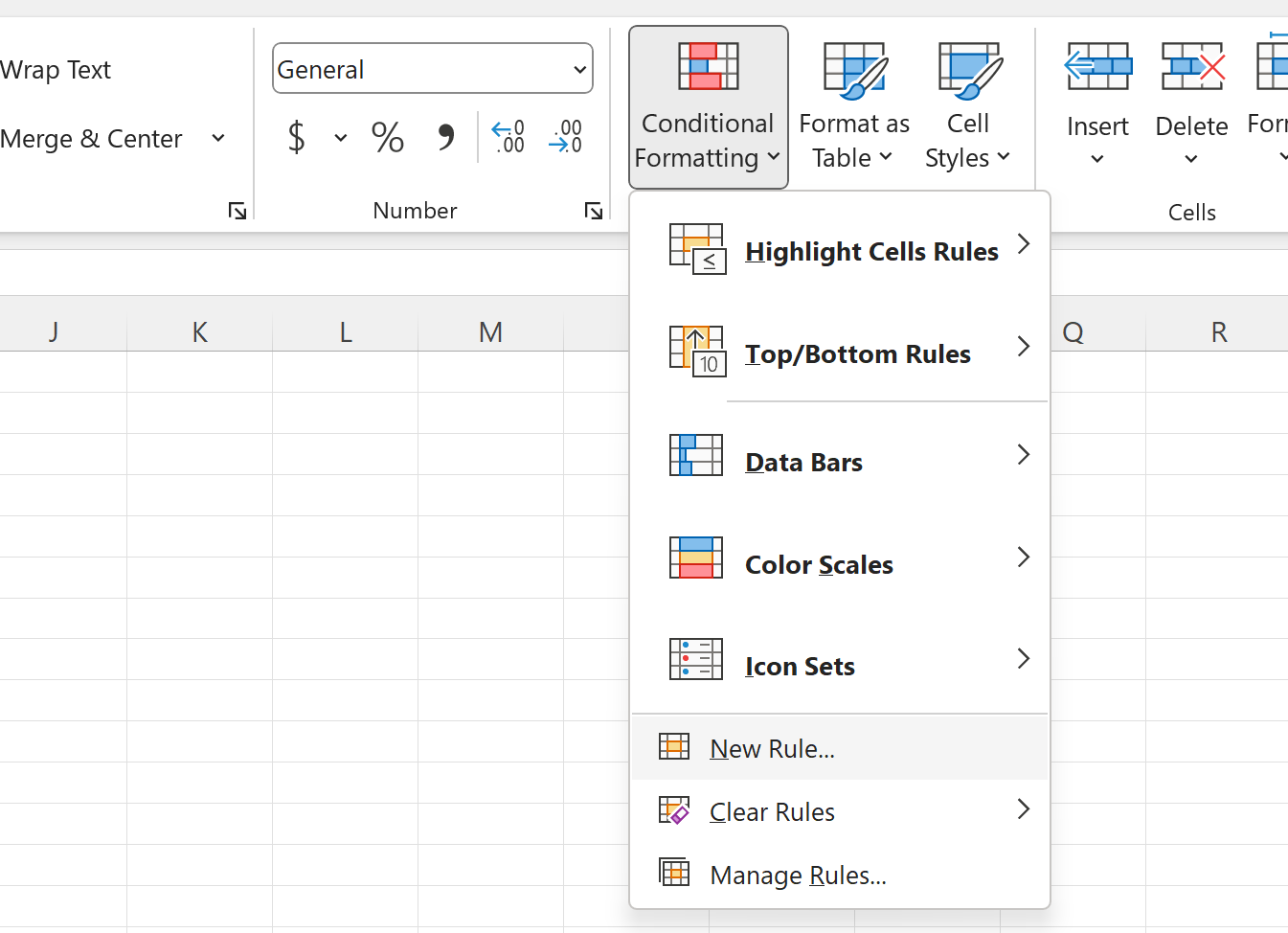

To start applying the rules, first ensure that the entire range of cells where the ratings will be selected (e.g., C2:C100, if you have a large dataset) is selected. Then, navigate to the Home tab on the Ribbon, click the Conditional Formatting icon, and select New Rule.

The goal here is to create three separate rules: one for Good (Green), one for OK (Yellow), and one for Bad (Red).

Setting the Rule for “Good” (Green)

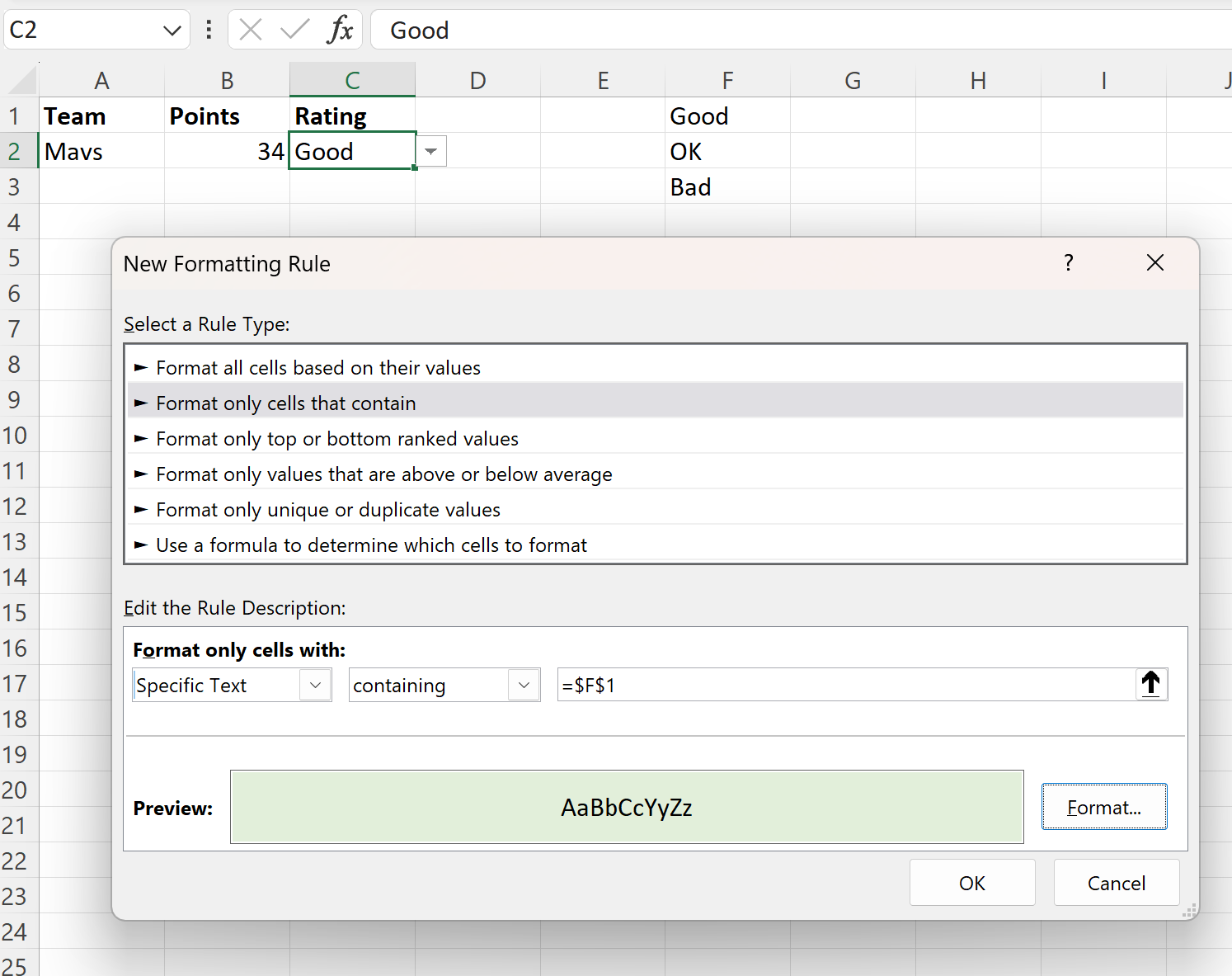

In the New Formatting Rule dialog box, follow these specific steps to define the first rule:

1. Under Select a Rule Type, choose Format only cells that contain.
2. In the Rule Description section, ensure the dropdowns are set to format cells where the Cell Value is equal to Specific Text.
3. In the text field provided, input the precise Absolute Reference to the source cell containing “Good”. Since “Good” is in F1, this reference must be =$F$1. Using an absolute reference ensures that when this rule is applied across multiple cells (C2, C3, C4, etc.), it always checks against cell F1, regardless of the row it is in.
4. Click the Format button to open the formatting options. Navigate to the Fill tab and choose a suitable color, such as green.

Click OK to save the formatting and OK again to apply the rule.

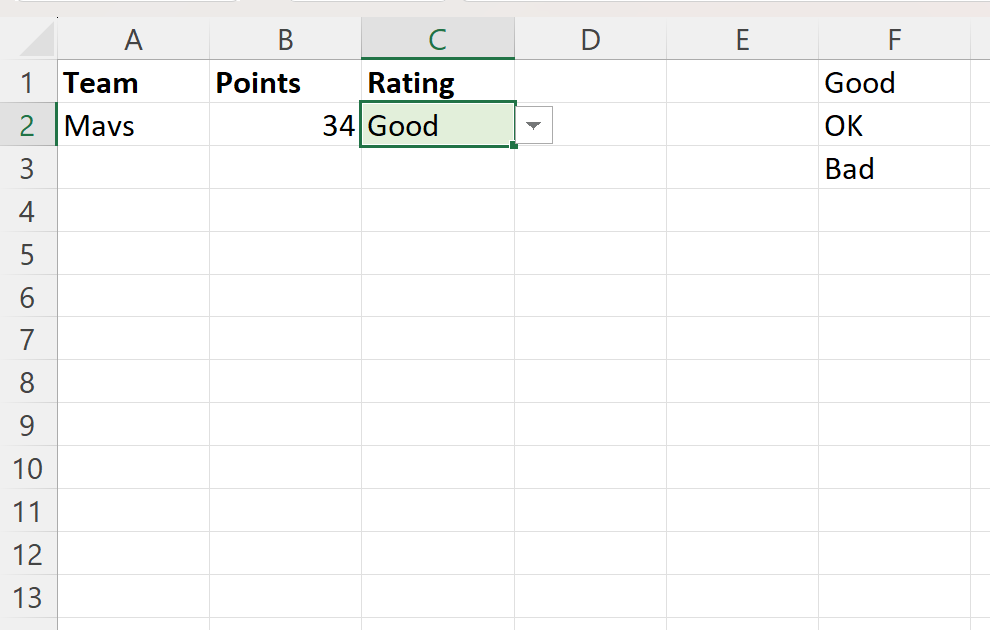

Upon clicking OK, if you select “Good” from the Dropdown List in cell C2, the cell background will immediately turn green, confirming the success of the first Conditional Formatting rule.

Step 5: Completing the Conditional Formatting Rules

To complete the colored dropdown functionality, we must repeat the process defined in Step 4 for the remaining options, “OK” and “Bad,” assigning them distinct colors.

Setting the Rule for “OK” (Yellow)

Repeat the steps: select the range (C2:C100), go to Conditional Formatting, and create a New Rule. This time, the rule should target the source cell for “OK,” which is F2.

The specific condition must be: Cell Value equal to =$F$2.

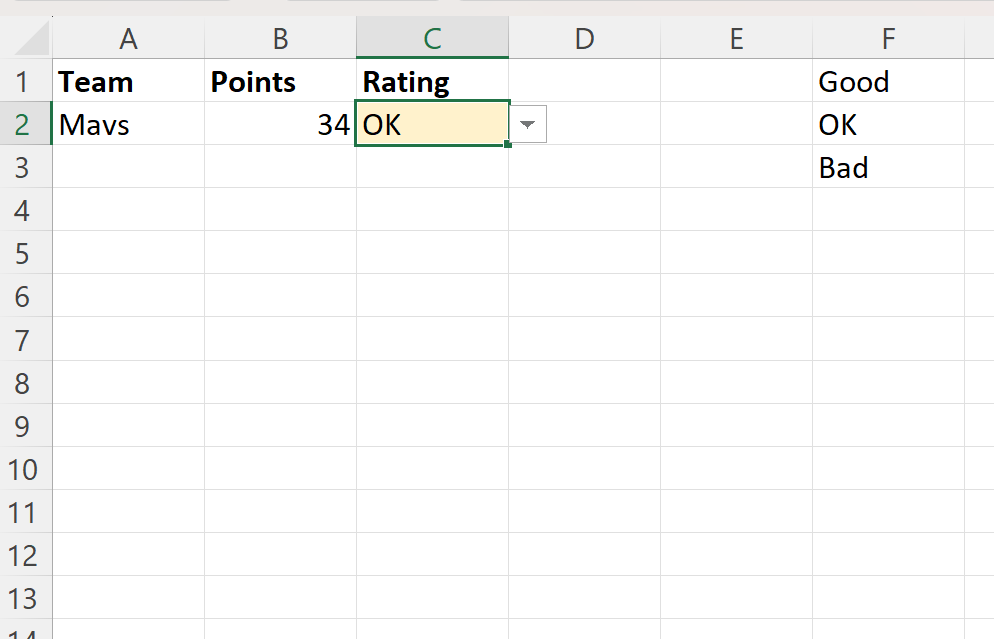

Select yellow as the fill color for this rule. This intermediate color is often used to denote average or acceptable performance, making the visual cues clear and intuitive for the user interpreting the data.

Setting the Rule for “Bad” (Red)

Finally, create the third and last rule for “Bad.” This rule targets the last source cell in our defined range, F3.

The specific condition must be: Cell Value equal to =$F$3.

Select red as the fill color. Red serves as a standard visual warning, immediately drawing attention to performance areas that require improvement or review. Once this rule is set, all three possible selections in the Dropdown List will trigger an associated color change upon selection.

By implementing these three distinct Conditional Formatting rules, you have successfully added dynamic color coding to your Data Validation list, significantly enhancing the visual analysis capabilities of your spreadsheet.

Reviewing and Managing Conditional Formatting Rules

Once multiple conditional formatting rules are established on a sheet, it is often necessary to review, edit, or delete them. Excel provides a centralized manager for this purpose.

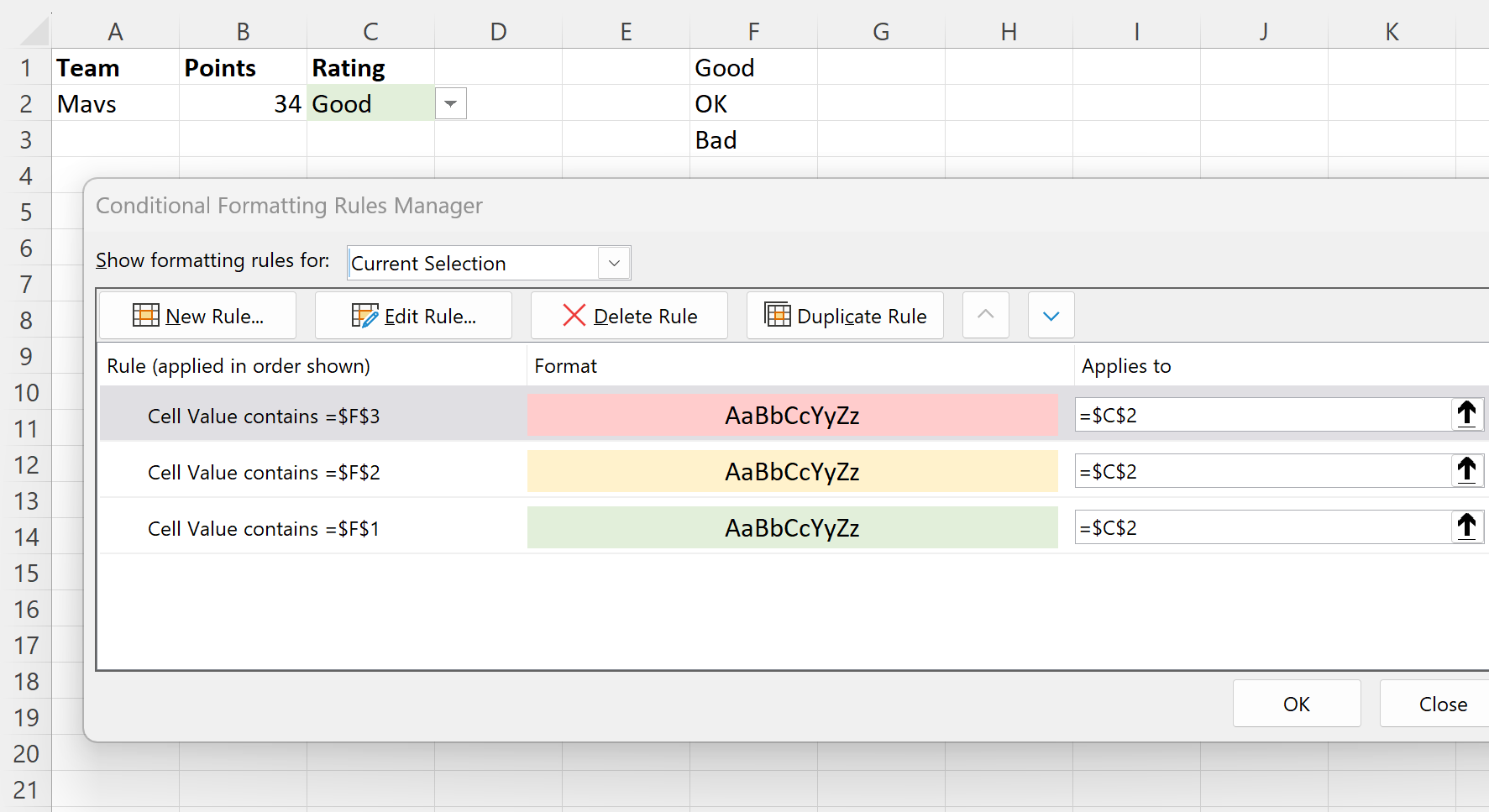

To review your work, click the Conditional Formatting icon on the Home tab and then select Manage Rules. This opens the Conditional Formatting Rules Manager dialog box, which provides a comprehensive overview of all rules applied to the currently selected range or the entire worksheet.

This manager is essential for advanced management tasks, such as:

• Checking the Rule Type (e.g., Format only cells that contain).
• Verifying the Format applied (e.g., Green Fill).
• Confirming the Applies to range (e.g., =$C$2:$C$100).

Ensuring the “Applies to” range is correctly set is particularly critical if you copied the rules incorrectly or need to expand the rating column for new data entries.

This dynamic combination of data constraint (via Data Validation) and visual output (via Conditional Formatting) results in a highly effective and user-friendly data entry interface within Excel.
