Deriving Equations from Data: A Step-by-Step Guide Using Excel

Introduction: The Power of Data Modeling and Prediction

One of the most fundamental and valuable analytical tasks in science, business, and engineering is the process of deriving a mathematical equation that concisely summarizes the underlying relationship within a collection of data points. This procedure, commonly known as model fitting or curve fitting, enables analysts to move beyond simple data description to understanding core trends and making reliable future predictions. This comprehensive guide details a precise, step-by-step methodology for generating a best-fit equation directly from your quantitative data using Microsoft Excel, an essential tool for effective data reporting and analysis.

Leveraging Excel’s powerful built-in charting and analytical capabilities, we can perform simple linear regression efficiently. This technique allows us to visualize the data distribution and automatically calculate the specific parameters (slope and intercept) of the straight line that best describes the observed correlation between two variables: the independent predictor (X) and the dependent response (Y). Mastering this skill is crucial for anyone involved in quantitative decision-making.

The following sections outline the necessary preparation, visualization, and calculation steps required to replicate this powerful statistical technique using standard Excel features. We will focus on the classical linear model, represented by the form Y = mX + b.

Step 1: Structuring Your Data for Regression Analysis

The foundation of any successful data modeling exercise lies in the careful preparation and correct organization of the raw figures. For the purpose of deriving a simple linear model, we require a dataset consisting of paired observations—specifically, corresponding X and Y values. Ensuring that your data is structured correctly in adjacent columns is absolutely crucial, as Excel relies on this organization to interpret which column represents the predictor (X) and which represents the response (Y).

In the standard setup, Column A is designated for the independent variable (X), which is often the factor being manipulated or observed, and Column B contains the corresponding dependent variable (Y), which is the outcome being measured. Incorrect variable placement will lead to an inverted and statistically meaningless equation.

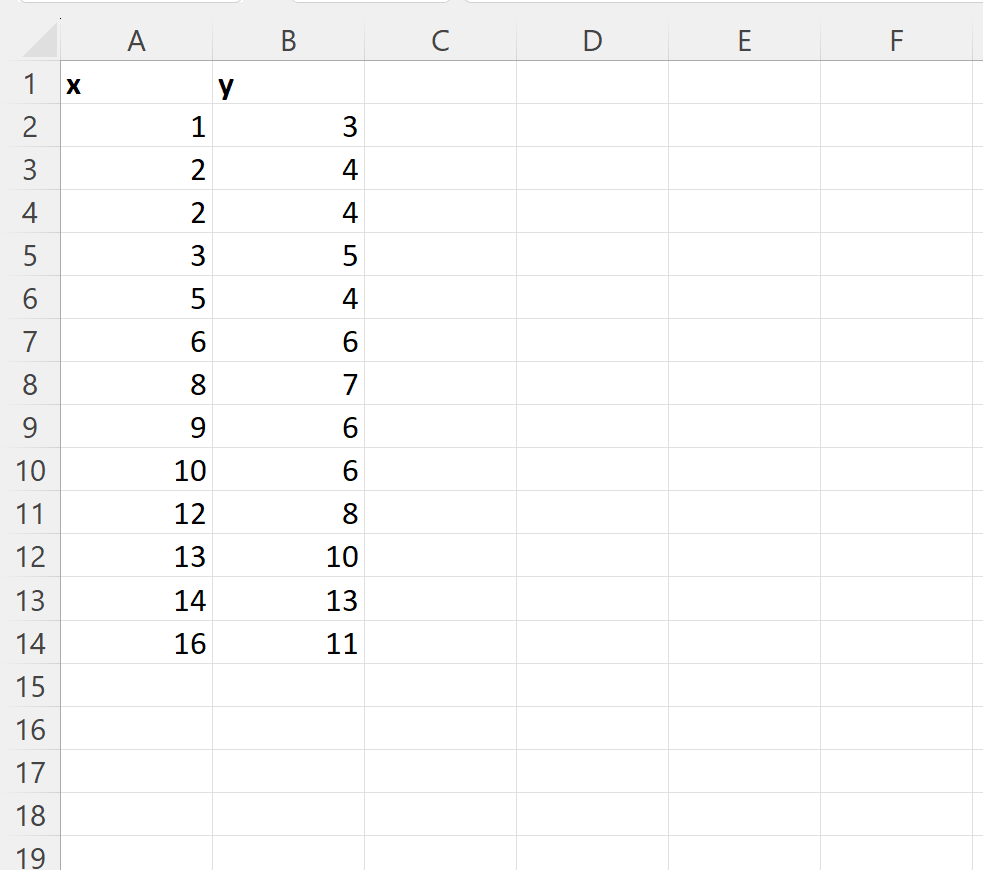

To proceed with this demonstration, please accurately input the following data structure into a new Excel worksheet, ensuring the header rows start in cell A1:

Our immediate objective is to mathematically capture the statistical relationship observed here by deriving the precise linear equation (Y = mX + b) that acts as a concise summary of the data trend. This equation will allow us to quantify the rate of change and the baseline value of the relationship.

Step 2: Visual Confirmation with a Scatter Plot

Prior to initiating any formal calculation, it is mandatory analytical practice to visualize the raw data. A scatter plot is the definitive visualization tool for bivariate analysis, as it immediately reveals the shape, direction, and strength of the relationship, helping to confirm whether a linear model is appropriate. Visual inspection is often the fastest way to detect non-linear patterns or identify influential outliers that might skew the resulting equation.

If the points appear to generally form a straight line, we can confidently proceed with linear regression. To construct this essential visual aid, follow these precise steps:

1. Begin by highlighting the entire cell range containing only the numerical data (excluding headers): A2:B14.
2. Navigate to the Insert tab located prominently on the top ribbon interface of Excel.

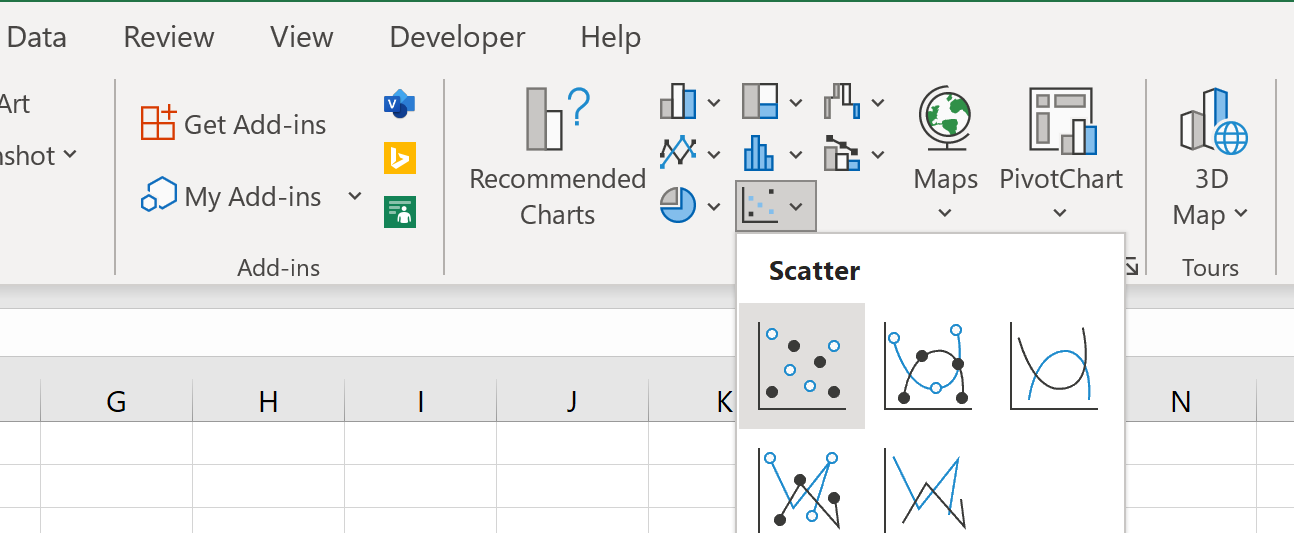

3. Within the Charts group, select the Scatter icon (often represented by a set of scattered dots). Choose the basic Scatter option to plot only the markers.

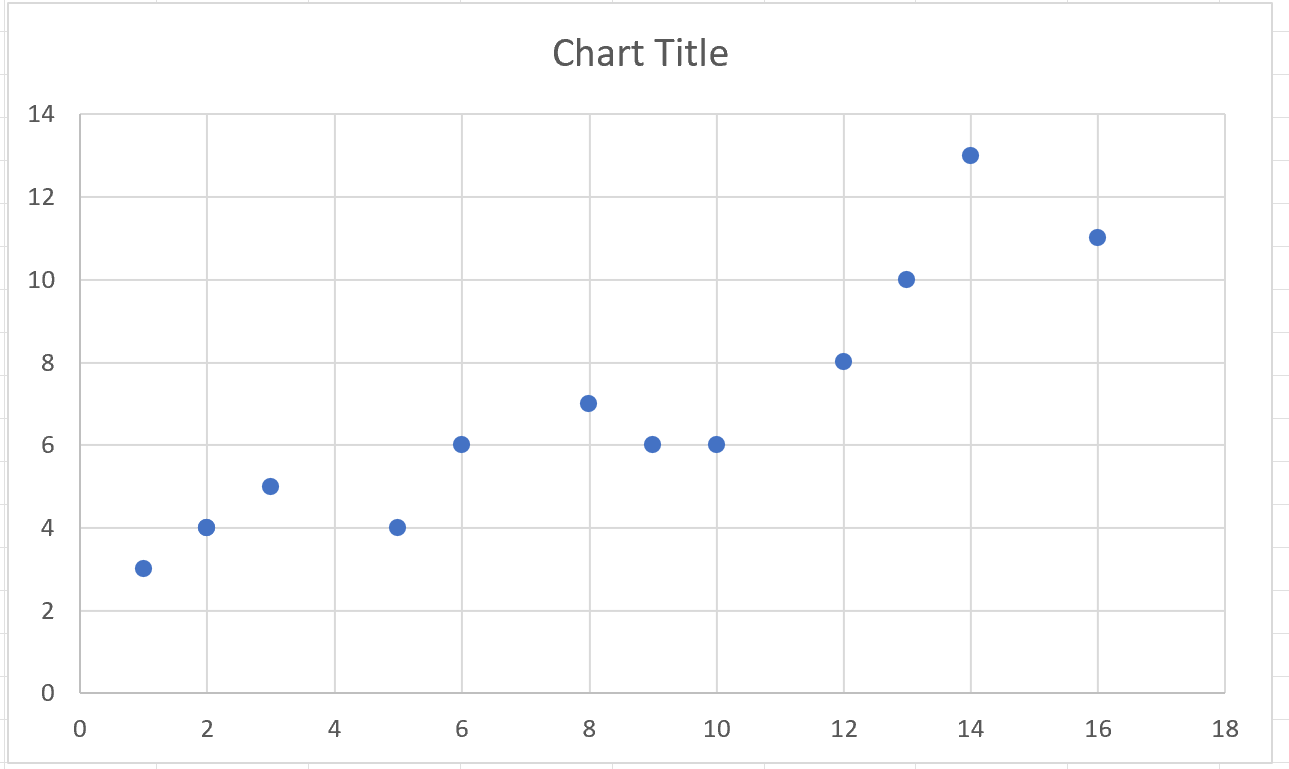

Once these steps are completed, Excel instantly generates the graphical representation of your paired data points. This visualization clearly illustrates the density, distribution, and the apparent positive direction of the relationship, confirming the suitability of a linear fit:

Step 3: Deriving the Best-Fit Linear Equation (The Trendline)

With the scatter plot confirmed, the next crucial step is instructing Excel to calculate and display the optimal straight line that summarizes the data—known as the trendline. This line is statistically determined using the rigorous method of least squares, which mathematically minimizes the sum of the squared vertical deviations (residuals) between the actual data points and the fitted line. Displaying the resulting regression equation is executed directly through the chart editing interface.

Execute the following procedure to generate and overlay the trendline along with its corresponding algebraic formula onto the chart:

1. Click anywhere on the newly created chart area to ensure it is selected and activate the Chart Tools context ribbon.

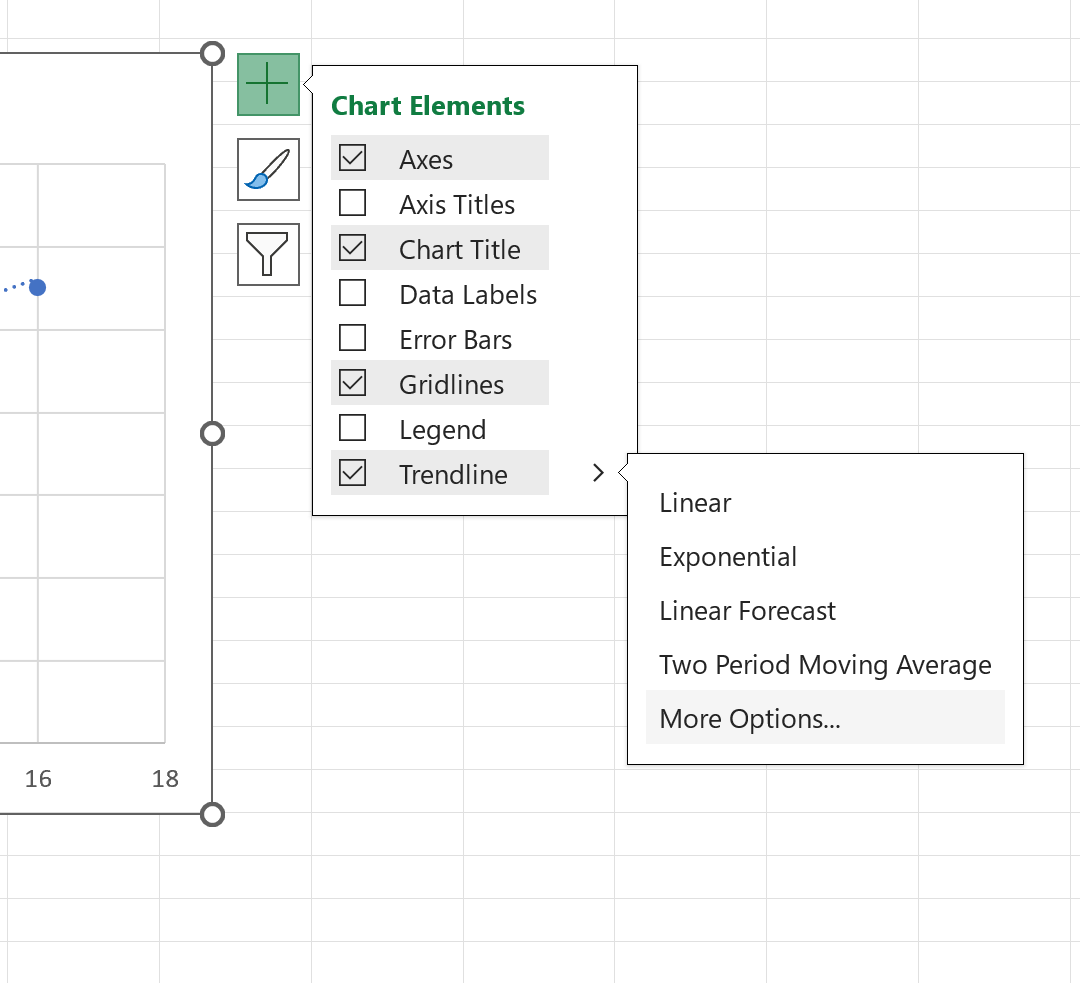

2. Locate and click the small green plus sign (the Chart Elements icon) which appears adjacent to the top-right corner of the chart boundary.
3. In the menu that appears, hover your mouse over the Trendline option. Click the small dropdown arrow that points to the right.
4. Select More Options. This action opens the detailed Format Trendline pane, providing granular control over the line type and display settings.

Within the comprehensive Format Trendline task pane that subsequently opens on the right side of your Excel window, scroll down through the options until you reach the section governing display elements:

Crucially, check the box explicitly labeled Display Equation on chart. For a measure of the model’s predictive power and goodness of fit, it is highly recommended that you also check the box labeled Display R-squared value on chart. The R-squared value indicates the proportion of variance in the dependent variable explained by the independent variable.

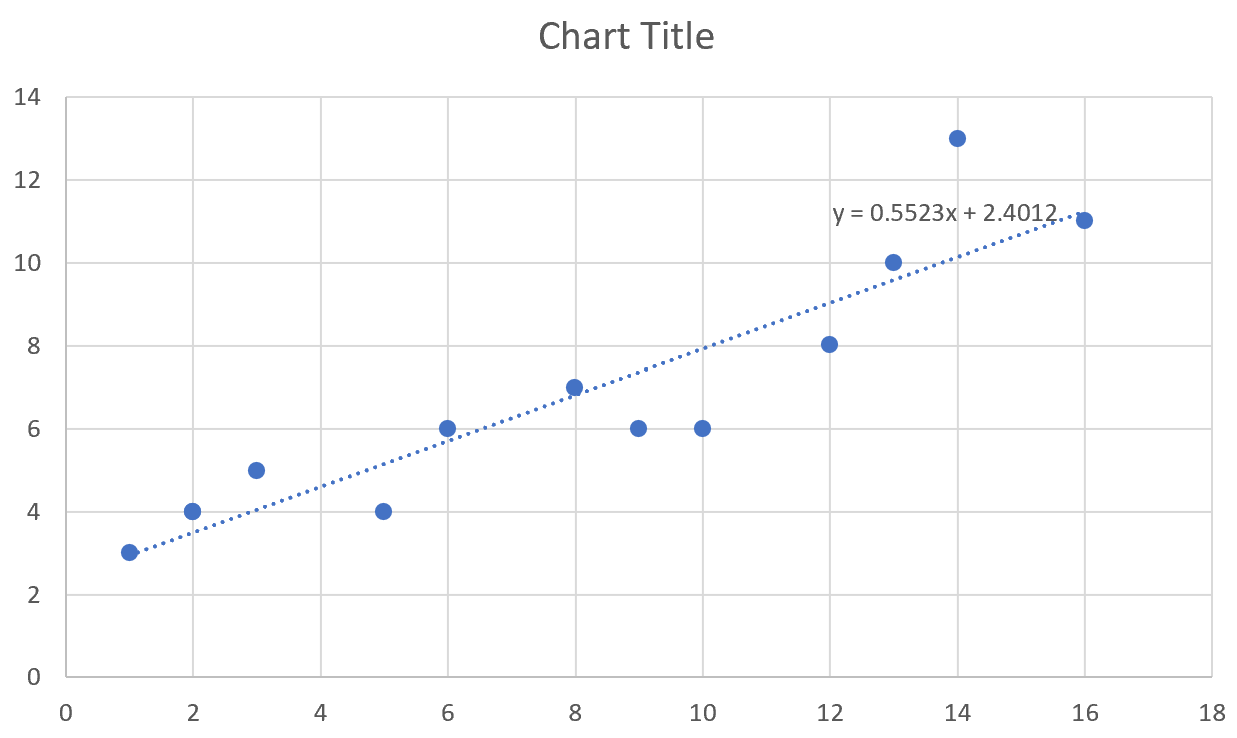

Upon selection, the calculated linear regression equation, which serves as the definitive mathematical model describing the relationship between your X and Y variables, will be instantaneously displayed and overlaid onto the scatter plot:

Step 4: Decoding the Regression Output (Slope and Intercept)

The displayed trendline equation represents the core output of this statistical analysis and is the model you can use for prediction. In our specific example, the formula derived by Excel is:

y = 0.55232x + 2.40112

This formula adheres directly to the classic linear model structure (Y = Intercept + Slope * X). A thorough understanding of its two fundamental components—the slope coefficient (m) and the Y-intercept (b)—is essential for accurately interpreting the underlying statistical relationship revealed by the data:

• The Slope (0.55232): Known as the regression coefficient, this value quantifies the average rate of change in the dependent variable (Y) associated with every one-unit increase in the independent variable (X). Specifically, a one-unit increase in X results in an average increase of 0.55232 units in Y. Since the slope is positive, this indicates a positive correlation: as X values increase, Y values tend to increase proportionally.
• The Y-Intercept (2.40112): This constant term represents the predicted baseline value of Y precisely when the independent variable X is equal to zero (X=0). Therefore, when the predictor variable is zero, the average predicted value for Y is 2.40112. It is important to exercise caution when interpreting the intercept if the value X=0 falls far outside the domain or practical range of your observed data.

The practical utility of this resulting equation is its ability to facilitate interpolation and extrapolation (prediction). It allows us to estimate unknown Y-values corresponding to known X-values, assuming the established linear trend remains valid. For instance, we can use this model to predict the value of Y if X were equal to 10:

• Start with the equation: y = 0.55232x + 2.40112
• Substitute X=10: y = (0.55232 * 10) + 2.40112
• Perform multiplication: y = 5.5232 + 2.40112
• Calculate the predicted Y: y = 7.92432

This predictive exercise demonstrates the profound practical utility of using Excel to derive and interpret statistical models. By substituting any relevant X-value into this formula, you can reliably estimate its corresponding Y-value, reinforcing the value of quantitative modeling in decision support.

Beyond Basics: Advanced Regression Analysis in Excel

While the trendline feature in Excel is an exceptionally useful tool for swift visualization and obtaining the parameters for basic linear modeling, many professional analysts require a far more comprehensive statistical output. This includes measures such as standard errors, confidence intervals, multiple R values, and detailed ANOVA tables, which provide crucial context regarding the reliability and significance of the model’s coefficients.

For these more advanced requirements, Excel provides a sophisticated functionality through its Data Analysis ToolPak add-in. Once enabled, this tool set includes a powerful, dedicated Regression feature. This tool is capable of generating detailed, publication-ready statistical reports that extend significantly beyond the simple equation display provided by the chart trendline. It is highly recommended that serious data analysts familiarize themselves with this add-in for rigorous statistical testing and reporting.

Ultimately, understanding how to generate, calculate, and correctly interpret the trendline equation is a foundational competency in data analytics. It serves as the essential gateway, preparing the user for handling more complex statistical modeling techniques and multivariate analysis encountered in professional environments.
