Visualizing Data: Creating Difference Bar Charts in Excel

In the realm of advanced data analysis and business intelligence, the ability to effectively visualize comparative performance is absolutely paramount. Analysts frequently encounter the requirement to clearly demonstrate the disparity—or the precise change—between two distinct data series across a shared temporal dimension. While a basic side-by-side visualization successfully displays the absolute values, these charts often fall short of immediately conveying the true magnitude and critical directionality of the differences. This comprehensive guide details a specialized charting technique within Microsoft Excel, leveraging a standard bar chart structure augmented with highly specific, calculated data labels to effectively highlight these essential performance gaps.

This methodology is indispensable across various professional domains, including detailed financial reporting, nuanced marketing comparisons, and tracking critical year-over-year operational metrics. Consider a typical scenario: comparing product sales achieved in Year 1 against those in Year 2. Simply observing the raw height of the bars does not instantaneously reveal the specific percentage gain or loss. By strategically integrating calculated difference values as custom labels, we transform what would otherwise be a basic visualization into a powerful, high-impact analytical tool. This tutorial provides a step-by-step walkthrough of the entire process, culminating in a dynamic visualization that articulates the precise monthly percentage difference in product sales between two consecutive periods.

The resulting chart, showcased below, offers immediate and unambiguous insight into performance variance, representing a significant enhancement over traditional, less informative comparative charts. Mastering this technique ensures that your data presentations are not only aesthetically appealing but also statistically robust and analytically informative. We will now commence the detailed implementation process.

Step 1: Structuring and Preparing the Source Data

The foundation of any successful and robust data visualization project in Microsoft Excel depends entirely on correctly formatted and structured source data. For the specific analytical requirement of comparing two distinct series over time, it is crucial that the data is meticulously organized into contiguous columns. One column must represent the time variable (e.g., Month), and subsequent columns must contain the corresponding values for each respective series (e.g., Year 1 Sales, Year 2 Sales). Adopting this proper data structure is essential, as it facilitates both the required calculations for variance and the subsequent chart creation process.

To successfully follow this guide, please structure your spreadsheet exactly as outlined in the example below. This scenario tracks the total product sales for a commercial entity across a twelve-month cycle, drawing a direct comparison between the performance metrics of Year 1 (Series A) and Year 2 (Series B). It is vital to ensure that descriptive headers are included in the very first row, as these will be automatically utilized by Excel for chart labeling and legend creation later in the process. Note the deliberate side-by-side arrangement of the comparative metrics, which ensures easy access for the subsequent calculation of differences.

The accurate execution of all subsequent steps, particularly the complex calculations detailed in Step 2, relies wholly upon the consistency and precision of this initial data entry phase. Once this organizational step is finalized, we are prepared to mathematically quantify the variance existing between these two critical sales series, preparing the underlying analytical engine for our final visual output.

Step 2: Calculating the Percentage Variance for Custom Labels

While the resulting visualization will display the absolute sales figures for both comparative years, the primary analytical objective of this technique is to prominently feature the precise month-over-month percentage difference. Achieving this requires the creation of a new, dedicated helper column (Column D in our example) solely for calculating and formatting this variance metric. Crucially, this calculated column will not be plotted as a bar series itself; instead, its highly formatted string values will be strategically utilized as custom data labels in a later stage (Step 4).

The formula employed for this calculation must robustly handle both positive and negative percentage changes. Furthermore, and critically for effective presentation, the formula must prefix positive changes with a plus sign (+) to instantly and visually distinguish gains from losses. Enter the following comprehensive formula into cell D2. This formula calculates the percentage difference between Year 2 (C2) and Year 1 (B2), rounds the numerical result to one decimal place, and appends the necessary percentage sign:

=IF(MAX(B2:C2)=C2,"+"&ROUND((C2-B2)/B2*100,1)&"%",ROUND((C2-B2)/B2*100,1)&"%")

This powerful logical structure first evaluates whether the Year 2 sales figure (C2) is the maximum value within the comparison range B2:C2. If C2 is indeed greater than B2 (a gain), the formula prepends a “+” to the resulting percentage change string; conversely, if a loss occurred, it displays the negative percentage change without any prefix (as the negative sign is automatically included). This meticulous formatting guarantees crystal-clear visual communication regarding the performance direction. After accurately inputting the formula into cell D2, simply use the fill handle—the small square located at the bottom-right corner of the cell—to drag the formula down, applying it dynamically to the entire range of monthly data.

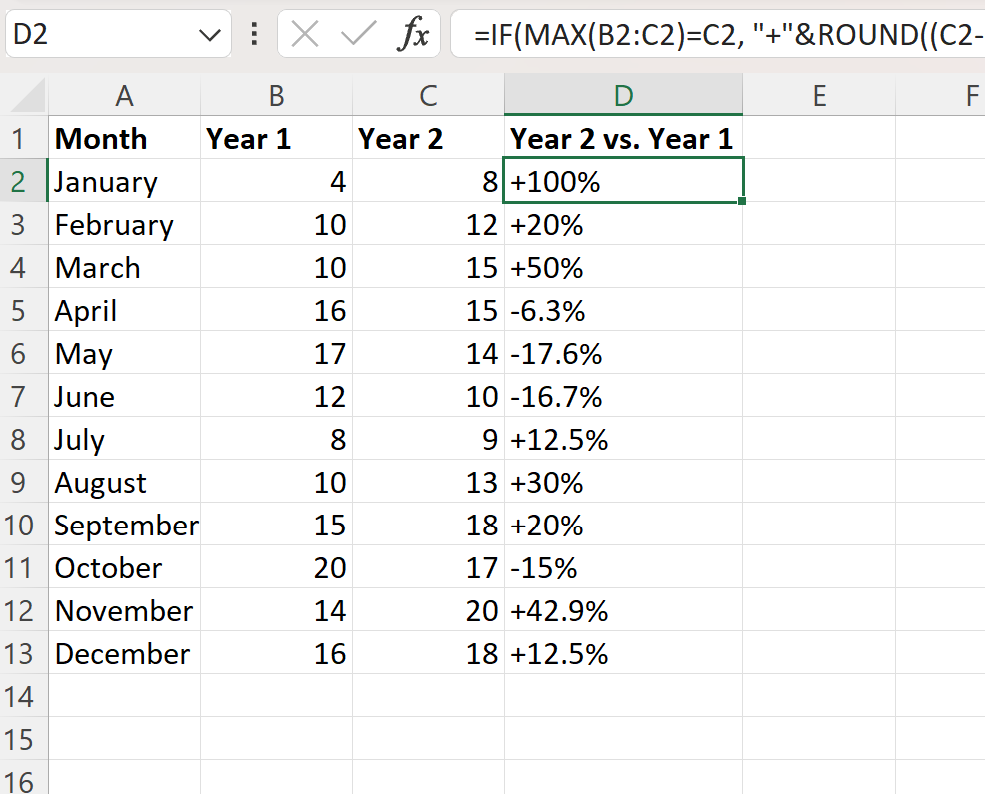

The resultant data structure, illustrated below, now includes the derived percentage change data, which is formatted as text strings, residing in Column D. These specifically formatted strings are absolutely essential for the next phases, as they provide the precise, analytical labels we require to overlay onto our final visualization. This rigorous preparation ensures that our chart will simultaneously convey both the raw sales data and the critical comparative metric.

Step 3: Generating the Base Visualization using Clustered Columns

With the required preparatory calculations now finalized, the subsequent phase centers on generating the preliminary base visualization. It is critically important to remember that for this initial plotting step, we must select only the absolute sales data and the corresponding monthly labels. Analysts must not include the newly created difference column (Column D) in this initial selection, as our immediate goal is to establish a standard comparison chart, which we will then modify extensively in the subsequent steps.

Begin the process by precisely highlighting the data range A1:C13. This selection encompasses the Months column, the Year 1 Sales figures, and the Year 2 Sales figures. Once this raw data is selected, navigate to the Insert tab situated on the Excel Ribbon. Within the prominent Charts group, select the option designated as Clustered Column chart. This specific chart type is optimally suited for drawing direct, straightforward comparisons between discrete, absolute values across the same set of categorical variables, which in our case are the months.

Immediately upon insertion, Excel will render the base chart. You will observe that the blue bars visually represent the product sales achieved during Year 1, while the orange bars illustrate the distinct sales performance recorded for Year 2. This foundational chart already provides a reasonably effective visual comparison of the raw figures, but it currently lacks the immediate, crucial analytical context provided by the percentage changes we meticulously calculated earlier. The following steps are dedicated to seamlessly integrating those calculations directly into the visualization, elevating its analytical power.

Step 4: Integrating Custom Calculated Data Labels

This step represents the functional nexus of the entire process, as it transforms the conventional clustered column chart into the desired high-impact comparative visualization. Our objective is to attach the formatted percentage difference values sourced from Column D specifically to the bars representing the second data series (Year 2 sales, typically rendered in orange). This precise association ensures that the core analytical context—the measurement of how much Year 2 performance shifted relative to Year 1—is positioned clearly and directly above the Year 2 performance indicators.

First, isolate and select the target series by clicking carefully on any one of the orange bars corresponding to the Year 2 sales data. Once the series is selected, locate the small green plus sign icon, officially known as the Chart Elements control, situated near the top-right boundary of the chart. Click this icon, then hover your cursor over Data Labels, click the adjacent drop-down arrow, and finally choose More Options. This sequence of actions activates the detailed Format Data Labels task panel, which facilitates advanced customization.

Within the Format Data Labels panel, you must manually specify the precise source for your custom labels. Locate the Label Options section and check the box explicitly labeled Value From Cells. When prompted by the system to select the Data Label Range, input or carefully select the cell range D2:D13—this is our previously prepared helper column containing the calculated and formatted percentage changes. Click OK to finalize and confirm this selection. Immediately following this action, it is absolutely essential to uncheck the box next to Value (which defaults to showing the raw sales number) so that only the custom, analytical percentage change value remains visible as the label on the chart.

The chart will immediately update to display the calculated percentage changes prominently positioned above the Year 2 bars. These custom data labels instantly convey the performance trajectory for every month—a swift glance now reveals whether the current year saw a significant positive gain (clearly prefixed with “+”) or a corresponding loss compared to the previous year. This seamless integration completes the functional transformation of the chart, successfully merging the visualization of raw data with derived, critical analytical statistics.

Step 5: Refining Visual Aesthetics and Professional Presentation

While the chart is now functionally and analytically complete, the final crucial step involves polishing its overall appearance to ensure maximum readability, clarity, and professional impact. The aesthetic quality of a data visualization frequently dictates how seriously the underlying data is perceived and received by the audience. Utilizing the extensive customization options within Excel allows you to tailor the plot to match specific corporate branding guidelines or simply to dramatically improve its inherent visual clarity.

Key customization elements for maximizing impact include:

1. Adding a Descriptive Title: A clear, concise, and informative title (e.g., “Monthly Sales Variance: Year 2 vs. Year 1 Performance”) immediately establishes the chart’s specific purpose for the audience.
2. Strategic Color Coding: Consider thoughtfully adjusting the default color palette. For instance, you might use a primary corporate color for Year 1 and select a slightly contrasting yet complementary shade for Year 2. For maximum effect, advanced conditional formatting can allow for the coloring of the percentage labels themselves (e.g., bright green for all positive changes, sharp red for all negative changes) to amplify the performance signal.
3. Adjusting Gap Width for Visual Weight: By formatting the Data Series (right-click on any bar and select Format Data Series), you can precisely adjust the Gap Width setting. Reducing the gap width results in thicker bars, which imparts greater visual weight to the data series and often significantly improves readability, especially when the chart must display numerous categories.

Effective customization ensures that the final analytical output is not only perfectly accurate but also highly engaging, successfully directing the viewer’s attention instantly to the most important comparative data points—the calculated percentage differences.

This finalized bar chart successfully combines the intuitive visualization of raw sales data with sophisticated analytical labeling, thereby offering a complete, nuanced picture of performance variance measured month by month.
