Learn Excel: Creating Dynamic Charts with Conditional Formatting

The Imperative for Dynamic Data Visualization in Excel

Effective data communication hinges on powerful visualization, yet standard charts often fall short when reporting performance against complex, dynamic targets. A static bar chart may accurately represent values, but it fails to instantly signal whether those values represent success, failure, or acceptable performance. In modern reporting using Microsoft Excel, the ability to apply dynamic visual cues directly to chart elements is not merely an aesthetic choice; it is a critical requirement for accelerating data interpretation and decision-making.

While conditional formatting is a standard feature applied easily to cells, achieving the same effect on chart bars—where the bar color changes based on the underlying data value—requires a sophisticated technical maneuver. Traditional methods of formatting are limited to cell backgrounds or text colors. They do not naturally extend to graphical elements such as bars or columns. This limitation necessitates a specialized approach involving restructuring the source data and carefully manipulating multiple, overlapping data series. This technique effectively transforms a simple visualization into a dynamic performance dashboard, allowing viewers to immediately identify critical trends, outliers, and deviations from established targets without reference to secondary data tables.

This tutorial details the precise methodology required to bridge this gap, ensuring that your visualizations are both informative and highly compelling. We will move beyond simple data plotting by introducing conditional logic directly into the chart’s underlying structure. The core strategy involves segmenting the source data into multiple categories based on performance thresholds, plotting each segment as a distinct series, and then using a 100% series overlap to present them as a single, color-coded bar. This advanced manipulation ensures that the chart itself becomes the primary tool for communicating performance status, enhancing clarity and reducing cognitive load for the end-user.

Defining the Performance Criteria and Visualization Goal

Before initiating the technical setup, it is essential to clearly define the performance thresholds that will govern the coloring logic. For this demonstration, we are implementing a three-tiered color scheme designed to visualize monthly sales performance against predefined targets. This structure allows for rapid assessment of performance status: poor, acceptable, or strong.

Our objective requires that the appearance of each monthly sales bar dynamically reflect its value relative to these three fixed thresholds. This conditional coloring must be precise and unambiguous, ensuring that every data point falls into only one category. The established criteria are defined as follows:

• If the sales value is less than 20, the bar must be colored red, signaling poor or substandard performance that requires immediate attention.
• If the sales value falls between 20 (inclusive) and 30 (exclusive), the bar should be colored yellow, indicating performance that is acceptable but not outstanding.
• If the sales value is equal to or greater than 30, the bar must be colored green, signifying strong performance that meets or exceeds the target benchmark.

Achieving this visual segmentation requires restructuring the data so that the plotting mechanism itself handles the conditional selection. The subsequent steps will demonstrate how to prepare the source data using logical functions, ensuring that for any single month, the sales figure is passed to only one of the three newly created performance categories, which will ultimately be represented by its corresponding color.

Step 1: Structuring the Raw Data and Introducing Helper Columns

The foundation of this advanced visualization technique rests on a meticulously structured dataset. We begin with the raw data, which in this case tracks monthly sales figures. This initial dataset should be entered into the first two columns of your Excel worksheet, providing the categorical variable (Month) and the quantitative variable (Sales) that we intend to visualize.

Column A should be labeled “Month” and contain the relevant time periods (e.g., January through December). Column B, labeled “Sales,” will contain the raw numerical data. At this stage, the data structure is simple, serving only as the input for our advanced logical processing. The real complexity, and the key to the conditional formatting workaround, is introduced through the creation of three distinct helper columns.

These columns are critical because they allow us to transform a single column of raw data into three separate, conditionally filtered data series. Each helper column is dedicated to isolating data points that meet one specific performance criterion (Bad, OK, or Good). We will label these new columns C, D, and E accordingly. It is important to grasp that the original Sales column (B) will not be plotted; its data is merely used as the input for the formulas in the helper columns, which will ultimately drive the visualization.

Step 2: Leveraging Logical Functions for Categorical Segregation

The success of this conditional charting method relies entirely on populating the helper columns with precise logical formulas. These formulas must test the value in the adjacent Sales column (B) against the predefined thresholds. If the condition is met, the formula returns the original sales value, making it plottable; if the condition is not met, the formula must return the #N/A error value.

The utilization of the NA() function is the fundamental trick that makes this technique work. When Excel processes data for a chart, any cell containing the #N/A error is automatically ignored, preventing a bar from being drawn for that specific series at that category point. By ensuring that any given monthly sales figure can only satisfy the condition of one helper column, we guarantee that only one bar, corresponding to the correct color category, is ever plotted for that month.

The following formulas must be carefully entered into row 2 of the respective columns and then accurately copied down for all subsequent rows of data:

• C2 (Bad Performance – Red): This column isolates sales figures below 20, using the primary IF function to conduct the simple comparison:

  =IF(B2<20, B2, NA())

• D2 (OK Performance – Yellow): This column captures values that fall within the acceptable range (20 to 29.99). Because this requires testing two conditions simultaneously (greater than or equal to 20 AND less than 30), we must employ the AND function nested within the IF function:

  =IF(AND(B2>=20, B2<30), B2, NA())

• E2 (Good Performance – Green): This column identifies all strong performance figures, defined as values equal to or above 30:

  =IF(B2>=30, B2, NA())

Once these intricate formulas are applied across the dataset, the resulting table provides the necessary segregated data structure. A quick visual inspection of the resulting table should confirm that for every row (month), a numerical sales value appears in only one of the three helper columns (C, D, or E), while the other two contain the crucial NA() function error. This preparation is the most critical technical phase of the entire process.

Step 3: Plotting the Data and Mastering Series Overlap

With the data successfully segregated, the next phase involves generating the base chart. We must carefully select the data ranges that will be plotted. Specifically, select the “Month” column (A) to define the horizontal axis categories, and then select the three helper columns (C, D, and E) to define the vertical axis values. Crucially, the original “Sales” column (B) must be excluded from this selection.

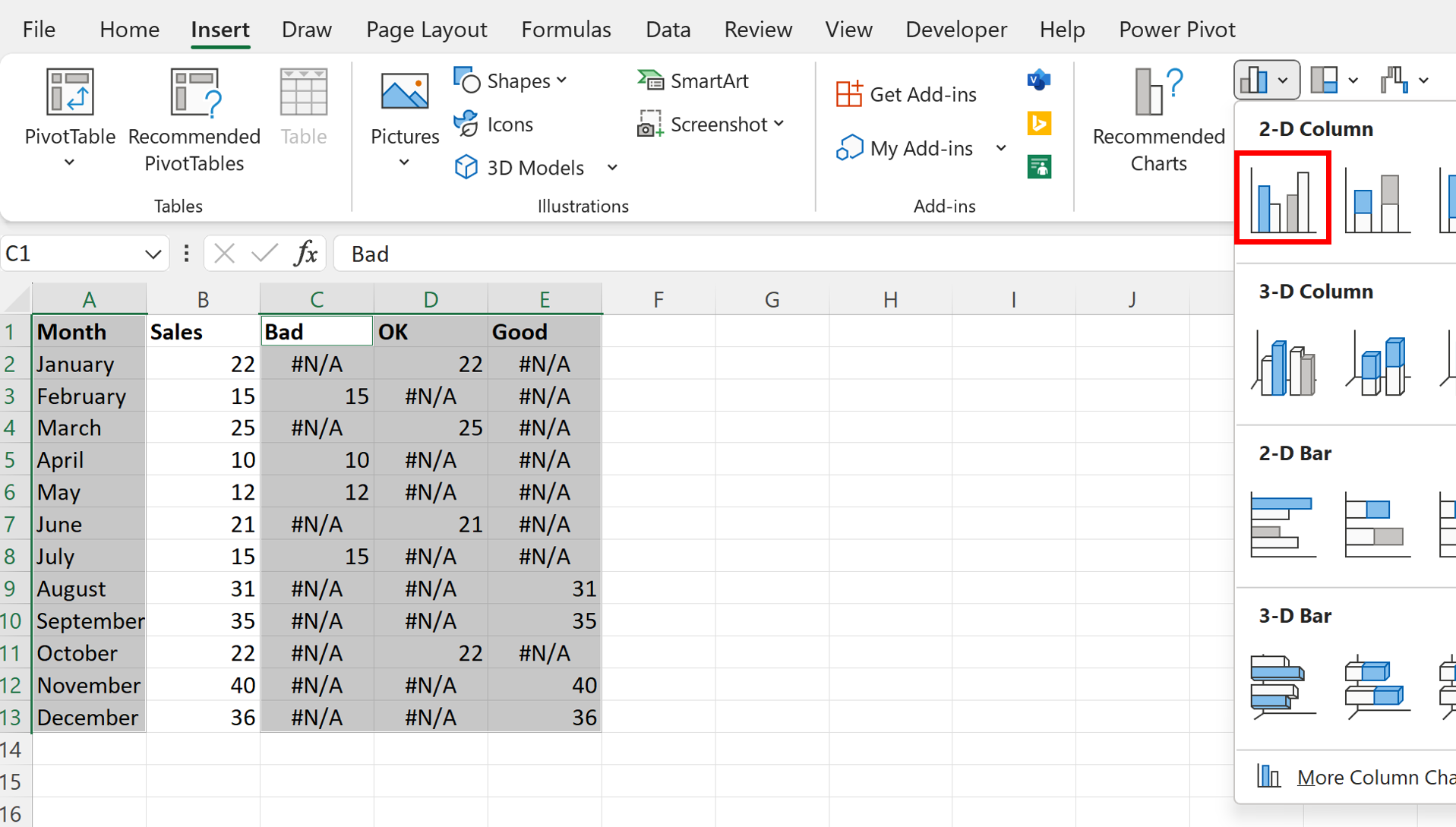

To select these non-contiguous ranges, first highlight the range containing the Month headers and data (A1:A13). Then, hold down the Ctrl key and select the range encompassing the three helper columns and their corresponding data (C1:E13). Navigate to the Insert tab, select the Charts group, and choose the Clustered Column chart type. Excel will generate a chart containing three distinct data series (Bad, OK, Good) plotted side-by-side for each month.

Due to the foundational work done with the NA() function, the chart will initially only display one bar per month, as the other two series are suppressed by the error value. However, these visible bars are still presented in a clustered format, which does not achieve the required single-bar, color-coded effect. To fix this, we must force the three series to occupy the exact same horizontal space, effectively layering them perfectly on top of one another.

To initiate this crucial layering, right-click directly on any visible bar in the chart and select Format Data Series. This action opens the Series Options pane. Within this pane, locate and modify two critical settings to complete the series overlap transformation:

1. Set the Series Overlap to 100%. This is the mechanism that ensures the three series align perfectly, allowing the single visible bar (from the non-#N/A data point) to appear in the center position, regardless of which series it belongs to.

2. Adjust the Gap Width. The default gap width often makes the bars too thin. Reducing this value significantly (e.g., to 50%, as shown in the illustration) increases the width of the bars, enhancing the visual impact and readability of the final column chart.

Upon applying these changes, the visualization immediately takes on the desired structure: single, wide bars perfectly representing the sales values. Because the underlying data guarantees that only one series contains a plottable number for any given month, the visual outcome is a single, thick bar ready for its performance-specific color.

Step 4: Finalizing Aesthetics and Ensuring Interpretability

The penultimate step involves applying the designated color scheme and optimizing the chart’s overall readability. Since we meticulously separated the data into three unique data series (Bad, OK, Good), we must now assign the corresponding performance color manually to each series.

Using the Format Data Series pane, click on one of the bars that you know belongs to the “Bad” series (e.g., a month with sales less than 20). Navigate to the Fill & Line options and set the fill color to Red. Repeat this exact process for the “OK” series, assigning the color Yellow, and finally, for the “Good” series, assigning the color Green. This manual coloring step completes the conditional link, ensuring that the visual output matches the logical outcome defined in Step 2.

To ensure the final product is professional and highly interpretable, several final cosmetic adjustments are necessary. These include removing redundant elements, such as the chart legend, which is no longer necessary since the colors themselves are now intrinsically linked to the performance categories. Additionally, always ensure that a clear, descriptive chart title is added, along with appropriate labels for both the X and Y axes. This attention to detail transforms the technical output into a professional reporting asset.

This comprehensive method successfully circumvents the native limitations of standard Excel charting functionalities. By cleverly leveraging helper columns and advanced logical functions like IF and the critical NA() function, we achieve a dynamic, criteria-based visualization that instantaneously communicates performance status to the viewer, fulfilling the advanced requirements of chart-based conditional formatting.

Further Exploration of Advanced Charting Techniques

Mastering the technique of applying conditional formatting to charts opens the door to numerous other advanced data visualization possibilities within Excel. The core principles of data segregation and series overlap can be adapted to create other complex visuals, such as bullet charts or progress trackers.

For users seeking to deepen their expertise in data manipulation and visual reporting, we recommend exploring the following areas, which build directly upon the knowledge gained in this tutorial:

• Deepening your understanding of complex nested logical functions, including the IF and AND function, to handle more than three performance tiers or non-contiguous criteria.

• Investigating the use of secondary axes and chart type combinations (e.g., line and column chart hybrids) for visualizing targets or comparisons alongside performance data.

• Studying best practices for designing interactive dashboards where chart data dynamically updates based on user input, leveraging this conditional coloring method to provide instant feedback.
