Learn How to Create Excel Drop-Down Lists from Another Sheet

In the professional environment of Microsoft Excel, achieving efficient data entry and maintaining uncompromising data integrity are foundational elements for building reliable spreadsheets. One of the most effective tools for standardizing input and minimizing user error is the implementation of drop-down lists. These features guide users by restricting choices to a predefined set of valid options. While straightforward drop-down lists can be created using data from the current sheet, complex workbooks frequently require sourcing these validation values from a separate, dedicated Excel sheet.

This comprehensive, step-by-step guide is designed to empower you with the expertise needed to create dynamic and robust drop-down lists that draw their source data from an external sheet within the same workbook. This technique is indispensable when your list of allowable entries is extensive, frequently updated, or requires central management. By separating the data entry interface from the master list of options, you establish a more organized, easier-to-maintain, and ultimately more robust data management system, ensuring consistency across all data points and preparing your workbook for sophisticated analysis.

The Strategic Advantages of External Data Sourcing

Utilizing values housed on a separate sheet for your drop-down lists provides significant strategic advantages that enhance data quality and streamline workbook management. Firstly, this method promotes exceptional data consistency. By consolidating your master list of valid entries in a single location, you eradicate the potential for variations in spelling, capitalization, or typos that inevitably arise from manual data input. Every selection made through the drop-down list is guaranteed to be an exact match to an entry on your source sheet, thereby ensuring uniformity throughout your entire workbook, which is vital for accurate aggregation and reporting.

Secondly, separating your source data dramatically improves maintainability and scalability. Consider a scenario involving frequently changing categorical data, such as evolving product codes or a growing list of geographical regions. If your drop-down lists relied on static cell references within the same sheet, any change to the master list would necessitate manually adjusting the validation rule for every single drop-down. By employing an external source, especially when coupled with a named range, updating the master list on the separate sheet automatically propagates those modifications to all associated drop-downs. This efficiency gain saves substantial time and greatly reduces the risk of oversight in large-scale data systems.

Furthermore, this structured approach significantly elevates the user experience. Users are no longer required to memorize or look up acceptable entries; they are presented with an immediate, clear, and selectable list. This minimizes cognitive load, accelerates the data entry process, and provides clear guidance. The separation of concerns also results in superior workbook organization: the data entry sheet remains clean and focused solely on input, while the necessary reference data is logically compartmentalized on another sheet. This disciplined organization is a hallmark of professional and resilient Microsoft Excel application development.

Step 1: Preparing and Centralizing Your Source Data

The foundational step in this process is the meticulous preparation of the list of values intended to populate your drop-down menus. To achieve maximum organization and ease of maintenance, it is highly recommended to dedicate an entirely separate Excel sheet to serve as the master repository for all valid entries. This ensures that your primary data entry sheet remains focused on its core function without being cluttered by reference data, which is essential for developing clean and reusable spreadsheet components.

For illustration, let us use the practical example of tracking data for various basketball teams. Your main data entry interface, designated as Sheet1, will be where users input team information. To enforce accuracy and consistency, you must establish an authoritative list of approved team names. This master list will be housed on a separate sheet, which we will name Sheet2. Centralizing these names means that any future changes—additions, removals, or edits—can be made in one place, instantly updating all connected data entry points without requiring modifications to the input sheet itself.

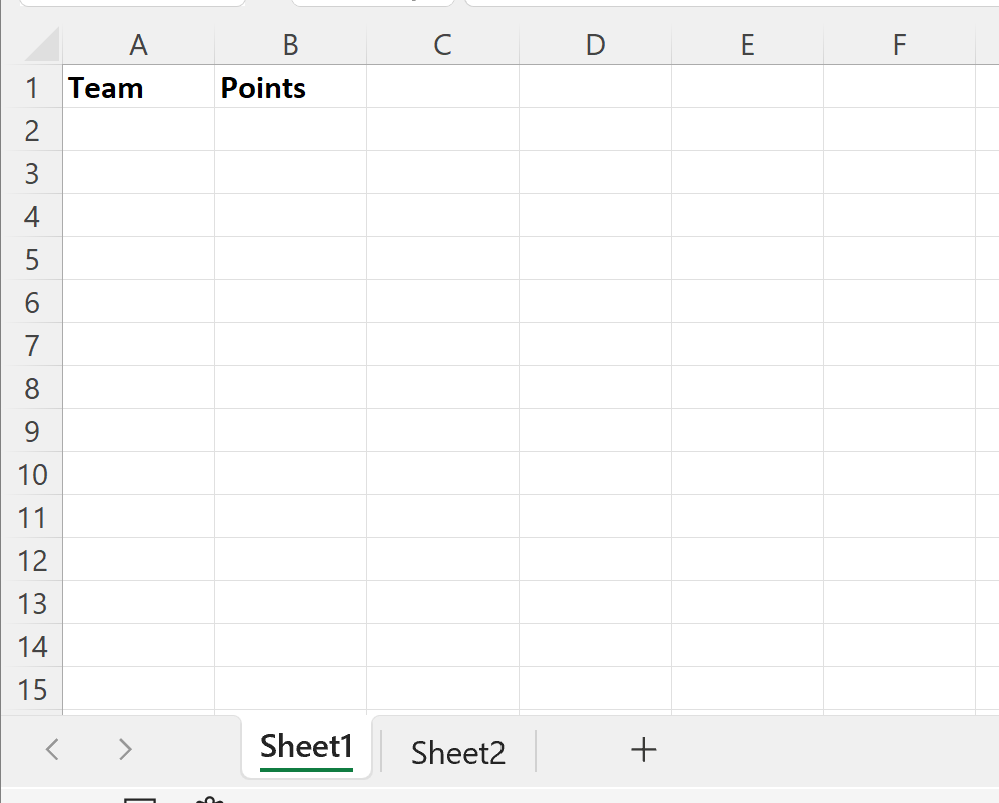

Assume Sheet1 is configured to capture various details related to basketball performance, as shown in the image below. The objective is to constrain entries in a specific column on Sheet1 so that only the team names listed in Sheet2 are permissible. This structured input is critical for any subsequent analysis or reporting that depends on high-quality, consistent categorical data, ensuring that “Lakers” is never entered as “LA Lakers” or “Lakerz.”

To define the permissible entries for our drop-down list, we navigate to Sheet2. Here, you must list all valid team names, ensuring each name occupies its own cell within a single column. This vertical arrangement is essential for Excel’s Data Validation feature to correctly read and utilize these values. For example, you might list “Lakers,” “Celtics,” “Warriors,” and other approved teams sequentially. The clear and concise presentation of these values in Sheet2, as illustrated in the following image, forms the reliable backbone of our drop-down functionality.

Step 2: Defining a Named Range for Dynamic Referencing

Once your source data is neatly consolidated on a separate sheet, the next crucial step is to define a named range for these values. A named range assigns a descriptive, human-readable identifier (e.g., teams) to a specific cell range (e.g., A1:A7). This simple action yields substantial benefits in terms of formula legibility, ease of management, and adaptability, particularly when integrating with Data Validation rules.

The primary benefit is stability: instead of referencing the cryptic notation Sheet2!A1:A7 in your validation rule, which can break if sheet names or references change, a named range offers a stable and intuitive link. If your team list expands from A1:A7 to A1:A15 in the future, you only need to update the definition of the named range once via the Name Manager. All associated drop-down lists will automatically recognize the updated options, significantly reducing the maintenance overhead and enhancing the overall resilience of your spreadsheet design.

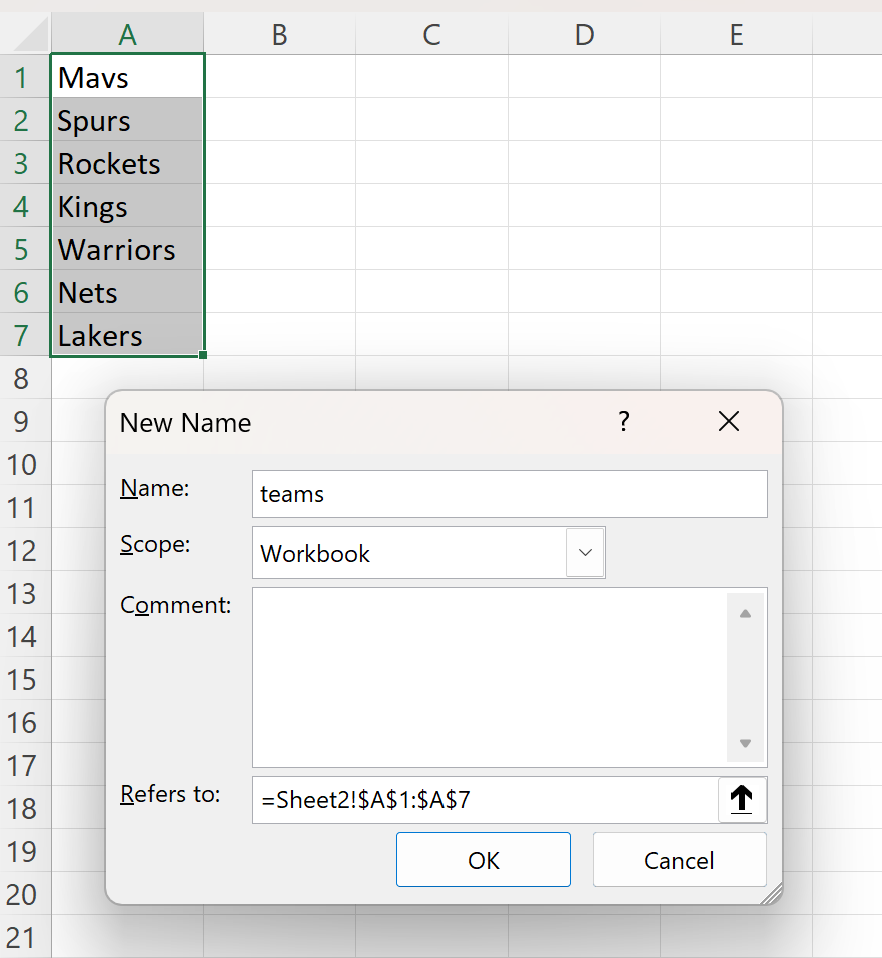

To establish this essential named range, start by highlighting the entire range of cells containing your list of values on Sheet2 (cells A1:A7 in our example). With the cells selected, perform a right-click within the highlighted area. From the context menu that appears, select the option labeled Define Name… This action opens the dedicated dialog box for creating and managing named ranges.

In the Define Name dialog box, locate the Name field. Here, you must input a concise and descriptive name for your range. For our list of basketball teams, teams is an appropriate choice. Adhere to best practices by using names that are easy to recall and descriptive of the data they hold, avoiding spaces or special characters. Review the “Refers to” field to confirm it accurately points to your selection (e.g., =Sheet2!$A$1:$A$7). Finally, click OK to finalize the creation of your named range. This step effectively assigns a permanent, clean identifier to your source list, preparing it for seamless integration into your primary data entry sheet.

Step 3: Implementing Data Validation and Linking the Named Range

With your source data organized and a descriptive named range established, the next crucial phase is applying Data Validation to the cells designated for user input. Data Validation is Excel’s mechanism for enforcing rules on data entry, ensuring that users can only input values that meet specific criteria. In our context, this feature will restrict input to the items contained within our “teams” named range.

On Sheet1, where the user interaction takes place, select the target range of cells where the drop-down list is required (e.g., A2:A10). It is essential to highlight the entire selection before proceeding, as the validation rule will be applied uniformly across this designated area. Once the cells are selected, navigate to the Excel ribbon and click the Data tab. Within the Data tab, locate the Data Tools group and click on the icon labeled Data Validation. This action will open the core Data Validation dialog box.

Configuring the Data Validation Settings

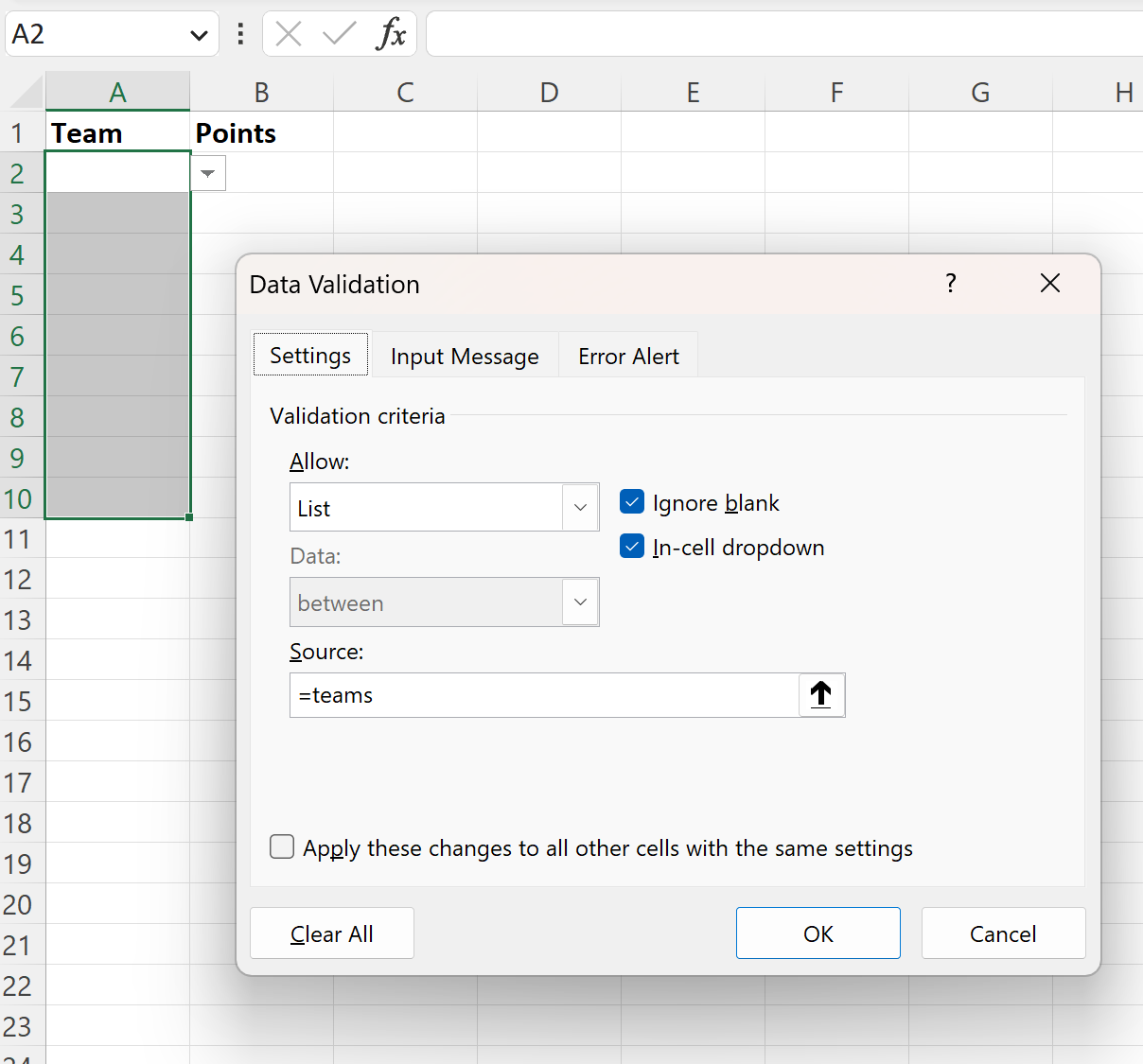

Inside the Data Validation dialog box, ensure you are on the Settings tab. The first step is to define the type of validation. Click the dropdown arrow next to the Allow field and select List. Choosing “List” signals to Excel that the valid entries must come from a specific, user-defined list of values.

Upon selecting “List,” the Source field becomes active. This is the critical juncture where you connect your drop-down list to the named range. In the Source box, you must type an equals sign (`=`) followed immediately by the exact name of your named range. For our example, the input is =teams. The equals sign is crucial as it informs Excel that the input is a reference to a dynamic range or formula, not a literal string of text. By referencing the named range “teams,” you establish a dynamic link between the drop-down list on Sheet1 and the values maintained on Sheet2.

This method ensures significant long-term flexibility. If the list of teams on Sheet2 changes or expands in the future, simply updating the definition of the “teams” named range (via the Name Manager) is sufficient. You will not need to manually revisit and modify the Data Validation rule for every single cell. After setting “Allow” to “List” and “Source” to =teams, click OK. This completes the configuration, transforming the selected range on Sheet1 into interactive, controlled drop-down menus.

Observing Functionality and Ensuring Data Integrity

With the Data Validation rule successfully applied, you can now test the functionality. Navigate back to Sheet1 and select any cell within the designated range (A2:A10). A small, downward-pointing arrow will immediately appear at the right edge of the cell, serving as the visual indicator for your new drop-down list.

When a user clicks this arrow, a list will unfurl, presenting all the team names meticulously maintained on Sheet2 and dynamically linked via the “teams” named range. Users can now simply select the desired option, completely eliminating the possibility of manual entry errors. This not only significantly accelerates data input but, more critically, ensures that every single entry is perfectly consistent with your master source data, safeguarding the integrity of your dataset for subsequent analysis.

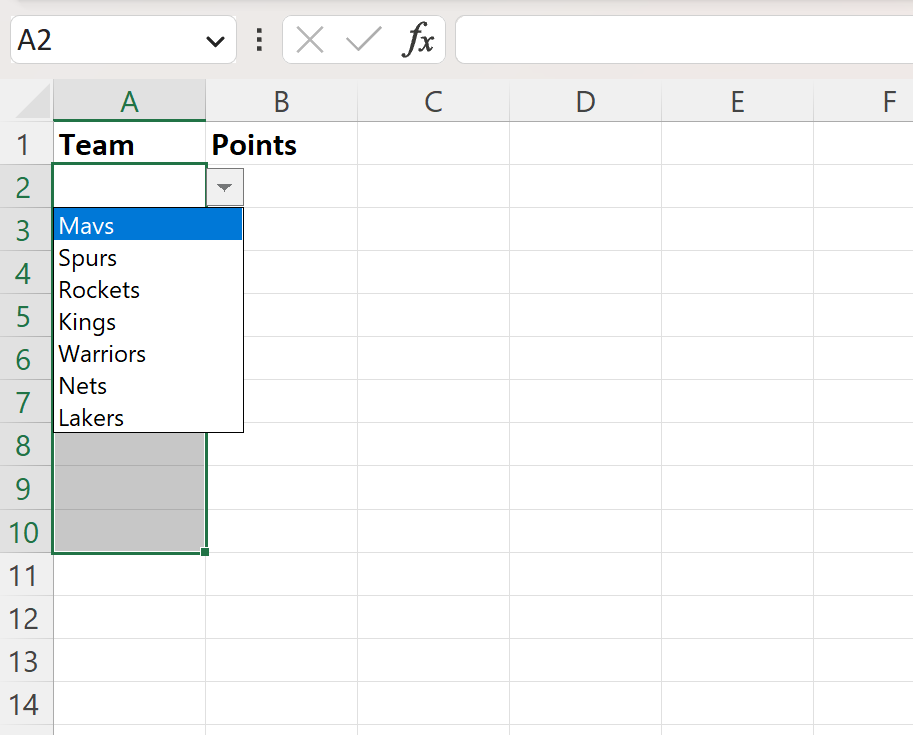

The image below provides a clear visualization of this functionality. The interactive, selectable list directly reflects the values sourced from Sheet2, offering an intuitive and highly error-resistant mechanism for data input. This confirms the successful integration of an external data source into your primary data entry interface, making your Microsoft Excel workbook significantly more robust.

Handling Invalid Entries and Customizing Error Alerts

A key feature of implementing Data Validation is its ability to enforce data integrity even when users attempt to bypass the drop-down list and manually type an entry. The validation rule actively monitors all input, ensuring that any manually entered value precisely matches one of the items contained in your “teams” named range.

If a user attempts to input a team name that does not exist in your source list on Sheet2, Excel will immediately intervene. Instead of accepting the non-conforming data, it displays an error message, preventing the invalid entry and prompting the user to correct their input. This critical feature acts as a powerful gatekeeper, guaranteeing that only approved team names can populate the designated column on Sheet1. This proactive prevention of data inconsistencies is fundamental for accurate analysis and reliable reporting.

While Excel provides a generic error alert by default, you possess the flexibility to customize this message for better user guidance. Within the Data Validation dialog box, the Input Message tab allows you to display proactive instructions when the user selects the cell (e.g., “Use the drop-down to select an official team name”). Crucially, the Error Alert tab enables you to define a custom title and message for the error pop-up. Creating a clear, instructional error message—such as “Invalid Entry. Please choose a team from the provided list”—significantly improves the user experience and ensures they understand how to comply with the data structure requirements.

Advanced Techniques for Enhanced Functionality

The methodology described provides an excellent foundation, but there are several advanced techniques and best practices that can further optimize the functionality and maintainability of your drop-down lists, especially when dealing with large or evolving datasets. These methods address more complex scenarios and aim to reduce long-term administrative effort.

The implementation of dynamic named ranges is a highly recommended enhancement. In our basic example, the “teams” named range was fixed to A1:A7. If your list on Sheet2 frequently grows, a static range requires manual updates. Dynamic named ranges, which utilize formulas like OFFSET or INDEX/MATCH combined with COUNTA, automatically adjust their boundaries to incorporate new entries as they are added to the source list. This ensures that your drop-down lists are perpetually current without any required manual intervention, offering immense benefits for actively managed data.

Another area for advanced control is the creation of dependent drop-down lists. This sophisticated technique allows the options displayed in a second drop-down list to automatically filter based on the selection made in a preceding drop-down. For example, if a user selects “Western Conference” in the first drop-down, the “Team Name” drop-down will only display teams belonging to that conference. This adds a powerful layer of contextual specificity and control to your data entry forms. Finally, regardless of the complexity, always adhere to the best practice of maintaining your source lists on a dedicated Excel sheet, ensuring they are consistently reviewed and updated to serve as a reliable foundation for your spreadsheet applications.

Conclusion: Streamlining Data Entry with External Drop-Downs

The mastery of creating drop-down lists in Microsoft Excel that source values from a separate Excel sheet is an essential skill for developing resilient and user-centric workbooks. This technique elevates your data collection tools from basic input forms to intelligently guided systems. By meticulously executing the steps—from preparing source data on a dedicated sheet to defining a named range and implementing Data Validation—you establish rigorous control over your data quality.

The resulting benefits are transformative: minimized data entry errors through controlled selection, standardized data for reliable analysis, and simplified maintenance via centralized master lists. Moreover, the use of named ranges ensures that your validation rules remain robust and adaptable, regardless of future changes in the size or location of your source data. This guarantees that your Excel solutions remain functional and accurate over extended periods.

Whether you are constructing a simple tracking form or a complex data collection system for a large team, mastering external source drop-down lists is a fundamental requirement for creating truly efficient and reliable spreadsheets. We strongly encourage the implementation of this powerful technique in all your future projects, leveraging its capabilities to streamline user input, enforce data integrity, and significantly enhance the overall quality and usability of your workbooks. The initial effort invested in setting up these structures offers substantial returns by preventing costly errors and simplifying long-term data management.
