Excel: Create Min Max and Average Chart

In diverse analytical fields, it is critically beneficial to visualize the range and central tendency of numerical data across various categories. Specifically, constructing a chart in Excel that effectively displays the minimum, maximum, and average values for distinct groups provides profound insights into performance variability and typical results. This specialized visualization allows for a quick comparative understanding of data spread and typical performance across multiple segments, as clearly illustrated by the resulting chart below.

This comprehensive tutorial serves as a detailed, step-by-step guide, demonstrating precisely how to construct such an informative and dynamic visualization in Excel. We will navigate every phase of development, starting from meticulous data preparation and concluding with advanced aesthetic customization, ensuring that your final charts are both analytically accurate and aesthetically superior for professional presentation.

Visualizing Data Ranges with Specialized Excel Charts

Effective data visualization forms the cornerstone of modern statistical analysis, enabling complex quantitative information to be assimilated and understood instantaneously. When analysts are confronted with large numerical datasets, particularly those involving performance metrics, quality control results, or statistical distributions spanning multiple categories, the ability to clearly interpret the spread and central tendency of the values becomes essential. A compelling chart that clearly delineates the minimum, maximum, and average values acts as an exceptionally powerful tool for communicating these crucial insights.

Such analytical visualizations are invaluable across numerous fields, ranging from financial modeling to scientific research, empowering users to swiftly benchmark performance, identify significant outliers, and monitor subtle trends over time. For instance, in manufacturing quality assurance, a min/max/average chart can instantly display the shortest, longest, and typical time taken for a process, highlighting unacceptable variations. Similarly, in tracking sales cycles, it can pinpoint the range of completion times and the average duration. This guide specifically focuses on leveraging Excel‘s robust and often underutilized charting capabilities to create a dynamic and easily interpretable representation of these key statistical measures, repurposing a standard chart type for advanced analysis.

Our overarching objective is to efficiently transform raw, tabular data into a compelling visual narrative that supports rapid, data-driven decision-making and clear communication across teams or stakeholders. By diligently adhering to the forthcoming instructions, you will gain the specialized technical skills necessary to present your data in a highly professional and insightful manner, moving beyond simple bar and line graphs to create truly analytical and comparative visualizations.

Understanding the Core Statistical Measures

Before initiating the technical chart creation process, it is vital to firmly grasp the significance of the three statistical measures we intend to visualize: minimum, maximum, and average. The minimum value represents the lowest observed score or measurement within a specific dataset, effectively indicating the floor or worst-case outcome for that metric. Conversely, the maximum value denotes the highest observation, revealing the ceiling or peak performance achieved. These two values collectively define the entire range of the data, providing an immediate sense of its overall variability and spread.

The average, most commonly referring to the arithmetic mean, serves as the fundamental measure of central tendency. It calculates a single value that summarizes the typical or central position of the observations within the dataset. When this measure is viewed in direct conjunction with the minimum and maximum points, the average assists in positioning the typical performance relative to the full observed range. For example, a high average score coupled with a narrow range suggests uniformly excellent performance, whereas a high average accompanied by a very wide range might indicate inconsistent results driven by a few exceptional outliers.

For the purposes of our illustrative example, we will analyze the points scored by players across several fictional basketball teams. By visualizing the minimum, maximum, and average points for each team, we can quickly compare their respective performance profiles. This analysis might reveal that some teams maintain a consistent, narrow scoring range with a high average, while others exhibit a wide range, perhaps due to one or two high scorers compensating for lower performers. This depth of rich, comparative detail is precisely what our custom Excel visualization is engineered to illuminate.

Step 1: Structuring and Preparing Your Dataset

The essential prerequisite for generating any accurate and effective visualization is a meticulously organized and accurately entered dataset. For this hands-on tutorial, we will utilize the aforementioned example involving basketball teams and their player scoring statistics. It is absolutely crucial to structure your data logically within a new Excel worksheet, ensuring that clear and descriptive headings are applied to each column, as this structure will be directly utilized by the charting wizard.

Begin by entering the sample data into your Excel sheet. Ensure that the column headers are precisely named, as these labels will define your chart’s series and categories. Our required data structure includes columns for “Team,” “Min Points,” “Max Points,” and “Avg Points,” representing the minimum, maximum, and average scores, respectively. Crucially, we must also include a “Close” column. This column is mandatory for the specific High-Low-Close chart type we are adapting; for simplicity in our application, the values in the “Close” column will typically mirror the values in the “Avg Points” column.

Accuracy during this initial data entry phase is paramount; even small numerical errors can lead to profoundly misleading visualizations. Double-check all entered numbers against your source data to ensure the integrity and reliability of the final chart. Once your data is meticulously structured and verified, your worksheet should mirror the setup provided in the image below, indicating that you are prepared for the next stage of chart generation.

Step 2: Generating the Initial High-Low-Close Chart

With your statistical data carefully prepared in Excel, the subsequent step involves instructing the software to generate the preliminary chart visualization. This process relies upon Excel‘s built-in charting functionalities, which are conveniently accessed via the primary ribbon interface. The specific chart type we must select for this visualization is the High-Low-Close chart. While traditionally designed for stock market data, its intrinsic structure—showing a range between two extremes and a central point—makes it perfectly suited for displaying our minimum, maximum, and average values.

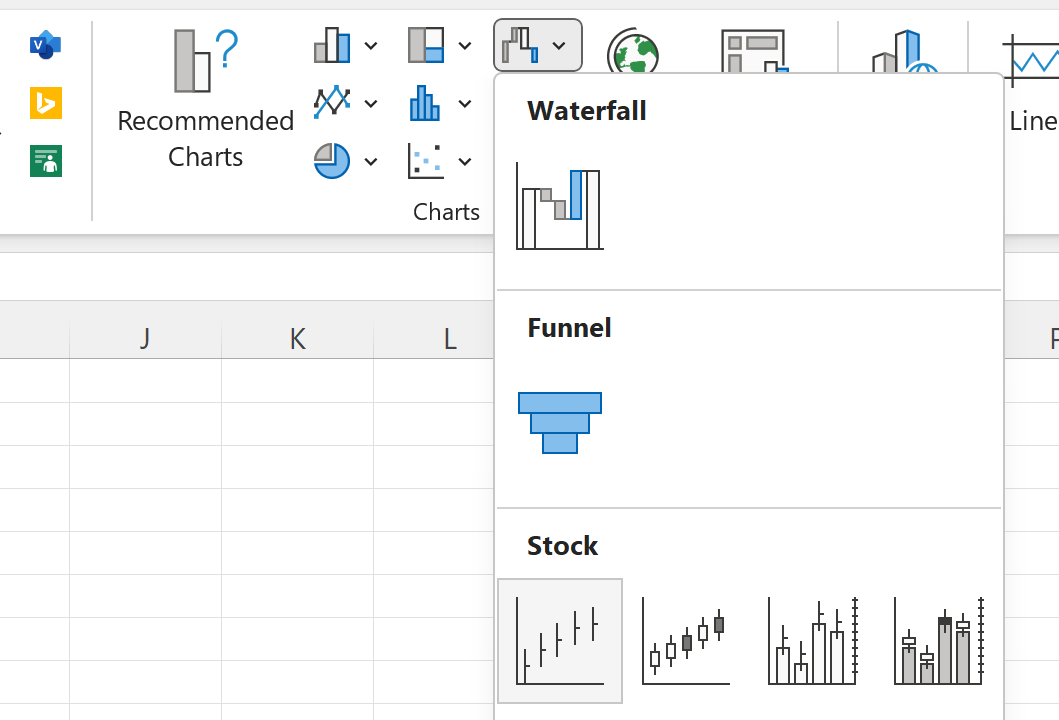

To begin the generation, carefully select the entire prepared dataset, ensuring that the header row is included in your selection. In our example, this corresponds to the cell range A1:F4. Once this data is highlighted, navigate to the Insert tab located on the top ribbon. Within the Charts group, locate the icon representing the stock and Waterfall chart types. Click the dropdown menu associated with this icon, and then explicitly select the option labeled High-Low-Close. This action instructs Excel to instantly generate a preliminary chart based on your selected data range, as depicted in the following images.

The fundamental design of the High-Low-Close chart is uniquely valuable for visualizing statistical ranges. In our adapted context, the “High” series input represents the maximum points scored, the “Low” series represents the minimum points, and the “Close” series effectively represents the average points. This clever adaptation allows us to repurpose a visualization traditionally used for financial volatility for general statistical analysis, providing a clear and concise representation of our desired performance metrics.

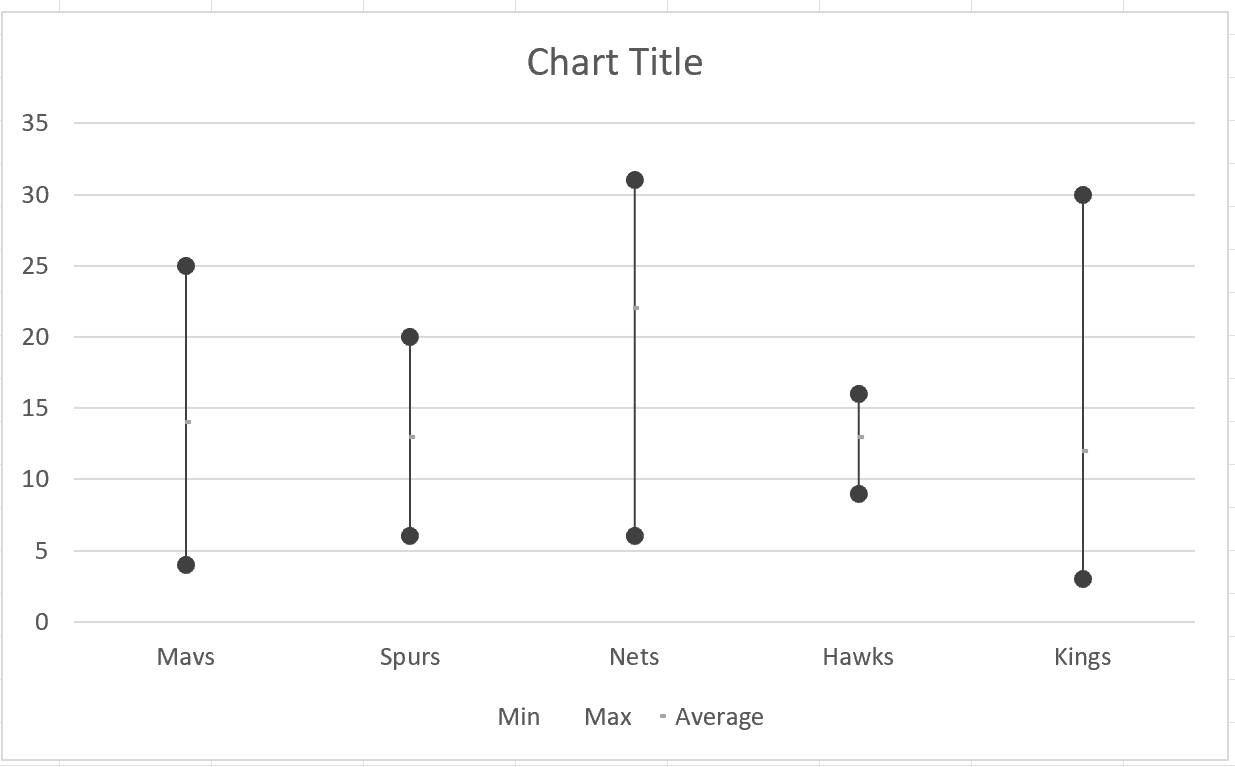

Upon selecting the High-Low-Close option, Excel will immediately render a new chart object on your worksheet. This initial output correctly maps the minimum, maximum, and average values for each team. However, its default appearance, characterized by thin lines and subtle markers, is typically not optimal for immediate comprehension or professional reporting. This initial chart structure, as shown in the image below, provides the basic framework that we will significantly customize in the subsequent steps to maximize its clarity and interpretability.

Step 3: Enhancing Readability through Marker Customization

The default configuration of the generated High-Low-Close chart often features small, inconspicuous markers, making the distinction between the minimum, maximum, and average points difficult to discern quickly. To significantly improve the readability and visual impact of our visualization, our initial customization efforts will focus on making these key data points much more visually prominent.

To begin, select any individual vertical line representing a team’s data range within the chart area. This action should automatically activate the Format Data Series panel, which typically appears on the right side of the Excel screen. Within this extensive panel, locate the options dedicated to customizing the line’s endpoints, often found under the “Fill & Line” section. You will typically find dropdown menus labeled “Begin Arrow type” and “End Arrow type.” Click on each of these menus and select the Oval Arrow option. Applying this setting transforms the tiny, default endpoint dots into larger, more noticeable oval markers at both the minimum and maximum boundaries of each team’s scoring range.

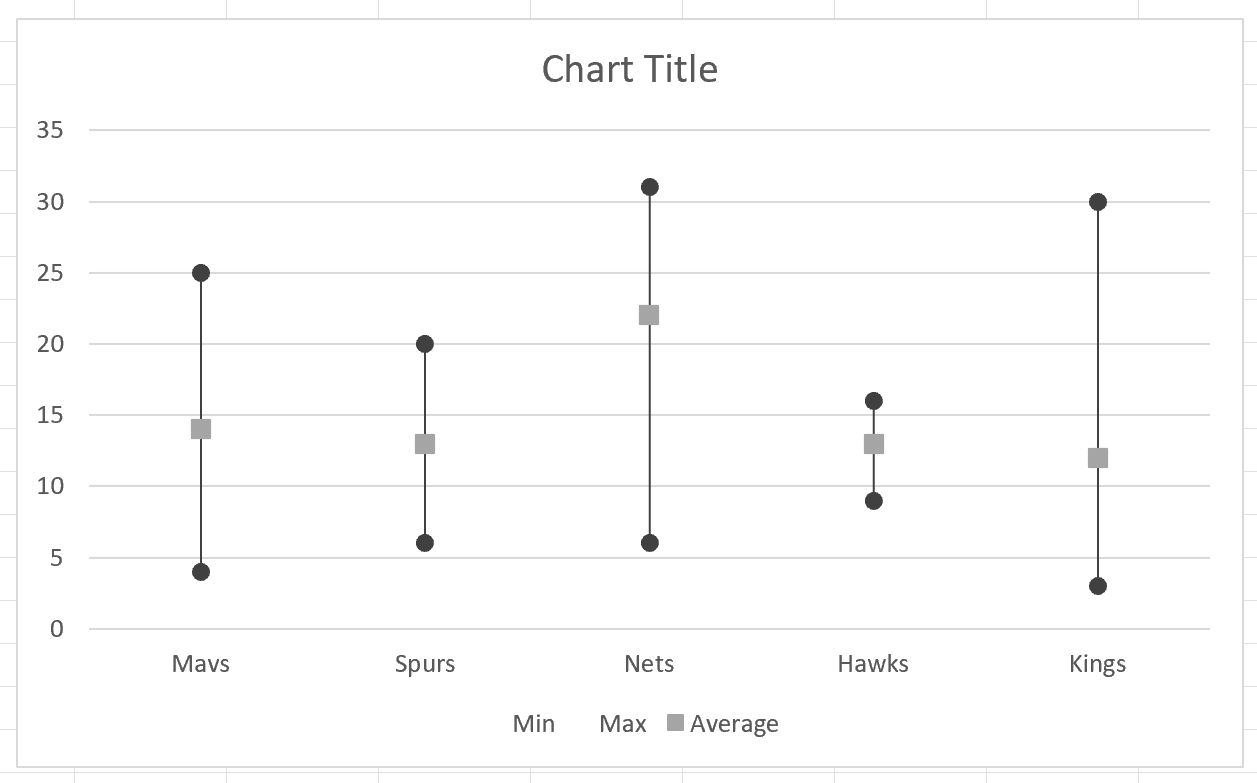

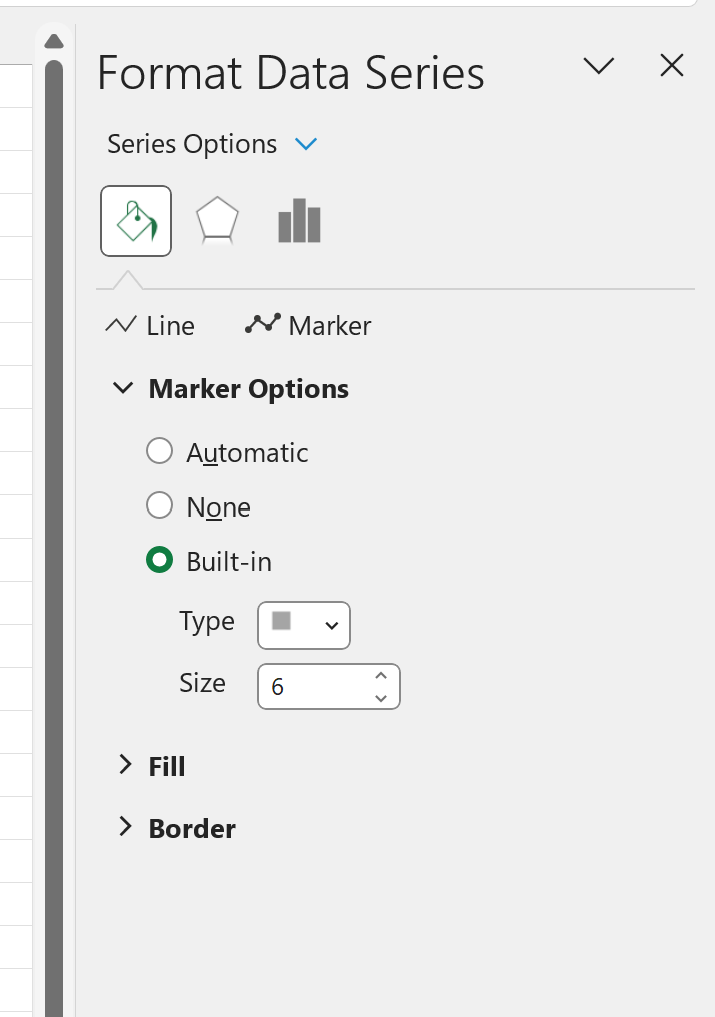

Following the customization of the range endpoints, the next critical step is refining the visualization of the central average value marker, which currently appears as a subtle horizontal tick mark or small circle. With the Format Data Series panel still open, navigate specifically to the Marker icon section. Under the Marker Options, choose a distinct geometric shape, such as a Square, for the marker Type. This shape offers excellent visual contrast against the oval endpoints. Subsequently, adjust the Size of this marker to a value of 6. This increase in size ensures the average data point is highly visible and cannot be accidentally obscured by the vertical range line, greatly enhancing the overall clarity and professional appearance of your chart, as shown in the images below.

Step 4: Finalizing Chart Aesthetics for Professional Presentation

Once the core data markers are clearly defined, the final and crucial stage of the process involves refining the overall aesthetics of the chart to ensure it is immediately self-explanatory, professional, and visually impactful. This phase includes customizing the title, adding precise axis labels, and strategically managing the legend. These elements are indispensable for conveying the complete message of your visualization without requiring lengthy supplementary explanations.

First, replace the generic default chart title with one that is highly descriptive and informative. A title like “Min, Max, and Average Points by Team” immediately tells your audience the precise scope and subject of the visualization. Second, add clear axis labels. The horizontal axis should be explicitly labeled “Team” to identify the individual categories being compared, and the vertical axis should be labeled “Points Scored” to eliminate any ambiguity regarding the measurement units and numerical scale. This standardization ensures the quantitative data is easily understood by any reader.

Finally, we recommend considering the removal of the legend typically positioned at the bottom of the chart. In this specific visualization, where the minimum, maximum, and average values are visually distinguished by distinct shapes (oval markers for Min/Max, square for Average), the legend often becomes redundant and consumes valuable space. Removing it creates a cleaner appearance and allows the data visualization itself to occupy the central focus. The culmination of these careful customization steps results in a highly polished and easily interpretable chart, as demonstrated in the final image below.

Through the systematic application of these steps, the chart is now significantly enhanced for professional analysis. The improved markers, clear title, and accurate axis labels guarantee that anyone viewing the visualization can rapidly grasp the minimum, maximum, and average performance metrics across different categories, enabling swift comparative analysis and informed decision-making.

Conclusion and Further Learning

You have successfully mastered the process of creating a highly effective and visually engaging Min, Max, and Average chart in Excel. This powerful visualization technique offers a clear and concise method for representing data ranges and central tendencies across multiple groups simultaneously. By following the detailed instructions, from structuring your dataset to strategically customizing every visual element, you have successfully transformed raw numerical inputs into an insightful graphical display that significantly enhances understanding and supports sophisticated analytical decision-making.

The ability to adapt Excel‘s standard High-Low-Close chart for purposes extending beyond its traditional stock market application demonstrates the immense flexibility and versatility inherent in Excel as a primary data analysis tool. We strongly encourage you to apply this robust charting methodology to your own professional or academic datasets, exploring how clear visualizations of minimum, maximum, and average values can effectively uncover hidden patterns, highlight crucial performance differences, and communicate otherwise complex statistical information more efficiently.

Mastering specialized charting techniques such as this is a valuable asset for any professional working with quantitative information. Continue to explore Excel‘s extensive features to further enhance your data visualization repertoire and streamline your analytical workflows. The journey from raw data to actionable business or scientific insights is profoundly aided by the deployment of well-crafted and highly informative charts.
