Learning to Create Pivot Tables from Multiple Excel Sheets

For analysts and business professionals alike, the ability to quickly derive meaningful insights from raw data is paramount. One of the most essential tools in the Microsoft Excel application is the Pivot Table, a dynamic feature designed to summarize, sort, reorganize, and analyze large datasets rapidly. However, a frequent challenge arises when critical information is not centralized but instead fragmented across multiple distinct worksheets within the same workbook. Addressing this data distribution is essential for comprehensive reporting.

Traditional methods for combining data from disparate sheets—such as manual copy-pasting—are prone to error, lack scalability, and fail to update automatically when source data changes. This comprehensive guide provides a detailed walkthrough using modern Excel capabilities to efficiently consolidate data. We will specifically utilize the powerful FILTER function to create a single, dynamic data source that feeds directly into a robust Pivot Table, ensuring your analysis is consistently accurate and current.

Understanding the Challenge of Disparate Data Consolidation

Data distribution across multiple sheets is common in business environments. Organizations often track metrics like sales, inventory, or budgets on a chronological basis, leading to separate tabs for each month or week. Furthermore, different departments might use separate sheets for their individual reporting, even if the underlying data structure is similar. While this segmented approach serves immediate tracking needs, it severely limits the ability to achieve a holistic view or identify overarching trends, making a consolidated Pivot Table essential.

The primary obstacle when dealing with multi-sheet data is the inherent limitation of traditional Excel Pivot Tables, which are designed to operate on a single, continuous block of data. If we were to rely on outdated manual methods, such as copying data from one sheet and pasting it below the data of another, we would face several risks. The process is time-intensive, highly susceptible to copy-paste errors, and critically, it creates a static report. If any figures change in the source sheets, the consolidated data must be manually rebuilt from scratch, rendering the analysis inefficient.

Fortunately, modern spreadsheet functions provide elegant, dynamic solutions. By employing functions that spill results into neighboring cells—known as dynamic arrays—we can link multiple source ranges together seamlessly. This powerful technique automatically updates the consolidated range whenever the underlying data changes, providing a robust and error-free foundation for our aggregated analysis.

Step 1: Data Preparation and Structural Consistency

For any multi-sheet consolidation process to succeed, the source data must maintain an identical structure. This means that the number of columns, the column headings (e.g., “Store,” “Product,” “Sales”), and the data types within those columns must be consistent across all participating sheets. Inconsistent header names or misplaced columns will lead to incorrect aggregations when the Pivot Table is built.

To illustrate this vital process, let us work with a straightforward example: tracking sales data distributed across two distinct sheets named Week1 and Week2. Our objective is to generate a comprehensive sales summary that incorporates all transactions from both weeks simultaneously. Both sheets contain the same three critical data points: the store location, the specific product sold, and the corresponding sales amount.

The following visual representations show our two starting datasets. Note how the column headers and sequence are preserved across both data sets, fulfilling the prerequisite for seamless consolidation. We aim to stack the data from Week2 directly below the data from Week1 within the same sheet.

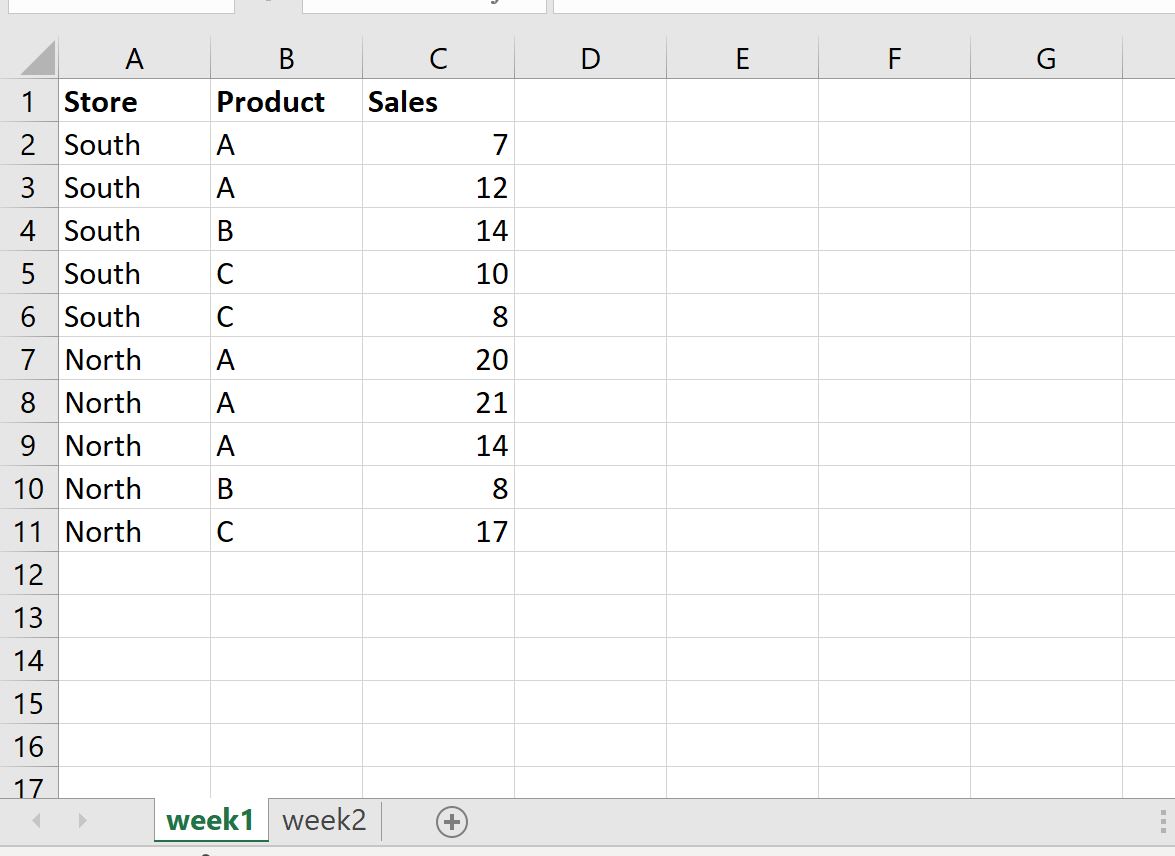

Week1 Source Data:

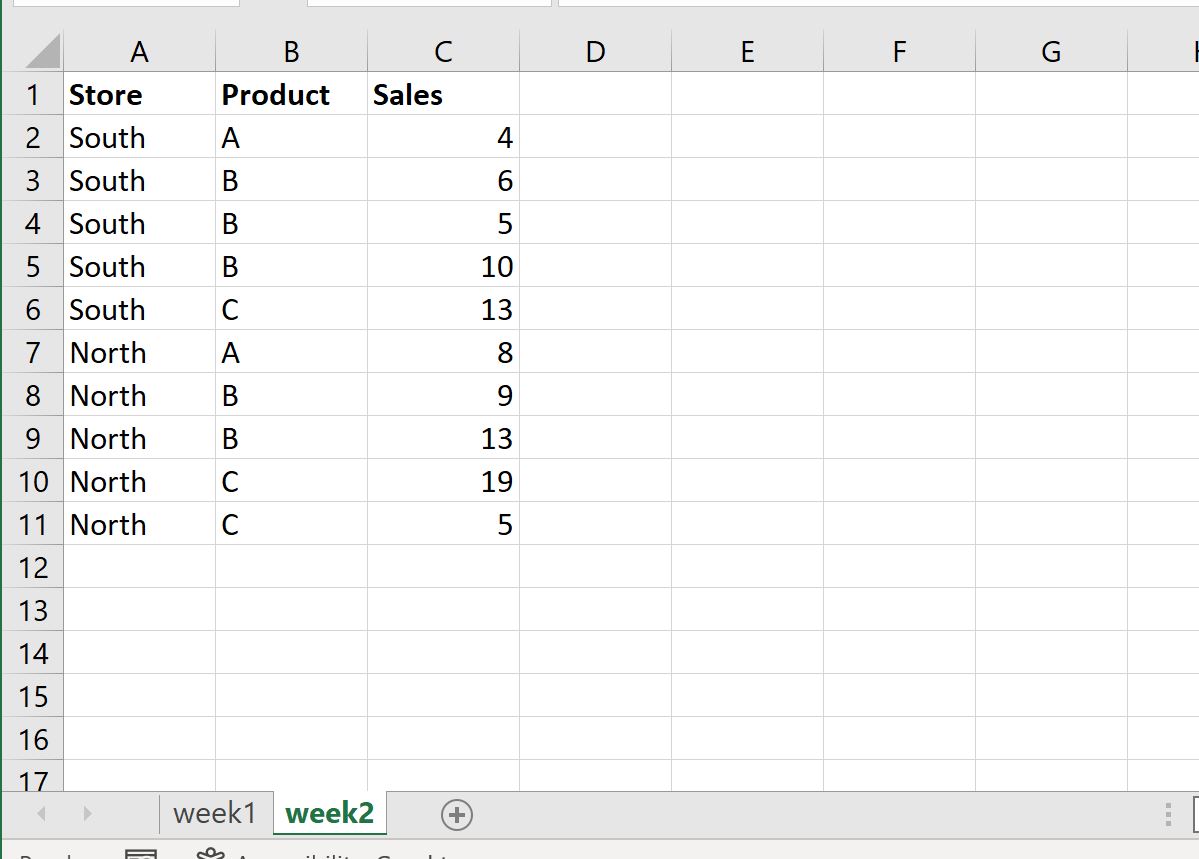

Week2 Source Data:

The next step involves leveraging a dynamic formula to append the data from Week2 to the end of the Week1 sheet, thereby creating one large, unified range that can be used as the single source for the Pivot Table, eliminating the need for manual data manipulation.

Step 2: Dynamic Data Consolidation Using the FILTER Function

Achieving a dynamic link between the source sheets is accomplished using Excel‘s powerful dynamic array function: FILTER. While the FILTER function is primarily known for isolating specific data based on criteria, we can repurpose it here to “pull” the entire dataset from Week2 into the Week1 sheet, thereby appending the information.

To maintain the continuity of the data, we must place the formula in the first empty cell immediately following the final row of the Week1 data. Based on our example, the Week1 data concludes at row 11 (including the header row at A1), so we will input the formula into cell A12 of the Week1 sheet. The formula required is as follows:

=FILTER(Week2!A2:C11, Week2!A2:A11<>"")

Let us analyze the components of this essential formula:

• Week2!A2:C11: This is the array argument. It specifies the entire range of data we intend to extract from the source sheet, Week2. It is crucial to exclude the header row here, as the Week1 data already contains the correct headers.
• Week2!A2:A11<>””: This is the include argument, which acts as the filtering condition. By checking if the cells in column A of the Week2 sheet are not blank (`<>””`), we instruct the function to retrieve every row that contains actual data. This ensures that empty rows are ignored, simplifying the data cleaning process.

Upon entering this formula into cell A12, the data from Week2 will instantly “spill” into the Week1 sheet, expanding the data range dynamically. This consolidated dataset, now housed entirely within the Week1 sheet, provides a single, unified source ready for Pivot Table creation.

The image above confirms the successful consolidation. The Week1 sheet now contains all the data entries from both weeks, forming a contiguous data range that begins at A1 and extends to the last row of the spilled data. Because this consolidation relies on the FILTER function, it is inherently dynamic; any future modification or addition to the Week2 sheet will automatically reflect here.

Step 3: Building the Pivot Table from the Unified Data Source

With the data dynamically consolidated into a single range in the Week1 sheet, the process of creating the Pivot Table proceeds exactly as it would with any standard dataset. The crucial difference is that our source data is now dynamic and spans multiple original sheets.

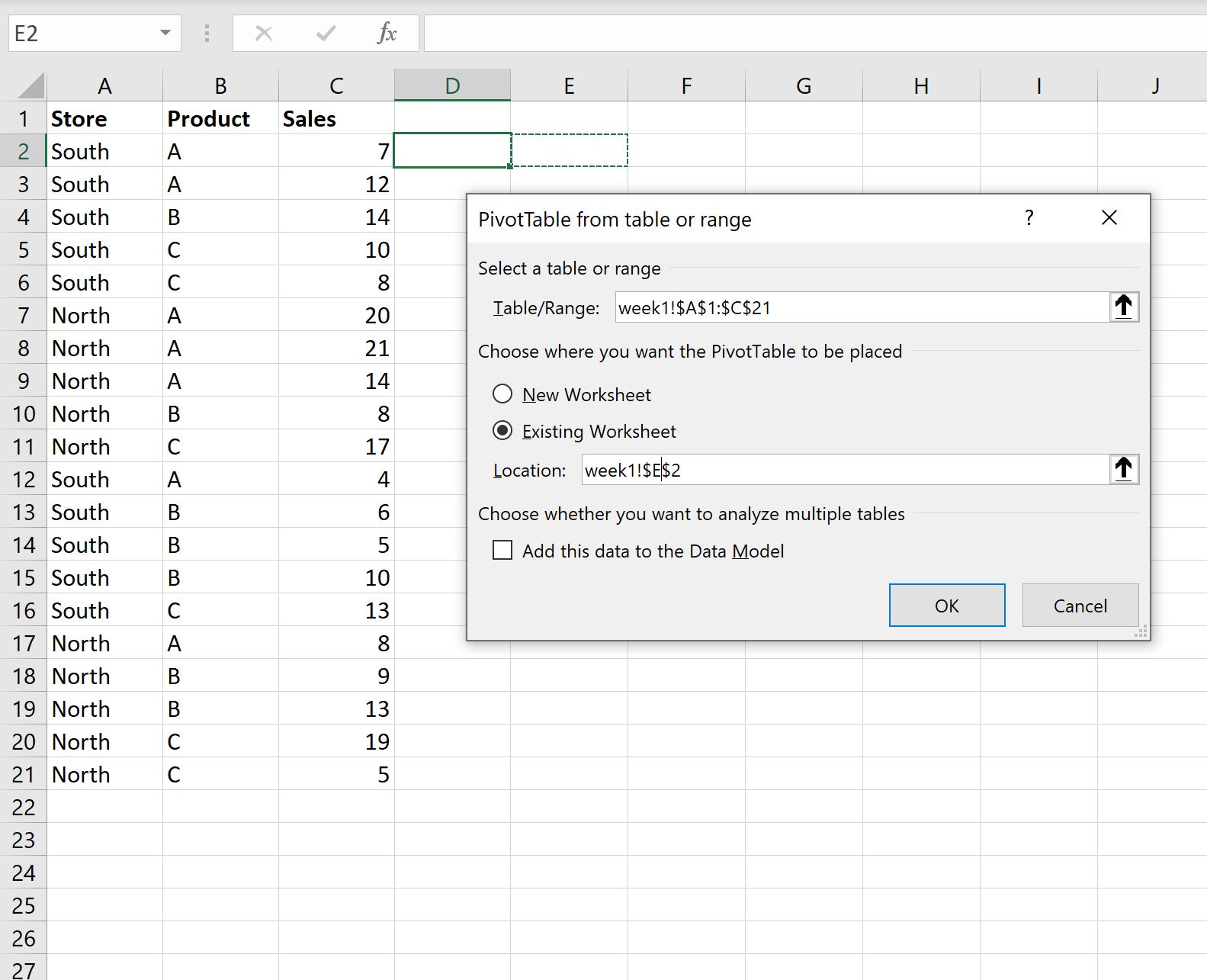

Begin the creation process by clicking on any cell within the newly consolidated range (e.g., A1). Navigate to the Insert tab on the Excel ribbon and select the PivotTable option. The “Create PivotTable” dialog box will appear, prompting you to confirm the data source. Because we are using a dynamic array, Excel is often intelligent enough to select the entire spilled range automatically. You should verify that the selected range (e.g., Week1!$A$1:$C$21) fully encompasses both the original data and the appended data.

Ensure the option “New Worksheet” is selected for placement, which is best practice for maintaining a clean workspace for analysis, and then click OK. This action will generate a new sheet containing the blank Pivot Table structure and display the PivotTable Fields panel.

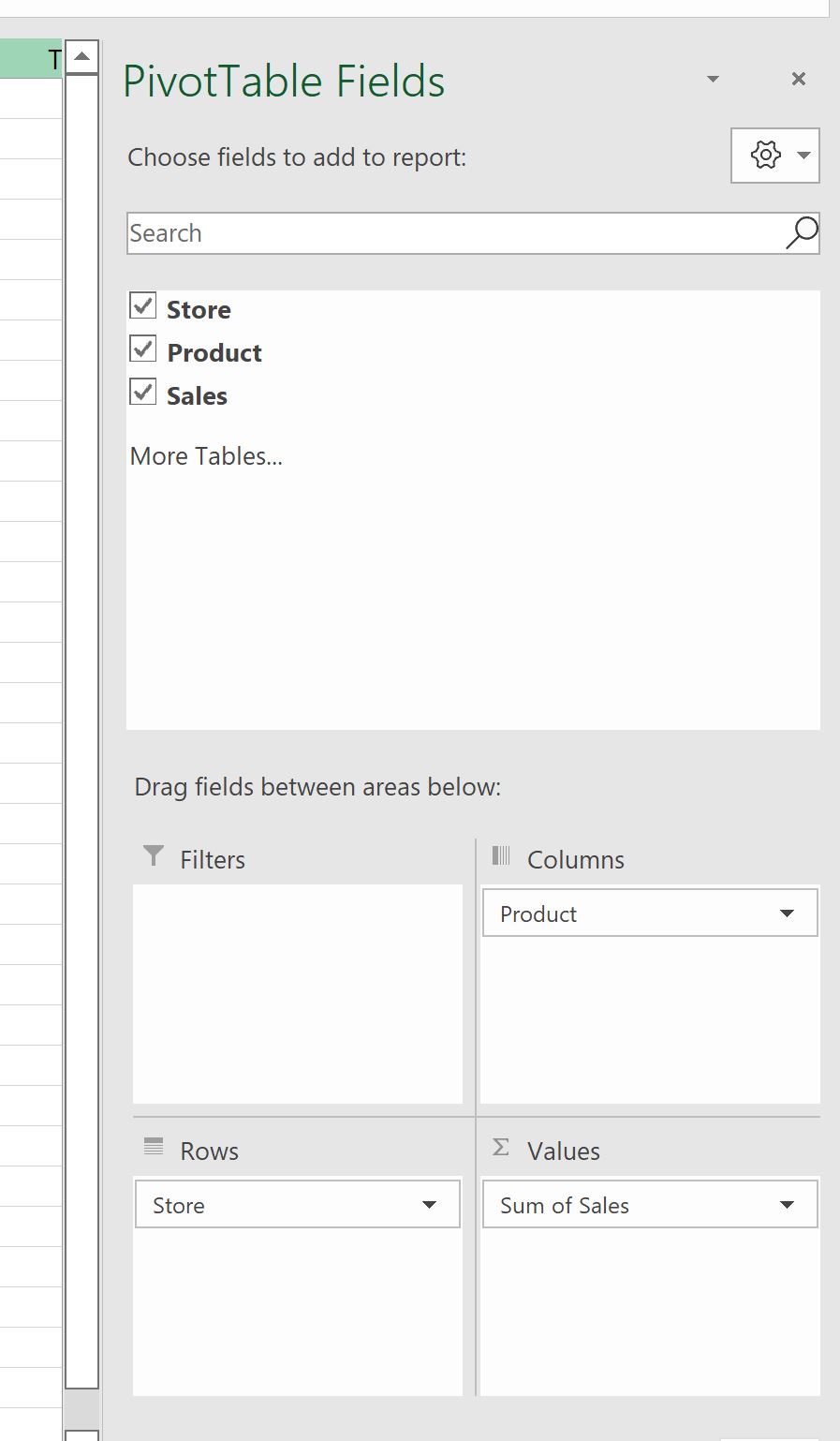

To complete the analysis and view the aggregated sales figures for both weeks, structure the Pivot Table by dragging the fields from the top section of the PivotTable Fields panel into the four required areas at the bottom:

• Store: Drag this field to the Rows area to categorize the totals by location.
• Product: Place this field in the Columns area to break down sales horizontally by product type.
• Sales: Move this numerical field to the Values area. This automatically calculates the sum of all sales across the combined two-week period for each Store/Product combination.

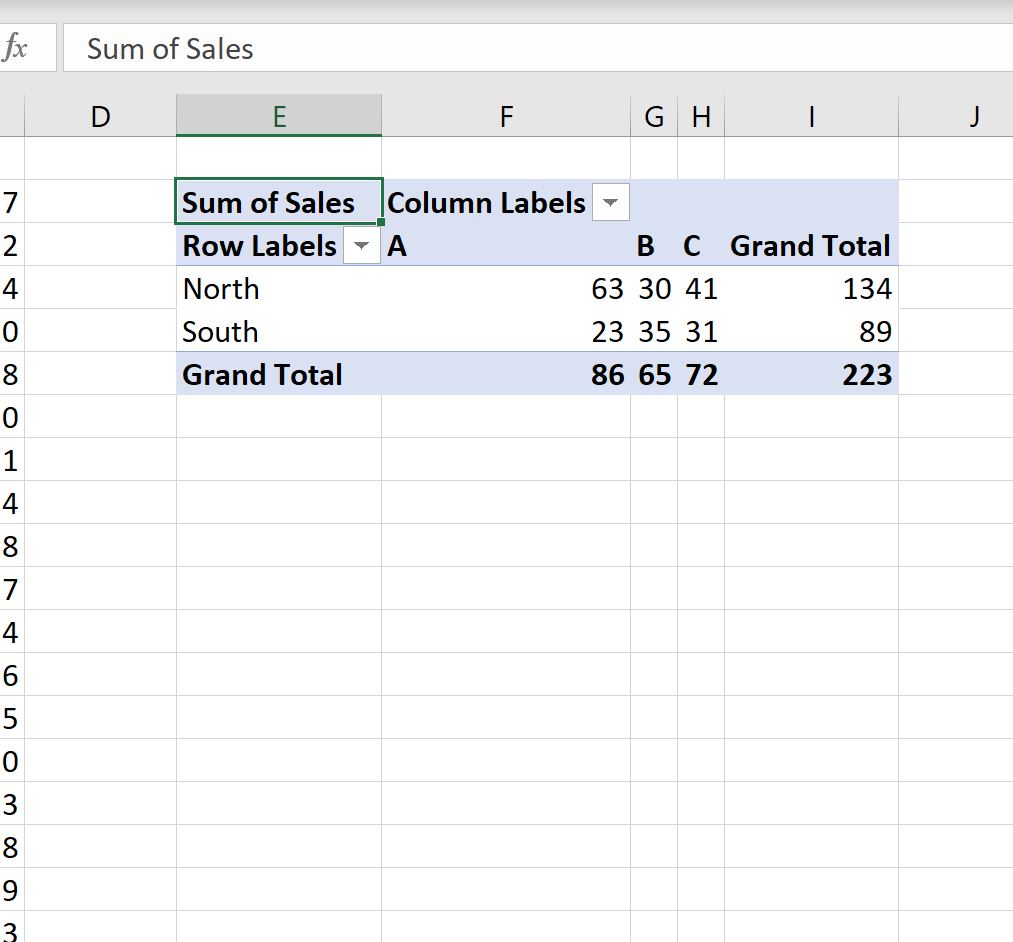

This configuration immediately generates the final summarized report, incorporating all data from the originally separate sheets.

Maintaining Dynamic Results and Conclusion

The resulting Pivot Table now provides a powerful, aggregated view of sales performance, summarizing data that was originally distributed across two separate sheets. The key advantage of using the FILTER function for consolidation is the creation of a dynamic data pipeline. If a new sale is recorded in the Week2 sheet, or if an existing figure is corrected, the following updates occur automatically:

1. The FILTER function in the Week1 sheet automatically updates and spills the new data into the consolidated range.
2. The Pivot Table source range (which points to the entire consolidated range) is now ready to incorporate the new data.

To finalize the update, simply right-click anywhere on the Pivot Table and select Refresh. This ensures your summary reflects the absolute latest information from all source sheets without requiring any manual copying, pasting, or formula adjustments.

Mastering the technique of consolidating data from multiple sheets using dynamic array functions is a fundamental skill for advanced Excel users. This dynamic method provides flexibility and scalability, allowing you to easily add more weeks or months of data simply by expanding the source range referenced in your FILTER formula. By integrating this strategy into your workflow, you can generate reliable, up-to-the-minute analysis efficiently.

For those looking to deepen their Excel proficiency and tackle even more complex data modeling challenges, consider exploring the use of Power Query, which offers even more robust and scalable tools for consolidating data from hundreds of sources. Further recommended topics include:

• How to use the XLOOKUP function for advanced lookups in dynamic arrays.
• Creating interactive dashboards with Pivot Charts and Slicers.
• Understanding data validation rules for improved data integrity and error prevention.
