Learning Data Analysis: Creating Reports with Excel PivotTables

In the modern professional environment, the critical ability to transform large volumes of raw, unstructured data into clear, concise, and actionable business reports is highly valued. The most powerful and flexible mechanism available within Microsoft Excel for executing this transformation is the utilization of the PivotTable feature. This tool transcends simple data summation; it is an indispensable engine for high-level summarization, flexible reorganization, and deep, insightful data analysis.

This comprehensive, step-by-step tutorial is specifically designed to guide users through the entire process of leveraging Excel’s immense PivotTable functionality. We will systematically transition a basic, flat dataset into a sophisticated, structured analytical report. Our detailed journey covers everything required: from the crucial preparatory steps necessary to clean and organize your source data, through the technical insertion and configuration process, all the way to customizing the final visual presentation for maximum clarity and professional impact.

By diligently mastering these instructions, you will gain the expertise required to generate powerful summaries, dynamically adjust statistical metrics, and significantly enhance the visual communication of complex financial, statistical, or operational data. This skill set is foundational for any professional tasked with working efficiently and effectively with substantial data volumes within the Excel environment, directly leading to more informed and timely strategic decision-making.

Understanding PivotTables: The Foundation of Dynamic Reporting

A PivotTable in Excel is recognized as a uniquely powerful, interactive mechanism tailored for summarizing and analyzing extensive quantities of data with remarkable speed and precision. Its fundamental utility originates from its capacity to ‘pivot,’ or rapidly reorient, the data structure, thereby granting users the ability to view information from numerous perspectives simultaneously. This reorientation capability is frequently the key to uncovering underlying trends, identifying critical patterns, and revealing hidden insights that might otherwise remain completely obscured within the initial raw information set.

Crucially, PivotTables maintain a dynamic, responsive relationship with their source data, setting them sharply apart from static, fixed tables. Their structure and content can be effortlessly rearranged, filtered, and manipulated to focus on specific data subsets without ever compromising the integrity or structure of the original source dataset. This inherent interactive flexibility makes PivotTables an invaluable resource for iterative exploration, rapid hypothesis testing, and producing quick, authoritative reports.

The primary analytical strength of this feature lies in its ability to perform sophisticated data aggregation based entirely on user-defined criteria. For example, within seconds, you can group thousands of transactional records by sales region, calculate the sum of revenue generated, determine the average transaction value, or simply count the number of unique customers, presenting these results in a compact, readily interpretable format. This makes the PivotTable essential for generating high-level management dashboards, detailed sales performance metrics, comparative budgetary analyses, and any other reporting need demanding a highly flexible and robust analytical solution.

Preparing and Structuring Your Source Data for Analysis

Before initiating the creation of any effective PivotTable report, the single most critical prerequisite is ensuring that your raw data is structured accurately and consistently. For maximizing PivotTable performance, efficiency, and analytical precision, the source data must adhere strictly to a tabular format. This essential requirement means that every column must represent a unique data field (e.g., “Date,” “Product Category,” “Unit Cost”), and every single row must correspond to one distinct record or entry.

It is absolutely essential to establish clear, descriptive column headers, as these titles will become the field names used throughout the PivotTable configuration process. Furthermore, users must rigorously avoid introducing blank rows, merged cells, or completely empty columns within the defined data range, as these elements can critically confuse the PivotTable logic, preventing it from correctly identifying and processing the entire information set. Maintaining a clean, standardized, and consistent data layout is the foundational requirement for accurate and reliable reporting.

To provide a clear, practical demonstration of this preparation stage, we will utilize a concise dataset featuring basketball player statistics. This data structure includes core details such as player names, their affiliated teams, and key performance metrics like “Points” and “Assists.” This arrangement is specifically chosen as it is ideal for showcasing how to aggregate individual player performance metrics up to a team level, offering a tangible and easily understandable scenario for building a high-impact analytical report.

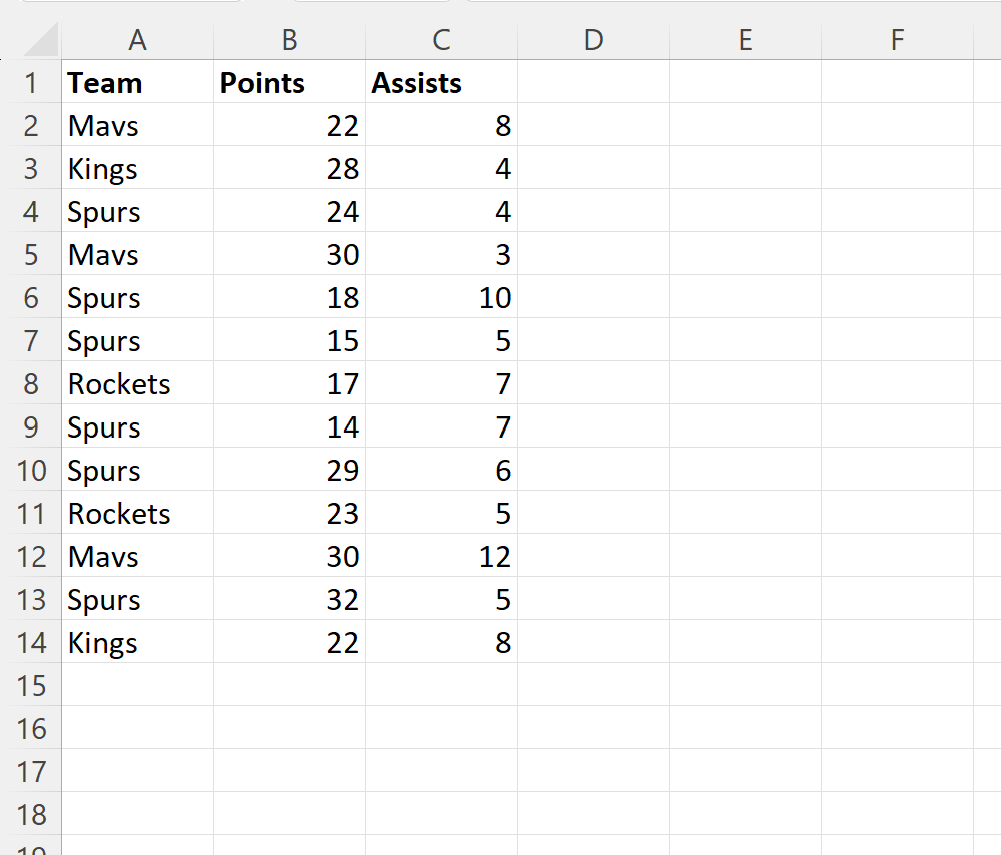

Please enter the following data precisely into your Excel worksheet. Precision in data entry, especially regarding the exact spelling of column headers and the absence of stray characters or gaps, is paramount for guaranteeing the integrity and accuracy of the resulting PivotTable report. Remember, this preparation step fundamentally dictates the quality of all subsequent analysis.

Executing the PivotTable Insertion Process

Once your source data has been meticulously prepared and accurately entered into the worksheet, the next step involves inserting the PivotTable structure itself. This crucial process begins by actively selecting the entirety of the cell range that contains your dataset, which must include all the descriptive column headers. For the specific data provided in our example, this required range is A1:C14. Confirming this exact selection ensures that every relevant data point is incorporated into the dynamic structure of your report.

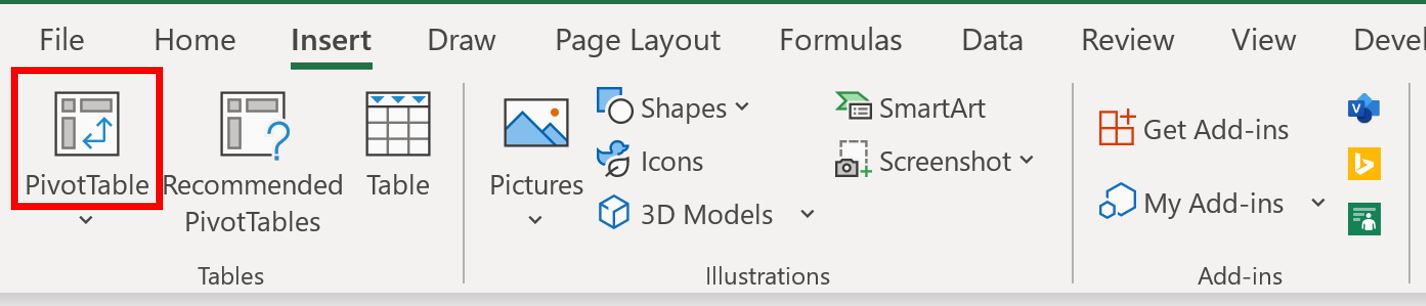

With the data range successfully highlighted, direct your attention to the Insert tab, which is prominently located on the upper ribbon interface of Excel. Within the group designated for “Tables,” you will locate and click the PivotTable icon. This action immediately triggers the display of the “Create PivotTable” dialog box. This essential window requires two key confirmations from the user: first, verifying the data source range, and second, specifying the desired placement location for the resulting report.

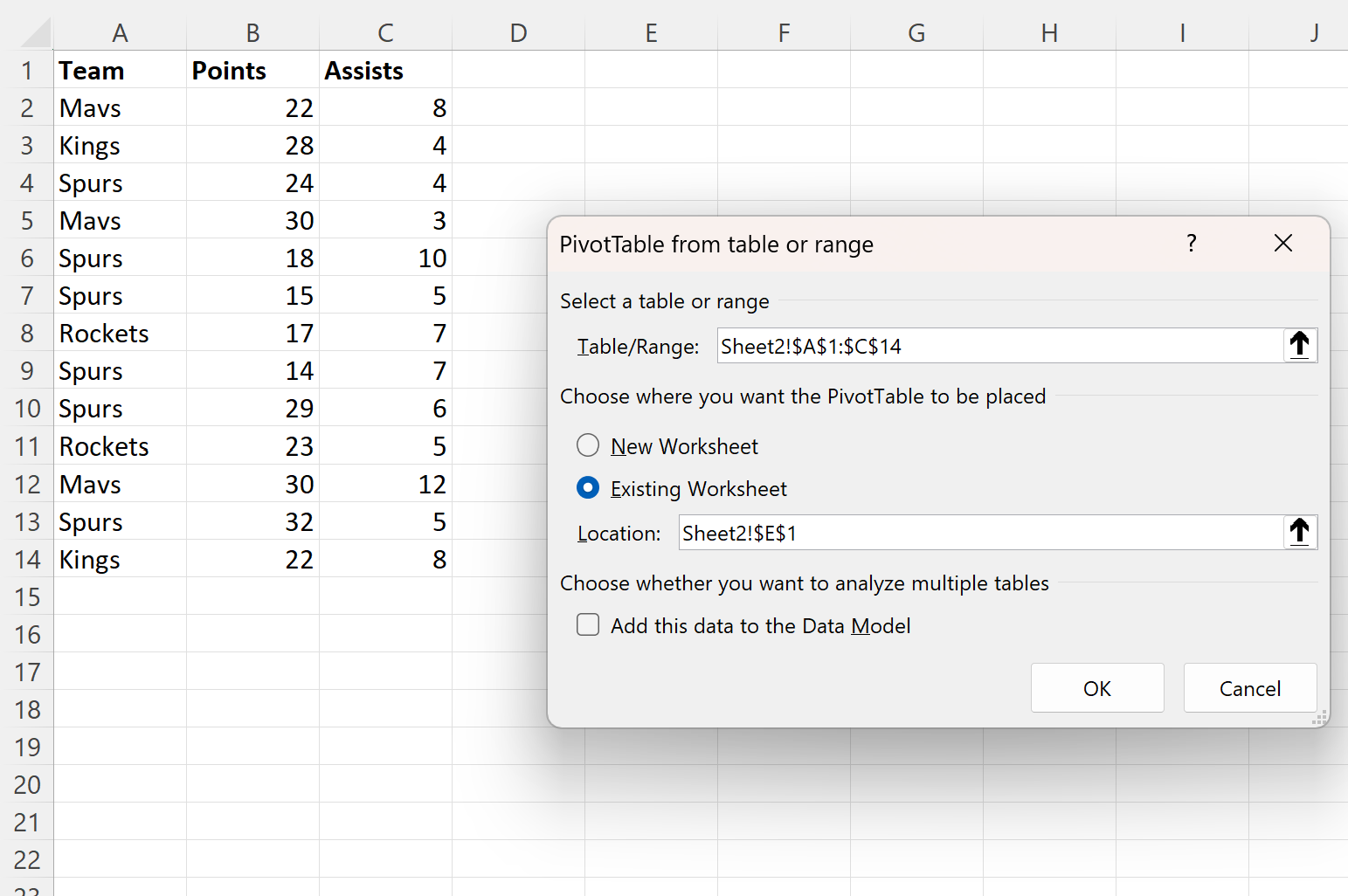

In the “Create PivotTable” window, Excel typically automatically populates the “Table/Range” field with your previously selected range (A1:C14). The next decision involves specifying the placement of the report output. Although creating it in a New Worksheet is the default and often the cleanest organizational option, for this demonstration, we will select Existing Worksheet and precisely specify cell E1 as the starting anchor point. Positioning the PivotTable adjacent to the source data often facilitates immediate side-by-side comparison and continuous analytical review. After configuring these placement settings, clicking OK successfully generates the foundational framework for the PivotTable report.

Configuring Fields for Meaningful Data Summarization

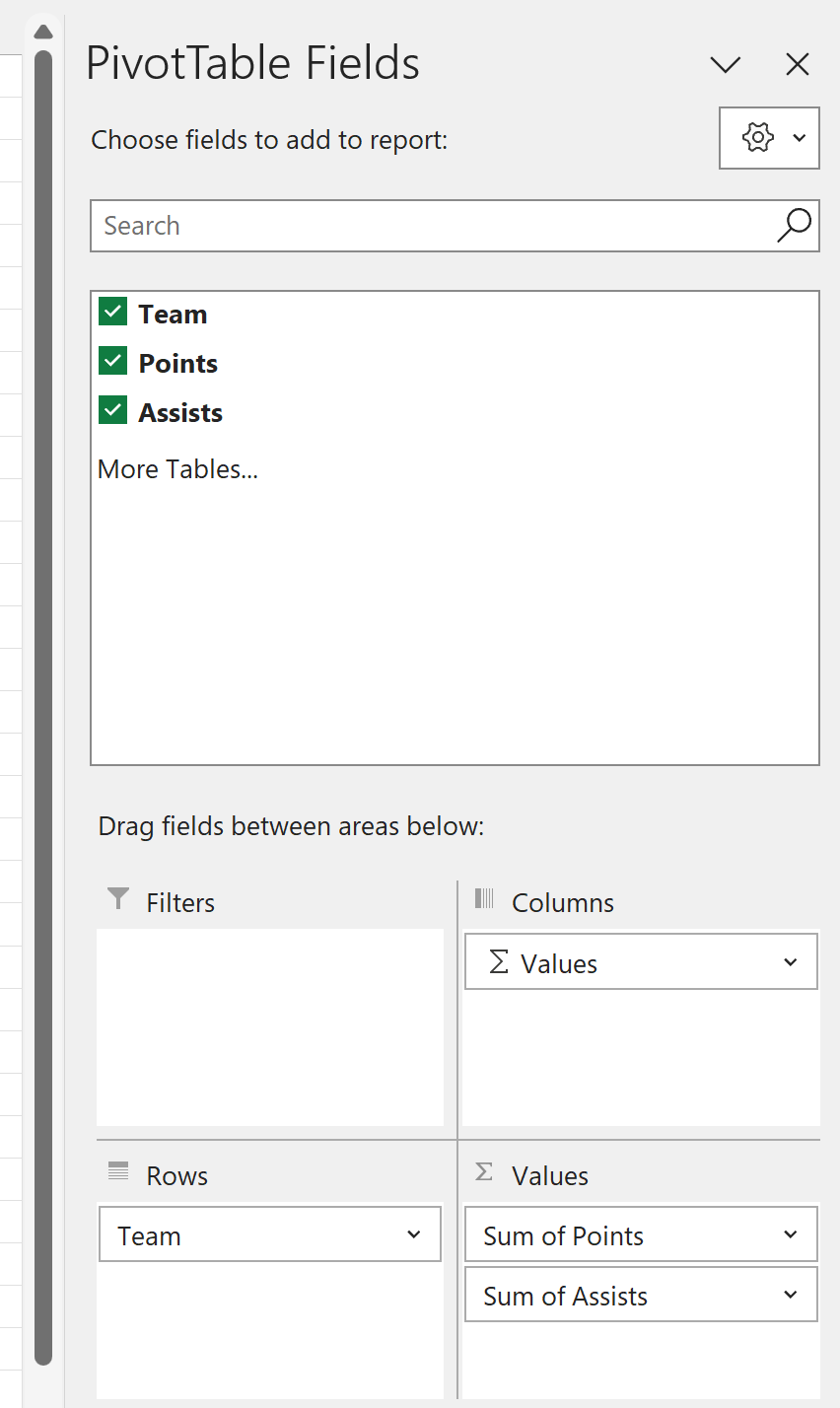

The moment you successfully generate the PivotTable framework, the crucial PivotTable Fields panel automatically appears on the right side of your screen. This panel serves as the primary control center for defining the design and analytical scope of your report. It is logically divided, listing all available fields (derived from your source data column headers) at the top, and providing four distinct, functional quadrants at the bottom: Filters, Columns, Rows, and Values.

To begin the structured construction of our basketball performance report, we initiate the process by dragging the Team field from the upper list section down into the Rows box. This immediate action organizes the data, populating the first column of the PivotTable with a unique, non-redundant list of all teams present in your data. Each team now functions as a distinct row label, establishing the primary grouping structure for our subsequent data aggregation.

Next, to incorporate the quantitative performance metrics, drag the Points field, followed immediately by the Assists field, into the Values box. Upon placing these numerical fields, the PivotTable instantaneously calculates and displays a default aggregation, which is typically the “Sum,” for each metric. This provides the total points scored and total assists recorded by all players on each respective team. This immediate, dynamic update powerfully demonstrates the efficiency of PivotTables in providing a rapid, summarized overview based on the chosen row groupings and numerical inputs.

The resulting PivotTable instantly populates your designated area on the worksheet, offering a clear, concise summary of collective team performance. While this initial table, showing the sum of points and assists, provides a powerful starting point, the true analytical depth of PivotTables is unlocked by customizing precisely how these numeric values are calculated and presented to the audience.

Advanced Metrics: Customizing Value Field Settings

Although the automatic “Sum” aggregation function is highly useful for calculating totals, PivotTables offer sophisticated options for summarizing data using a wide array of diverse statistical metrics. Analysts frequently require calculations such as the count of records, the average value per item, the maximum recorded figure, or the minimum value observed across a range. This essential flexibility is managed entirely through the dedicated Value Field Settings dialog box.

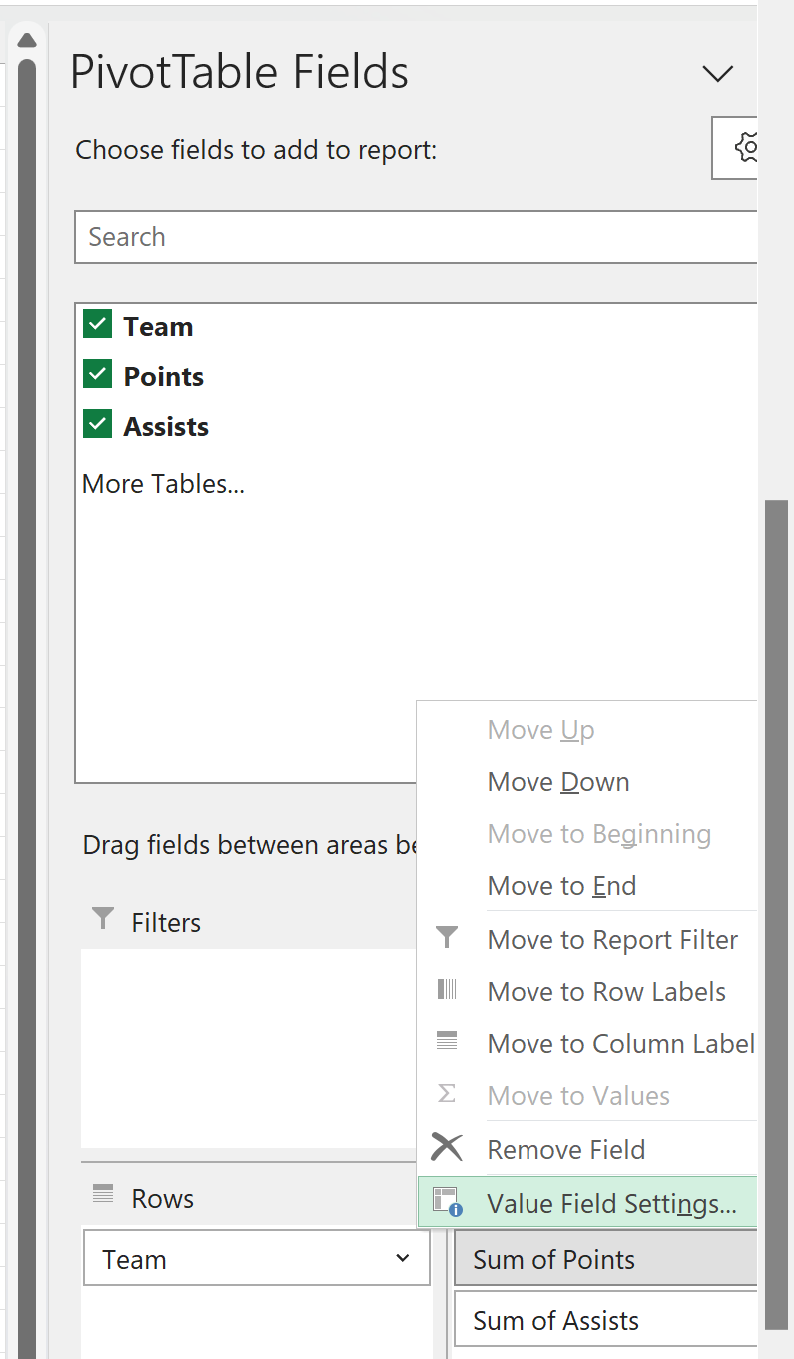

To modify the calculation method for any given value field, locate the field within the Values box in the PivotTable Fields panel (e.g., “Sum of Points”) and click on it. A context menu will appear, from which you should explicitly select Value Field Settings. This action opens the primary dialog box, allowing you to choose from an extensive list of summary types. Options include, but are certainly not limited to, Sum, Count, Average, Max, Min, Product, Standard Deviation, and Variance. Each selection provides a unique statistical lens through which to interpret your underlying numerical data.

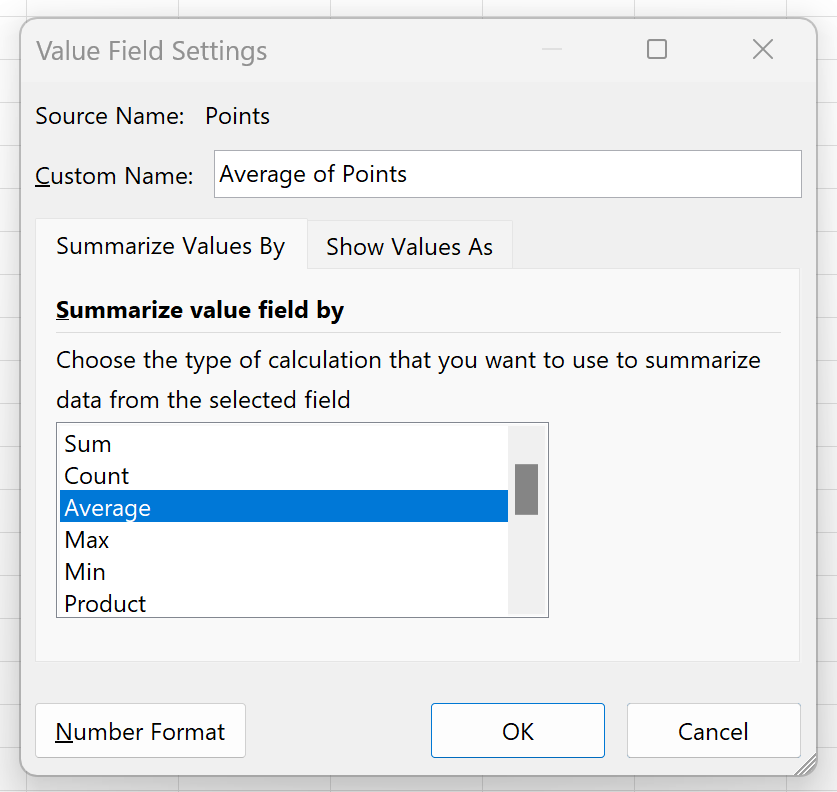

For our ongoing example, let us change the “Sum of Points” metric to calculate the Average points scored per team. Within the Value Field Settings dialog box, simply select the Average option from the list and confirm your choice by clicking OK. The PivotTable immediately reconfigures itself, replacing the team totals with the calculated average points scored by players on that team. This seamless, instantaneous recalculation highlights the responsive and interactive capability of PivotTables, enabling rapid exploration of various statistical conclusions.

The updated PivotTable now accurately displays the average points for each team, providing a normalized, often more insightful metric for performance comparison than raw totals. We strongly encourage users to apply similar modifications to other value fields, such as “Sum of Assists,” experimenting with different aggregation functions to them. This hands-on practice is vital for developing an intuitive understanding of how statistical summaries influence the interpretation and analytical value of your compiled data.

Enhancing Aesthetics and Readability with Design Options

A high-quality analytical report requires not only absolute accuracy but also superior visual presentation. A PivotTable provides extensive capabilities for aesthetic customization, ensuring that the final output is not only computationally sound but also highly appealing and immediately interpretable by stakeholders. Enhanced readability significantly increases a report’s influence and overall usability. To access these essential design features, simply click anywhere inside the PivotTable to activate the contextual “PivotTable Tools” on the ribbon, specifically navigating to the Design tab.

The Design tab unlocks a powerful suite of formatting tools. Analysts can explore the extensive gallery of PivotTable Styles, which are predefined combinations of colors, borders, fonts, and alternating row/column banding. Applying one of these styles can instantaneously transform the appearance of your report, ranging from formal, subtle professional looks to more dynamic, vibrant visual summaries. Furthermore, this tab controls the structural layout, allowing you to select between Compact, Outline, or Tabular Report Layouts, and providing granular control over the visibility of Subtotals and Grand Totals for both rows and columns.

For maximizing visual impact and quick interpretation, consider choosing a design style that employs high contrast. For example, selecting a style that utilizes a distinct dark background for the header rows and a contrasting, lighter color for the interior data values makes the column headers instantly stand out. This deliberate design choice substantially improves navigational clarity and ensures that key summarized information is instantly identifiable by the audience. Continuous experimentation with various design styles and layout configurations is strongly recommended to identify the most effective and compelling visual presentation tailored precisely to your specific data and target audience.

Interpreting the Dynamic Report and Conclusion

Once the PivotTable has been fully configured, stylishly formatted, and finalized, the ultimate step is extracting meaningful insights. A well-constructed report serves as a high-fidelity summary of your raw data, enabling stakeholders to rapidly perform comparisons and identify crucial trends or potential performance outliers. In our basketball example, the final report clearly displays the calculated average points and the total assists aggregated for each team, offering a comprehensive, performance-based snapshot.

By systematically reviewing the rows, which represent the grouped entities (teams), against the columns, which contain the summarized metrics (Average of Points, Sum of Assists), you can quickly discern which teams demonstrate superior scoring efficiency or strong playmaking capabilities, and conversely, pinpoint areas where a team might be lagging. If enabled, the grand totals offer essential benchmarks, providing crucial context for evaluating individual team performance against the overall data analysis aggregates.

The paramount feature of the PivotTable remains its inherent interactivity. Analysts are empowered to dynamically apply filters to view only select teams, introduce new fields (such as player positions or game dates) for multi-dimensional analysis, or use Slicers to segment the data by different time periods. This unparalleled flexibility allows users to fluidly transition between drilling down into specific, minute details and zooming out to grasp a broader strategic overview, establishing the PivotTable as the preeminent tool for continuous data analysis and sophisticated reporting.

Conclusion and Next Steps for Excel Mastery

This tutorial has provided a structured and exhaustive overview of creating a dynamic and highly insightful report using the Excel PivotTable feature. We have successfully executed every key phase, starting with the foundational requirement of structuring our raw data, which is essential for accurate analysis. We then moved through inserting the PivotTable, meticulously configuring fields to summarize team performance, and critically customizing the aggregation metrics to display averages rather than simple sums.

Furthermore, we explored the critical role of visual presentation, utilizing the Design tab to enhance the report’s aesthetic appeal and overall readability. The final report—a clear, well-formatted summary of average points and total assists per team—serves as a tangible representation of the PivotTable‘s capability to transform complex data into transparent, actionable business intelligence.

Mastering PivotTables is undeniably an invaluable competency for anyone engaged in serious data analysis, offering unmatched levels of efficiency and flexibility in report generation. By consistently applying the robust principles detailed in this guide, you will be proficient in creating customized, sophisticated reports that not only present factual data but also illuminate critical underlying patterns necessary for well-informed decision-making across all professional domains.

Further Learning and Advanced Excel Techniques

The analytical capacity of PivotTables extends significantly beyond the fundamental summarization and aesthetic customization techniques covered here. To continually refine your Excel proficiency and extract even deeper, more complex insights from your data, it is highly beneficial to explore related advanced features and functionalities.

We recommend prioritizing the following advanced topics for continued skill development:

• PivotCharts: Learn the technique of visualizing your summarized PivotTable data using dynamic charts that automatically update and reflect changes as you filter or modify the underlying structure.
• Slicers and Timelines: Investigate how to implement highly interactive, user-friendly filters that allow for intuitive and rapid exploration and segmentation of your PivotTable data, particularly across date ranges.
• Calculated Fields and Items: Understand the methodology for creating entirely custom calculations directly within the PivotTable environment, leveraging data relationships that were not explicitly present in your original source data.
• GETPIVOTDATA Function: Master this specialized function designed for reliably extracting specific, single data points from a PivotTable for integration into external formulas or other summary sections of your worksheet.
• Connecting to External Data Sources: Acquire the knowledge needed to construct PivotTables using data sourced from external locations, such as corporate databases, delimited text files, or other independent Excel workbooks.

The path toward becoming an expert in Excel is iterative and rewarding; every new technique mastered will substantially enhance your overall capability to manage, analyze, and present complex data with maximum professional efficiency and analytical impact. Consistent practice and exploration of available resources are key to unlocking this advanced potential.
